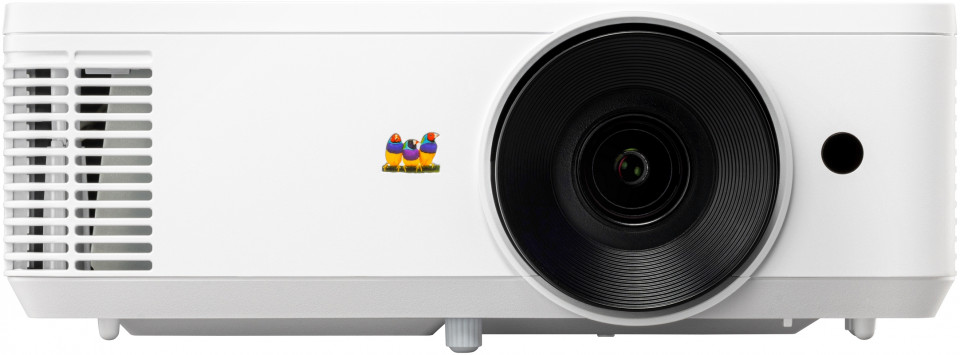

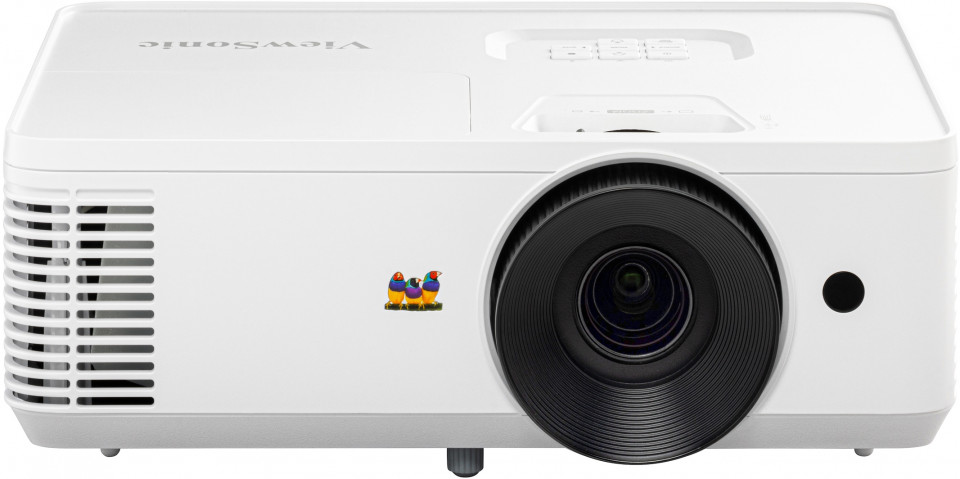

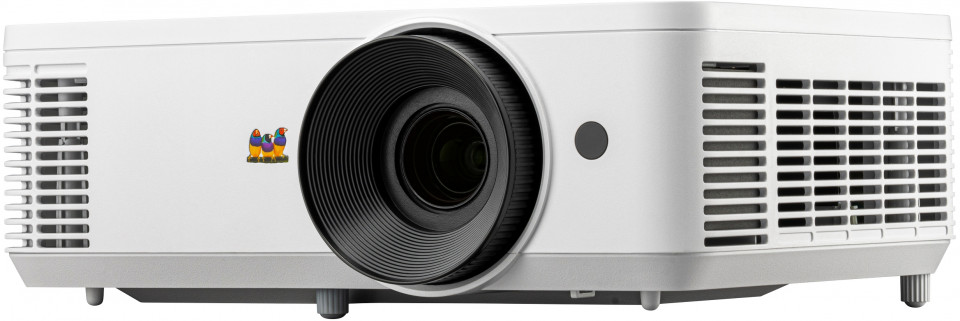

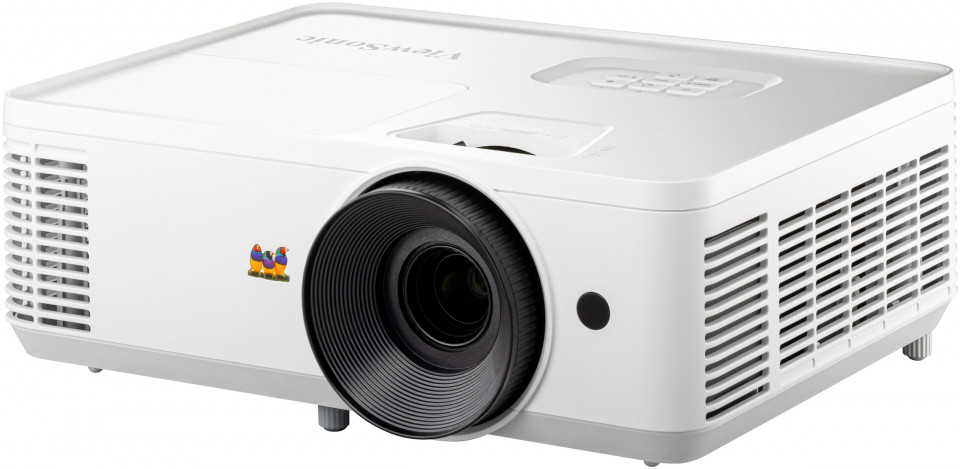

PA700W

4,500 ANSI Lumens WXGA Business & Education Projector

4,500 ANSI Lumens, offering clear images in any environment
Up to 300" ultra large screen with lower cost-per-inch
Easy and flexible connection: dual HDMI ports, USB Type-A port
Vivid colors with ViewSonic's SuperColor™ Technology
Convenient software updates for projectors via USB connection

Sales Enquiry Share

GALLERY

OVERVIEW

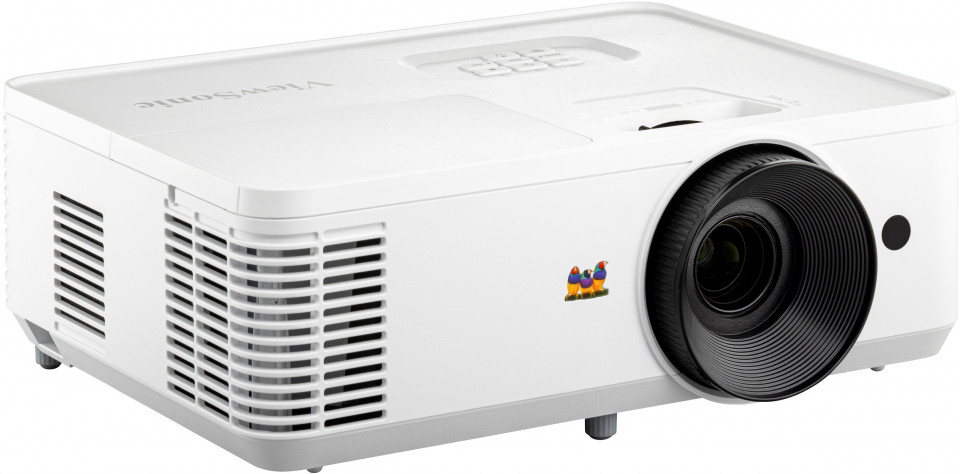

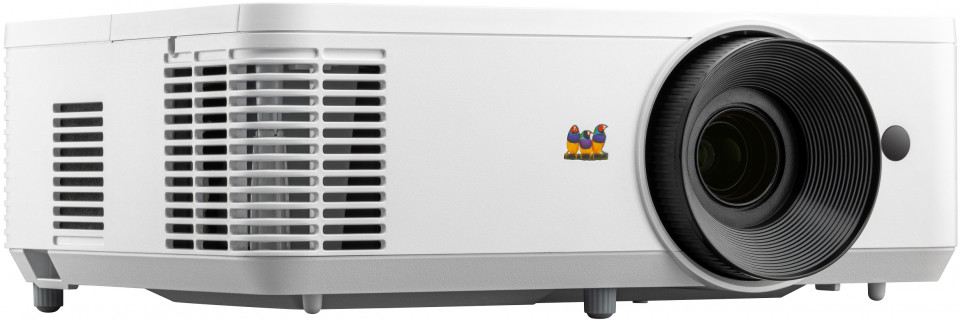

The PA700W is ViewSonic’s high brightness WXGA business/education projector. With 4,500 ANSI Lumens of highbrightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or anyother bright environment. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switchingbetween content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless contentstreaming more convenient. The projector also allows software updates via USB cable connection with simply yourlaptops, skipping trips to service centers.

High Brightness for Business & Education Environments

Thanks to 4,500 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which areperfectly suitable for spaces with a lot of ambient light.

4,500 ANSI Lumens

High Brightness for Business & Education Environments 1

Ultra-Large Screen with Lower Cost-per-inch

The projector allows for an up-to-300” image size, which is much larger and easier to install thancommercial displays.

Up to 300"

Ultra-Large Screen with Lower Cost-per-inch 1

Easy and Flexible Connection

The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices.You no longer have to unplug your existing device to switch to a new one. Simply use the on-screendisplay to select and change the input source.

Dual HDMI Ports

Present the Best with Vibrant Colors

Impress any audience with ViewSonic’s exclusive color technology and elevate your presentationwith a true-to-life color experience.

A Simpler Way to Update Projector Software

Skip trips to the service center by keeping software up to date easily and onsite via USB cableconnection with your laptop.
Learn more: https://youtu.be/irlhJLpDHas
*The latest projector softwareupdate can be found in the download section at the bottom of the page when available.

USB Type A Power Supply

A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminatingthe need for separate power adapters when streaming your multimedia content.

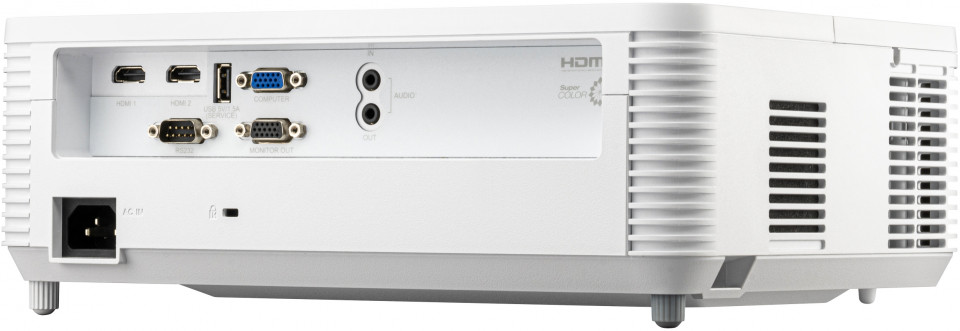

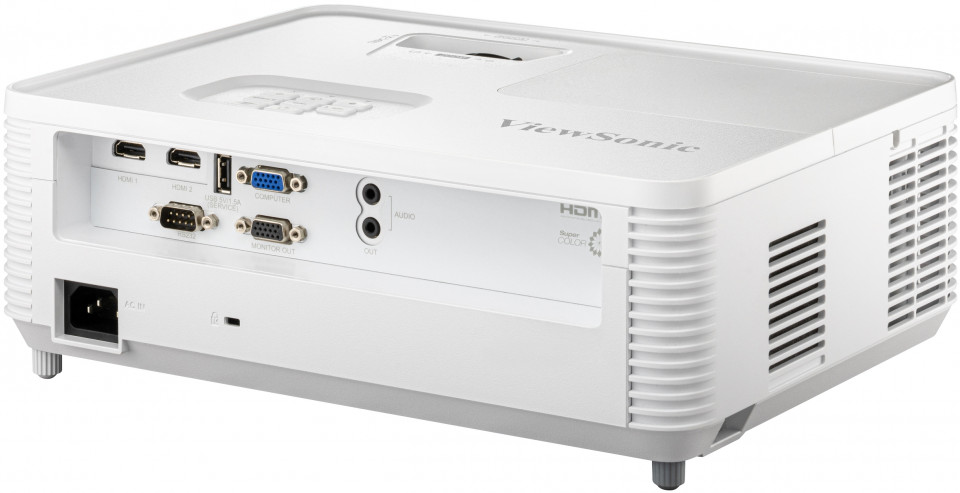

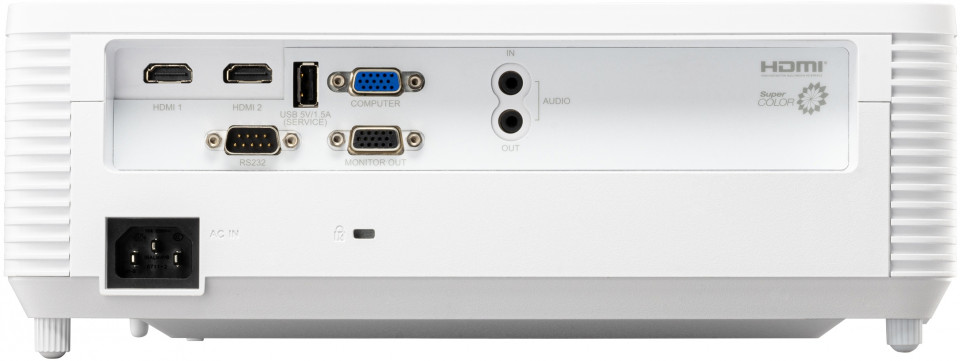

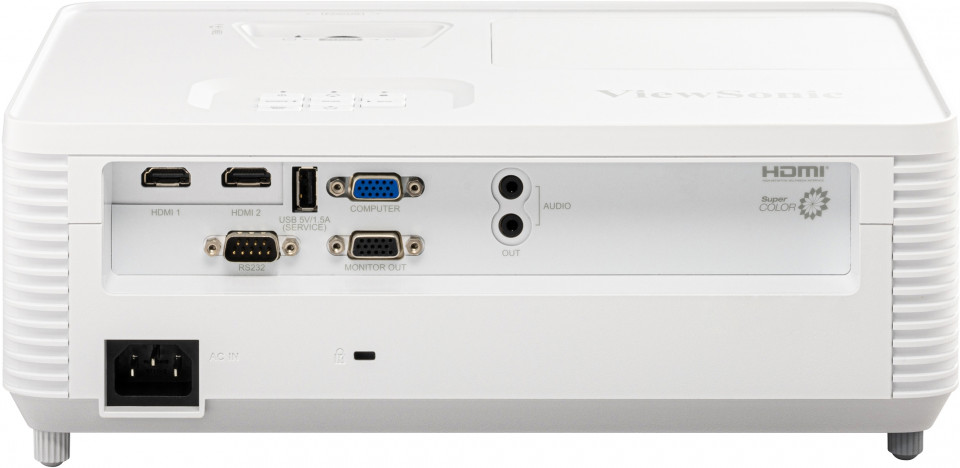

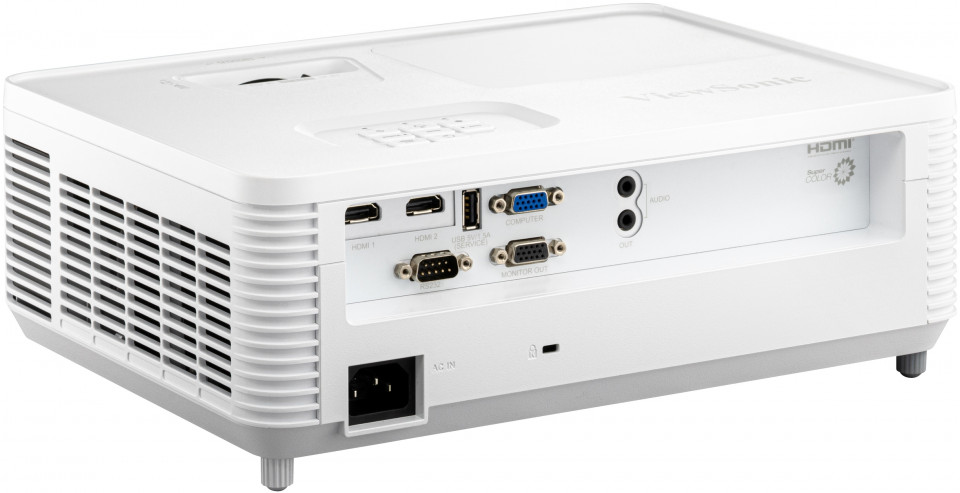

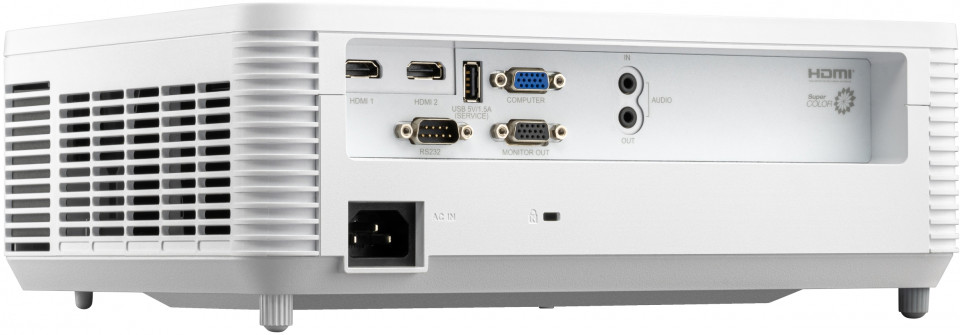

Dimensions & I/O Ports

Adjustment Foot

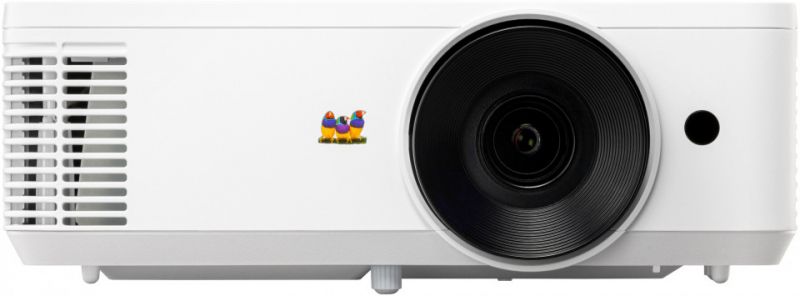

Lens
Front IR
HDMI 1
HDMI 2
USB-A(5V/1.5A, Service)
Computer In
Audio In
AC In
R232
Kensingtion Lock
Monitor Out
Audio Out

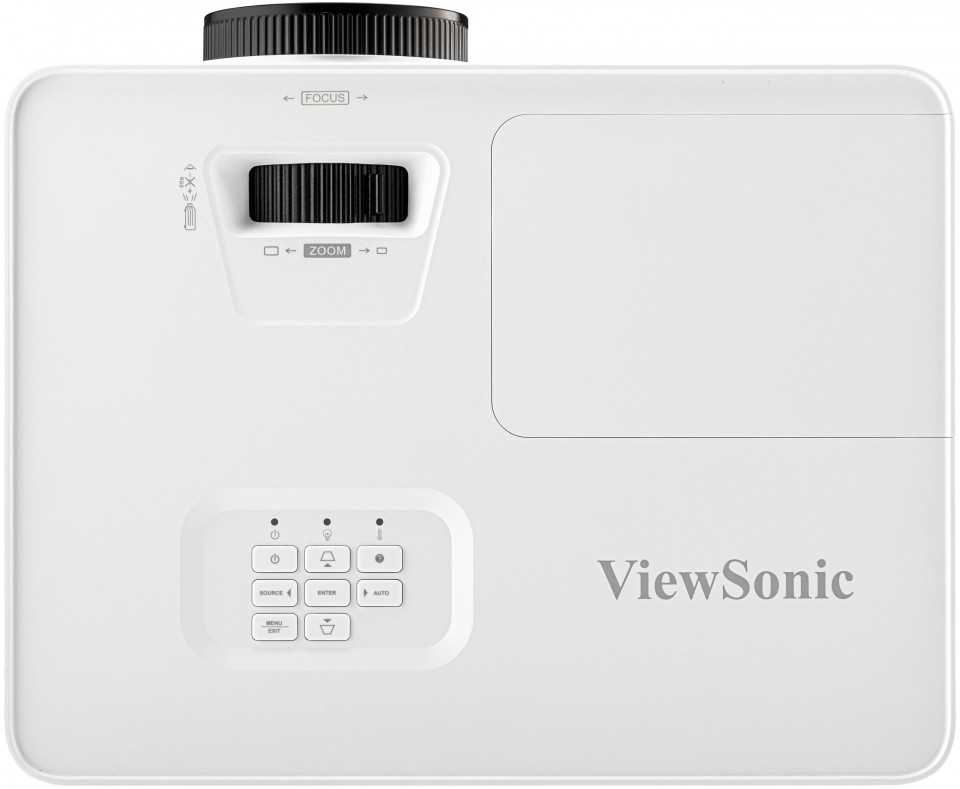

Focus Ring
Zoom Ring
LED Indicator
Keypad

SPECIFICATIONS

Specification
Projection System: 0.65" WXGA
Native Resolution: 1280x800
Brightness: 4500 (ANSI Lumens)
Contrast Ratio with SuperEco Mode: 12500:1
Display Color: 1.07 Billion Colors
Light Source Type: 240W UHP Lamp
Light Source Life (hours) with Normal Mode: 4000
Light Source Life (hours) with SuperEco Mode: 12000
Lens: F=2.41-2.53, f=21.85-24mm
Projection Offset: 112.4%+/-5%
Throw Ratio: 1.544-1.72
Optical Zoom: 1.1x
Digital Zoom: 0.8x-2.0x
Image Size: 30"-300"
Throw Distance: 1.00m-11.11m
(100"@3.33m)
Keystone: +/- 40° (V)
Audible Noise (Normal): 34dB
Audible Noise (Eco): 25dB
Input Lag: 33.2ms
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility: NTSC, PAL, SECAM
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 23-120Hz
Input
Computer in (share with component): 1
HDMI: 2
(HDMI 1.4/ HDCP 1.4)
Audio-in (3.5mm): 1
Output
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 3W
USB Type A (Power): 1 (5V/1.5A)

Control
RS232 (DB 9-pin male): 1
USB Type A (Services): 1
(share with USB A Output)
Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 295W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 2.70kg
Gross Weight: 3.80Kg
Dimensions (WxDxH) with Adjustment Foot: 309x234x115mm
Packing Dimensions: 400x337x168mm
OSD Language: English, German, French, Swedish, Spanish, Portuguese, Polish, Dutch, T. Chinese, S.Chinese, Finnish, Korean, Russian, Hungarian, Czech, Arabic, Thai, Turkish, Vietnamese, Indonesian, Greek, Italian, Total 22 languages
User Guide Language: English, S-Chinese, T-Chinese, Finnish,French,German,Italian,Japanese,Korean,Polish,Portuguese,Russian,Spanish,Swedish,Turkish, Total 15 languages
Standard Accessory
Power Cord: 1
VGA Cable: 1

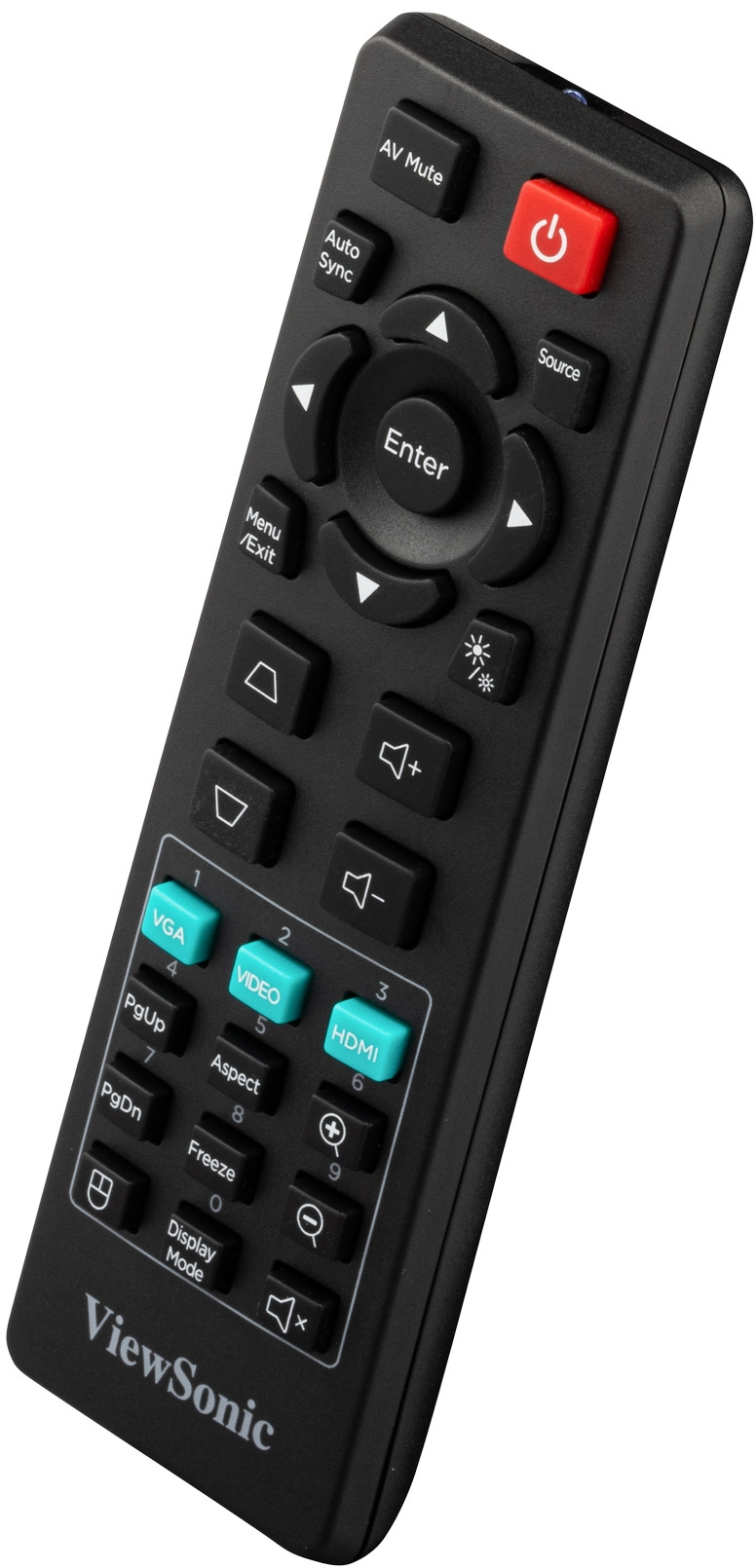

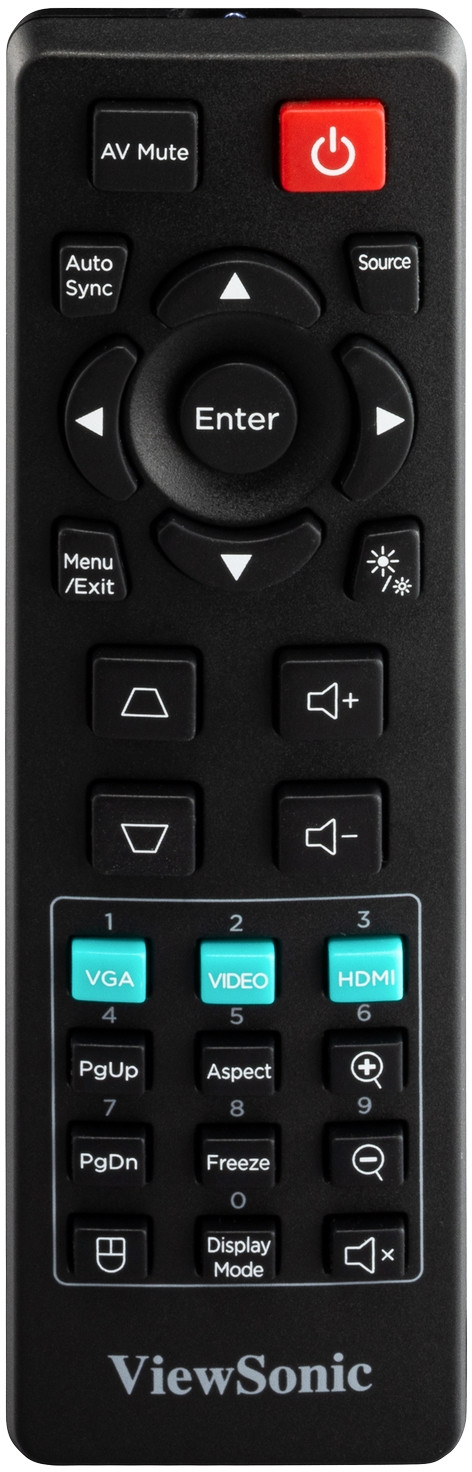

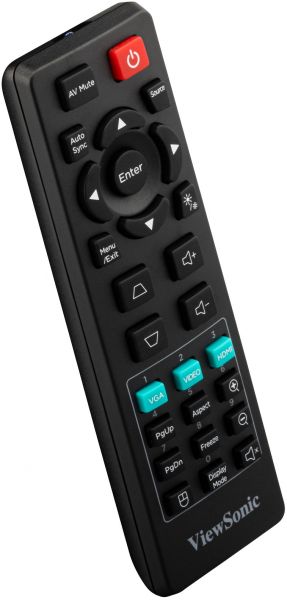

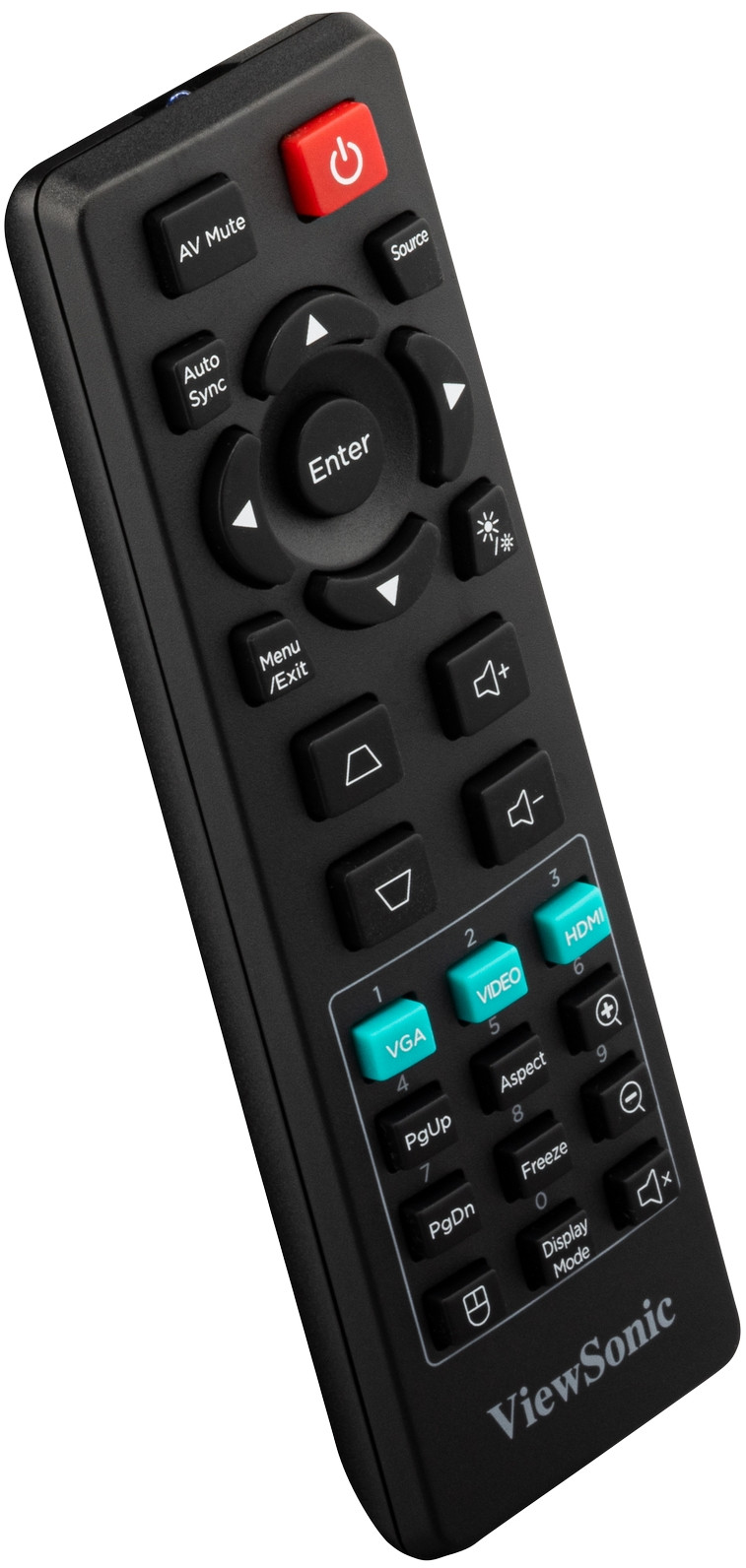

Remote Control: 1
QSG: Yes
Air Filter: Yes (CN Only)
Warranty: *Warranty offered may differ from market to market
Optional Accessory
Lamp/Light Source: RLC-128
Air Filter: RSPL
Wall/Ceiling Mount: PJ-WMK-007
Carry Bag: PJ-CASE-008
