SPECIFICATIONS
- DisplayDisplay Size (in.): 24
Viewable Area (in.): 23.8
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,300:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (MPRT): 1ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 100
Variable Refresh Rate Technology: Yes
Blue Light Filter: Yes
Flicker-Free: Yes
Color Gamut: NTSC: 75% size (Typ)
sRGB: 105% size / 99% coverage (Typ)
Pixel Size: 0.275 mm (H) x 0.275 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested

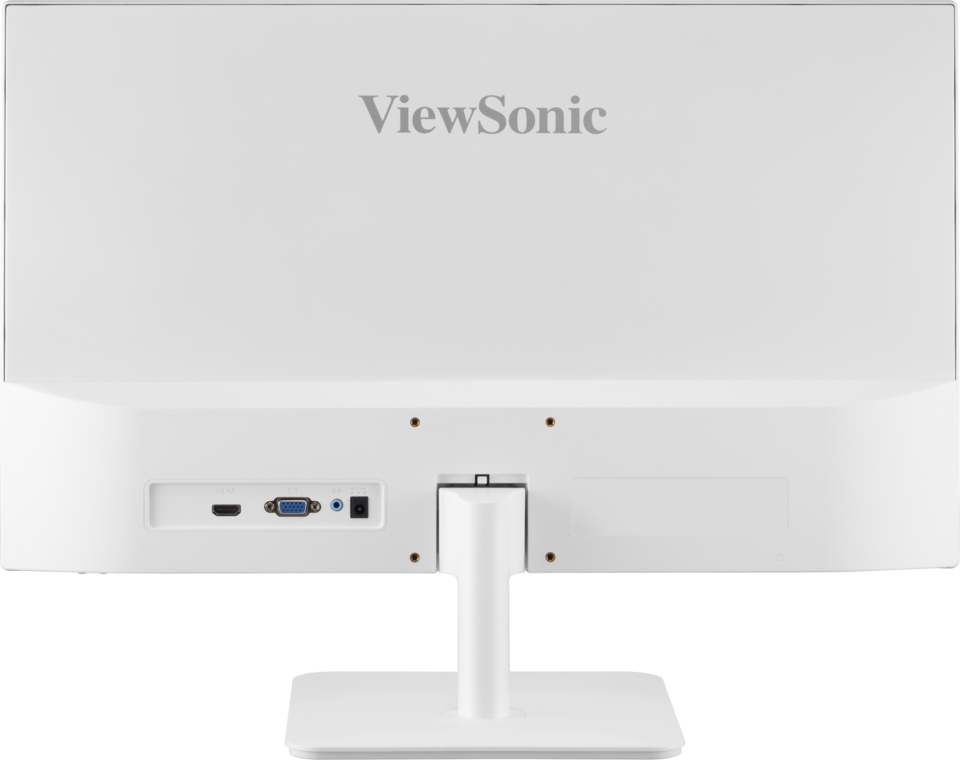

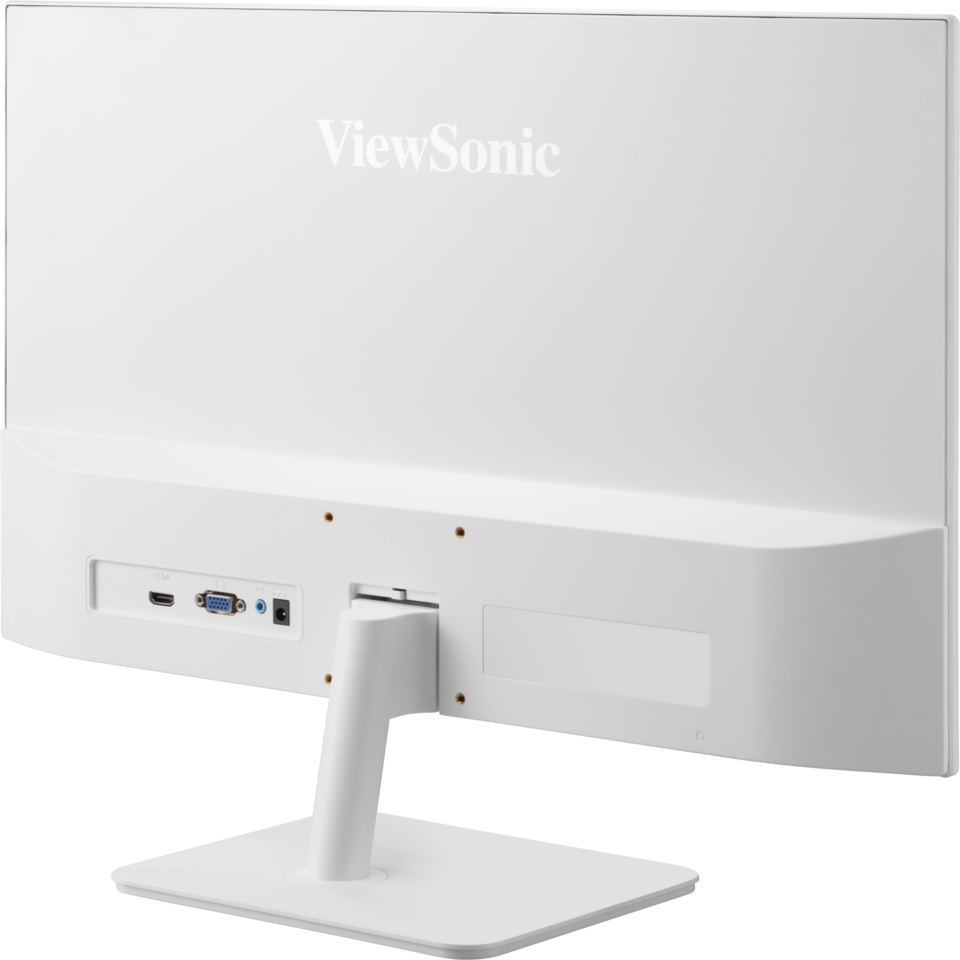

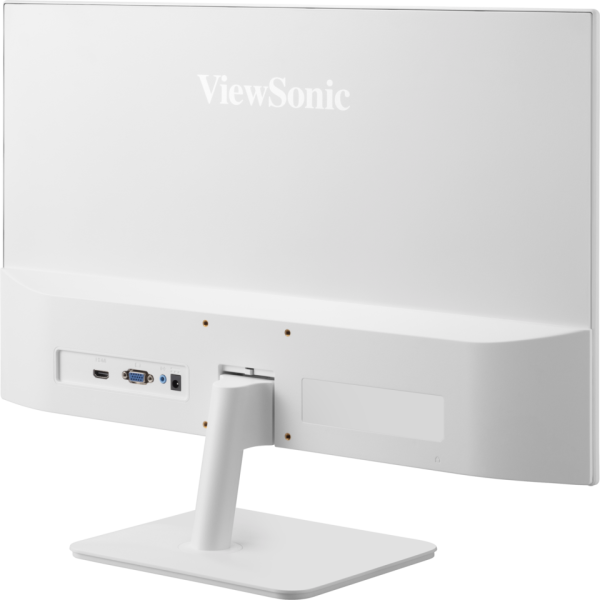

Mac® Resolution (min): 1920x1080 - ConnectorVGA: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
Power in: DC Socket (Center Positive)
- PowerEco Mode (Conserve): 15W
Eco Mode (optimized): 18W
Consumption (typical): 22W
Consumption (max): 25W
Voltage: AC 100-240V
Stand-by: 0.3W
Power Supply: External Power Adaptor - Additional HardwareKensington Lock Slot: 1
- ControlsPhysical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
On Screen Display: Input Select, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Wall MountVESA Compatible: 75 x 75 mm
- Input SignalFrequency Horizontal: RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 30 ~ 115KHz
Frequency Vertical: RGB Analog: 48 ~ 75Hz, HDMI (v1.4): 48 ~ 100Hz - Video InputDigital Sync: TMDS - HDMI (v1.4)

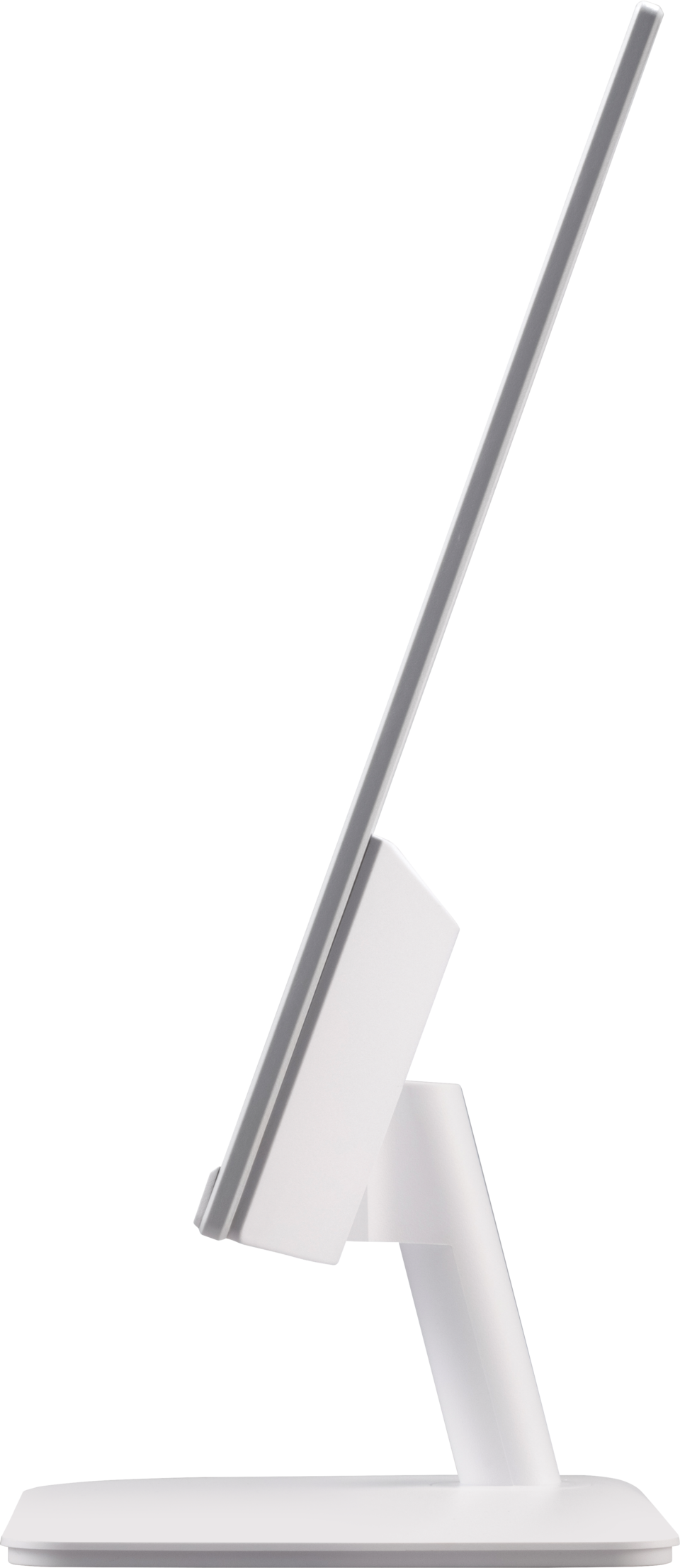

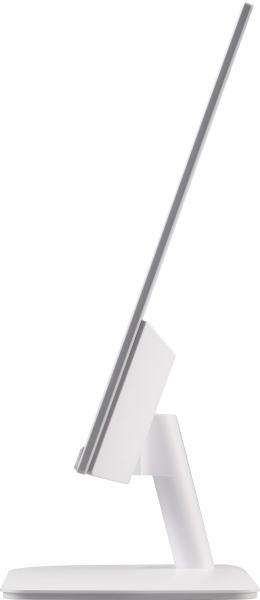

Analog Sync: Separate - RGB Analog - ErgonomicsTilt (Forward/Back): -3º / 20º
- Weight (imperial)Net (lbs): 6
Net Without Stand (lbs): 5.3
Gross (lbs): 8.2 - Weight (metric)Net (kg): 2.7
Net Without Stand (kg): 2.4
Gross (kg): 3.7 - Dimensions (imperial) (wxhxd)Packaging (in.): 23.6 x 15.6 x 4.4
Physical (in.): 21.3 x 16 x 7.3
Physical Without Stand (in.): 21.3 x 12.7 x 1.4 - Dimensions (metric) (wxhxd)Packaging (mm): 600 x 395 x 112
Physical (mm): 540 x 406 x 185
Physical Without Stand (mm): 540 x 322 x 36 - GeneralRegulations: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, BSMI, RCM, GEMS, KC, K-MEPS, BIS
PACKAGE CONTENTS: VA2432-H-W x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Power plug x1 or 2 (by country)
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
