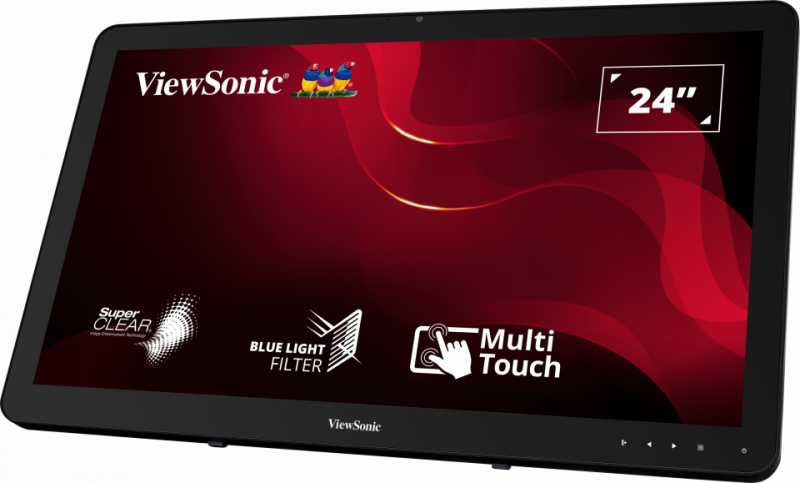

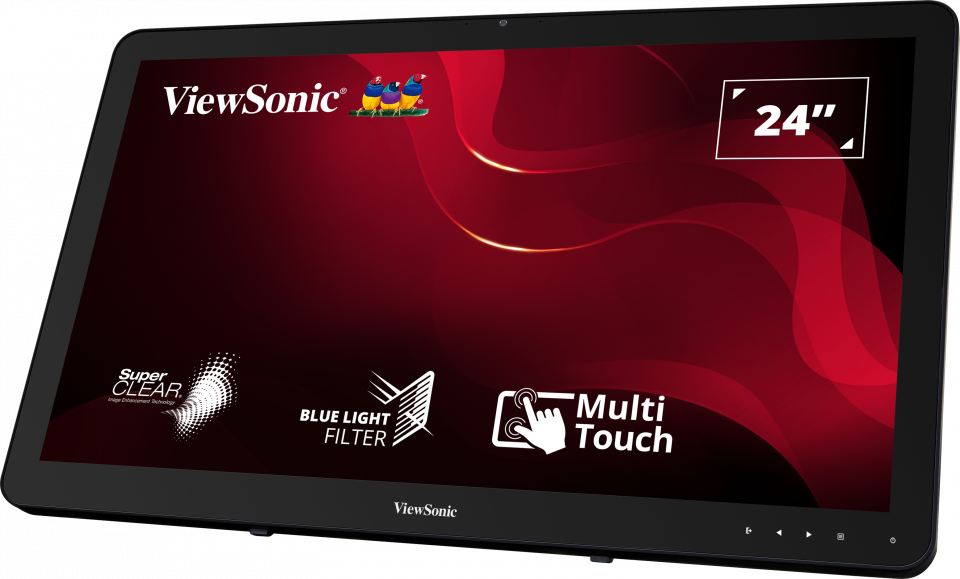

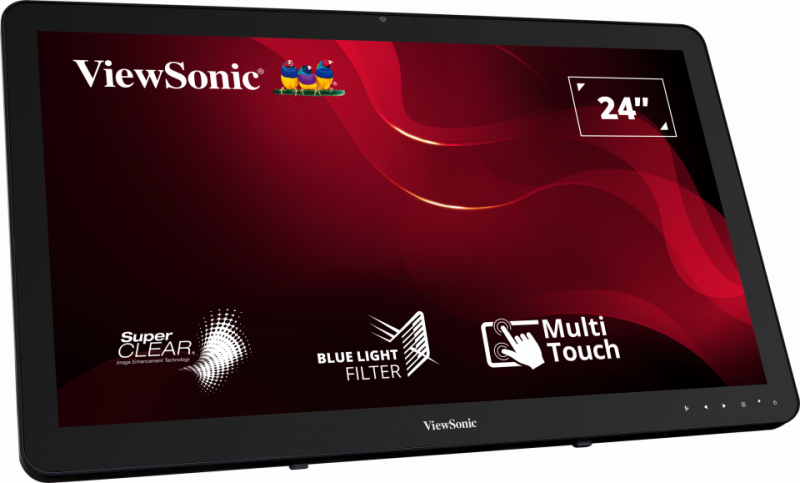

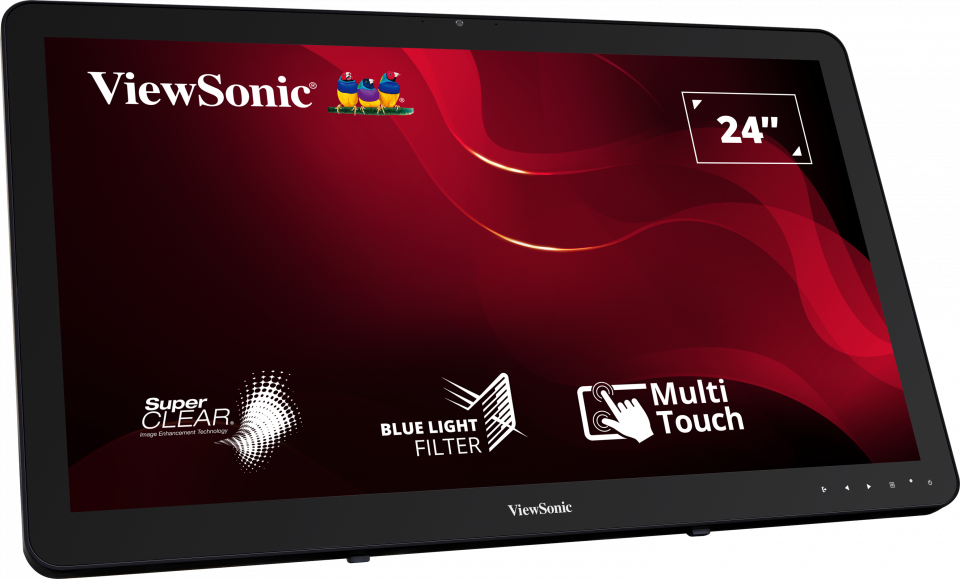

TD2430

24" 10-point Touch Screen Monitor

SuperClear® technology
Frameless design
HDMI, DisplayPort and VGA inputs
7H hardness screen
Supports Windows® 7/8/10/11 and selected Android and Linux

Sales Enquiry Share

GALLERY

OVERVIEW

Laid flat or angled for customized comfort, this display delivers touchscreen versatility to the max. Offering fantastic flexibility for retail, education, or business settings, the ViewSonic® TD2430 is a 24” (23.6” viewable) Full HD display with 10-point multi-touch functionality. Delivering adjustable positioning, wide-angle viewing, and a durable design, the TD2430 has everything to accommodate your unique needs. Adding even more convenience, cross-compatibility with a wide range of operating systems includes Windows 10/11, and certain Android and Linux versions.* With a sleek edge-to-edge screen and frameless bezel, this intuitive touchscreen performs like your favorite tablet or smartphone to deliver a highly accurate, ultra-responsive touch experience ideal for interactivity in public environments, kiosk and wayfinding applications, classroom settings, and more. *Supports Windows 7/8/10/11, Linux 2.6.38 or later, and Android 4.0 or later.

10-Point Projected Capacitive Touch

Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for multi-user interactive environments such as home entertainment, office, education, and commercial use.

10-point Multi-touch

Viewing Clarity from Wide Angles

Enjoy superb performance and better viewing quality from horizontal to vertical angles. With SuperClear® Vertical Alignment panel technology, the monitor remains clear and in good contrast color from 178° all around, whether you are looking at the screen from above, below, the front, or the side.

SuperClear® 178°/178°

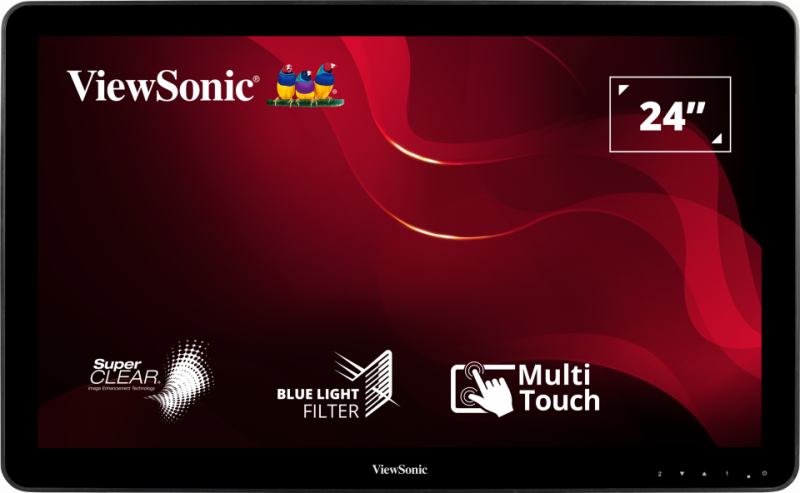

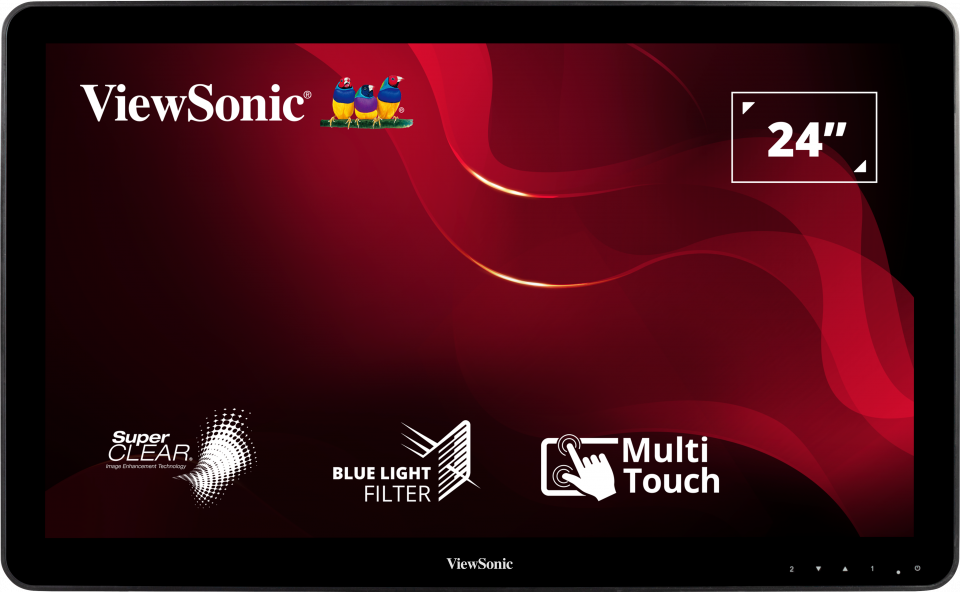

A frameless bezel design creates a seamless touch-control experience

Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features a frameless edge-to-edge glass faceplate with an ultra-slim bezel beneath the glass. A frameless bezel design makes touch more effortless, perfect for multi-user experiences, encouraging interactive enjoyment with seamless contact.

Edge-to-Edge Screen

A frameless bezel design creates a seamless touch-control experience 1

Full HD 1080p Resolution

This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether while working, gaming, or enjoying the latest in multimedia entertainment.

1080p

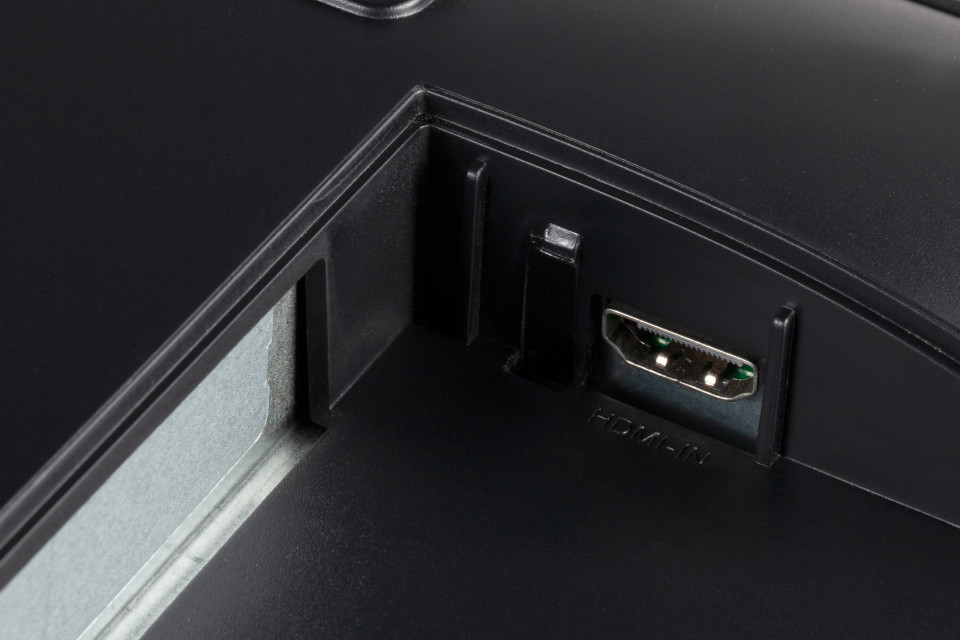

HDMI, DisplayPort and VGA inputs for flexible connectivity

HDMI, DisplayPort and VGA inputs, enable users to connect to game consoles, Blu-ray players, digital cameras, laptops, satellite boxes, and other high-definition devices.

HDMI, DisplayPort, VGA

HDMI, DisplayPort and VGA inputs for flexible connectivity 1

7H Scratch-resistant surface hardness

The TD2430 touch display is constructed with a 7H hardness protective glass which provides increased scratch-protection to deliver the safest and most durable touch experience. It prevents any heavy damage caused by fingers, nails, or styluses during touch operations, making it ideal for use in kiosks, educational settings, or other public environments.

7H Hardness

Enhanced Viewing Comfort

Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods

Flicker-Free & Blue Light Filter

Dual Integrated Stereo Speakers

Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.

2.5W x 2

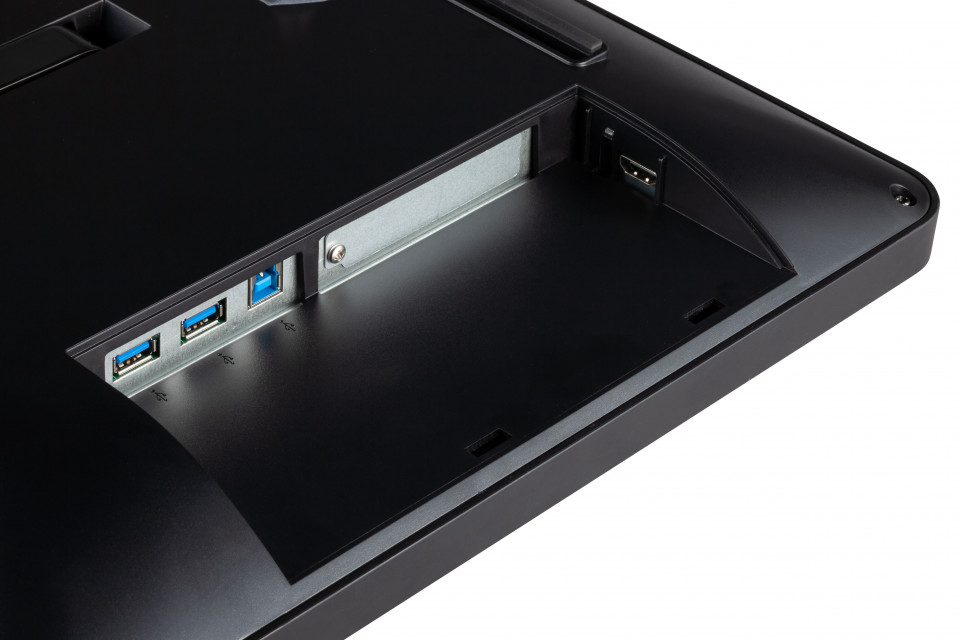

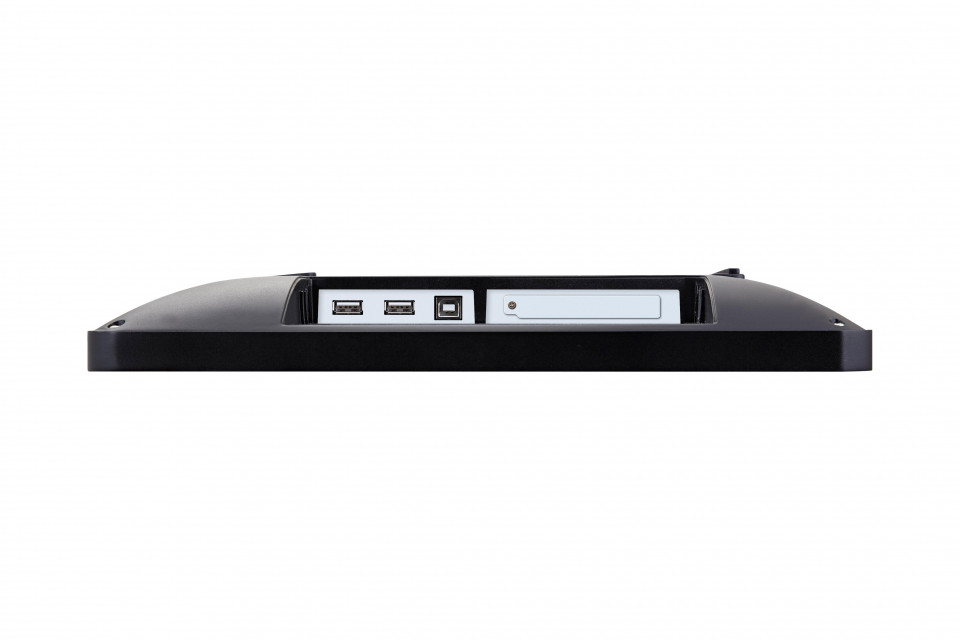

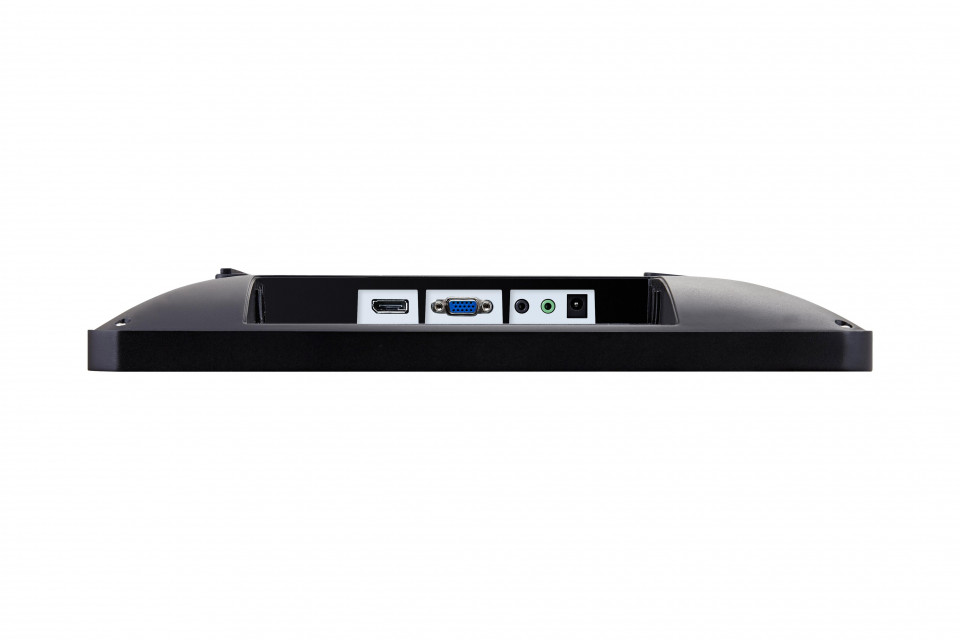

I/O ports

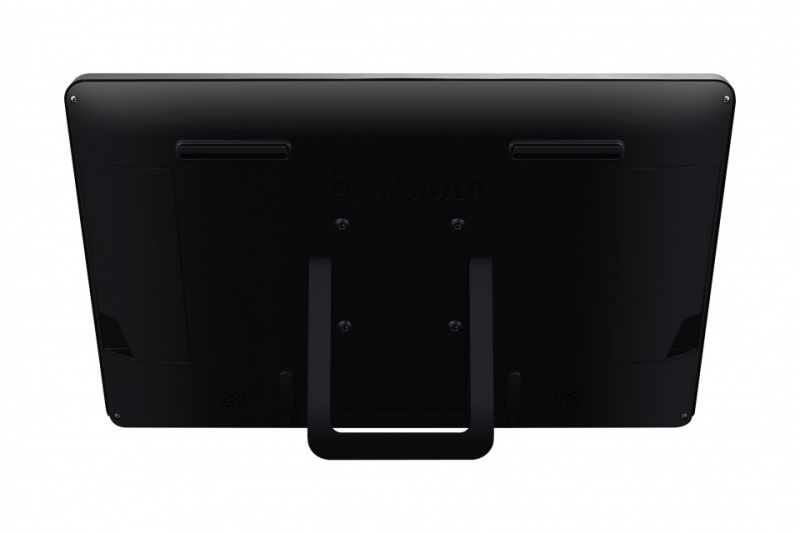

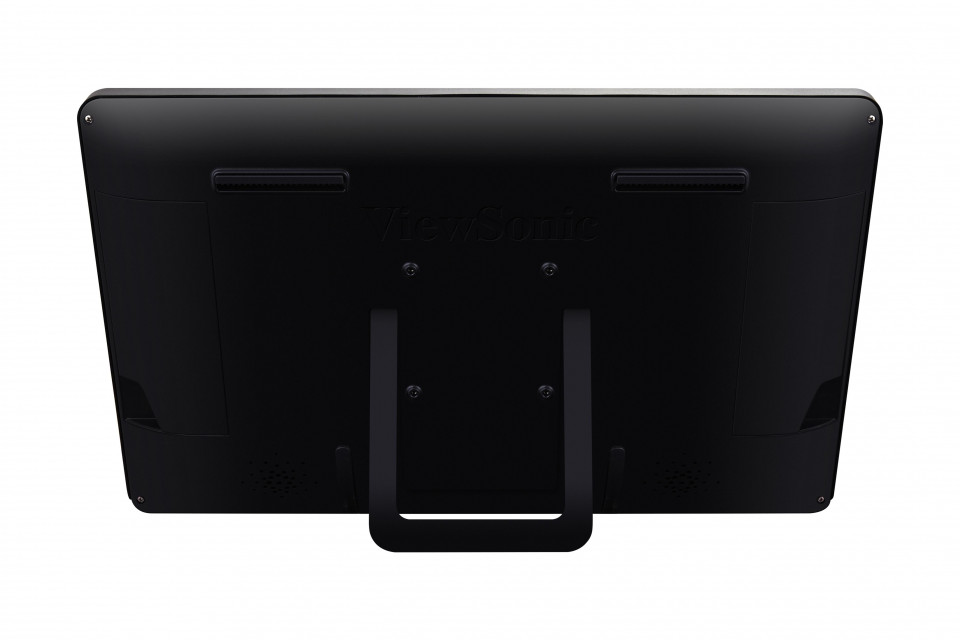

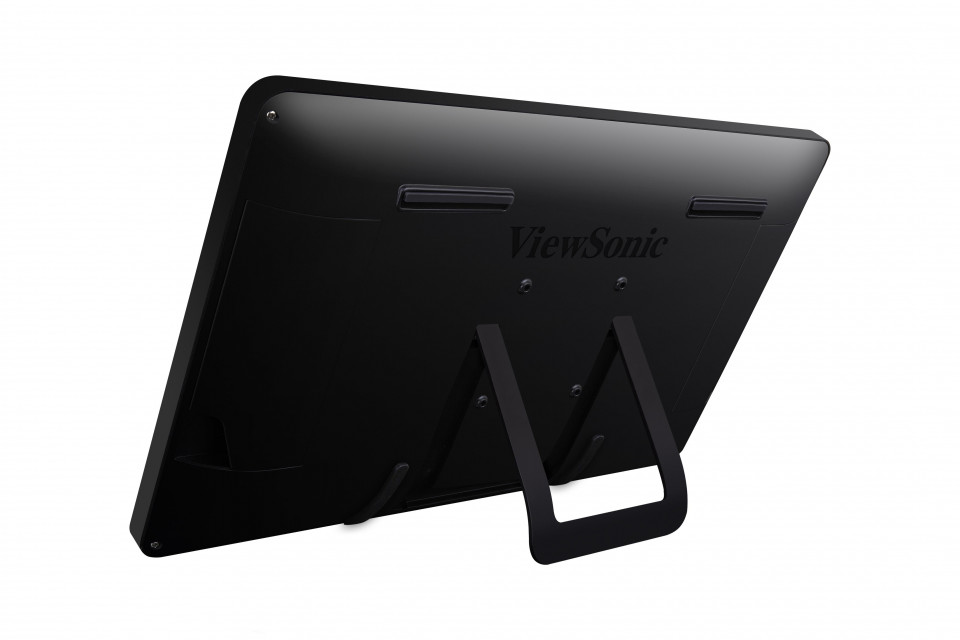

100 x 100mm VESA-mountable design

Menu Control Panel
VESA Compatible
(Wall Mount 100 x 100mm)
Internal Speakers
DisplayPort
VGA
Headphone
Audio In
DC In
HDMI
USB 3.0 Type B
USB 3.0 Type A (x2)

SPECIFICATIONS

Display
Display Size (in.): 24
Viewable Area (in.): 23.6
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 200 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 10ms
Response Time (GTG w/OD): 10ms
Response Time (Typical Tr+Tf): 25ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 40000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Blue Light Filter: Yes
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Pixel Size: 0.272 mm (H) x 0.272 mm (V)
Touch Screen: Projected Capacitive, 10-point multi-touch
Surface Treatment: Glossy, Hard Coating (7H)
Cover Glass Thickness: 1.8mm
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 8/10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
VGA: 1
USB 3.2 Type A Down Stream: 2
USB 3.2 Type B Up Stream: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
DisplayPort: 1
Power in: DC Socket (Center Positive)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 19W
Eco Mode (optimized): 22W
Consumption (typical): 25W
Consumption (max): 28W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz
Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, DisplayPort (v1.2): 24 ~ 75Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
Analog Sync: Separate/Composite/SOG - RGB Analog
Ergonomics

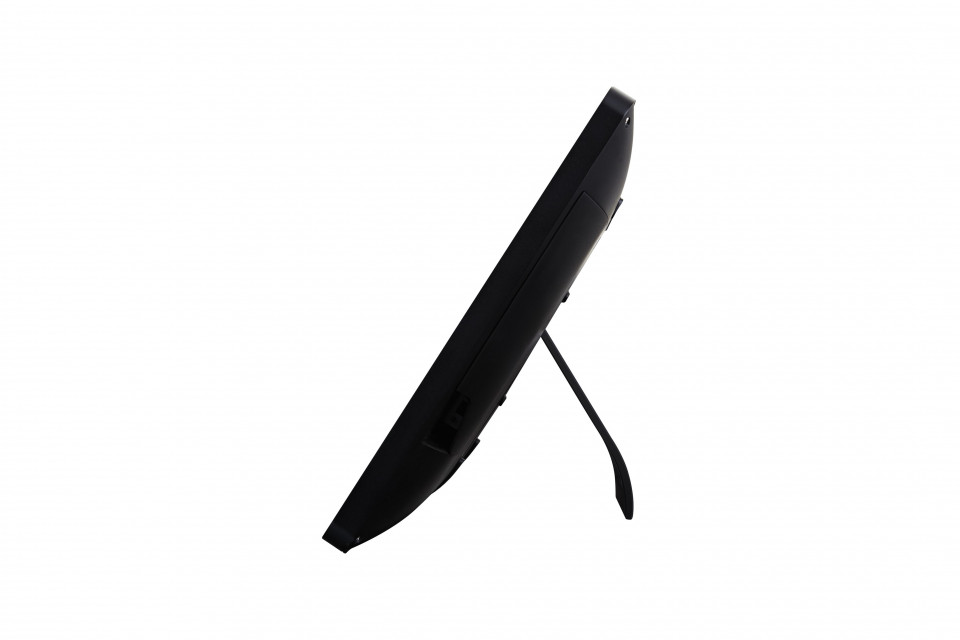

Tilt (Forward/Back): 20º / 53º
Weight (imperial)
Net (lbs): 12.1
Net Without Stand (lbs): 12.1
Gross (lbs): 15.6
Weight (metric)
Net (kg): 5.5
Net Without Stand (kg): 5.5
Gross (kg): 7.1
Dimensions (imperial) (wxhxd)
Packaging (in.): 25.3 x 17.1 x 5.5
Physical (in.): 22.6 x 13.9 x 1.9
Physical Without Stand (in.): 22.6 x 13.9 x 1.9
Dimensions (metric) (wxhxd)
Packaging (mm): 643 x 435 x 140
Physical (mm): 573 x 353 x 47
Physical Without Stand (mm): 573 x 353 x 47
General
Regulations: cTUVus, FCC-B, ICES003, Energy Star, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, CCC, China RoHS, China Energy Label, CECP
PACKAGE CONTENTS: TD2430 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Audio Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards
