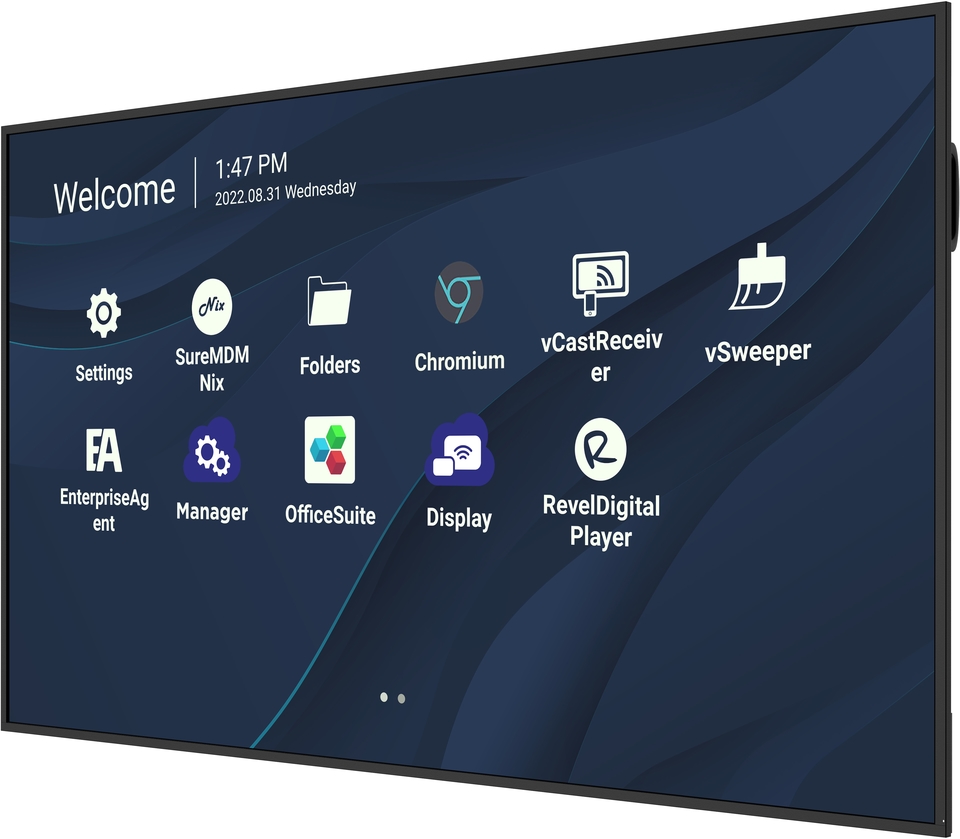

CDE8630
86" 4K Presentation Display
- Wireless presentation for upgraded efficiency
- Single cable via USB-C with 65W power delivery
- 24/7 Sustainable video playback for continuous communication
- Remote device management with myViewBoard Manager
- ProAV compatibility with Crestron, Extron, and AMX
OVERVIEW

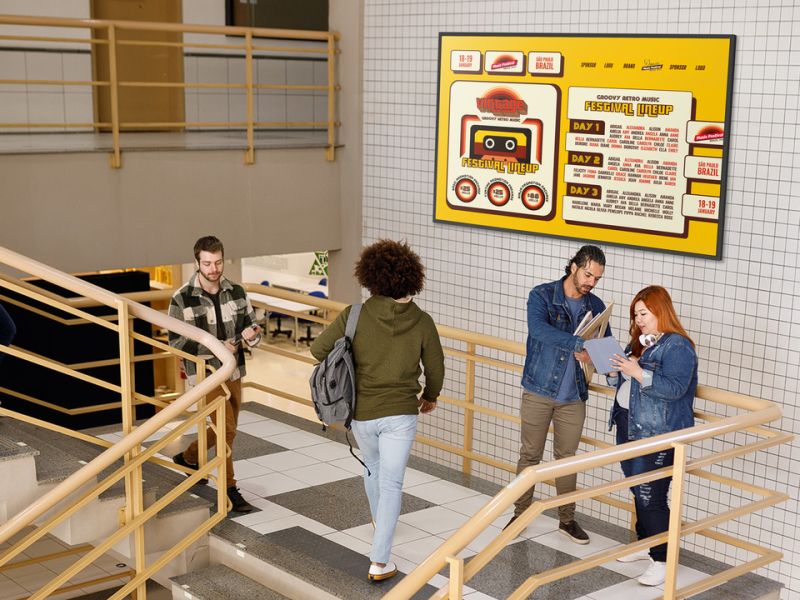

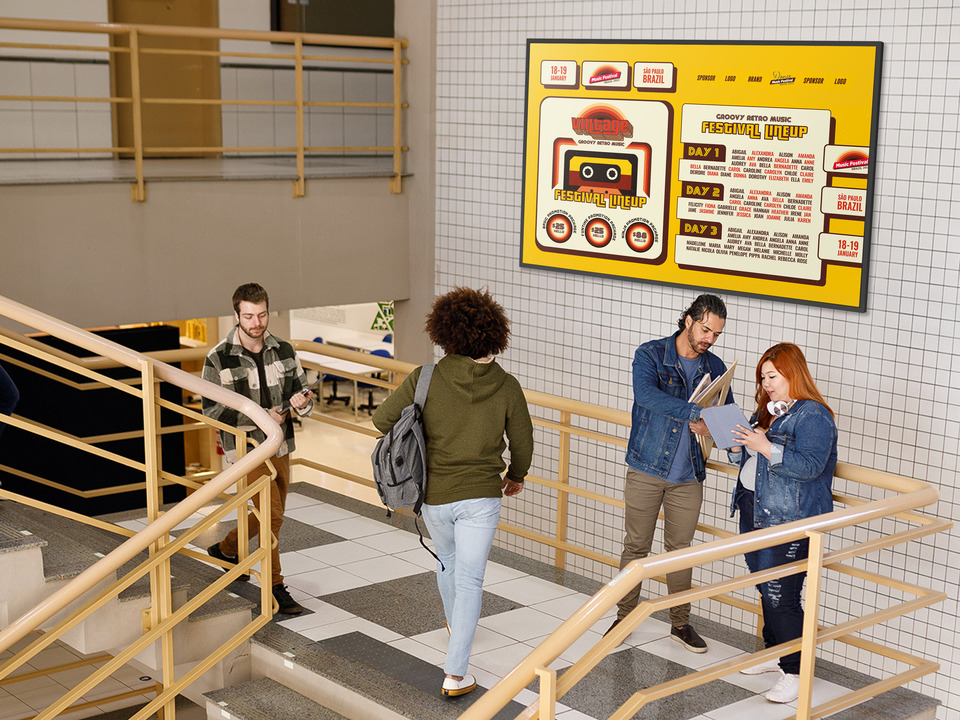

With stunning 4K Ultra HD resolution, high brightness, and landscape and portrait modes, the CDE30 Series offers continuous and sustainable 24/7 display for both corporate and campus communication. Purpose-engineered for ease of use, the display is equipped with a Quad Core SoC to run multiple operations seamlessly, and its USB-C one-cable solution sorts for effortless connection with external devices. Designed for easy-to-operate continuous multimedia playback, the CDE30 Series offers cable-free screen casting and screen sharing through myViewBoard Display and ViewBoard Cast, which also supports Airplay and Chromecast. Remote management via the intuitive myViewBoard Manager makes changing content, broadcasting, and software updates a breeze. Available in 6 sizes ranging from 43" to 98", complete with daisy-chain compatibility, the CDE30 Series meets and exceeds the communication needs of any campus or corporate spaces.
Features for Presentation Display
Connection Made Efficient
The CDE30 Series, with its USB-C connectivity, has been designed to enable ease of operation and upgraded efficiency. This all-in-one solution brings together single-cable speedy-data transfers and multimedia broadcasting while powering your connected device and providing it with fast and stable internet access.
Wireless Content Sharing
The CDE30 Series comes complete with cable-free sharing solutions. myViewBoard Display delivers instant browser-based castings for screen-mirroring with no cable or download necessary, making it perfect for quick presentations and guest users. For more advanced features, ViewBoard Cast offers split, extended, and grouped screen capabilities from any device. It also supports AirPlay and Chromecast so users can effortlessly share their screens.
Optional Windows Slot-in PC
Equipped with a slot-in PC operating on Windows OS, the CDE30 Series will further enhance your productivity. The mighty combination of dual-band Wi-Fi and Bluetooth, up to a powerful Intel® Core™ i7 Processor, 8GB (up to 64GB) RAM, and 256GB SSD storage offer you all the computing power you need to operate CPU-intensive applications.
Disclaimer:The feature is only available with certain model:CDE6530, CDE7530, CDE8630, CDE9830
Features for Large Format Display
Non-stop Operation Hours

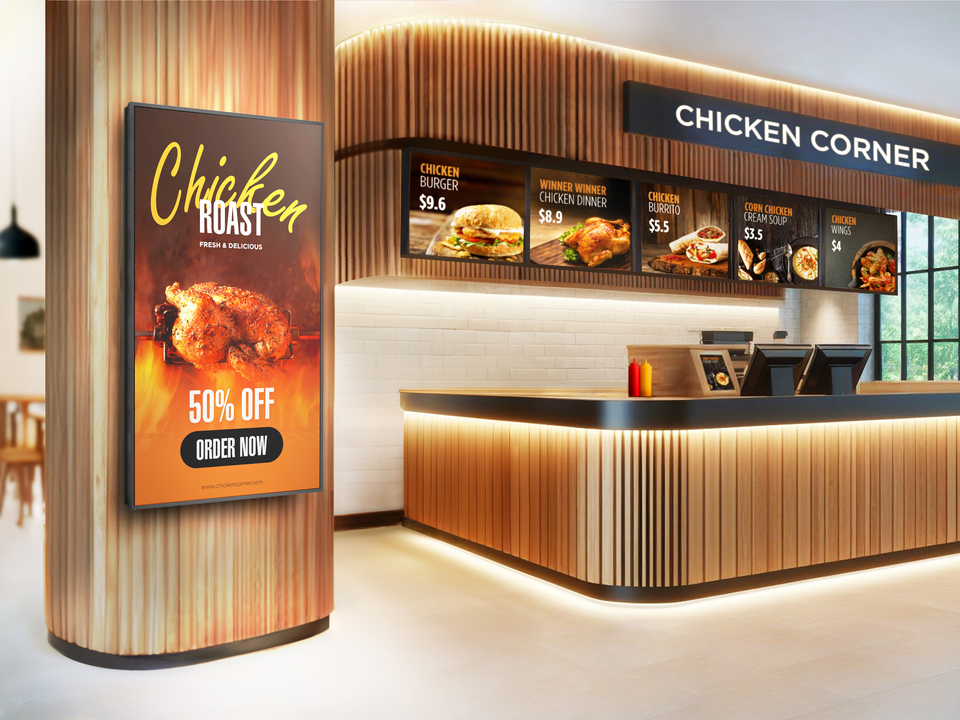

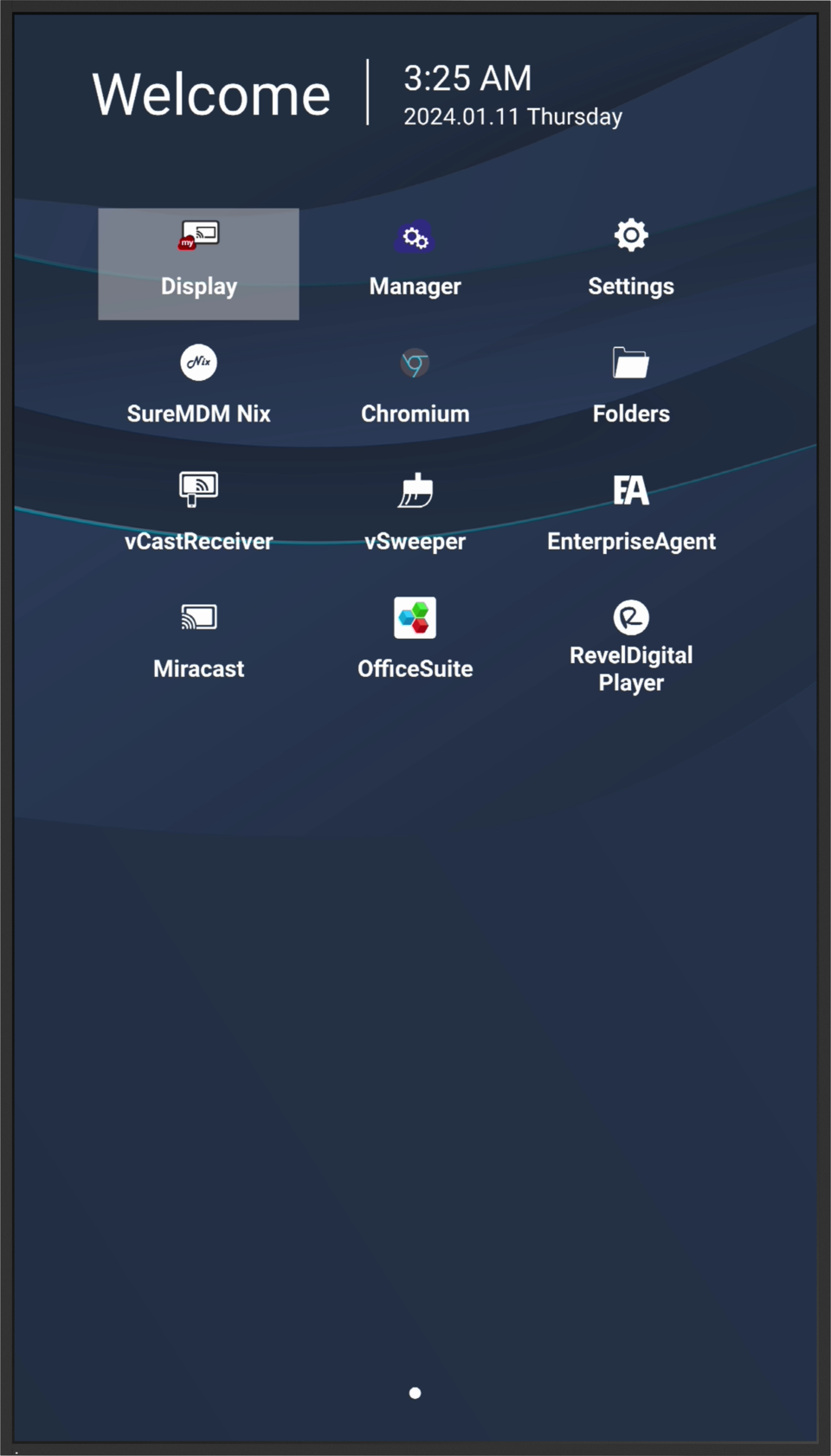

Alongside its ability to run 24/7 for continuous message delivery, the CDE30 Series smoothly operates in both landscape and portrait modes to deliver the most efficient communication format. The display's brightness ensures captivating visual quality, and its daisy-chain compatibility caters for easy network topology and deployment.
SoC-powered Performance

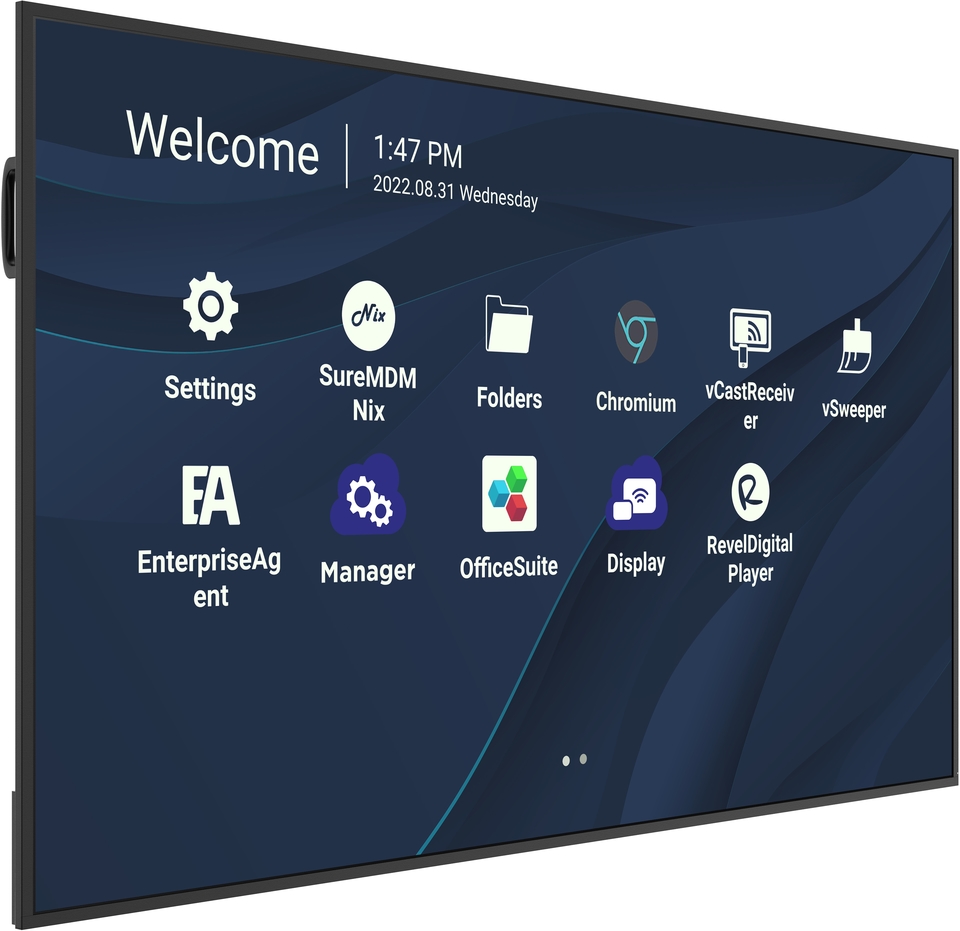

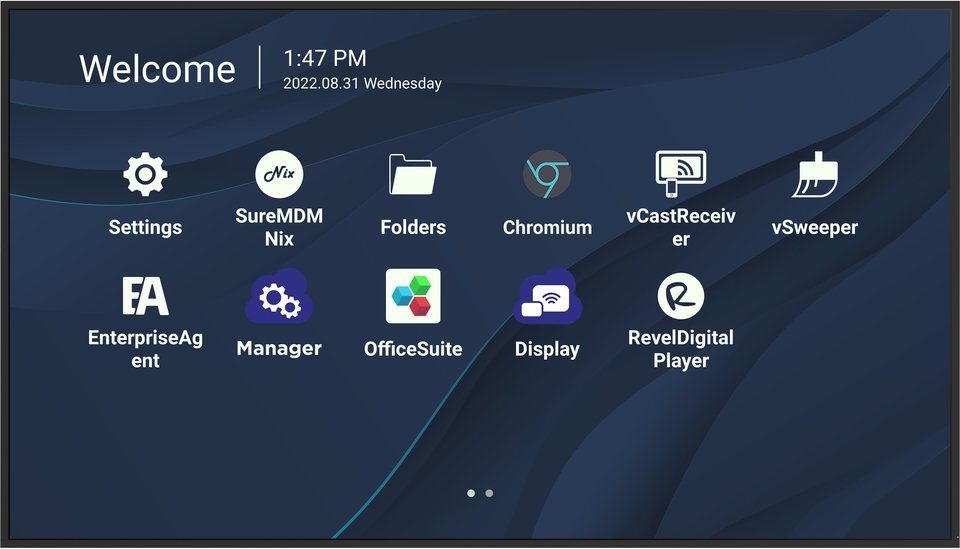

The CDE30's built-in Quad Core SoC with embedded Android 11 and capable memory can execute several tasks at once while providing smooth content playback without requiring a media player. This all-in-one digital signage solution reduces both costs and your carbon footprint, while delivering a top-notch performance without needing a PC or any additional cables.
Central Management and Control

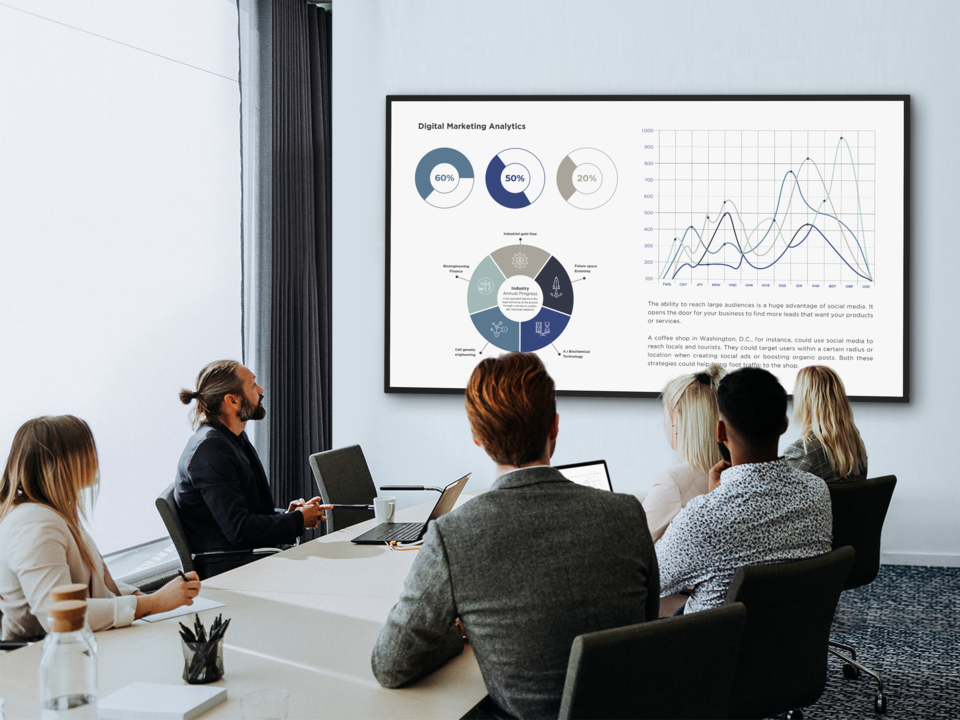

Corporate Communication Simplified
ViewSonic myViewBoard Manager is a web-based software for IT teams and administrators that centralizes message broadcasting. With just one device, you can easily synchronize information on multiple Presentation Displays, aligning corporate communication on all levels. No matter whether it’s a general announcement, an emergency message, or a multimedia asset. You are guaranteed a reduced workload.
*For even more features, make sure to check myViewBoard Manager Advanced.
Insight Report and Remote Desktop
ViewSonic myViewBoard Manager offers better operational efficiency thanks to its browser-based centralized management system. IT admins can remotely track devices, apps, and input sources, as well as measure and optimize tool usage with clear metrics and insights reports. The Remote Desktop feature streamlines maintenance, allowing for instant support without requiring on-site IT services.
Disclaimer: Device usage status is only available with myViewBoard Manager Advanced.
Compatible with Creston, AMX, Extron
Compatible with Creston Connected V1, AMX, and Extron systems, the CDE30 Series allows for an always-on mode with complete remote control of all lightning, audio, displays, and other AV control systems both on-site and off-site.

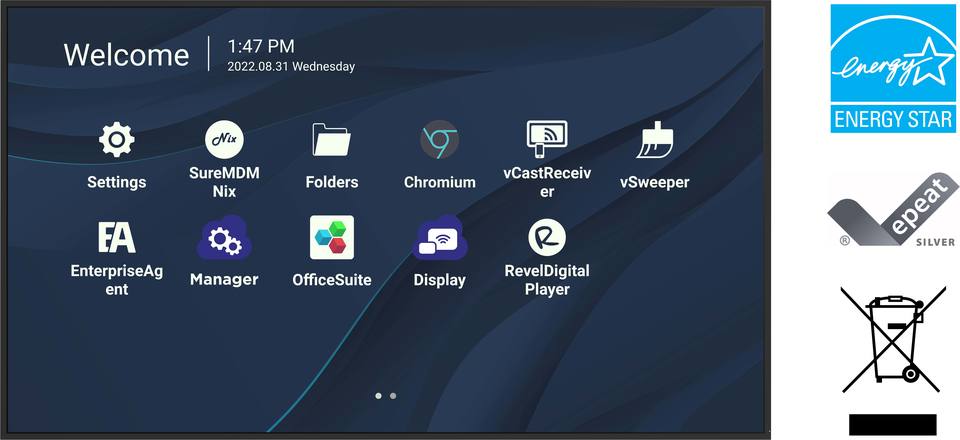

Environmentally Friendly
Sustainable solutions

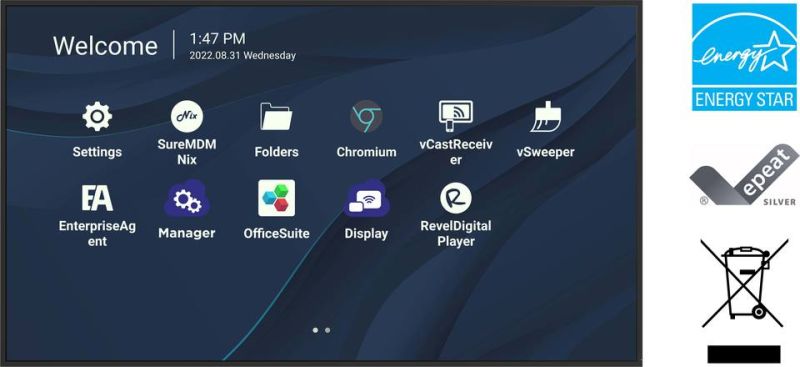

The CDE30 Series has been awarded EPEAT certification in the US — currently, the highest environmental rating achieved by any large format displays — for meeting the required criteria on energy consumption, supply chain carbon emissions, and end-of-life management. Committed to sustainability, ViewSonic has been actively implementing advanced energy-efficient and eco-friendly practices across all its product lines.

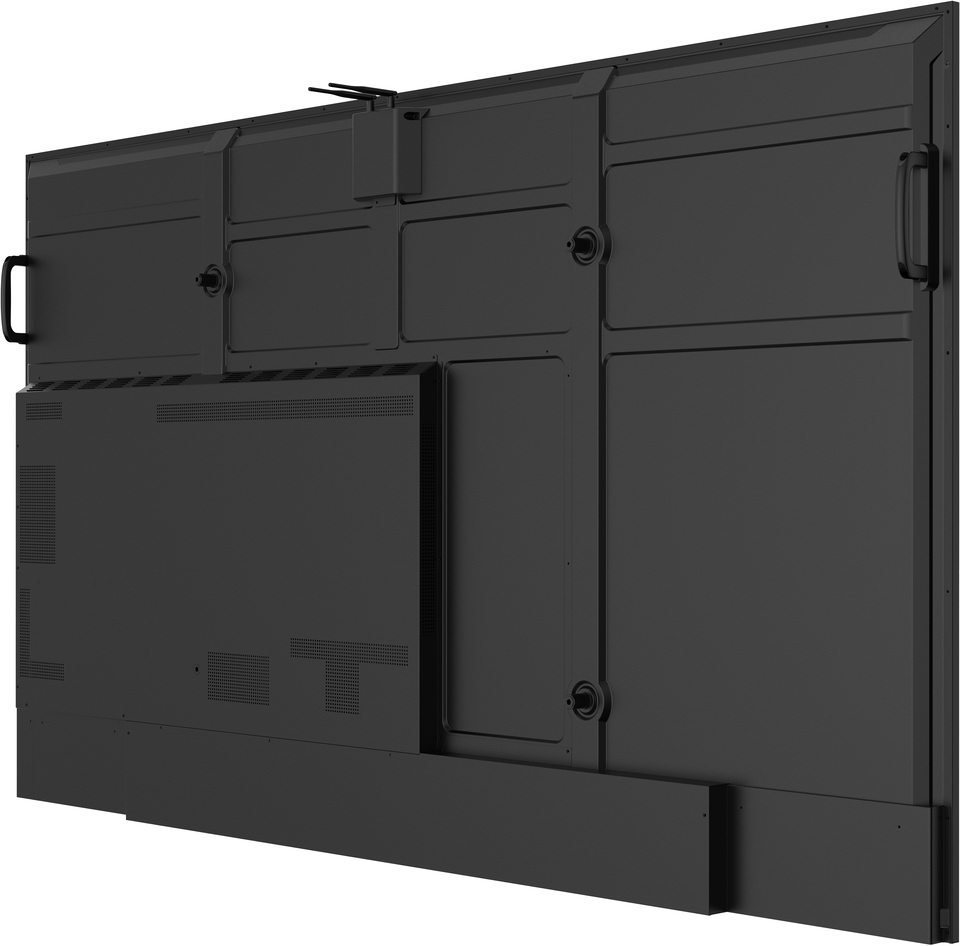

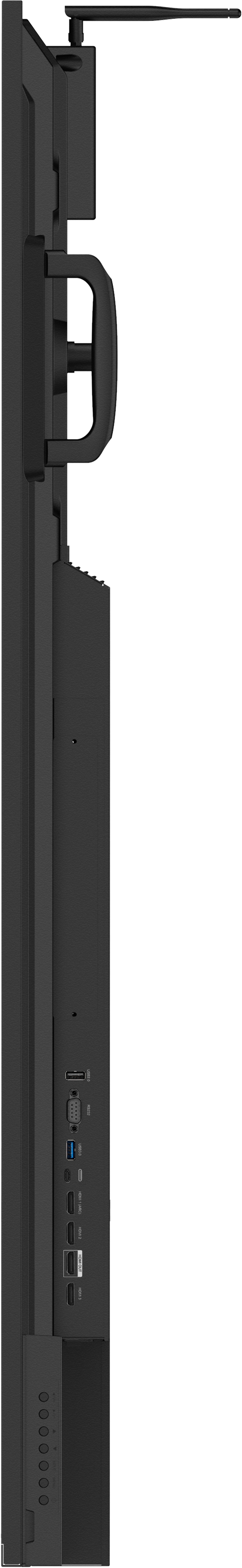

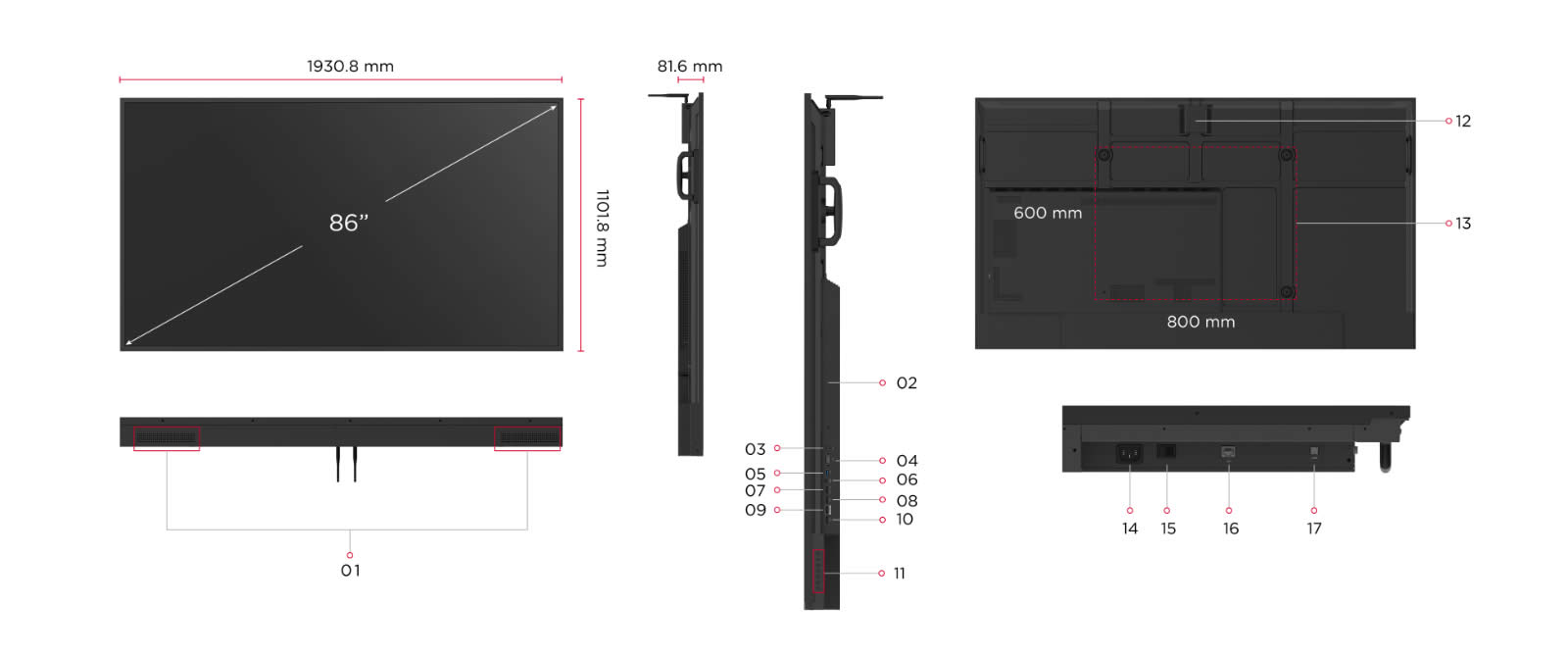

Dimensions & I/O Ports
- Speaker
- OPS Slot
- USB 2.0
- RS-232
- USB 3.0
- USB-C
- HDMI 1(ARC)
- HDMI 2
- HDMI OUT
- HDMI 3
- Control Panel
- WiFi Slot
- VESA® Wall Mount (800x600mm)
- AC IN
- Power Switch
- LAN
- SPDIF
SPECIFICATIONS
- DisplayPanel Size: 86"
Type/ Tech: TFT LCD Module. ADS type, DLED backlight
Display Area (mm): 1895.04 (H) ×1065.96 (V) (86” diagonal)
Native Resolution: 3840 x 2160
Aspect Ratio: 16:9
Colors: 1.07G (8bits + FRC-)
Brightness: 500 nits
Contrast Ratio: 1200:1 (typ.), 5000:1 (DCR enabled)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 hours
Surface Treatment: Anti-Glaire, 3H hardness, Haze 25%
Bezel: 14.7/14.7/14.7/14.7 mm (L/R/T/B)
Orientation: Landscape & Portrait
Support 24/7 (Operating Hours): Yes
Disclaimer: 50,000 hours backlight life at 8 hours of use per day - PlatformProcessor: Quad-core ARM Cortex A55
RAM: 4GB
Storage: 32GB - INPUTHDMI: 2.1x3 ( 3840x2160 @60Hz, HDMI 1 support ARC)
RS-232: x 1
OPS Slot: x 1
WiFi Slot: x 1
- OUTPUTHDMI: 2.0 x1 ( 3840x2160 @60Hz )
SPDIF: x 1 - LANRJ45: x 1
- USBType A: 2.0 x 1, 3.0 x 1
Type C: x1 ( (DP1.2, PD 65W, USB2.0, 100M ethernet) - SPEAKERS16W x2
- Embedded OSAndroid 11
- POWERVoltage: 100-240 VAC +/- 10%
Consumption: 172 W(typ.) < 0.5W(off) - ERGONOMICSWall Mount (VESA® ): 800 x 600 (M8 x 25 mm)
- OPERATING CONDITIONSTemperature (º C): 0 to 40℃
Humidity: 10%-90% RH - Operating Hours7/24
- DIMENSIONS (W x H x D)Physical (inch / mm): 76.02 x 43.38 x 3.21in/ 1930.8 x 1101.8 x 81.6mm
Packaging (inch / mm): 83.07 x 48.3 x 8.86 in./2110 x 1227 x 225 mm - WEIGHTNet (lb / kg): 95.13 lbs/43.15 kg
Gross (lb / kg): 133.93 lbs/60.75 kg - REGULATIONScTUVus, FCC/ICES003, Energy star 8.0, EPEAT, Mexico NOM , Mexico Energy, EMC/CE , CB, EAC, UkrSEPRO, RCM, LBL, Flicker free, Green BOM, RoHS , ErP, REACH, SCIP, WEEE , Annex I, Annex II, TPCH , Packing waste, CA65
- PACKAGE CONTENTS1. Remote Control with batteries
2. Quick Start Guide
3. Power Cables
4. HDMI cable
5. USB-C cable
6. Wall Mount Screw x 4
7. RS232 adapter
8. Compliance statement
