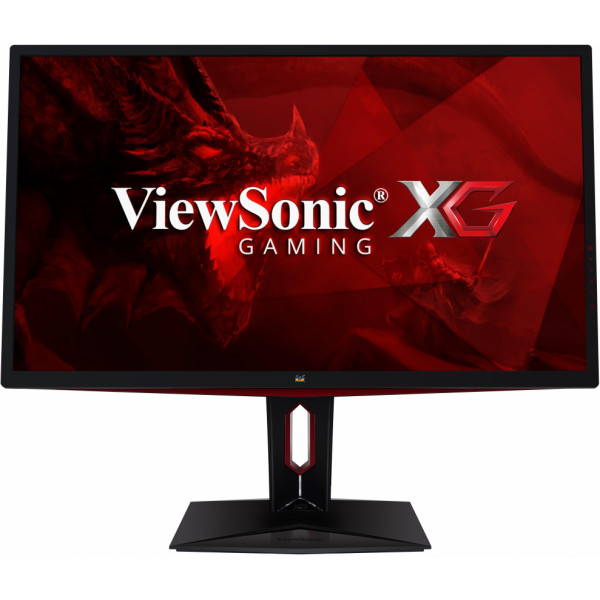

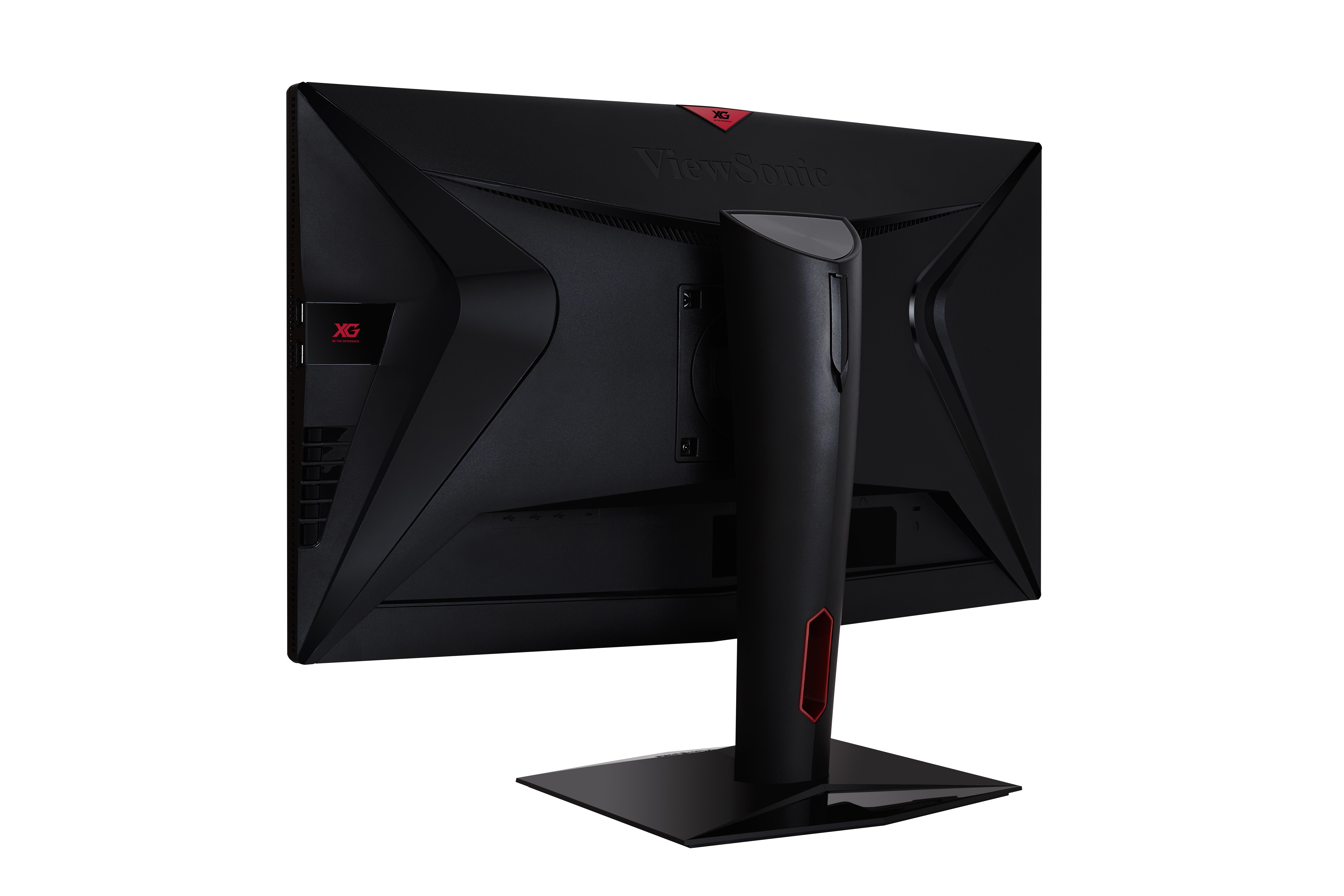

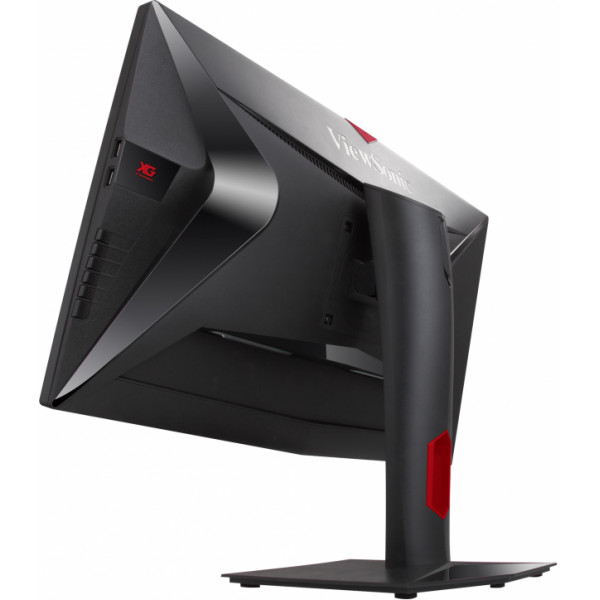

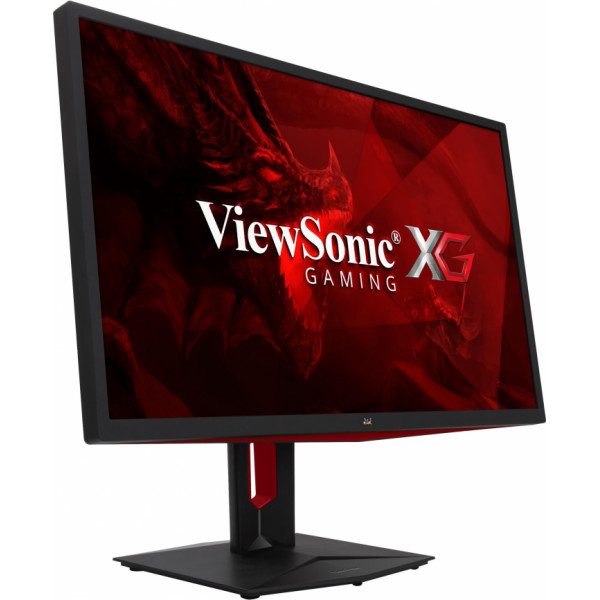

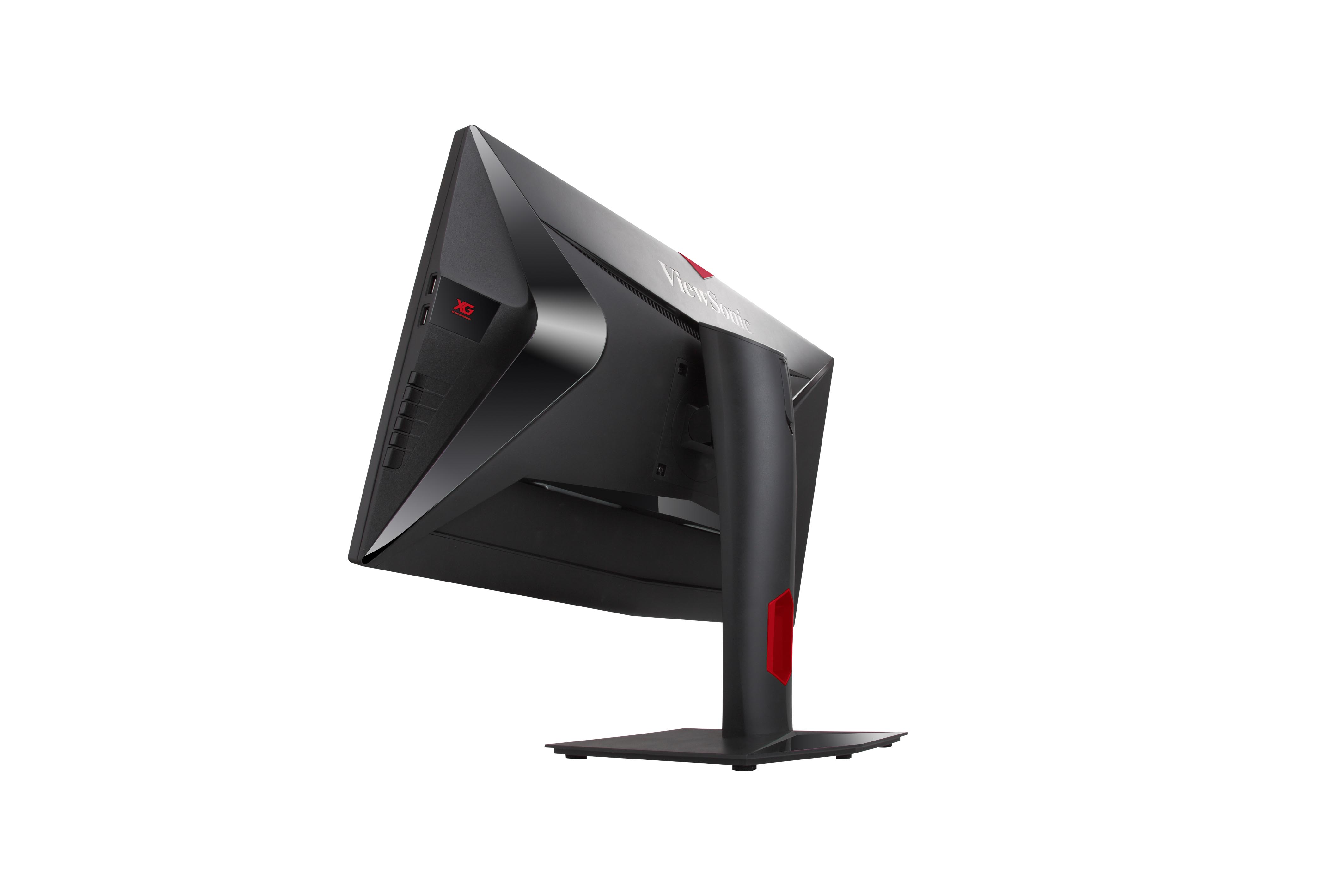

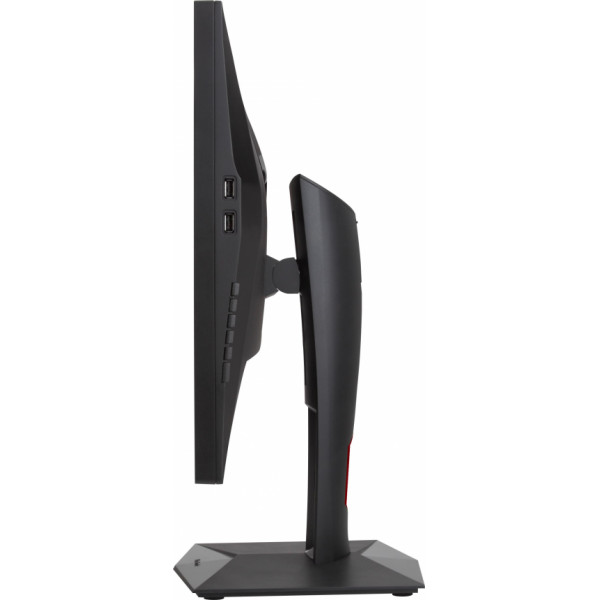

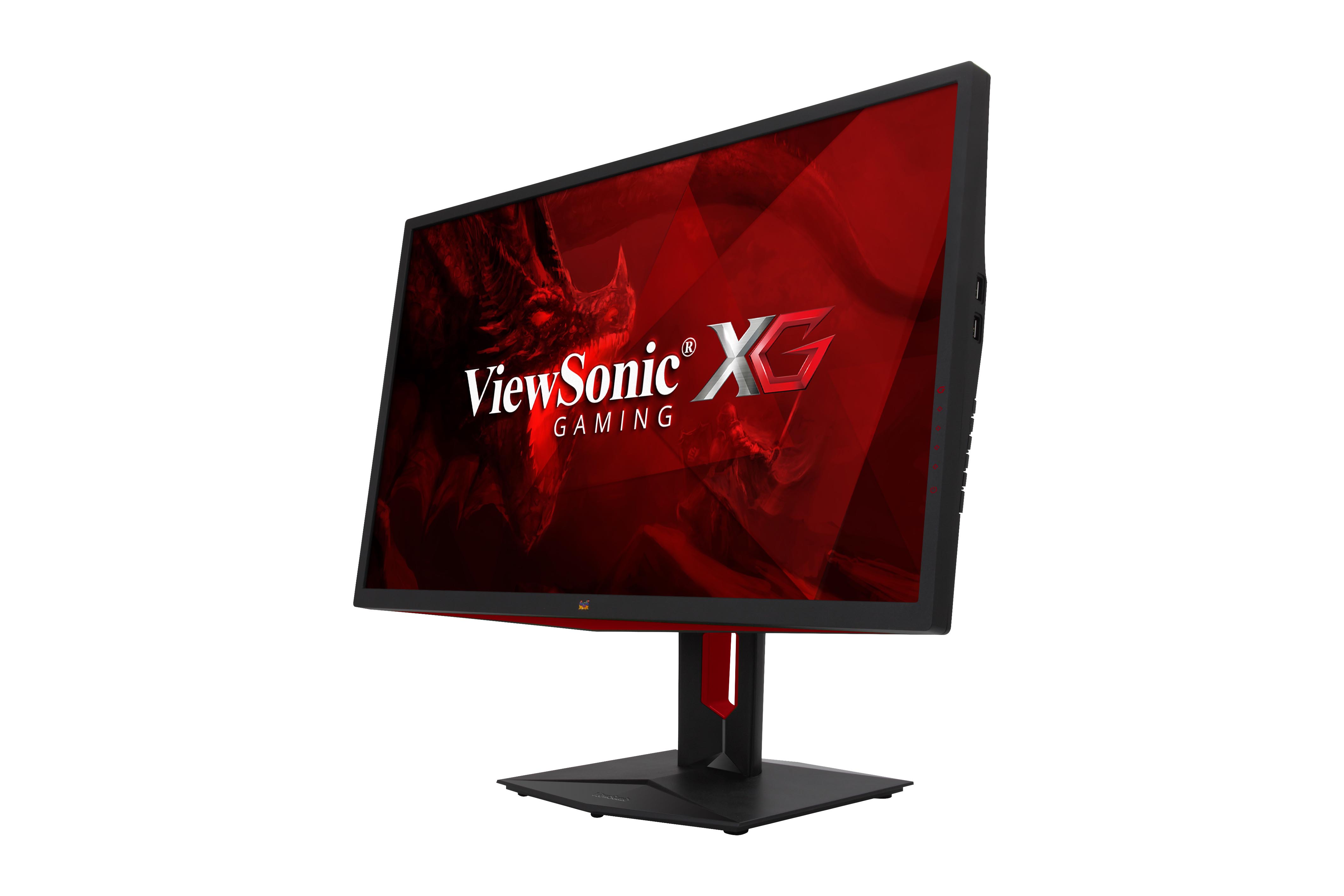

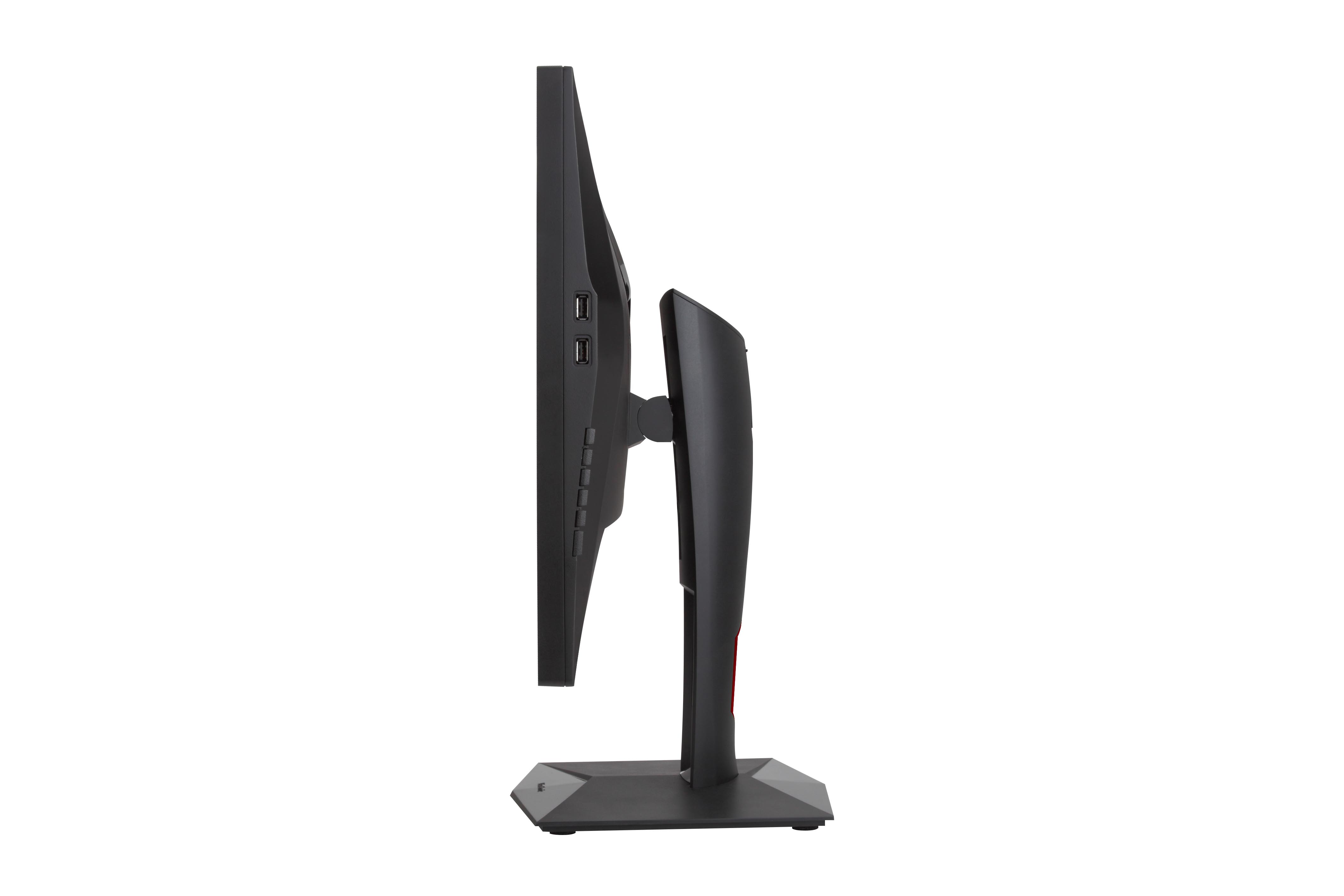

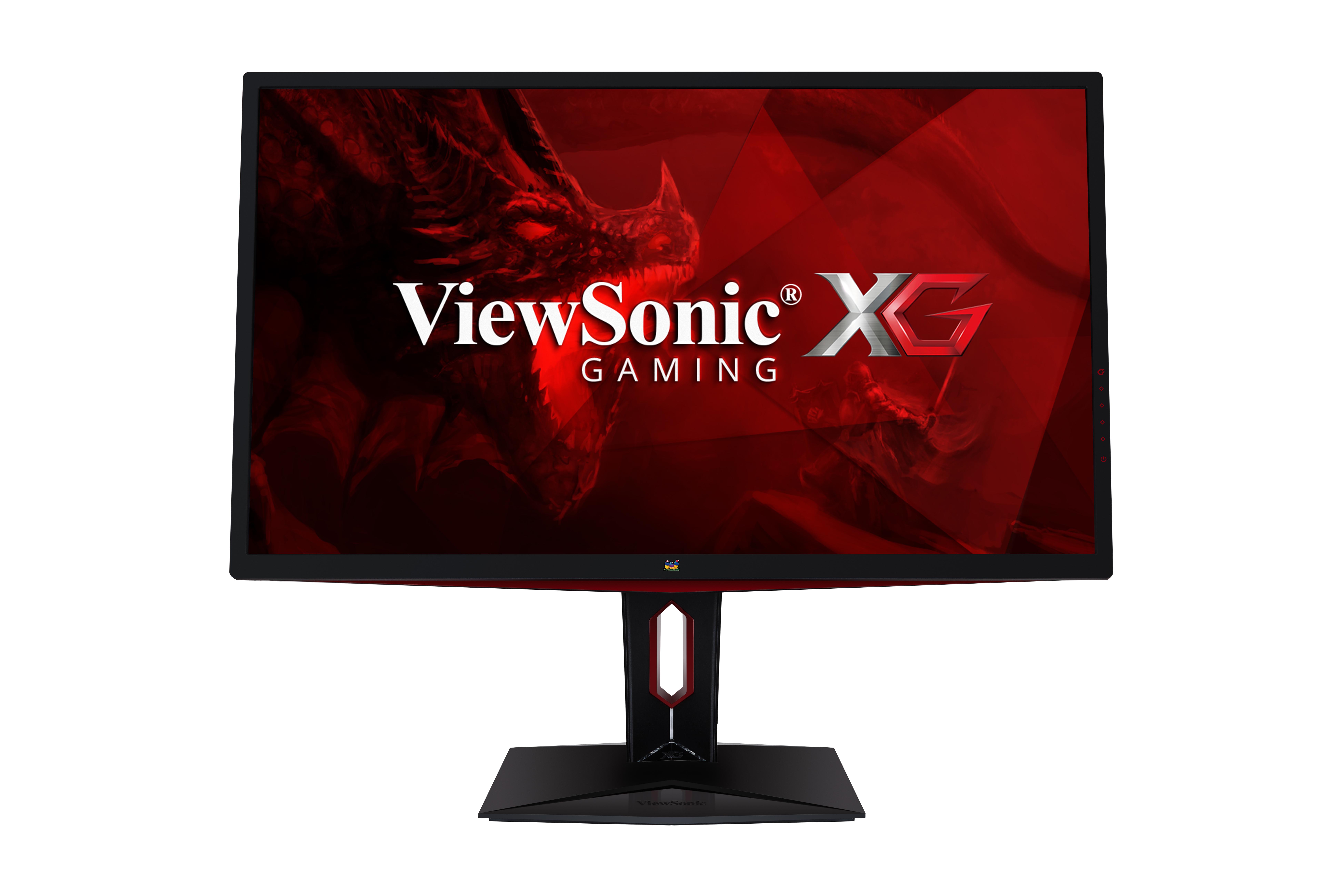

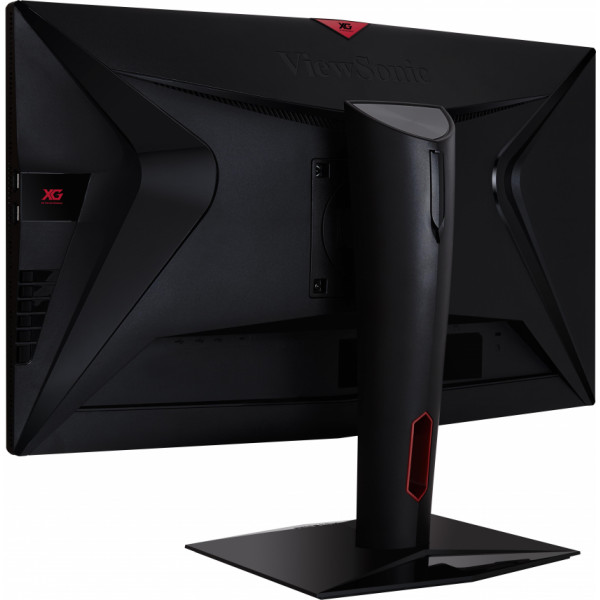

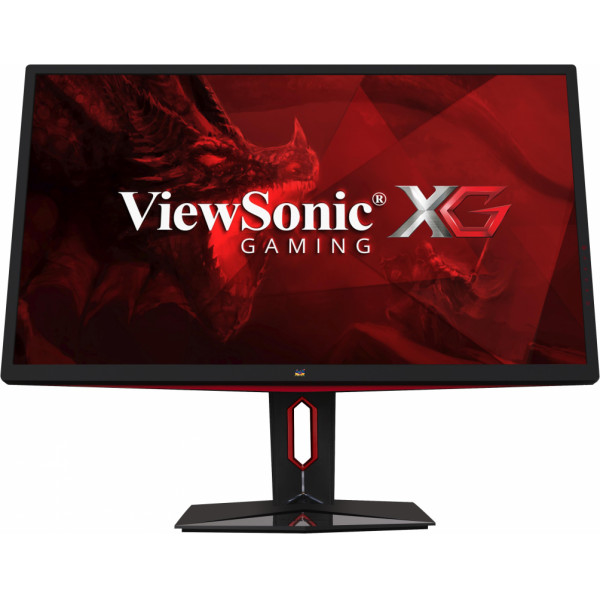

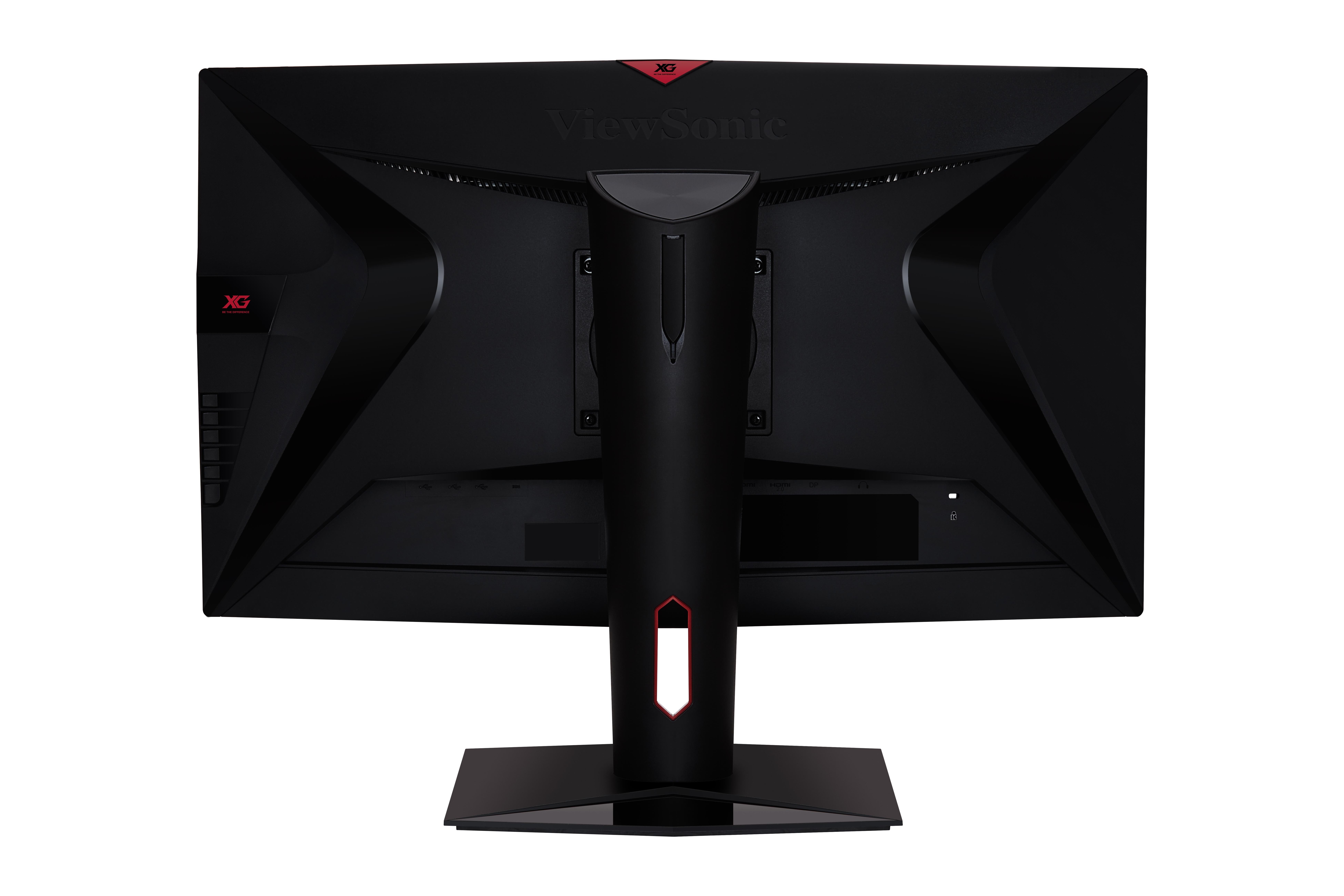

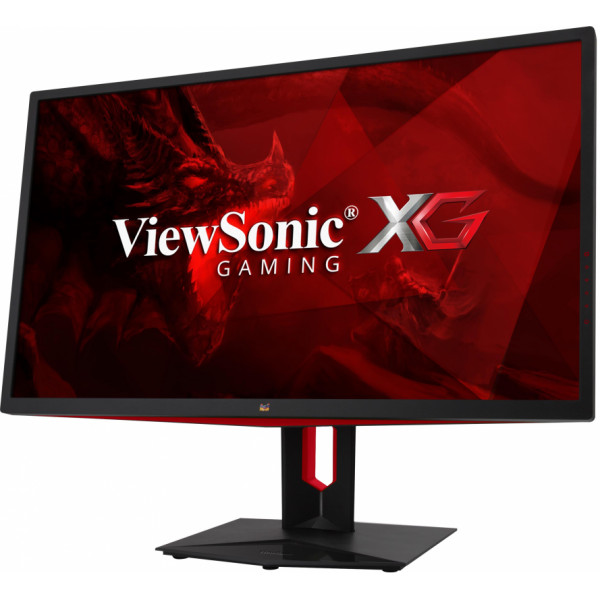

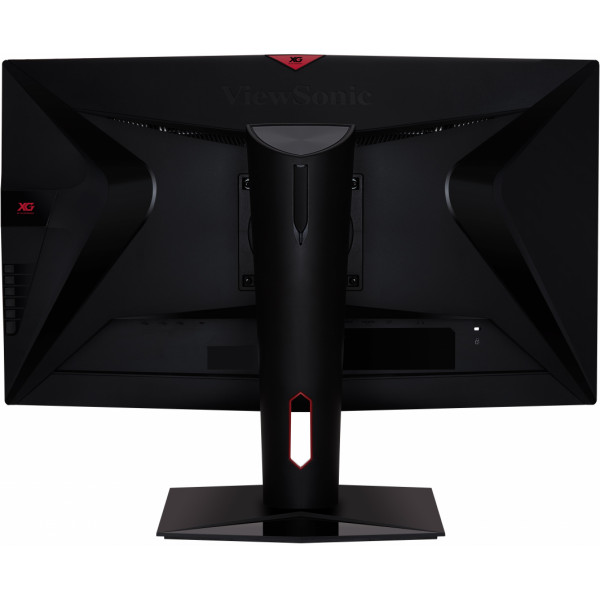

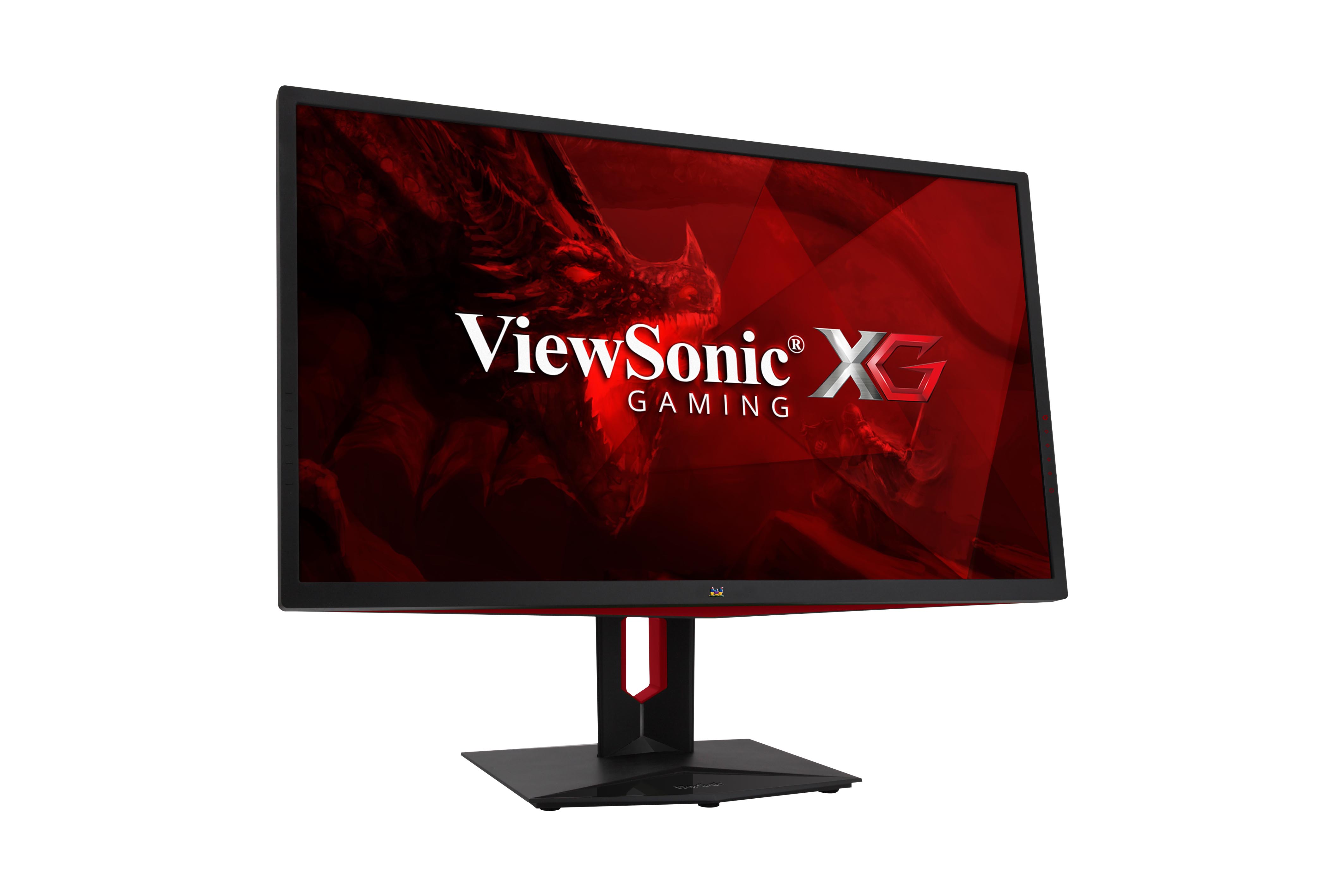

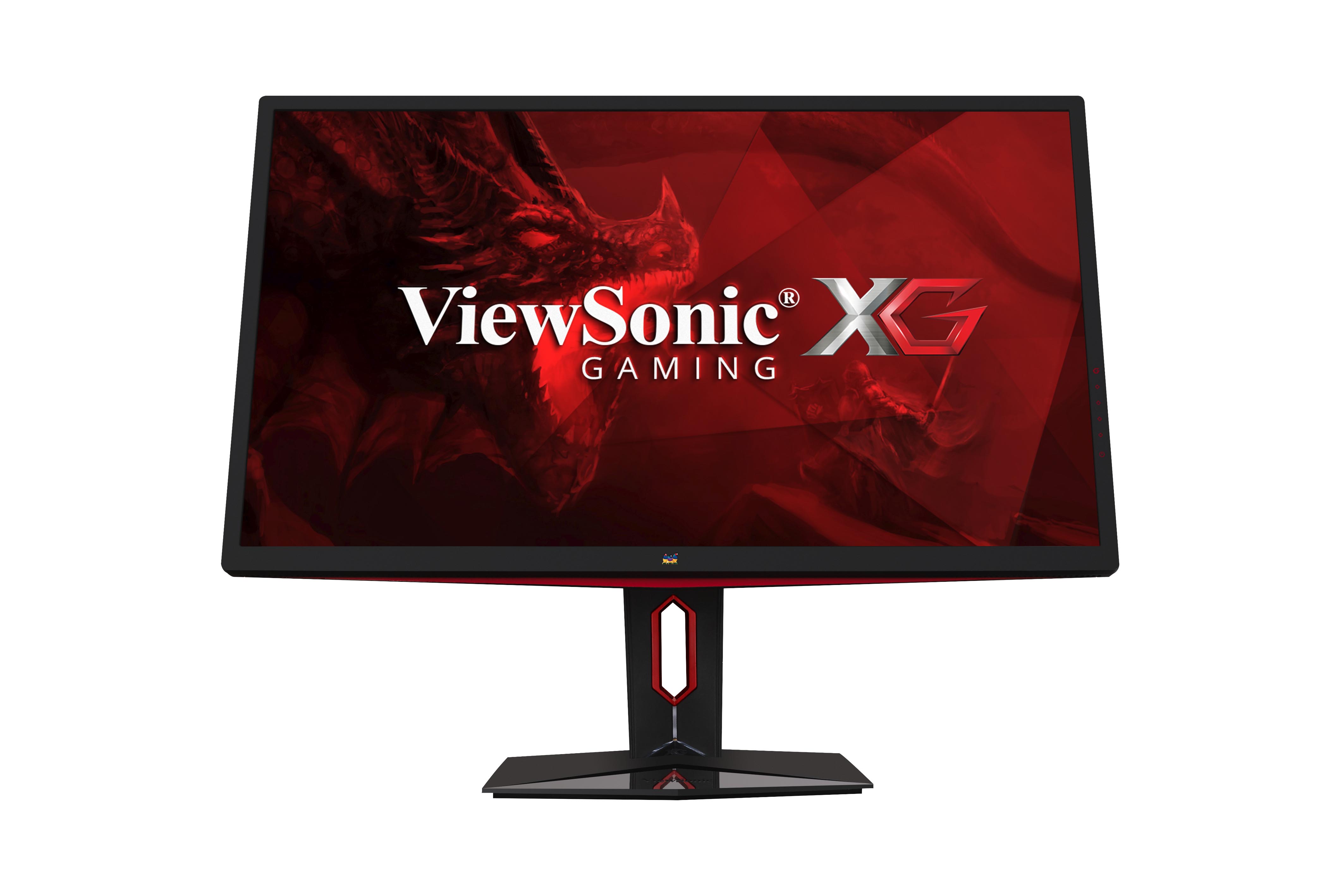

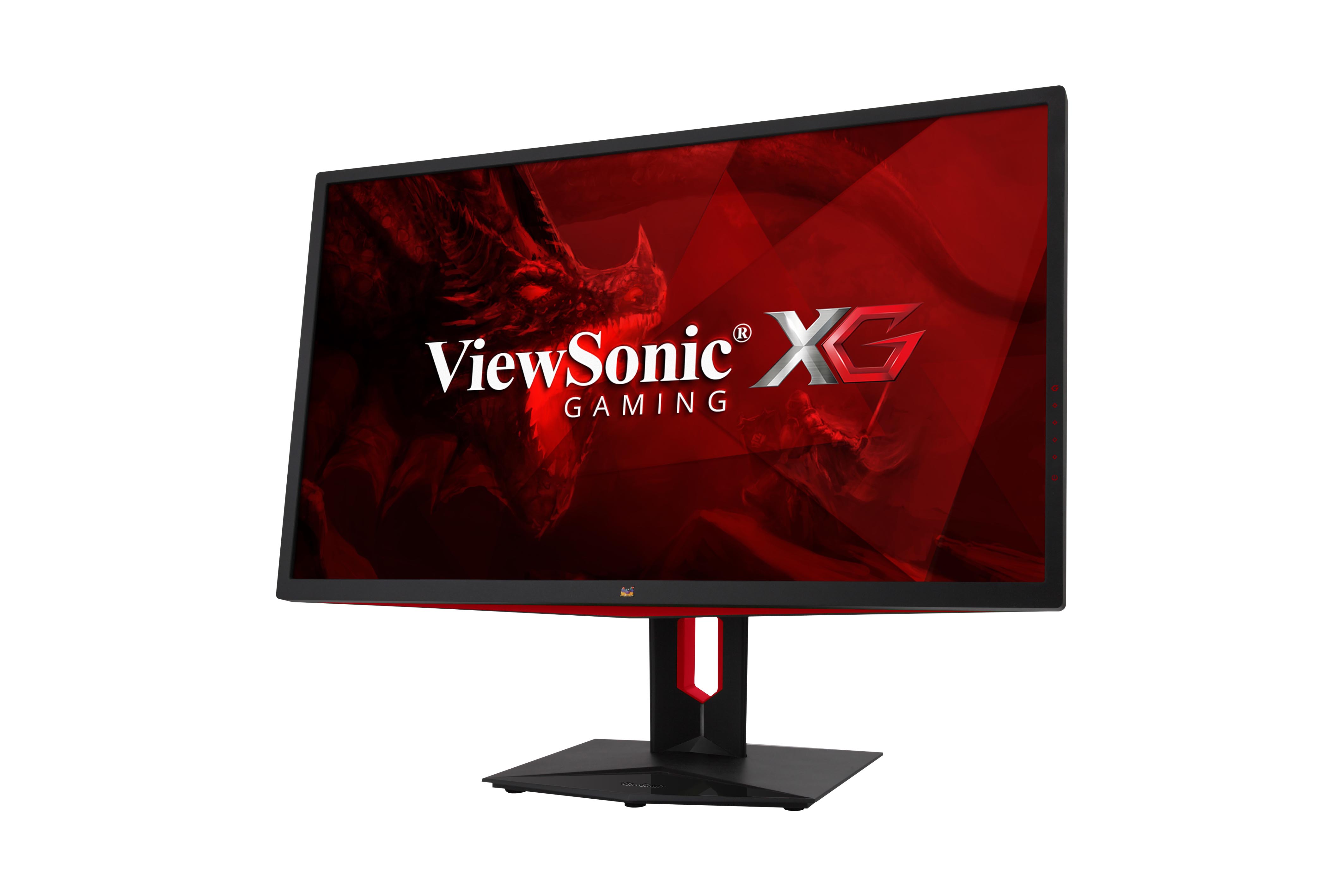

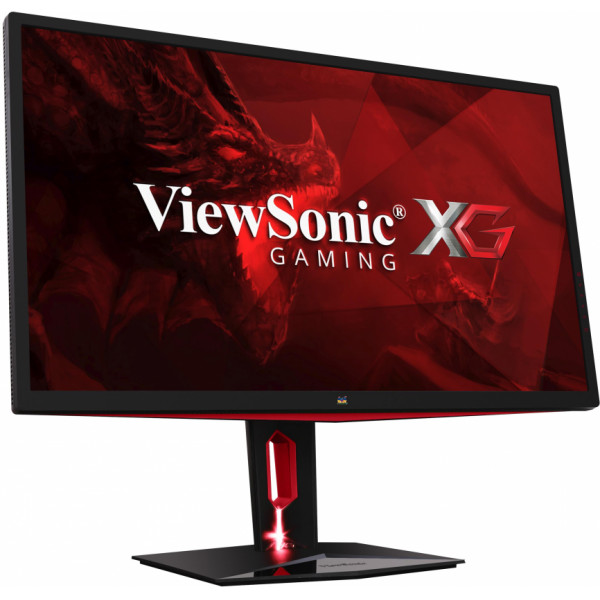

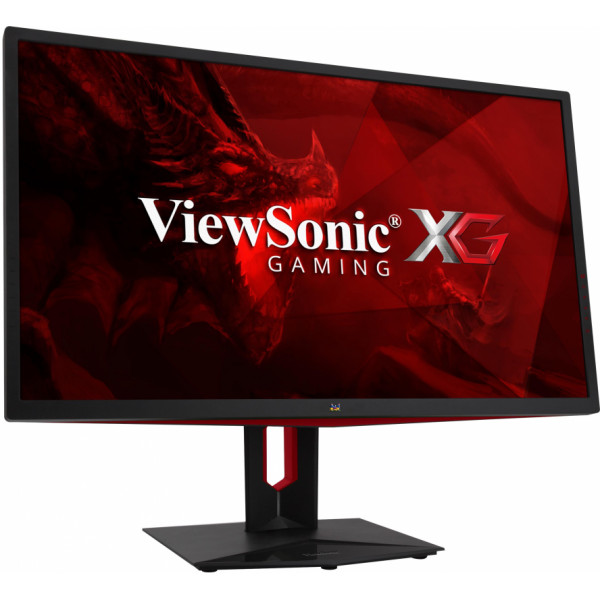

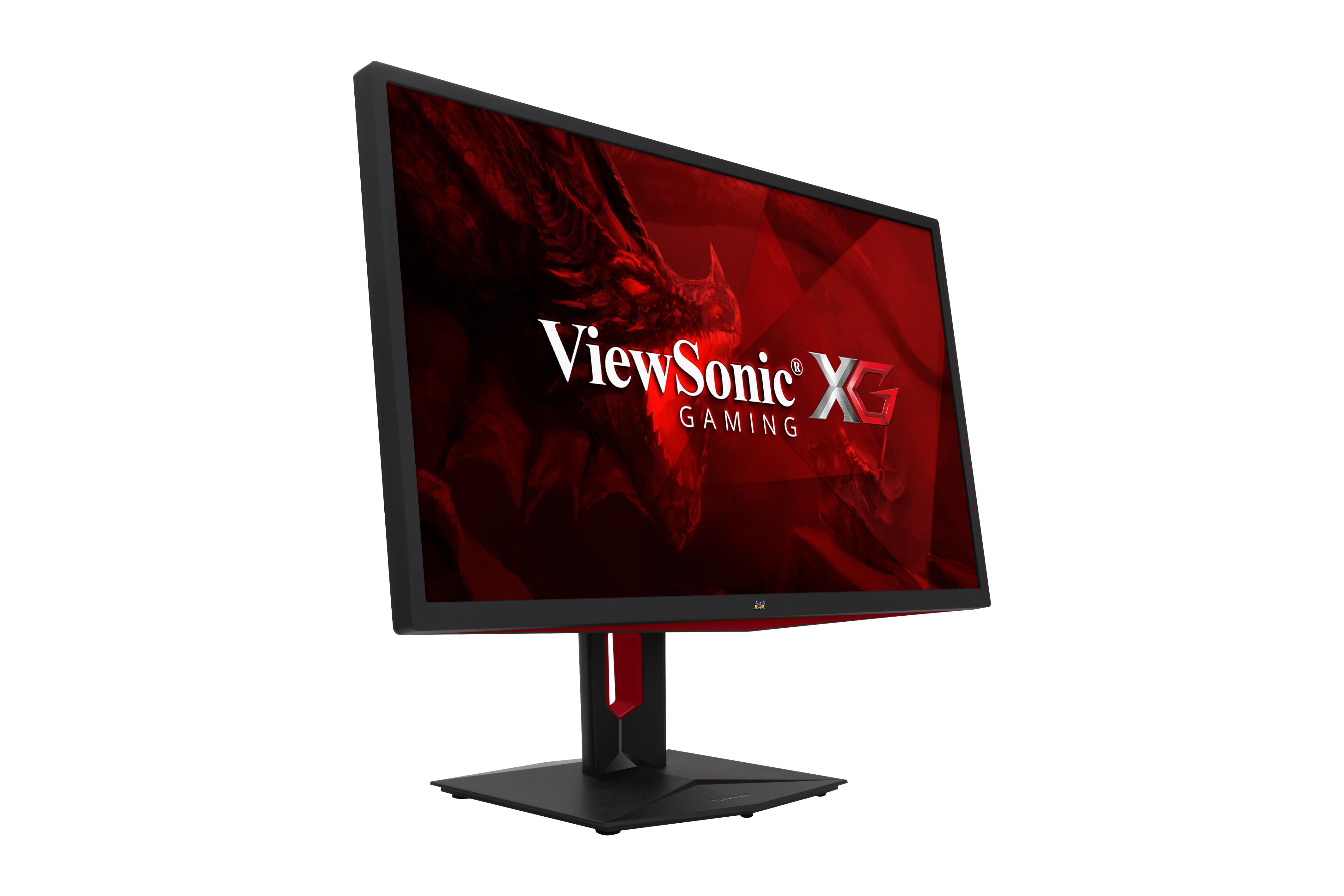

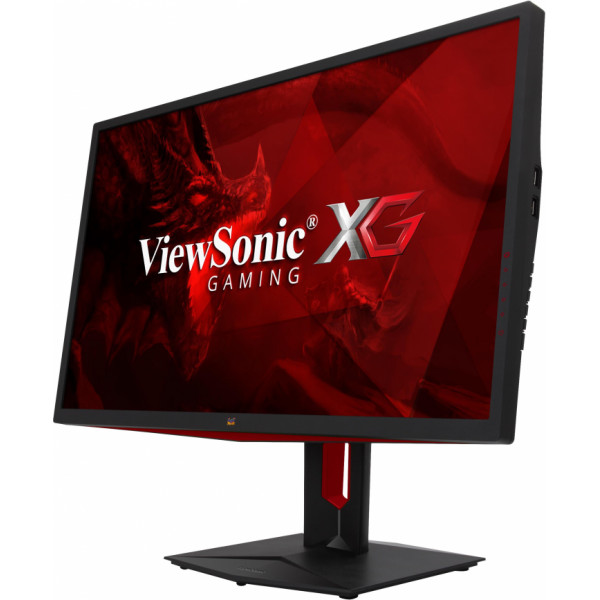

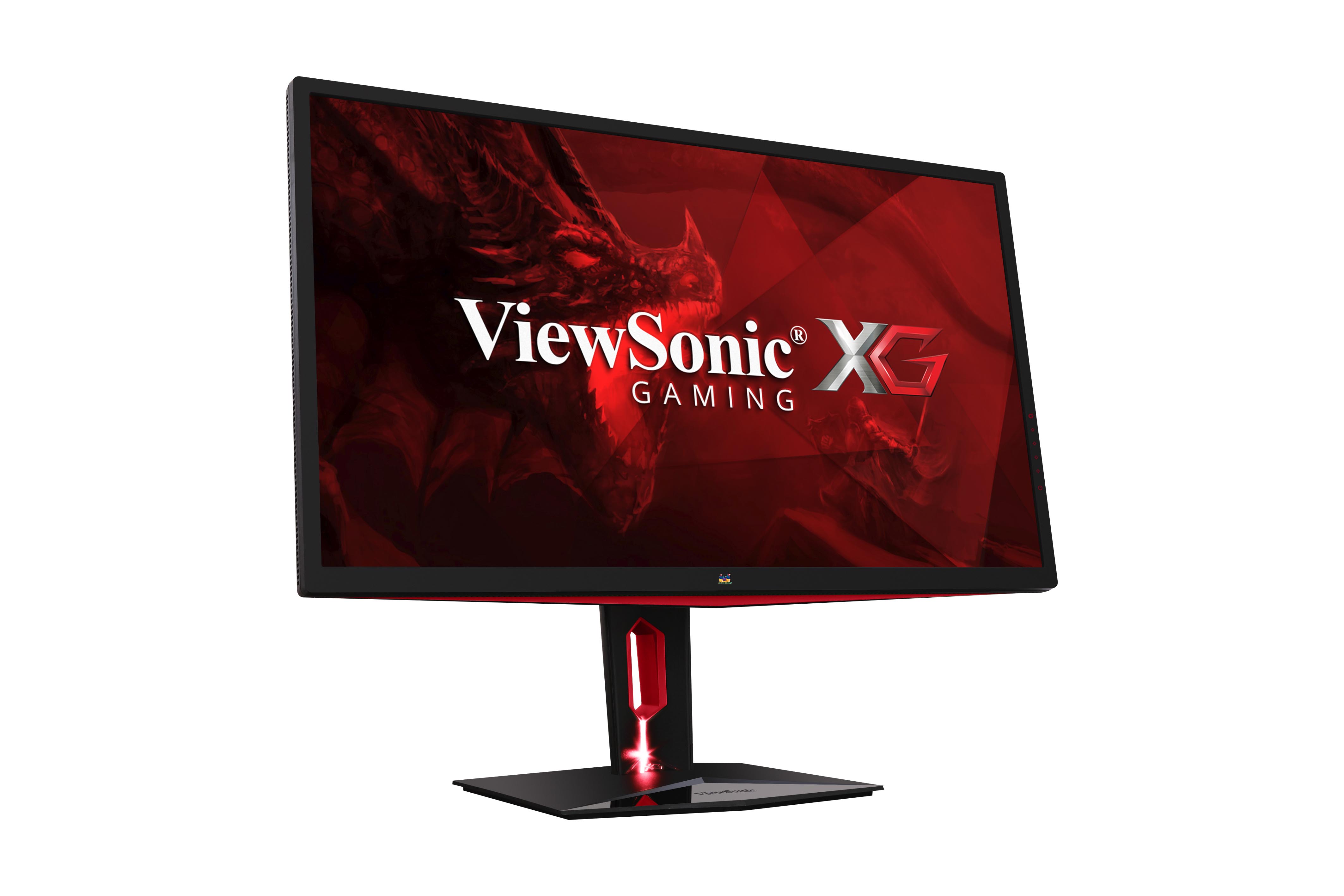

XG2730

27” 144Hz QHD Gaming Monitor

GALLERY

REVIEWS

Viewsonic XG2730 Review

“The XG2730 is a very consistent display from Viewsonic, which convinces by a harmonious combination of design and gaming features.”

Read Review

Test: ViewSonic XG2730

“The Viewsonic XG2730 impresses with three things: value for money, great looks and pleasant high-quality color reproduction.”

Read Review

SPECIFICATIONS

Display
Display Size (in.): 27
Viewable Area (in.): 27
Panel Type: TN Technology
Resolution: 2560 x 1440
Resolution Type: QHD (Quad HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 120M:1
Light Source: LED
Brightness: 350 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical Tr+Tf): 5ms
Viewing Angles: 170º horizontal, 160º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 144
Variable Refresh Rate Technology: FreeSync Premium
Blue Light Filter: Yes
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 103% size (Typ)
Pixel Size: 0.233 mm (H) x 0.233 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 2560x1440
Mac® Resolution (max): 2560x1440
PC Operating System: Windows 10 certified; macOS tested
Mac® Resolution (min): 2560x1440
Connector
USB 3.2 Type A Down Stream: 2
USB 3.2 Type B Up Stream: 1
USB 2.0 Type A: 2
3.5mm Audio Out: 1
HDMI 2.0: 1
HDMI 1.4: 1
DisplayPort: 1
Power in: DC Socket (Center Positive)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 35W
Eco Mode (optimized): 42W
Consumption (typical): 53W
Consumption (max): 72W
Voltage: No TPV ADPC2090
Stand-by: 0.5W
Power Supply: External Power Adaptor
Controls
Physical Controls: Key 1 (game mode), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Gaming Settings, Display, Input Selet, ViewMode, Audio Adjust, Setup Menu
Wall Mount
VESA Compatible: 90, 100 mm
Input Signal
Frequency Horizontal: HDMI (v1.4): 15 ~ 180KHz, HDMI (v2.0): 15 ~ 222KHz, DisplayPort (v1.2): 15 ~ 222KHz
Frequency Vertical: HDMI (v1.4): 24 ~ 144Hz, HDMI (v2.0): 24 ~ 144Hz, DisplayPort (v1.2): 24 ~ 144Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.2)
Ergonomics
Height Adjust (mm): ~
Swivel: 40º
Tilt (Forward/Back): SNBº / Matt+Glossyº
Pivot (Right/Left): 0º / 0º
Weight (imperial)
Net (lbs): 12
Net Without Stand (lbs): 15.4
Gross (lbs): 6.6
Weight (metric)
Net (kg): 306
Net Without Stand (kg): 7
Gross (kg): 3
Dimensions (imperial) (wxhxd)
Packaging (in.): 2.9 x 29.2 x 18.9
Physical (in.): 5% to 90% (no condensation) x 24.6 x 16.81~20.96
Physical Without Stand (in.): 9.9 x 24.6 x 15.1
Dimensions (metric) (wxhxd)
Packaging (mm): 74 x 741 x 481
Physical (mm): -4°F to 140°F (-20°C to 60°C) x 624 x 427.1~532.4
Physical Without Stand (mm): 250 x 624 x 384
General
PACKAGE CONTENTS: 0766907010107 xXG2730 x1, 3-pin Mickey Mouse Plug (IEC C5) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, , 1 x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
