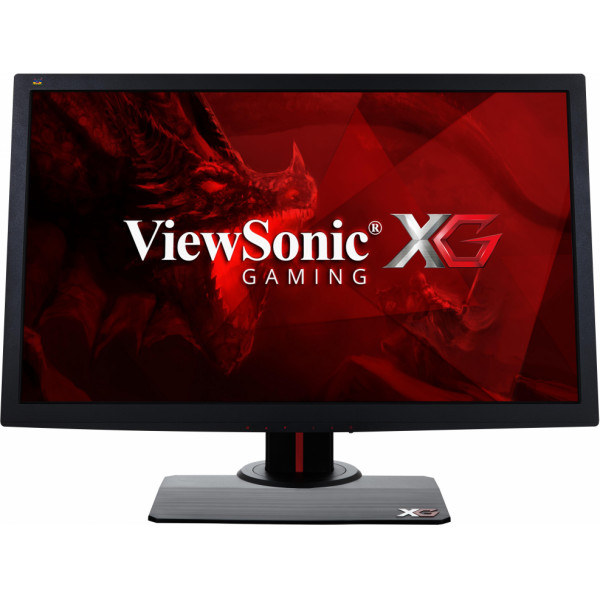

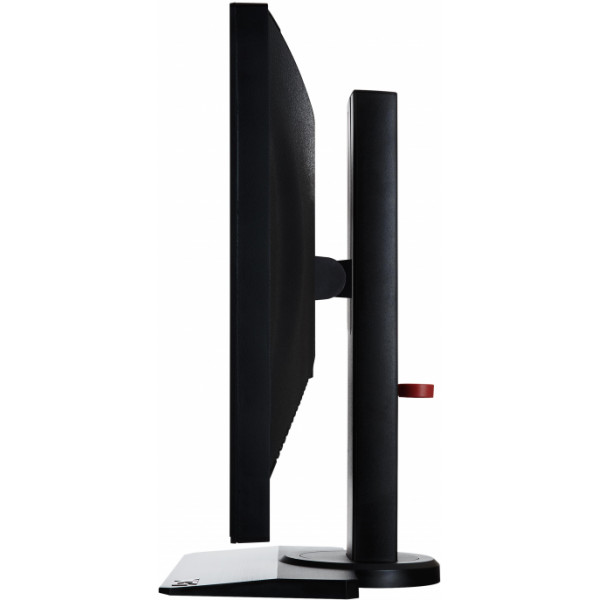

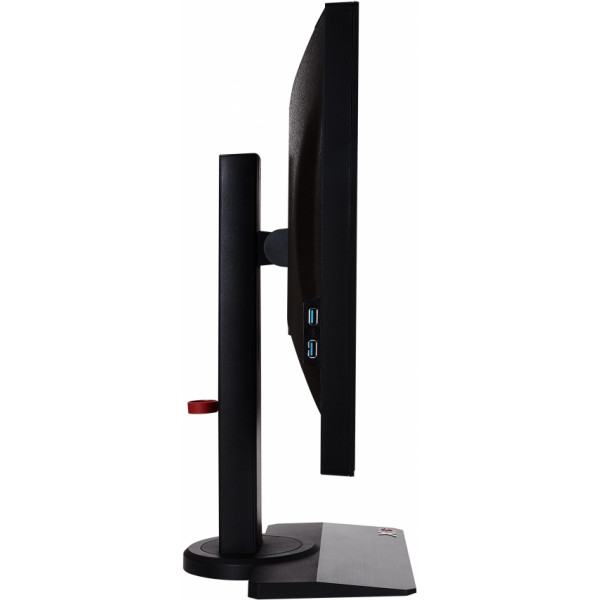

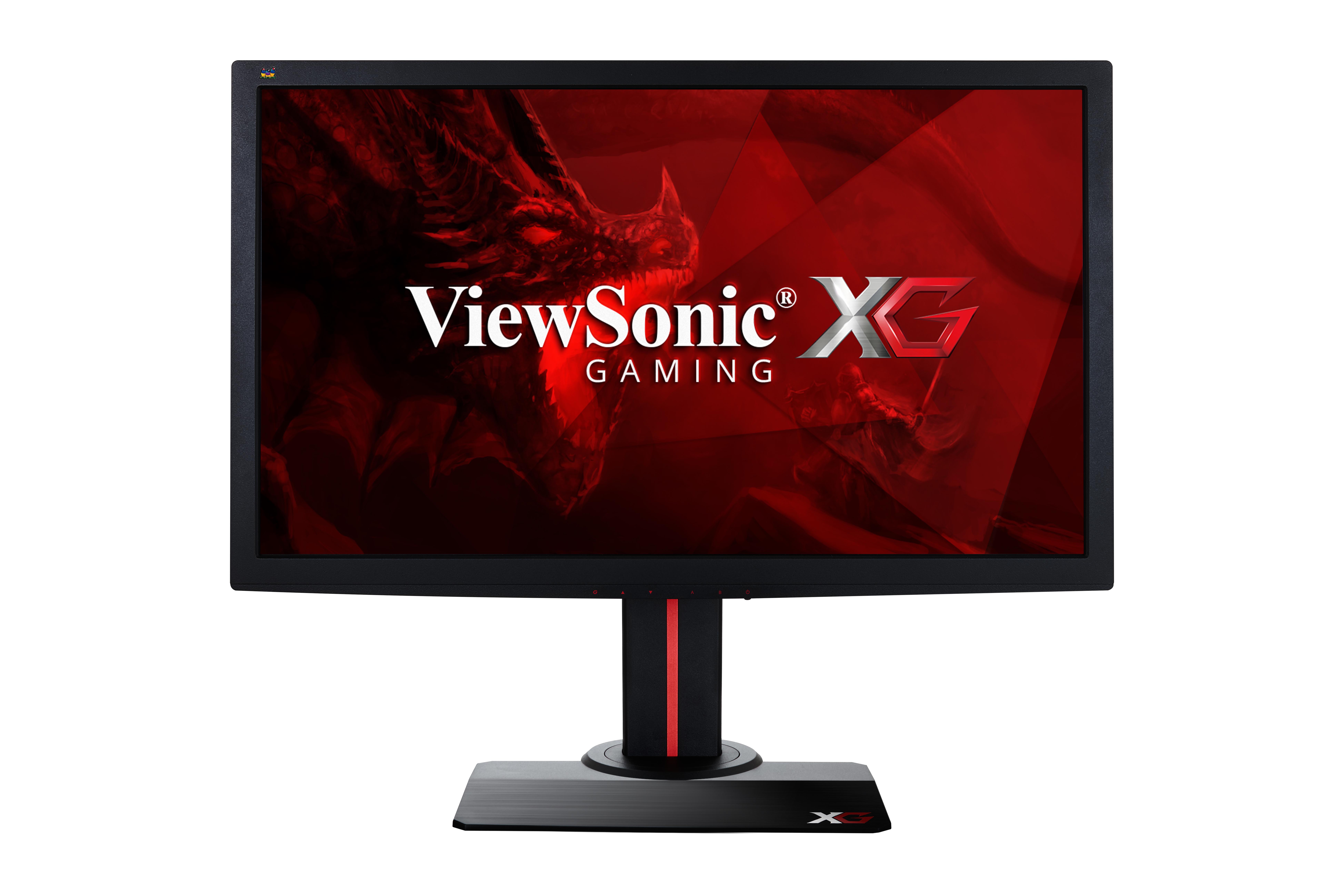

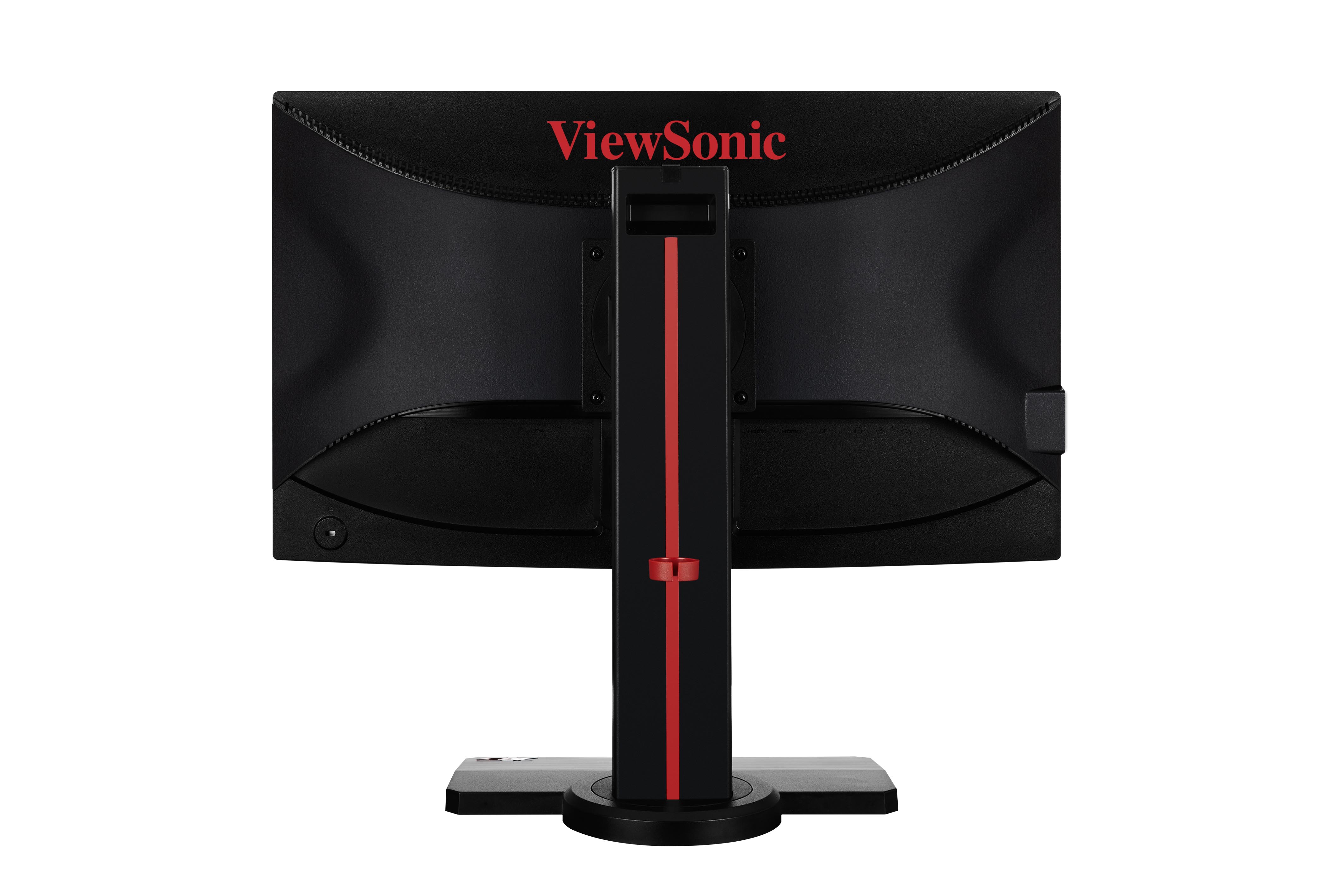

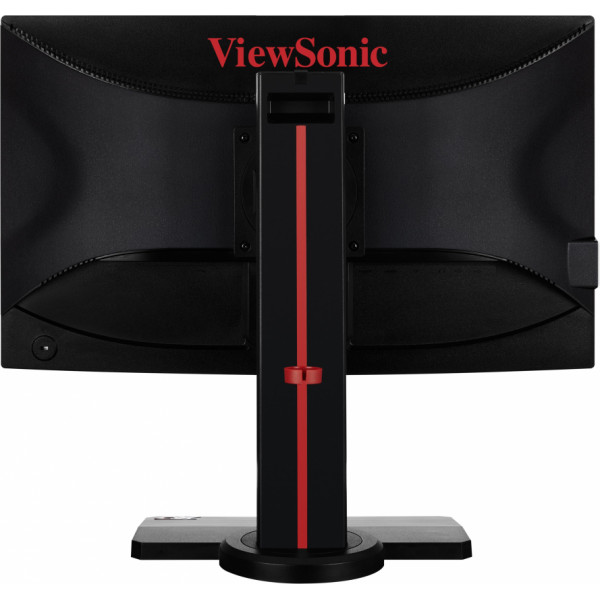

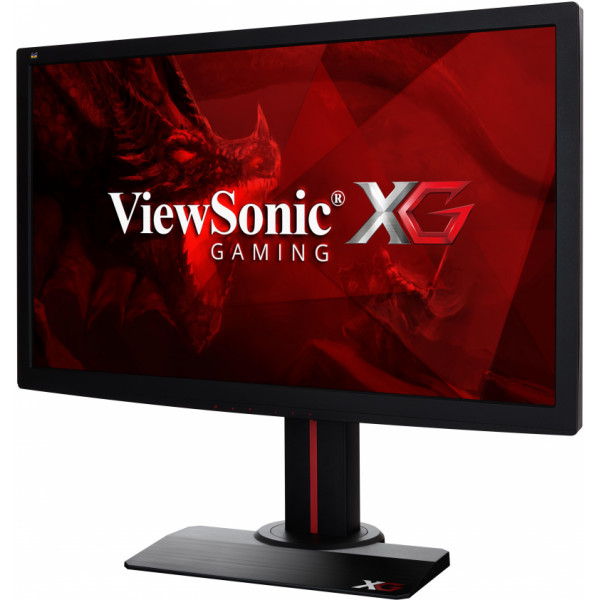

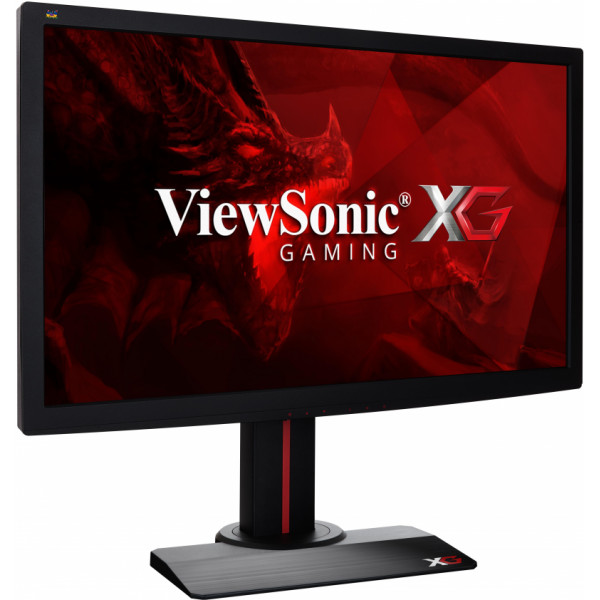

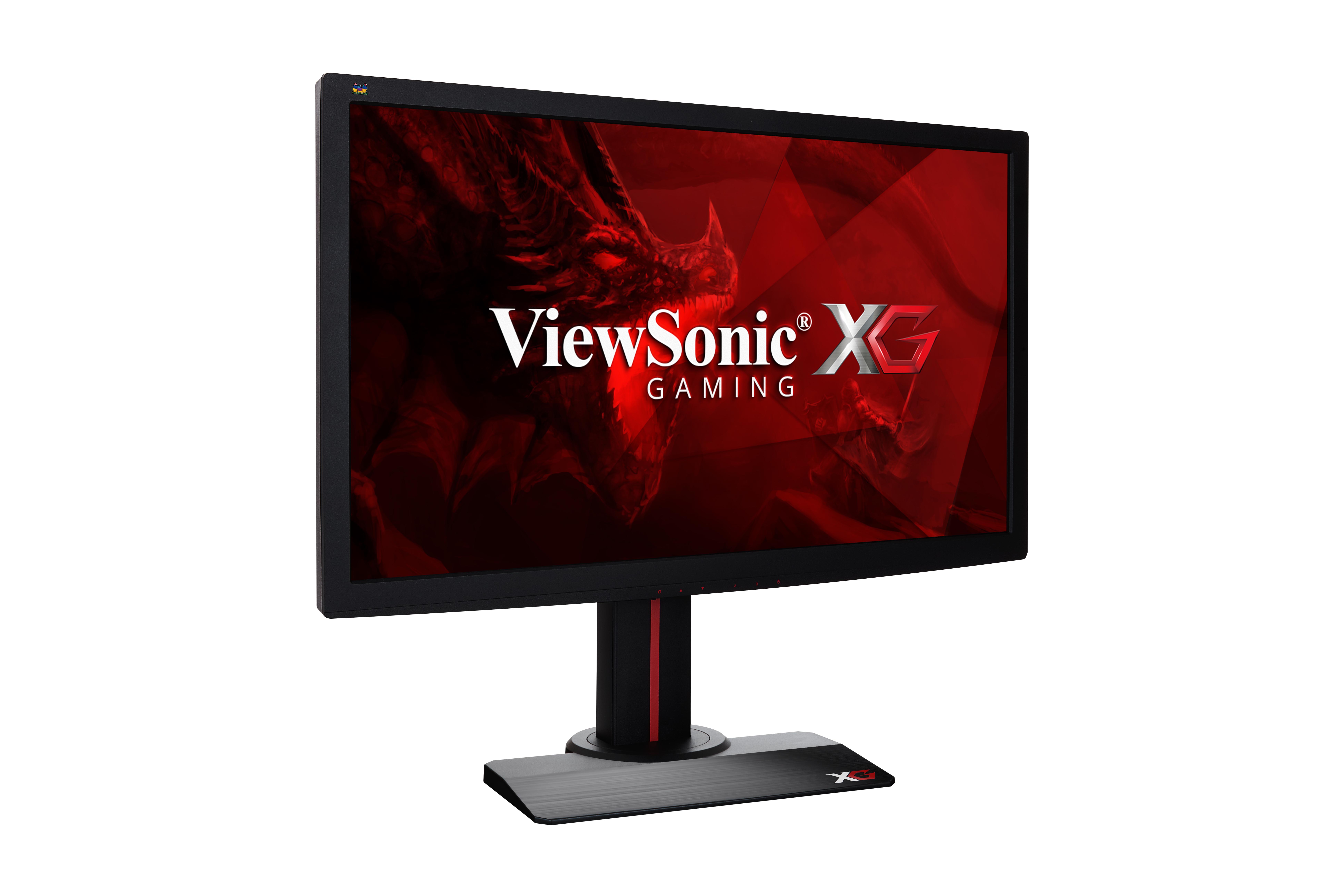

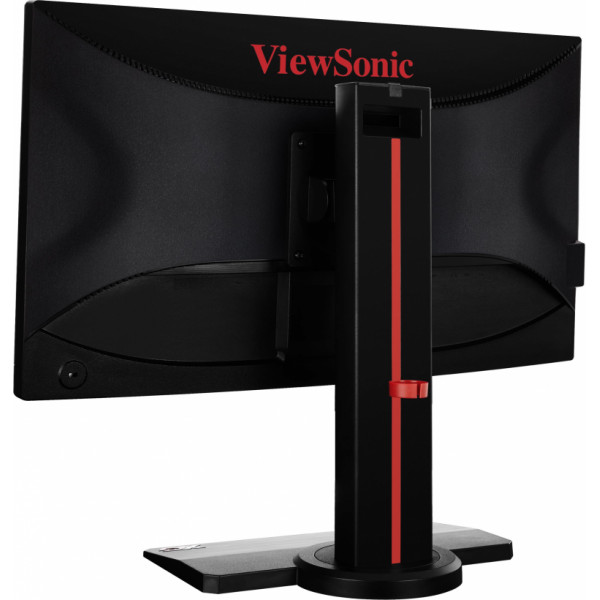

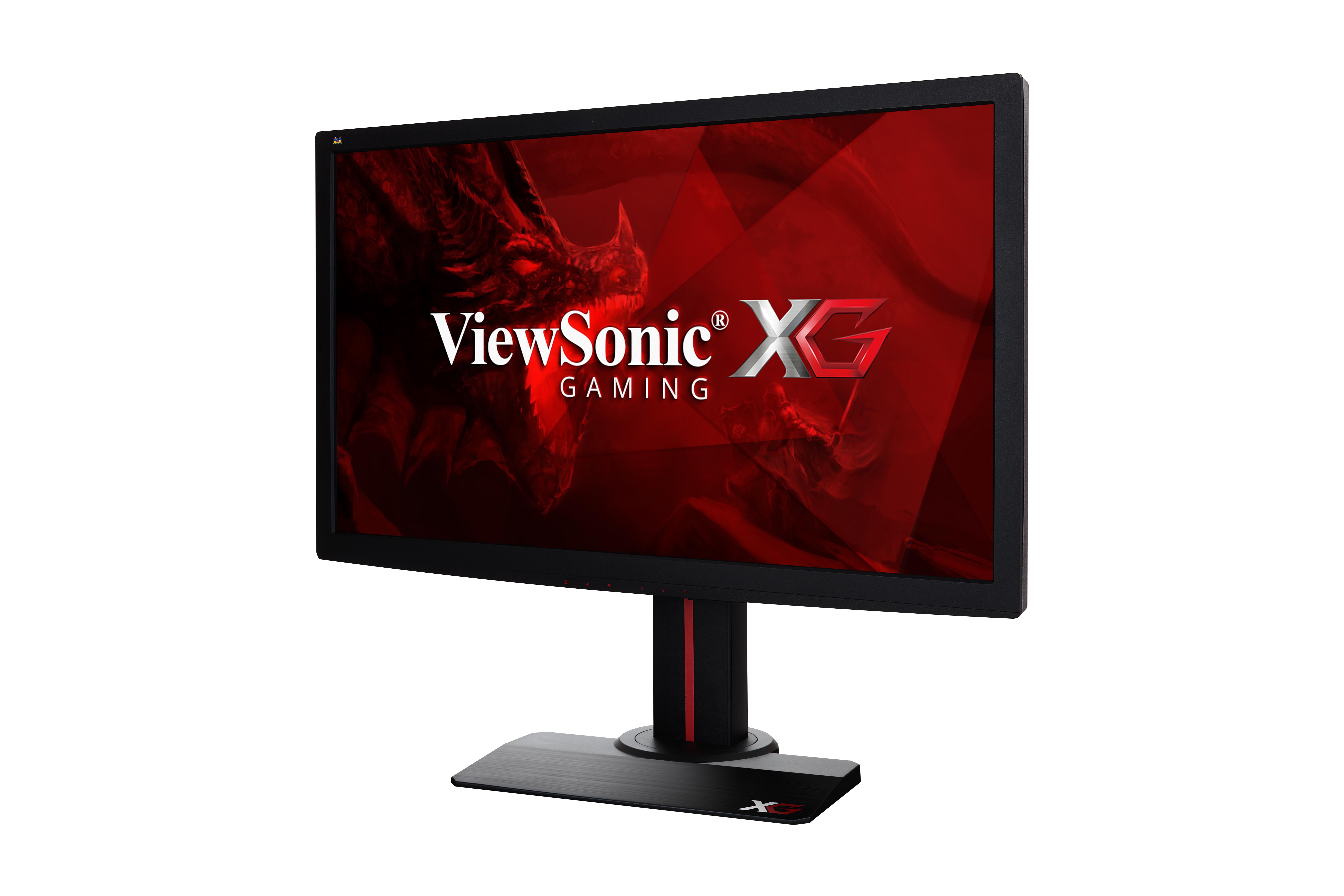

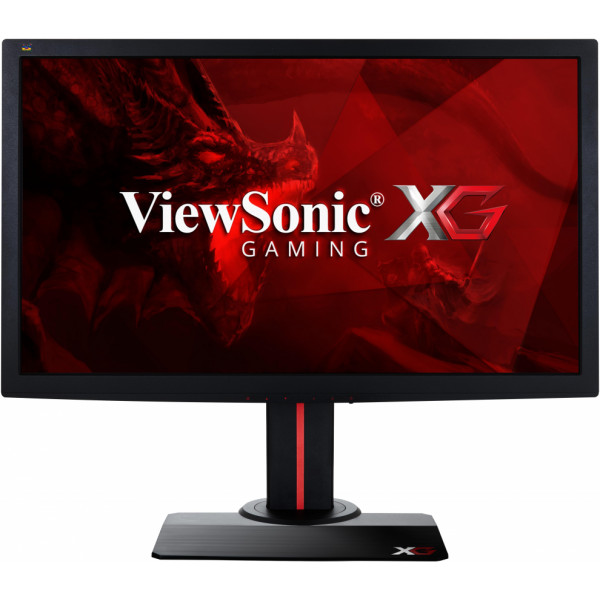

XG2702

27” 144Hz Gaming Monitor

Full HD 1080p resolution
AMD FreeSync™ technology
Ultra-fast 1ms response time
2 HDMI, DisplayPort inputs, USB ports and speakers built-in
Flicker-Free & Blue Light Filter eyecare technologies

GALLERY

REVIEWS

ViewSonic XG2702 – reinrassiger Gaming Monitor!

“The ViewSonic XG2702 is a perfect gaming monitor . A lightning fast Full-HD TN panel with a high frame rate of 144 Hz and AMD FreeSync technology for a direct, fluid and fun gaming experience.”

Read Review

SPECIFICATIONS

Display
Display Size (in.): 27
Viewable Area (in.): 27
Panel Type: TN Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 120M:1
Light Source: LED
Brightness: 400 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 1ms
Viewing Angles: 170º horizontal, 160º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 144
Variable Refresh Rate Technology: FreeSync Premium
Blue Light Filter: Yes
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 103% size (Typ)
Pixel Size: 0.311 mm (H) x 0.311 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10 certified; macOS tested
Mac® Resolution (min): 1920x1080

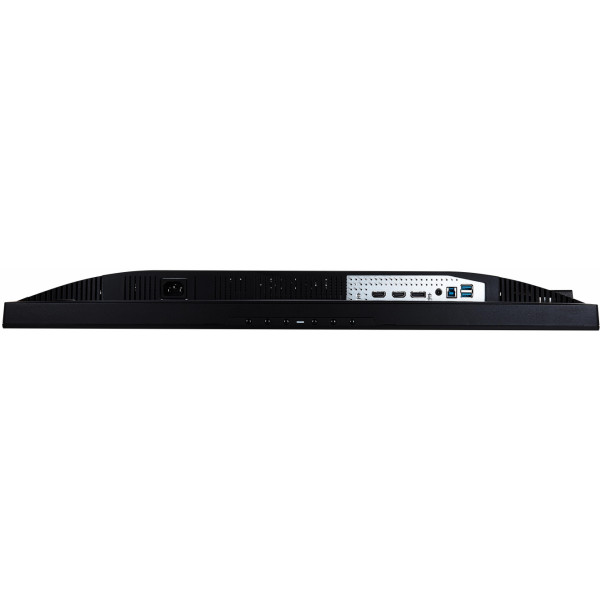

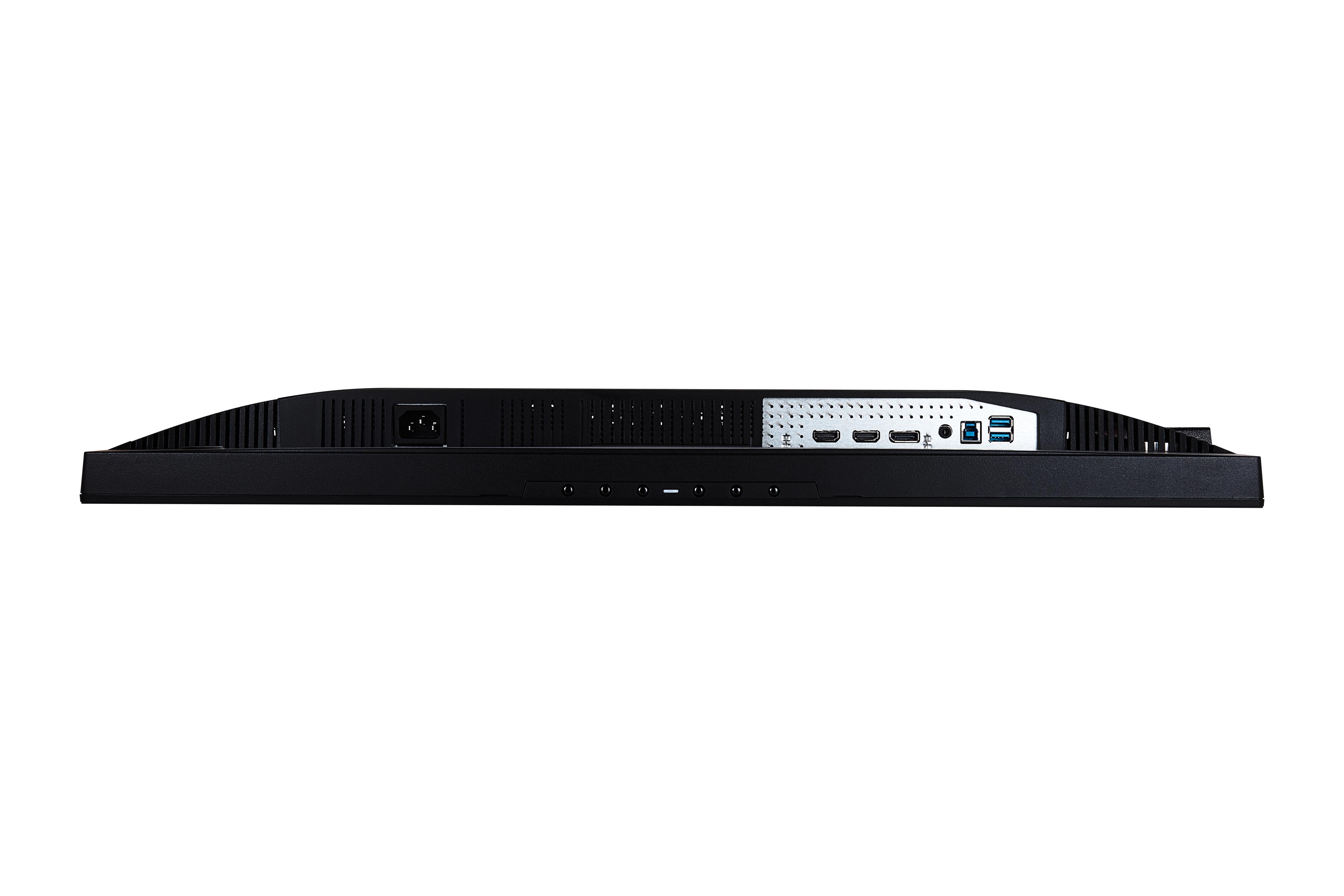

Connector
USB 3.2 Type A Down Stream: 4
USB 3.2 Type B Up Stream: 1
3.5mm Audio Out: 1
HDMI 2.0: 1
HDMI 1.4: 1
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 3Watts x2
Power
Eco Mode (Conserve): 26W
Eco Mode (optimized): 30W
Consumption (typical): 37W
Consumption (max): 40W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Controls
Physical Controls: G, Up, Down, A, B, Power
On Screen Display: Gaming Settings, Display, Input Selet, ViewMode, Audio Adjust, Setup Menu
Wall Mount
VESA Compatible: 90, 120 mm
Input Signal
Frequency Horizontal: HDMI (v1.4): 15 ~ 180KHz, HDMI (v2.0): 15 ~ 180KHz, DisplayPort (v1.2): 15 ~ 180KHz
Frequency Vertical: HDMI (v1.4): 24 ~ 144Hz, HDMI (v2.0): 24 ~ 144Hz, DisplayPort (v1.2): 48 ~ 144Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.2)
Ergonomics
Height Adjust (mm): ~
Swivel: 40º
Tilt (Forward/Back): Regularº / Mattº
Pivot (Right/Left): 0º / 0º
Weight (imperial)
Net (lbs): 8.5
Net Without Stand (lbs): 19.7
Gross (lbs): 12.6
Weight (metric)
Net (kg): 215
Net Without Stand (kg): 9
Gross (kg): 5.7
Dimensions (imperial) (wxhxd)
Packaging (in.): 2.6 x 29.7 x 18.5
Physical (in.): 5% to 90% (no condensation) x 25.3 x 17.17~21.9
Physical Without Stand (in.): 9.4 x 25.3 x 15.4
Dimensions (metric) (wxhxd)
Packaging (mm): 65 x 755 x 469
Physical (mm): -4°F to 140°F (-20°C to 60°C) x 642 x 436.2~556.2
Physical Without Stand (mm): 239 x 642 x 391
General
PACKAGE CONTENTS: 0766907010107 xXG2702 x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1,
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
