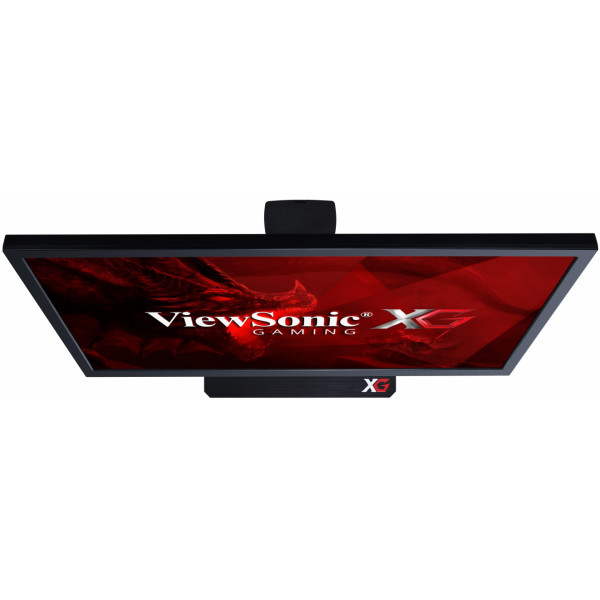

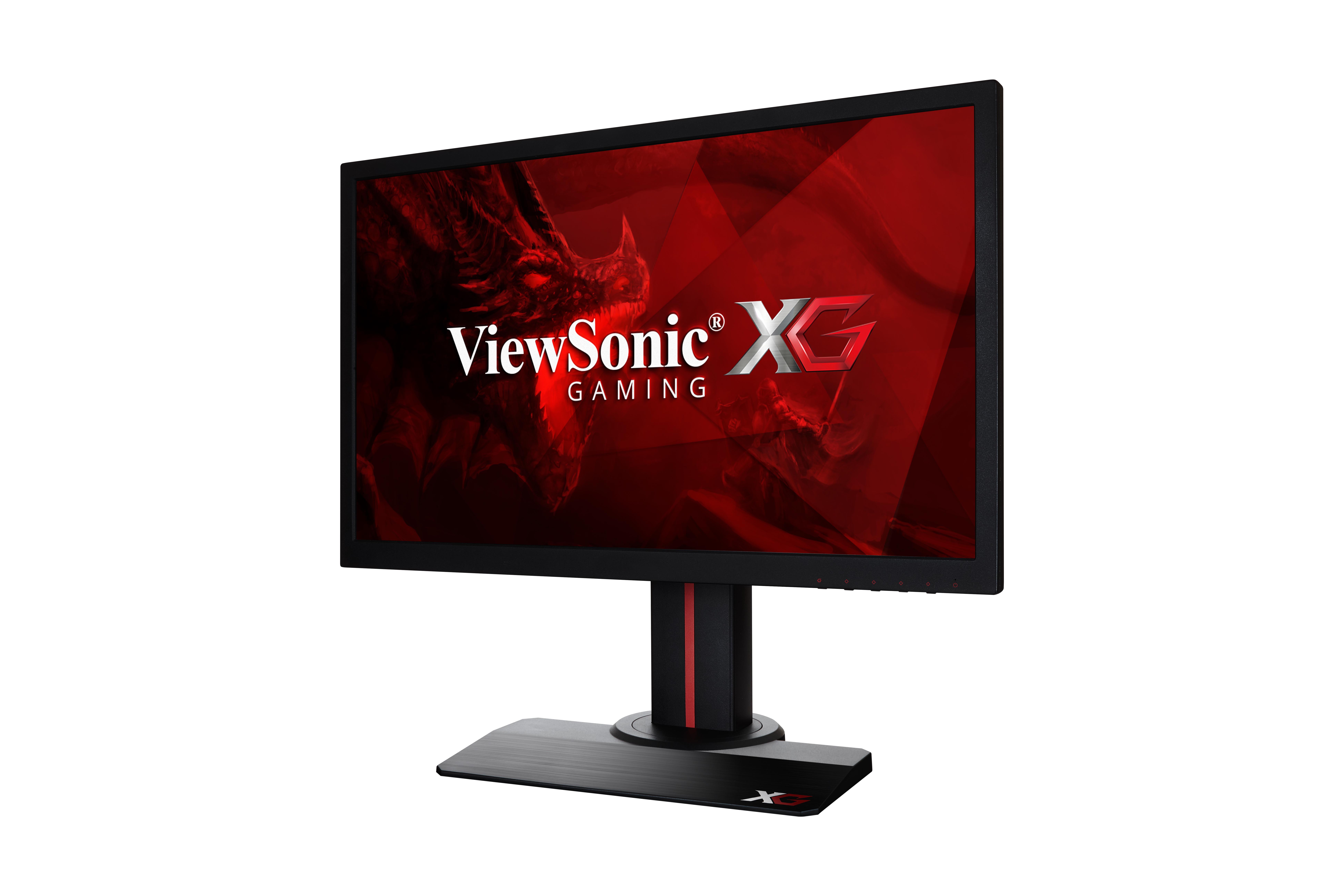

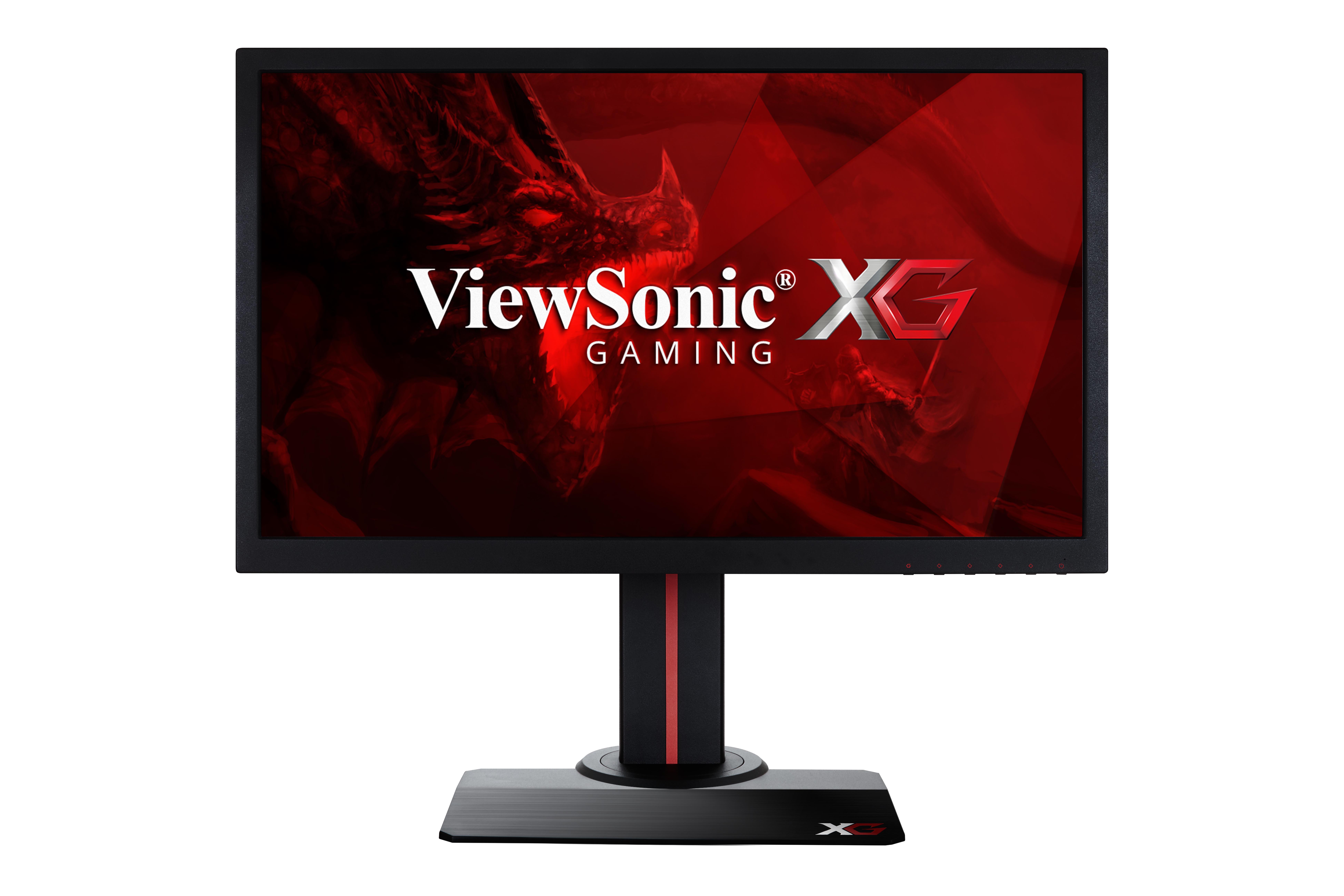

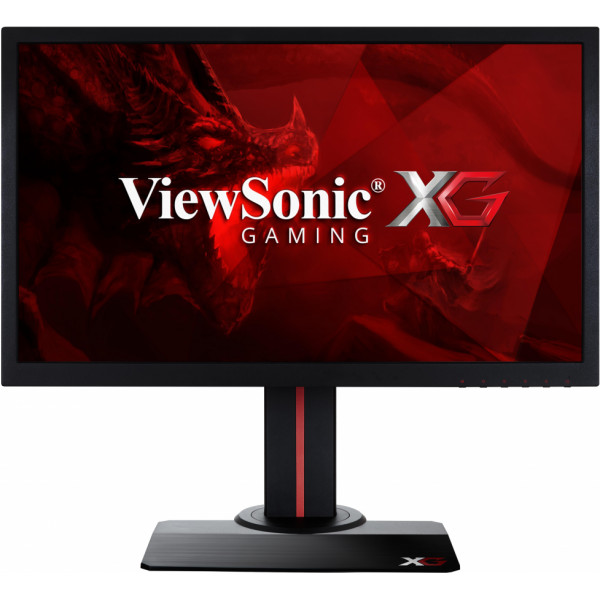

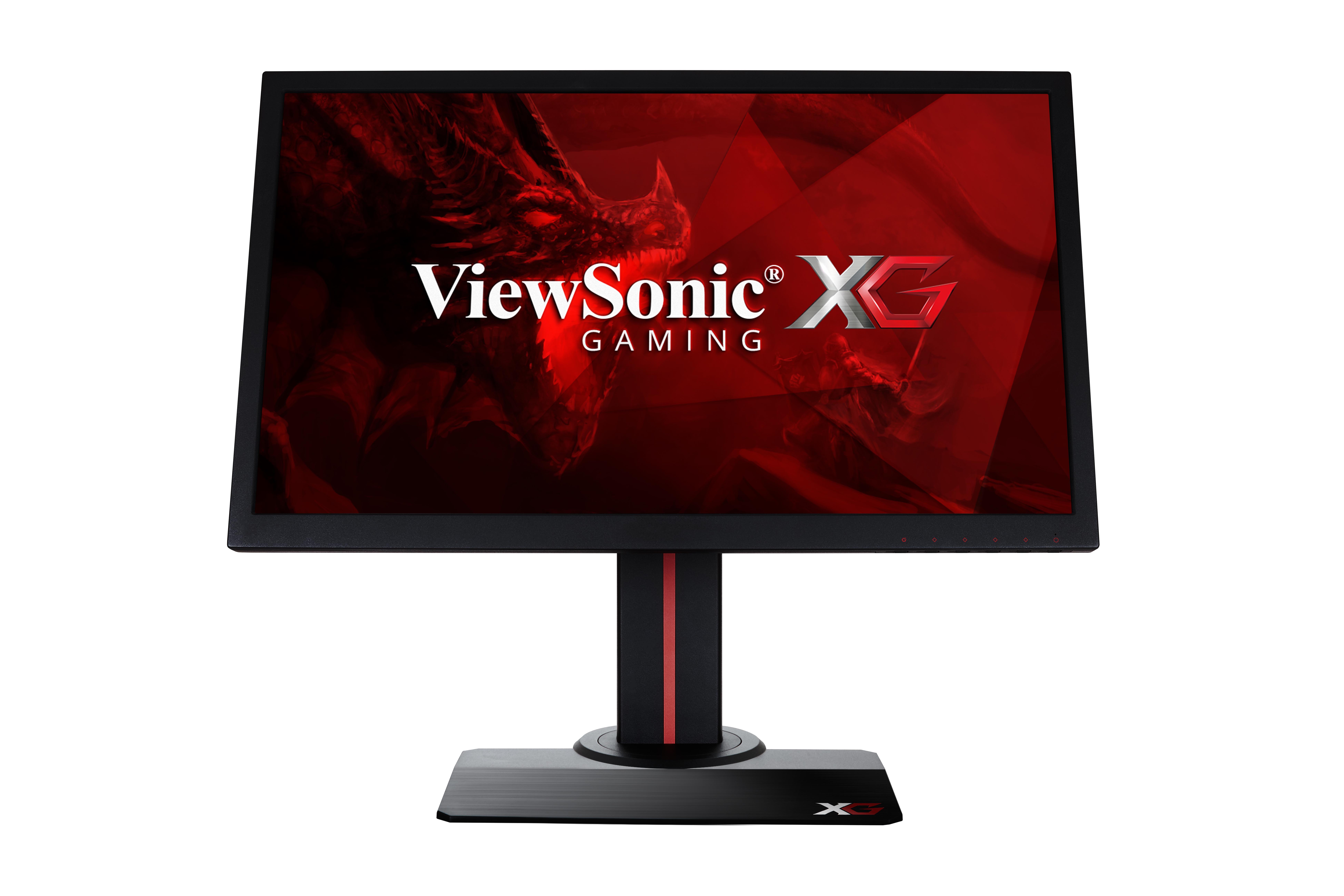

XG2402

24" 144Hz Gaming Monitor

1ms response time
AMD FreeSync™ technology
Unique Rampage X lighting and design
Black stabilisation
ColorX preset mode

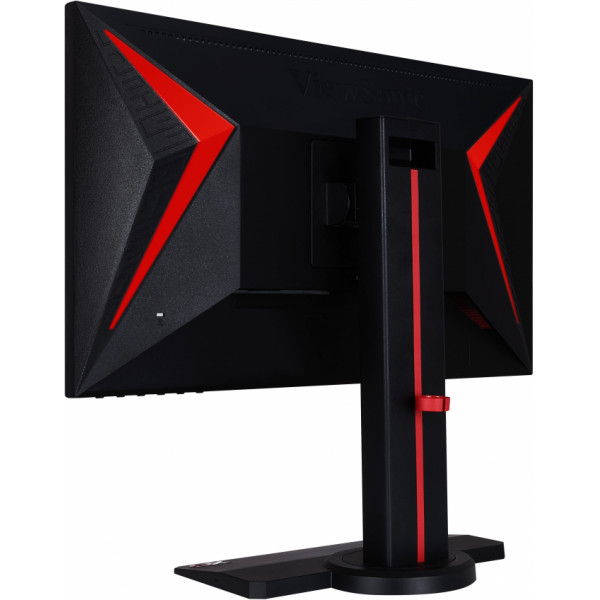

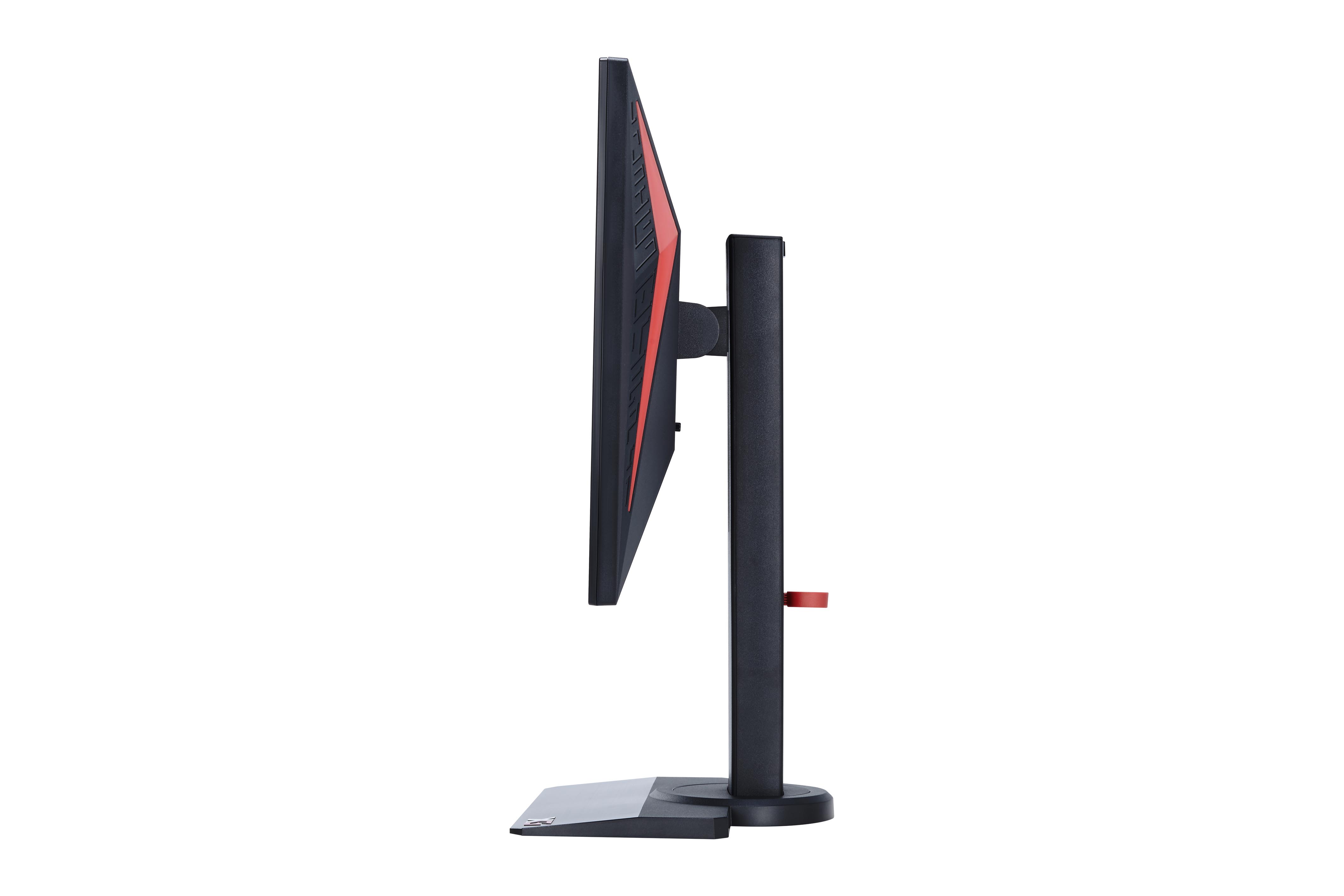

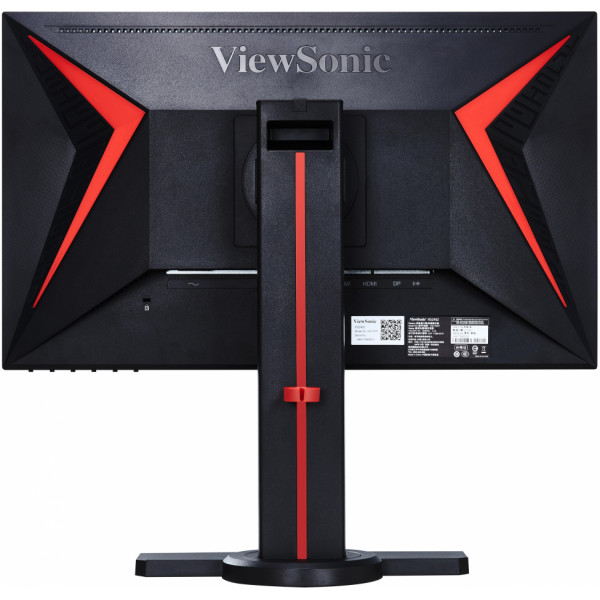

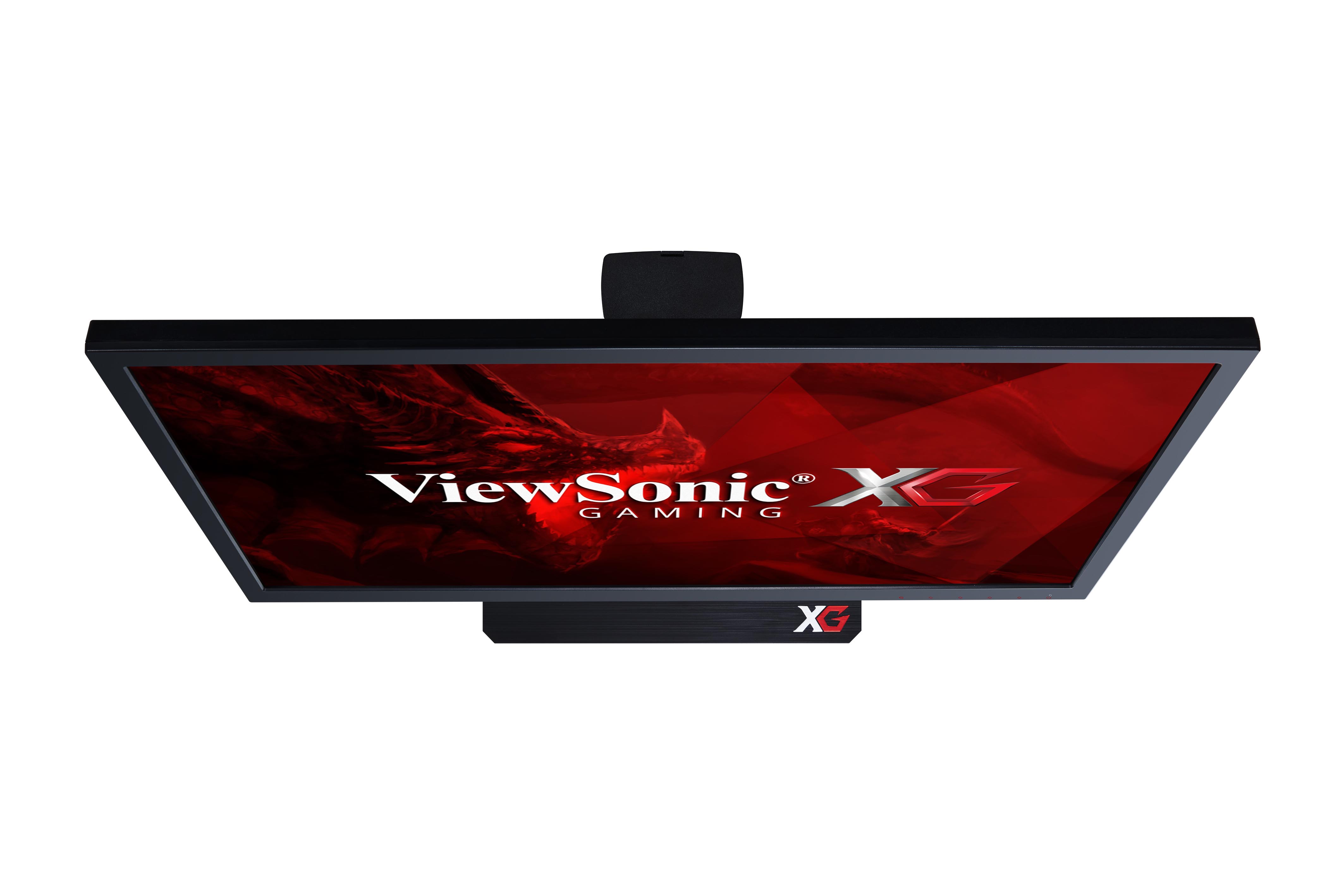

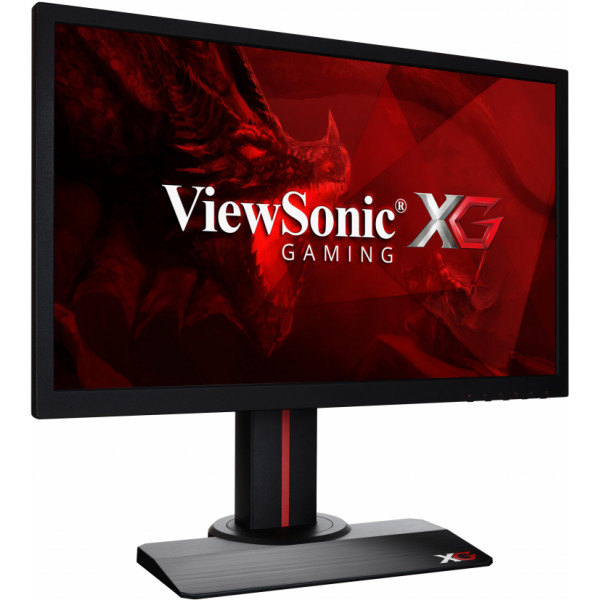

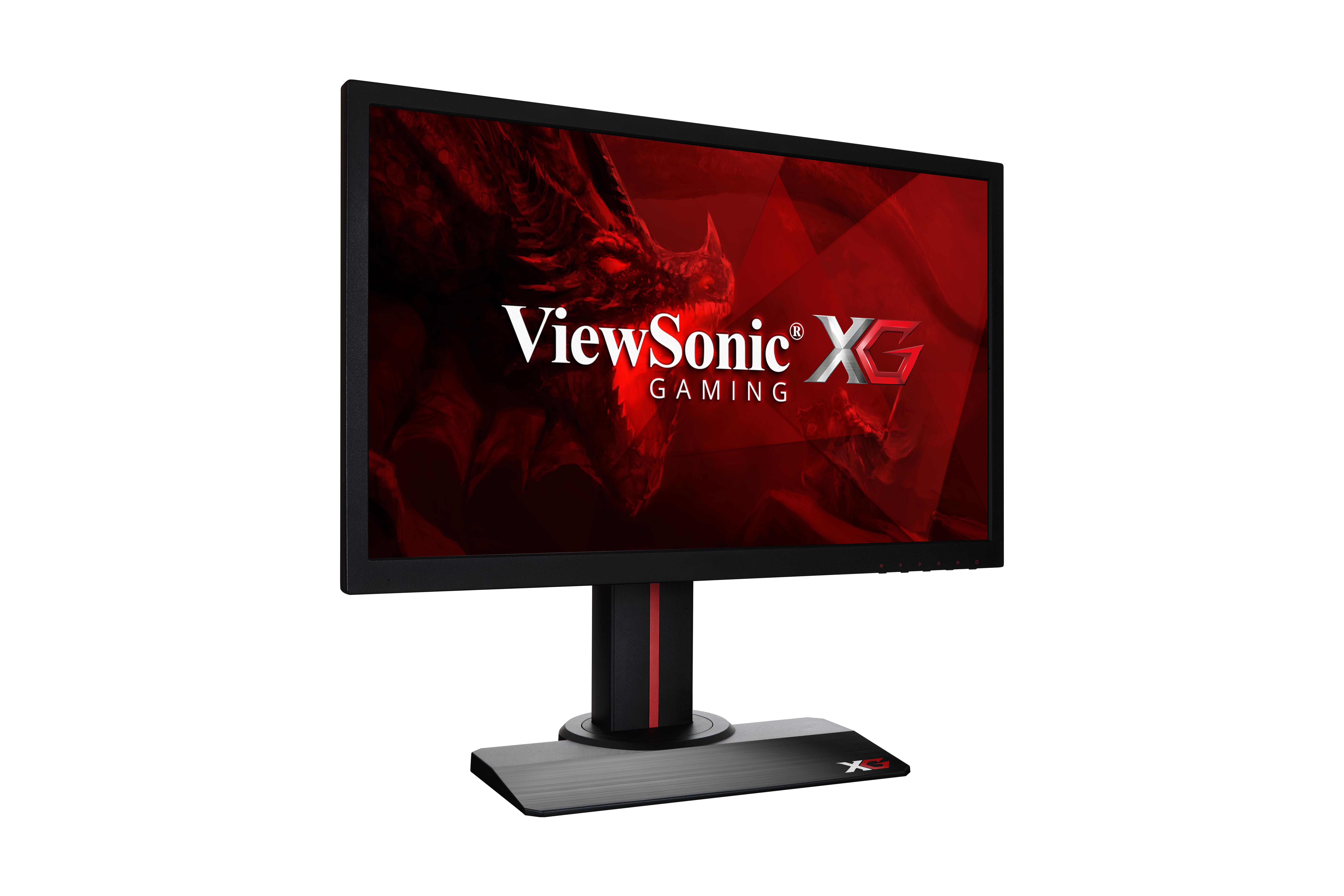

GALLERY

REVIEWS

ViewSonic XG2402

“This combination is ideal for fast paced games since 1ms is the speed of the transition for pixels, while 144Hz allow the monitor to display frames quickly, reducing your chance of encountering mismatching frames and motion blur.”

Read Review

SPECIFICATIONS

Display
Display Size (in.): 24
Viewable Area (in.): 24
Panel Type: TN Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 120M:1
Light Source: LED
Brightness: 350 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + A-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 1ms
Viewing Angles: 170º horizontal, 160º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 144
Variable Refresh Rate Technology: FreeSync
Blue Light Filter: Yes
Flicker-Free: Yes
X Lighting: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 102% size (Typ)
Pixel Size: 0.277 mm (H) x 0.277 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10 certified; macOS tested
Mac® Resolution (min): 1920x1080

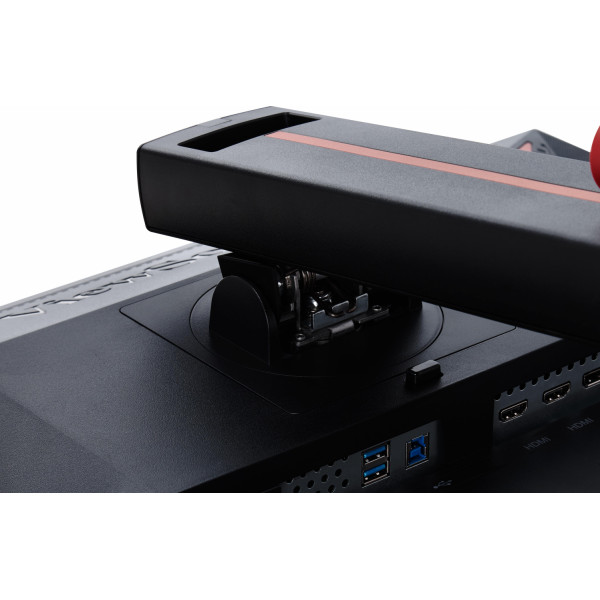

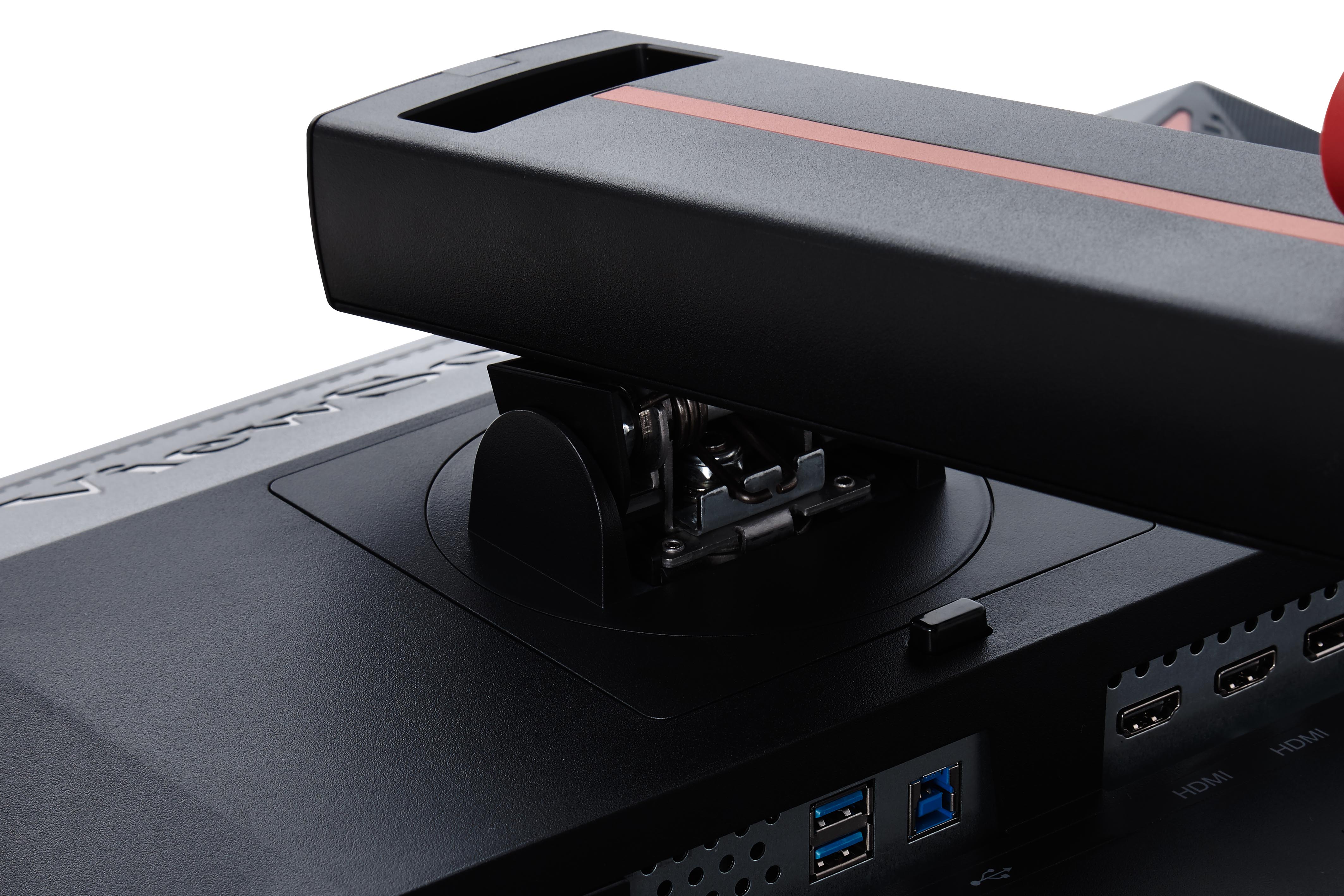

Connector
USB 3.2 Type A Down Stream: 2
USB 3.2 Type B Up Stream: 1
3.5mm Audio Out: 1
HDMI 1.4: 2
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 25.5W
Eco Mode (optimized): 26.9W
Consumption (typical): 27.6W
Consumption (max): 28.3W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1

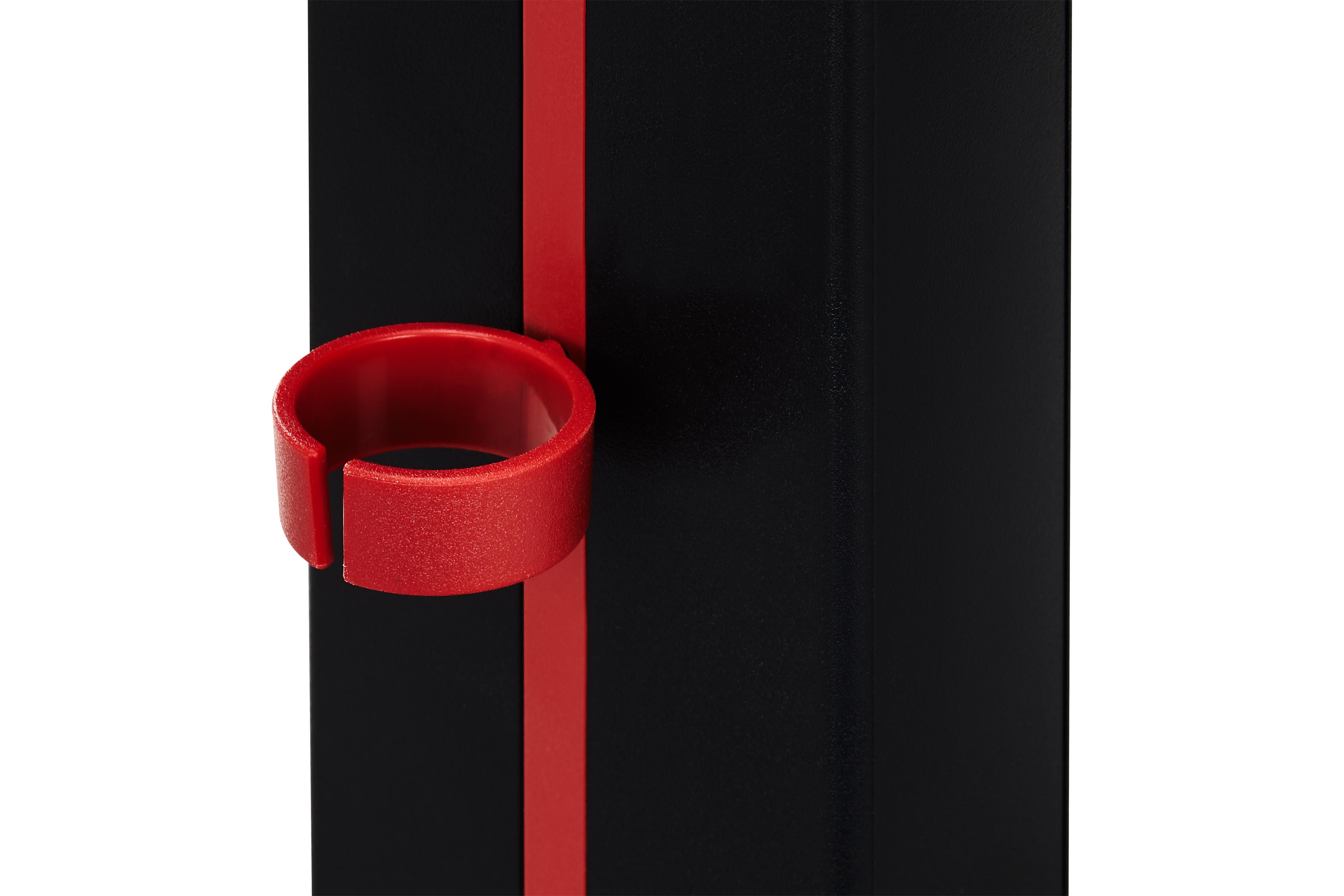

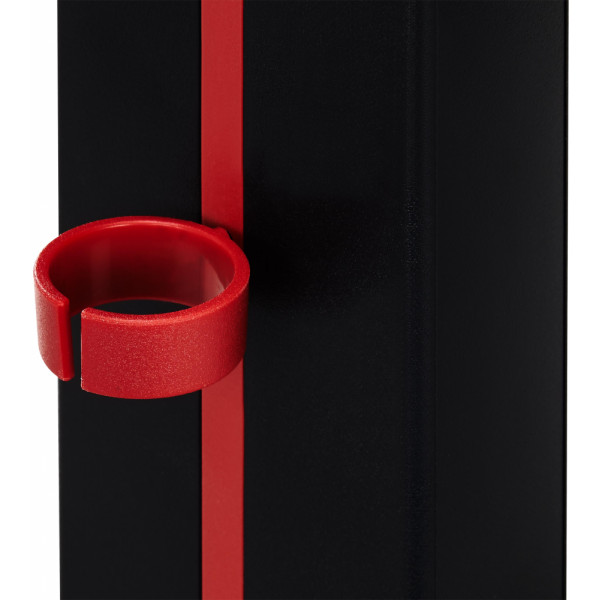

Cable Organization: Yes
Controls
Physical Controls: Key 1 (game mode), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Gaming Settings, Display, Input Selet, ViewMode, Audio Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%

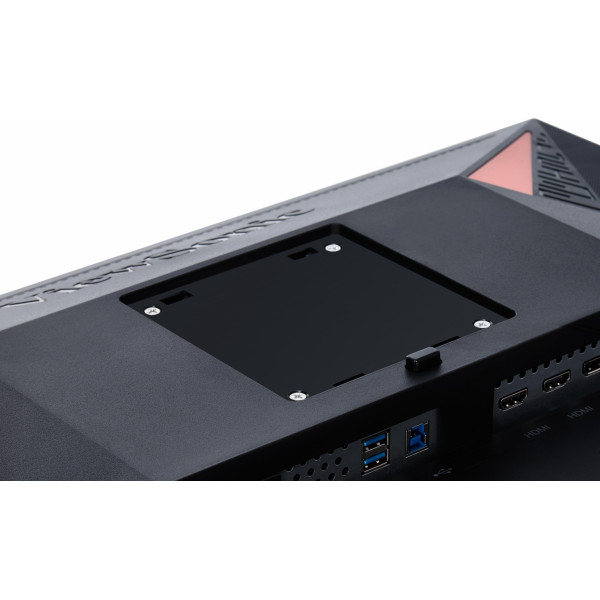

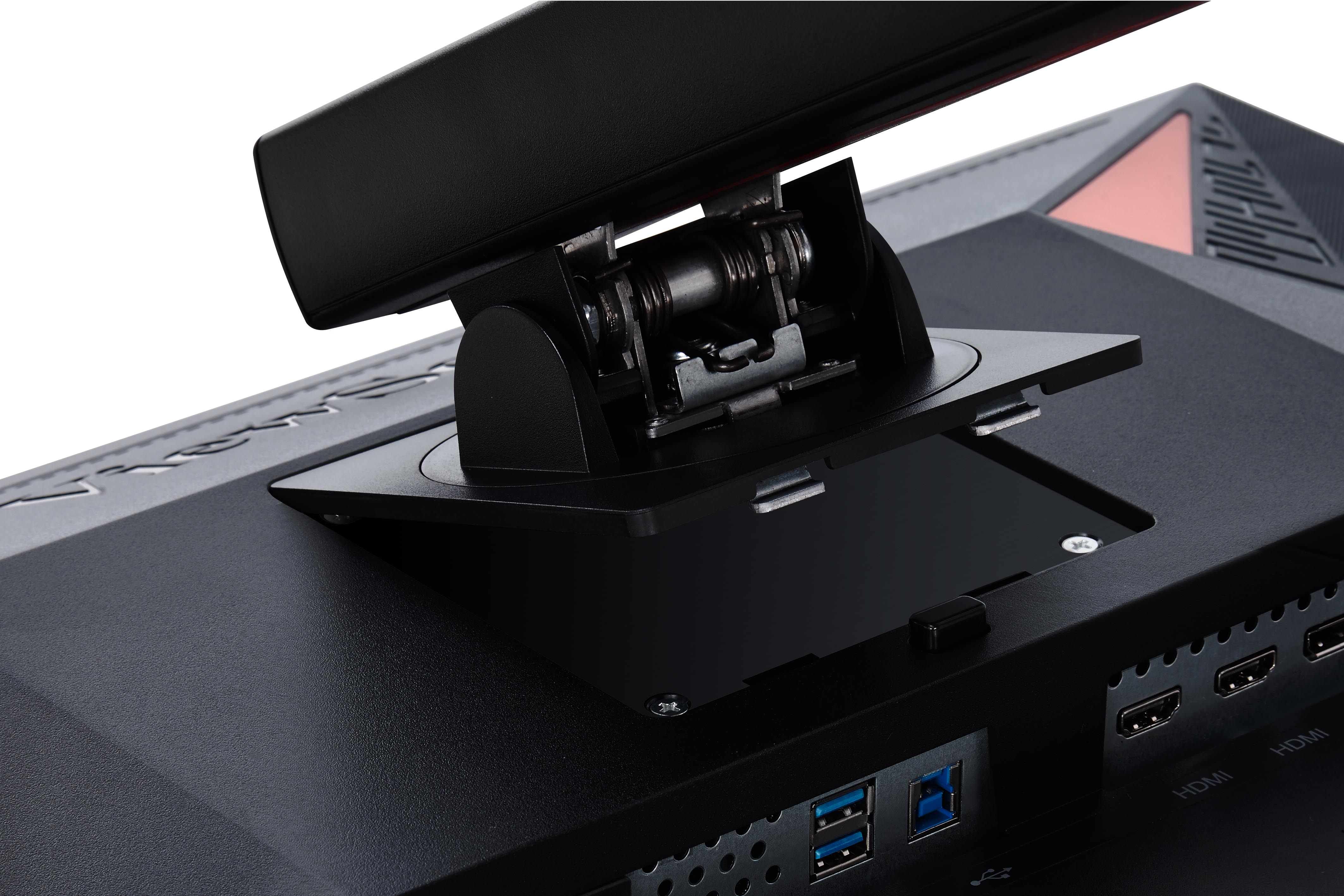

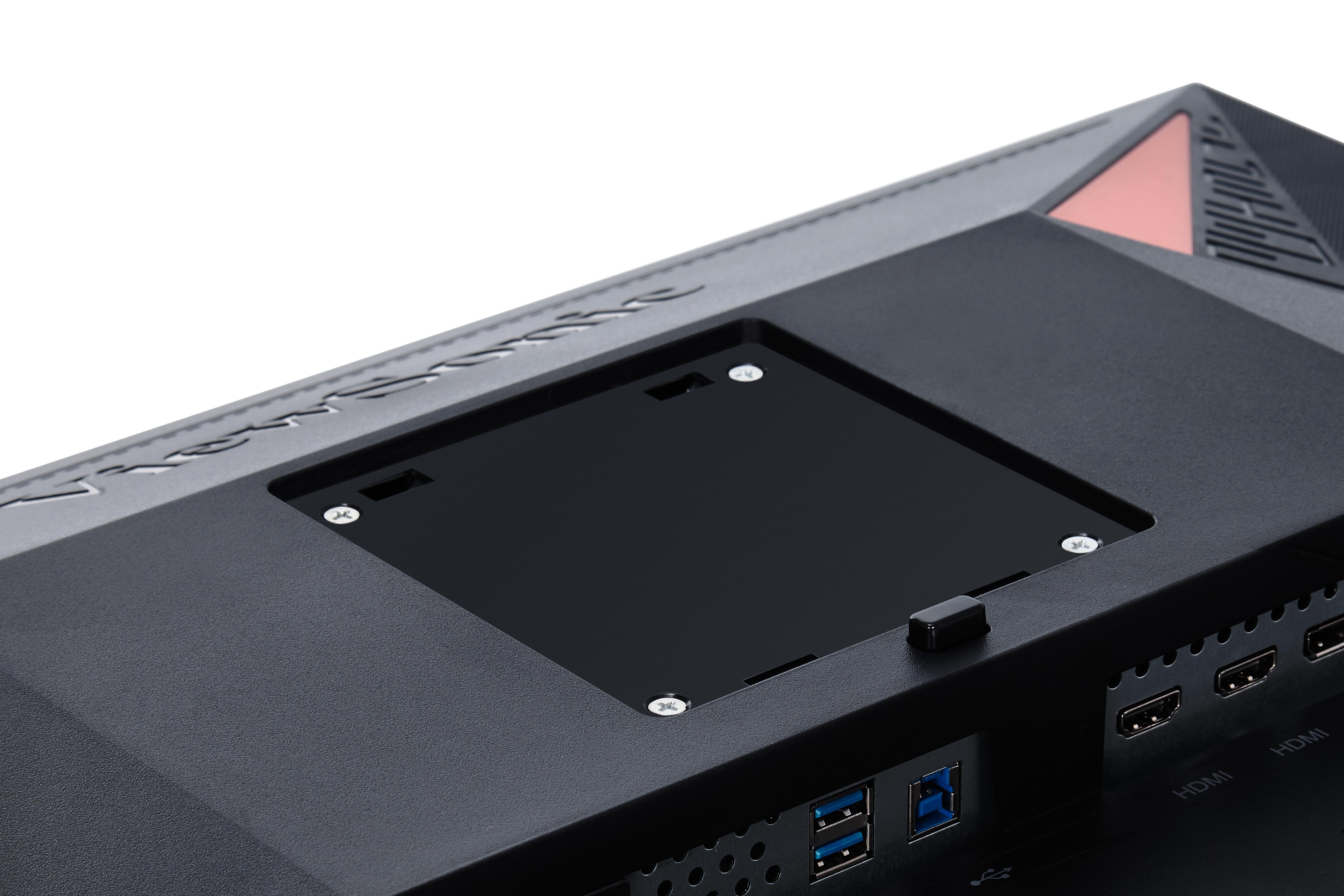

Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: HDMI (v1.4): 15 ~ 160KHz, DisplayPort (v1.2): 30 ~ 160KHz
Frequency Vertical: HDMI (v1.4): 24 ~ 144Hz, DisplayPort (v1.2): 48 ~ 146Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)

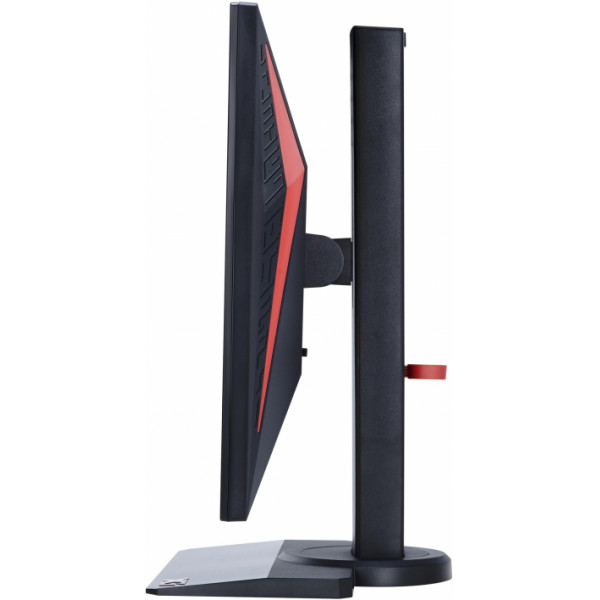

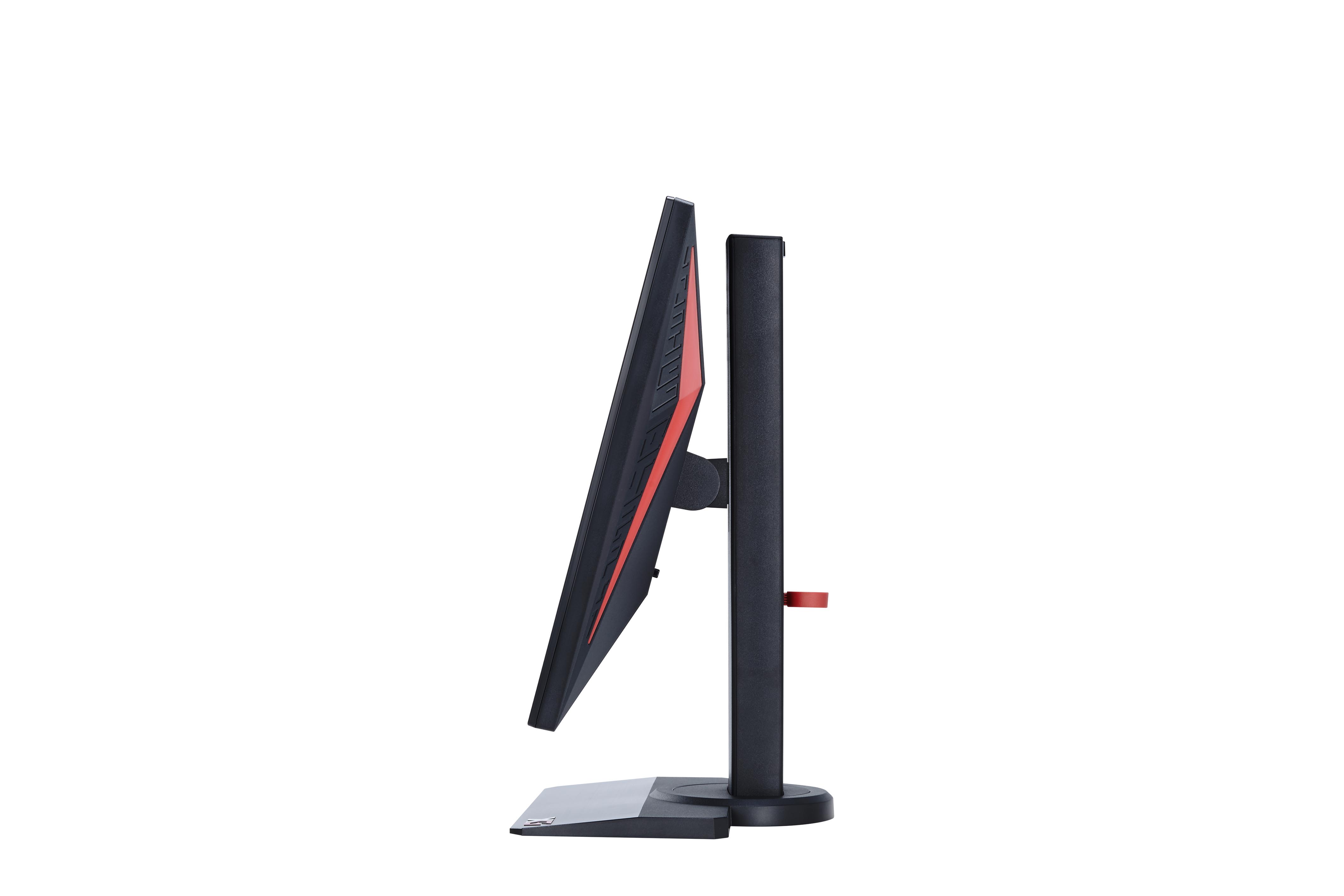

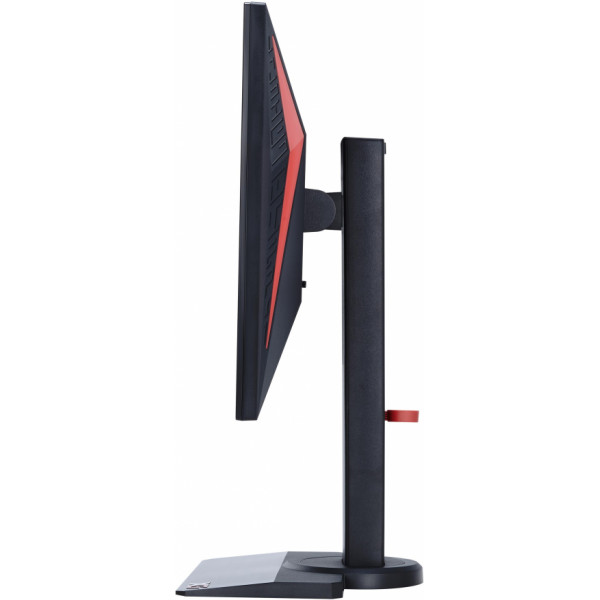

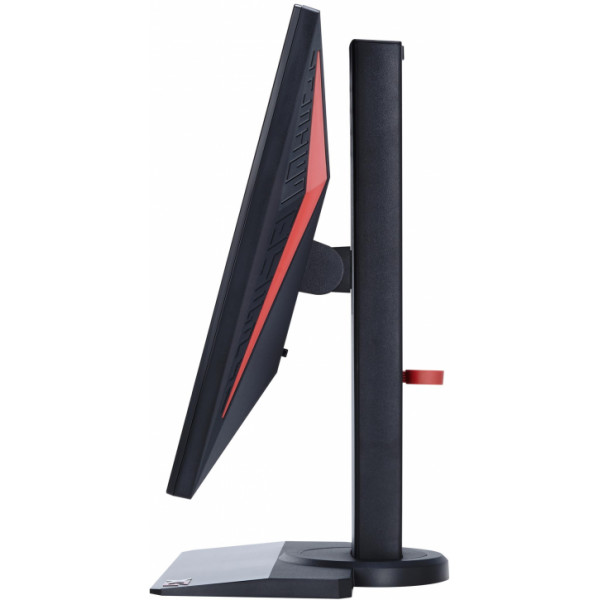

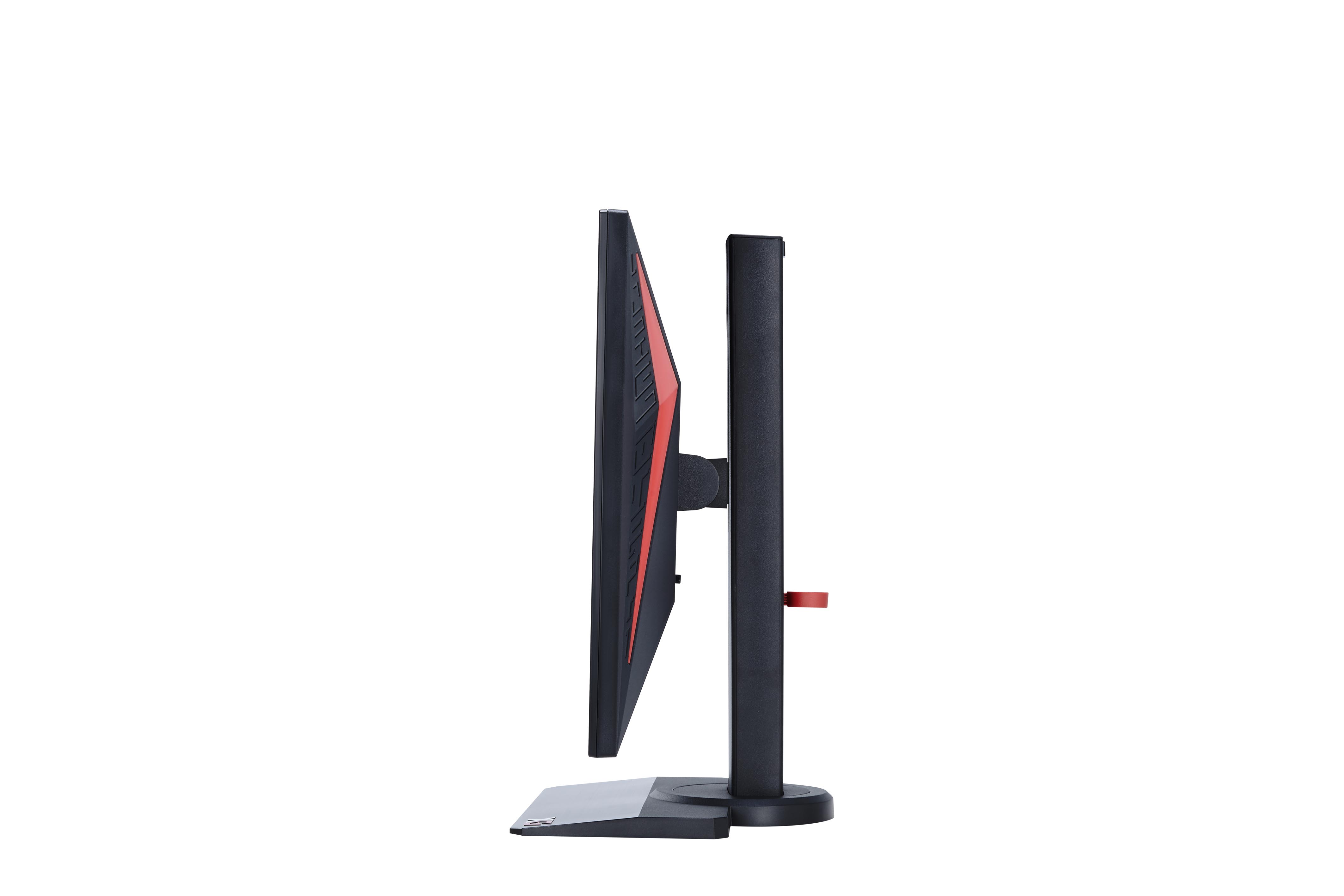

Ergonomics
Height Adjust (mm): 120
Swivel: 90º
Tilt (Forward/Back): -5º / 15º
Pivot (Right/Left): 90º / 0º
Weight (imperial)
Net (lbs): 14.8
Net Without Stand (lbs): 7.5
Gross (lbs): 18.7
Weight (metric)
Net (kg): 6.7
Net Without Stand (kg): 3.4
Gross (kg): 8.5
Dimensions (imperial) (wxhxd)
Packaging (in.): 25.2 x 15.6 x 8.1
Physical (in.): 22.3 x 17.08~20.87 x 9.4
Physical Without Stand (in.): 22.3 x 13.4 x 2.4
Dimensions (metric) (wxhxd)
Packaging (mm): 640 x 396 x 207
Physical (mm): 566 x 433.9~530.18 x 239
Physical Without Stand (mm): 566 x 341 x 60
General
PACKAGE CONTENTS: XG2402 x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
