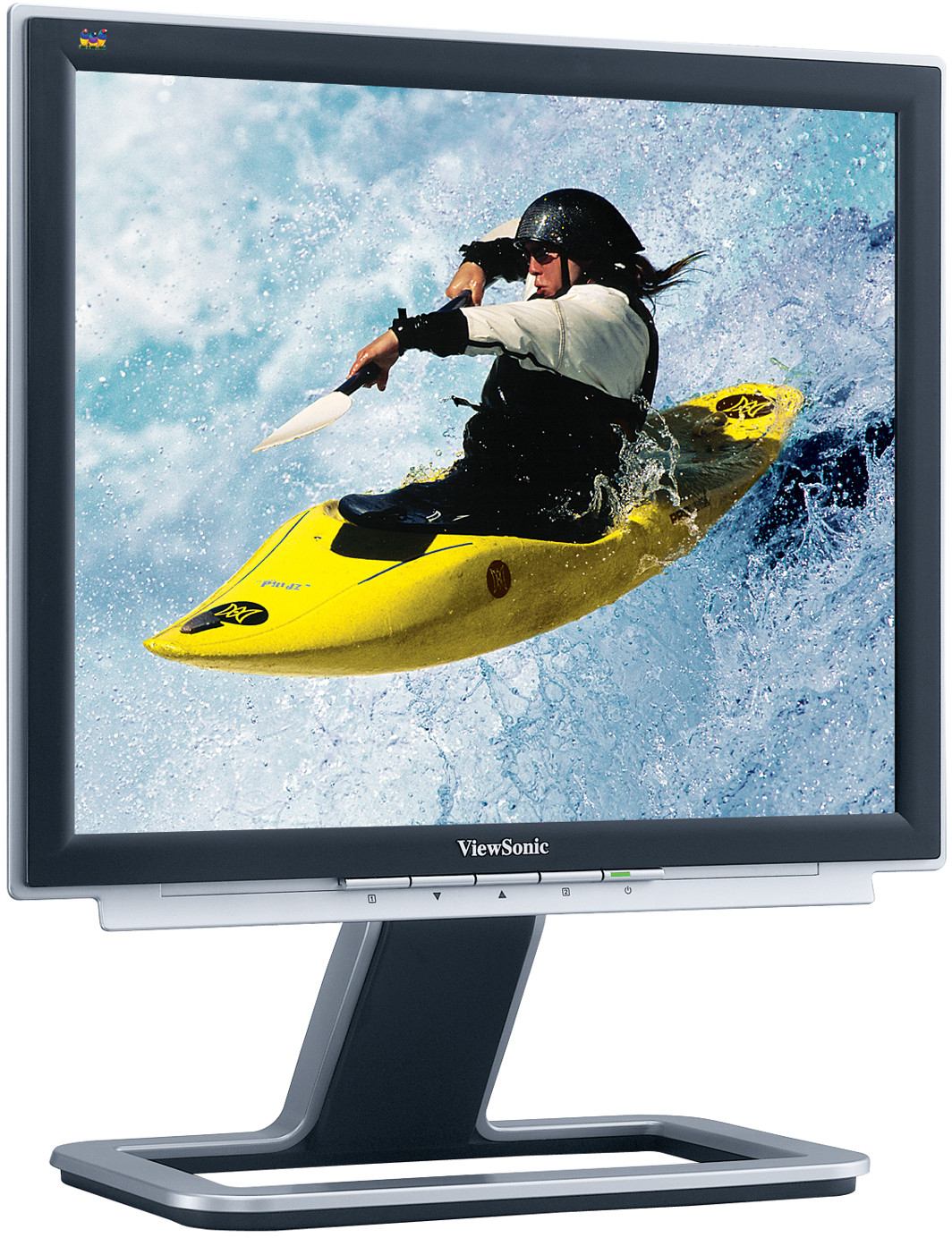

VX924

19” Xtreme 3ms CLEARMOTIV™ Display

LCD
Type: 19” colour TFT active matrix SXGA LCD
Contrast Ratio: 550:1 (typ.)
Viewing Angles: 140° horizontal, 135° vertical (at 10:1)
160° horizontal, 160° vertical (at 5:1)
Display Area: 37.6cm horizontal x 30.1cm vertical, 48.3cm diagonal
Optimum Resolution: 1280 x 1024
Response Time: 3ms (grey-to-grey), 4.8ms (off-on-off)
Panel Surface: anti-glare 3H
Colour Support: 16.2M colours (6-bit+2-bit FRC)
Pixel Clock: 135MHz
Brightness: 270cd/m²
COMPATIBILITY
PC: VGA up to 1280 x 1024 (max. 75Hz)
Mac®: Power Mac™ up to 1280 x 1024 (max. 75Hz)
DIMENSIONS
W x H x D mm: 431 x 468 x 201 (with stand)
431 x 370 x 66 (without stand)

PACKAGE CONTENTS
LCD display, power cable, 15-pin VGA video cable, DVI cable, Quick
Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
WARRANTY
Please see:
www.viewsoniceurope.com/UK/Support/warranty.htm
INPUT
Sync: H/V separate (TTL), composite, sync on green
Digital: DVI-D (TMDS, 100 ohm)
Analogue: RGB analogue (0.7 Vp-p, 75 ohm)
Frequency: Fh: 30–82kHz, Fv: 50–75Hz
CONNECTOR
Analogue: 15-pin mini D-Sub (detachable cable)
Digital: 24-pin DVI-D (detachable cable)
Power: 3-pin (CEE22)
POWER
Voltage: 100–240V, 50–60Hz (Auto-Switch), internal power
Consumption: 35W (typ); ≤ 1 watt in power save mode
CONTROLS
OSD: Auto image adjust, contrast, brightness, input select, colour adjust
(sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution,
H/V frequency, pixel clock, model number, serial number,
website), manual image adjust (H/V position, H size, fine tune,
sharpness), setup menu (language, resolution information, OSD
position, OSD timeout, OSD background), Recall
Physical: Power on/off, menu, up, down, select
OPERATING CONDITIONS
Temperature: 0°C to 40°C
Humidity: 10% to 90% (non-condensation)
WEIGHT
Net: 6.7kg (with stand), 5.3kg (without stand)
POWER MANAGEMENT
Meets TCO’99 and Energy Star standards
ERGONOMICS
Tilt: Down 5°, Up 20°
