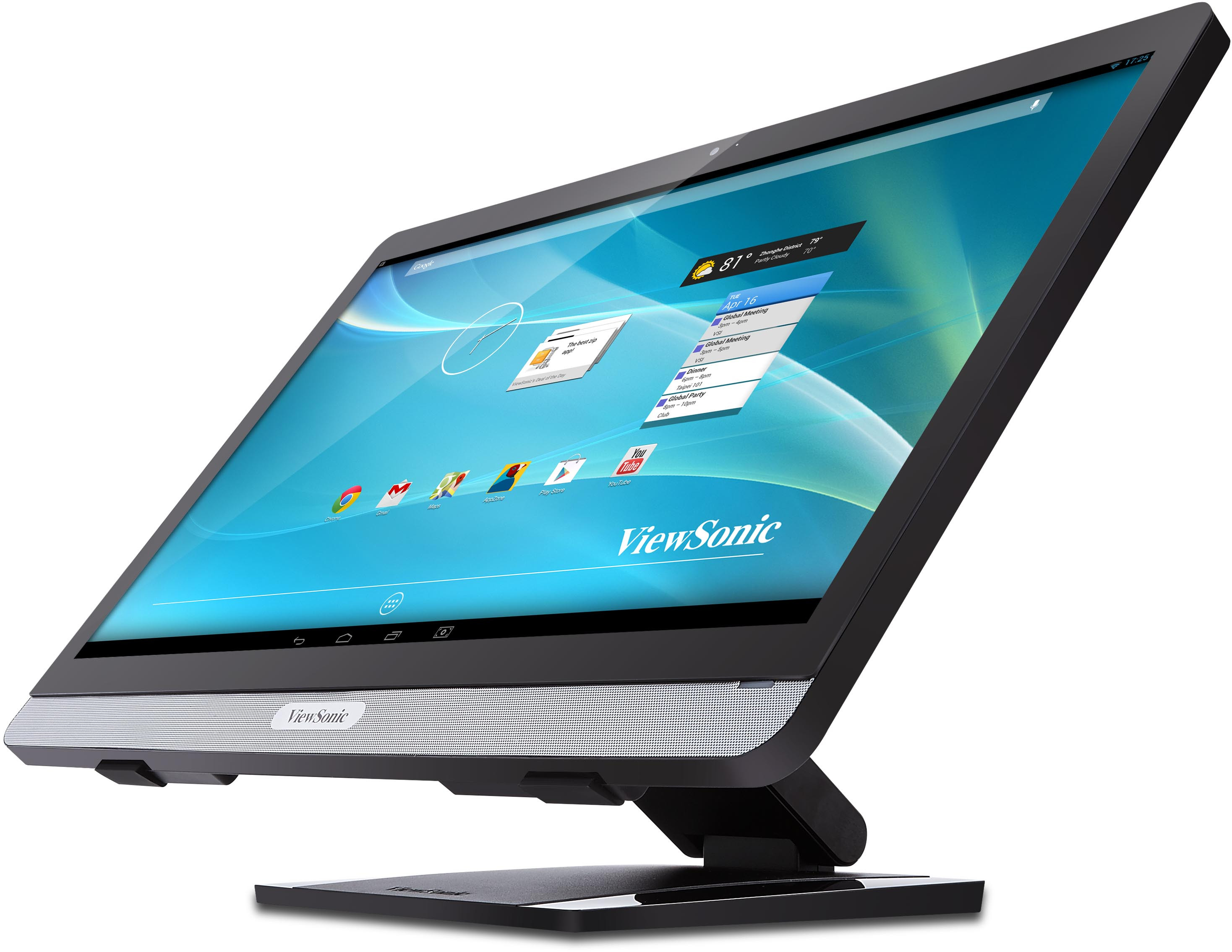

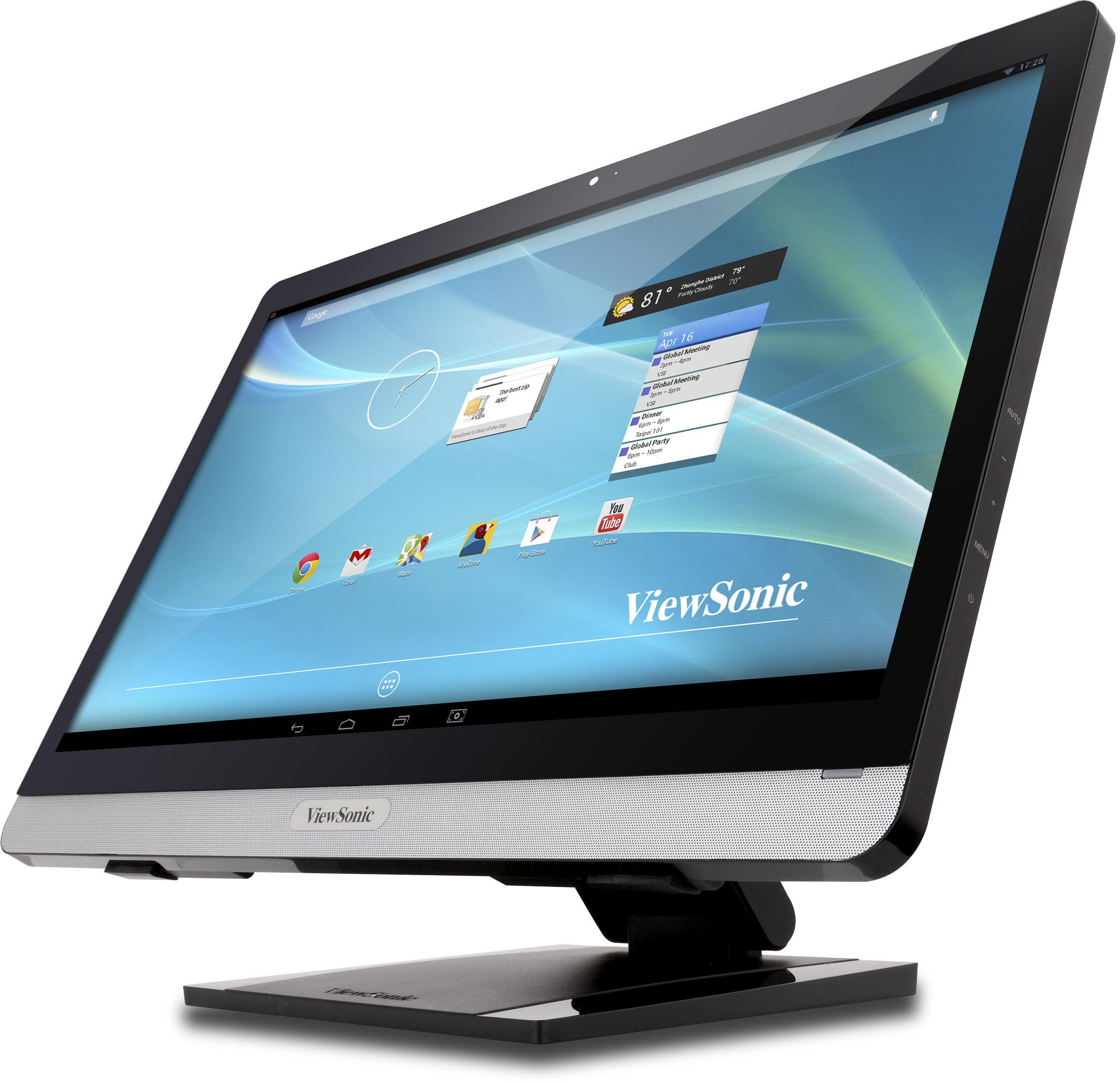

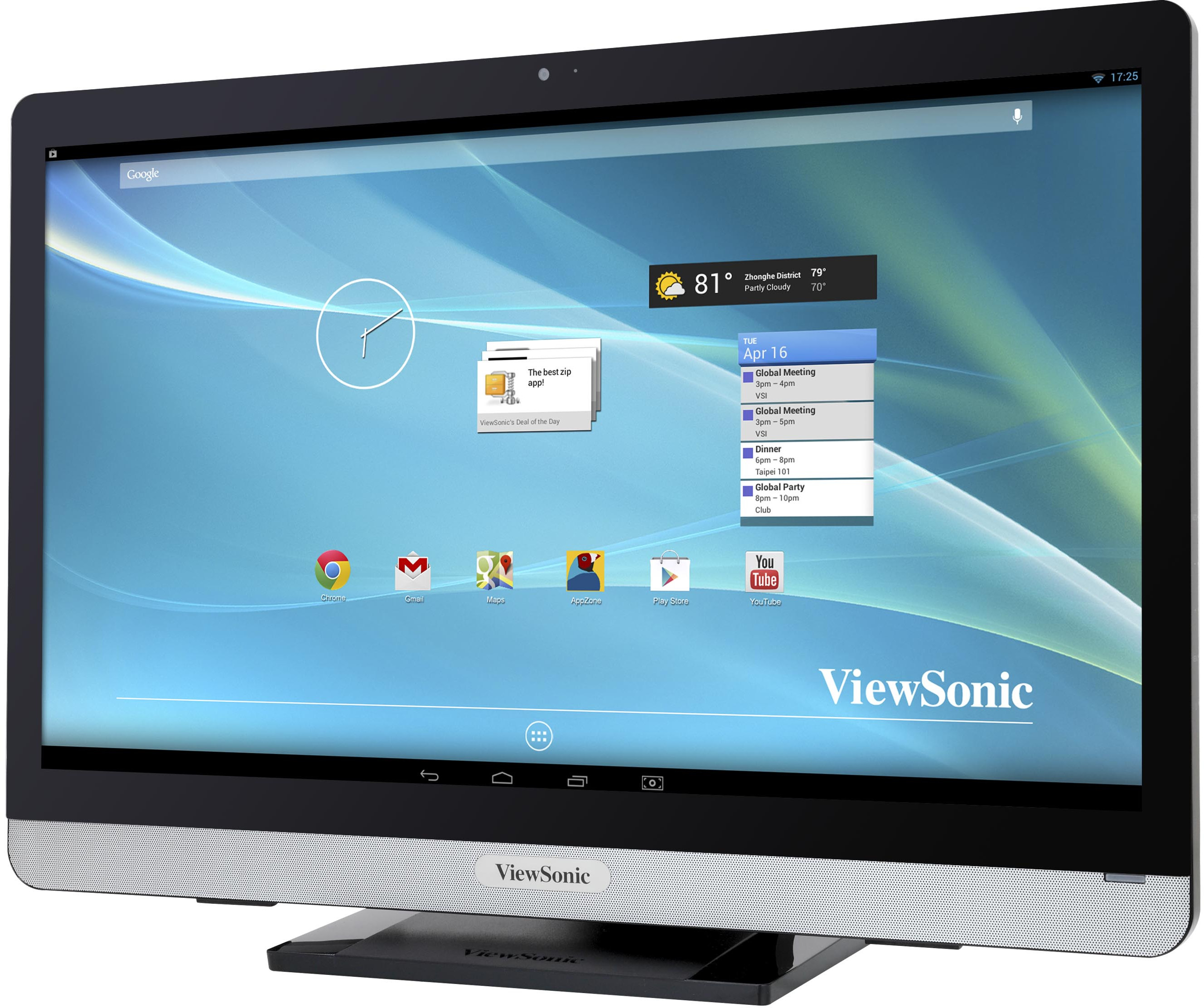

ViewSonic Smart Display VSD231

VSD231

23” IPS LED Smart Display

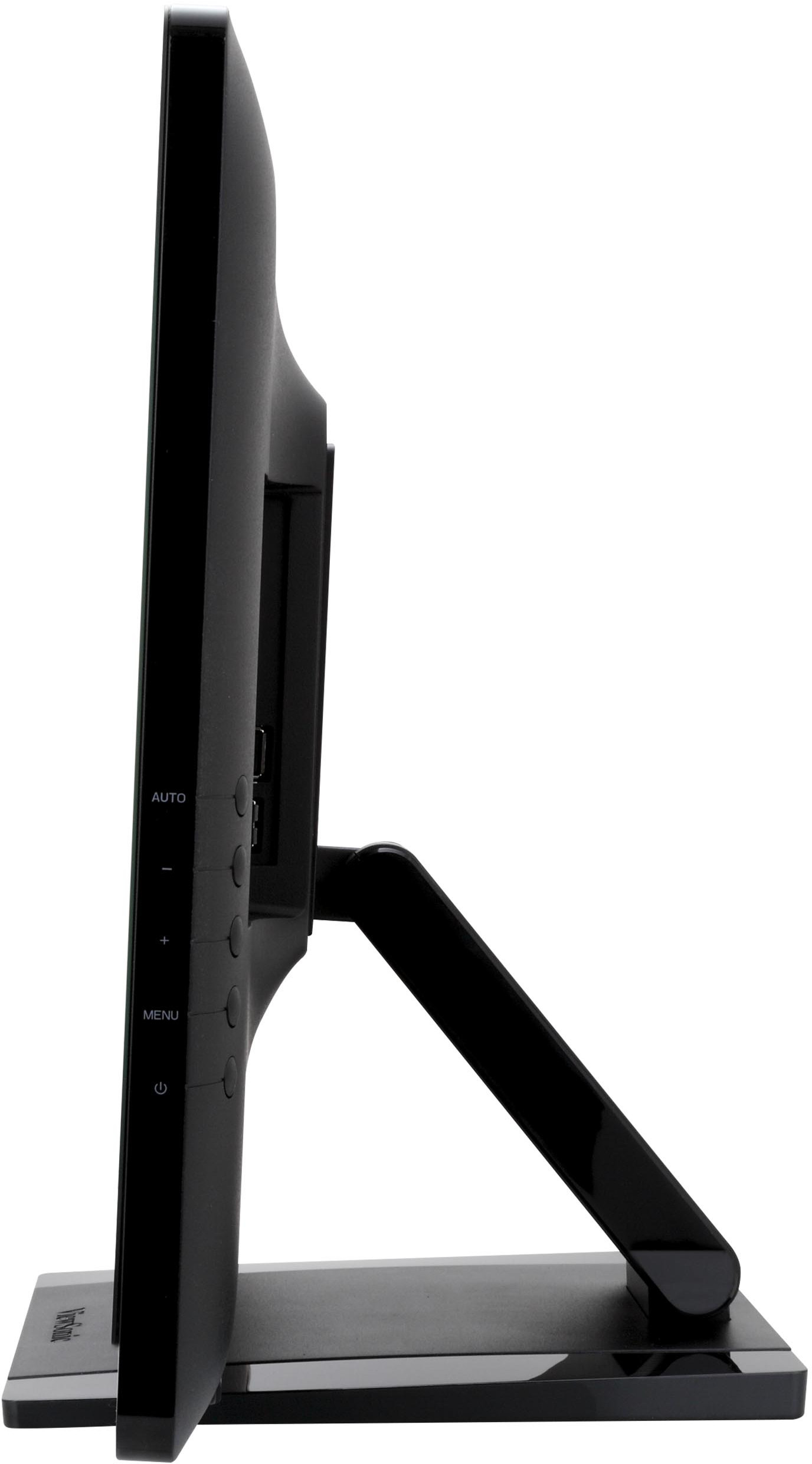

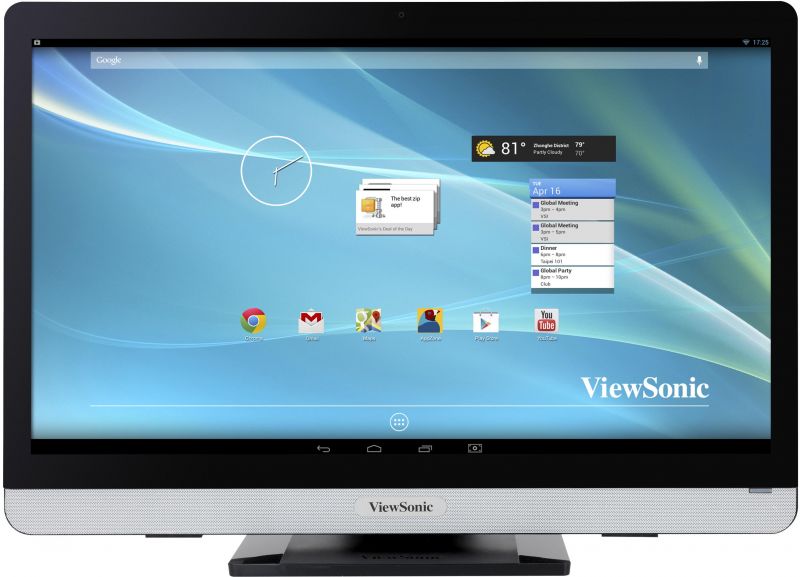

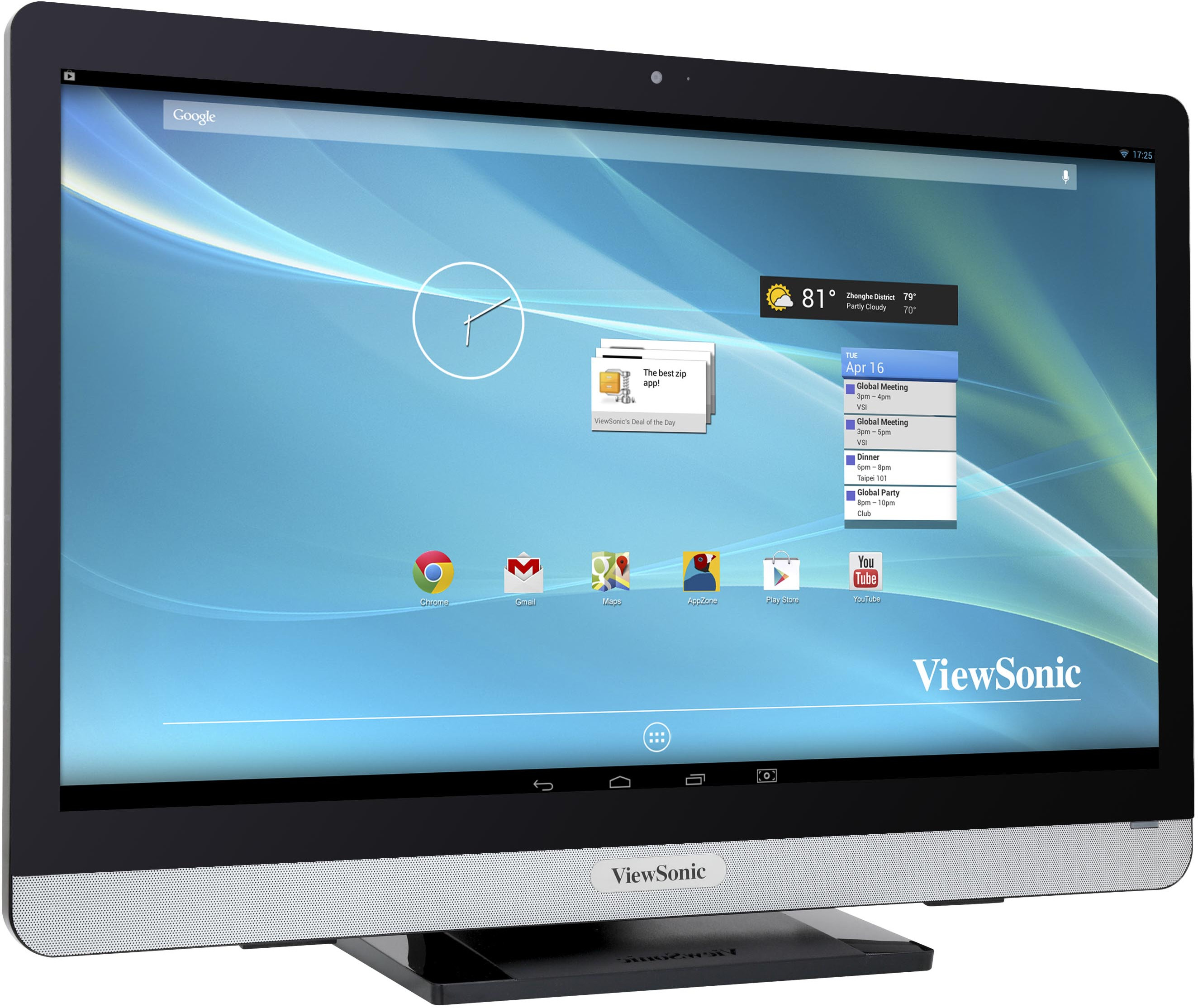

GALLERY

SPECIFICATIONS

SYSTEM
CPU Processor: nVidia Tegra® T40S (Quad- Core 1.6GHz)
Operating System: Android Jelly Bean 4.3.1 OS
System Memory: 2GB DDR3
Storage Memory: 8GB eMMC iNand
DISPLAY
Type: 23” TFT transmissive LCD
Display Area: 23"
Optimum Resolution: 1920 x 1080
Brightness: 300 cd/m2 (typ.)
Contrast Ratio: 1,000:1 (typ.)
Viewing Angles: 178° / 178°
Response Time: 14ms (typ.)
Panel Surface: Touch Glasses (7H)
Touch Panel: HannsTouch PCT 10 points supported

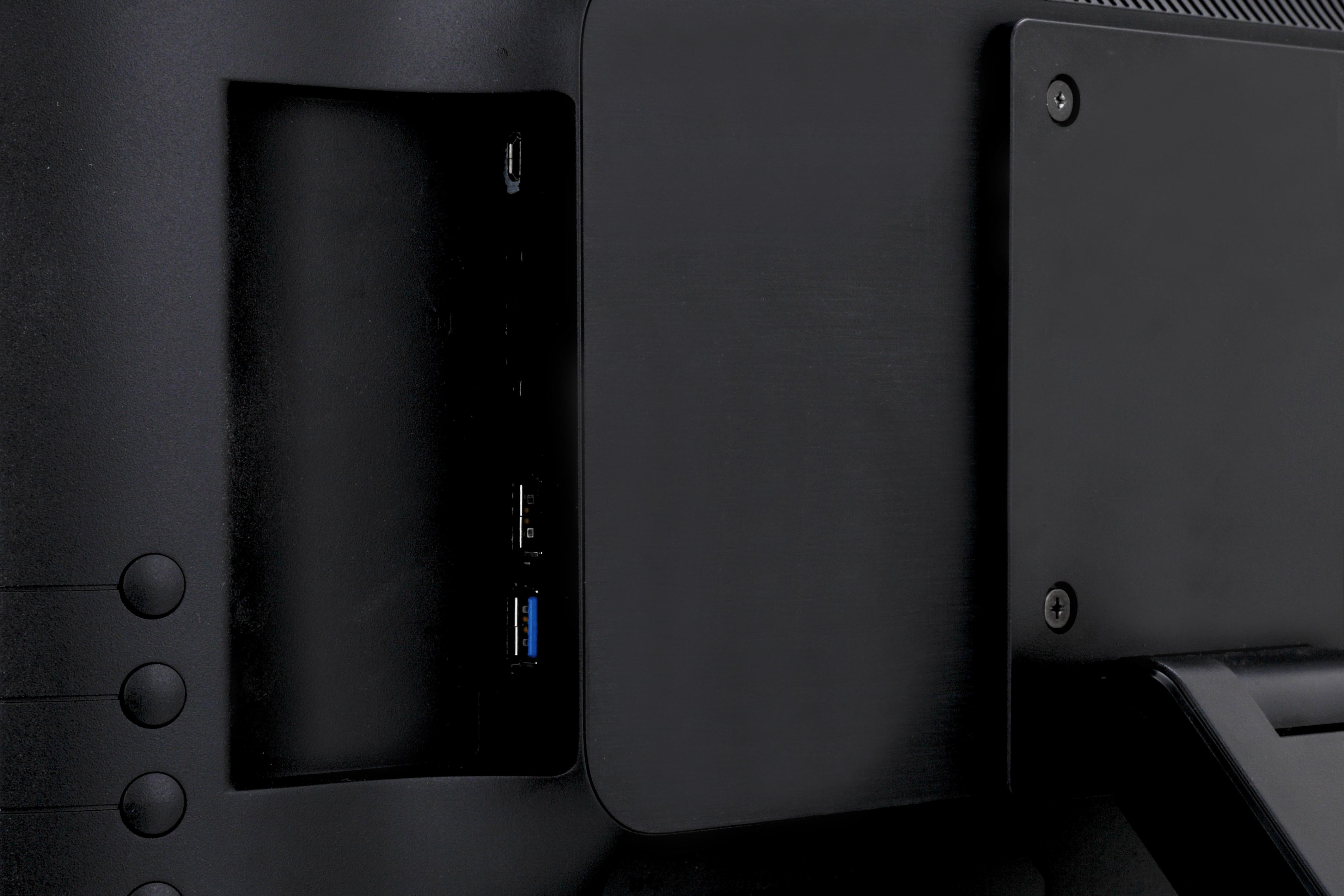

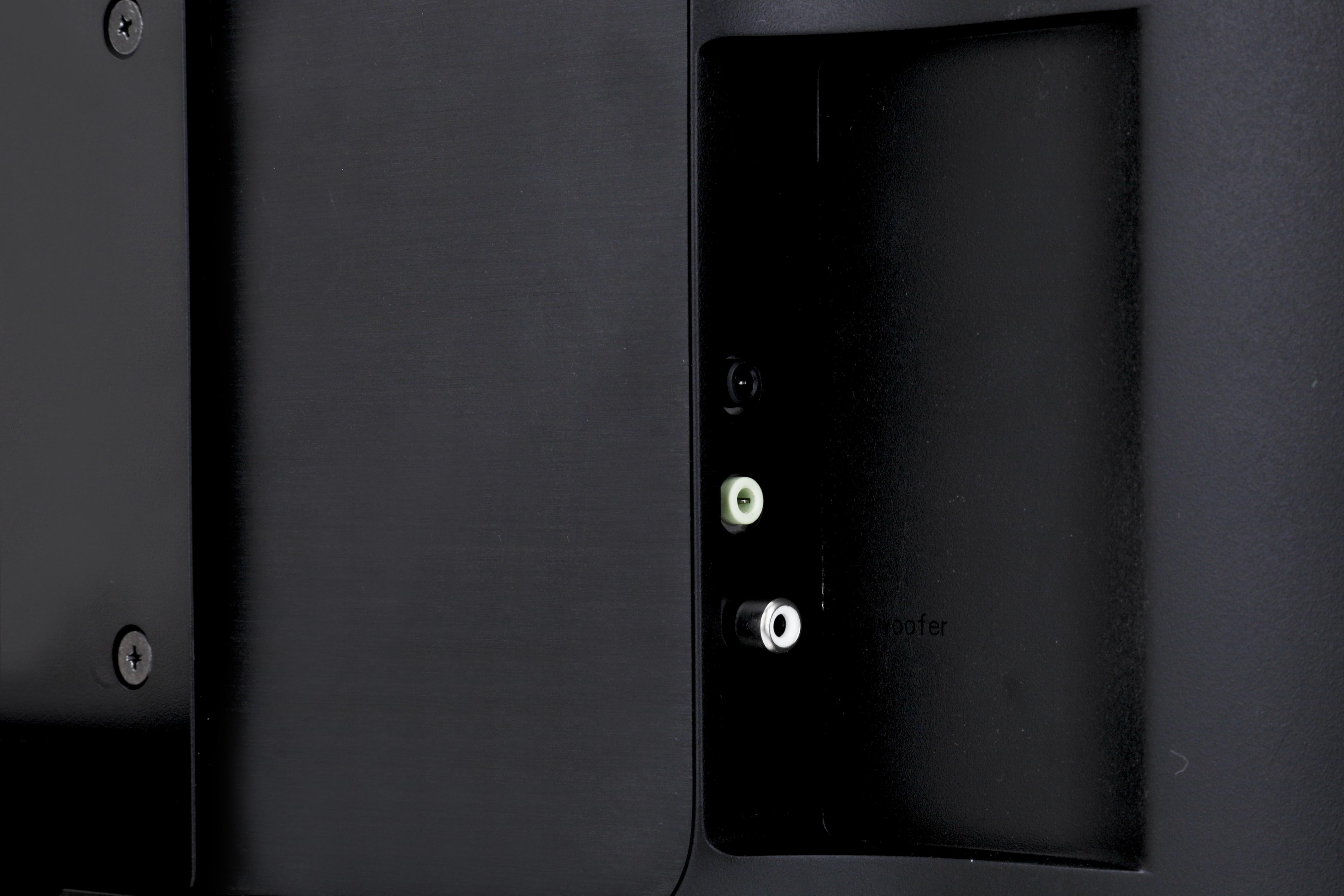

INPUT/OUTPUT
USB: USB 3.0 Type A x3, USB 3.0 Type B x1,USB 2.0 Type A x1, Micro USB x1 (data transferig with PC)
HDMI: HDMI in (MHL) x1, HDMI out x1
Card Reader: SD card slot x1
LAN/Ethernet: RJ45 x1 (10M/100M/1000M)
Audio: 3.5mm audio jack x1, 3.5mm ear-phone jack x1
Video: D-Sub In x1
Power: DC jack power x1
Speakers: 2W x2
Front Camera: Wafer lens 2.0 MP

POWER
Voltage: AC Input voltage 100~240VAC, 50/60Hz (universal),
Consumption: On mode: 90W, Standby mode: <5W, Off mode: 0.5W

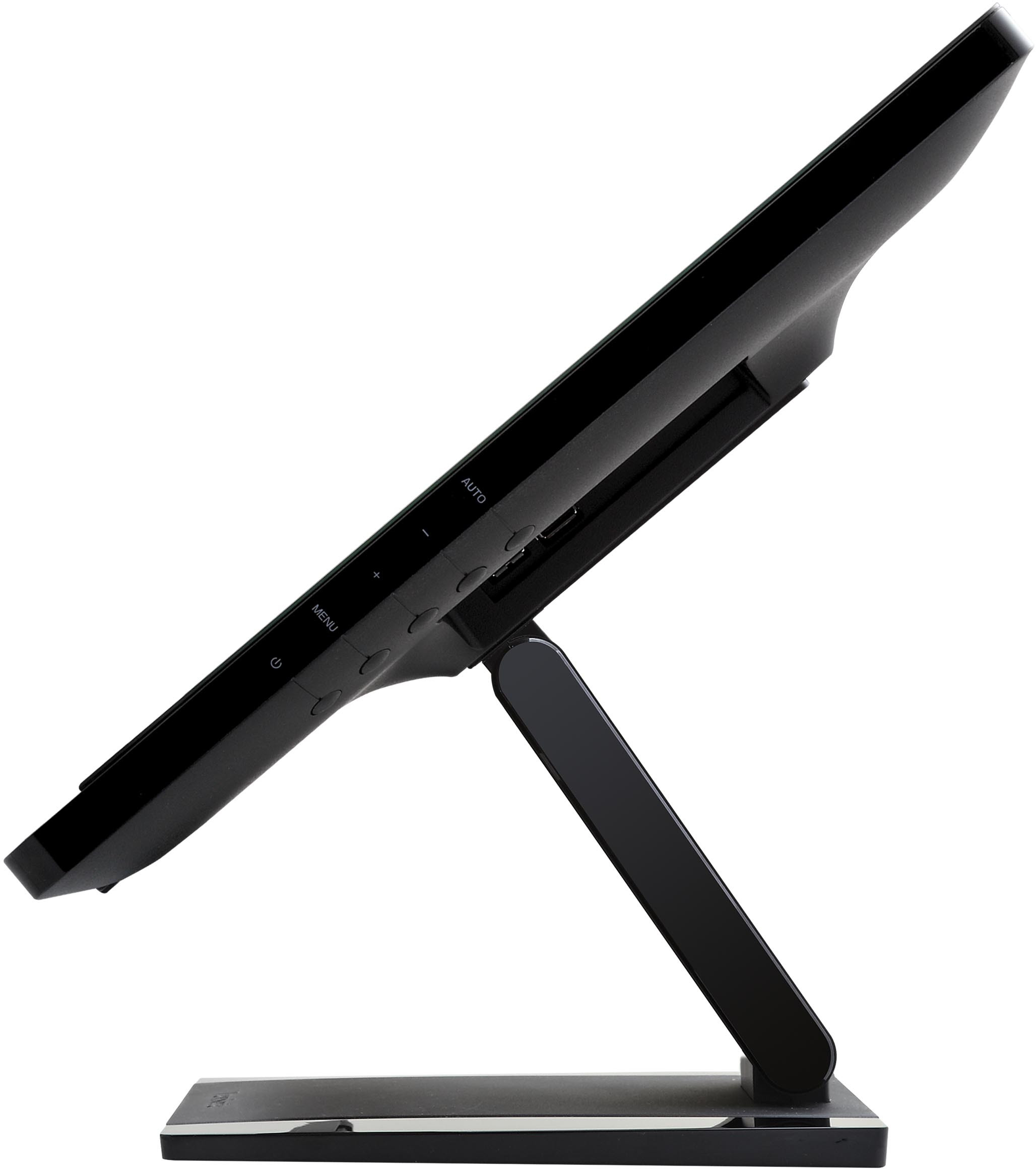

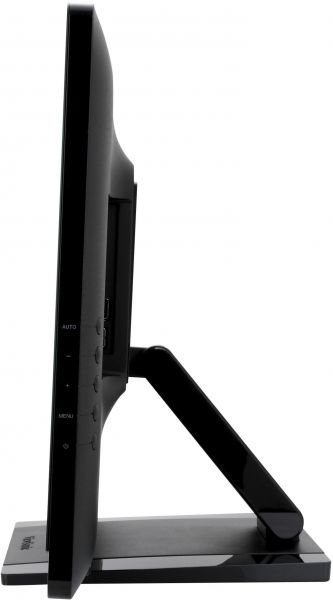

ERGONOMICS

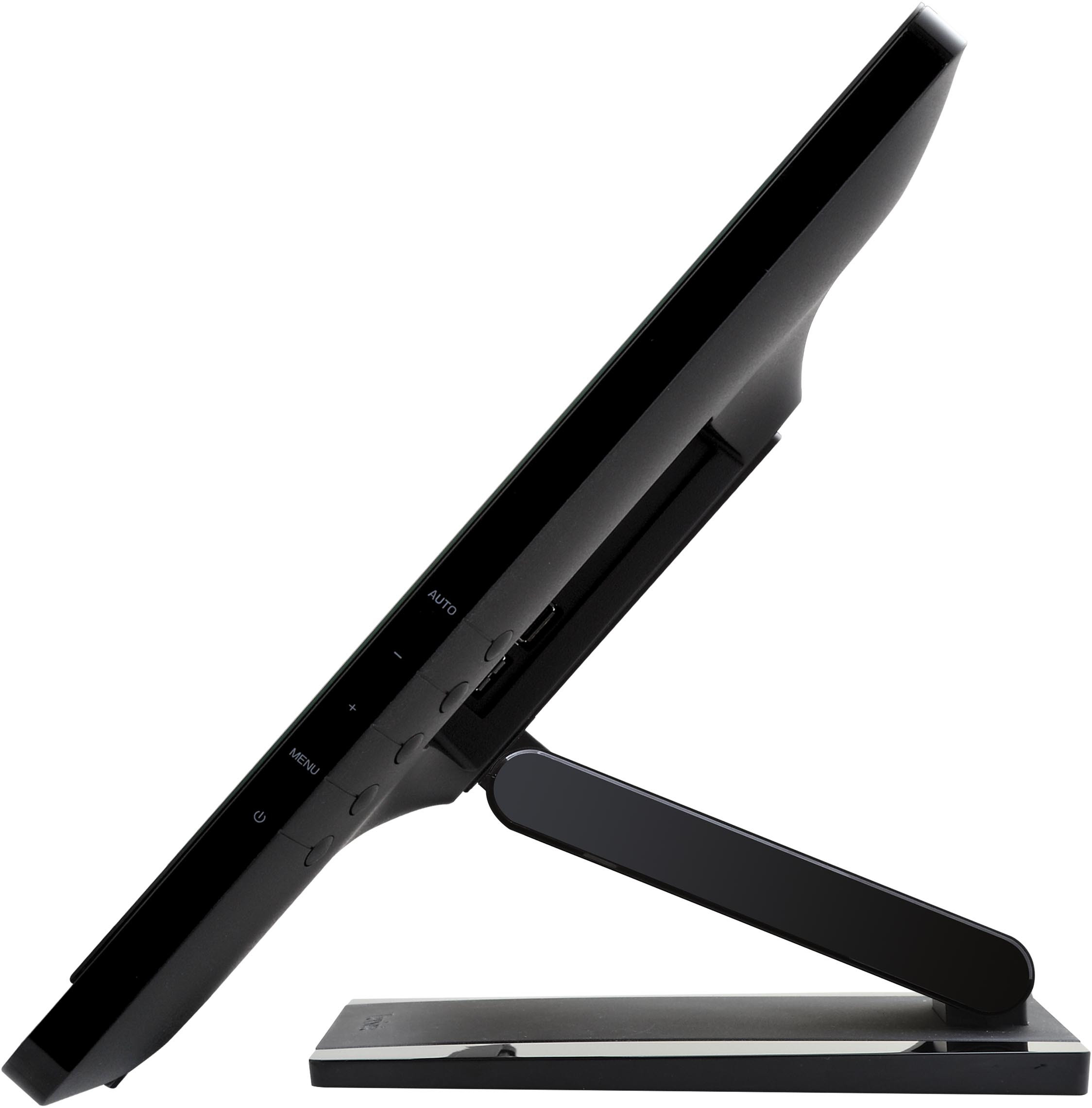

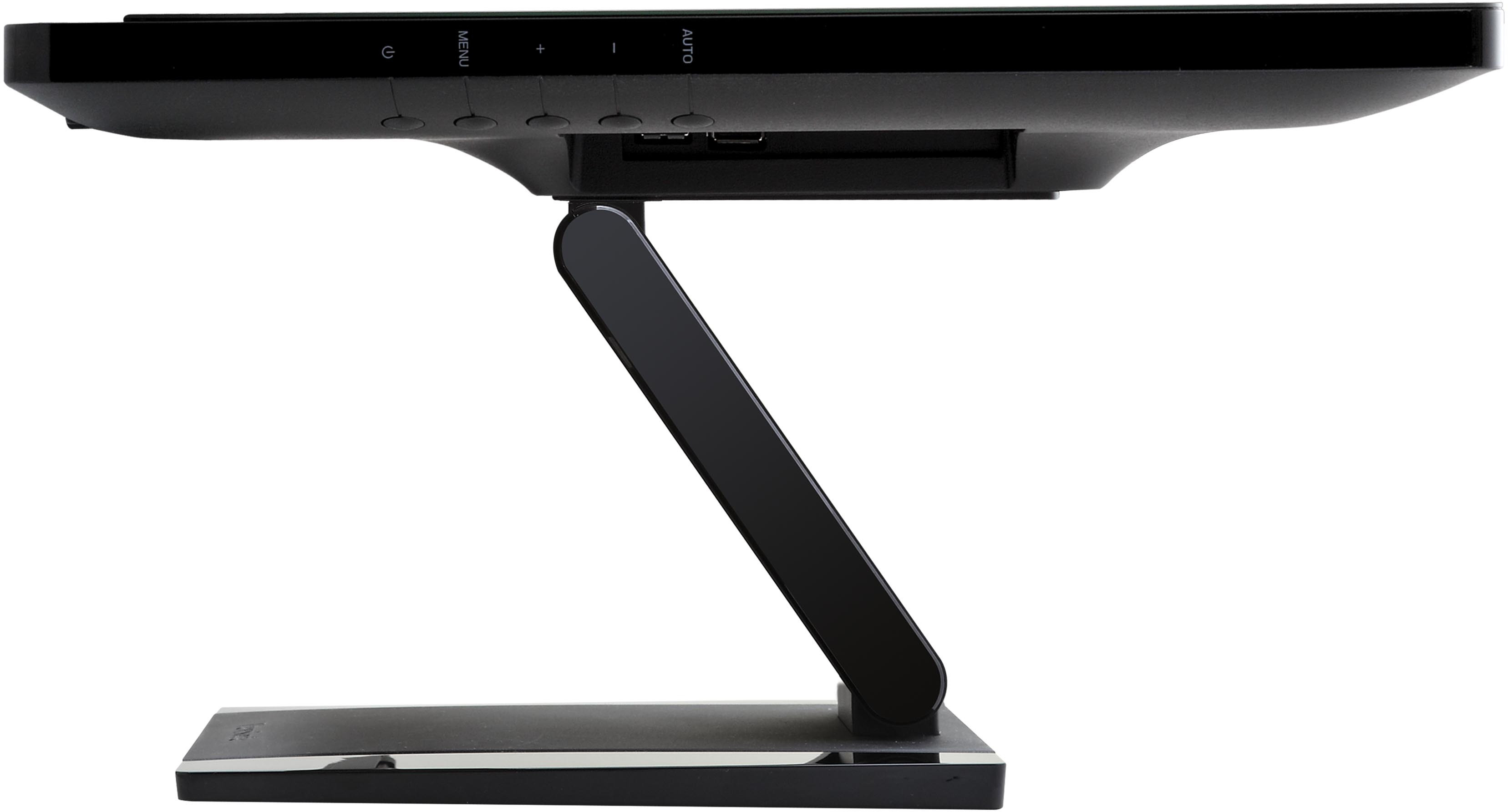

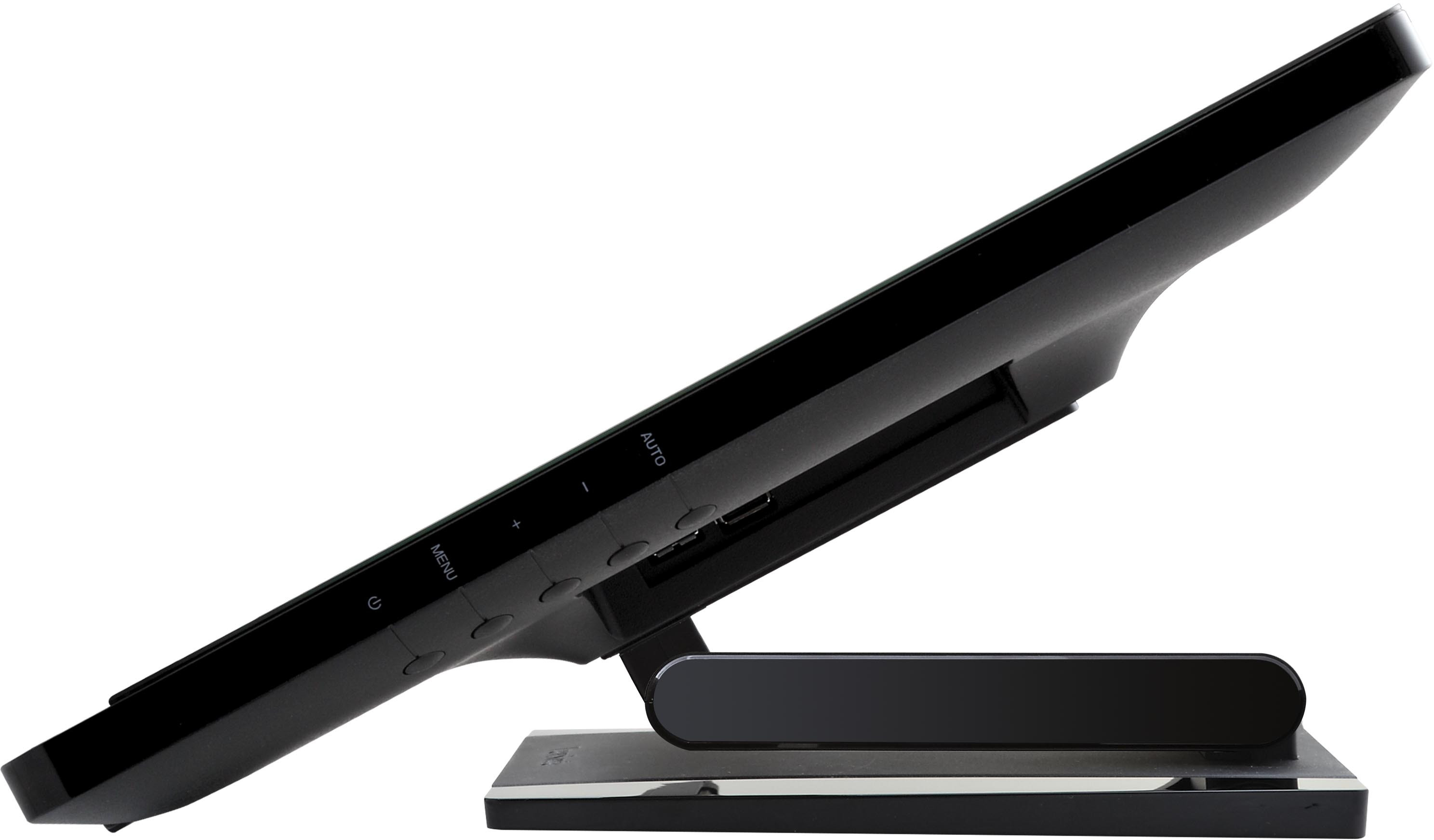

Tilt: -5° ~ 90°
Height Adjust: 0~ 22mm
OPERATING CONDITIONS
Temperature (º F / º C): 0°C to 35°C
Humidity: 20%~90% non-condensing
DIMENSIONS (W x H x D) (inch / mm)
Physical w stand: 21.30 x 15.46 x 7.57 inches / 547.1 x 392.61 x192.4 mm
Physical w/o stand: 21.30 x 14.64 x 1.87 inches / 547.1 x 371.91 x 47.4 mm
Packaging: 24.4 x 17.9 x 6.7 inches / 620 x 455 x 170 mm
WEIGHT
Net (lb / kg): 15.86 lbs / 7.20 kg
Gross (lb / kg): 19.60 lbs / 8.9 kg
WALL MOUNT

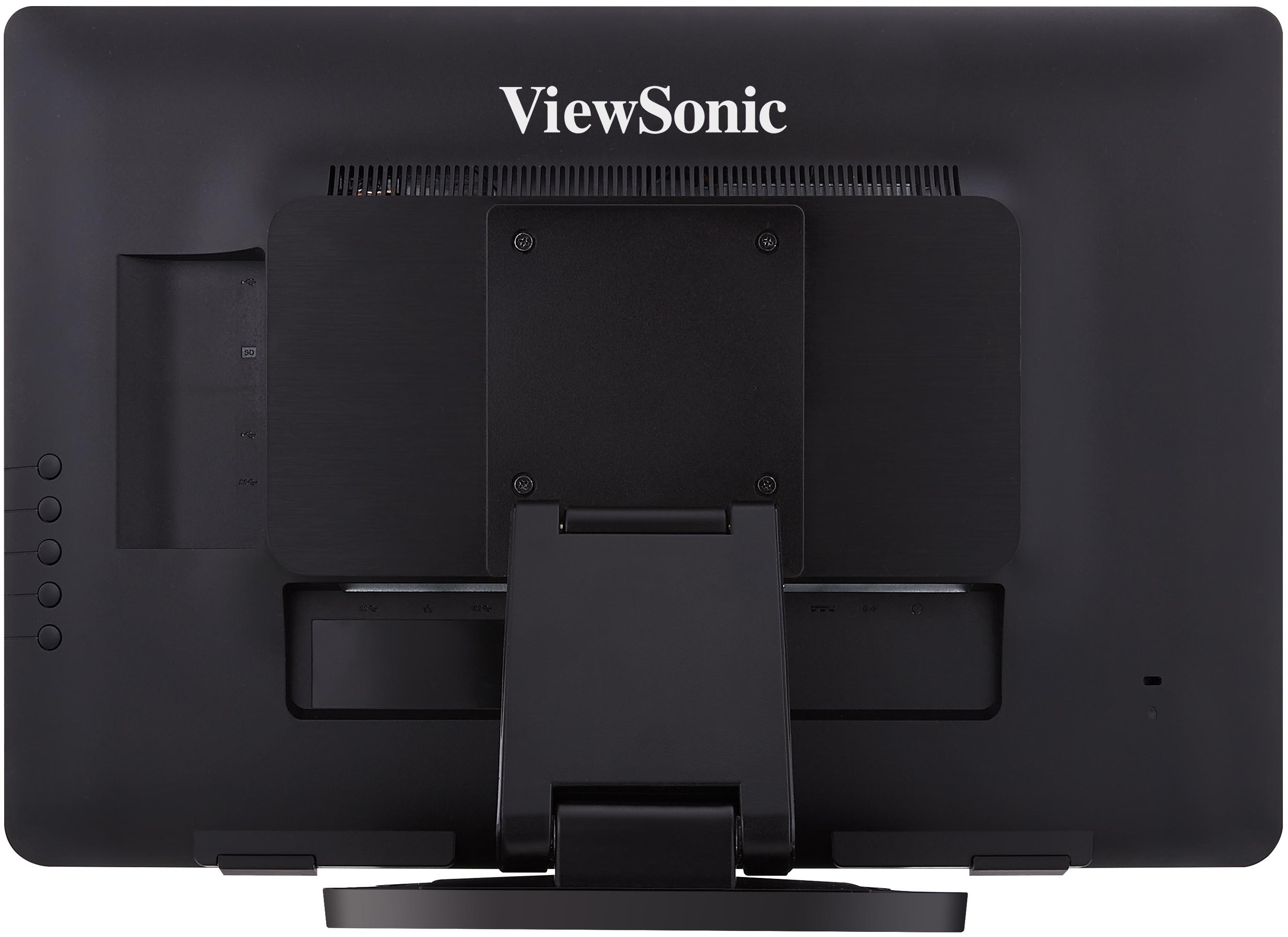

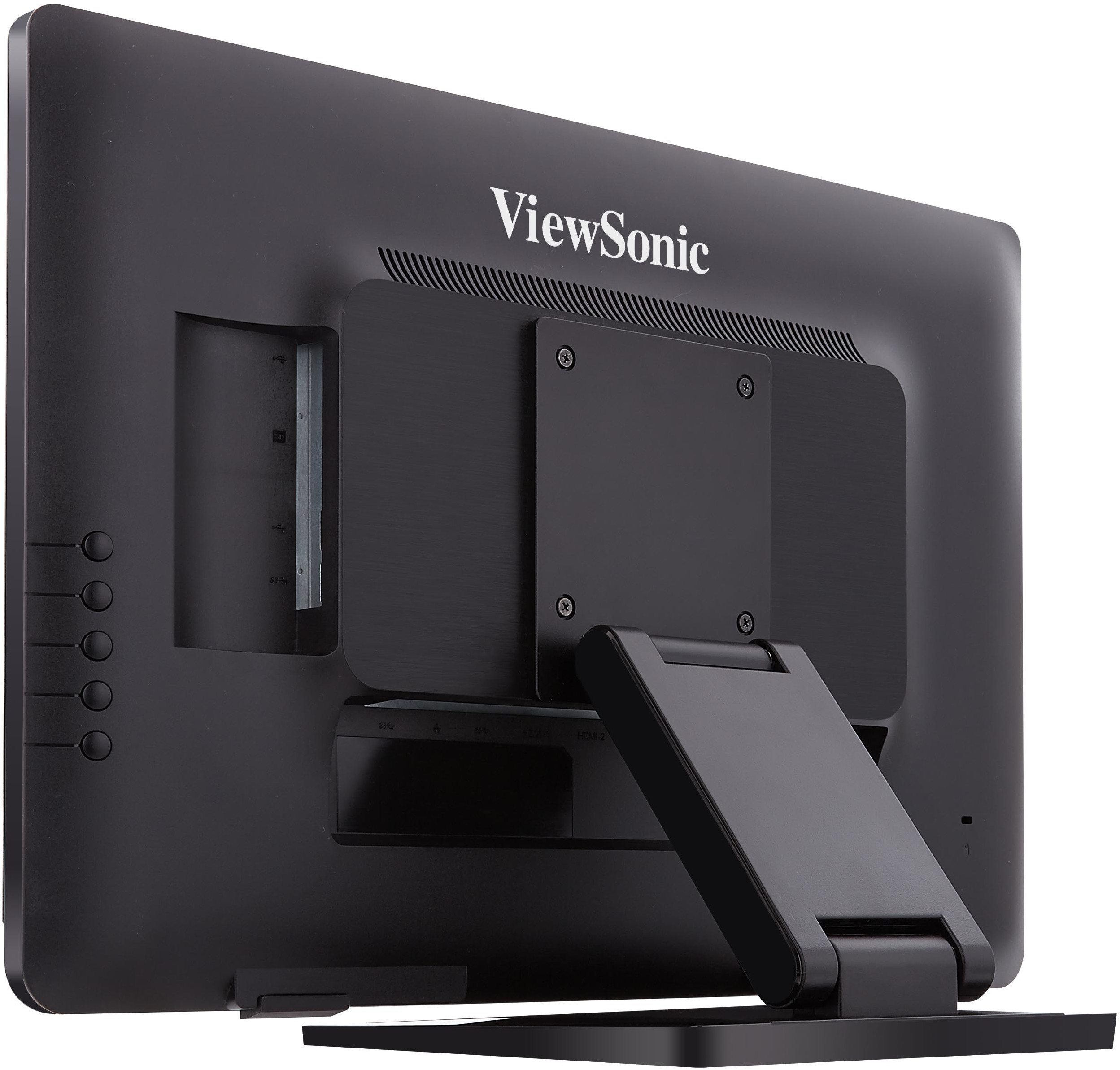

VESA® (mm): 100 x 100mm
RECYCLE / DISPOSAL
Please dispose of in accordance with local, state or federal laws
WARRANTY
**Warranty offered may differ from market to market
WHAT'S IN THE BOX
The top level assembly shall contain:
1. VSD231
2. Power adapter with power cord depend on regions.
3. HDMI (1.8M)
4. VGA cable (1.8M)
5. Quick Start Guide
*Actual content may differ from market to market
