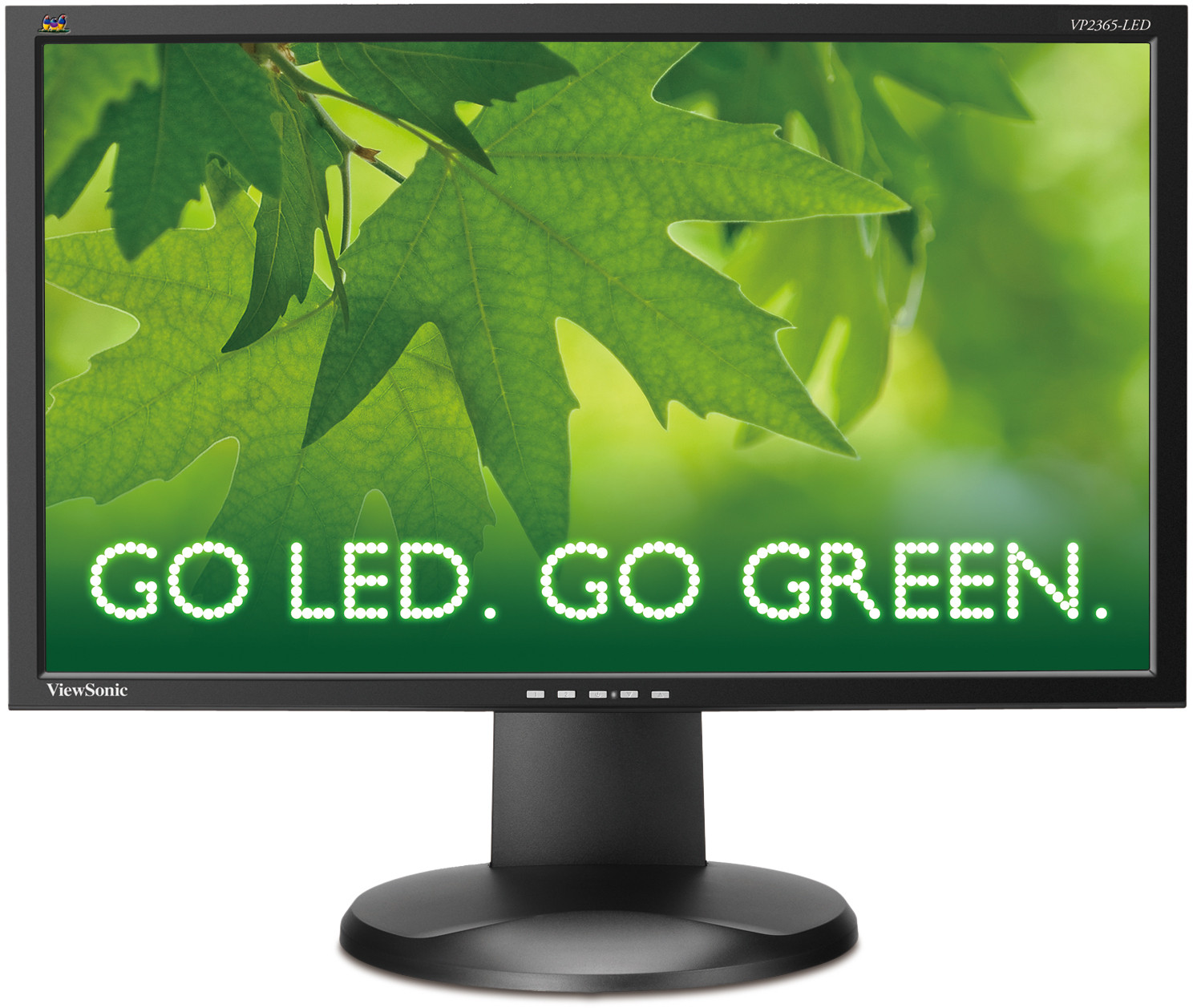

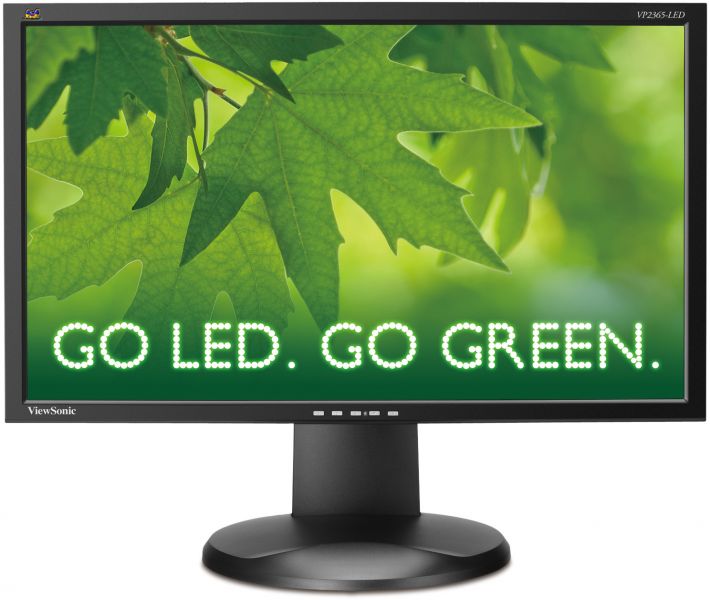

VP2365-LED

REVIEWS

Labs Winner and A List Award

LCD
Contrast Ratio: 1000:1 static (typ), 20,000,000:1 dyanamic
Viewing Angles: 178º horizontal, 178º vertical @ contrast ratio > 10:1
Brightness: 250 cd/m² (typ)
Display Area: 51cm horizontal x 29cm vertical; 58cm diagonal
Optimum Resolution: 1920x1080
Response Time: 6ms (GTG)
Light Source: Long life, 30,000 hrs. (typ)
Panel Surface: Anti-glare
Size: 58cm / 23" Color TFT active matrix e-IPS LED
COMPATIBILITY
PC: VGA up to 1920x1080 non-interlaced
Mac®: Power Mac™ up to 1920x1080
DIMENSIONS
Physical With Stand: 548 x 433 x 250 (mm)
Physical Without Stand: 548 x 326 x 64 (mm)
W x H x D mm: 624.8 x 525.8 x 302.3 (mm)

PACKAGE CONTENTS
LCD display, power cable, VGA cable, DVI cable, USB
cable, Quick Start Guide, ViewSonic Wizard CD
CONNECTOR
USB: V2.0, 1-up/4-down
Analogue/Digital: 15-pin mini D-sub / DVI-D
Power: Internal power; 3-pin AC plug (CEE22)
POWER
Voltage: AC 100–240V, 50–60Hz (auto switch)
Consumption: 27W
Eco Mode: Optimise: 24W / Conserve: 20W
CONTROLS
Main Menu: Auto image adjust, contrast, brightness, input select
(D-SUB, DVI), color adjust (sRGB, 9300K, 7500K, 6500K,
5000K, User color [R, G, B]), information, manual image
adjust (H/V position, horizontal size, fine tune, sharpness,
dynamic contrast, aspect ratio, eco mode), setup menu
(language select, resolution notice, OSD position, OSD
time out, OSD background) memory recall
VIDEO INPUT
Analog/Digital: RGB analog (75 ohms, 0.7/1.0 Vp-p) / DVI (HDCP)
Frequency: Fh: 22~82kHz, Fv: 50~75Hz
Sync: H/V separated (TTL), composite, sync-on-green

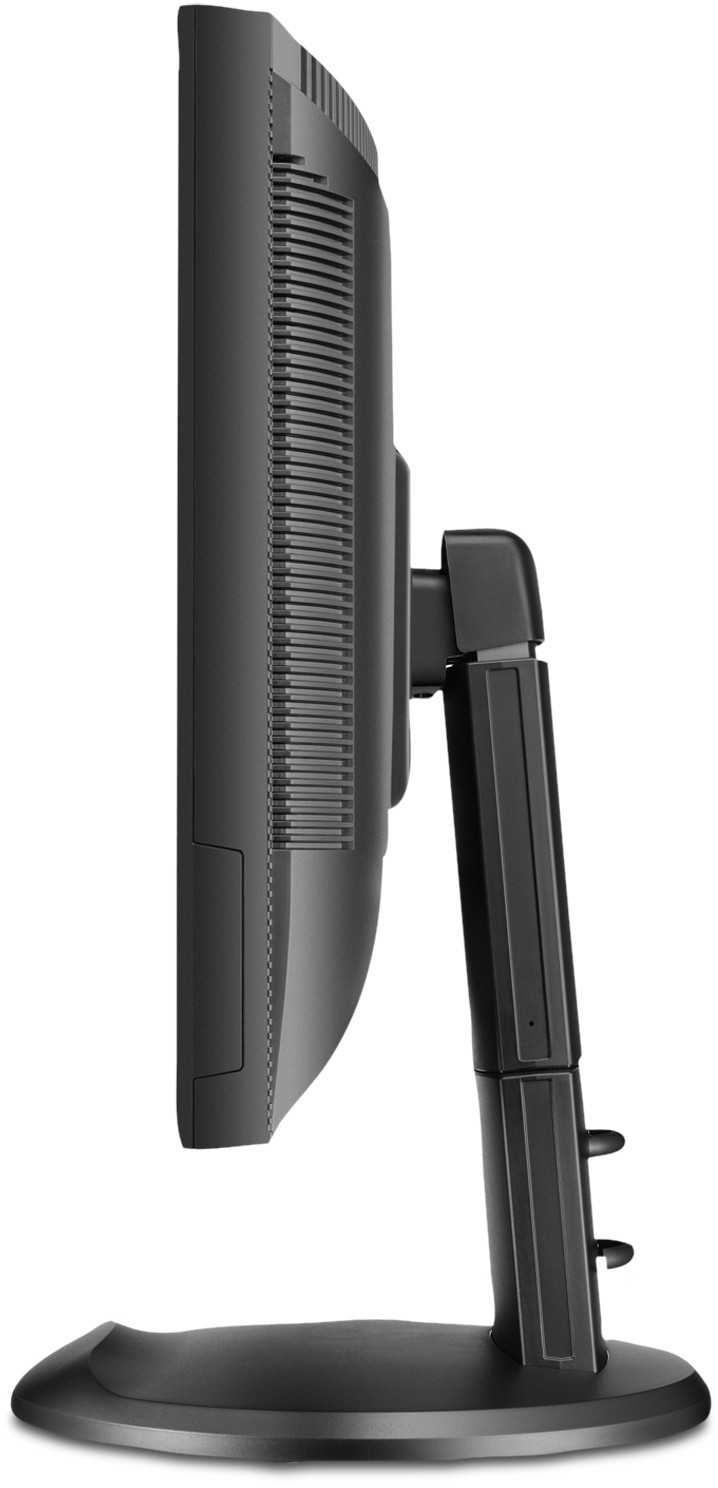

ERGONOMICS
Height adjustment range 13.5cm, tilt –5º/+20º,
swivel range 360º, pivot 90º
VESA MOUNT COMPLIANT
VESA® 100 x 100 (mm)
WEIGHT
Gross: 7.9 kg
Net: 5.4 kg
OPERATING CONDITIONS
Humidity: 20–90% (non-condensing)
Temperature: 32–104ºF (0–40ºC)
