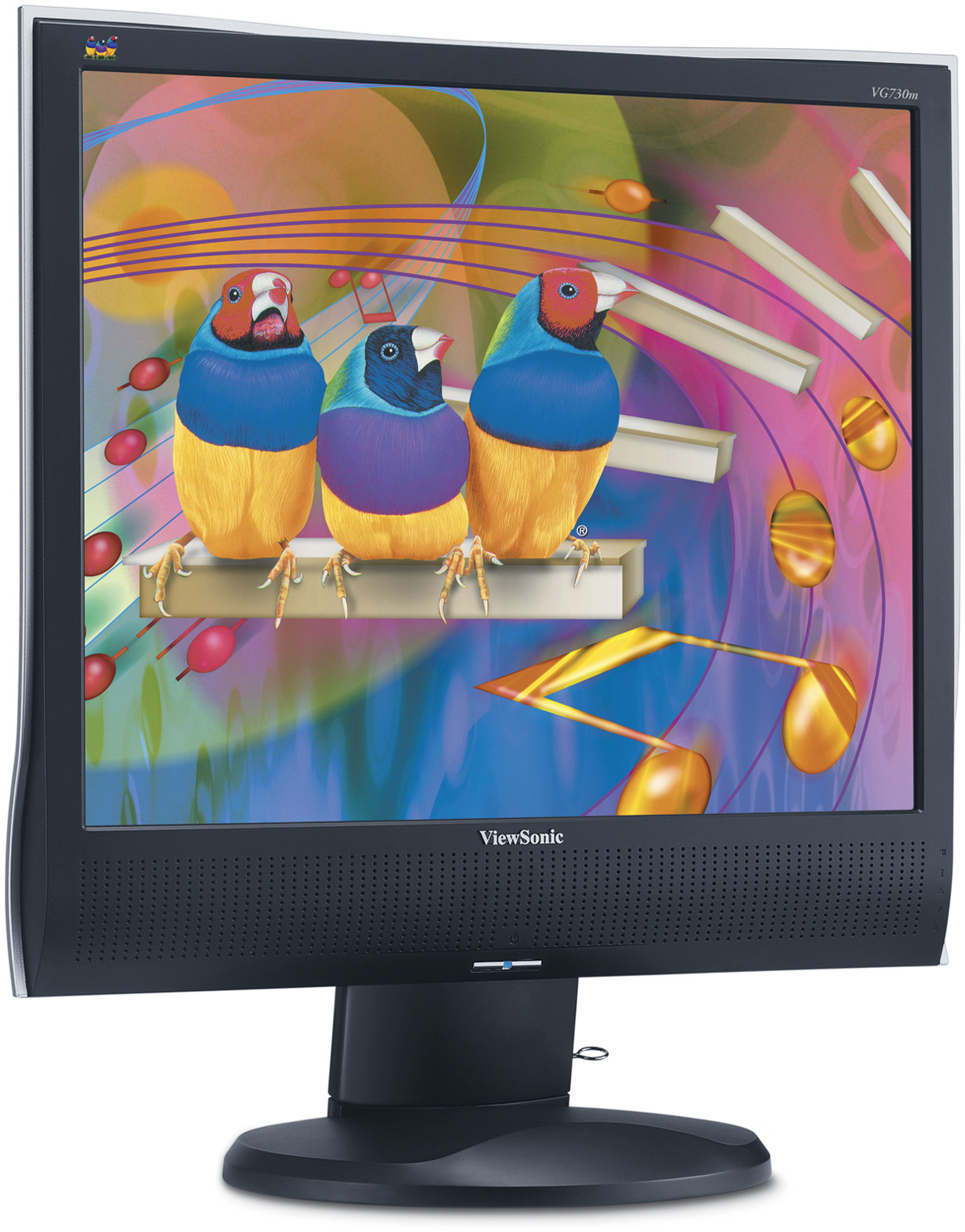

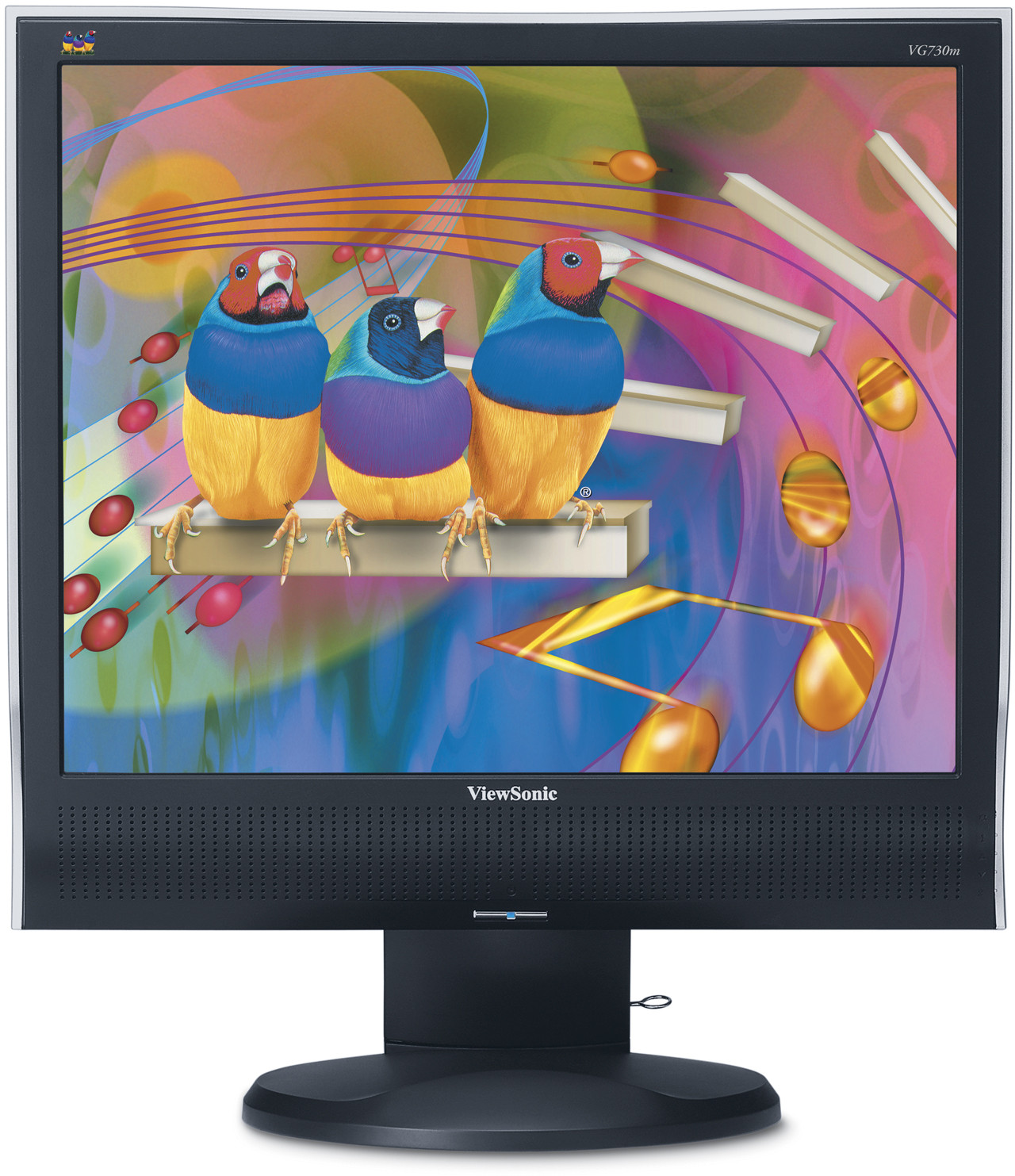

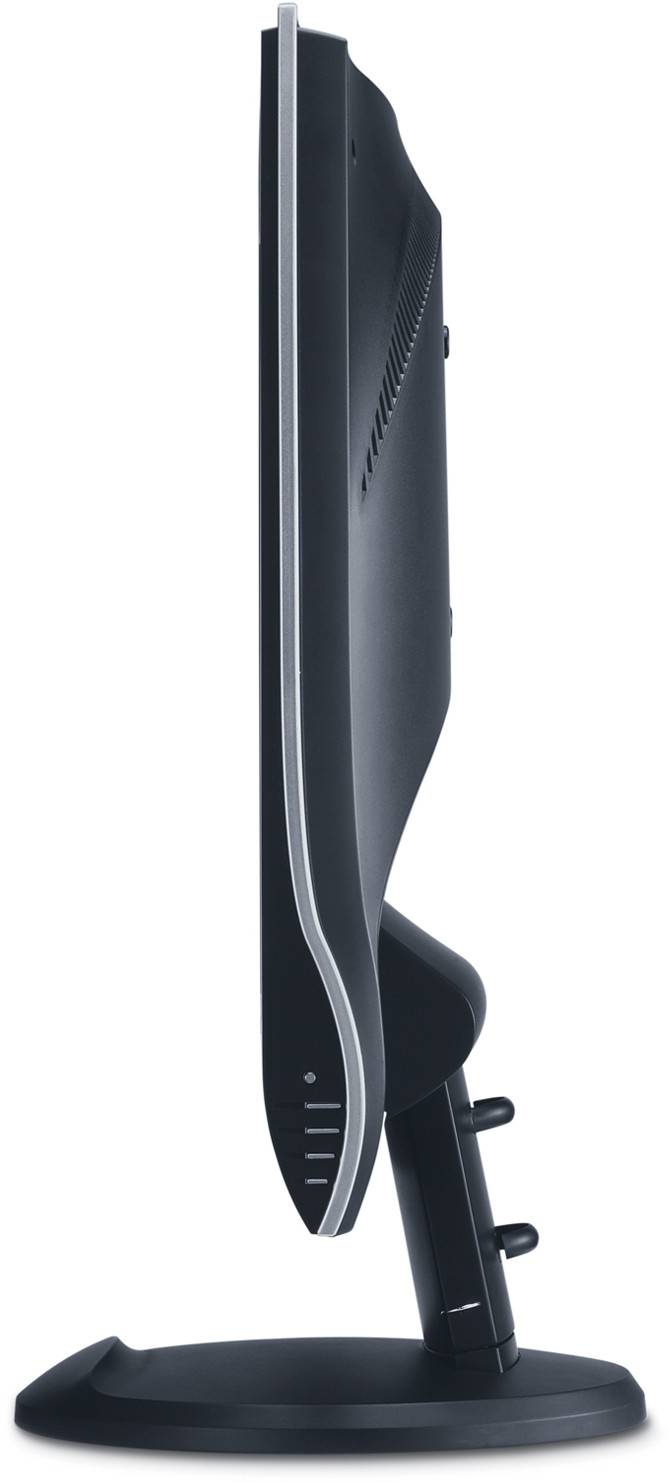

VG730m
17" DIGITALMEDIA™ LCD MONITOR WITH CLEARMOTIV® 8MS VIDEO RESPONSE
REVIEWS
SPECIFICATIONS
- COLORSBlack
- LCDType: 43cm / 17" TN colour TFT active matrix SXGA LCD
Contrast Ratio: 600:1 (typ.)
Viewing Angles: 150° horizontal, 145° vertical (at 10:1)
170° horizontal, 155° vertical (at 5:1)
Brightness: 280cd/m² (typ.)
Display Area: 33.8cm (horizontal) x 27.0cm (vertical), 43.2cm diagonal
Optimum Resolution: 1280 x 1024@60Hz
Response Time: 8ms (off-on-off) (typ.)
Light Source: Long life, 50,000 hrs. (typ)
Panel Surface: Anti-glare (3H)
Pixel Pitch: 0.264mm
Colour Support: 16.7M colours supported (6-bit + 2-bit FRC)
Pixel Clock: 140MHz - COMPATIBILITYPC: VGA up to 1280 x 1024 non-interlaced
Mac®: Power Mac™ up to 1280 x 1024 non-interlaced
- DIMENSIONSPhysical With Stand: 387 x 475-555 x 230
Physical Without Stand: 387 x 367 x 67
W x H x D mm: 445 x 552 x 278 - PACKAGE CONTENTSLCD Monitor, power cable, D-sub video cable, audio cable, Quick Start
Guide, ViewSonic Wizard CD-ROM (User Guide/ drivers) (multi-language) - AUDIOSpeaker: 2 x 1.5 watt integrated stereo speakers
- CONNECTORAnalogue: 15-pin mini D-Sub (detachable cable)
Digital: 24-pin DVI-D (detachable cable)
Power: 3-pin AC plug (CEE22)
Audio: 3.5mm stereo audio line-in - POWERVoltage: AC 100–240V, 50/60Hz (auto switch), internal power supply
Consumption: 35 watt (typ.), <1 watt in power save mode - CONTROLSBasic: Power, menu [1], up, down, select [2], mute
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), audio (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K,
user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall - OPERATING CONDITIONSTemperature: 5°C–35°C
Humidity: 20%–80% (non-condensation) - WEIGHTNet With Stand: 5.0kg
Gross: 6.9kg - VIDEO INPUTFrequency: Fh: 30–82kHz, Fv: 50–75Hz
Sync: H/V separated (TTL)
Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
Digital: DVI-D (TMDS, 100 ohms) - POWER MANAGEMENTMeets TCO’03 and ENERGY STAR standards
- SECURITYKensington security port
- VESA MOUNT COMPLIANTVESA FDMI 100mm x 100mm
- ERGONOMICSTilt: Down 5°, up 20°
Swivel: 360° swivel base
Height Adjustment: 0~80mm
