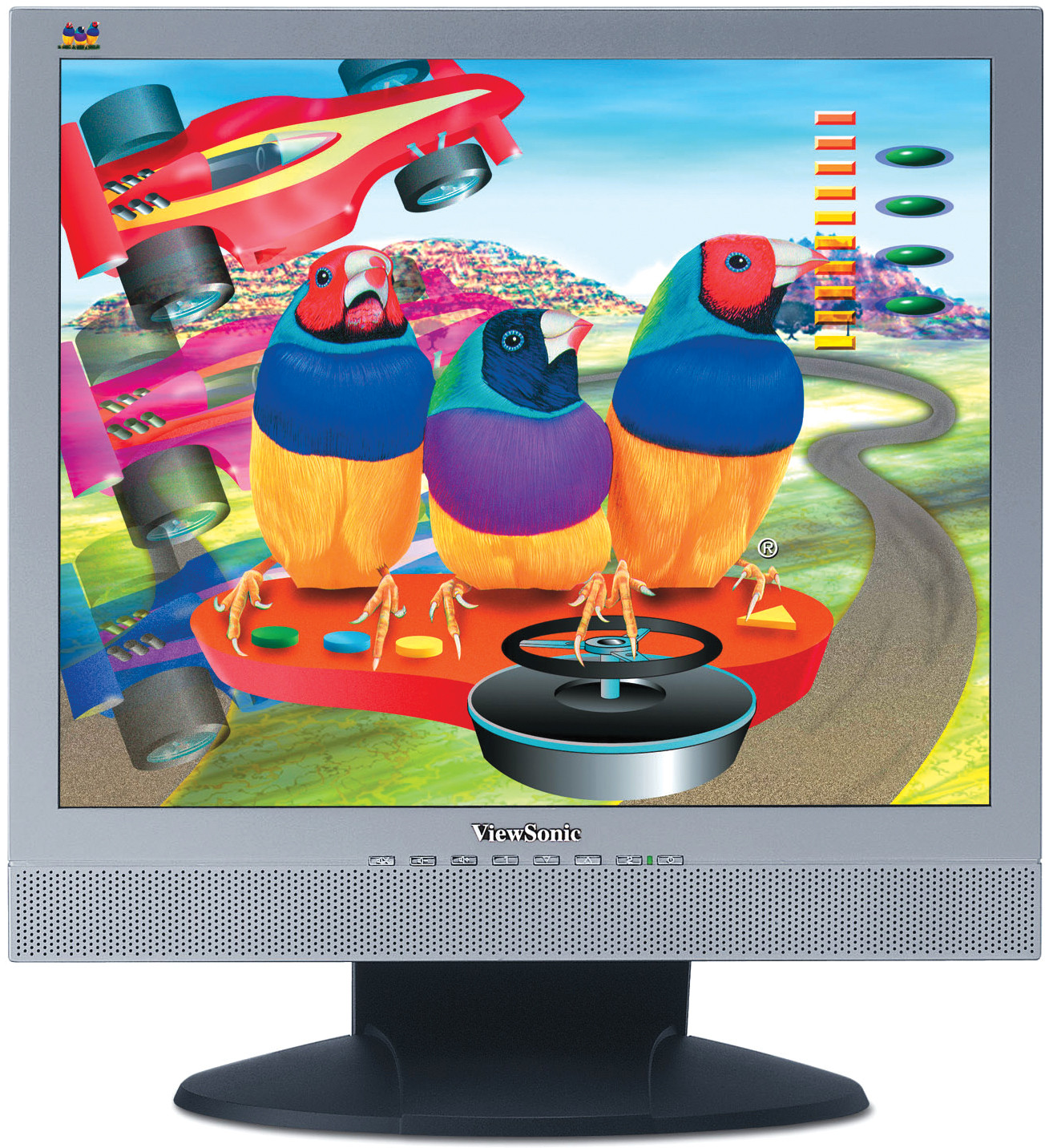

VG712b
43cm / 17" DigitalMedia Slim Bezel Display
SPECIFICATIONS
- LCDType: 43mm / 17.0" colour TFT active matrix SXGA LCD
Contrast Ratio: 500:1 (typ)
Viewing Angles: 140° horizontal, 130° vertical (at 10:1)
160° horizontal, 160° vertical (at 5:1)
Display Area: 33.8cm horizontal x 27cm vertical; 43.2cm diagonal
Optimum Resolution: 1280 x 1024
Response Time: 8ms (typ.)
Panel Surface: Anti-glare
Colour Support: 16.2M colours (6-bit + 2-bit FRC)
Brightness: 300 cd/m² (typ) - COMPATIBILITYPC: VGA up to 1280 x 1024
Mac®: Power Mac™ G3/G4 up to 1280 x 1024 - DIMENSIONSPhysical With Stand: 378mm x 405mm x 177mm
Physical Without Stand: 378mm x 405mm x 50mm
- AUDIOSpeaker: 2x3-watts
Amplifier: 3 watts @1kHz - CONNECTORAudio: 3.5mm audio line-in
Signal: 15-pin mini D-sub, DVI-D2
Power: 3-pin AC plug - POWERVoltage: AC 100-240V, 50-60Hz (auto switch), external power supply
Consumption: <36W (typ), ≤1W in power save mode - CONTROLSBasic: Power (soft), 1, down, up, 2, mute, volume up, volume down
OSD: Auto image adjust, contrast, brightness input select, audio adjust
(volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500Kdefault,
5400K, 5000K, user colour), information (mode, model
number, serial number), manual image adjust (H. size, H. position,
V. position, fine tune, sharpness), setup menu (language, resolution
notice, OSD position, OSD timeout), memory recall - OPERATING CONDITIONSTemperature: 0–40°C
Humidity: 10–90% (non-condensing) - WEIGHTNet: 5.3kg
- VIDEO INPUTSync: H/V separated (TTL)
Analogue: RGB analogue (75 ohms, 0.7 Vp-p)
Digital: DVI-D (TMDS, 100 ohms)
Frequency: Fh: 30~82kHz, Fv: 50~85Hz - POWER MANAGEMENTMeets TCO’03 and ENERGY standards.
