VG2435Sm

Front Panel: [1],[Dn] [Up], [2], [PW]
OSD Setting: Auto Image Adjust Contrast/Brightness Input Select D-SUB,DVI, Audio Adjust Volume, mute, Audio input Color Adjust sRGB, BLUISH, COOL, NATIVE, WARM, User Color [R, G, B] Information Manual Image Adjust H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Aspect ratio, OVERSCAN, Eco mode,ViewMode,Blue Light Filter Setup Menu Language Select, Resolution Notice, OSD Position, OSD Time out, OSD Background, Auto Power Off, Power Indicator, SLEEP Memory Recall
[ 1 ] : Main Menu [ 2 ] : Input Select [Up] : To immediately ViewMode [Dn] : To immediately Blue light filter [Up] + [Dn] : 1. In the CR/BT menu, Recall Contrast or Brightness to default in its menu without OSD message 2. In the Audio mode, recall both of Volume and Mute to default without OSD message.( Under Volume adjust submenu,recall Volume to default without OSD message.) 3. While OSD menu off, recall Contrast & Brightness to default without OSD message. 4. After DCR on, CR/ BT is disabled, therefore, no action for CR/BT. [ 1 ] + [ 2 ] : Timing toggle, refer to section [ 1 ] + [Up] + [Dn] : Auto White Balance [ 1 ] + [Dn] : Power Lock [ 1 ] + [Up] : OSD Lock [2] + [▲]: Logo Boot Up Screen On/Off [2] + [▼]: Toggle DDC/CI and DDC/2B

Packaging: 23.78" (W) x 16.54" (H) x 6.22" (D) 604mm (W) x 420mm (H) x 158mm (D)
Physical With Stand: 21.92" (W) x 15.5" (H) x 8.04" (D) 556.8mm (W) x 393.6mm (H) x 204.3mm (D)
Physical Without Stand: 20.92" (W) x 14.29" (H) x 2.03" (D) 556.8mm (W) x 363.0mm (H) x 51.5mm (D)

LCD Display Power Cable Video Cable Audio Cable Quick Start Guide ViewSonic Wizard CD-ROM *Actual content may differ from market to market

*Warranty offered may differ from market to market

Please dispose of in accordance with local, state or federal laws

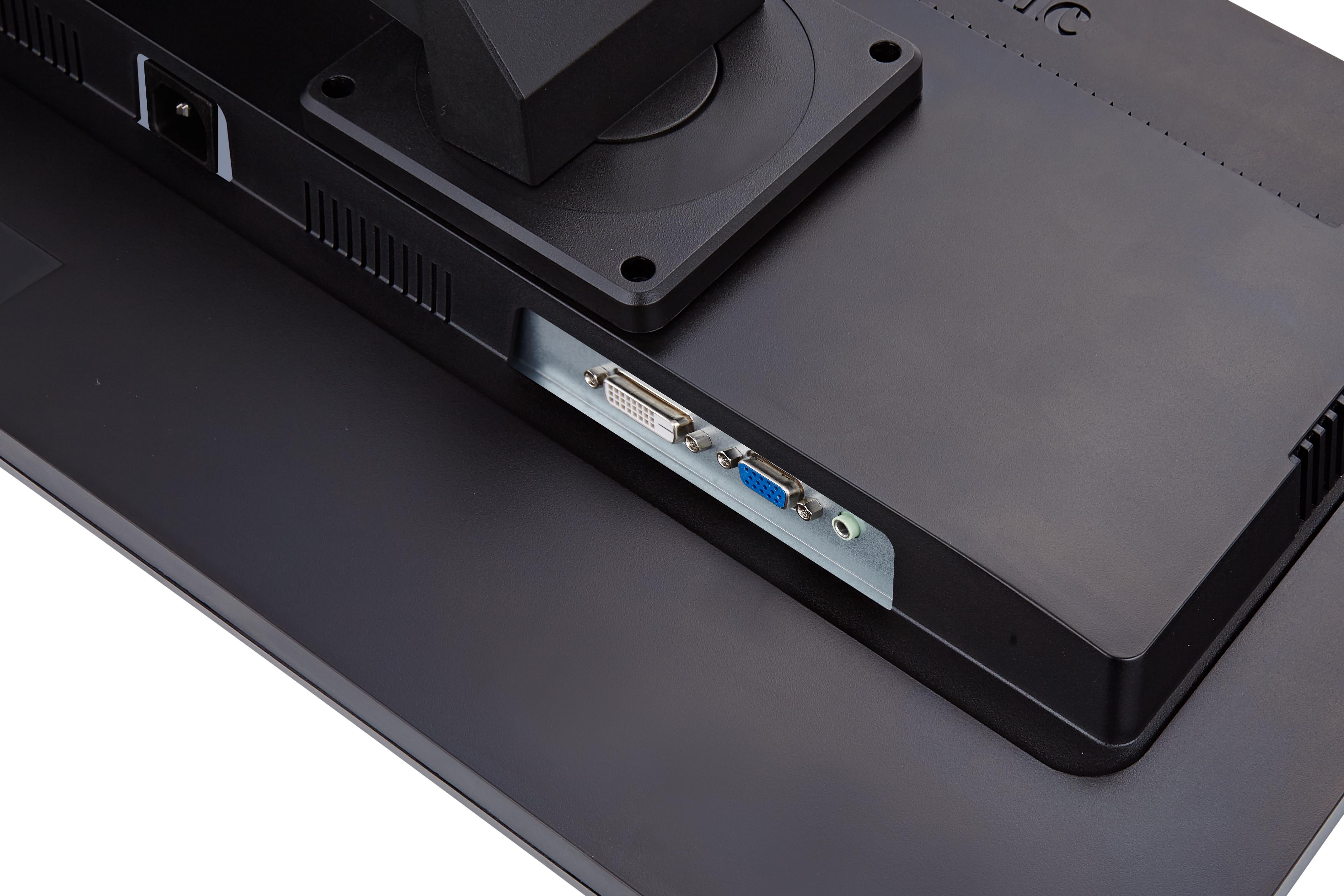

Analogue: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
Digital: DVI (TMDS, 100 ohms)
Sync: Separate Sync Composite Sync Sync on Green
Frequency: Fh = 30 ~80 kHz ; Fv = 50 ~75 Hz

Consumption: 31W
Optimize: 18.8W
Conserve: 14.6W
Voltage: AC 100-240V (Universal); 50/60 Hz

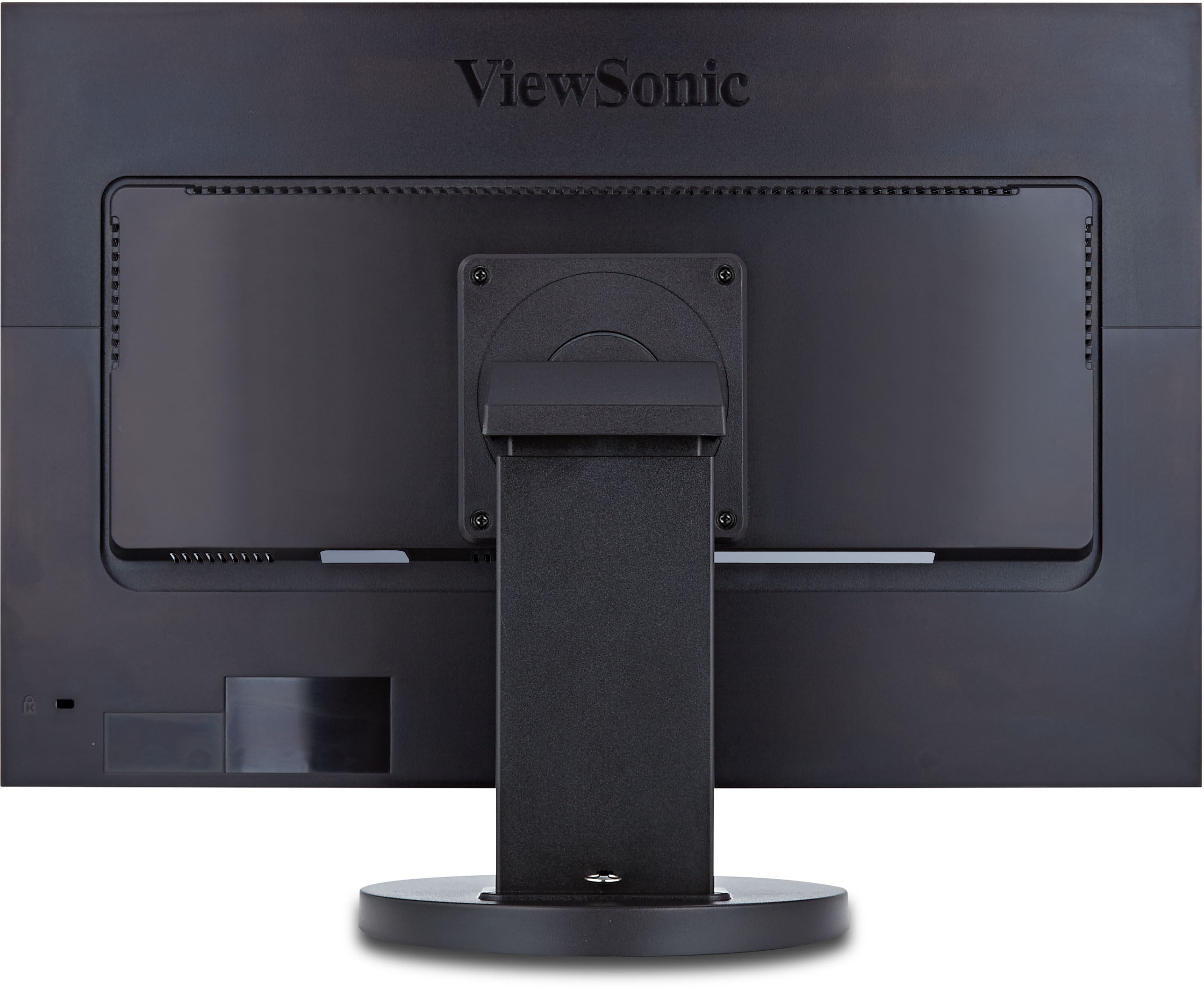

100 x 100 mm

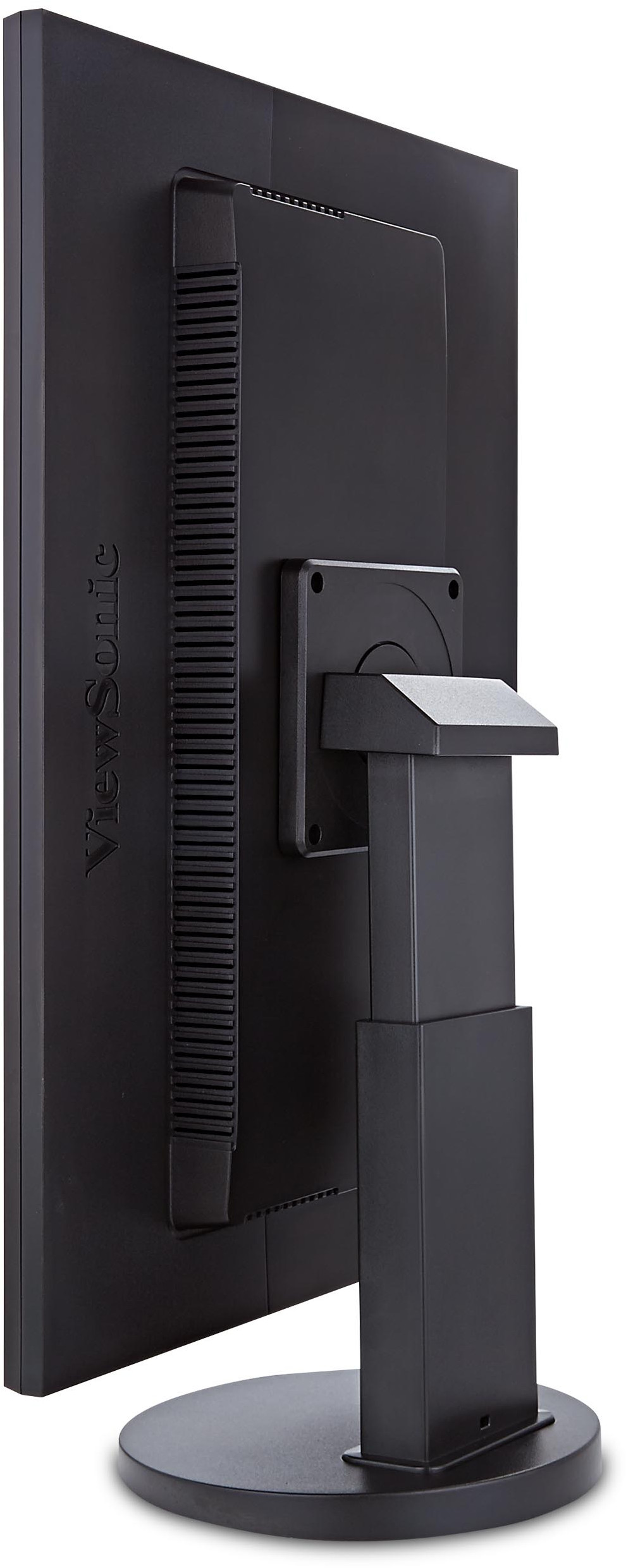

Swivel: 360˚

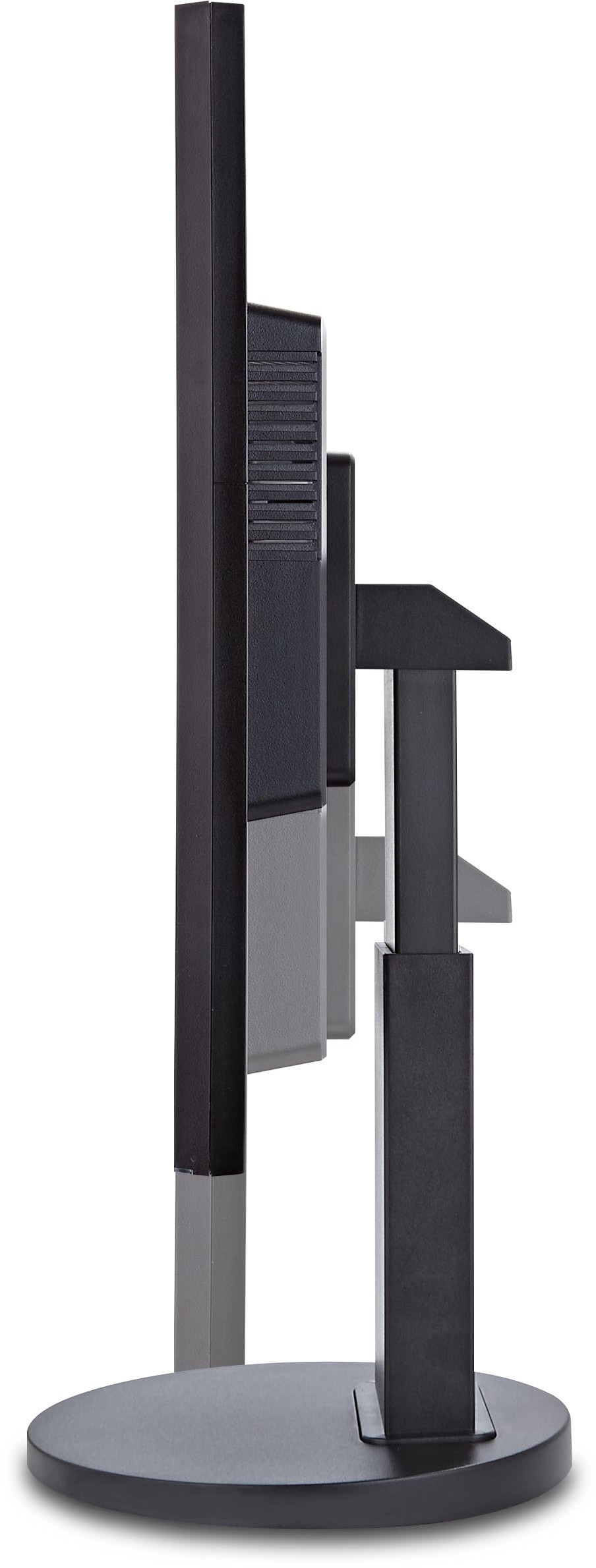

Height Adjustment: 0-100mm

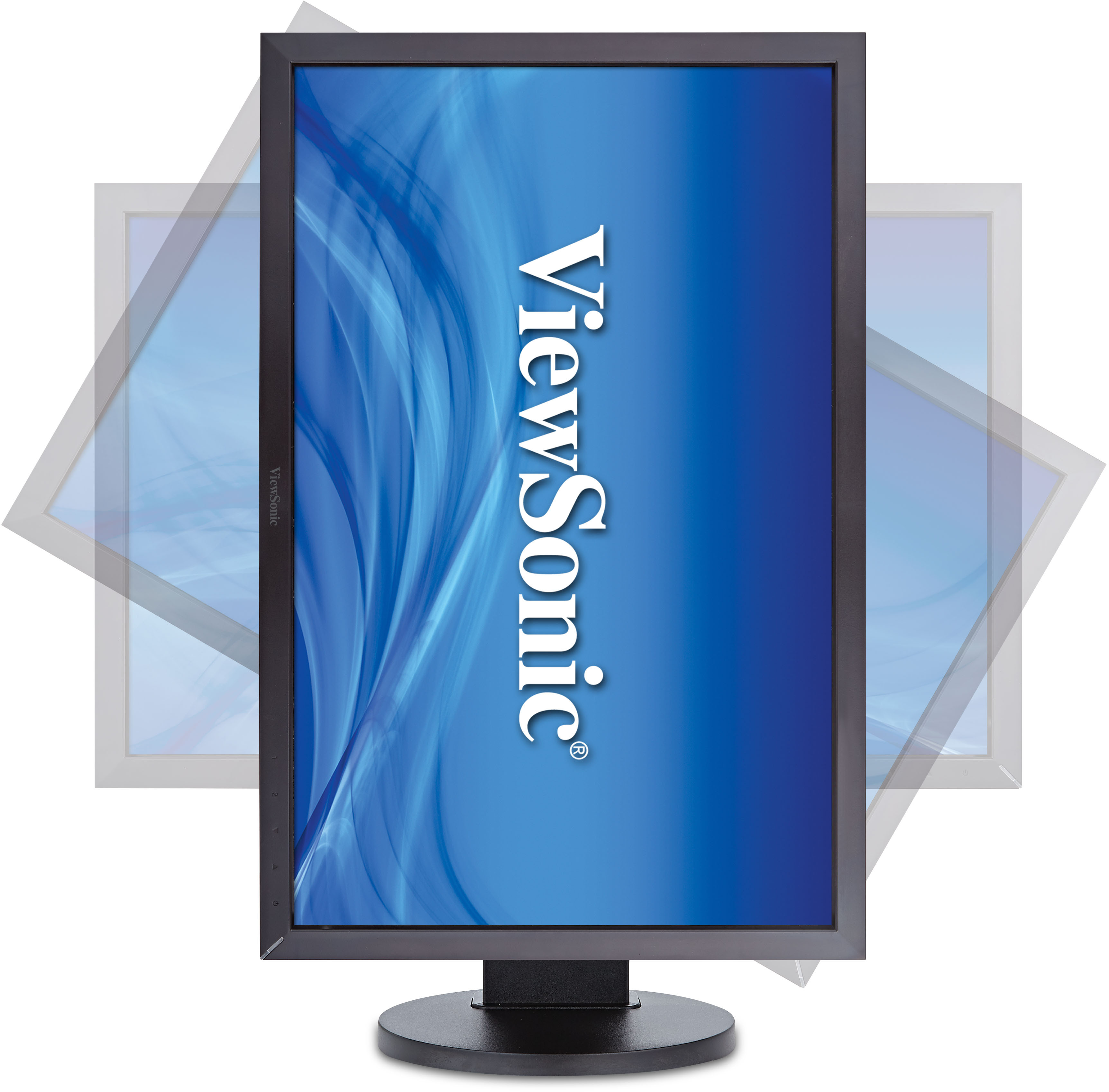

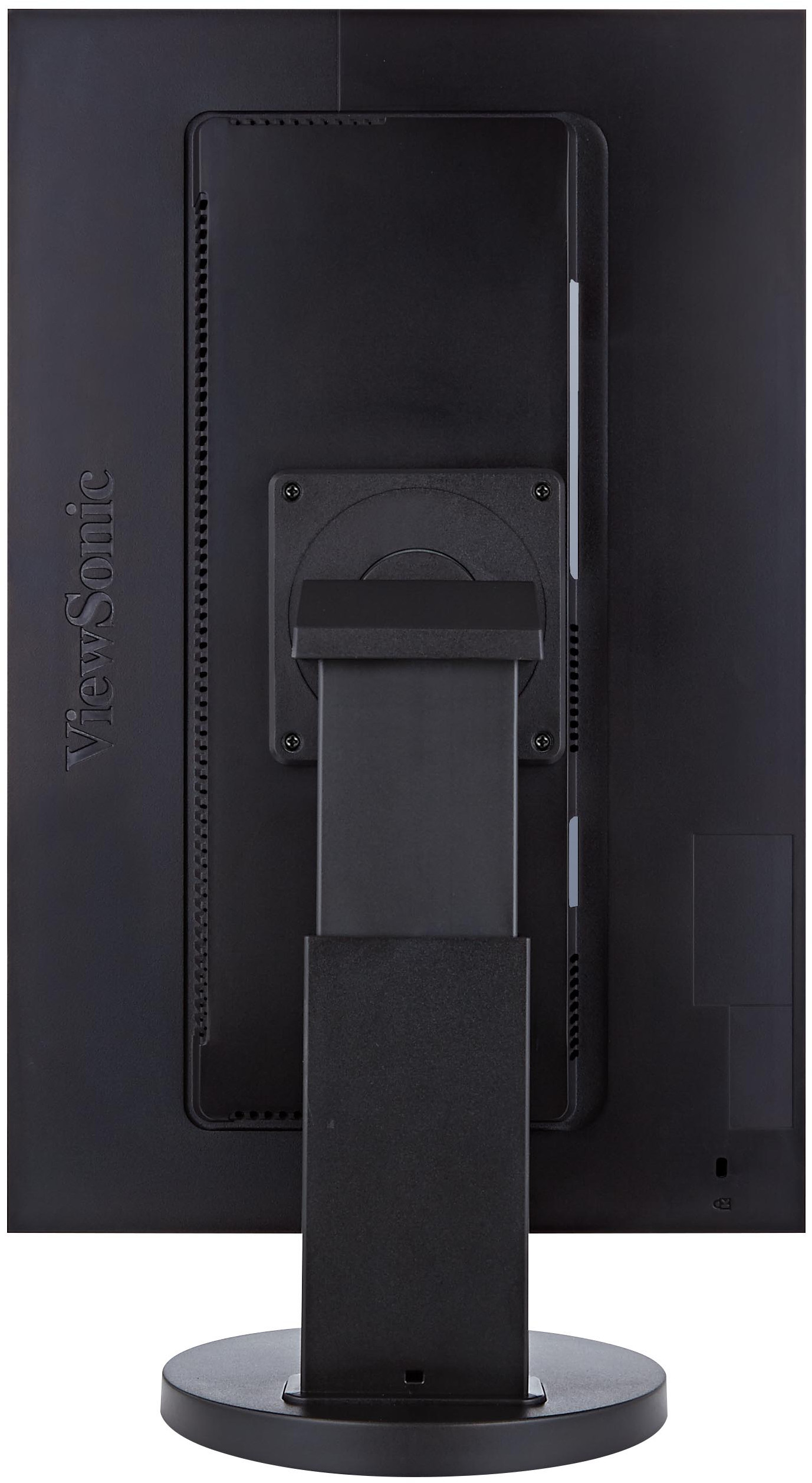

Rotation: 90˚

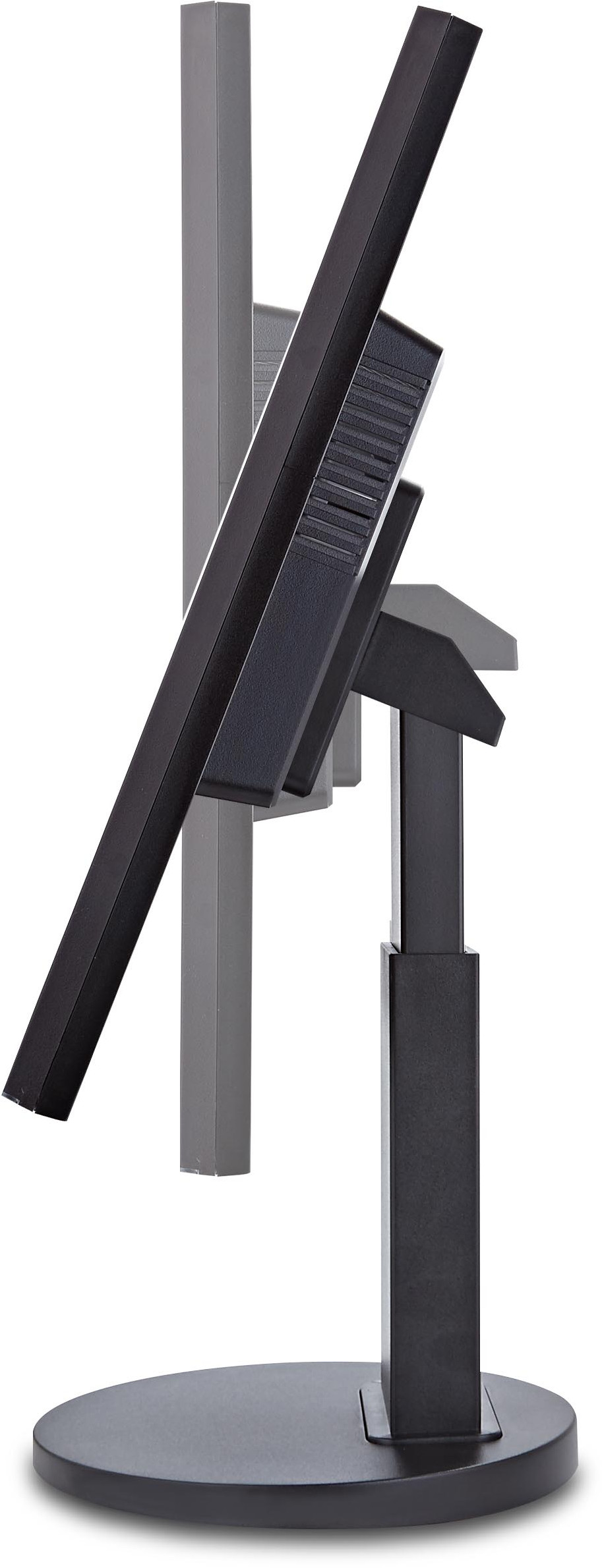

Tilt: 37˚ ~ -5˚

Net Without Stand: 9.04 lbs / 4.10 kg
Gross: 15.65 lbs / 7.10 kg
Net With Stand: 12.57 lbs / 5.70 kg

Temperature: 32°F to 104°F (0°C to 40°C)
Humidity: 10% to 90% (no condensation)
