VG2239Smh

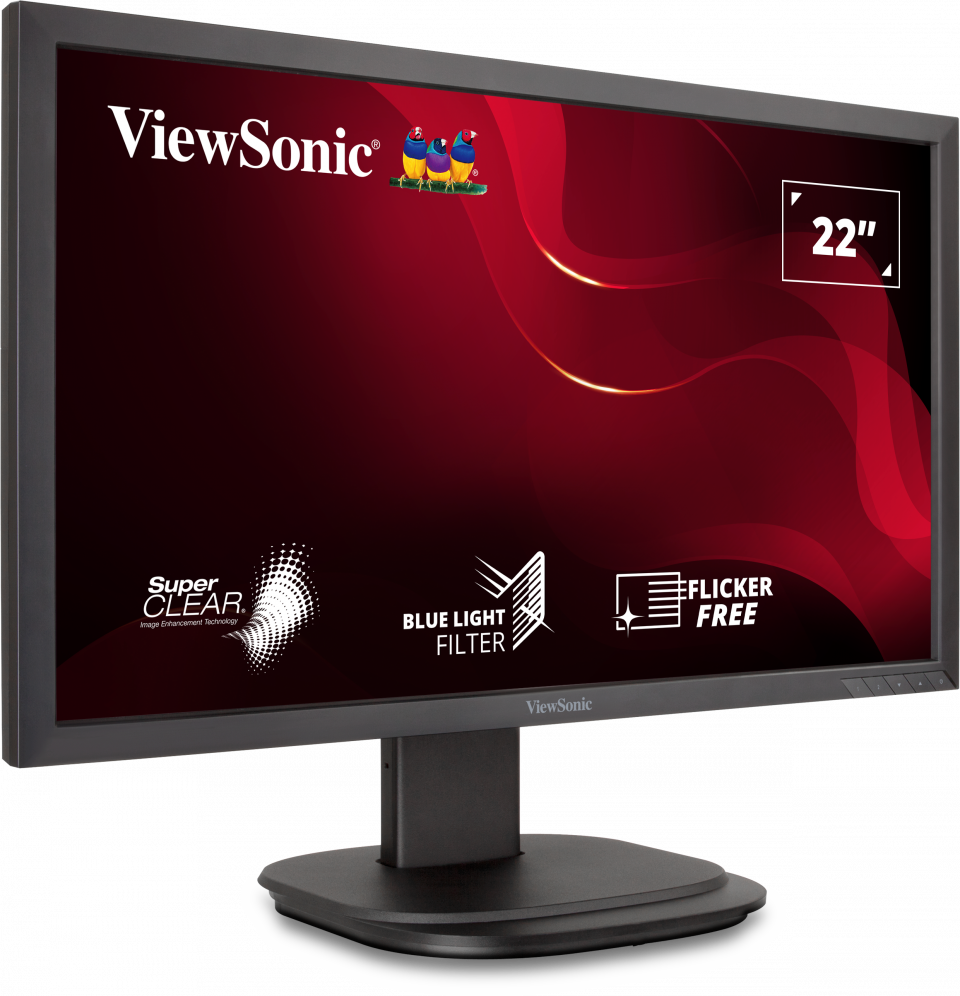

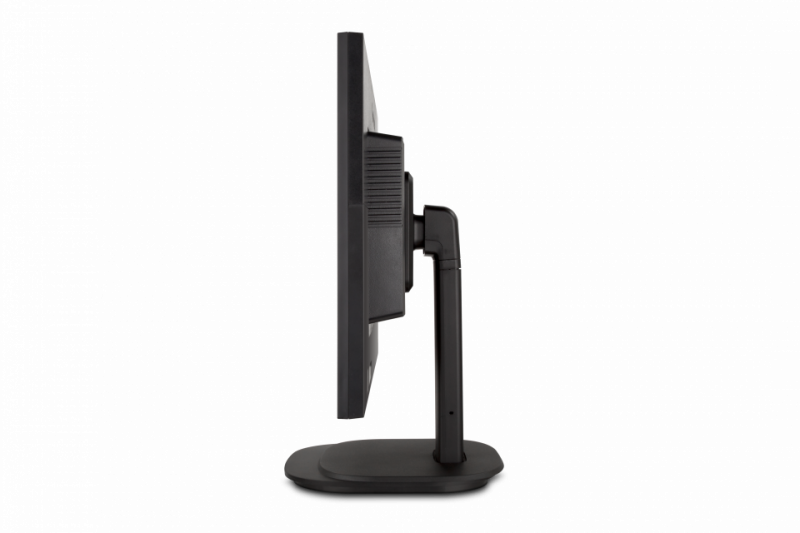

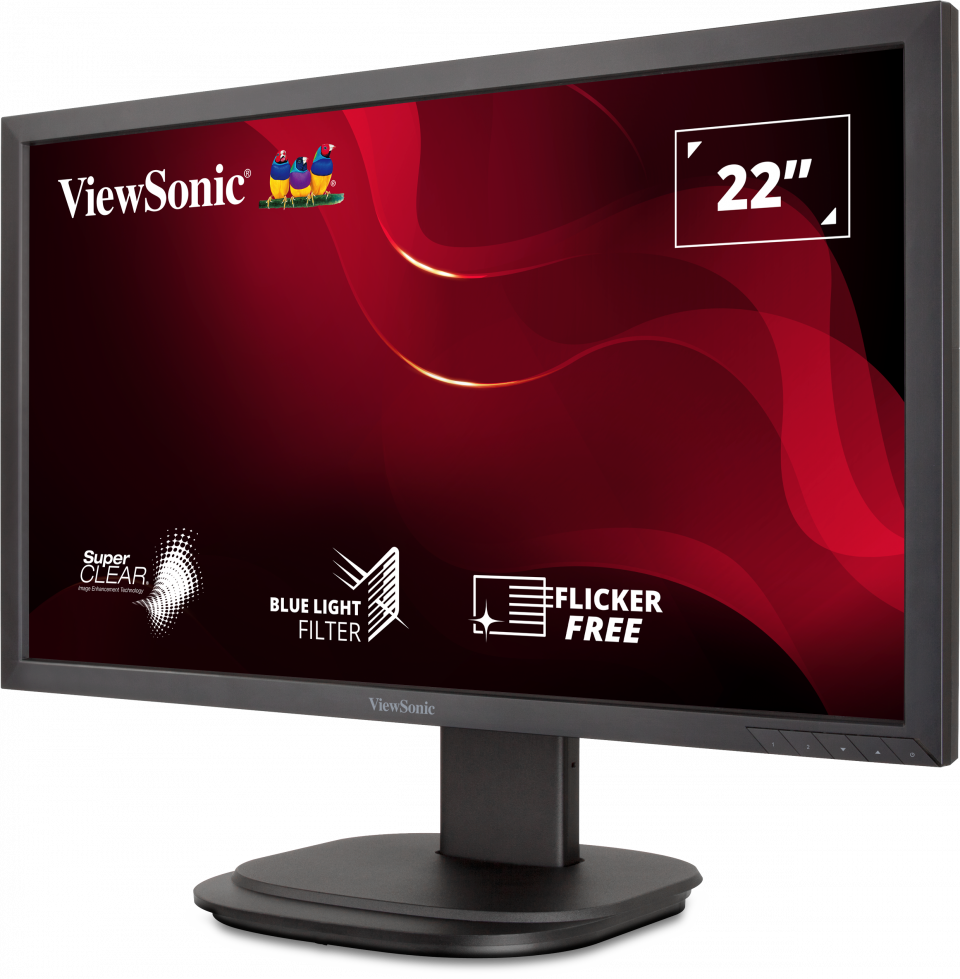

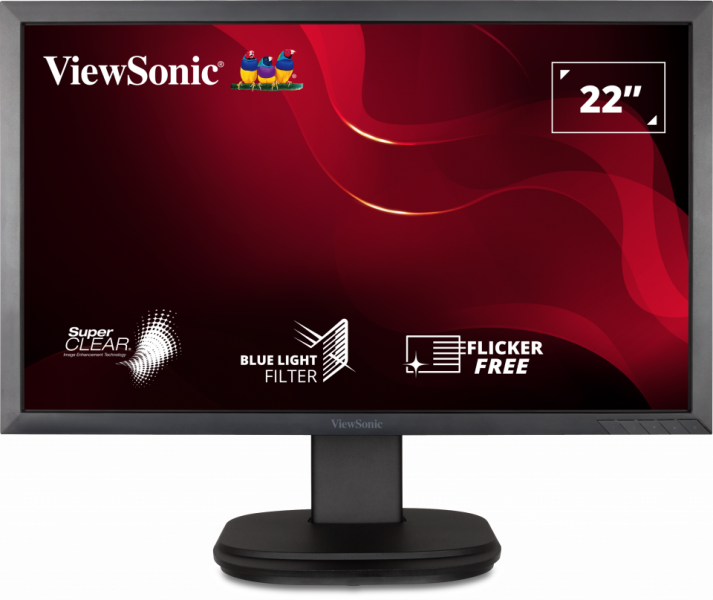

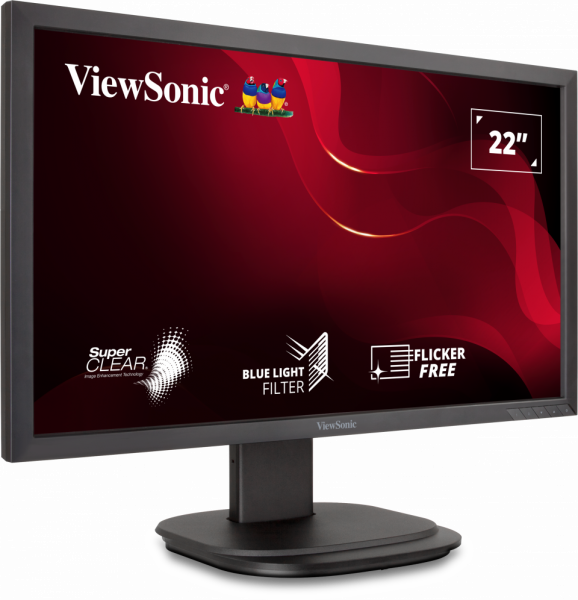

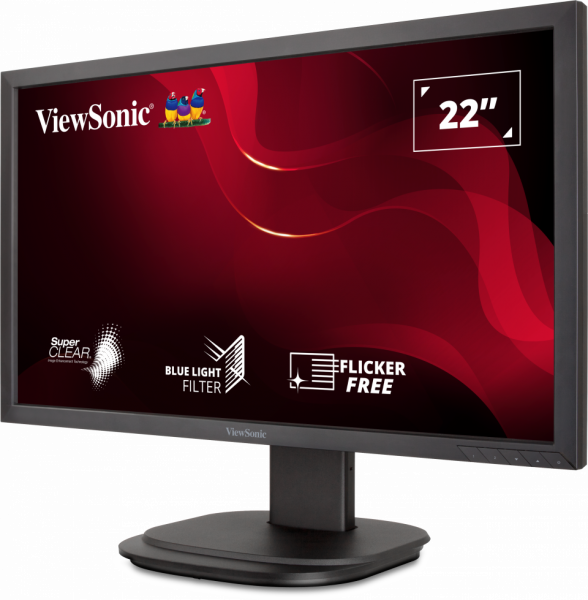

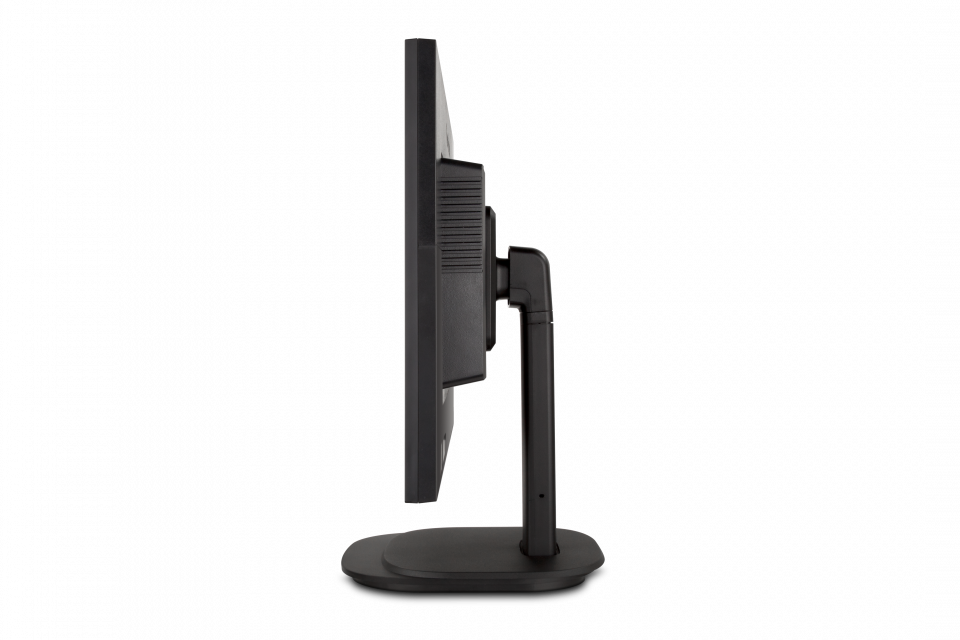

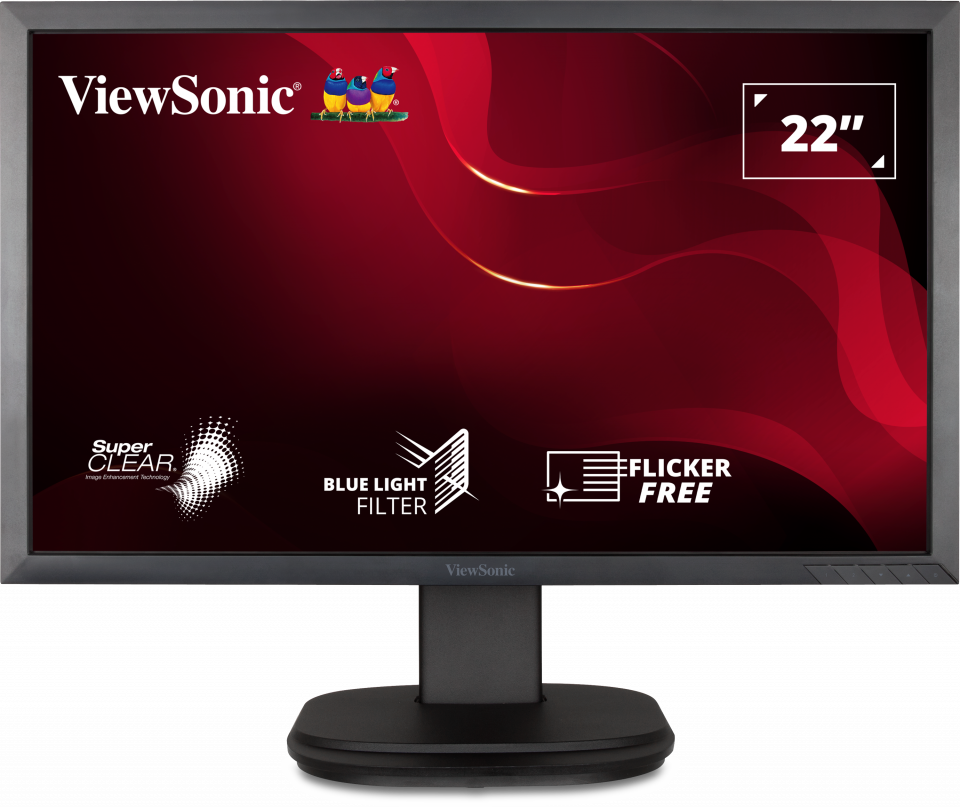

22” (21.5’’ viewable) 16:9 ergonomic FHD LED monitor with SuperClear® VA technology, HDMI, DisplayPort, USB ports and speakers

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 22
Viewable Area (in.): 21.5
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 20M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 6.5ms
Response Time (GTG w/OD): 6.5ms
Response Time (Typical Tr+Tf): 25ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 40000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Blue Light Filter: Yes
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 103% size (Typ)
Pixel Size: 0.248 mm (H) x 0.248 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 8 certified; macOS tested
Mac® Resolution (min): 1920x1080

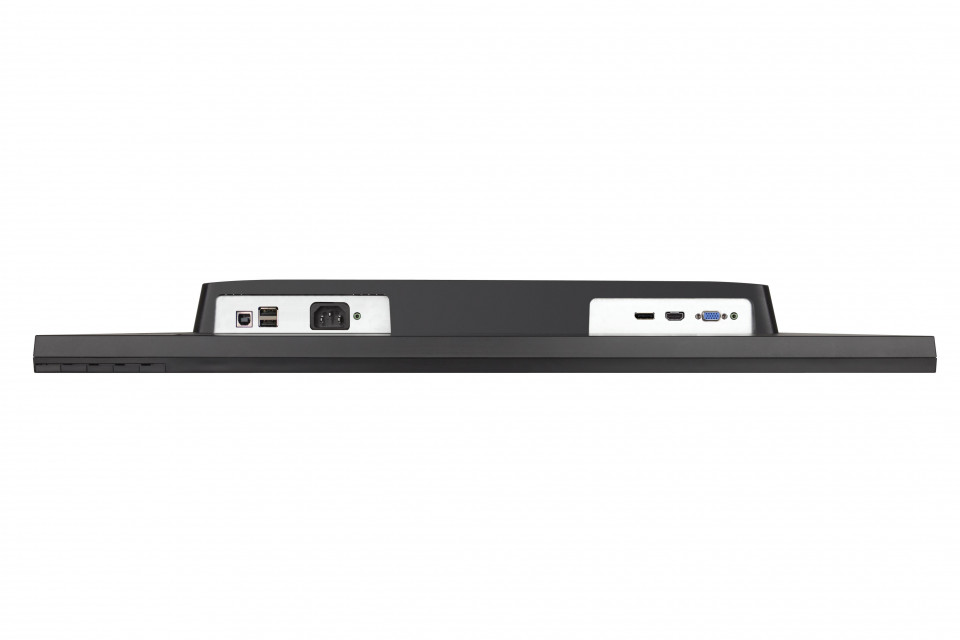

Connector
VGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 15W
Eco Mode (optimized): 18W
Consumption (typical): 20.5W
Consumption (max): 22W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%

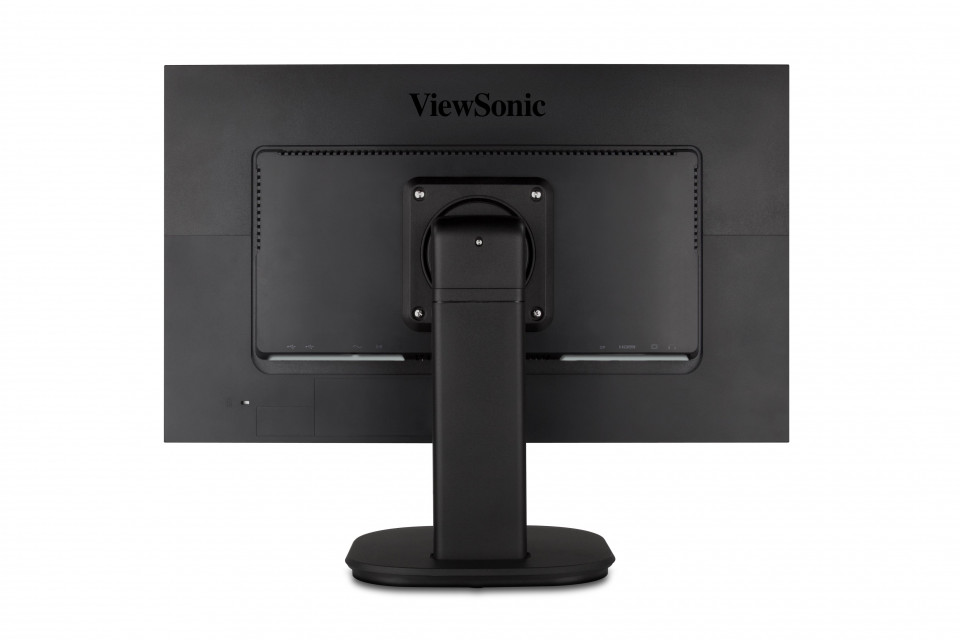

Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 24 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
Analog Sync: Separate/Composite/SOG - RGB Analog
Ergonomics
Height Adjust (mm): 135
Swivel: 360º
Tilt (Forward/Back): -5º / 20º
Pivot (Right/Left): 90º / 0º
Weight (imperial)
Net (lbs): 10.6
Net Without Stand (lbs): 7.4
Gross (lbs): 14.9
Weight (metric)
Net (kg): 4.8
Net Without Stand (kg): 3.3
Gross (kg): 6.8
Dimensions (imperial) (wxhxd)
Packaging (in.): 22.9 x 19 x 7.4
Physical (in.): 20.2 x 16.46~21.77 x 9.4
Physical Without Stand (in.): 20.2 x 12 x 2.2
Dimensions (metric) (wxhxd)
Packaging (mm): 581 x 483 x 187
Physical (mm): 512 x 418.04~553.04 x 240
Physical Without Stand (mm): 512 x 304 x 56
General
PACKAGE CONTENTS: VG2239SMH x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
