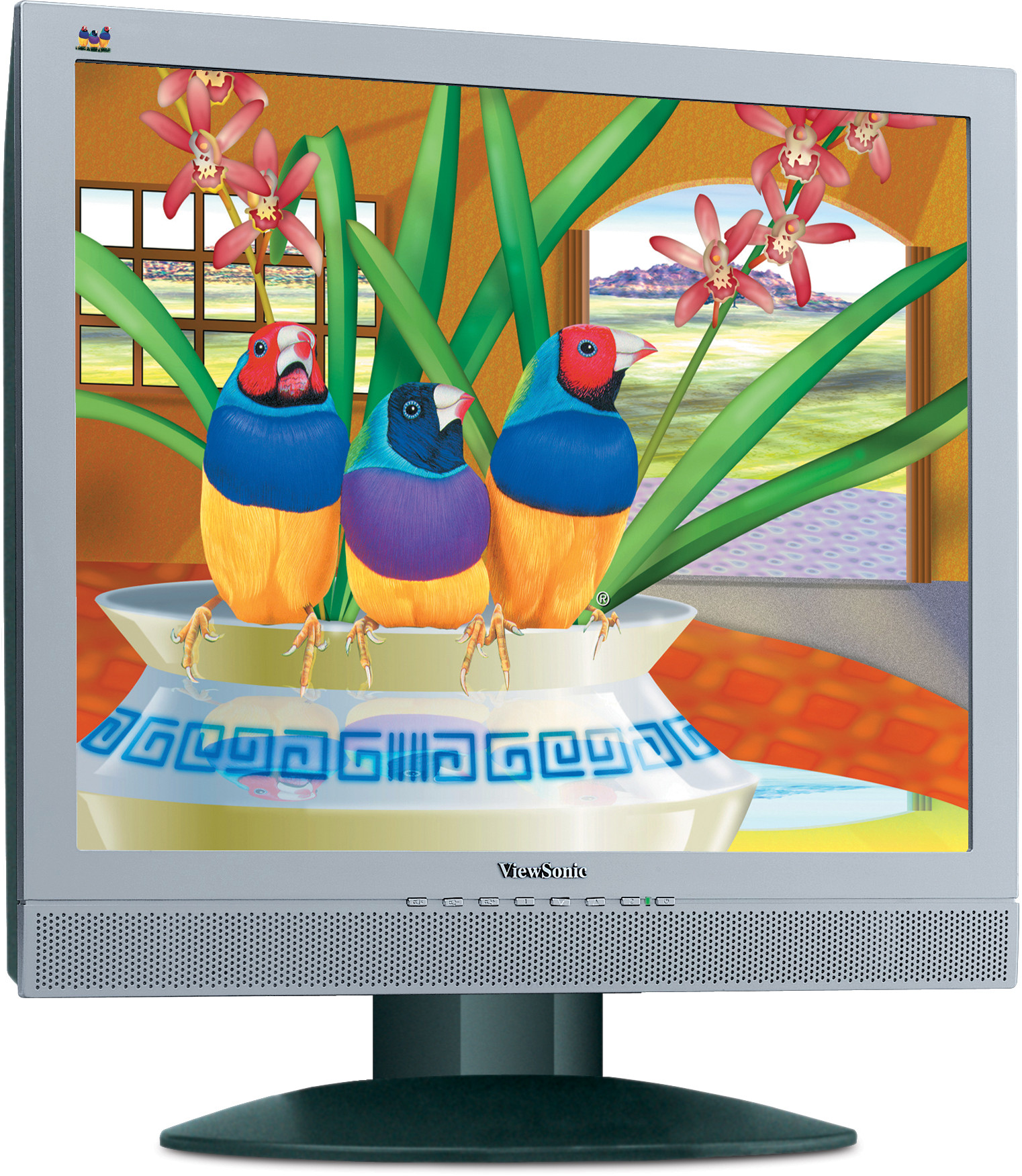

VE920m

ERGONOMIC 19" LCD MONITOR WITH MULTIMEDIA

LCD
Type: 48cm / 19" TN colour TFT active matrix SXGA LCD
Contrast Ratio: 400:1 (typ.)
Viewing Angles: 150° horizontal, 130° vertical (at 10:1)

160° horizontal, 150° vertical (at 5:1)
Brightness: 280cd/m² (typ.)
Display Area: 37.6cm horizontal x 30.1cm vertical; 48.3cm diagonal
Optimum Resolution: 1280 x 1024
Response Time: 8ms (off-on-off) (typ.)
Light Source: Long life, 50000 hrs. (typ.)
Panel Surface: Anti-glare (3H)
Pixel Pitch: 0.294mm
Colour Support: 16.2M colours (6-bit+2-bit FRC)
Pixel Clock: 135MHz
COMPATIBILITY
PC: VGA up to 1280 x 1024 non-interlaced (max. 75Hz)
Mac®: Power Mac™ up to 1280 x 1024 non-interlaced (max. 75Hz)
DIMENSIONS
Physical With Stand: 423 x 434 – 534 x 221 (with stand)
Physical Without Stand: 423 x 381 x 52 (without stand)

PACKAGE CONTENTS
LCD monitor, power cable, VGA cable, audio cable, Quick Start Guide,
ViewSonic Wizard CD (User Guide/drivers)
AUDIO
Speaker: 2 x 1-watt
Amplifier: 1-watt @ THD < 8%
CONNECTOR
Analogue: 15-pin mini D-Sub (attached cable)
Audio: 3.5mm stereo audio line-in
Power: 3-pin AC plug (CEE22)
POWER
Voltage: AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Consumption: 35 watt (typ.) <1 watt in power save mode
CONTROLS
Basic: Power, menu [1], down, up, select [2], mute
OSD: Auto image adjust, contrast, brightness, audio (volume, mute), ViewMatch®
colour adjust (sRGB, 9300K, 6500K, 5400K, User-RGB), information
(resolution, H/V frequency, pixel clock, model number, serial number,
website), manual image adjust (H/V position, H size, fine tune, sharpness),
setup menu (language, resolution notice, OSD position, OSD timeout,
OSD background), OSD/power lock, memory recall
OPERATING CONDITIONS
Temperature: 0°C – 40°C
Humidity: 10% – 90% (non-condensation)
WEIGHT
Net With Stand: 5.2kg (with stand)
Net Without Stand: 4kg (without stand)
VIDEO INPUT
Sync: H/V separate (TTL)
Analogue: RGB analogue (0.7 Vp-p, 75 ohm)
Frequency: Fh: 30 ~ 82kHz, Fv: 50 ~ 85Hz
POWER MANAGEMENT
Meets TCO’03 and Energy Star® standards
SECURITY
Kensington® security port
VESA MOUNT COMPLIANT
VESA® FPDM 100mm x 100mm
ERGONOMICS
Tilt: Down 5°, up 20°
Height Adjustment: 0 ~ 100mm
