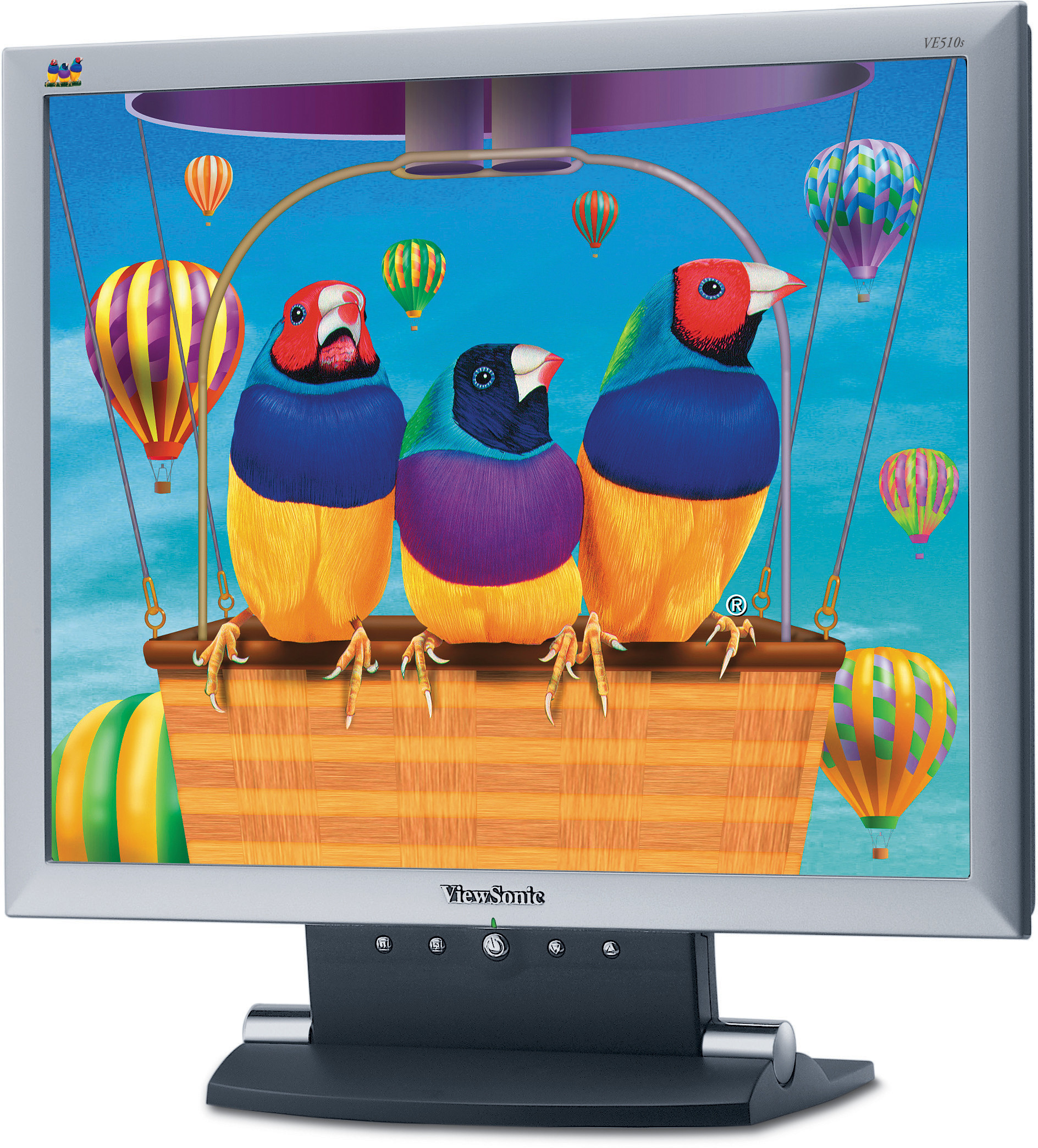

VE510s

38 cm / 15" E2® Series Enhanced Value LCD Displays

LCD
Type: 38cm / 15" colour TFT active matrix XGA LCD
Contrast Ratio: 450:1 (typ)
Viewing Angles: 120° horizontal, 100° vertical @ 10:1

160° horizontal, 135° vertical @ 5:1
Brightness: 250 cd/m² (typ)
Display Area: 30.4cm horizontal x 22.8cm vertical, 38.1cm diagonal
Optimum Resolution: 1024 x 768
Response Time: 16ms (typ)
Light Source: Long life, 50,000 hrs. (typ)
Panel Surface: Anti-glare
Colour Support: 16.2M colours (6-bit + 2-bit FRC)
COMPATIBILITY
PC: VGA up to 1024 x 768 non-interlaced
Mac®: Power Mac™ G3/G4 up to 1024 x 768
DIMENSIONS
Physical (WxHxD): 343mm (W) x 169mm (D) x 326mm (H)

CONNECTOR
Analogue: 15-pin mini D-sub
Power: 3-pin plug (CEE22)
POWER
Voltage: AC 100–240V, 50–60Hz (+/-3) (auto switch)
Consumption: 32W (typ), ≤ 1 watt in suspend mode
CONTROLS
Basic: Power (soft), 1, down, up, 2
OSD: Auto Image Adjust, Brightness, Contrast, Colour Adjust [sRGB,
9300K, 6500K (default), 5400K, User Colour], Information [Mode,
Model Number, Serial Number], Manual Image Adjust [H. Size,
H. Position, V. Position, Fine Tune, Sharpness], Setup Menu
[Language, Resolution Notice, OSD Position, OSD Timeout, OSD
Background], Memory Recall
OPERATING CONDITIONS
Temperature: 0–40°C
Humidity: 10–90% (non-condensing)
VIDEO INPUT
Frequency: Fh: 30~62kHz, Fv: 50~85Hz
Sync: H/V separated (TTL)
Analogue: RGB analogue (75 ohms, 0.7/1.0 Vp-p)
POWER MANAGEMENT
Meets TCO’99 and ENERGY® standards
