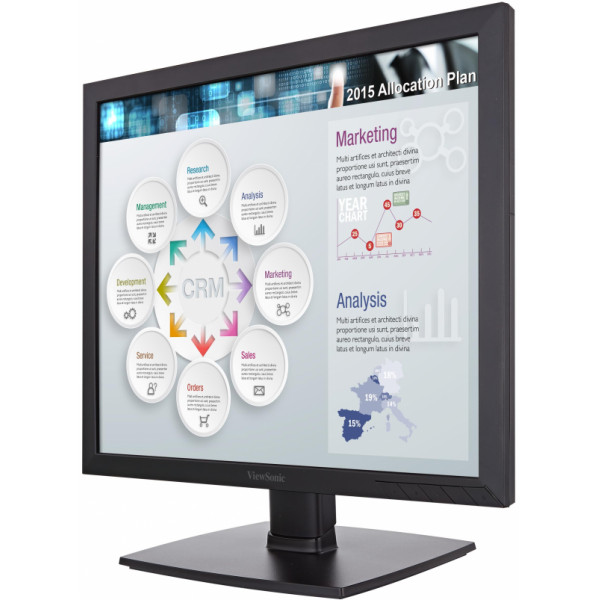

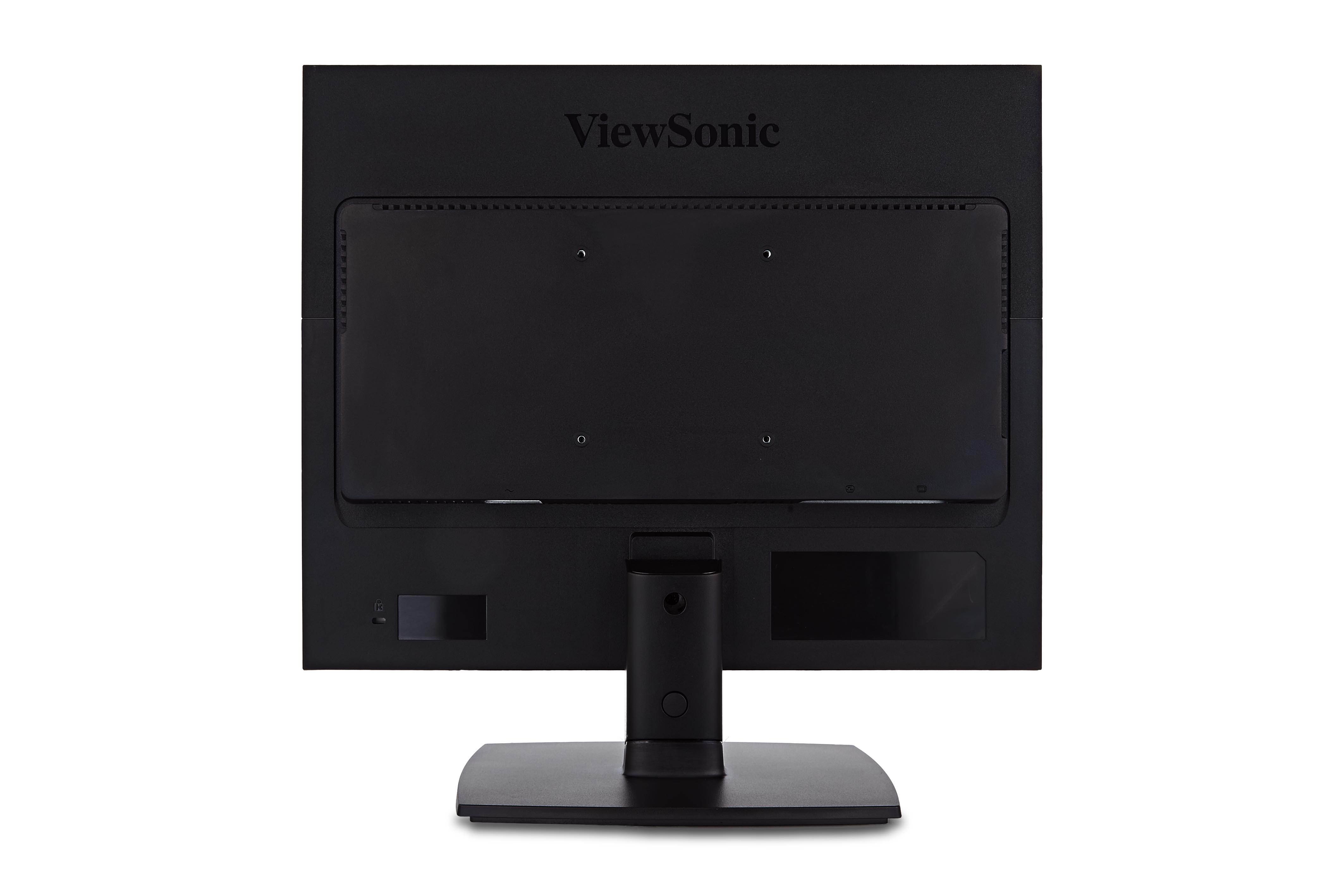

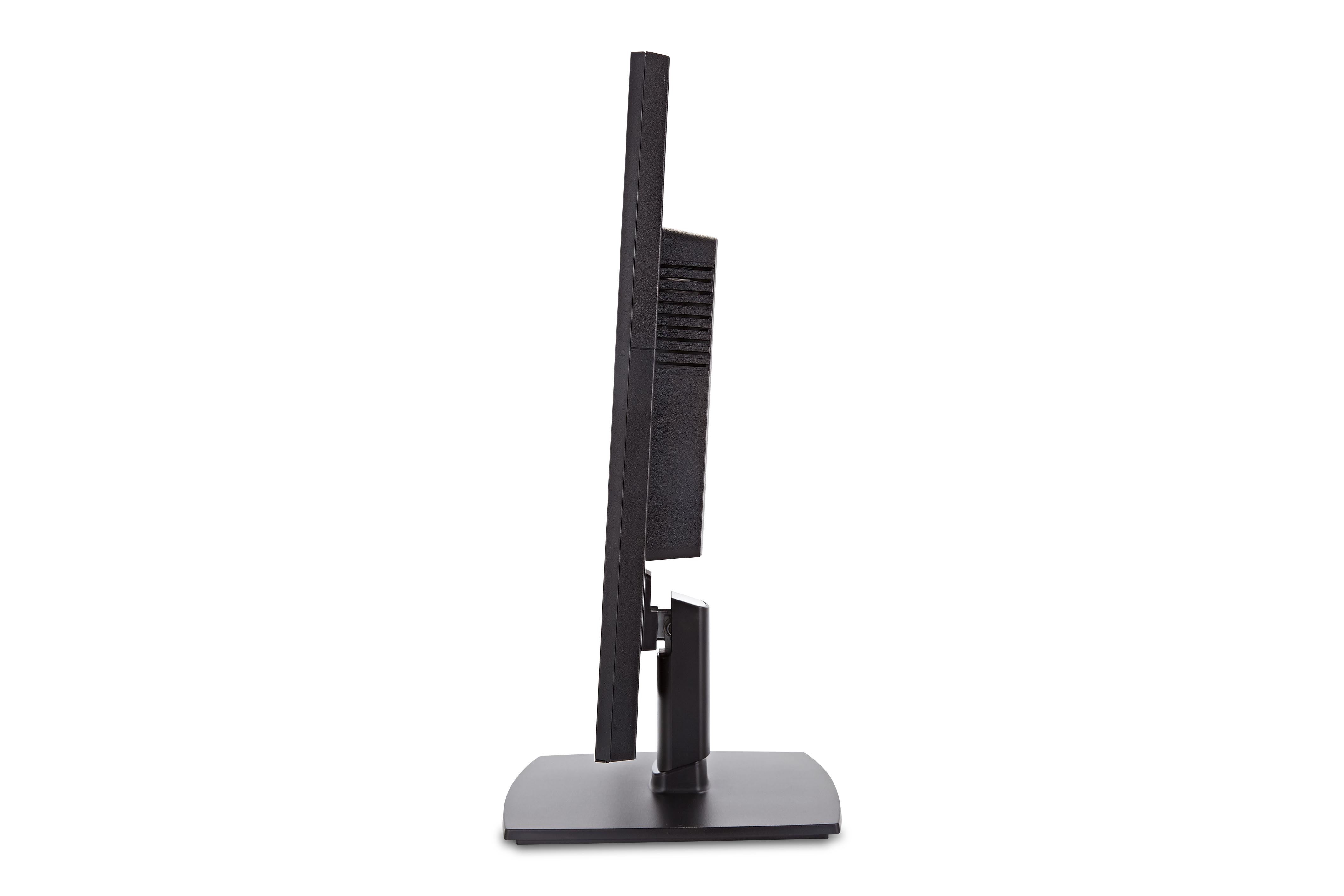

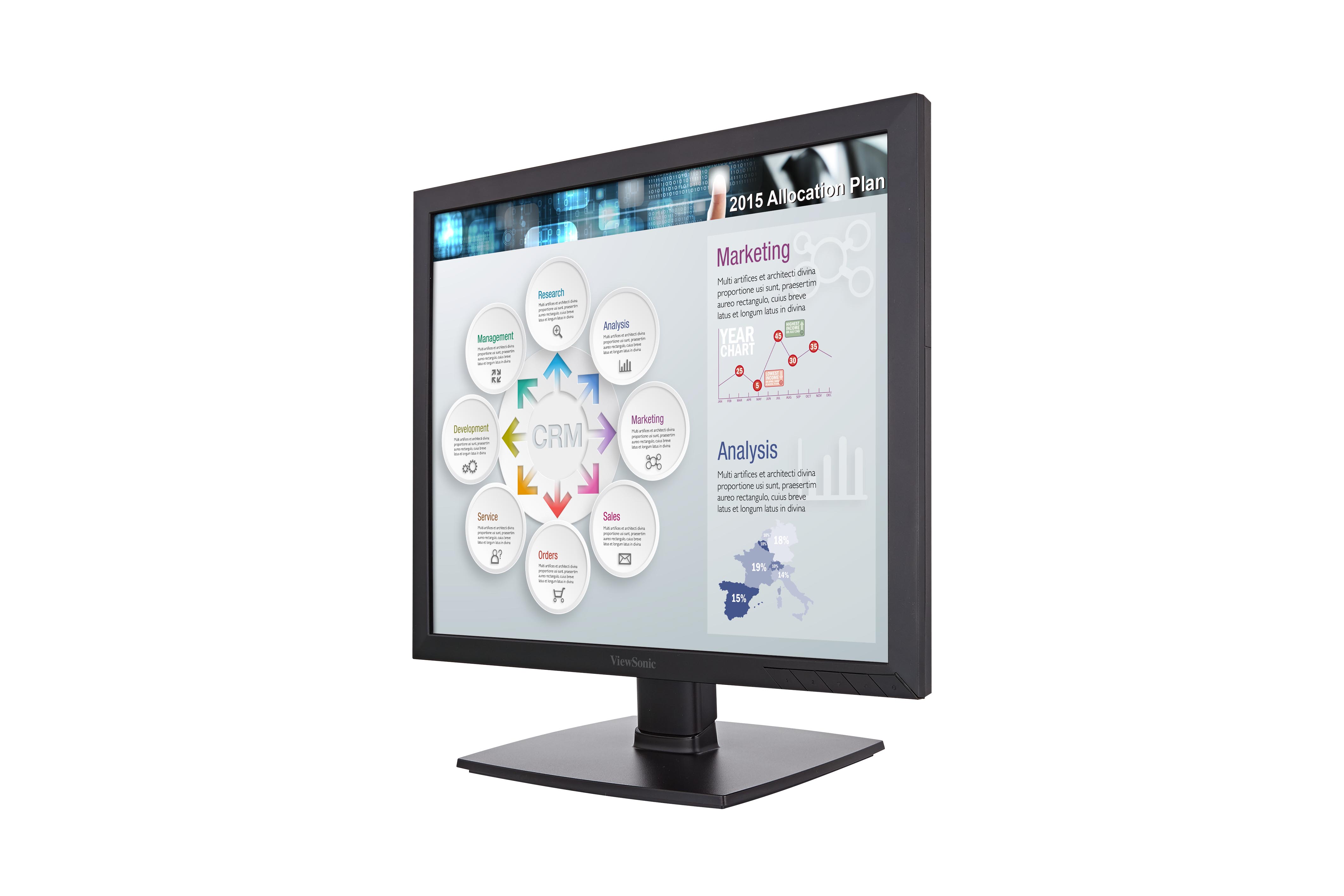

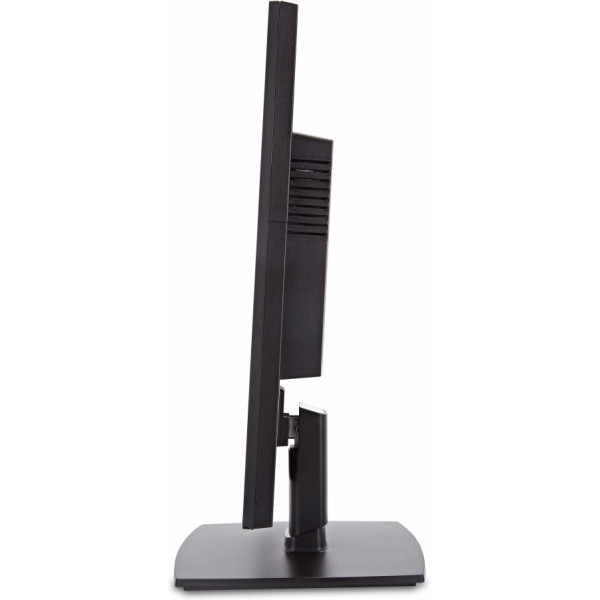

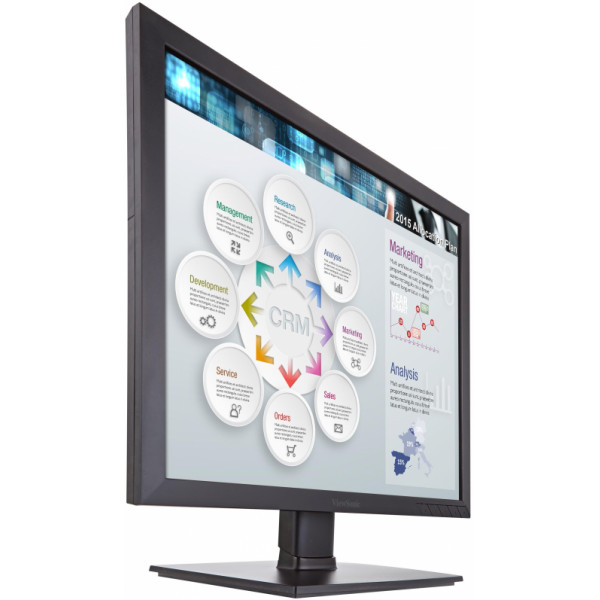

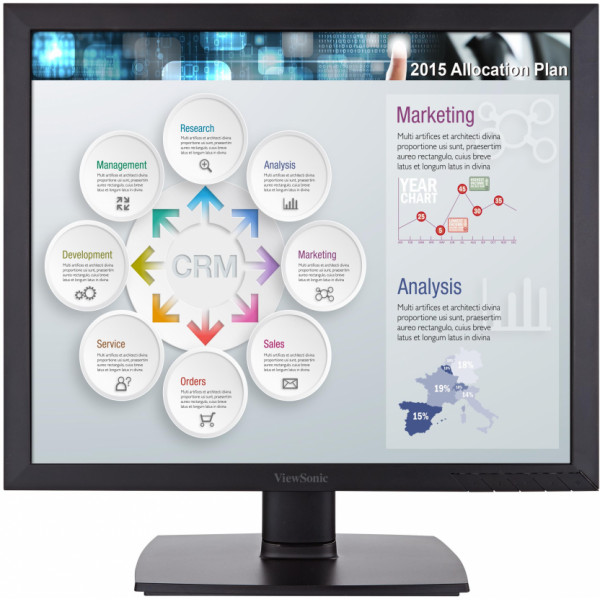

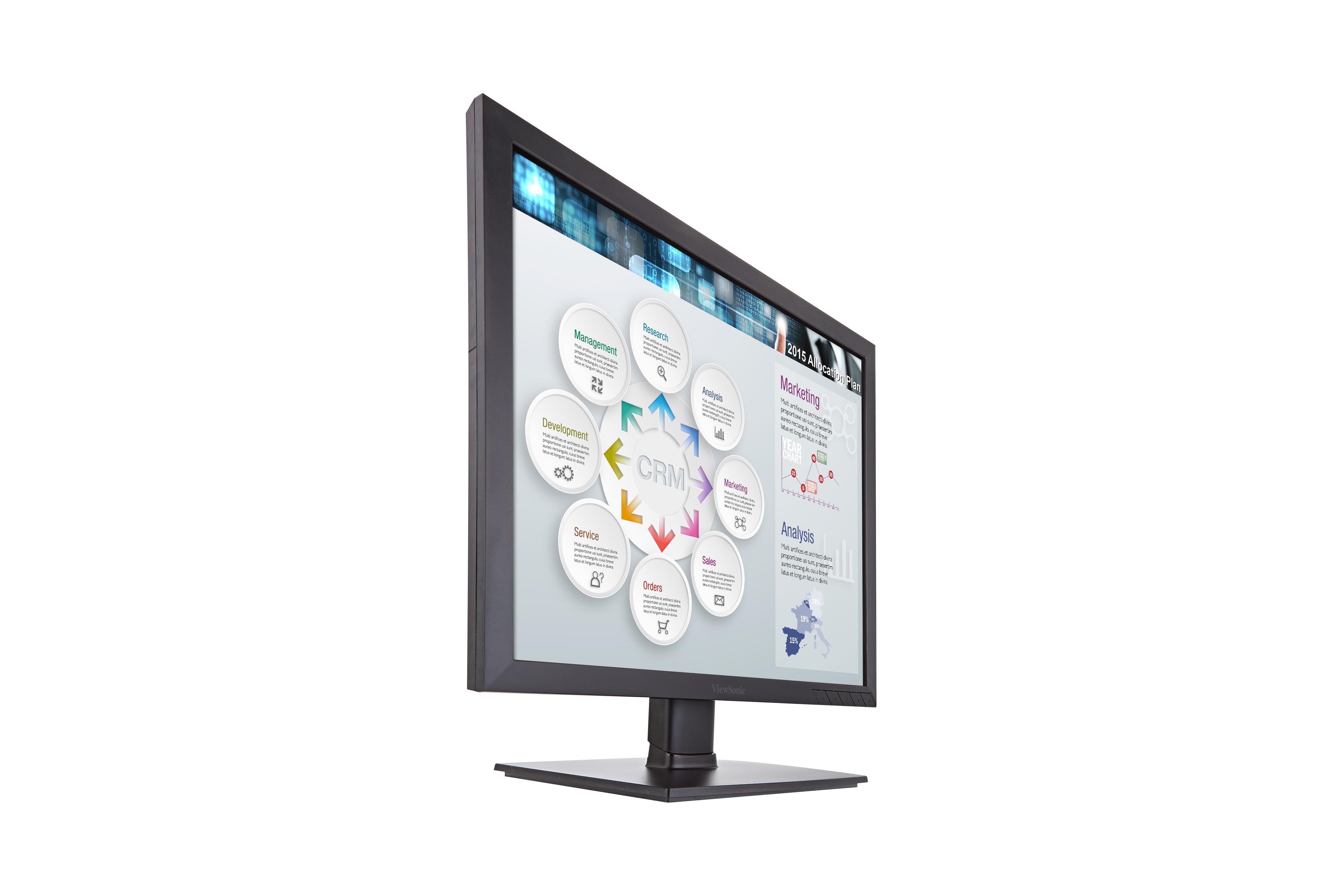

VA951S

19" 5:4 Home and Office Monitor

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 19
Viewable Area (in.): 18.9
Panel Type: IPS Technology
Resolution: 1280 x 1024
Resolution Type: SXGA (Super XGA)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 20M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 5:4
Response Time (Typical GTG): 14ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 75
Blue Light Filter: Yes
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 103% size (Typ)
Pixel Size: 0.293 mm (H) x 0.293 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1280x1024
Mac® Resolution (max): 1280x1024
PC Operating System: Windows 7/8 certified; macOS tested
Mac® Resolution (min): 1280x1024

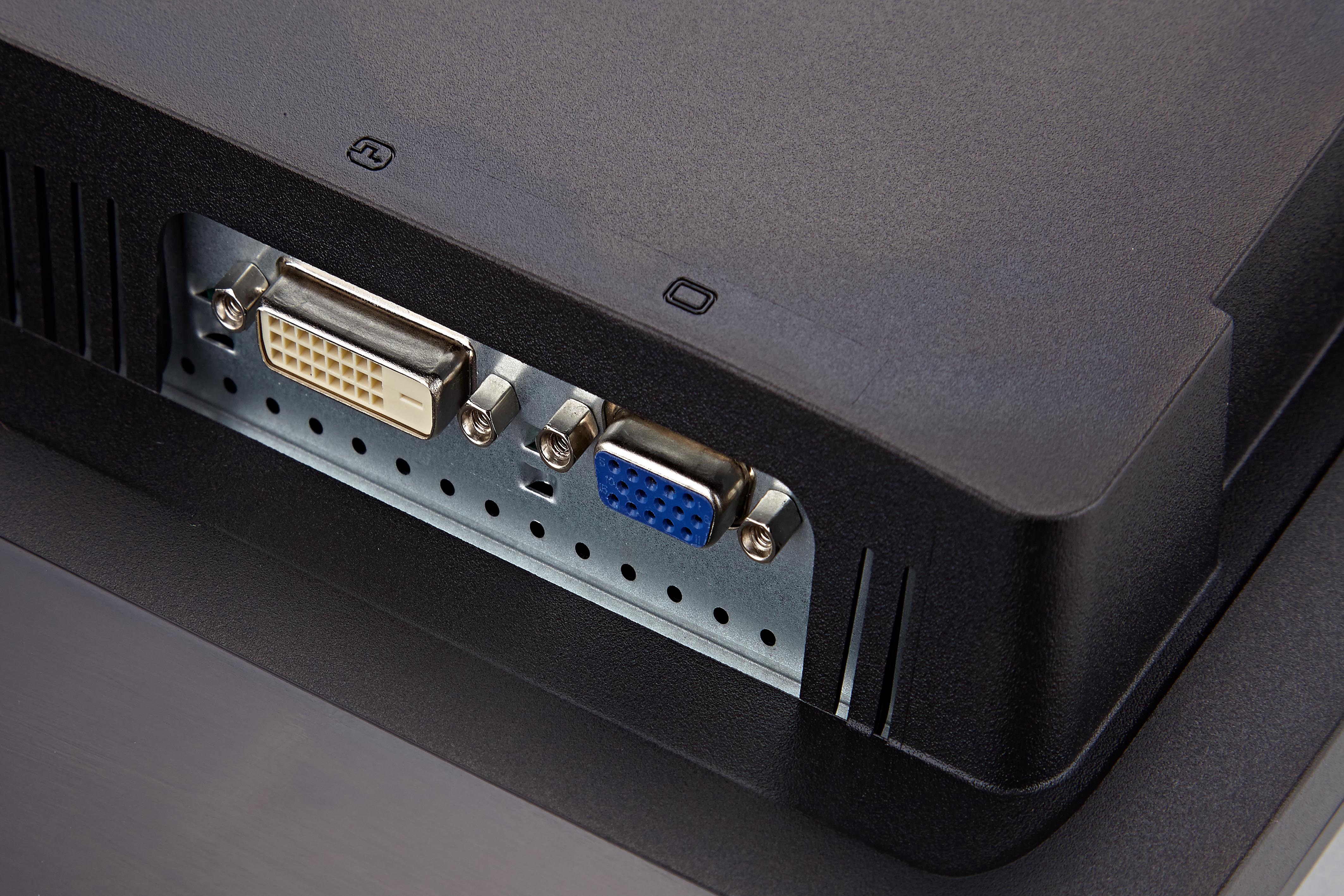

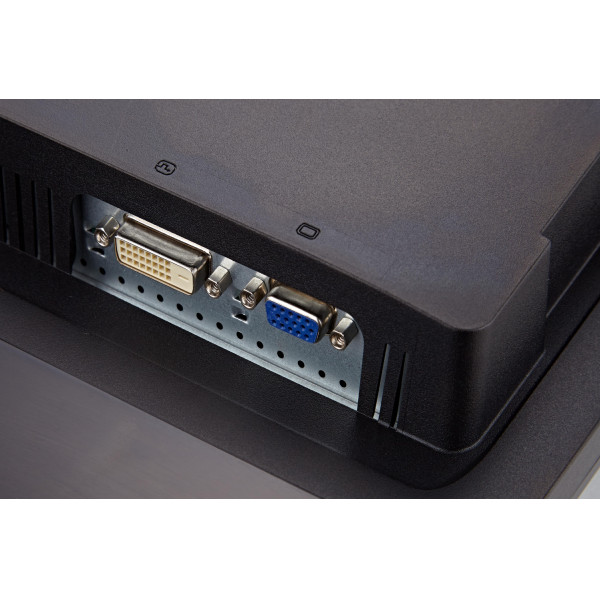

Connector
VGA: 1
DVI-D: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Power
Eco Mode (Conserve): 13W
Eco Mode (optimized): 16W
Consumption (typical): 20W
Consumption (max): 22W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%

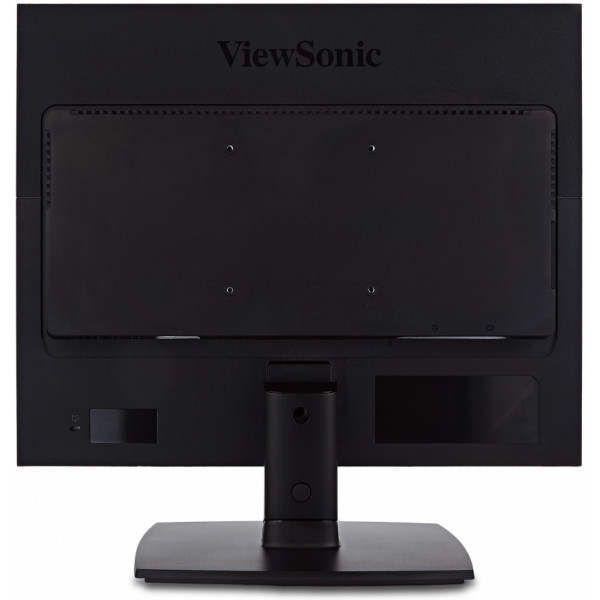

Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 24 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz
Video Input
Digital Sync: TMDS - DVI-D
Analog Sync: Separate - RGB Analog
Ergonomics
Tilt (Forward/Back): -5º / 25º
Weight (imperial)
Net (lbs): 6.7
Net Without Stand (lbs): 6
Gross (lbs): 9.1
Weight (metric)
Net (kg): 3
Net Without Stand (kg): 2.7
Gross (kg): 4.2
Dimensions (imperial) (wxhxd)
Packaging (in.): 18.7 x 18.1 x 5.2
Physical (in.): 16.4 x 15.8 x 7.8
Physical Without Stand (in.): 16.4 x 13.4 x 2.2
Dimensions (metric) (wxhxd)
Packaging (mm): 475 x 460 x 131
Physical (mm): 416 x 402 x 199
Physical Without Stand (mm): 416 x 341 x 55
General
PACKAGE CONTENTS: VA951S x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
