VA912

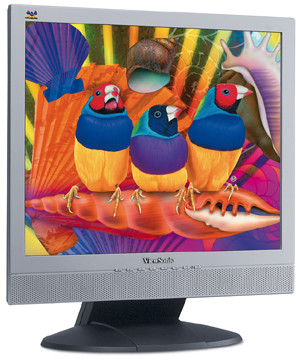

19" VALUE SERIES LCD DISPLAY
SPECIFICATIONS
- LCDType: 48cm / 19" colour TN TFT active matrix SXGA LCD
Contrast Ratio: 600:1 (typ)
Viewing Angles: 140° horizontal, 130° vertical (at 10:1)
150° horizontal, 160° vertical (at 5:1)
Brightness: 250cd/m² (typ)
Display Area: 376mm horizontal x 301mm vertical, 48.3cm diagonal
Optimum Resolution: 1280 x 1024
Response Time: 8ms (typ)
Panel Surface: Anti-glare
Pixel Pitch: 0,294mm
Colour Support: 16.2M colours (6-bit + 2-bit FRC) - COMPATIBILITYPC: VGA up to 1280 x 1024 (up to 75Hz)
Mac®: Power Mac™ G3/G4/G5 up to 1280 x 1024 @ 75 Hz - DIMENSIONSW x H x D mm: 424 x 442 x 186 (with stand)
- INPUT SIGNALFrequency: Fh: 30-82kHz,
Fv: 50-85Hz
Analogue: RGB analogue (75 ohms, 0.7 Vp-p)
Digital: DVI-D (TMDS, 100 ohms)
Sync: H/V separated (TTL) - CONNECTORAnalogue: 15-pin mini D-Sub (detachable cable)
Digital: 24-pin DVI-D (detachable cable)
Audio: Stereo mini audio line in - POWERVoltage: AC 100–240V (universal), 50–60Hz (auto switch), internal power supply
Consumption: < 60W (typ.); ≤ 3 watt in power save mode - CONTROLSOSD: Auto image adjust, brightness, contrast, input select (analogue, digital), colour adjust (sRGB, 9300K, 6800K, 6500K, user RGB), information (mode, model number, serial number), audio (volume, mute), manual image adjust (H. position, V. position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), memory recall
Physical: Physical Power on/off, menu, up, down, select - OPERATING CONDITIONSTemperature: 0°C to 40°C
Humidity: 10% to 90% (no condensing) - WEIGHTNet: 5.5kg
- POWER MANAGEMENTMeets TCO'99 and ENERGY standards
- ERGONOMICSTilt: Down 5°, Up 20°
