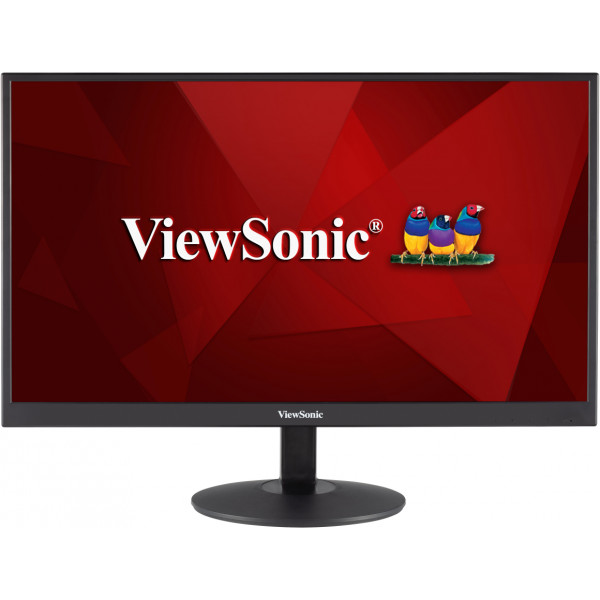

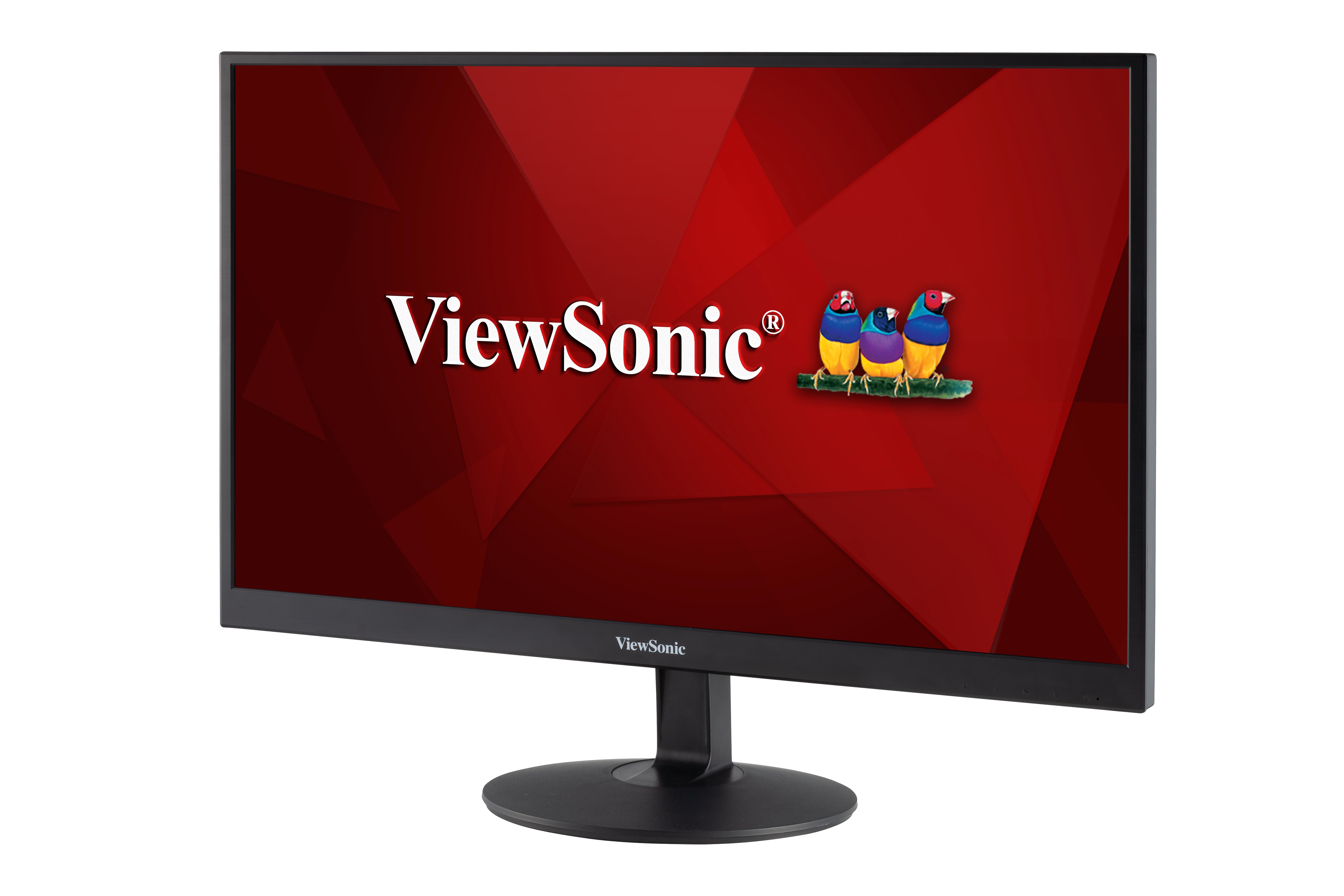

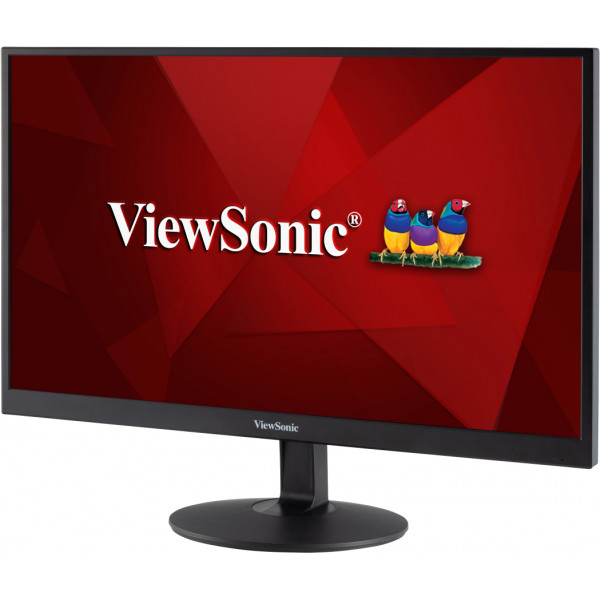

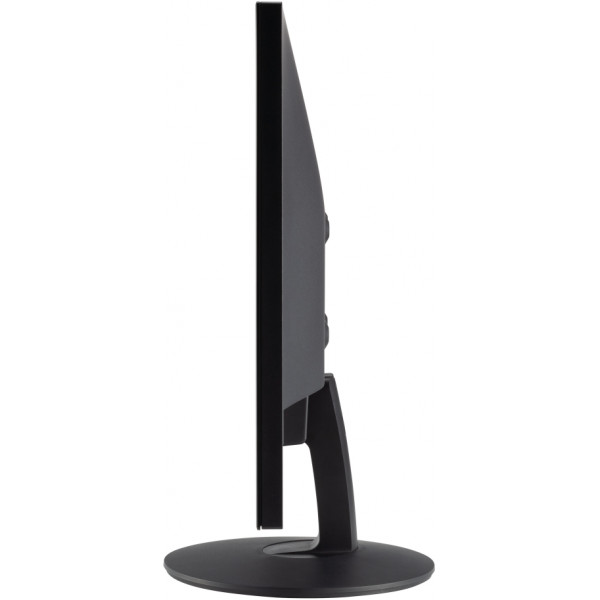

VA2403-h

24" 1080p Home and Office Monitor

SuperClear® technology
Narrow bezel
HDMI and VGA inputs
ViewMode technology
Flicker-Free and Blue Light Filter

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 24
Viewable Area (in.): 23.6
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Blue Light Filter: Yes
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
Pixel Size: 0.272 mm (H) x 0.272 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7/8/8.1/10 certified; macOS tested
Mac® Resolution (min): 1920x1080

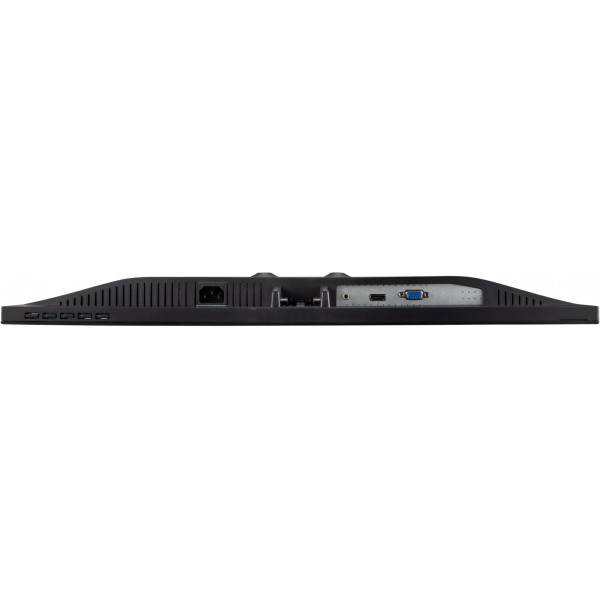

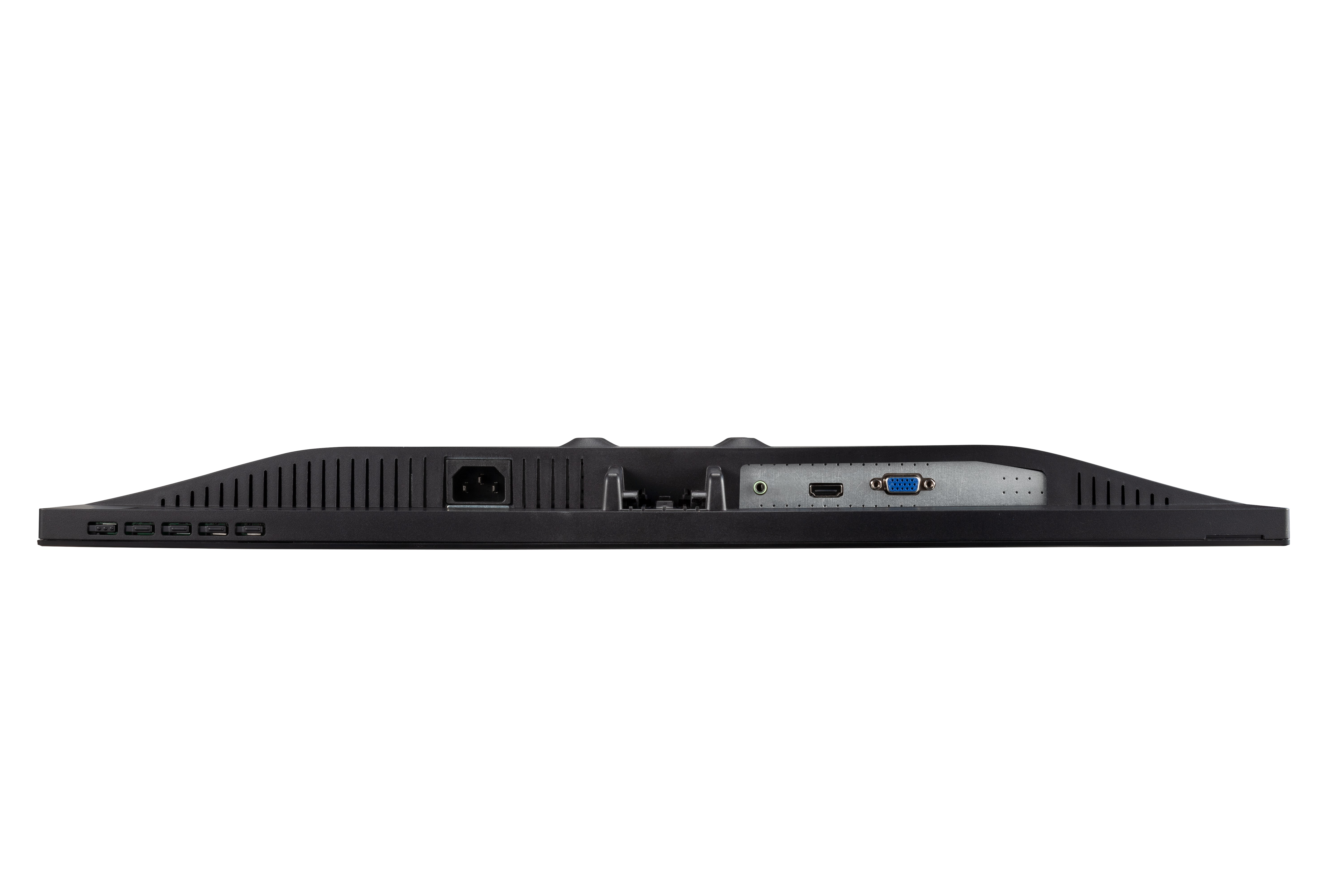

Connector
VGA: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Power
Eco Mode (Conserve): 19W
Eco Mode (optimized): 21W
Consumption (typical): 22W
Consumption (max): 23W
Voltage: AC 100-240V
Stand-by: 0.3W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: M, Left, Right, E, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount

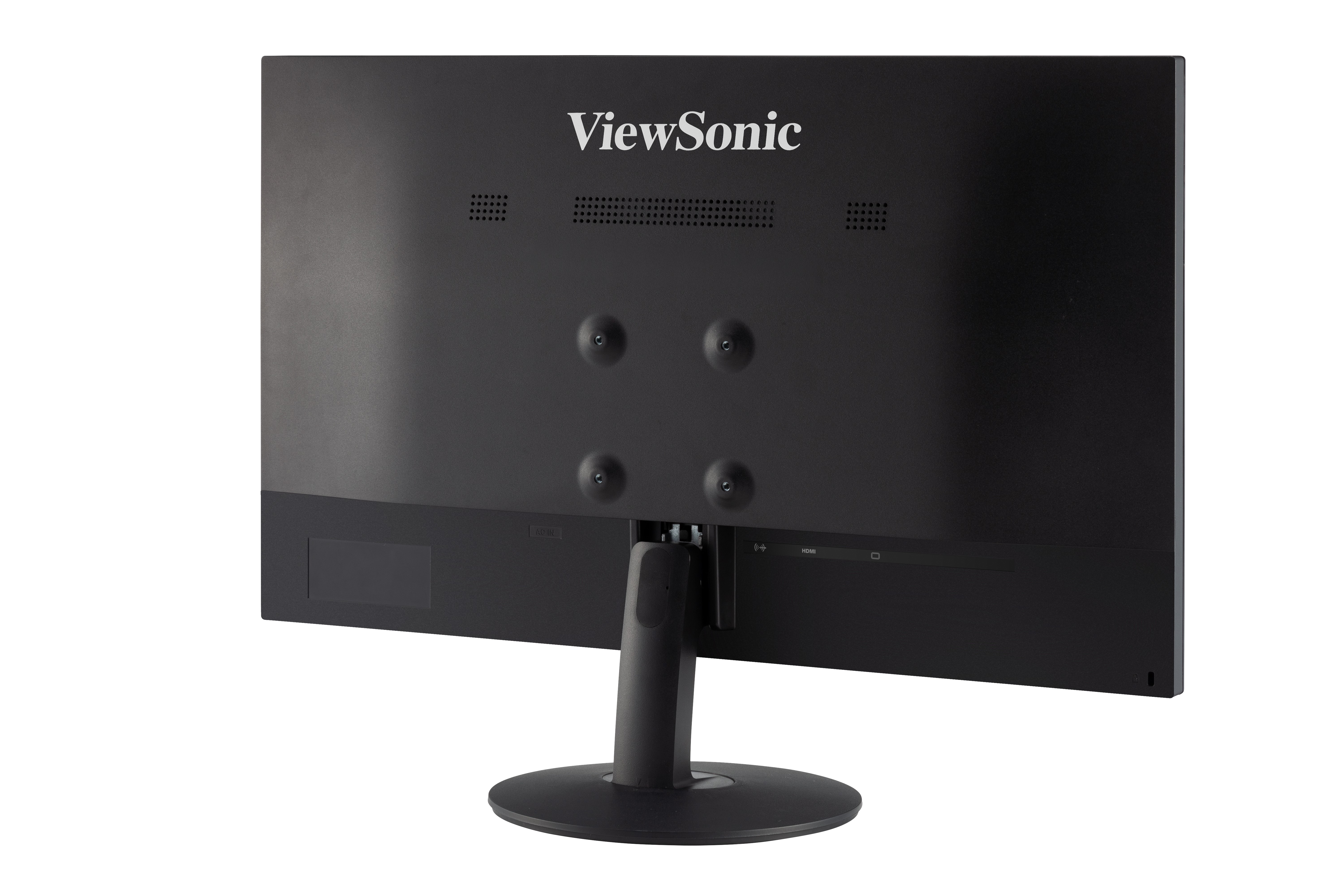

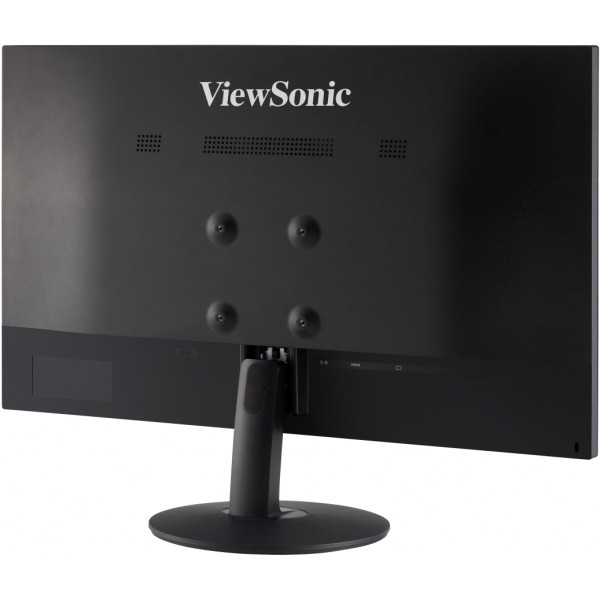

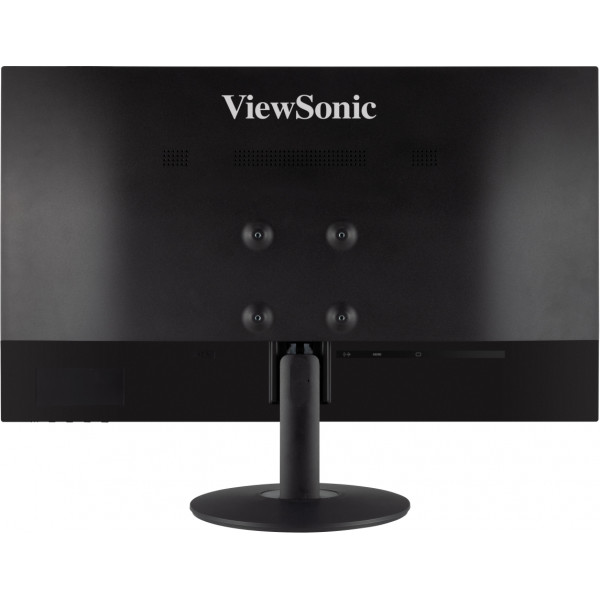

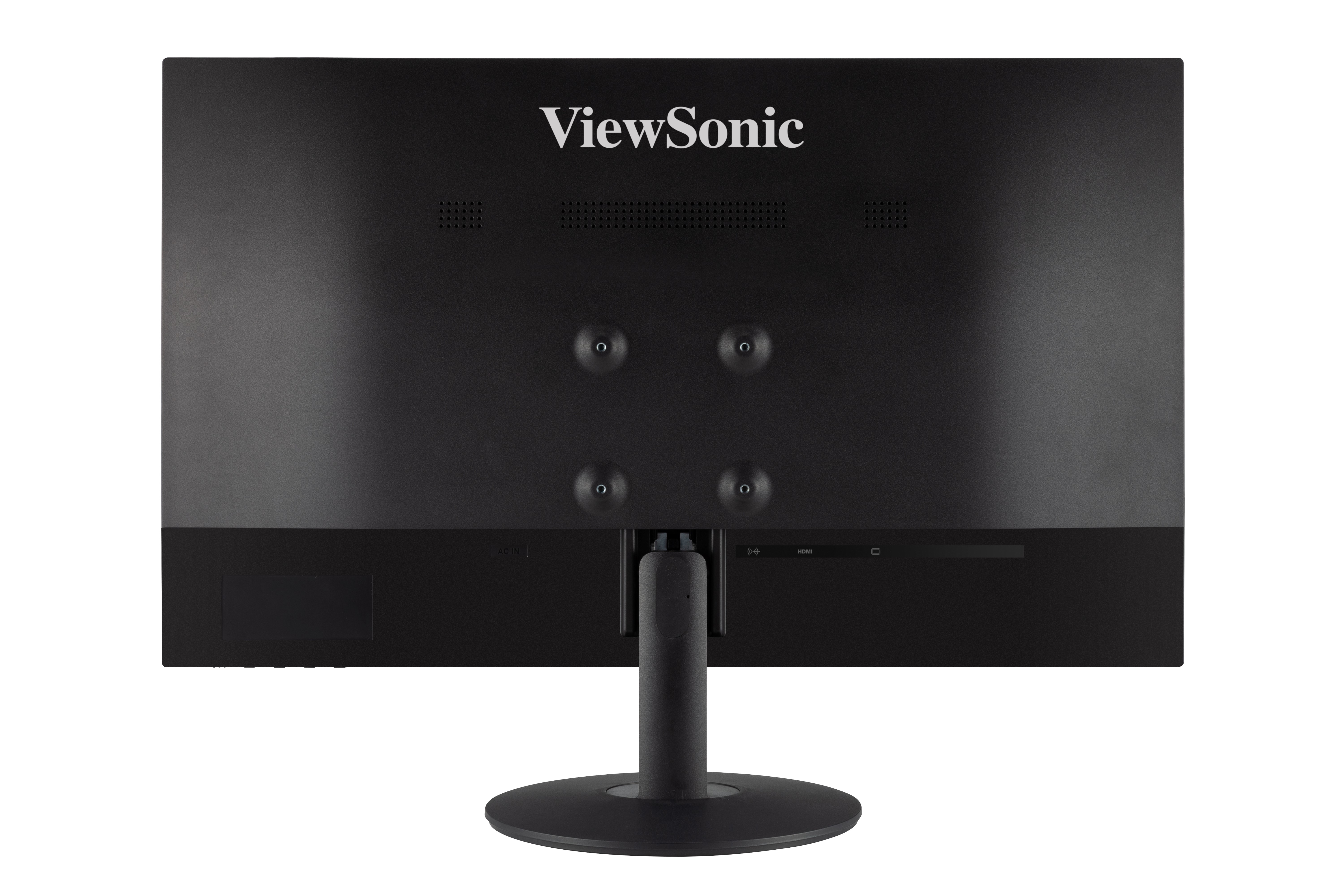

VESA Compatible: 75 x 75 mm
Input Signal
Frequency Horizontal: RGB Analog: 24 ~ 83KHz, HDMI (v1.4): 15 ~ 83KHz
Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4)
Analog Sync: Separate - RGB Analog
Ergonomics

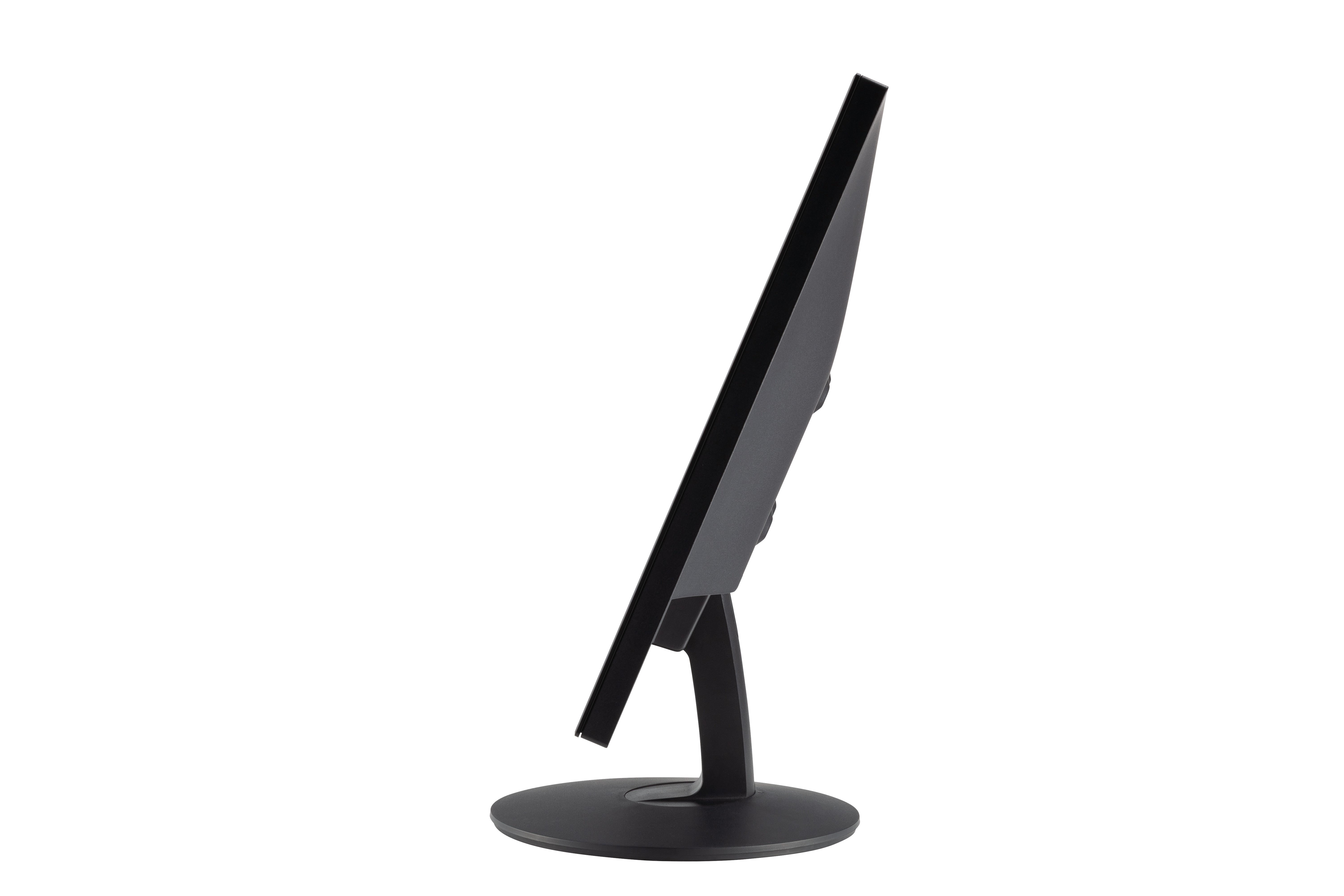

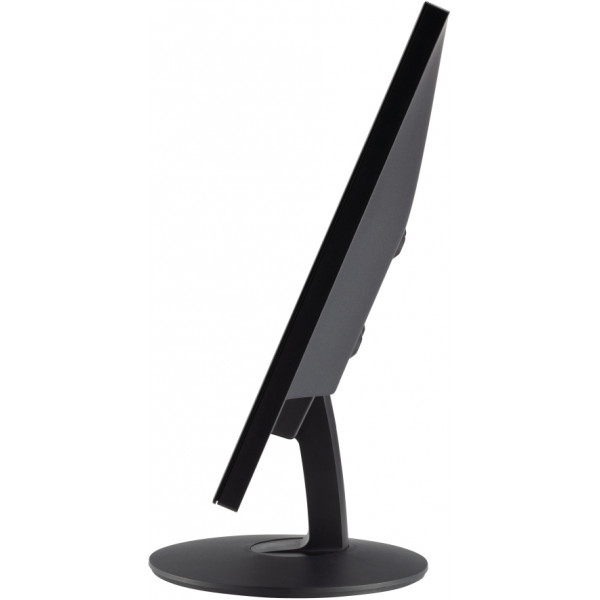

Tilt (Forward/Back): -5º / 22º
Weight (imperial)
Net (lbs): 7.1
Net Without Stand (lbs): 6.4
Gross (lbs): 9.9
Weight (metric)
Net (kg): 3.2
Net Without Stand (kg): 2.9
Gross (kg): 4.5
Dimensions (imperial) (wxhxd)
Packaging (in.): 24.2 x 16.9 x 4.8
Physical (in.): 21.4 x 16 x 7.8
Physical Without Stand (in.): 21.4 x 12.9 x 1.9
Dimensions (metric) (wxhxd)
Packaging (mm): 614 x 430 x 121
Physical (mm): 544 x 407 x 199
Physical Without Stand (mm): 544 x 328 x 49
General
PACKAGE CONTENTS: VA2403-H x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
