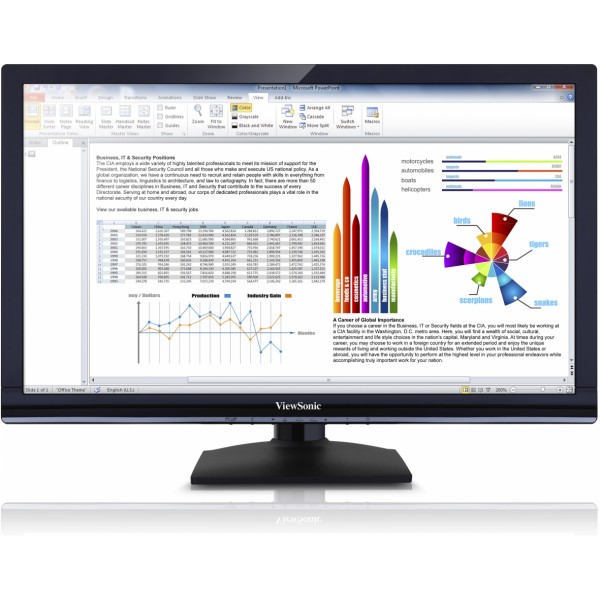

SD-Z245

Perfect Solution for a Seamless Desktop Experience

LCD
Type: 24" (23.6" viewable) Wide Colour TFT Active Matrix LED
Effective Viewing Area: 170º horizontal, 160º vertical
Contrast Ratio: 1000:1 (typ.)
Display Area: 20.5" horizontal x 11.5" vertical; 23.6" diagonal
Optimum Resolution: 1920 x 1080
Response Time: 5ms (typ.)
Panel Surface: Anti-glare, hard-coating (3H)
Brightness: 250 cd/m2 (typ.)
Dynamic Contrast Ratio: 20,000,000:1
Backlight: White-light LED
Backlight Life: 30,000 hours (min.)
COMPATIBILITY
PC: PC compatibles (VGA up to 1920x1080 non-interlaced)
Mac®: Up to 1920x1080
DIMENSIONS
Physical With Stand: 22.3 x 15.5 x 7.5 in. / 566.4 x 392.7 x 189.9 mm
Physical Without Stand: 22.3 x 13.6 x 1.9 in. / 566.4 x 345.4 x 48 mm
Packaging: 24.8 x 18.4 x 6.2 in. / 630 x 467 x 158 mm

PACKAGE CONTENTS
1.SD-Z245 Zero Client Monitor

2.power cord

3.power adapter

4.VGA cable

5.Quick Start Guide

6.ViewSonic Wizard CD
CONNECTOR
Power: External power adapter
Video Input: 15-pin mini D-sub (VGA)

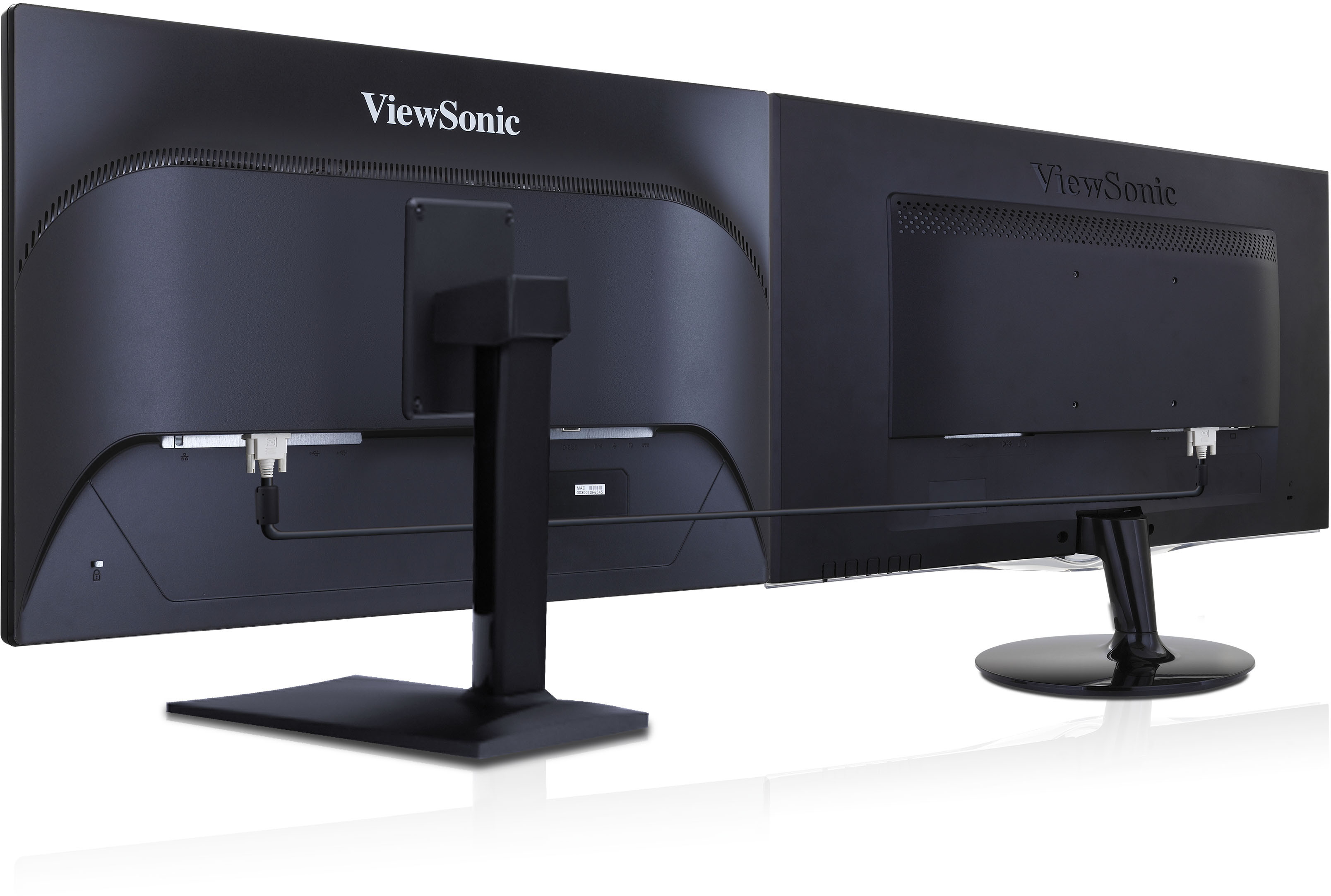

Video Output: DVI-I (x1)
USB: USB 2.0 (x4)
Headphone: 3.5mm mini jack (x1)
LAN: RJ45 (x1)
Audio line in: 3.5mm mini jack (x1)
Microphone in: 3.5mm mini jack (x1)
POWER
Voltage: AC 100-240 V (universal), 50/60 Hz
Consumption: 28W (typ)
CONTROLS
Basic: PCoIP, 2, Down, Up, 1, Power
OSD: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Colour Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall (See user guide for full OSD functionality)
OPERATING CONDITIONS
Temperature: 32–95ºF (0–35ºC)
Humidity: 15–90% (non-condensing)
WEIGHT
Net With Stand: 11.2 lb. / 5.1 kg
Net Without Stand: 8.6 lb. / 3.9 kg
Gross: 14.6 lb / 6.6 kg

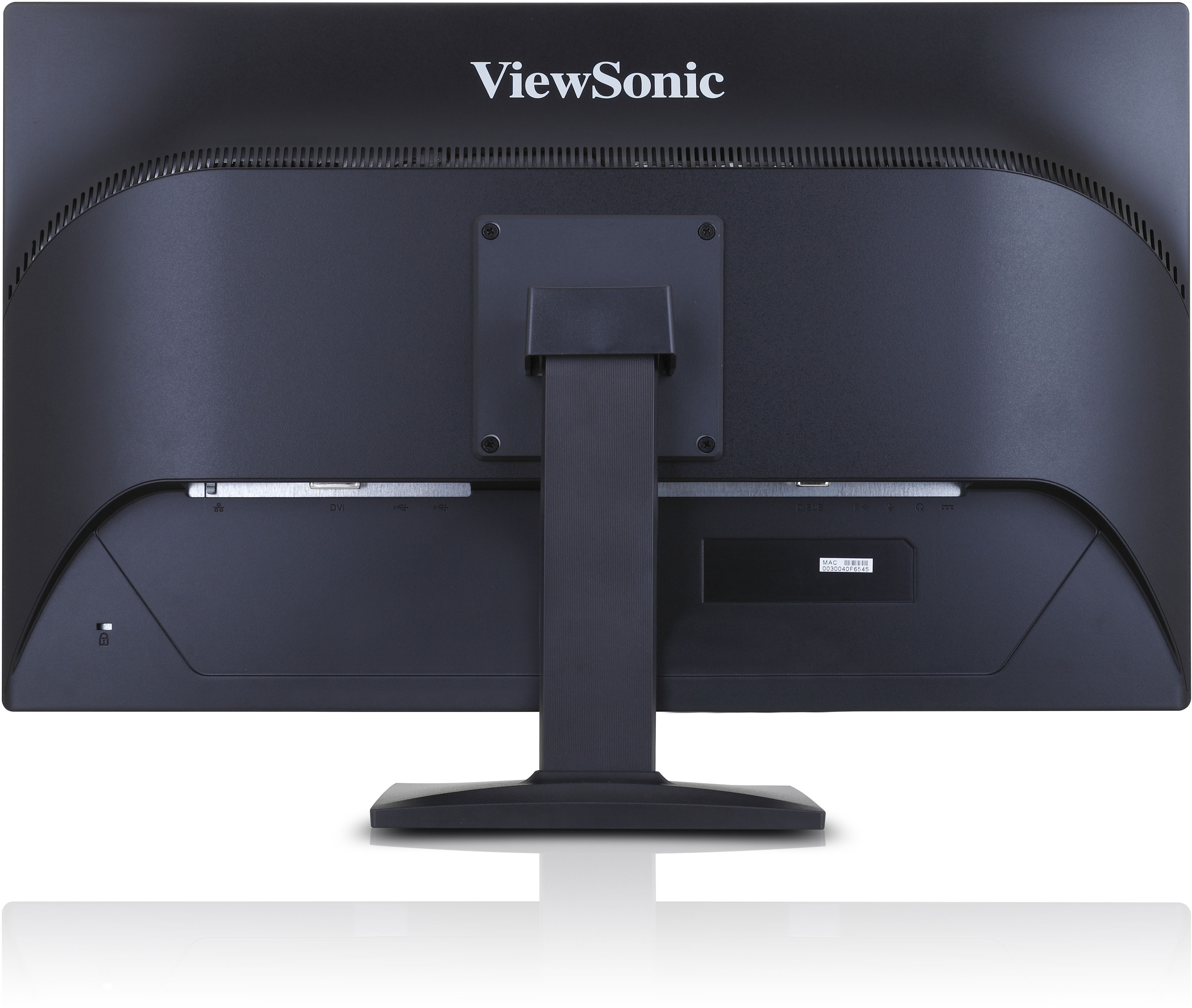

VESA® MOUNT
100mm x 100mm
MEMORY
System: DDR3 512MB @ 1066MHz
Storage: None
VIDEO INPUT
Analog/Digital: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
Frequency: Fh: 24~82kHz, Fv: 50~75Hz
Sync: Separate Sync
ERGONOMICS

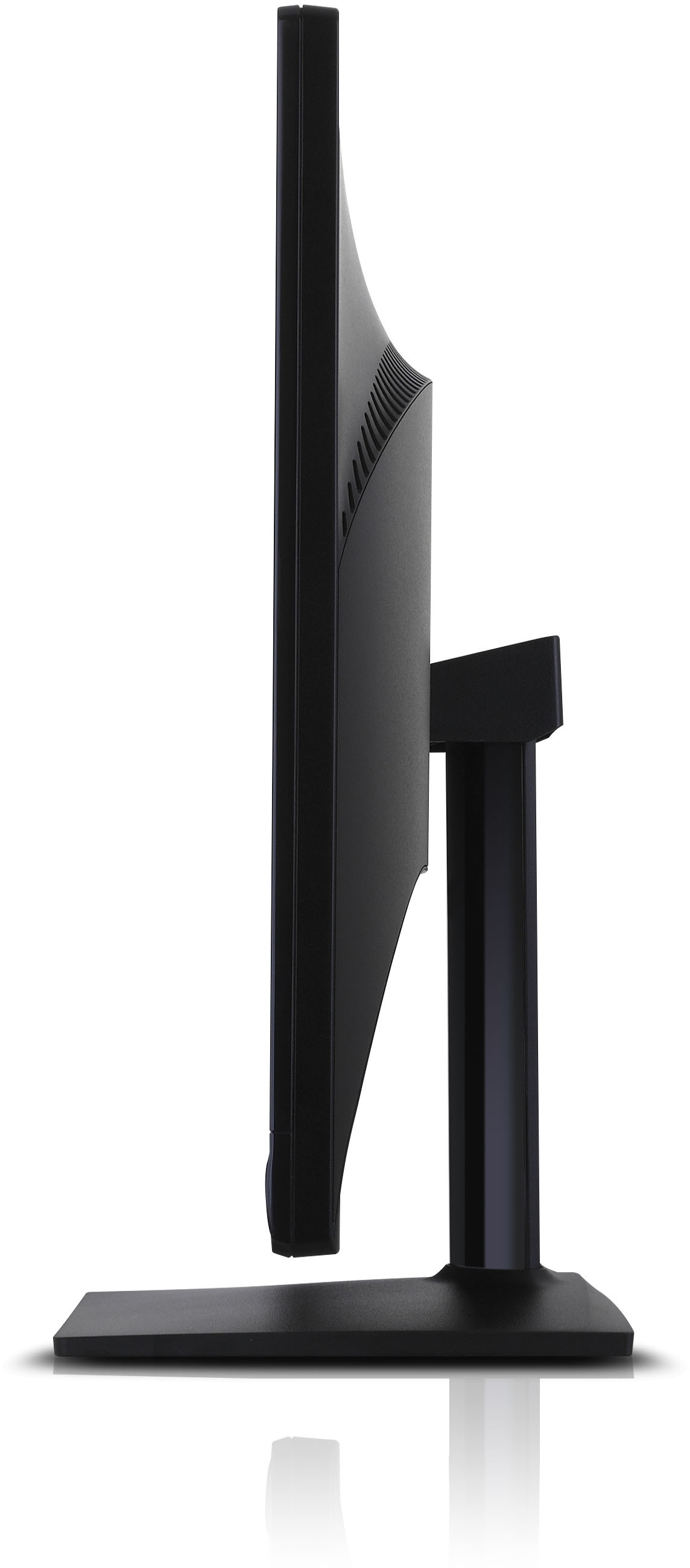

Tilt: Forward 5º / Back 20º
CORE
CPU: Teradici Tera2321
Image Performance: 50Mpps (DVI out)
GRAPHICS
Chipset: None
Resolution: 1920 x 1200 (for single display)
COMMUNICATION
Ethernet LAN: 10/100/1000 MB
SOFTWARE
Protocols: VMware PCoIP
AUDIO
Speakers: 2-watt (x2)
