P97fSB

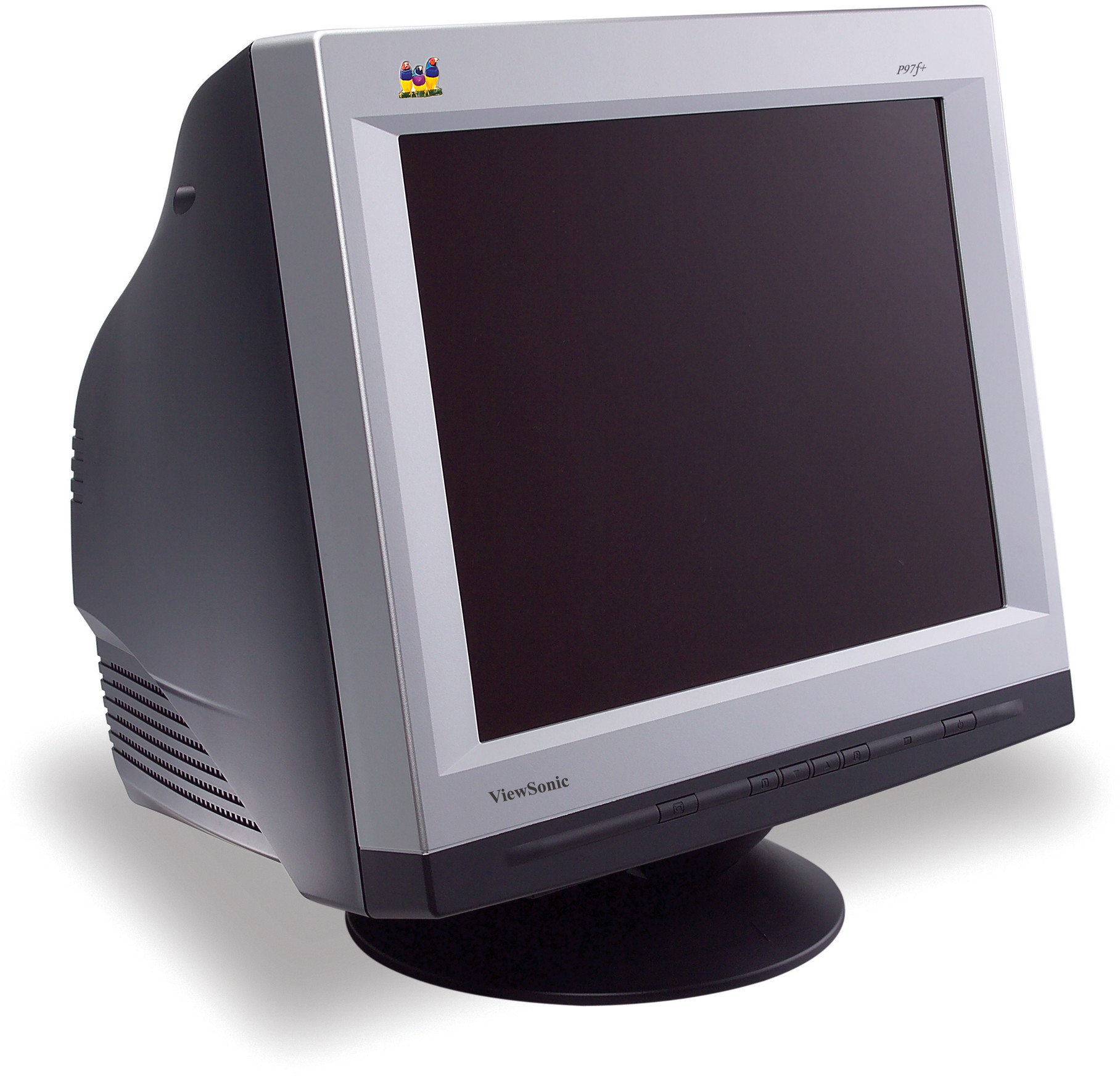

19” (18.0” viewable) Professional Series UltraBrite CRT

COMPATIBILITY
PC: VGA up to 2048x1536
Mac®: Power Mac ™ G3/G4 VGA up to 1152x870
Other: Most workstations
DIMENSIONS
Physical (WxHxD): 459mm (W) x 476mm (H) x 478mm (D)

18.1” (W) x 18.7” (H) x 18.8” (D)

INPUT SIGNAL
Frequency: Fh: 30 - 110kHz, Fv: 50 - 160Hz
Video: RGB analogue (0.7Vp-p, 75ohms)
Sync: H/V separated (TTL), composite
CONNECTOR
Signal: 15-pin D-sub (attachable)
Power: 3-pin plug (IEC320)
POWER
Voltage: 90 - 240 VAC, 50-60 Hz (auto-switch)
Consumption: 97 watts (typ), 130 watts (max)
CONTROLS
Basic: Power on/off, menu, up, down, select, UltraBrite hot key
OSD: Contrast, brightness, H/V-size, H/V-position, pincushion,
pin-balance, Trapezoid, parallelogram, rotation, zoom, moiré,
H/V-convergence, degauss, ViewMatch® colour (9300k, 6500k,
5000k, user), ViewMeter®(mode information) , language, recall
WEIGHT
Net: 23.4kg (51.6lbs)
VIDEO INPUT
Bandwidth: 285MHz
POWER MANAGEMENT
Meets TCO and ENERGY STAR®
CRT
Type: 19” (18.0” viewable) CRT, 90° deflection, PerfectFlat
Dot Pitch: 0.24mm aperture grill (uni-pitch)
Phosphor: RGB B22 medium-short persistence
Glass Surface: Tint: (TM ~ 47.5%), anti-reflection, anti-static (ARAG®)
MISCONVERGENCE
0.25mm (max) at centre

0.35mm (max) at corners
DISPLAY AREA
Factory Setting: 353mm (H) x 265mm (V) (typ)
Maximum Scan: 367mm (H) x 275mm (V), depending on signal timing used
OPERATING CONDITIONS
Humidity: 5% to 95% (non condensation)
Temperature: 0°C to 40°C
