N3246w

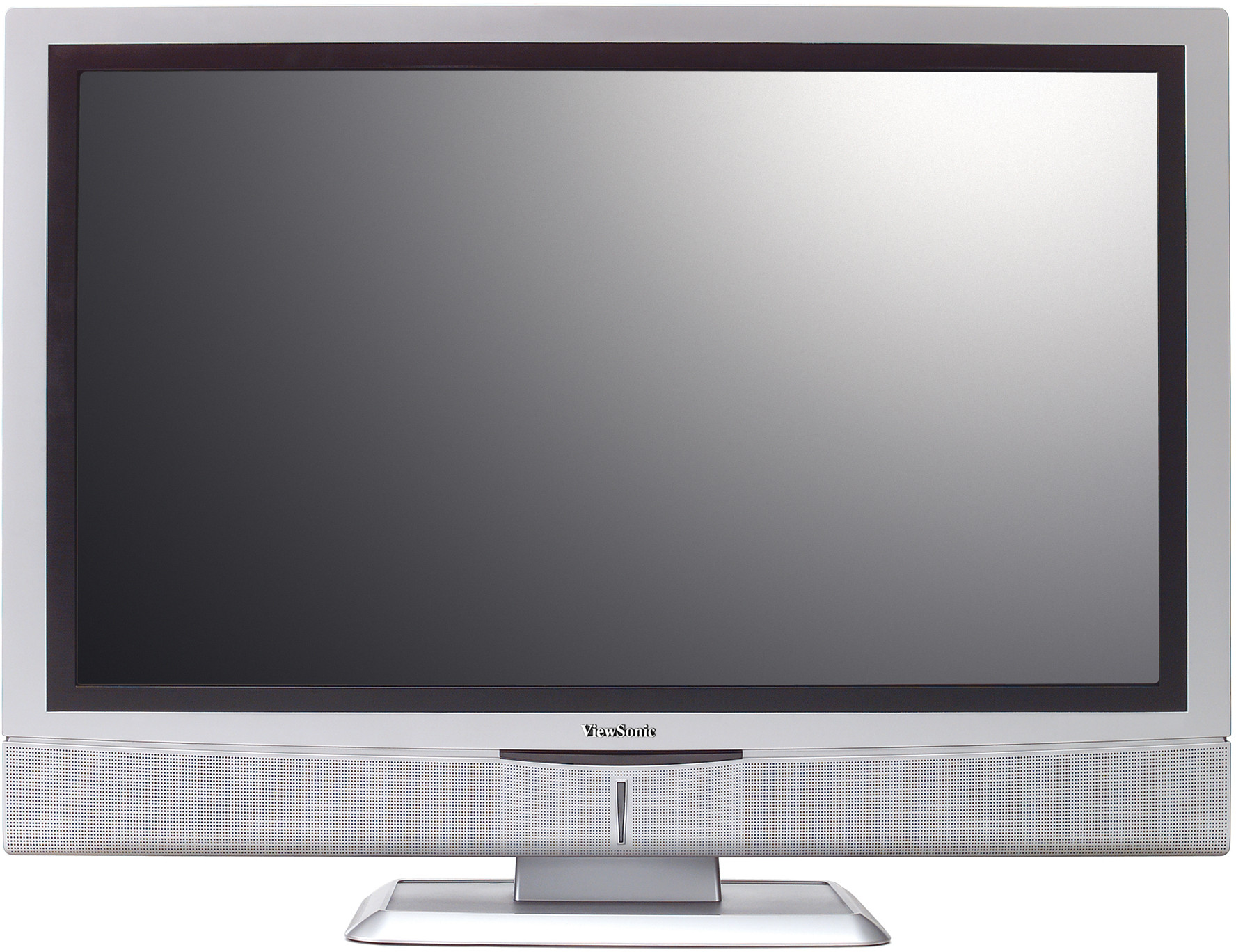

32” WIDESCREEN HD-READY LCD TV WITH DIGITAL TUNER (DVB-T)
SPECIFICATIONS
- LCDType: 32” VA extreme colour TFT active matrix, wide XGA 1366 x 768
Contrast Ratio: 1200:1 (typ.)
Viewing Angles: 176° horizontal, 176° vertical (at 20:1)
Brightness: 550cd/m² (typ.)
Display Area: 70.9cm (horizontal) x 39.9cm (vertical), 81.3cm diagonal
Response Time: 8ms (grey-to-grey)
Aspect Ratio: 16:9 native
Panel Surface: Anti-glare 3H - COMPATIBILITYPC: Compatible from 640 x 480 up to 1360 x 768, 1360 x 768 @ 60Hz preferred
Mac®: Power Mac™ up to 832 x 624 - DIMENSIONSW x H x D mm: 810 x 605 x 237 (with base)
810 x 556 x 116 (without base)
984 x 707 x 252 (packaging)
- PACKAGE CONTENTSLCD TV, 1.8m power cables (Europe [Schuko]/UK), AV cable, SCART cable, remote control, batteries, quick start guide, user guide (multi-language)
- WARRANTYPlease see: www.viewsoniceurope.com/UK/Support/warranty.htm
- AUDIOSpeaker: 2 x 10 watts SRS WOW (virtual surround-sound)
- CONNECTORPower: 3-pin plug (CEE22)
Audio Out: 1 x L/R RCA set
Audio Input: 1 x L/R RCA set (for composite1/component)
1 x L/R RCA set (for composite2/S-video)
1 x 3.5mm mini stereo jack (for PC)
S-Video: 1 x 4-pin mini DIN jack
Headphone: 1 x 3.5mm mini stereo jack
SCART: 2 x SCART (SCART 1 [RGB In, CVBS In/Out, Audio In/Out], SCART 2 [S-video In, CVBS In, Audio In])
Composite Video: 2 x RCA (CVBS)
Tuner (Analogue): 1 x Coax RF (PAL/SECAM)
Tuner (Digital): 1 x Coax (DVB-T)
Digital Video: 1 x HDMI (HDCP)
Component Video: 1 x RCA set (YPbPr/YCbCr)
PC-RGB: 1 x 15-pin mini D-sub
PC Card Slot: 1 x for digital pay card and service - POWERVoltage: AC 100–240V, 50/60Hz (auto switch); internal, fanless power supply
Consumption: 180 watt (max.) - CONTROLSBasic: Power, source, menu, channel up/down, volume up/down
OSD: Picture Menu (present, contrast, brightness, colour, sharpness, tint, reset), Sound Menu (balance, treble, bass, SRS WOW, reset), PIP Menu (dual mode, PIP position, PIP source, audio source select), Setup Menu (OSD language, OSD timeout, OSD background, sleep timer, blue screen, teletext language), power lock, OSD lock - OPERATING CONDITIONSTemperature: 0°C to 35°C
Humidity: 20% to 90% (non condensation) - WEIGHTNet: 15.5kg (with base)
Gross: 18.0kg - VESA MOUNT COMPLIANTVESA FDMI 200mm x 200mm
- VIDEO INPUTPAL, SECAM, NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i), DVB-T
- TELETEXT/MHEG5Yes (100 pages)/Yes
