N2750w

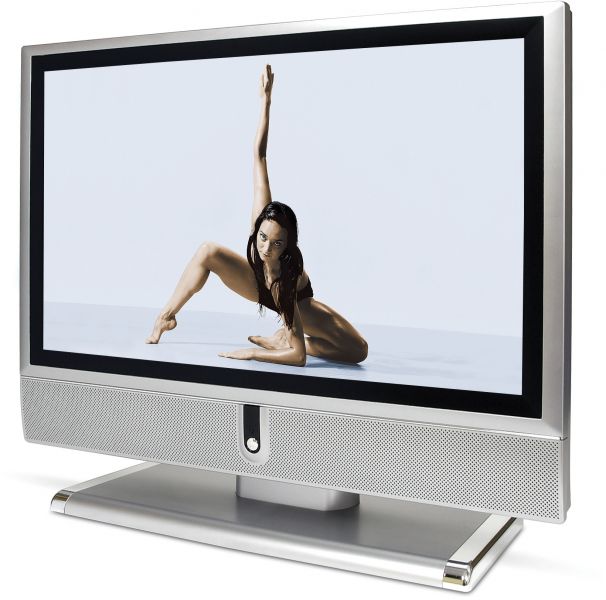

27" NextVision® wide-screen LCD TV
SPECIFICATIONS
- LCDType: 69cm / 27" colour TFT active matrix, wide 1280 x 720, true HDTV format
Contrast Ratio: 600:1 (typ.)
Viewing Angles: 130° horizontal, 110° vertical (at 10:1)
Glass Surface: Anti-glare, H2 coat
Display Area: 597mm h x 336mm v, 68,6cm diagonal
Response Time: 16ms
Aspect Ratio: 16:9
Brightness: 550cd/m2 (typ.) - COMPATIBILITYPC: Compatible from VGA up to 1280 x 1024, 1280 x 720 preferred
Mac®: Compatible from VGA up to 1280 x 1024, 1280 x 720 preferred - DIMENSIONSW x H x D mm: 680mm x 540mm x 243mm (W x H x D)
- WARRANTYPlease see:
www.viewsoniceurope.com/UK/Support/warranty.htm - CONNECTORAudio: 2 x RCA R/L In,
1 x RCA R/L Out
S-Video: 1 x 4-pin mini DIN jack
Headphone: 1 x 3.5mm mini stereo jack
SCART: 1 x SCART (CVBS In/Out, RGB In, Audio Out)
Tuner: 1 x RF TV/PAL B/G/I SECAM L/DK
PC-VGA: 1 x D-sub 15-pin
Power: 3-pin plug
Composite Video: 1 x RCA (CVBS)
Component Video: 1 x RCA (YPbPr)
Service: 1 x RS232 - POWERVoltage: AC 90–240 V, 50/60 Hz (Auto-Switch), internal power supply
Consumption: < 150 W (typ.) - CONTROLSOSD: Auto-Adjust, Contrast, Brightness, Colour, Sharpness, Tint, H/V
Position, Phase, Treble, Bass, Balance, Aspect Ratio, Colour Temperature,
Main Source, Language, Country, Auto Scan, Fine Tune,
Channel Edit, Memory Recall, PIP Source, PIP Mode, PIP Size, PIP
H/V Position, PIP Brightness, OSD Transprency, Time Out, Sleep
Settings
Physical: Power on/off, Menu, Channel up/down, Volume up/down - OPERATING CONDITIONSTemperature: 0-40°C
Humidity: 0-40°C - WEIGHTNet: 16kg
- AUDIOSpeakers: 2 x 5 watt
