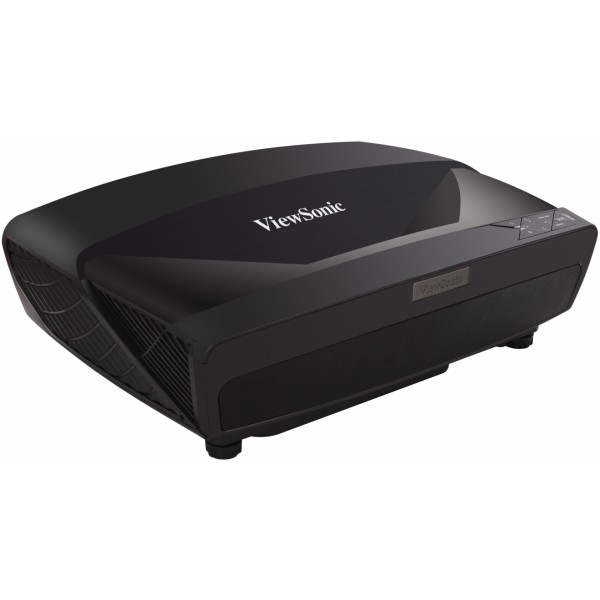

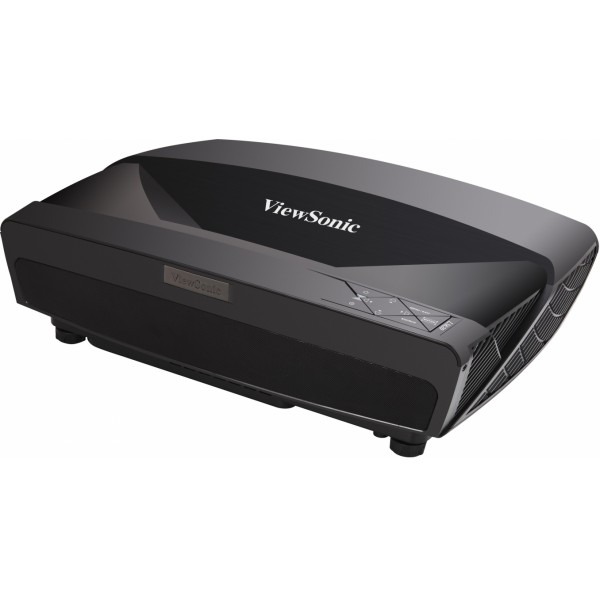

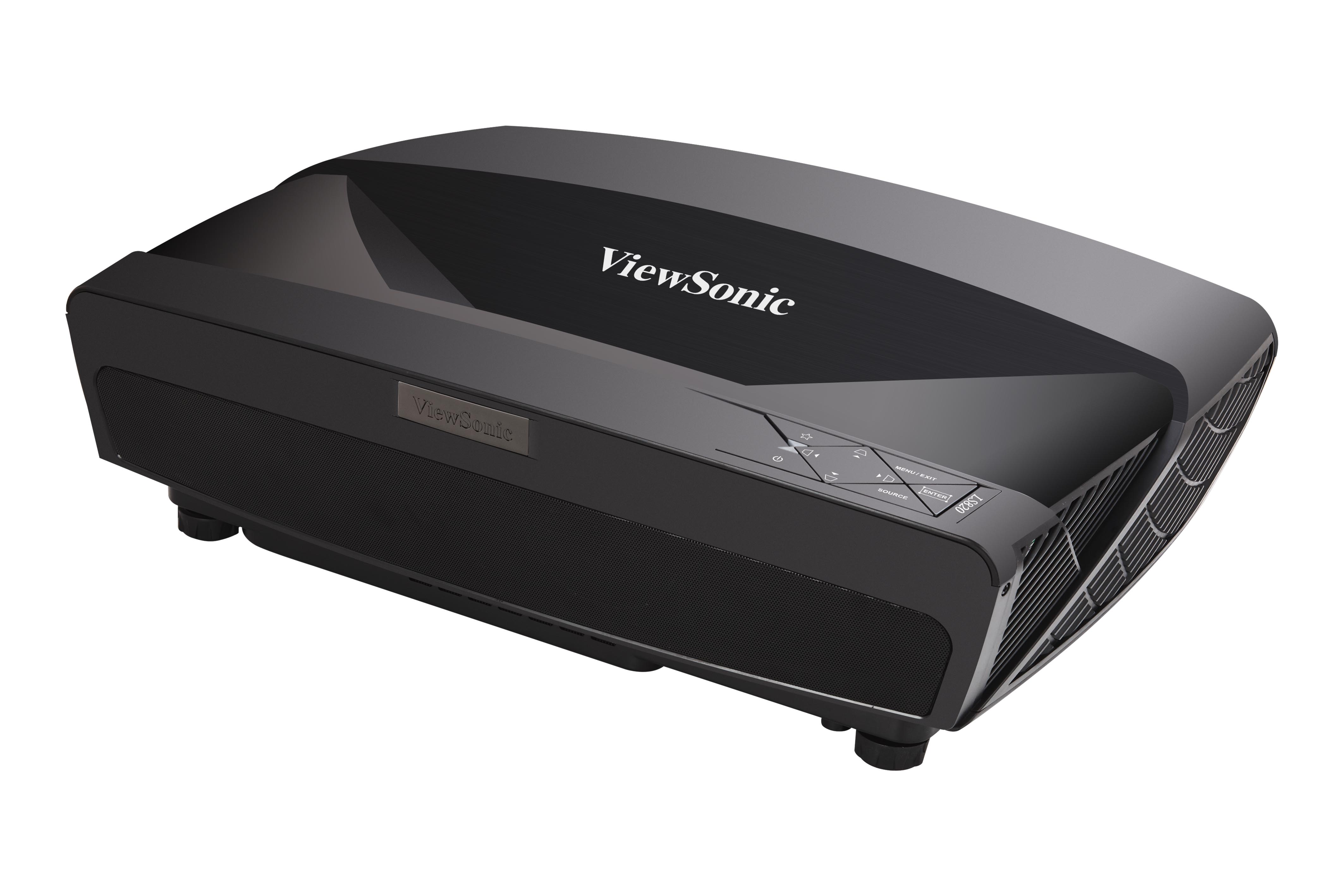

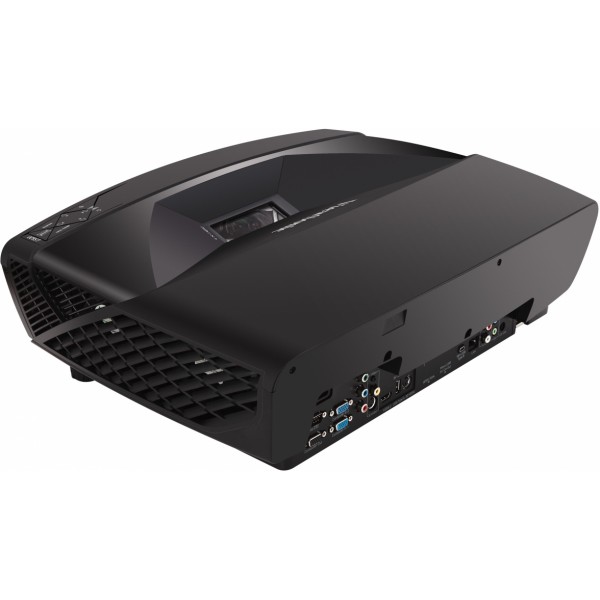

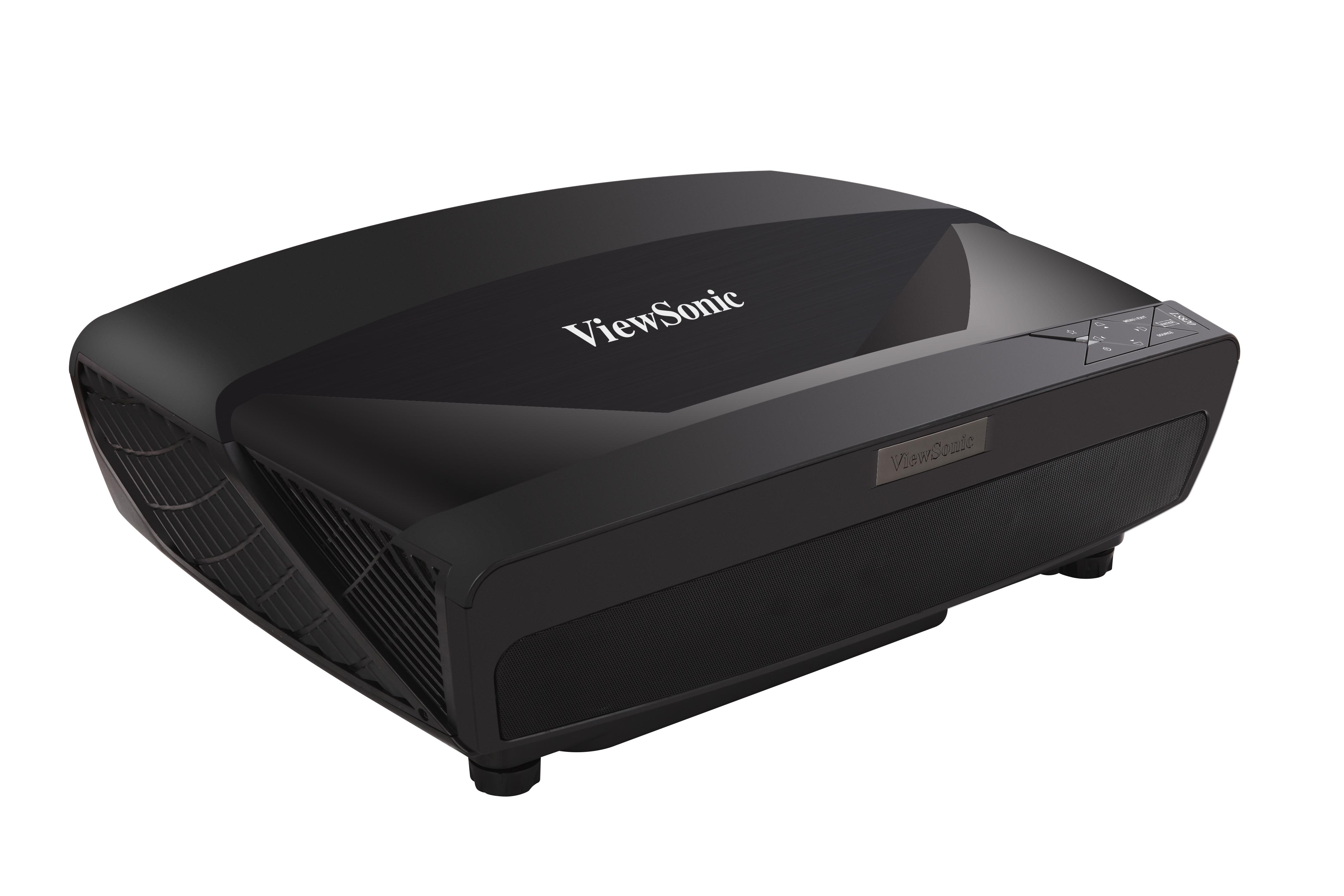

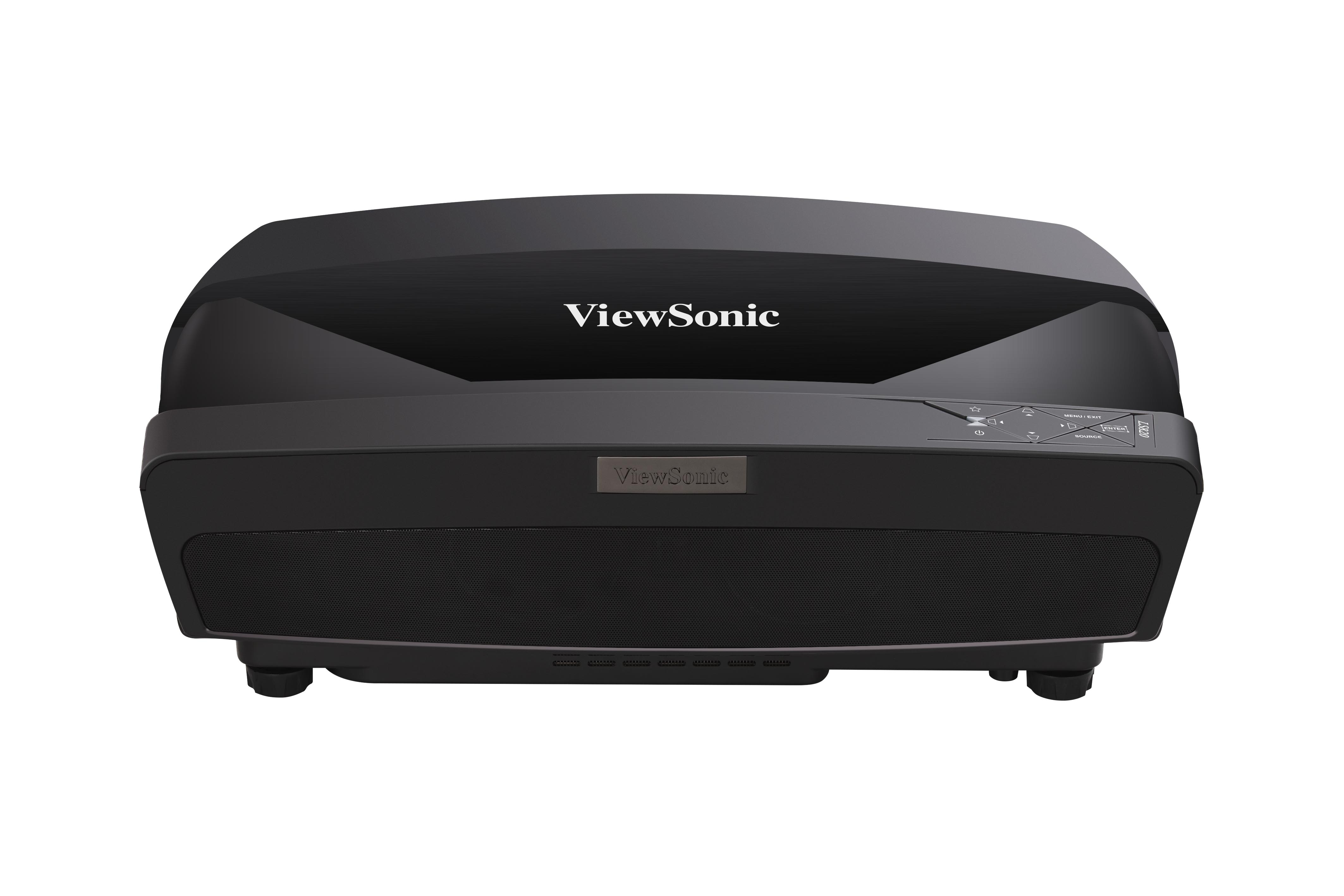

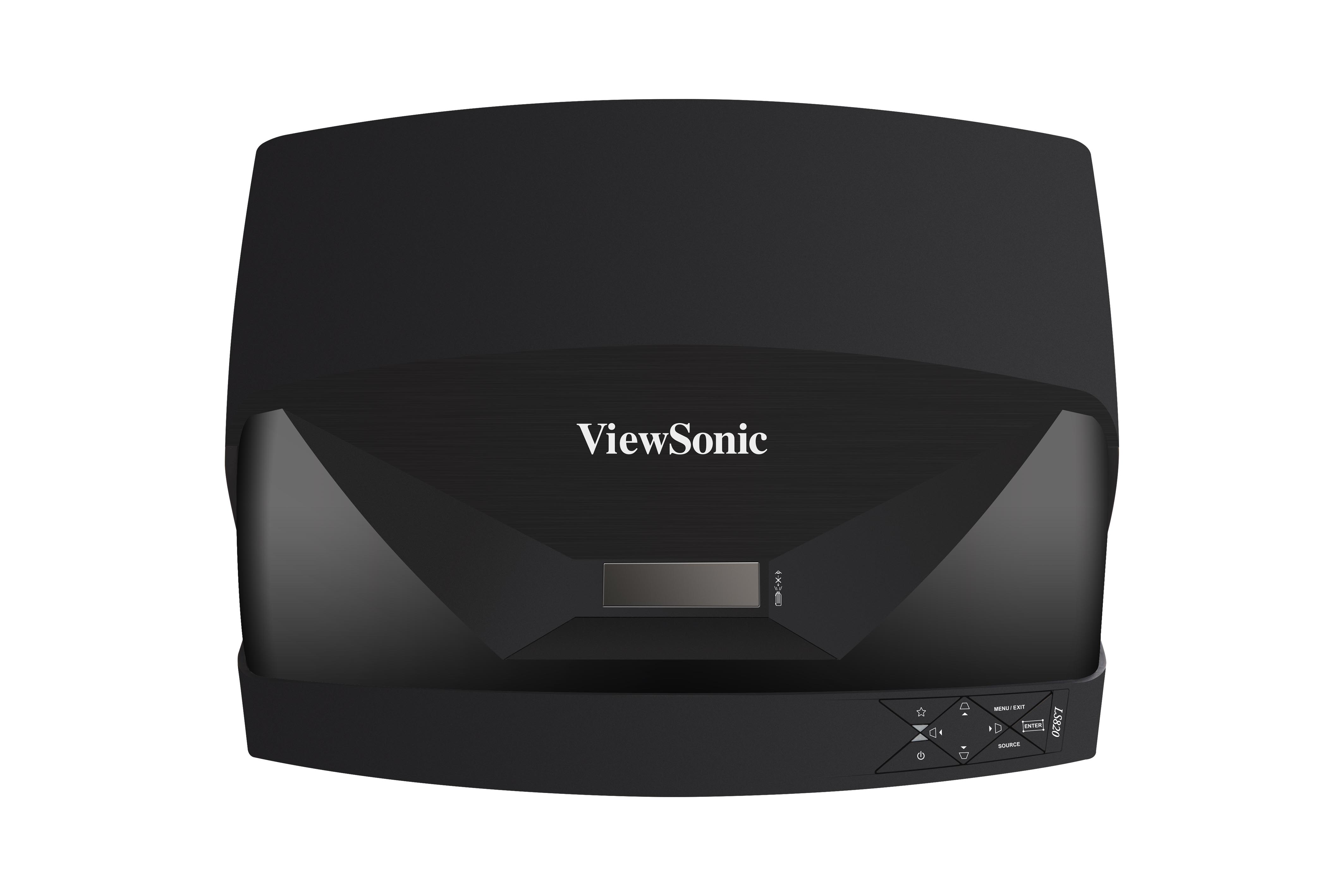

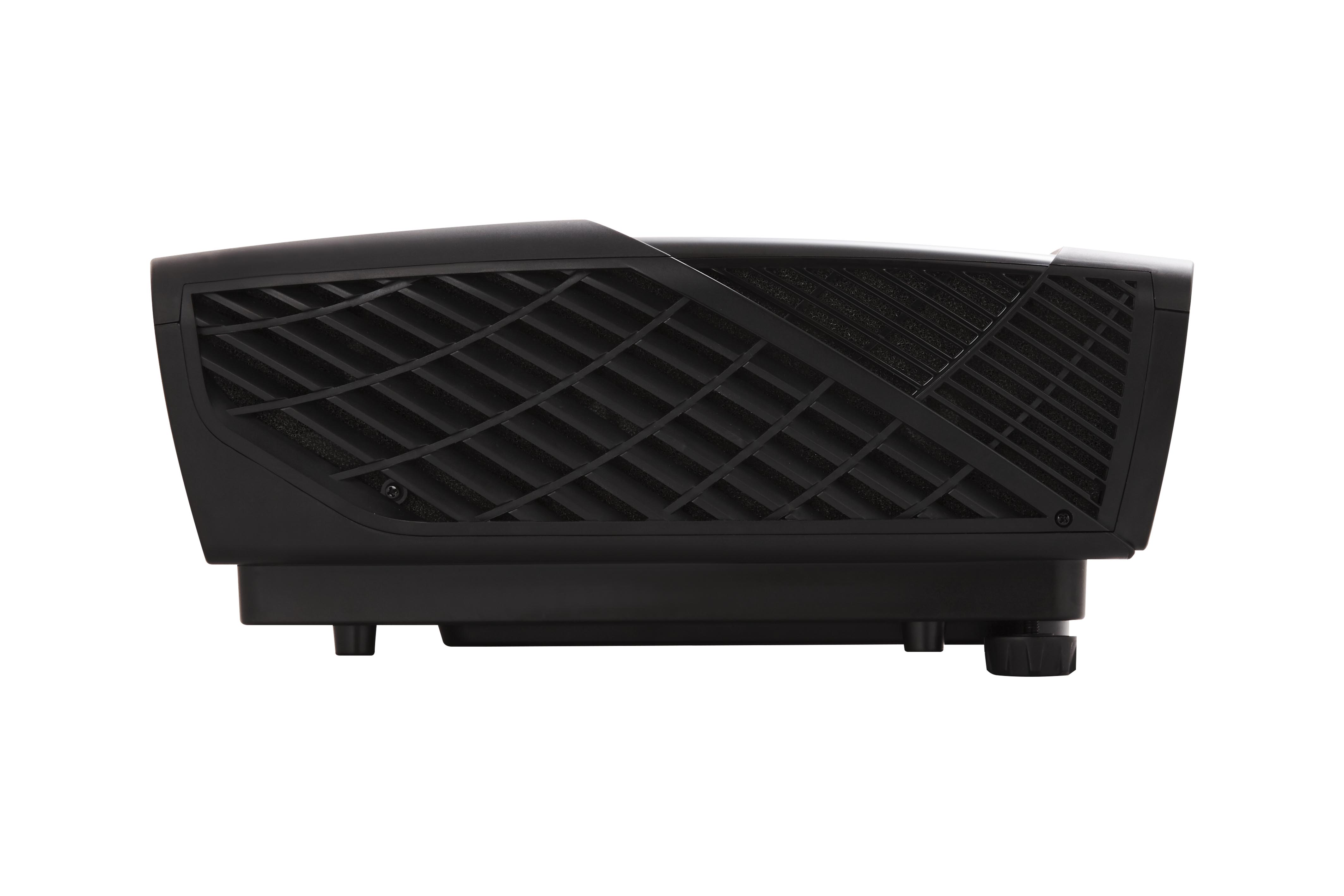

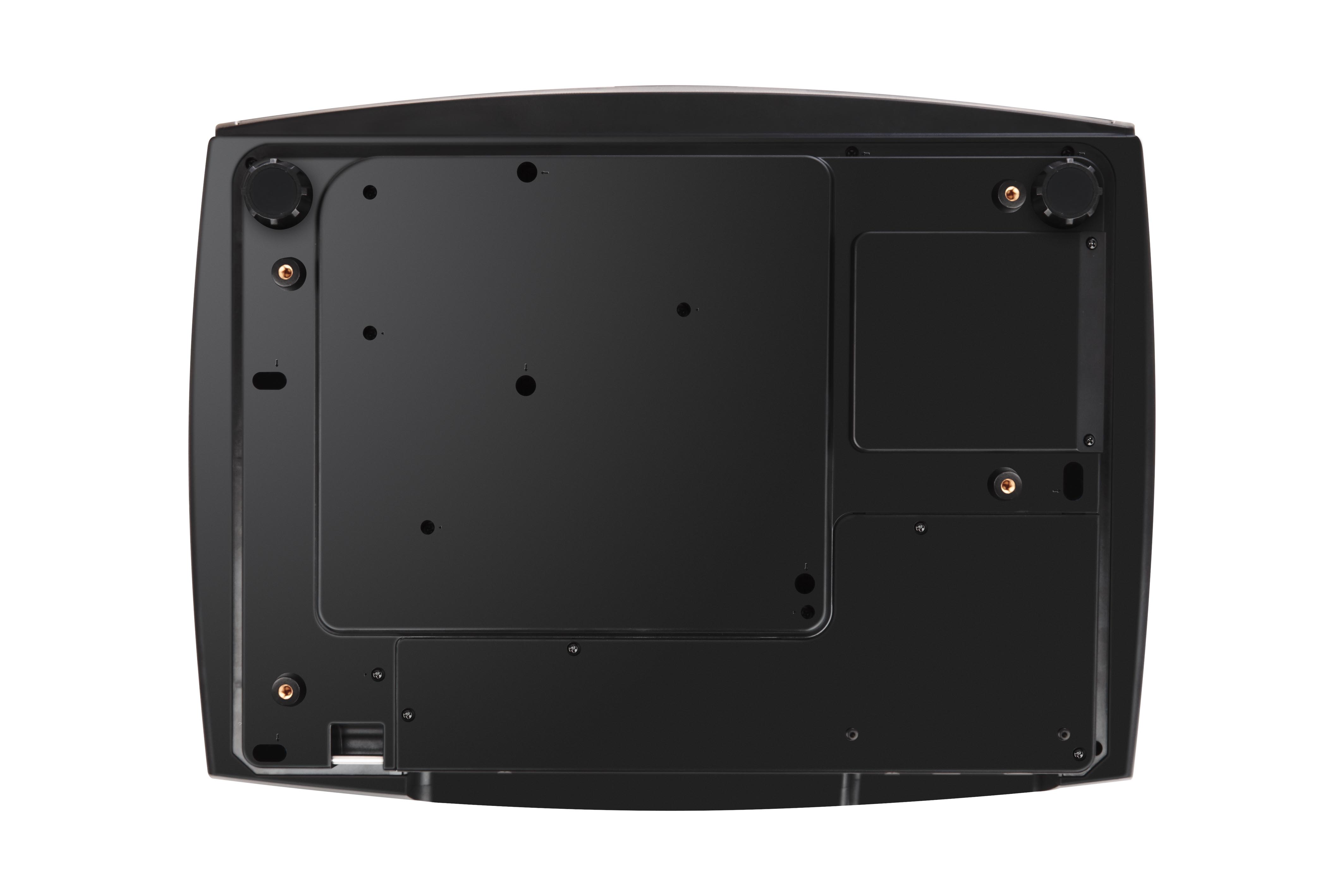

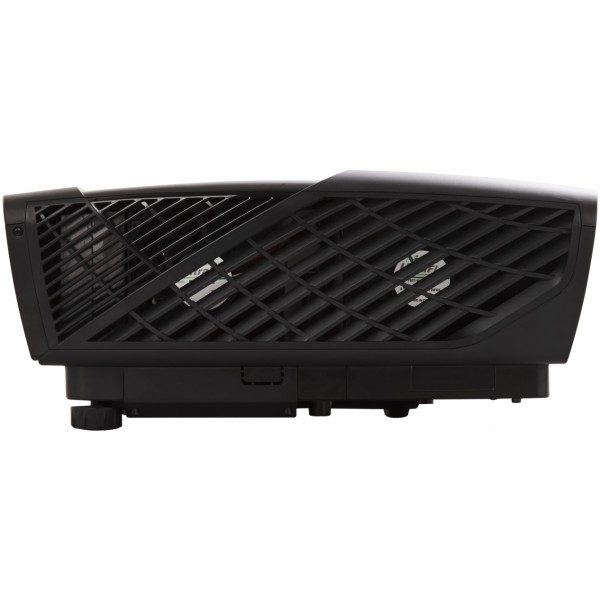

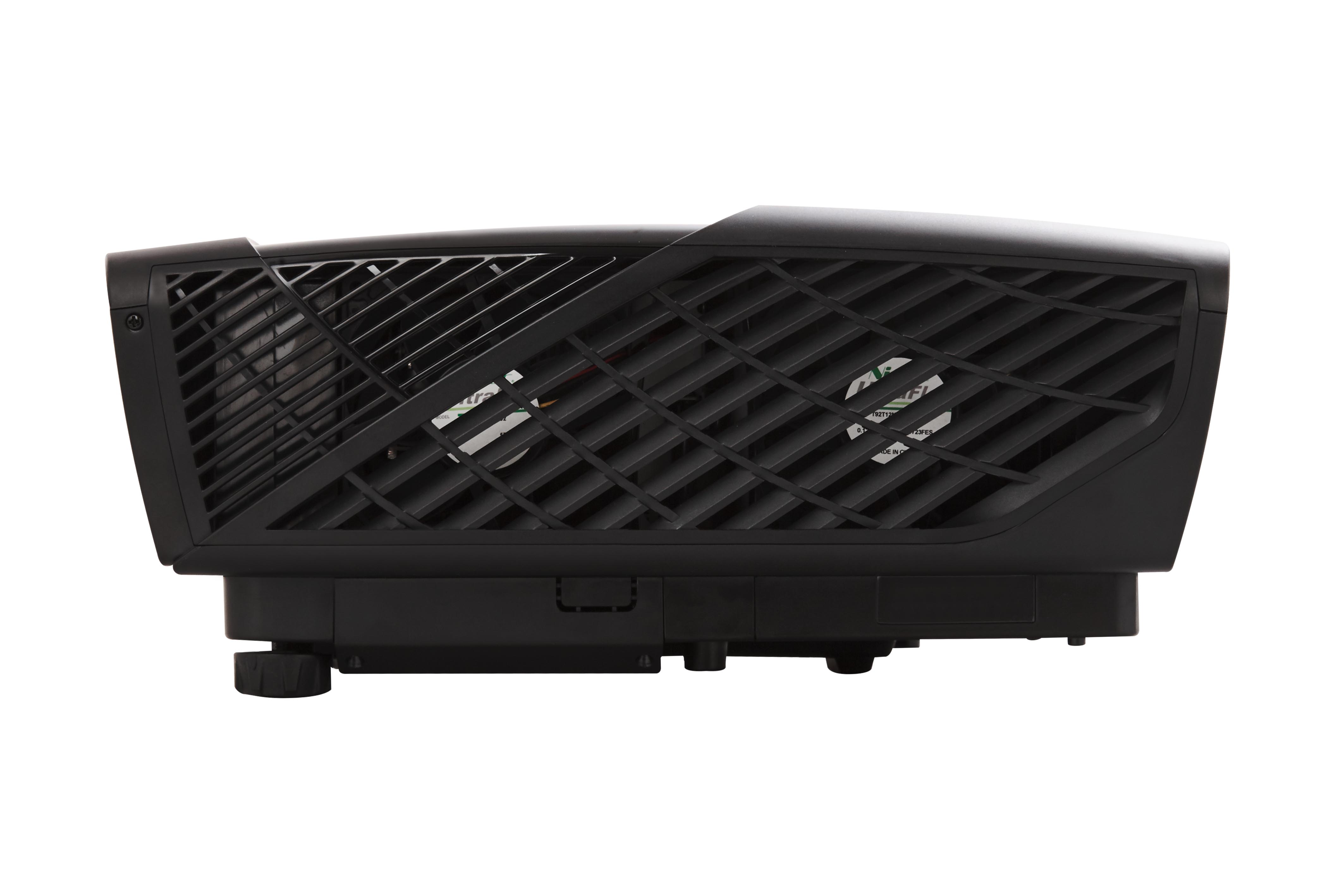

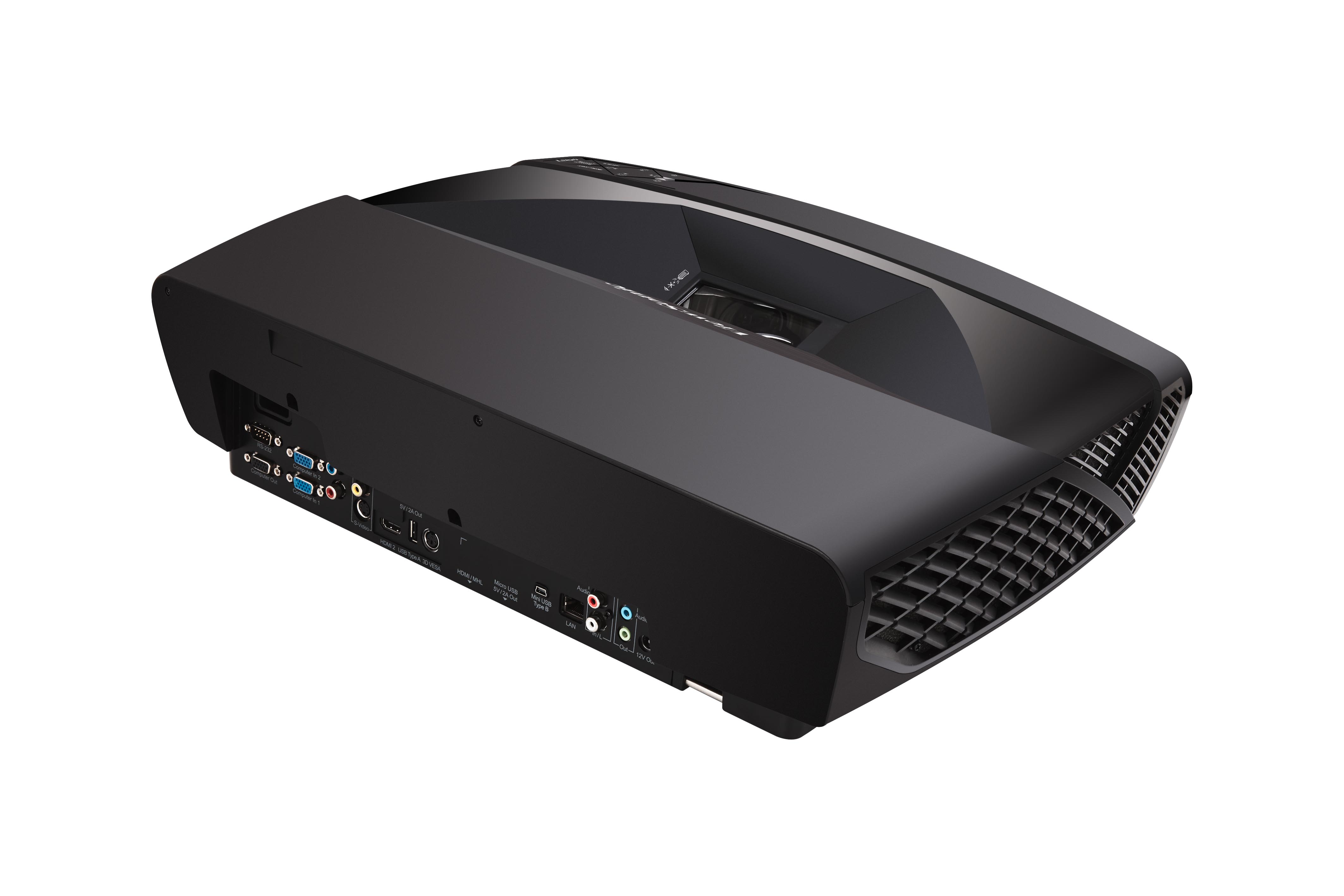

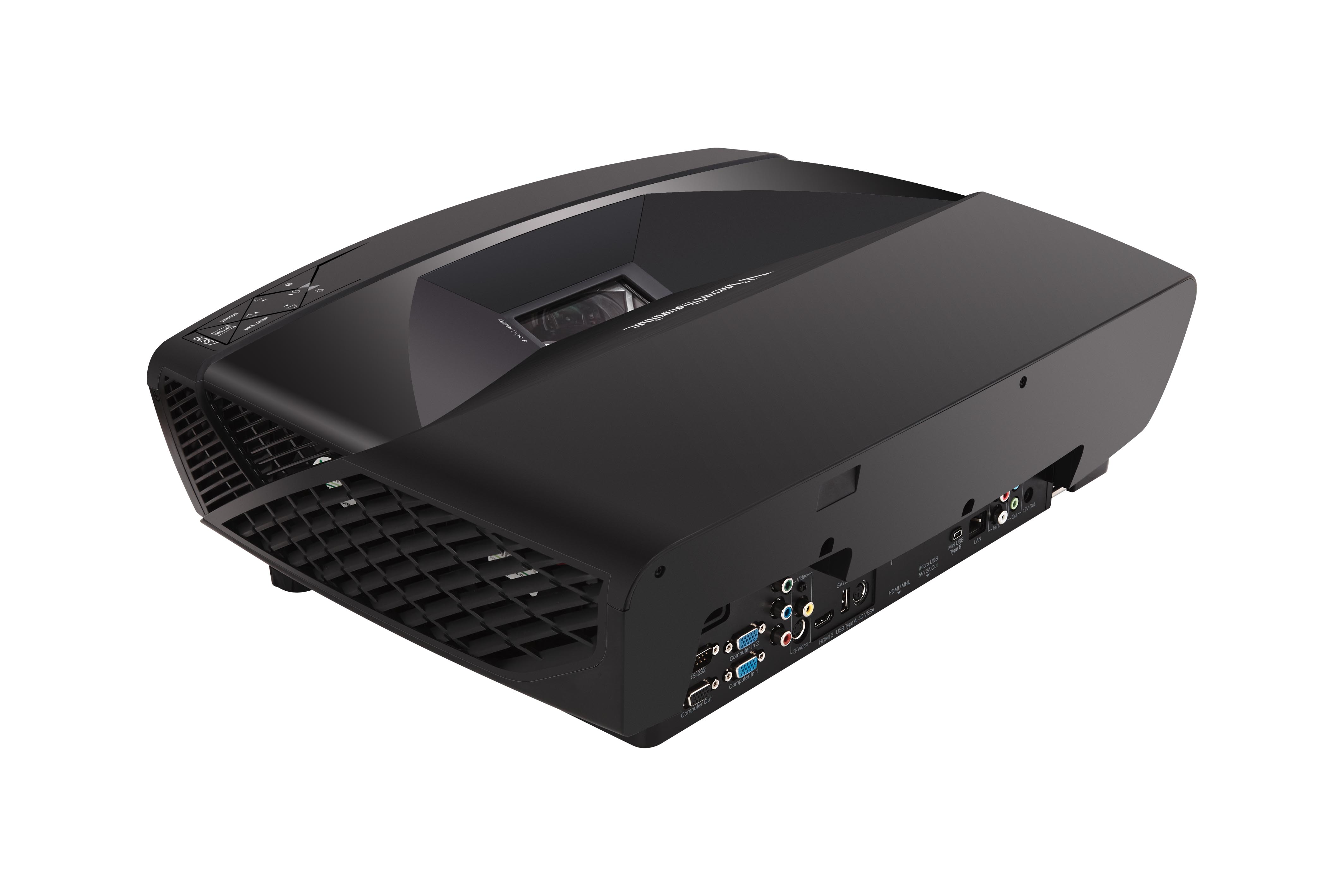

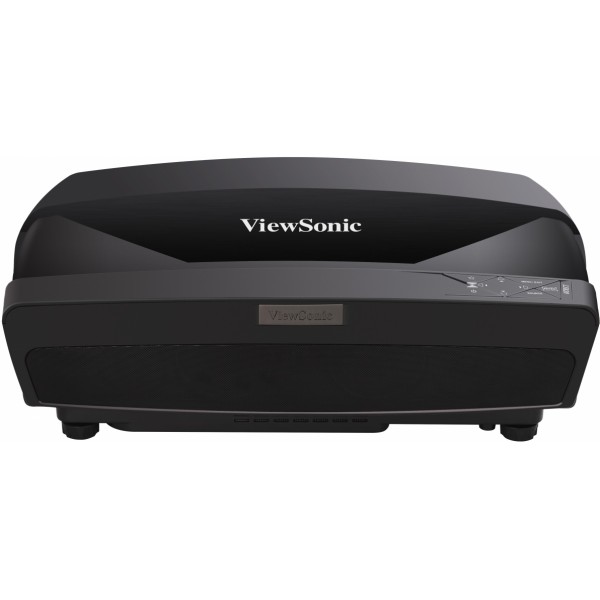

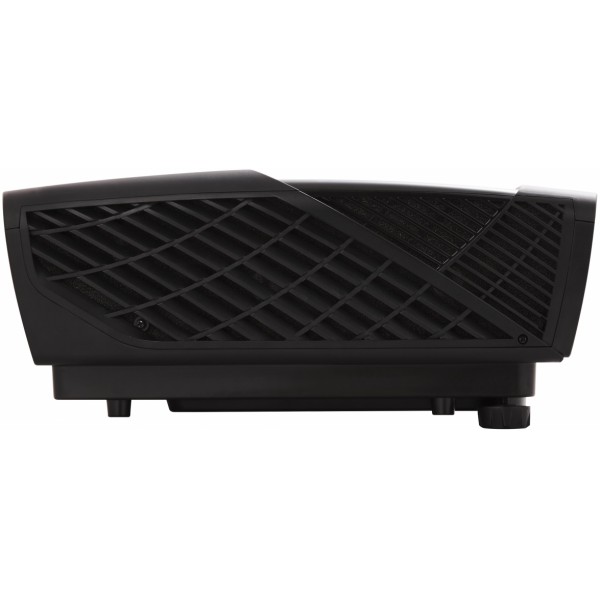

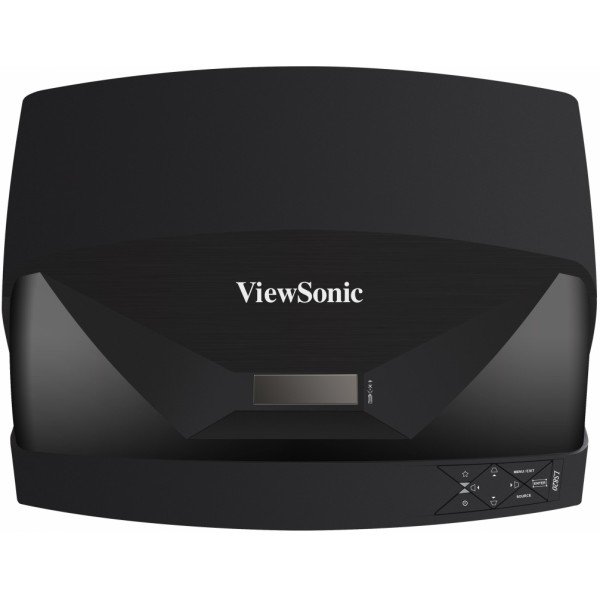

ViewSonic Projector LS820

LS820

Modern design and stunning performance.

SPECIFICATIONS

PRODUCT SPECIFICATION
Resolution: 1920 x 1080
Brightness (ANSI Lumens): 3500lm
Contrast (Max.): 100000:1
Lamp Hour (Normal / Eco): 15000hrs / 20000hrs
Throw Ratio in Meters (Wide ~ Tele): 0.23
Screen Size: 80"~150"
Projection Offset: 137.6+-5%
Display Colours: 1.07 Billion Colors (30 bits per color)
Keystone: H:+/-30° , V:+30°/-12°
Noise min (Eco): 28 dB
Speaker: 8W cube x2

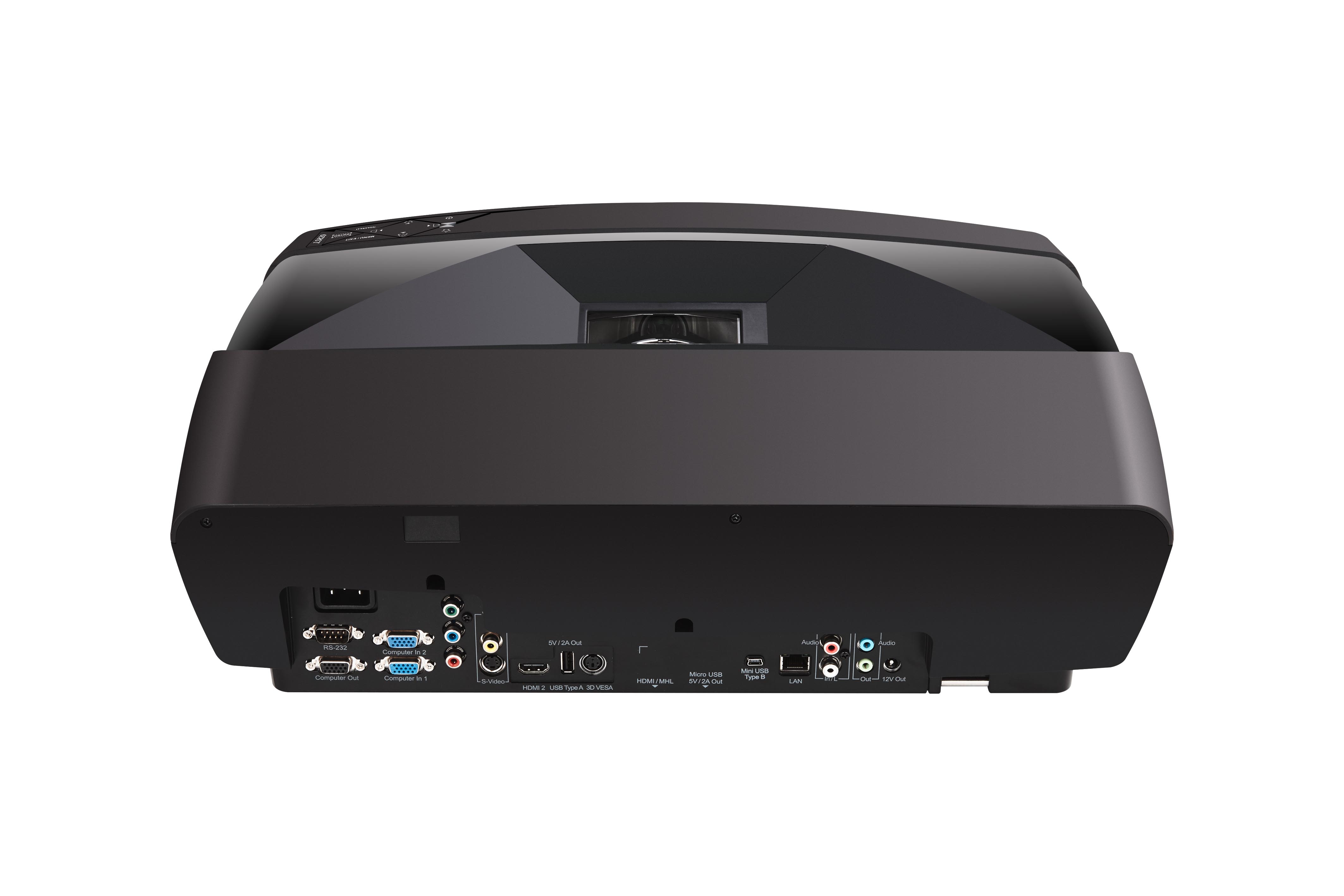

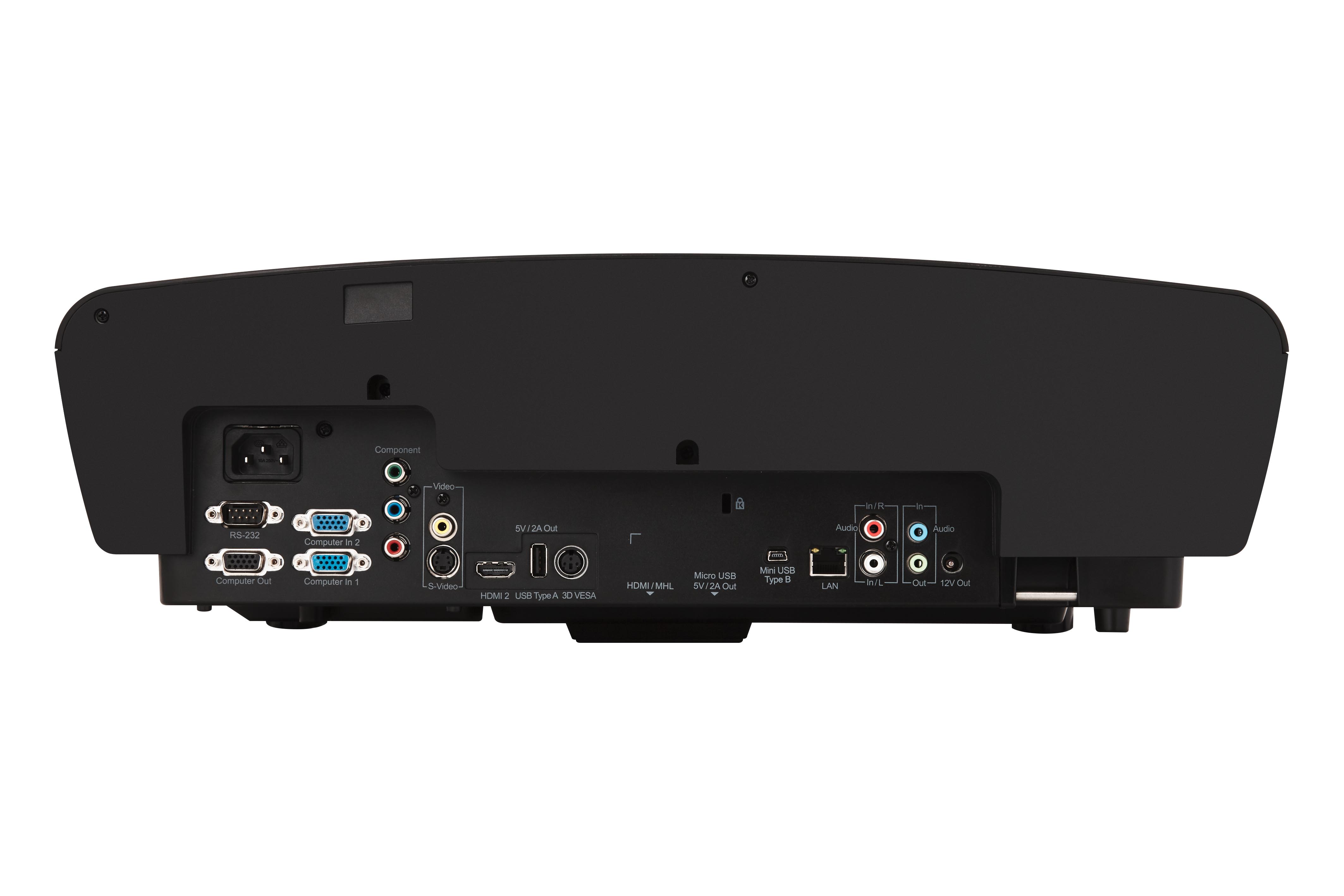

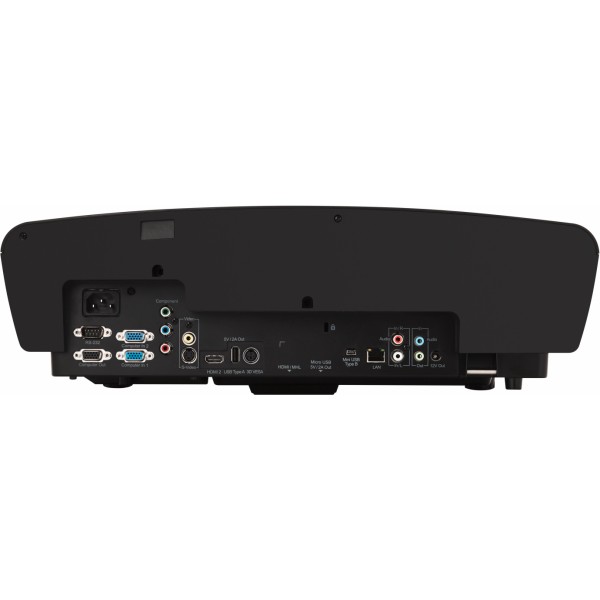

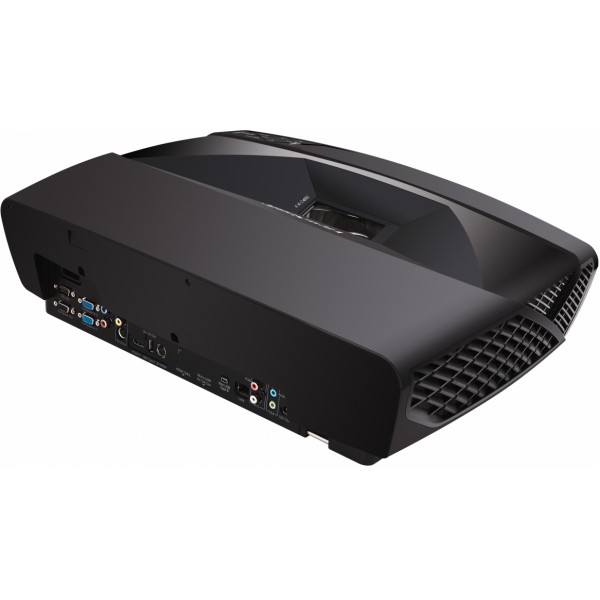

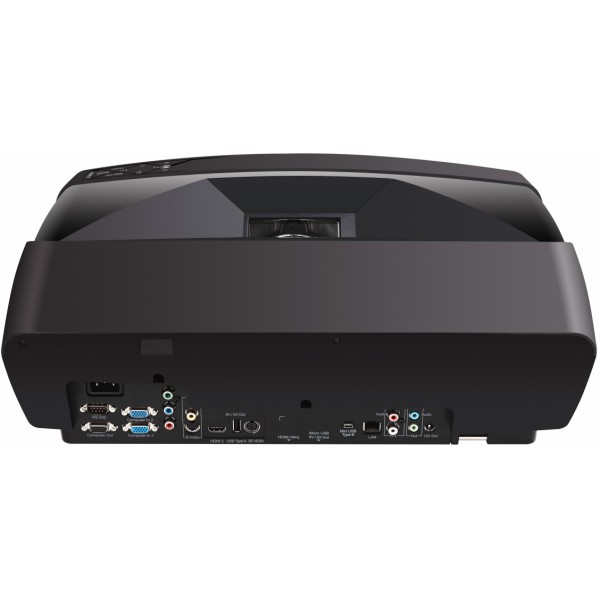

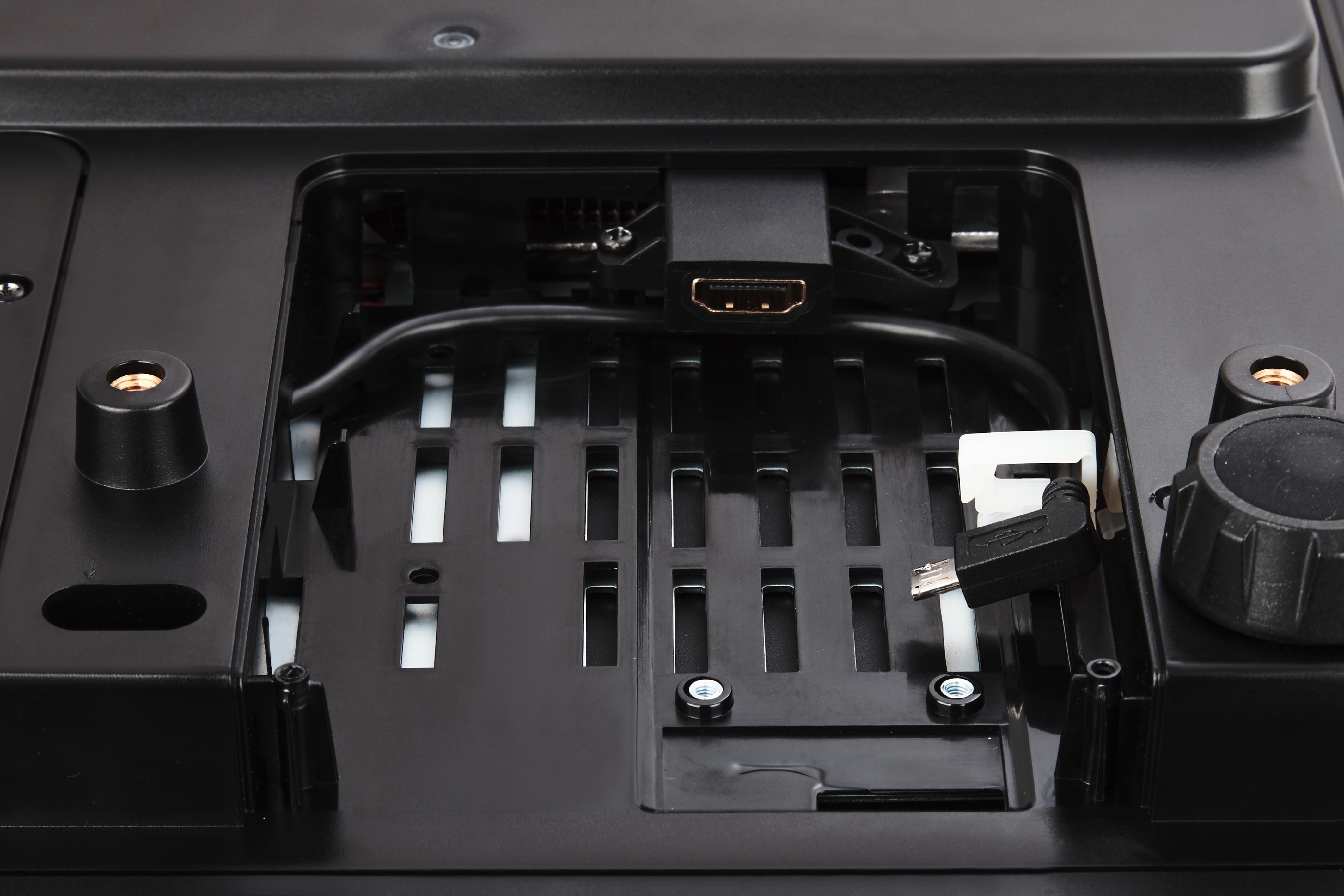

INPUT CONNECTIVITY
HDMI/MHL: 1
HDMI In: 1
VGA-in: 2
Component Input: 1
S-Video: 1
Composite Input: 1
Audio-in (3.5mm): 1
Audio-in (RCA pair) L/R Set: 1
USB Type A: 1 (Only charging)
Mini USB: 1
Micro USB cable: 1 (Only charging)
OUTPUT CONNECTIVITY
VGA-out: 1
Audio-out (3.5mm): 1

CONTROL
RS232 (9 pin): 1
Network Mangment (LAN cable): 1
12V Power Trigger: 1
3D VESA: 1
DIMENSIONS AND POWER
Dimension (WxDxH): 508 mm(W)x 392 mm(D) x165 mm(H)
20” (W) x 15.43 ” (D) x 6.5” (H)
Net Weight: 13.6 kg (29.96 lb)
Power Source: 100~240Vac 50/60Hz
Power Consumption: 450 W (Max.)
SUPPLIED ACCESSORIES
Power cord: 1
VGA cable: 1
HDMI cable: 1
Remote Control (with batteries): 1
Quick Start Guide & CD: 1
LANGUAGES
On Screen Display: Total 22 languages
