SPECIFICATIONS

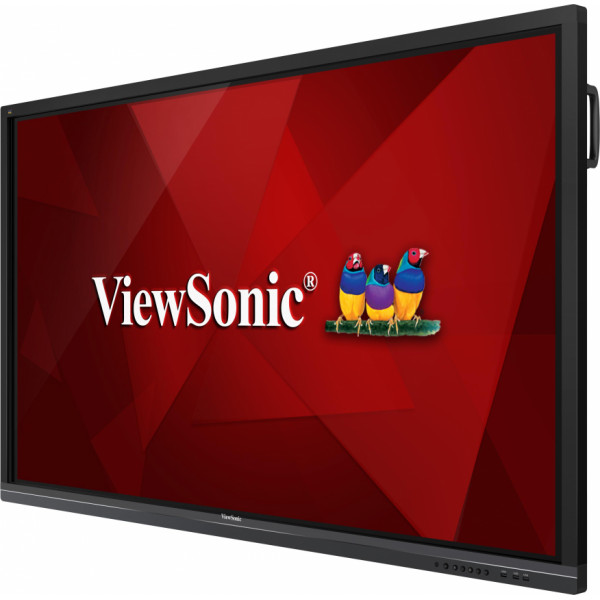

  • LCD PANEL
    Panel Size: 75"
    Type/ Tech: TFT LCD Module with DLED Backlight
    Display Area (mm): 1649.66(H) x 927.94(V) (74.5” viewable)
    Aspect Ratio: 16:09
    Resolution: 3840 x 2160
    Colors: 1.07B colors (10bit)
    Brightness: 350 nits (typ.) 300 nits (min.)
    Contrast Ratio: 1200:1 (typ.)
    Response Time: 8 ms
    Viewing Angles: H = 178, V = 178 (typ.)
    Backlight: DLED
    Backlight Life: 30,000 Hours Min.
    Hardness: 7H
  • TOUCH
    Type/ Tech: IR Recognition
    Touch Resolution: 32767 x 32767
    Touch Point: 20 points touch, 10 points writing
    Response Time: <15ms
    System: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome
    Life Time: 80,000hrs

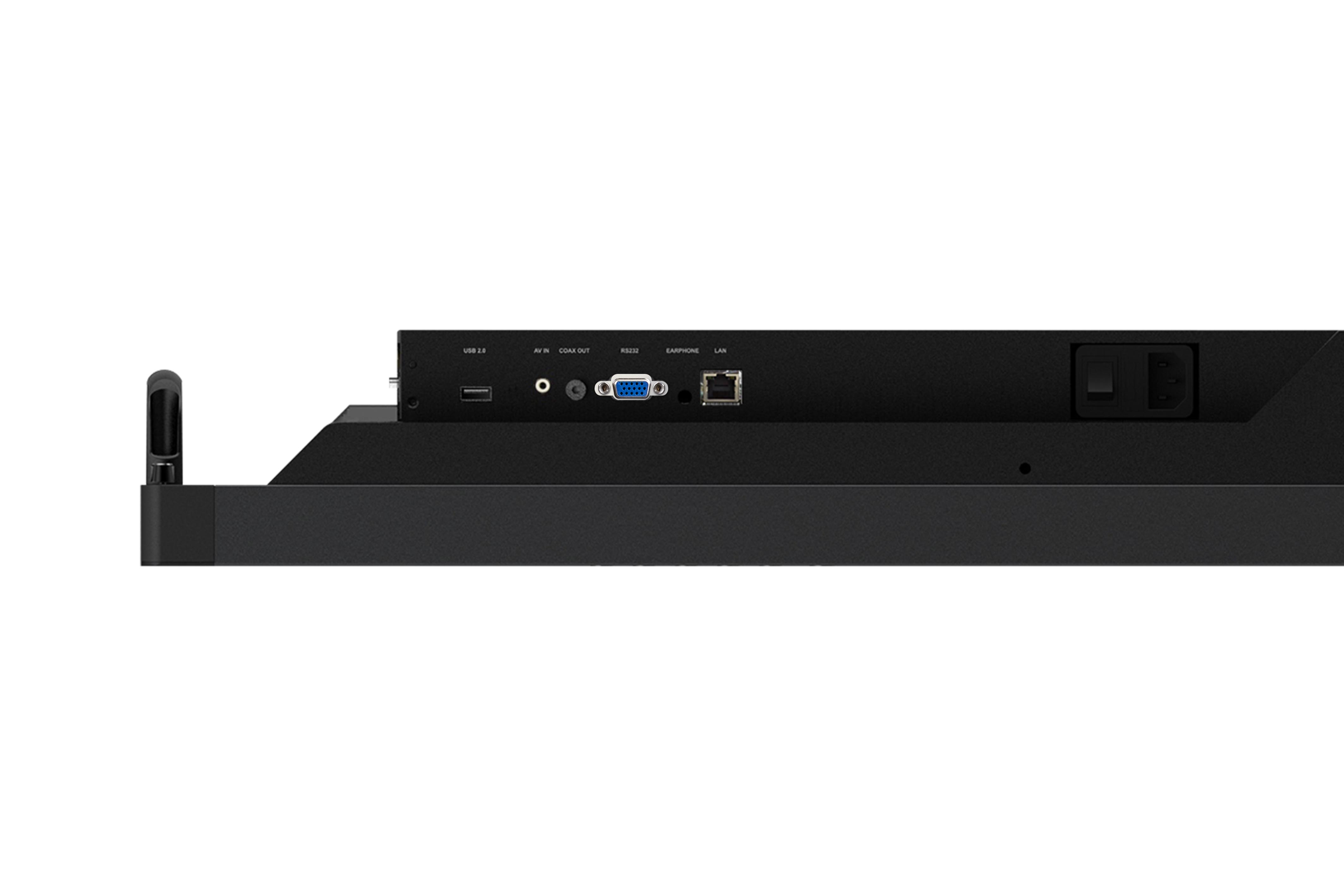

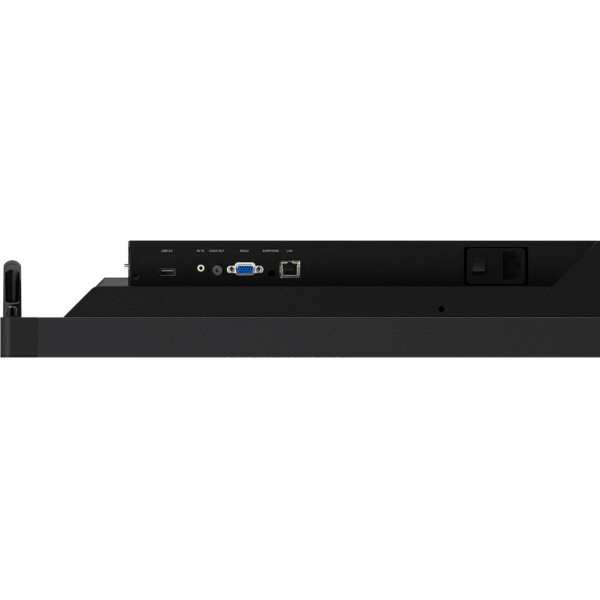

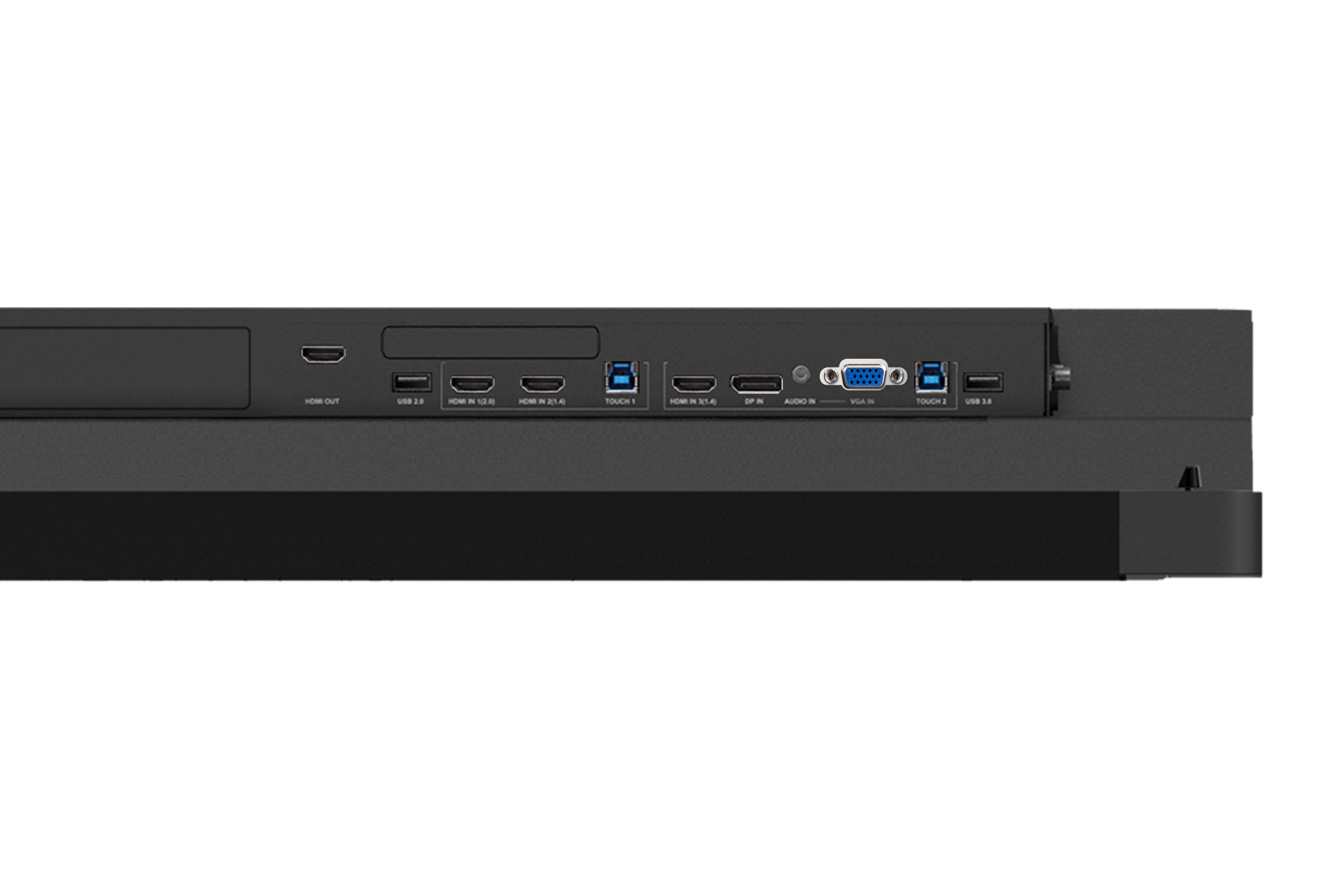

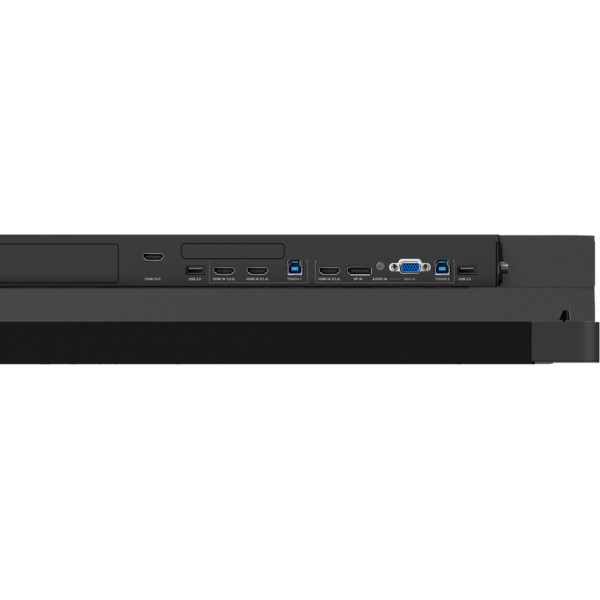

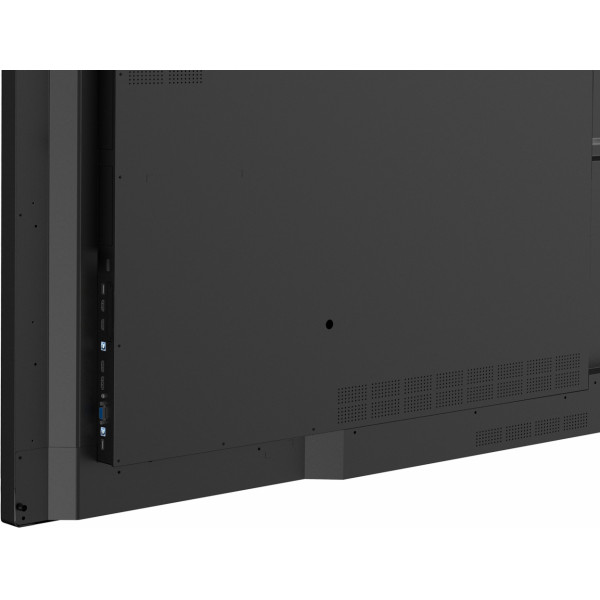

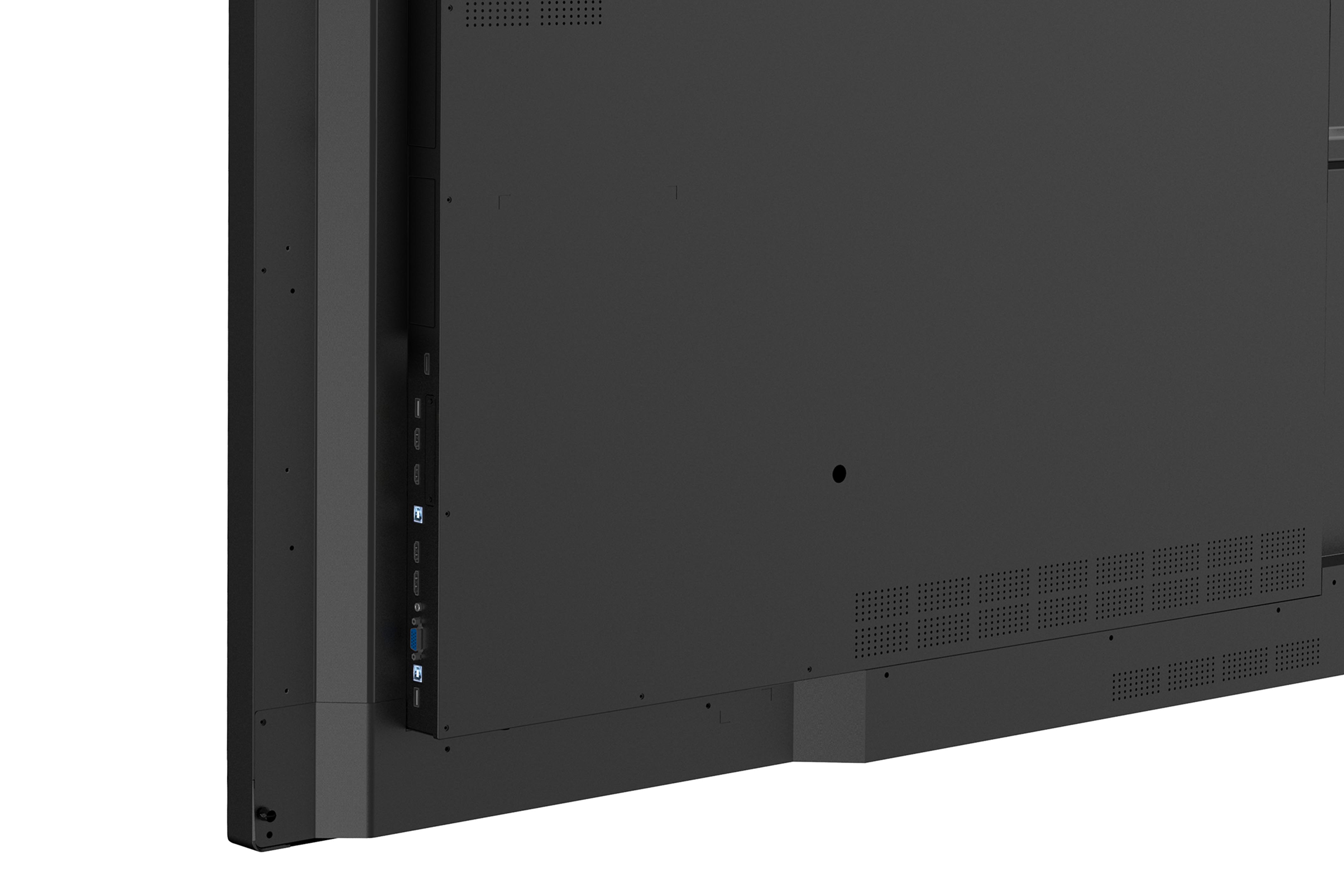

  • INPUT
    HDMI: x 3
    RGB / VGA: x 1
    DisplayPort: x 1
    Audio: x 1
    CVBS (AV): x 1
    RS232: x 1
    PC Slot: x 2
