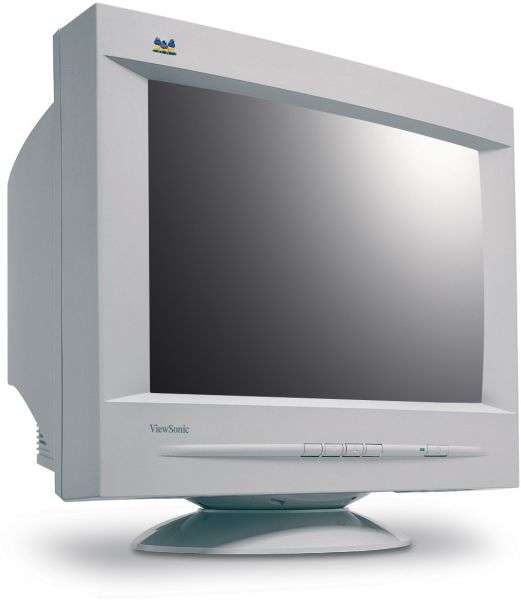

E70

CRT MONITOR 43cm / 17" (16" VIEWABLE) MONITOR

COMPATIBILITY
PC: PC and compatibles (from VGA up to 1280 x 1024 non-interlaced)
Mac®: Power Mac®
DIMENSIONS
Physical (WxHxD): 410mm (W) x 425mm (H) x 402mm (D)

INPUT SIGNAL
Frequency: Fh: 30 - 70kHz,
Fv: 50 - 160Hz
Video: RGB Analogue (0.7V/1.0Vp-p, 75 ohms)
Sync: H/V separated (TTL), composite
CONNECTOR
Power: 3-pin plug (IEC320)
Signal: 15 pin mini D-sub, attached cable
POWER
Voltage: AC 90 - 264V, 50/60Hz (auto switch)
Consumption: 75W (typ.), < 2 watt in power save mode
CONTROLS
Basic: Power on/off, Key 1, Key 2, up, down
OSD: Contrast, Brightness, zoom, H/V Size, H/V Position, Pin-balance, Pincushion, Parallel, Trapezoid, Rotation, moiré reduction, degauss, ViewMatch colour adjust (9300K, 6500K, 5000K, User), mode information (ViewMeter), language, memory recall
OPERATING CONDITIONS
Temperature: 0°C to 40°C
Humidity: 5% to 95% (no condensation)
WEIGHT
Net: 14kg
VIDEO INPUT
Bandwidth: 120MHz (Typical)
POWER MANAGEMENT
Meets MPR II
CRT
Type: 43cm / 17" (16" diagonal viewable area), 90°deflection
Dot Pitch: 0.27mm dot pitch
Phosphor: RGB P22 medium/short persistence
Glass Surface: Anti-static, anti-glare, AR coat (TM=50%)
PLUG & PLAY
DDC1, DDC2B
MISCONVERGENCE
0.25mm (max.) at centre
0.35mm (max.) at corner
DISPLAY AREA
Factory Setting: 310mm (H) x 230mm (V) (typ.)
Maximum Scan: 325mm (H) x 243mm (V) (depending on signal timing used)
