DPF8-CAM

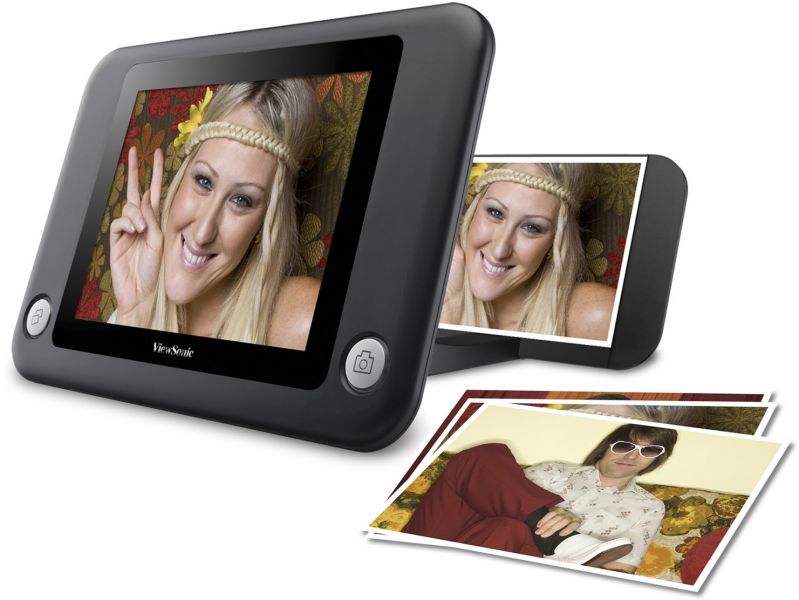

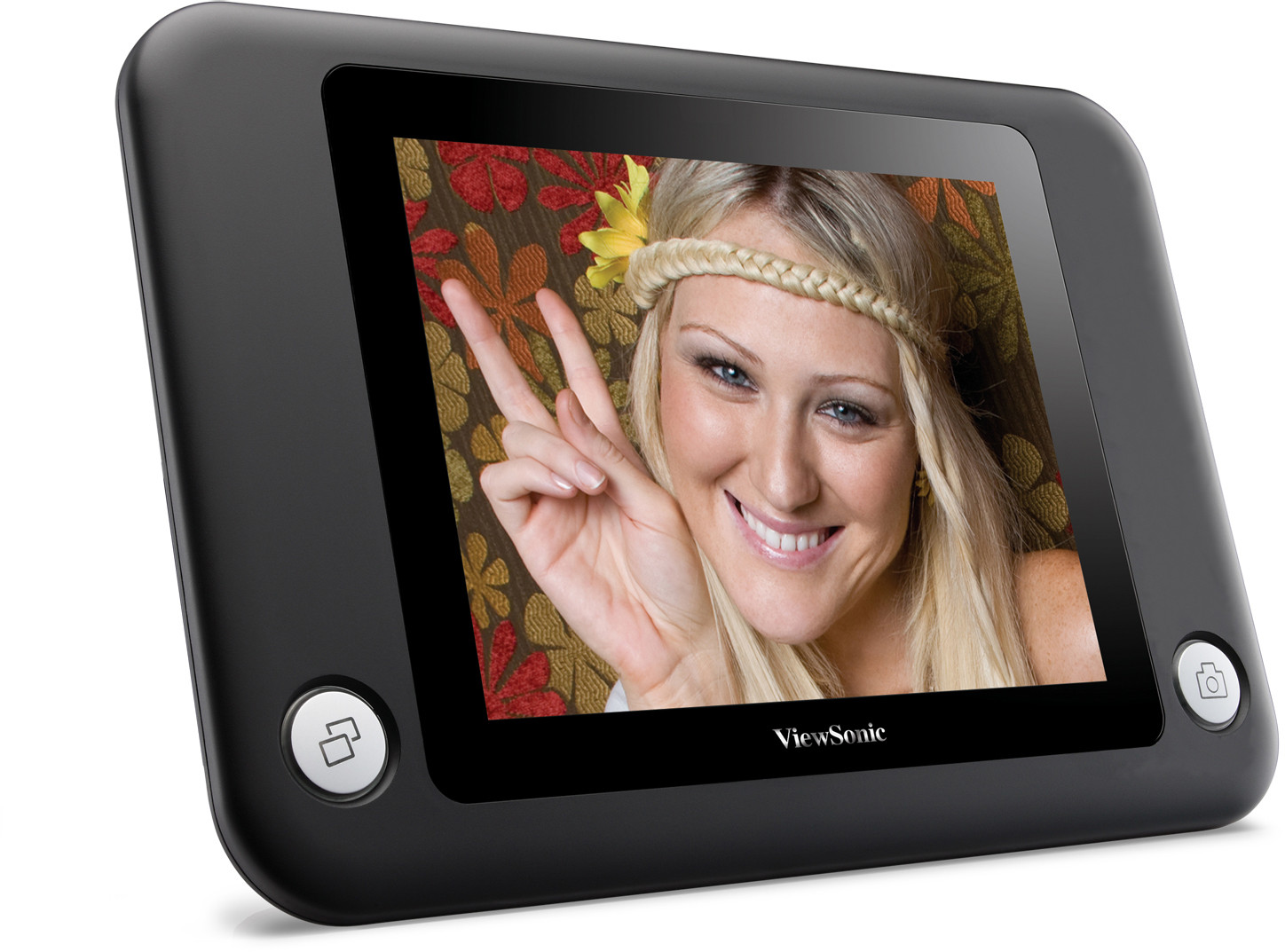

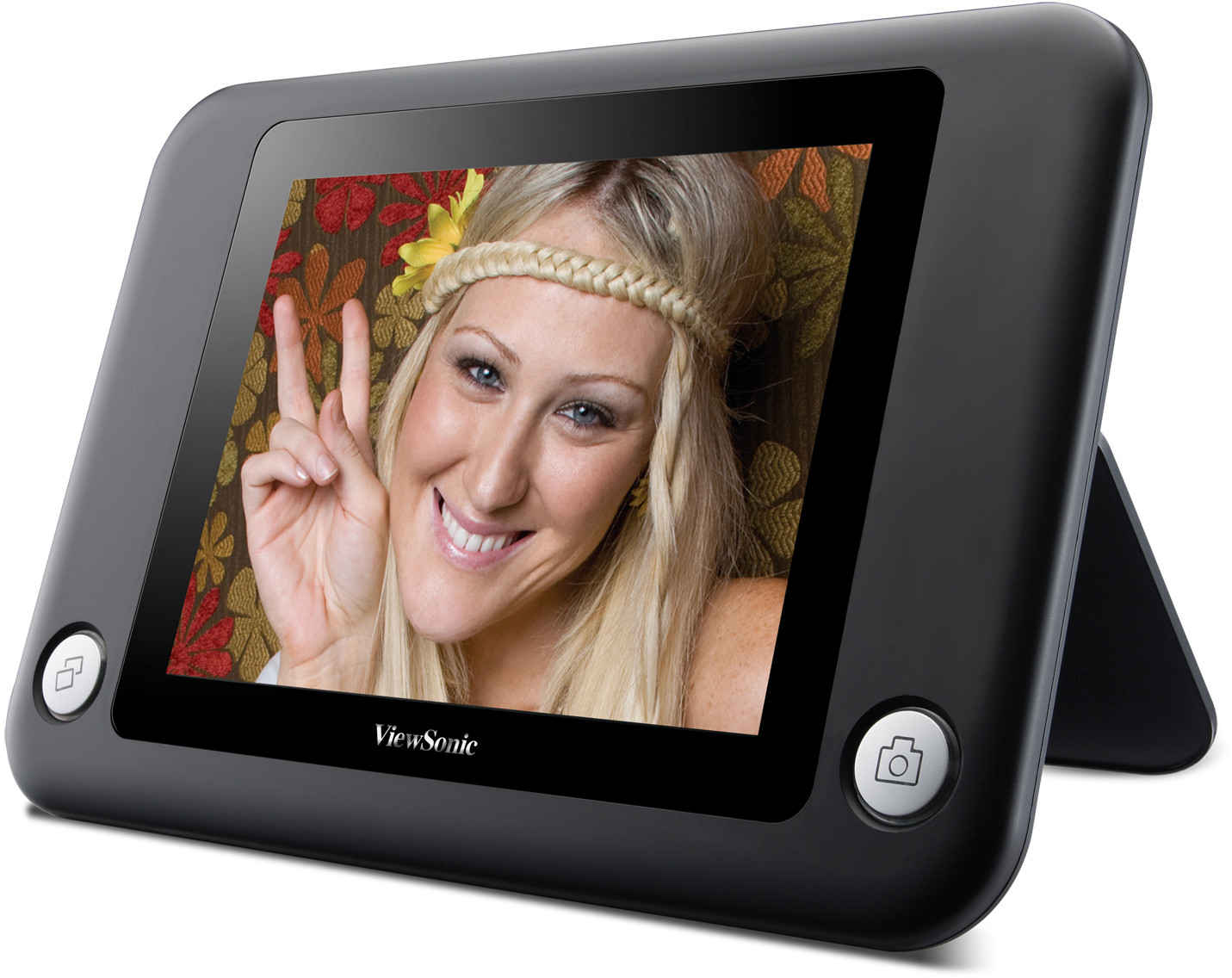

8”Digital Photo Frame with Built-in Camera
SPECIFICATIONS
- AUDIOSpeakers: 0.5W x1 Mono
- POWERVoltage: I Input: 100~240V AC, 50/60Hz; Output: DC 5V/1A
Operating: Normal 3.65W Max 4.3W

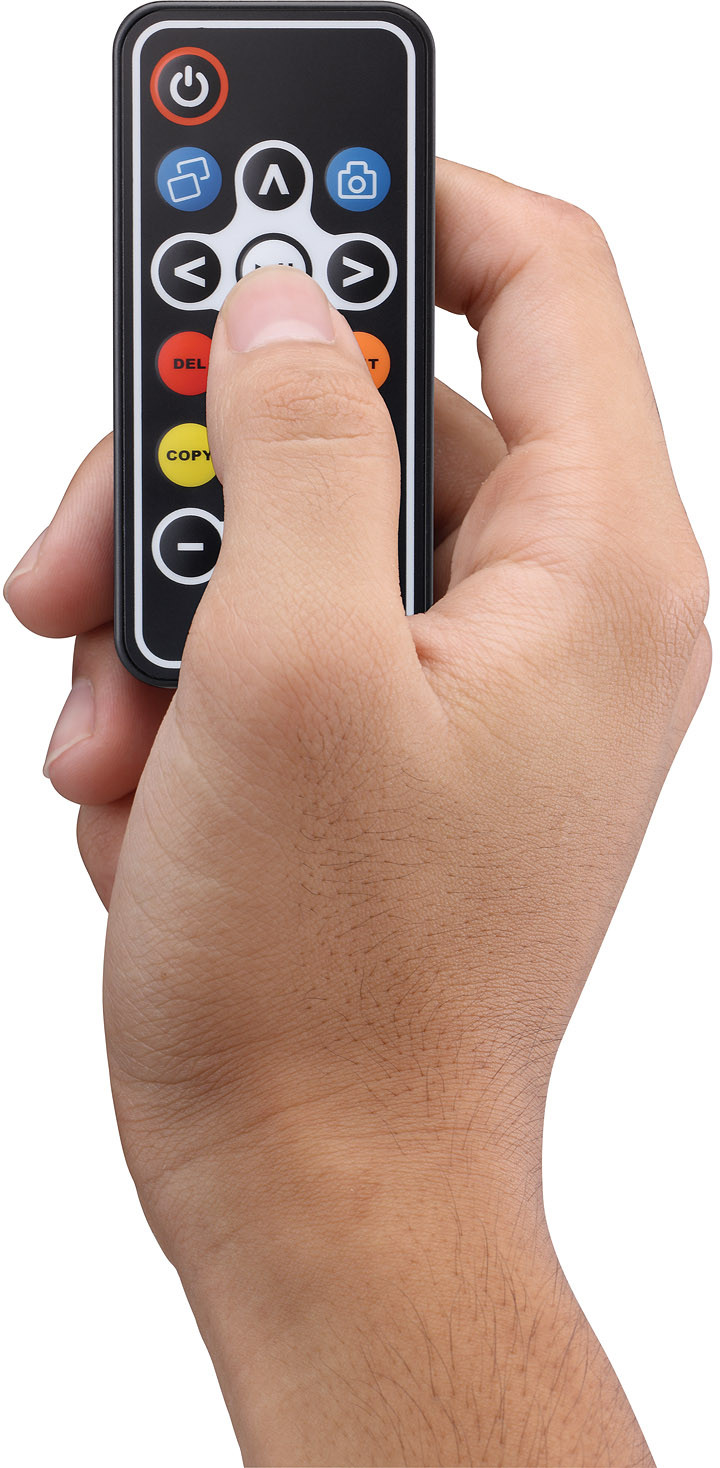

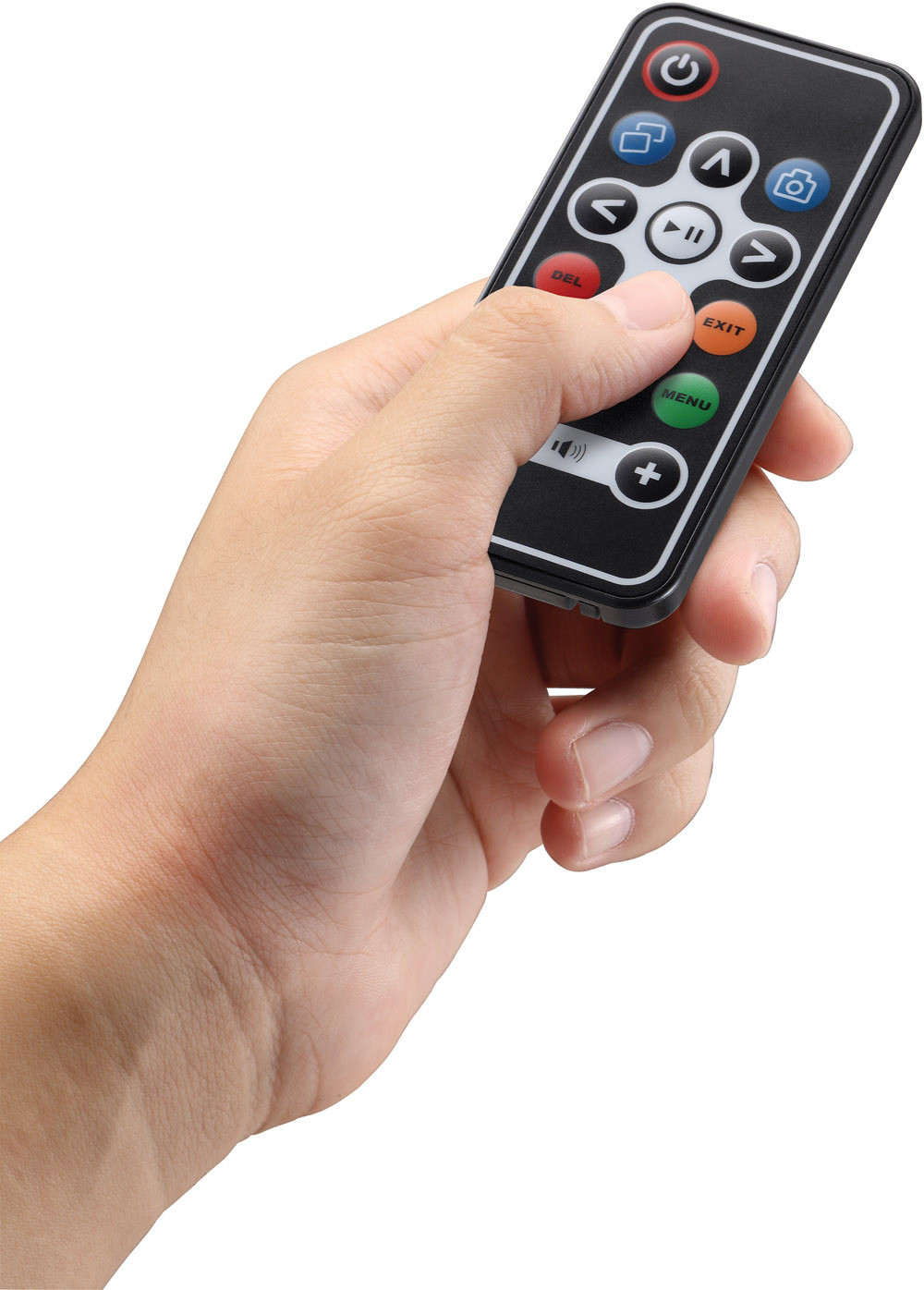

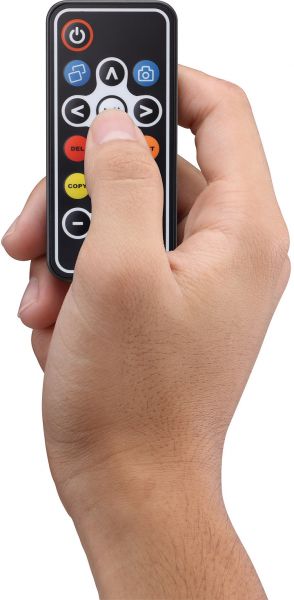

Standby: No standby mode - CONTROLSBasic: Power switch remote control
- OPERATING CONDITIONSTemperature: 0~40°C
Humidity: 80% RH
Storage Temperature: -10~50°C
Storage Humidity: 80% RH - MEMORYInternal: 128MB
USB HD: FAT16/32
Memory slot: SD, MMC, MS Pro, Max capcity 32GB - DISPLAYContrast Ratio : 500:1(typ)/LED
Brightness: 250 cd/m2 (typ)
Type: TFT LCD, CMI Q08009-701
Resolution: 800 x 600 RGB
Viewing Angle: Vertical(T/B) 50/70(typ), Horizontal(L/R) 70/70 (typ) - BATTERYNot support
- LANGUAGE15 Languages: (Default is English)
English/ German / French / Italian /
Spanish / Netherland/ Portugues/
Simplified Chinese/ Traditional Chinese/ Korean/
Japaness/ Tailand/ Russian / Turkey/ Sweden - CORECPU: C10P
- CONTENT FORMAT SUPPORTEDPicture: jpeg
- MAXIMUM COMPATIBLE FILE SIZEJPEG: 4608x3456 pixels, baseline

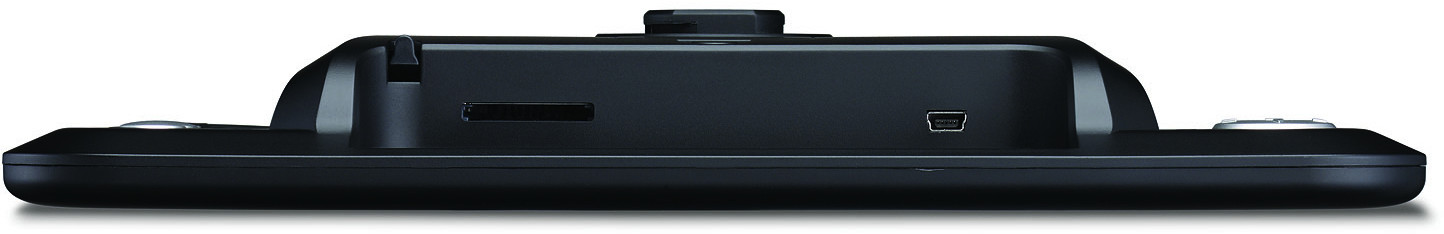

Video Capacity: Slideshow mode: 2000 pcs - INTERFACEInput: Card slot (SD/MMC/MS) x1
USB device x1

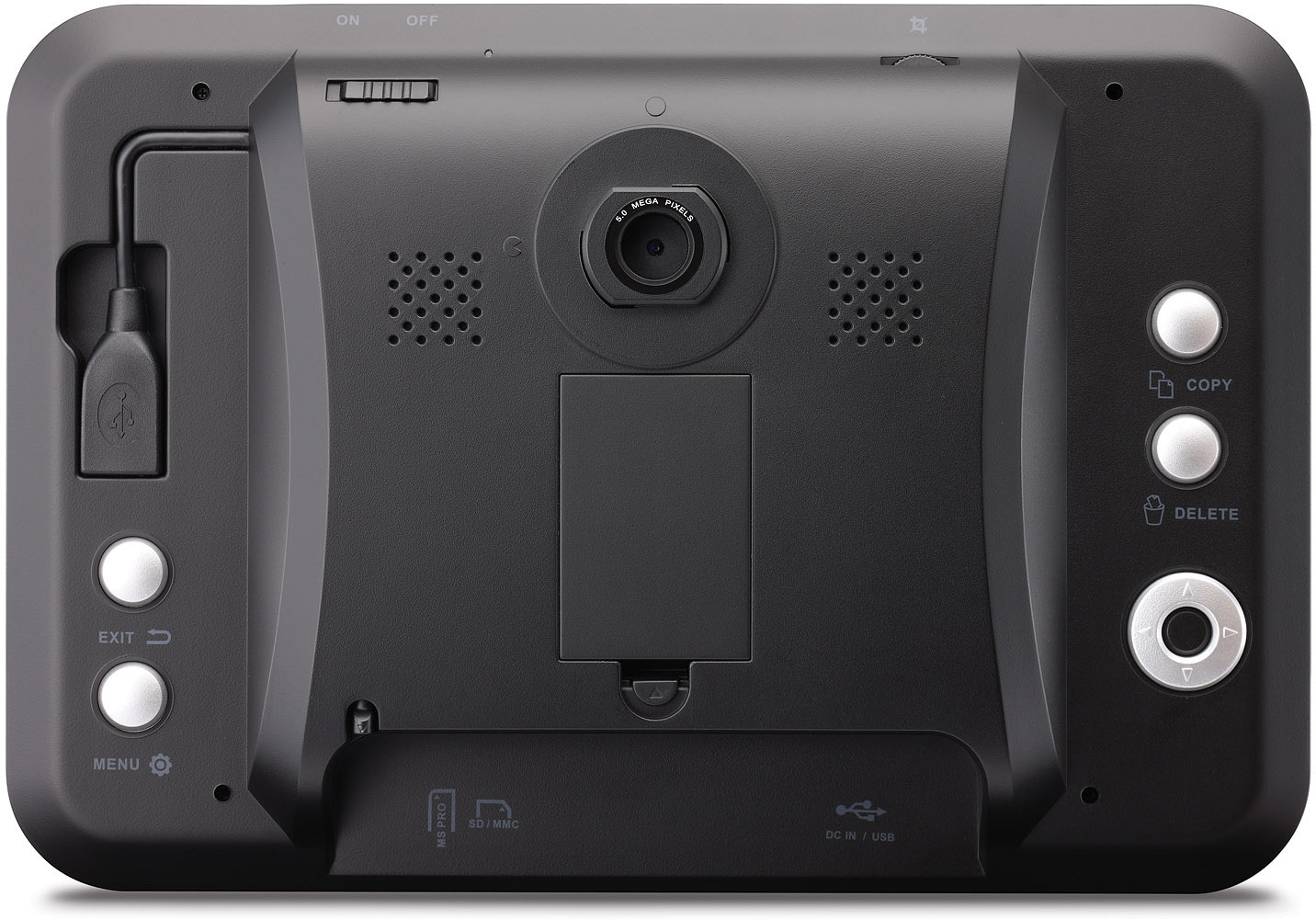

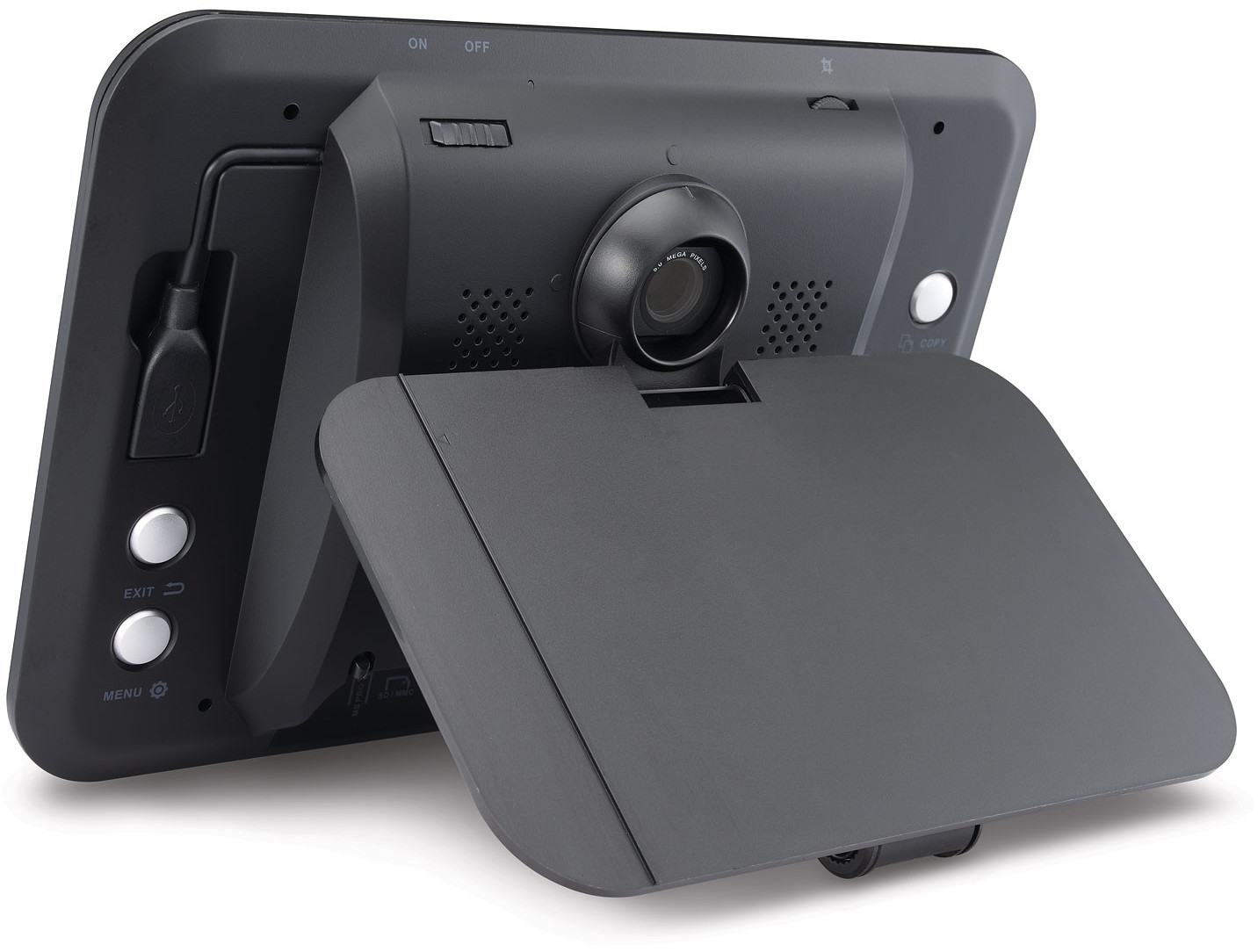

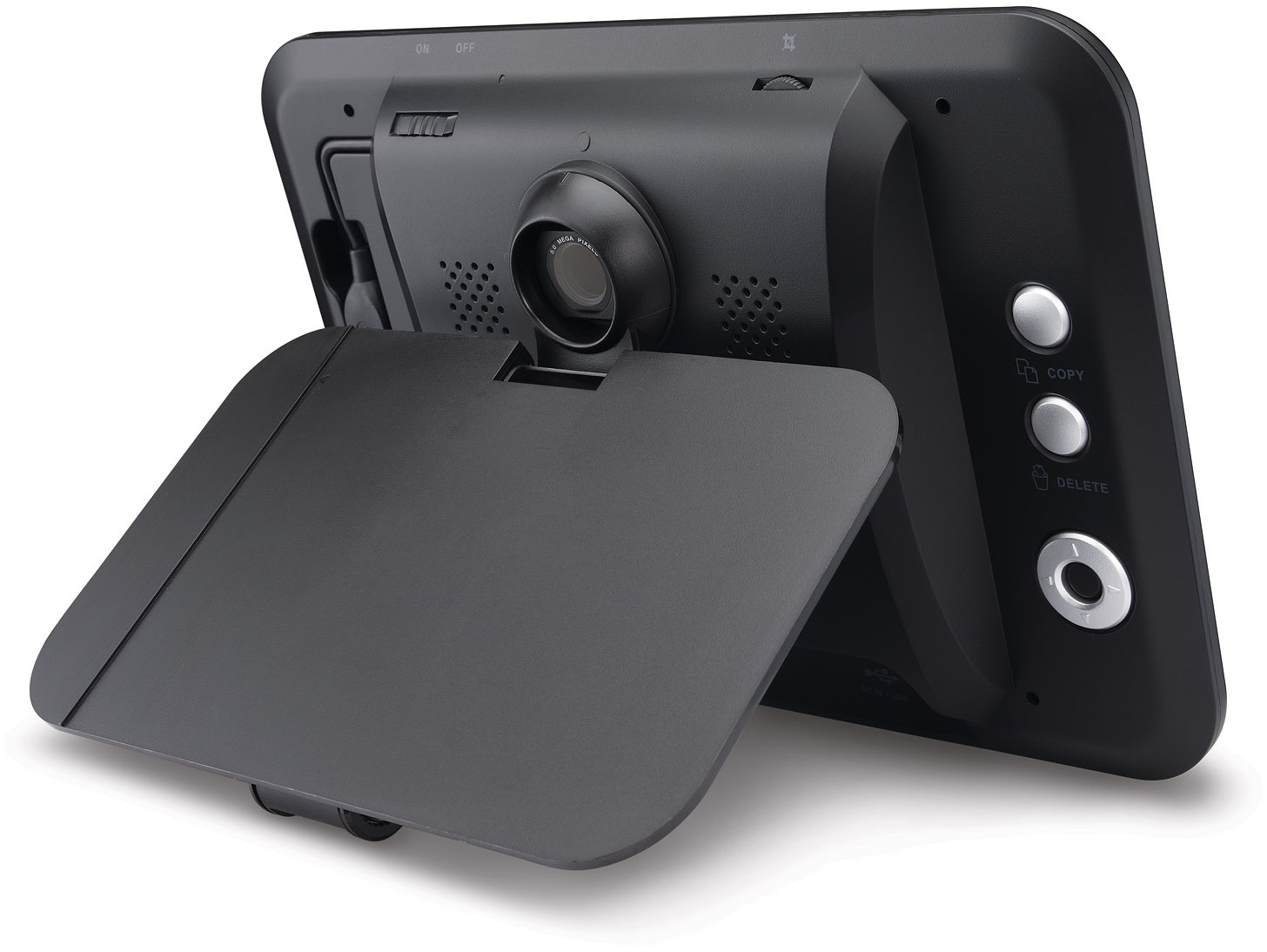

Others: USB device x1 - IMAGE CAPTUREImage Sensor: 5 Mega-pixels; 1/2.5” CMOS (2592x1944)
Lens: Fix lens
Focus Range: 19~23cm
Aperture Range: F3.0
White Balance: Auto
Exposure Control: Auto
Resolution: Best mode (5M) / Fine mode (3M)
