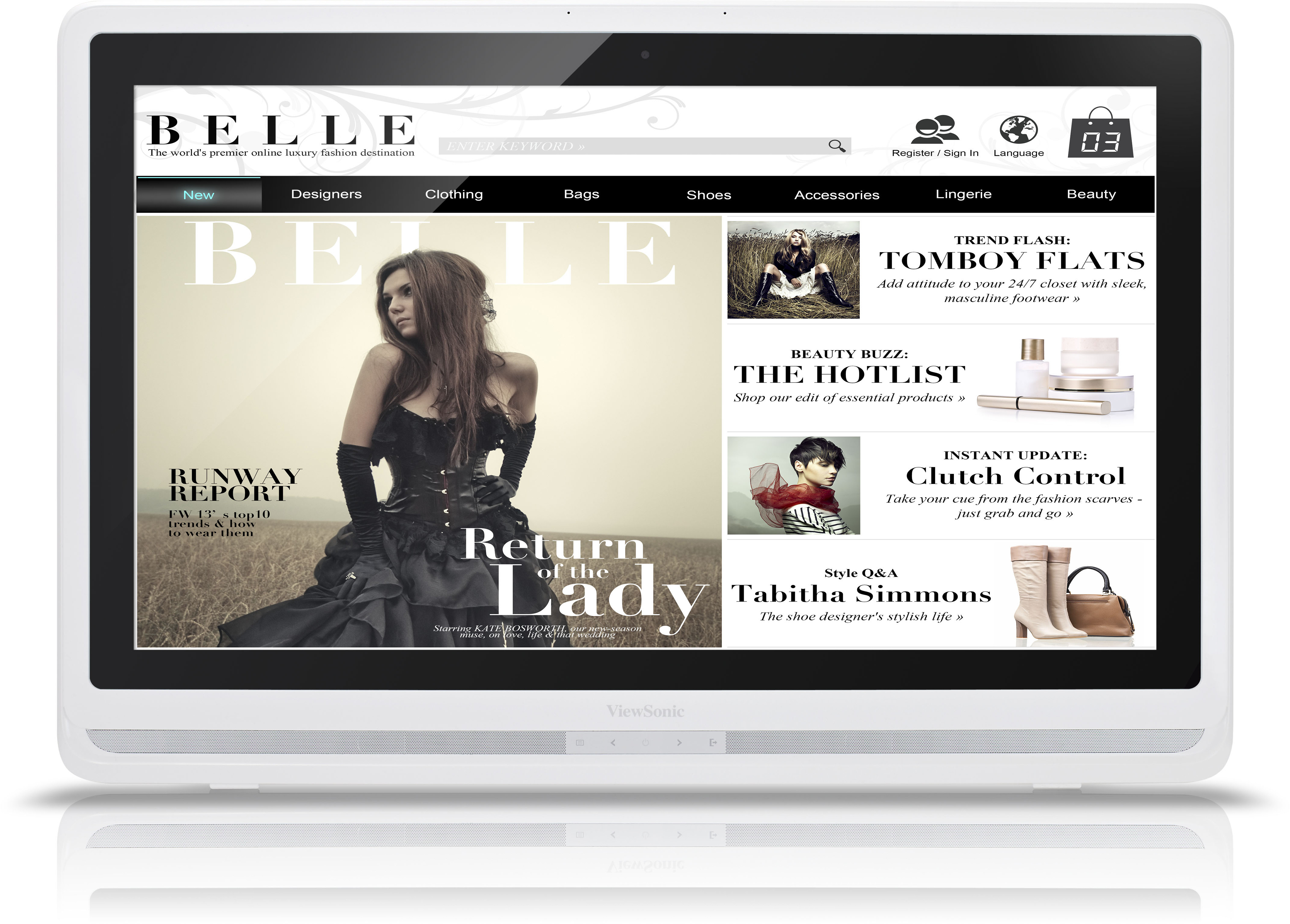

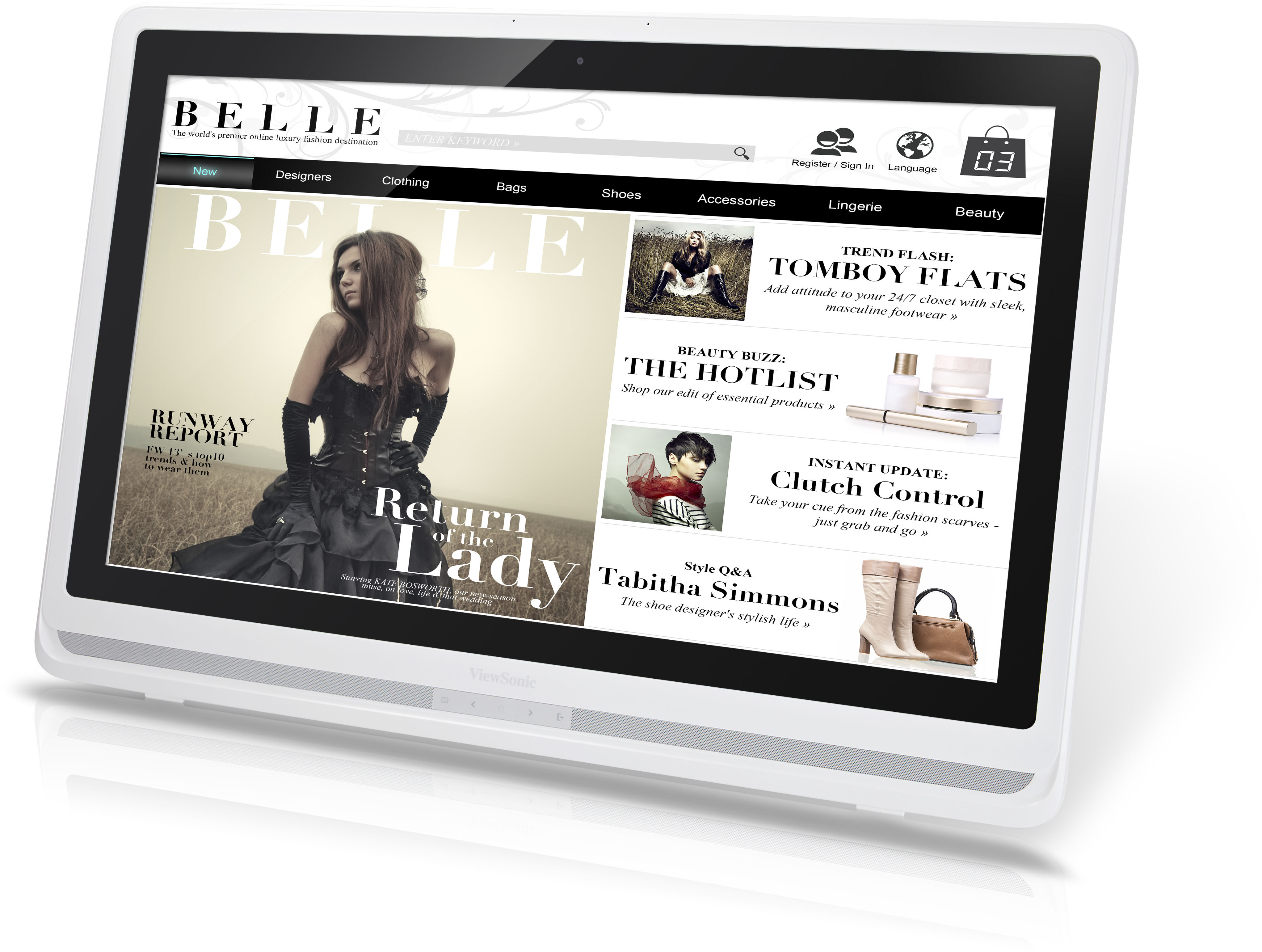

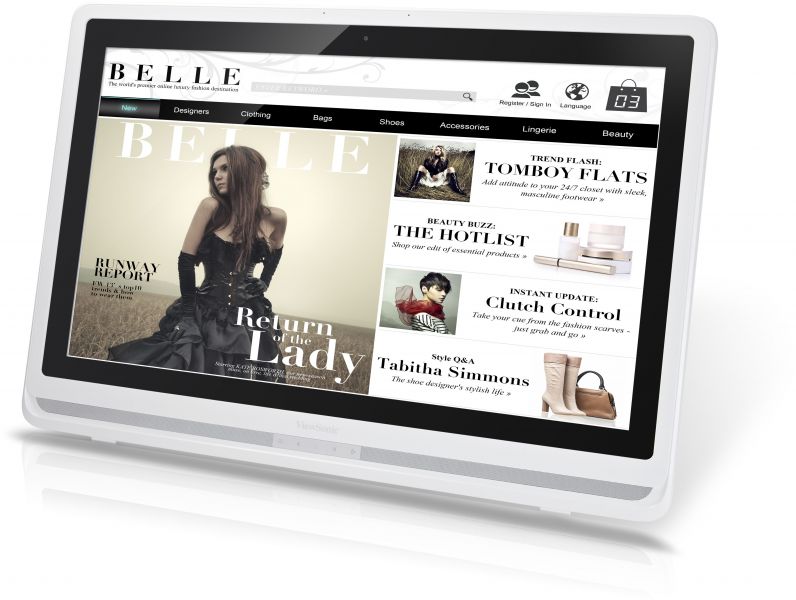

ViewSonic Commercial Display CDS245

CDS245

All-in-one signage solution

SPECIFICATIONS

LCD
Size: 24” 1920x1080 HD high brightness with two point gesture interface
DIMENSIONS
Physical (WxHxD): 29.0x 20.5 x6.5 inches 24.0 x 18.9* x 2.95 inches

OPERATING CONDITIONS
Temperature: 0°C to 35°C
Humidity: 20%~90% non-condensing
Altitude: 0~6,561 ft. (2.000 m), operational at reduced reliability and Performance.

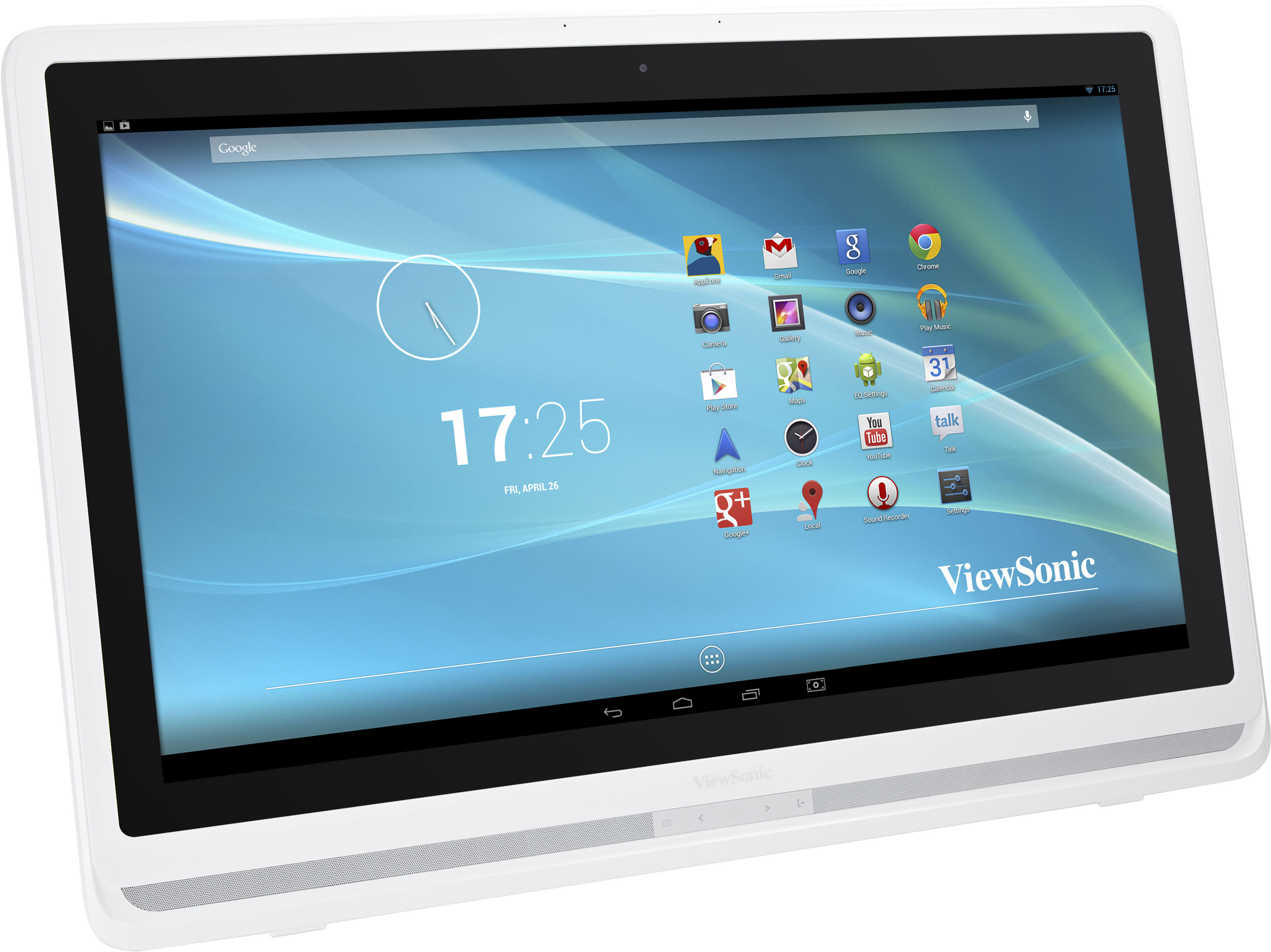

OPERATING SYSTEM
Android Jelly Bean 4.2 with rooted privileges
PROCESSOR
NVidia Tegra®3 Quad-core 1.7GHz processor
INCLUDED ACCESSORIES
Power adapter; HDMI cable, USB cable; QSG
MEMORY
Installed: 8GB internal storage , SD card slot up to 1TB
WEIGHT
Gross: 19.6lbs
Net: 15.86lbs
WIRELESS CONNECTIVITY
WIFI b/g/n/ ; Bluetooth v4.0
Features

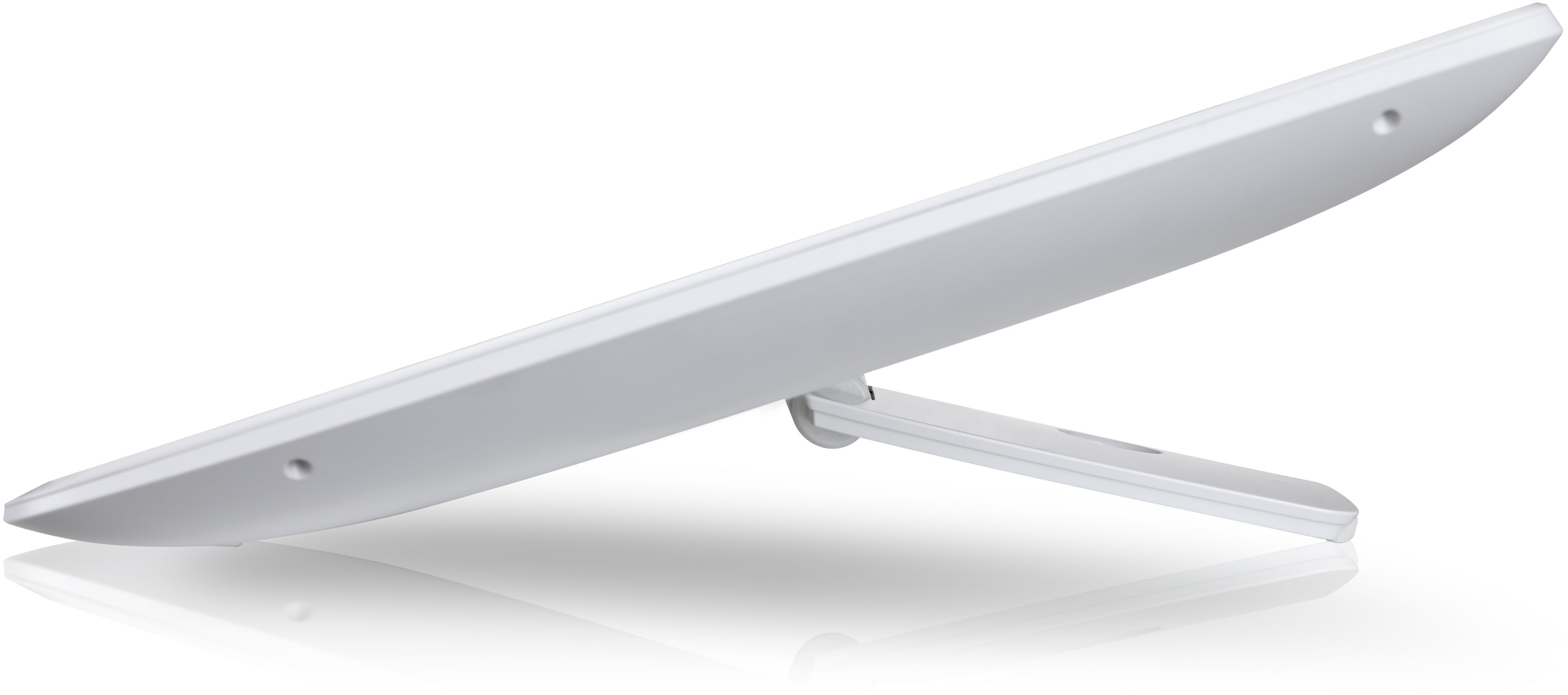

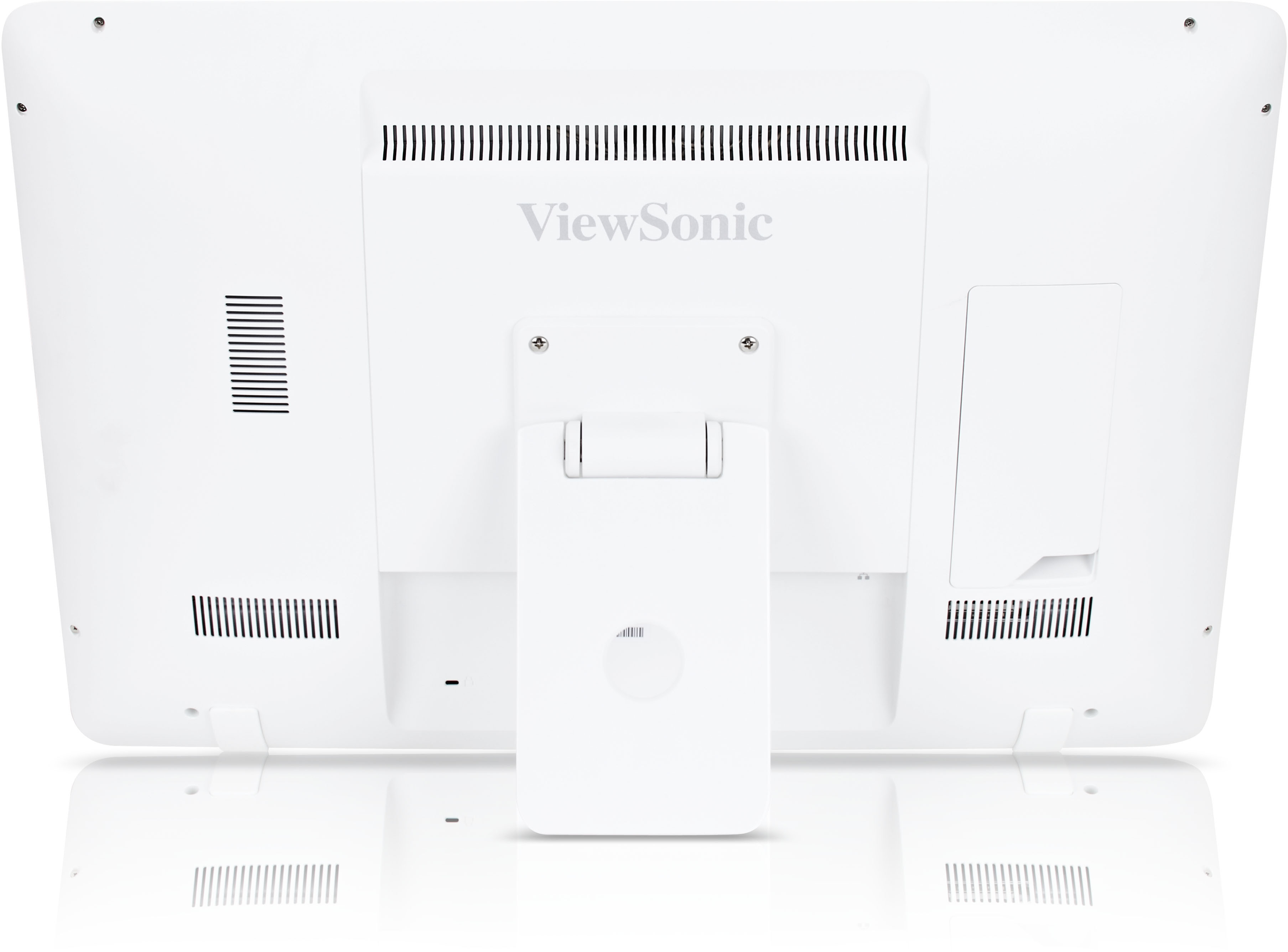

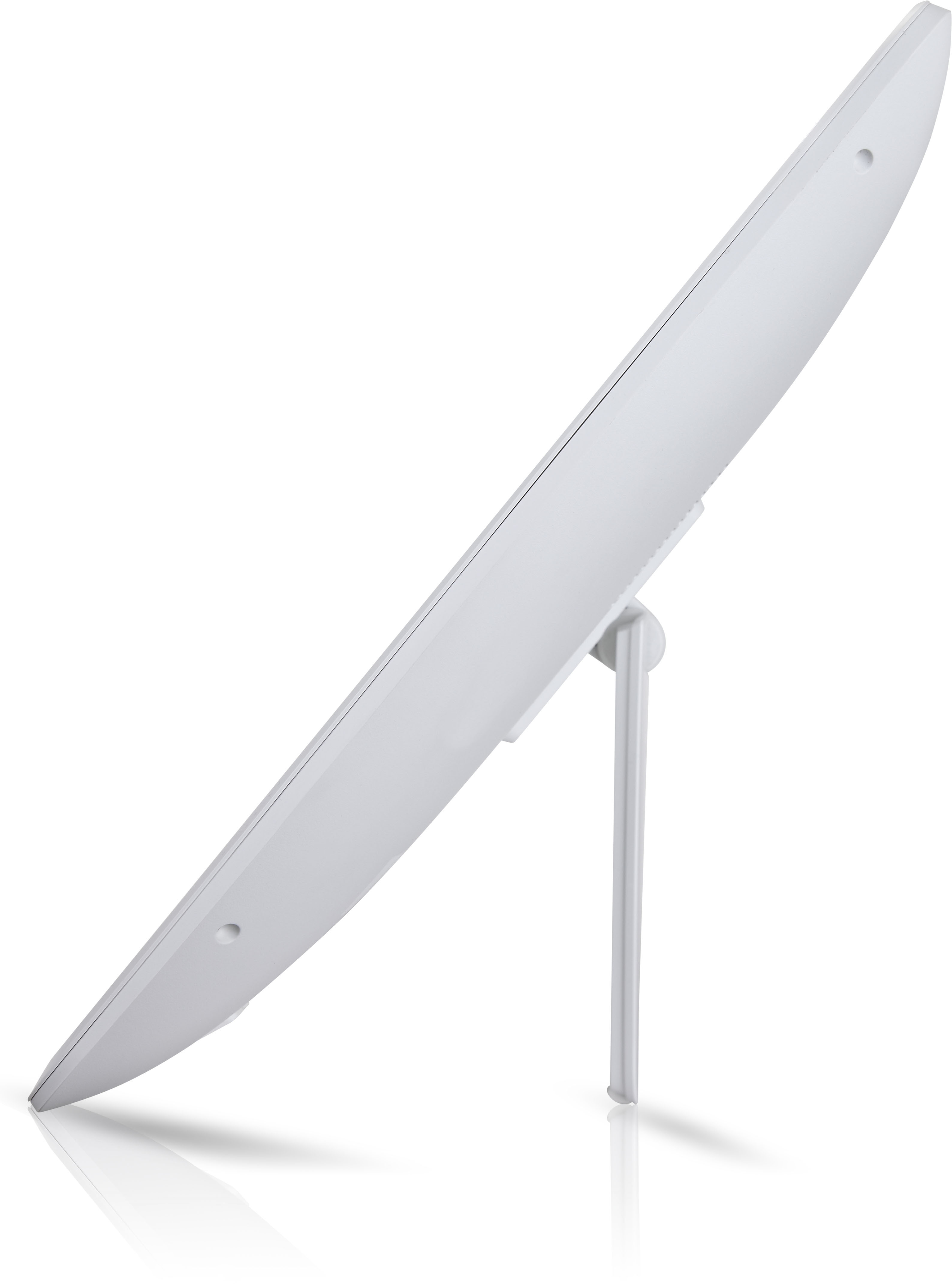

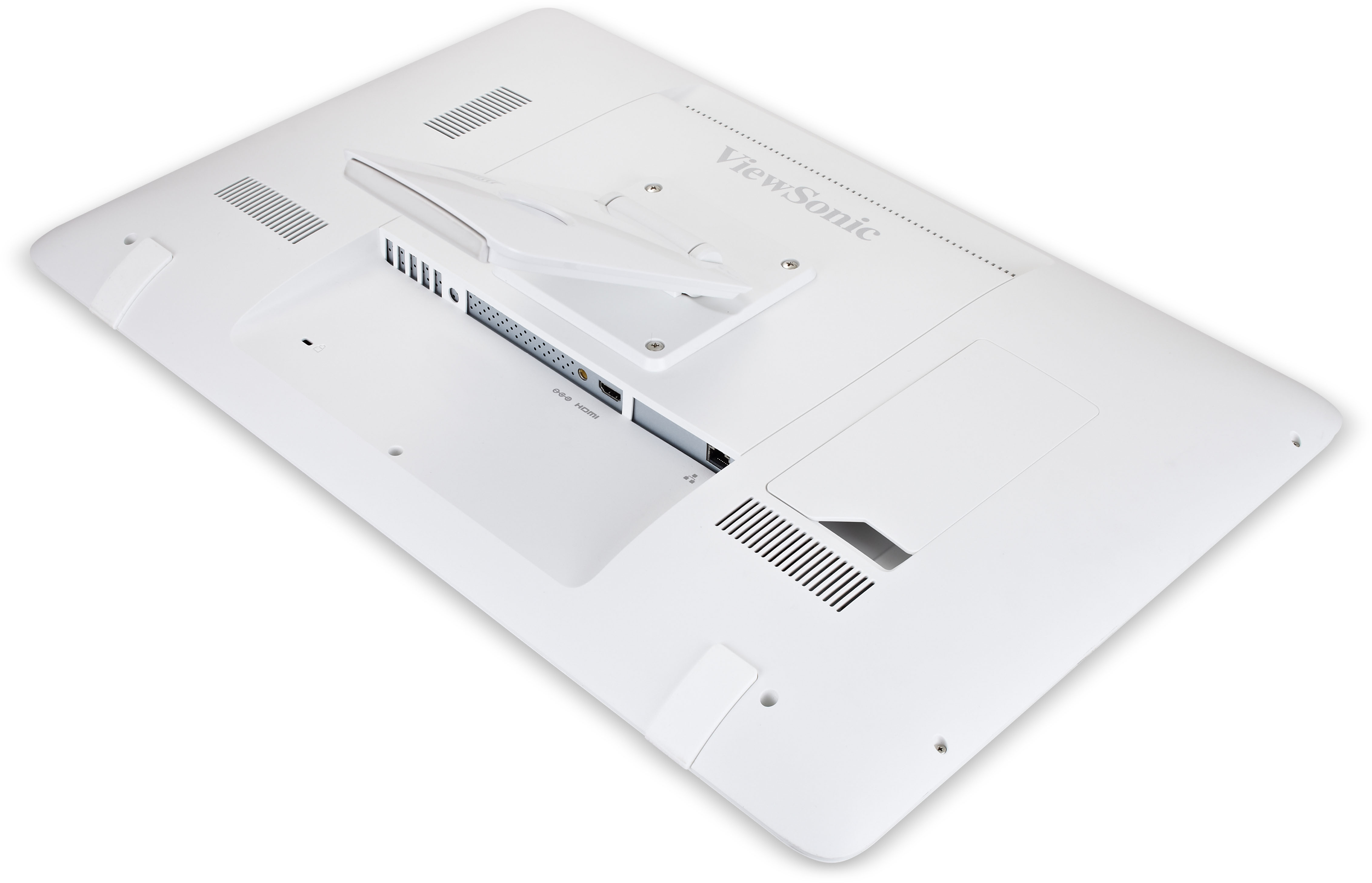

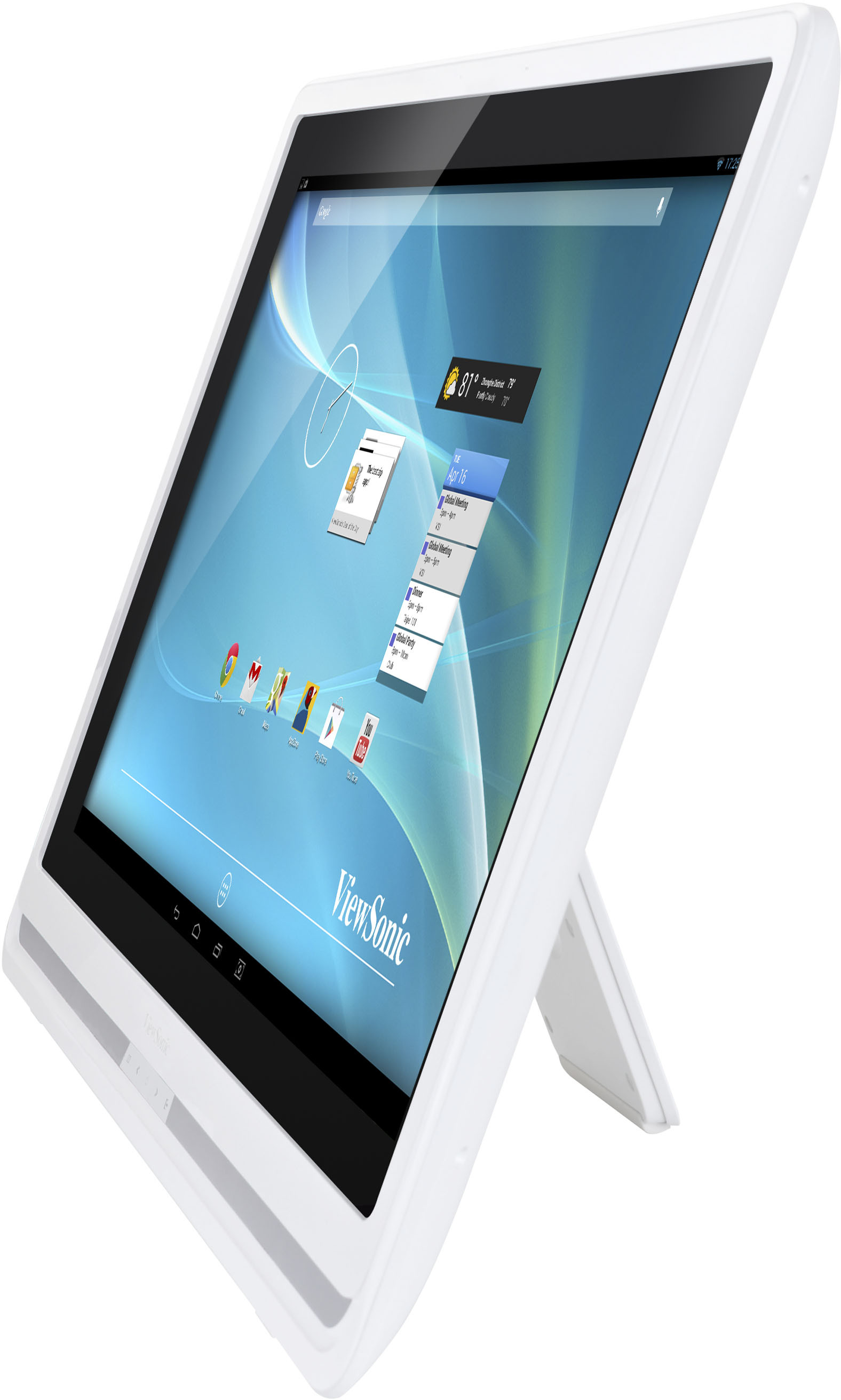

Anti-scratch coating, 8H hardened glass, low power consumption, VESA mount 100*100mm, integrated speakers, integrated web camera, microphone, adjustable book stand, noise cancelation, Tilt 15-70 degrees, front button lock, touch enable/disable

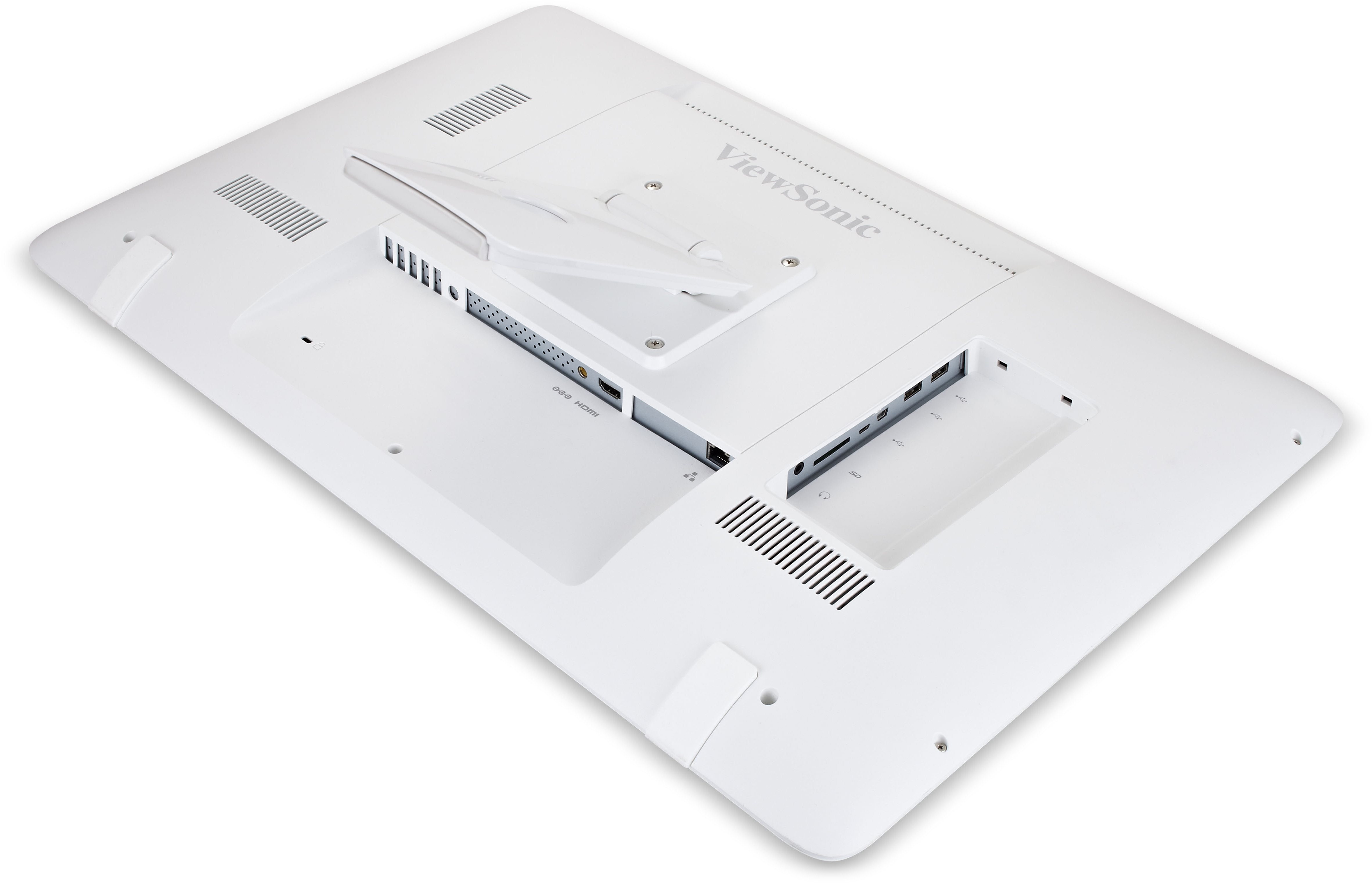

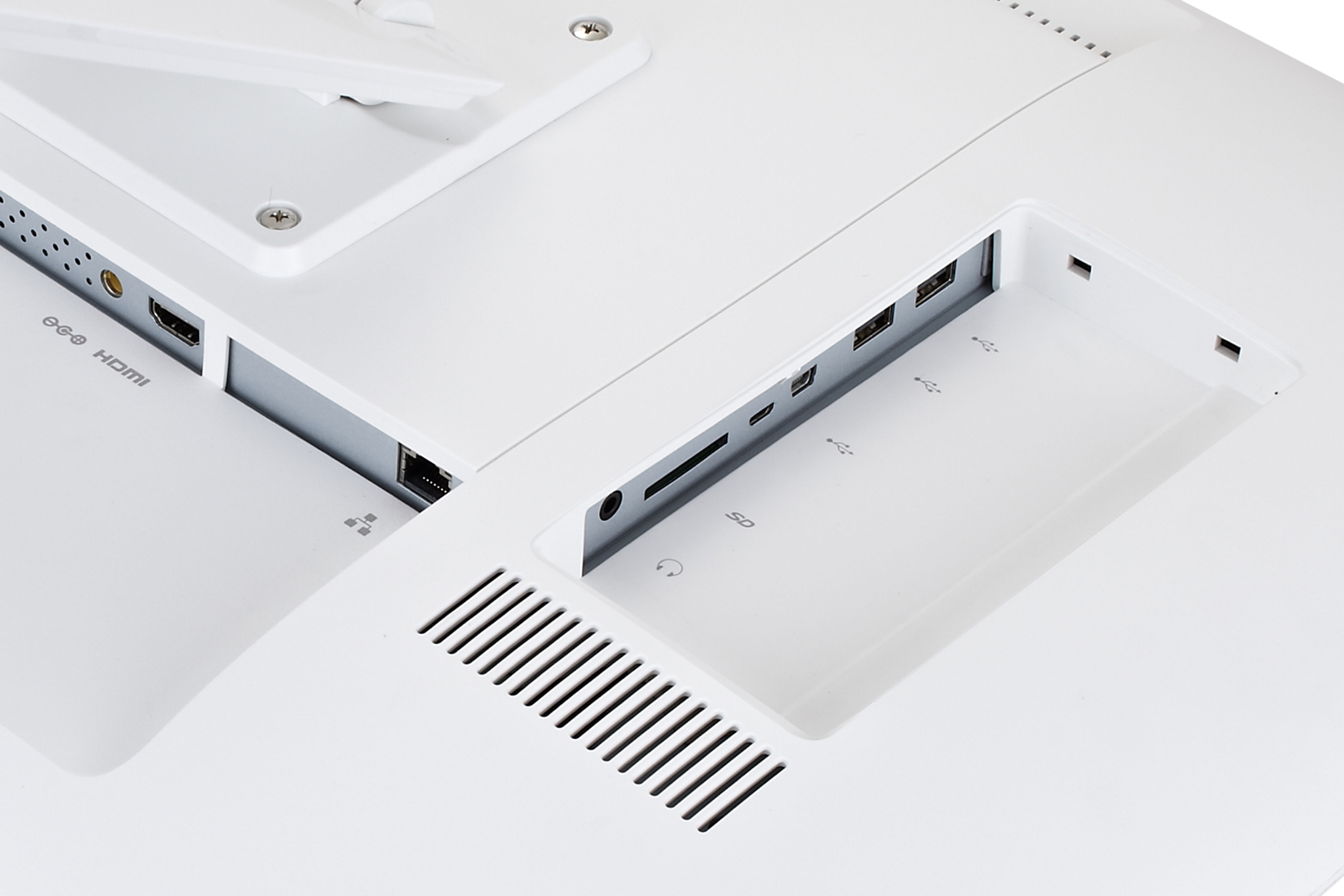

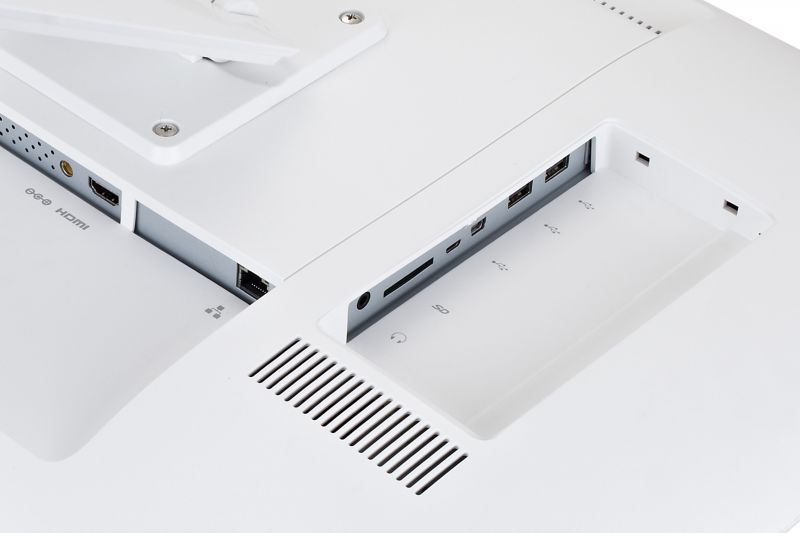

I/O ports
2x Full size USB, MHL connectivity, 1x Micro USB, 1x Mini USB, 3.5mm audio output, RJ45 Ethernet , SD card slot, HDMI input
