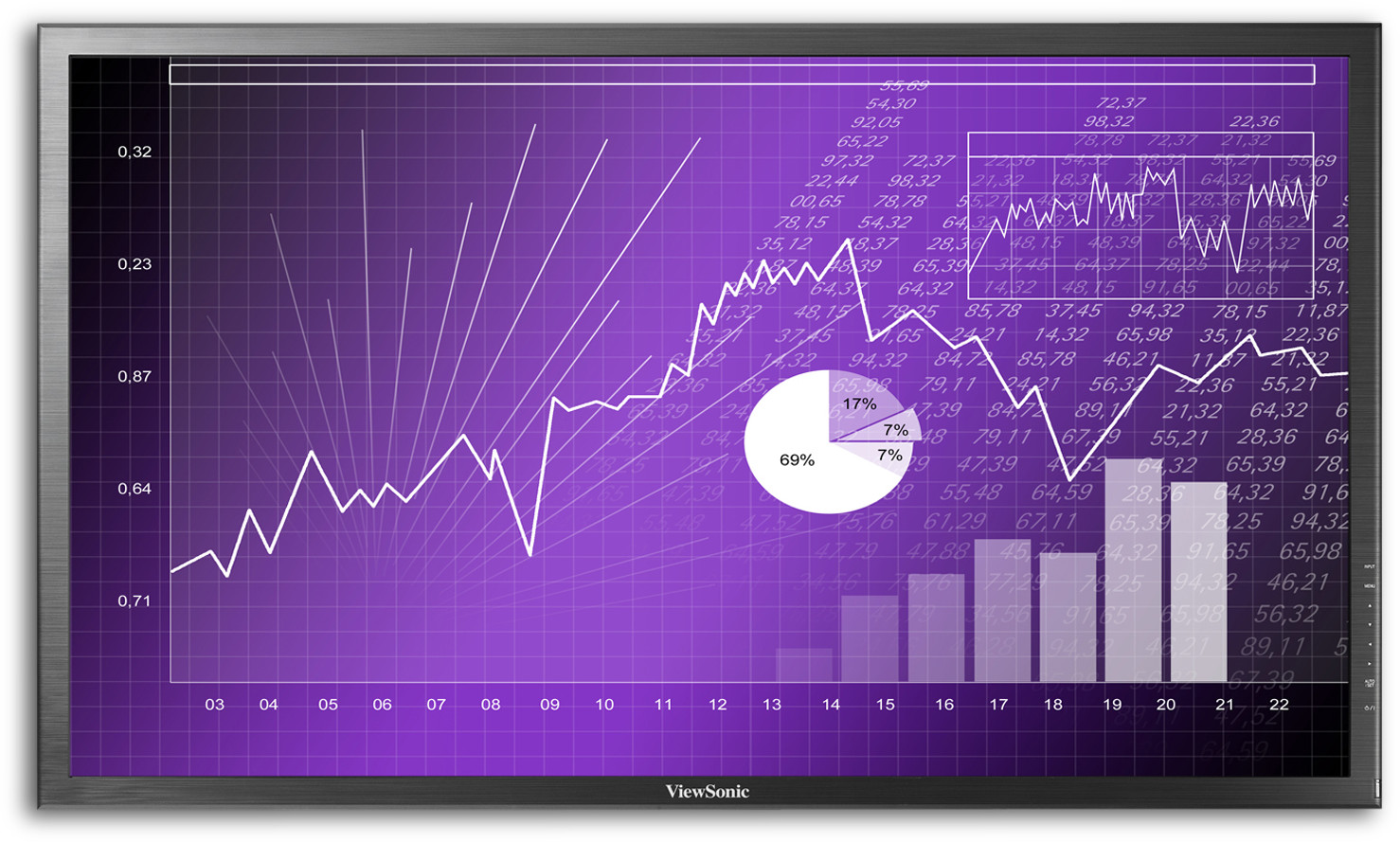

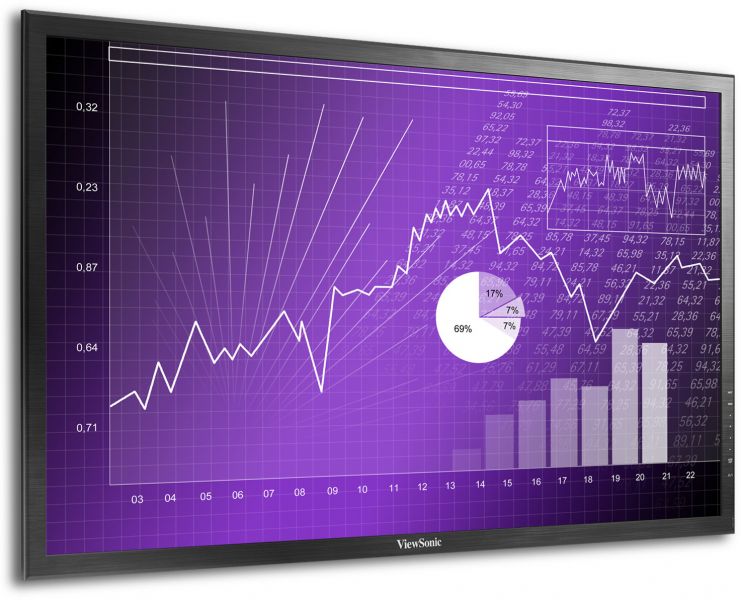

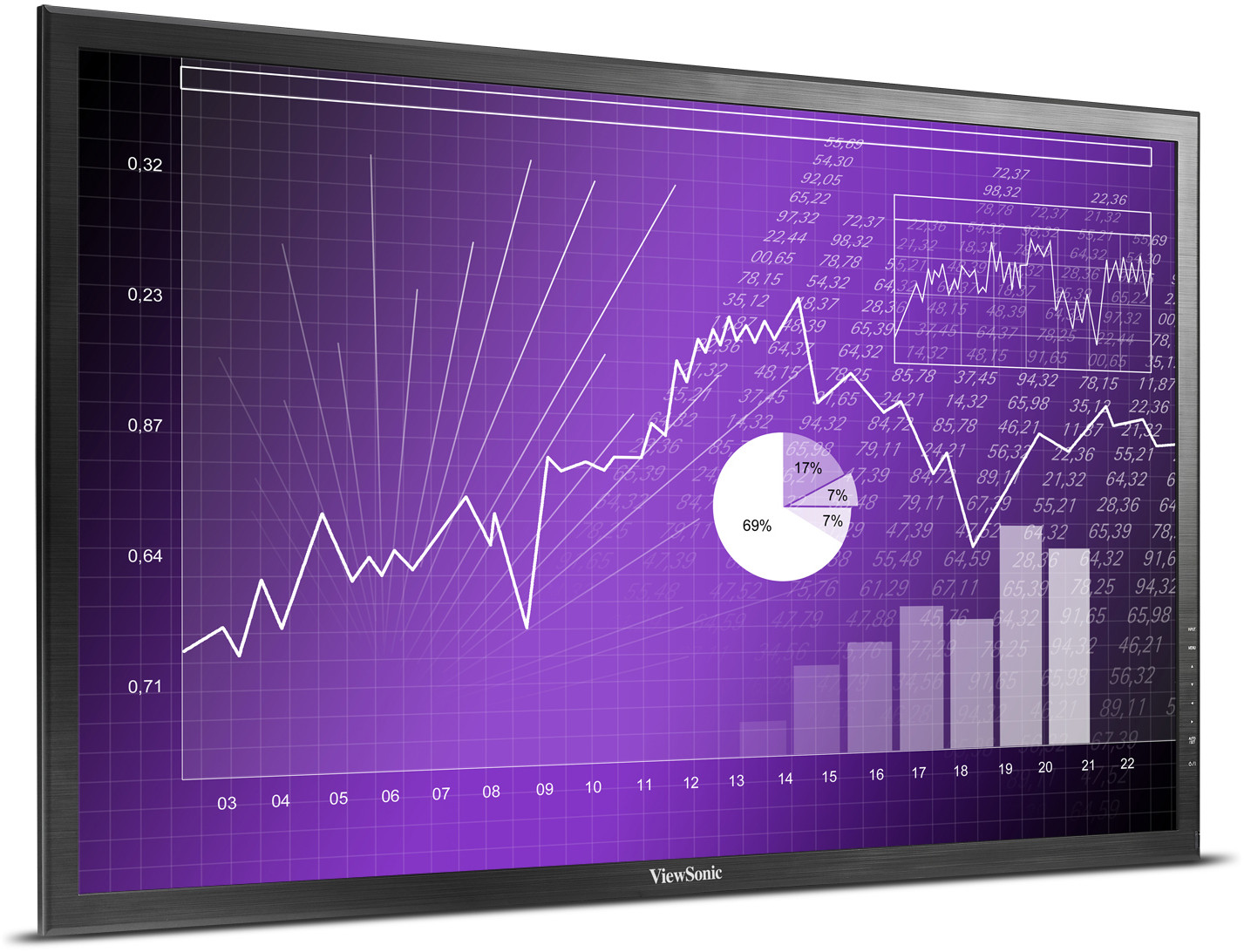

CDP5537-L

Please dispose of in accordance with local, state, or federal laws.

Video Input: HDMI, DVI, component, VGA, DP (Display Port)
Video Output: VGA, component, DVI (Loop through)
Control Input/Output: RS-232

TV/Video comp.: 480i, 480p, 720p, 1080i, 1080p

Analogue: 9-pin mini D-sub (VGA)
Digital: HDMI, DVI, DP, RGB, A/V, Component
Power: 3-pin plug

Voltage: AC 100–240V (universal), 50–60Hz
Consumption: 140W (typ)

Picture: Picture mode, contrast, brightness, colour temperature, temperature adjust, sharpness
Front Panel: Power, Exit, +, –, Menu/Enter
Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset
Audio: Volume, mute, audio source
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
Input: ** VGA, DVI, HDMI, YPbPr, DP
OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. Position

Stand....................................................STND-019
Wall Mount.............................................WMK-013

400mm x 400mm

Gross: 51.2 lb. (45.0 kg)
Net: 48.1 lb. (21.8 kg)

Humidity: 10–80% (non-condensing)
Temperature (landscape): 32–104ºF (0–40ºC)
Temperature (portrait): 41–95ºF (5–35ºC)

Amplifier: 10-watt / 8 ohm x 2

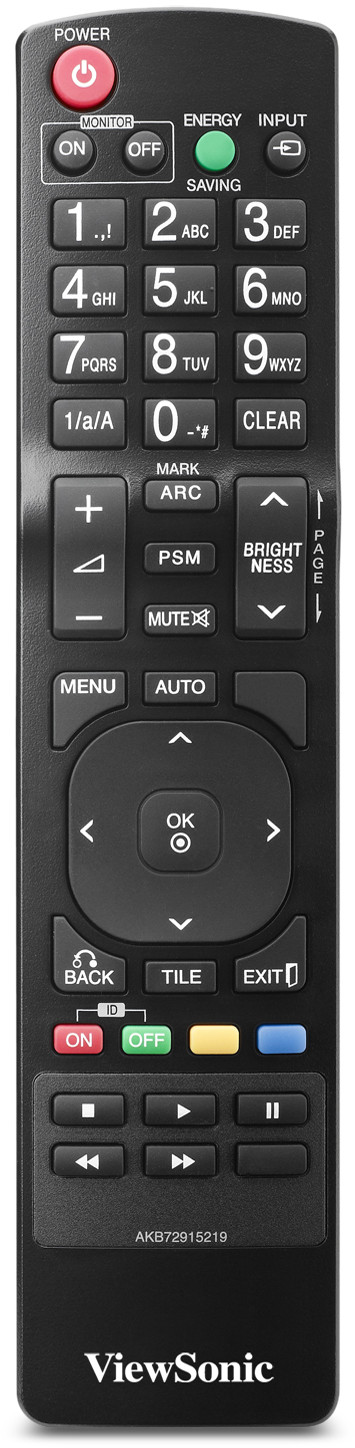

CDP5537-L display, power cable, remote control with batteries, User Guide CD
