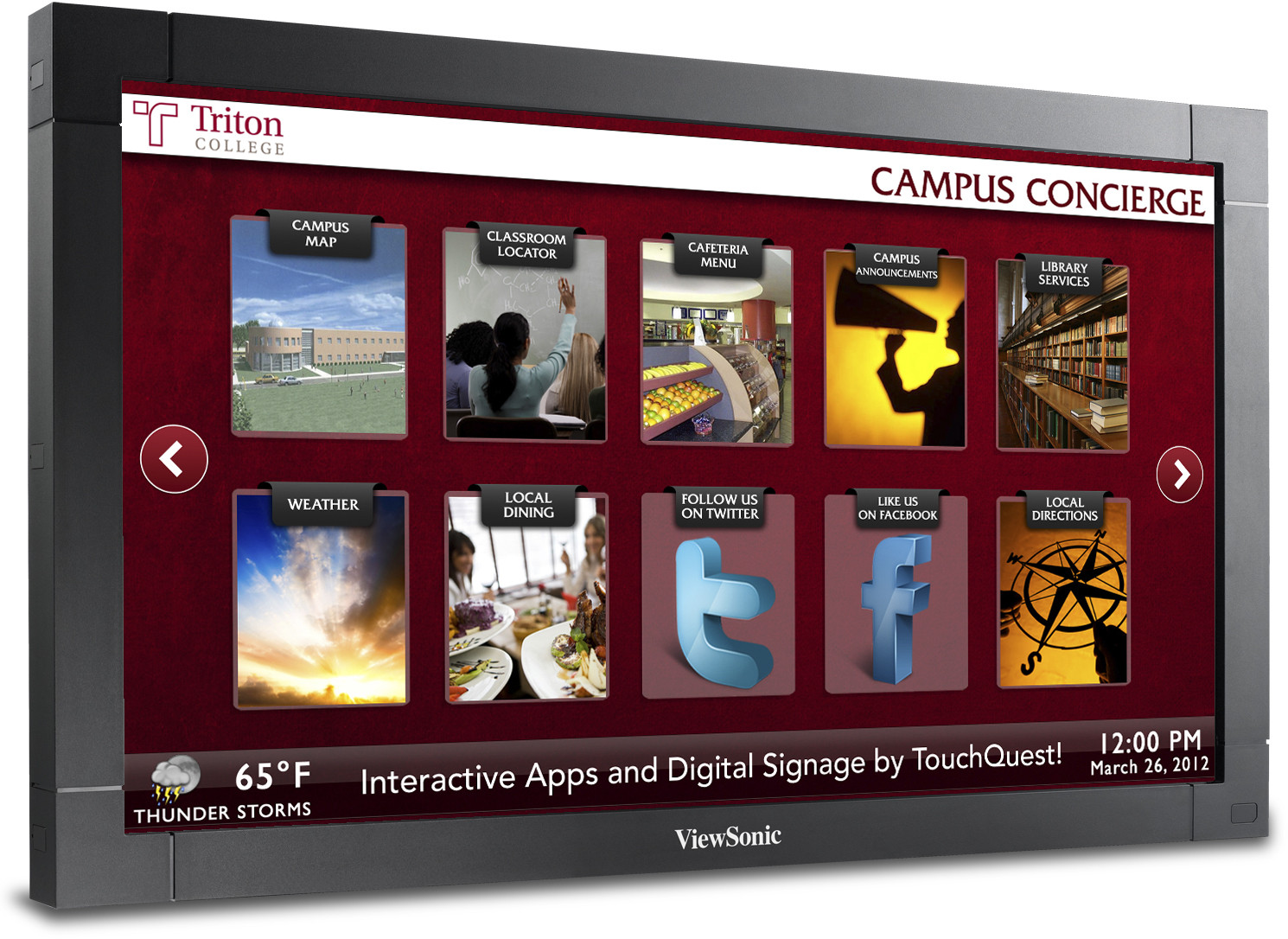

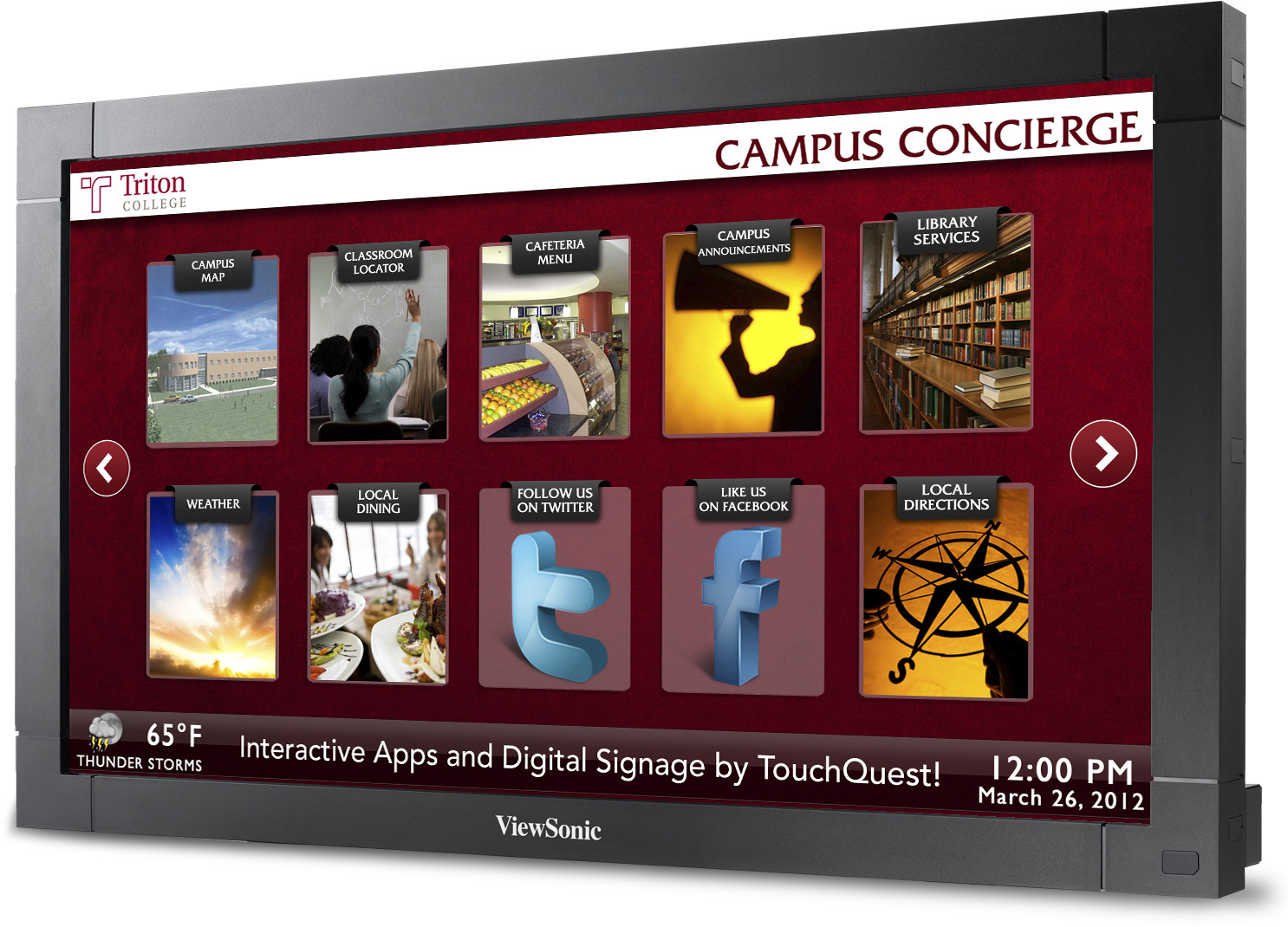

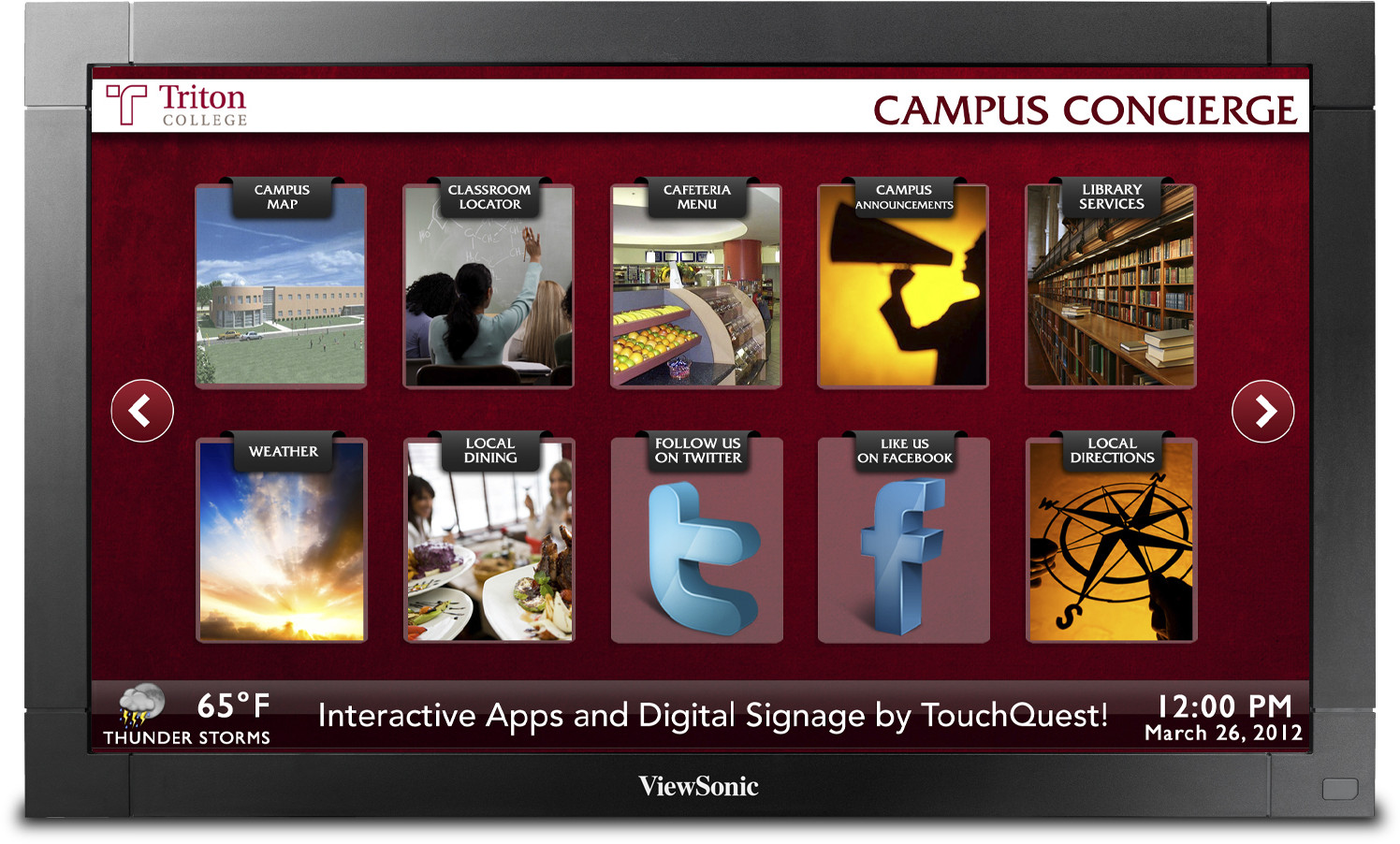

CDP4635-T
Grand Format for All-in-One Digital Signage Applications
SPECIFICATIONS
- COLORSBlack
- LCDType: 46" colour TFT active matrix, wide LCD
Contrast Ratio: 4000:1 (typ)
Viewing Angles: 178º horizontal, 178º vertical
Brightness: 400 cd/m2 (typ)
Display Area: 40" horizontal x 22.5" vertical; 46" diagonal
Optimum Resolution: 1920 x 1080, 530mm dot pitch
Response Time: 8ms
Light Source: Long life, 50,000 hrs. (typ)
Aspect Ratio: 16:9
Panel Surface: Anti-glare, hard coating (3H) - DIMENSIONSPhysical With Stand: 43" x 26.8" x 13"
(1091.1mm x 681.7mm x 328.3mm)
Physical Without Stand: 43" x 25.4" x4.7"
(1091.1mm x 645.7mm x 120.1mm)
- PACKAGE CONTENTSLCD display, power cable, remote control with batteries, User Guide CD

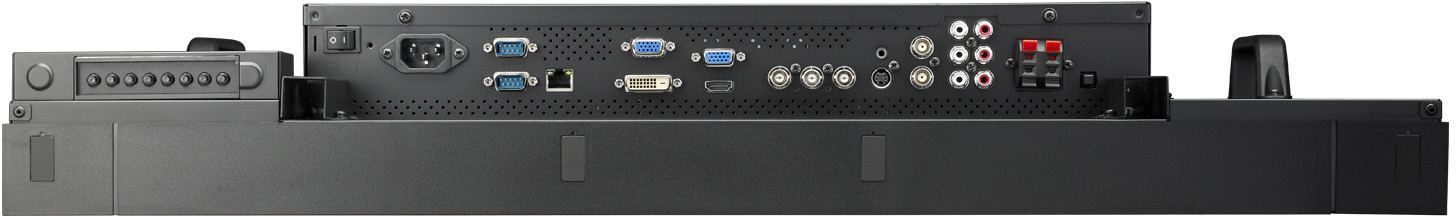

- INPUTVideo Input: HDMI, DVI, component, VGA, S-Video, composite
Video Output: VGA, component, DVI
Control Input/Output: RS-232/RJ45 - INPUT SIGNALTV/Video comp.: 480i, 480p, 720p, 1080i, 1080p
- CONNECTORDigital: HDMI, DVI
Power: 3-pin plug
Analog: 9-pin mini D-sub (VGA) - POWERVoltage: AC 100–240V (universal), 50–60Hz
Consumption: 220W (typ) - CONTROLSPicture: Picture mode, contrast, brightness, color temperature,
temperature adjust, sharpness
Front Panel: Power, Exit, +, –, Menu/Enter
OSD: Languages, OSD H. position, OSD V. position, OSD timer
Special: Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, reset
Audio: Volume, mute, audio source
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
Input: VGA, DVI, HDMI, YPbPr
VGA Setting: Auto adjustment, clock, phase, sharpness,
H. position, V. position - WEIGHTNet With Stand: 58.1 lb. (26.5 kg)
Net Without Stand: 57.3 lb. (22.6 kg)
Gross With Stand: 68.3 lb. (31 kg) - OPERATING CONDITIONSHumidity: 20–80% (non-condensing)
Temperature (landscape): 41–104ºF (5–40ºC)
Temperature (portrait): 41–95ºF (5–35ºC) - RECYCLE/DISPOSALThe lamp in this product contains mercury. Please dispose of in
accordance with local, state or federal laws. - AUDIO OUTSpeakers: 2 x 10w
- OPSOpen Pluggable Specification slot (OPS) ready
