CDE5502

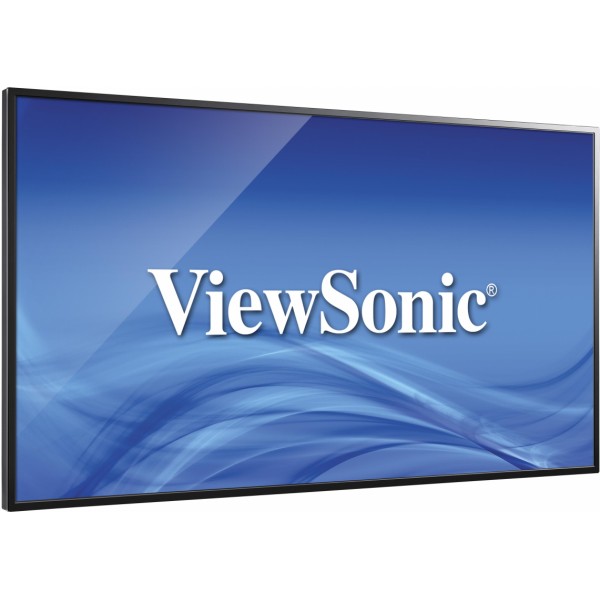

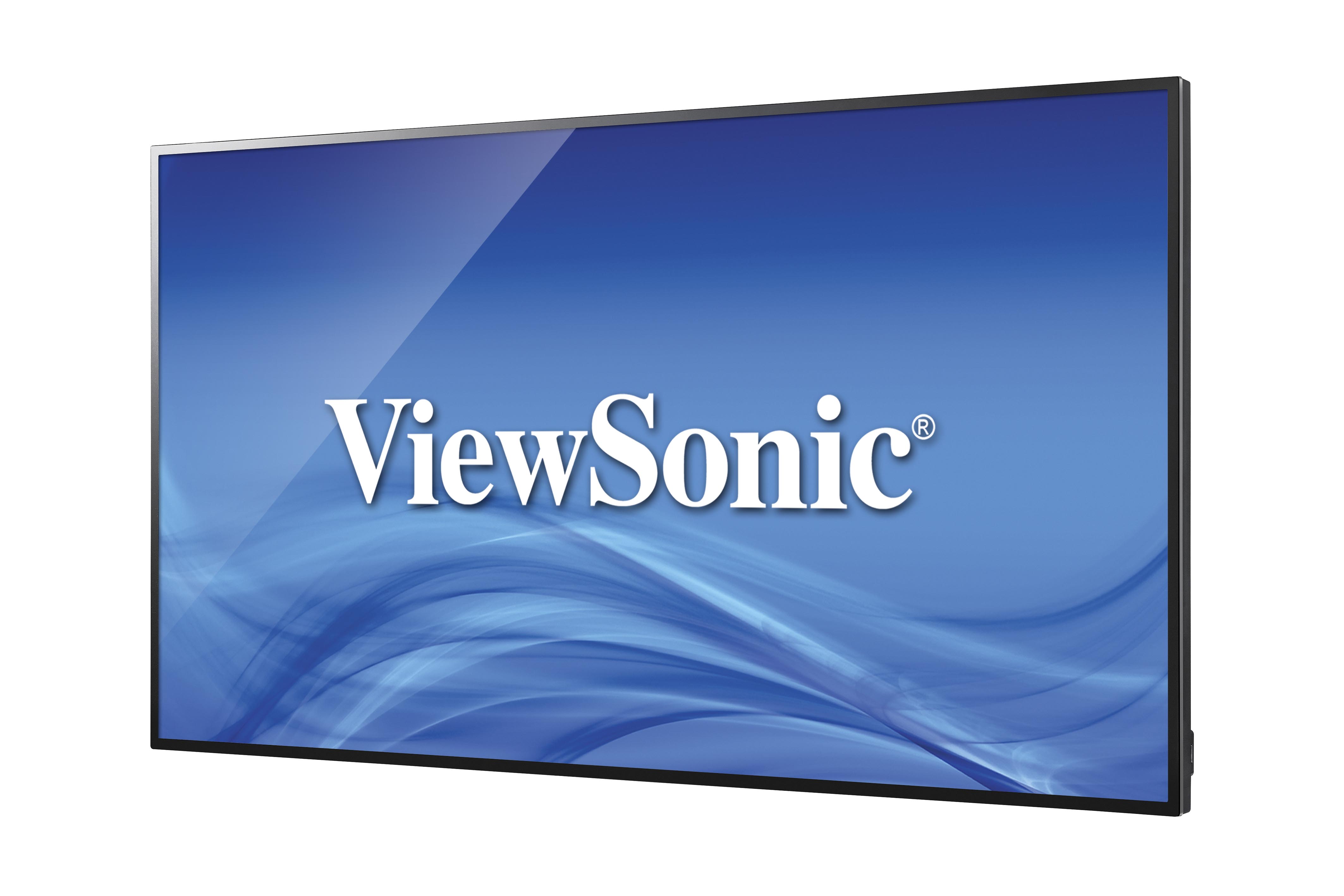

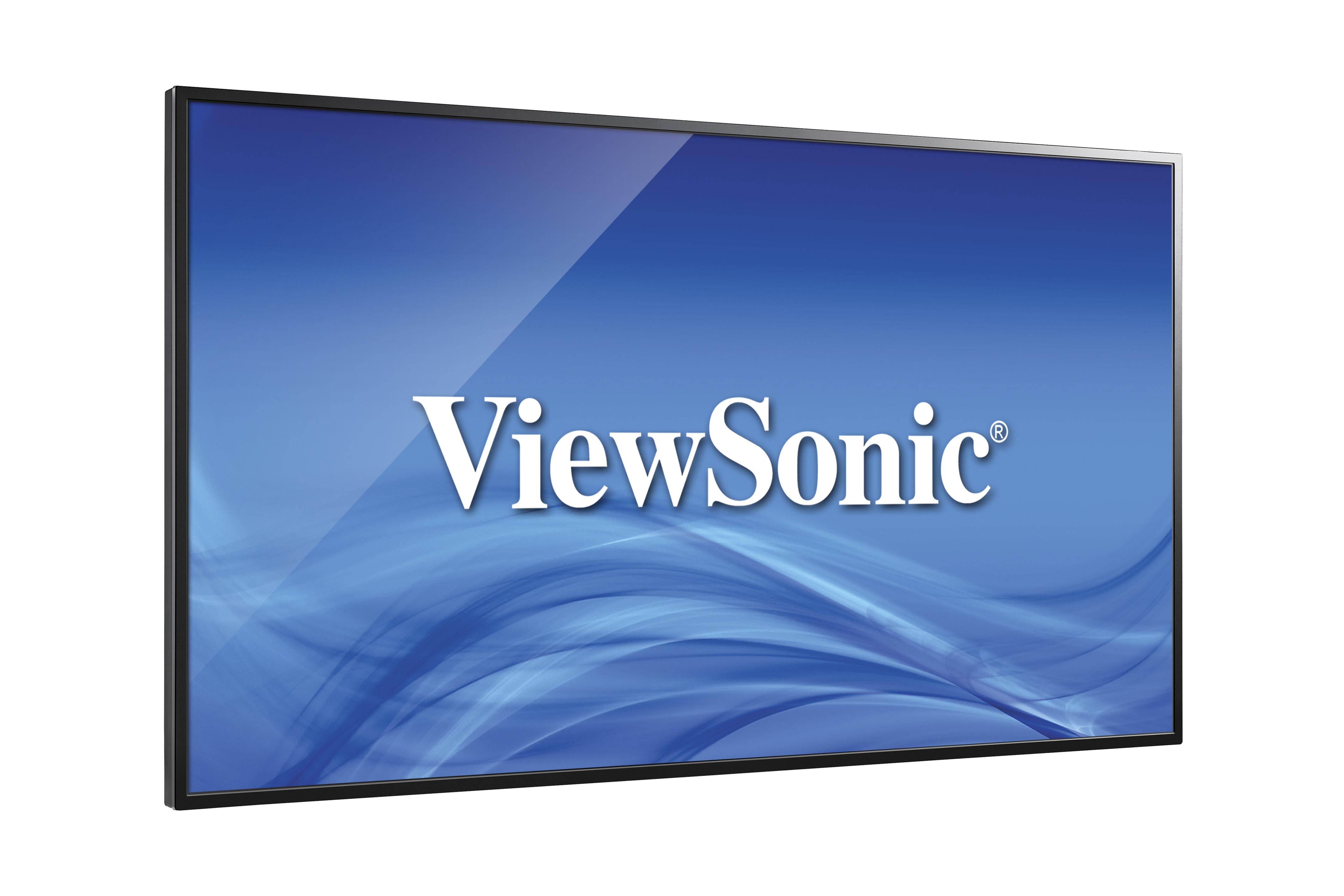

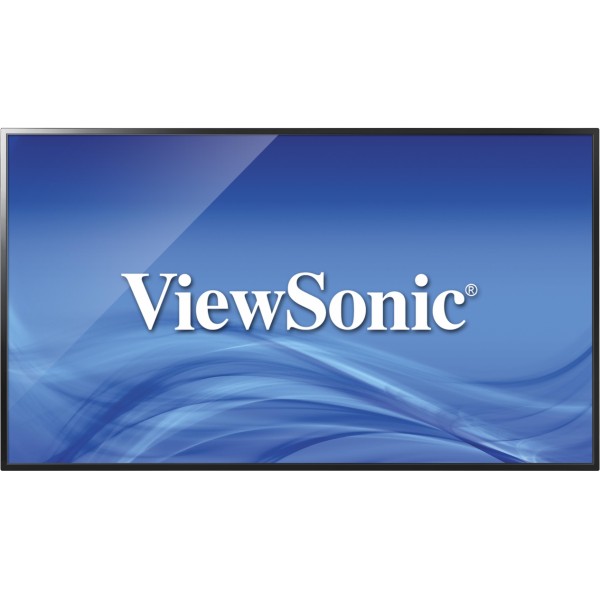

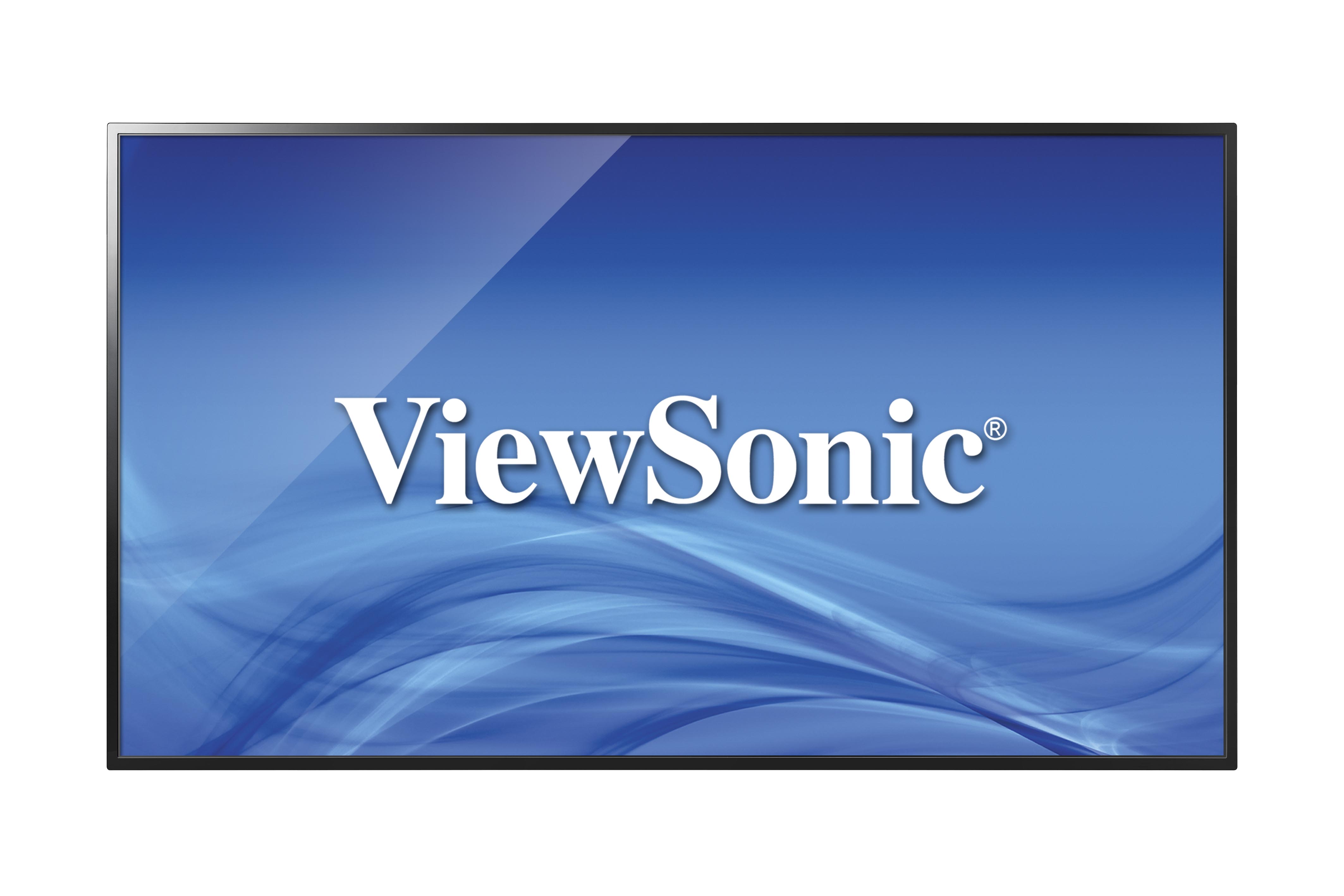

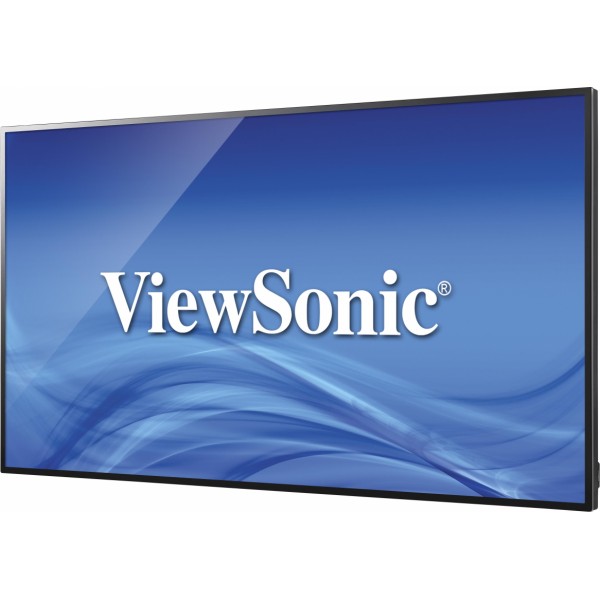

55’’ (54.6” viewable) Full HD Direct-lit LED Commercial Display
SPECIFICATIONS
- LCD PANELPanel Size: 55" (54.64")
Type/ Tech: TFT LCD Module. (IPS, DLED backlight)
Display Area (mm): 1209.6(H) x 680.4 (V) (54.64” diagonal)
Aspect Ratio: 16:9
Resolution: 1920x1080
Colors: 16.7M colors
Brightness: 350 nits (typ.)
Contrast Ratio: 1200:1 (typ.)
Response Time: 9 ms
Viewing Angles: H = 178, V = 178 (typ.)
Backlight: DLED
Backlight Life: 30,000 Hours (typ.)

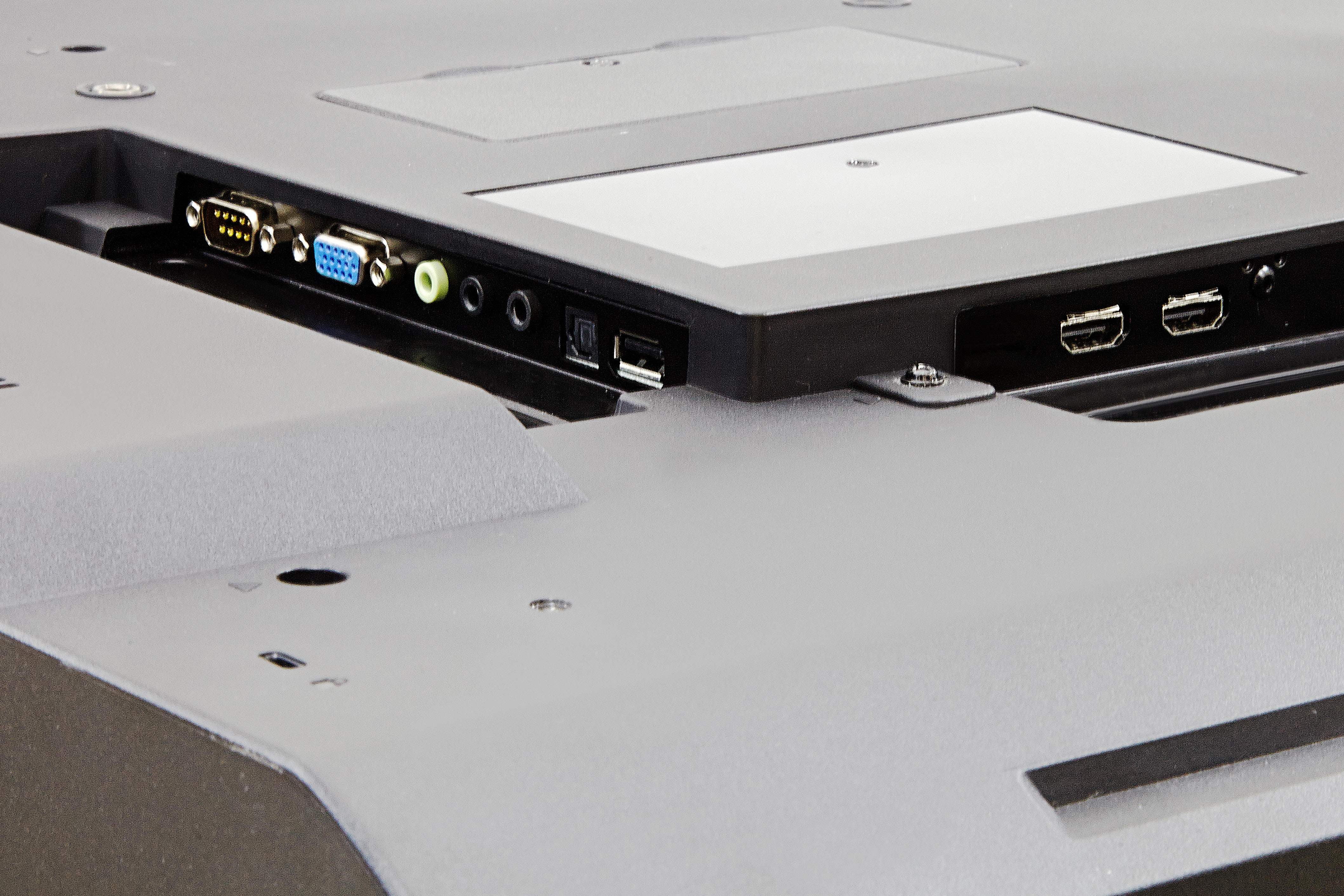

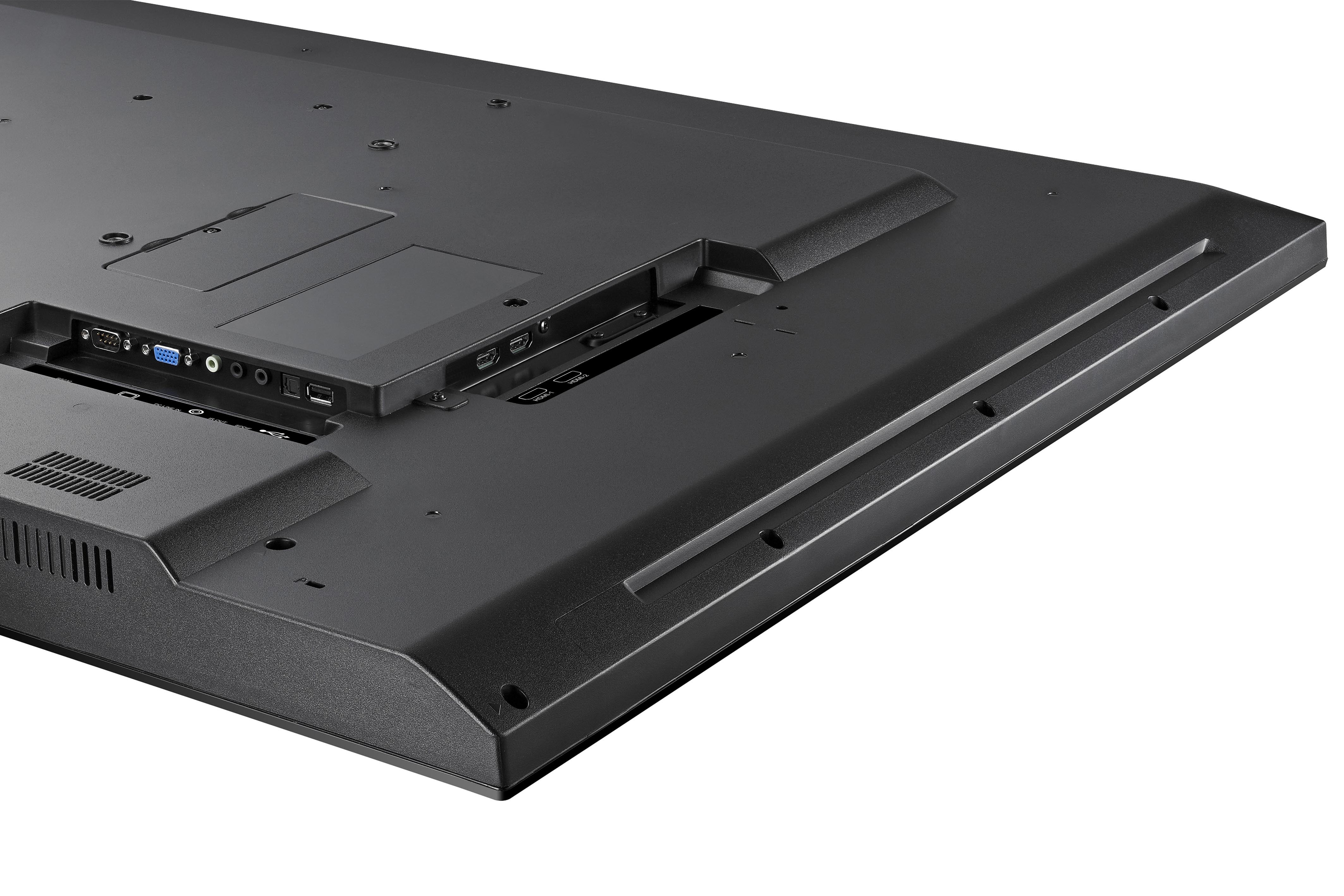

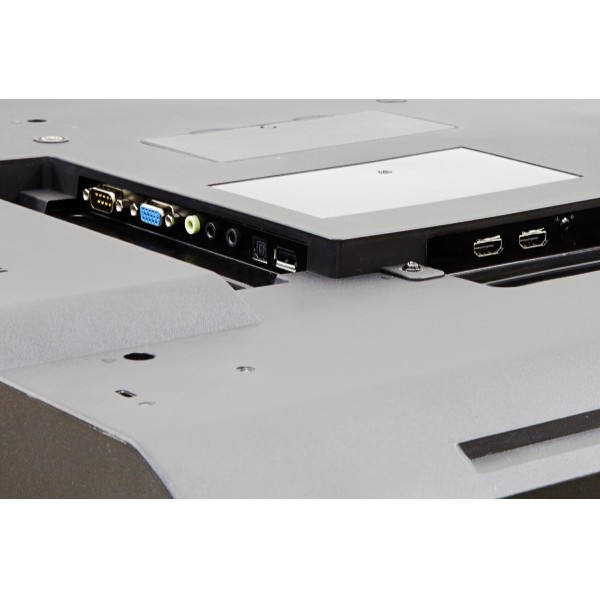

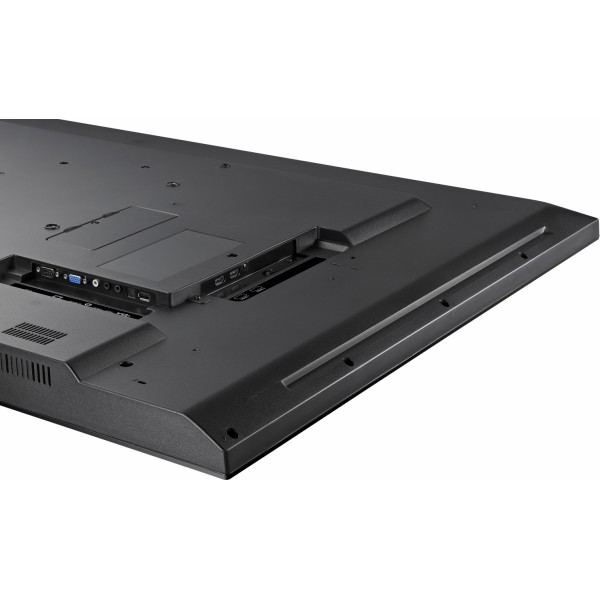

Surface Treatment: Anti-Glare, 3H, Haze 2% (typ) - INPUTHDMI: x2 (1.4)
RGB / VGA: x1
Audio: x1 (3.5mm jack)
RS232: x1
- OUTPUTAudio: x1 (Earphone out) (3.5mm jack)
SPDIF: x1 - USBType A: x1 (2.0)
- SPEAKERS10W x2
- COMPATIBILITYRGB PC/HDMI PC: 480i, 480p,720p,1080i,1080p
HDMI: 480i, 480p,720p,1080i,1080p - CONTROLSPhysical- Top OSD: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU
PICTURE: Auto Picture, Brightness, Contrast, Color, Adanced settings, Reset picture setting
SOUND: Auto sound, Equalizer, Balance, Reset sound settings
CLOCK: Sleep timer, Date/Time.
FEATURES: Language, PC settings, Button lock, Remote lock, Monitor ID, Current software info, Reset AV & features
USB MENU: Photo, Music, Movie - POWERVoltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumption: "On" 105W

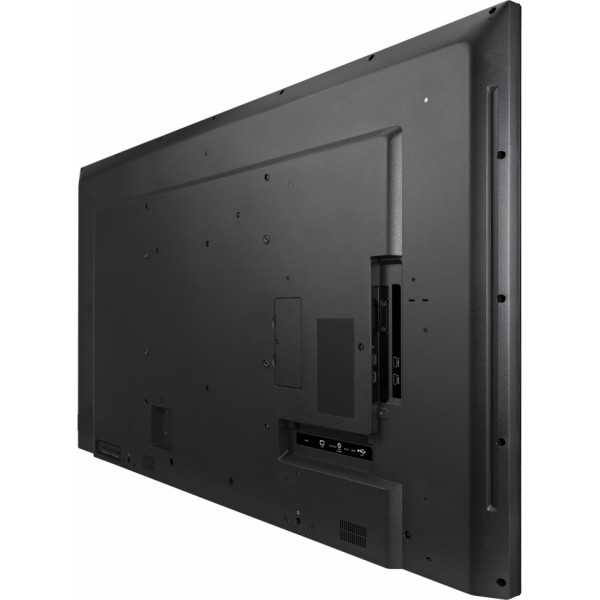

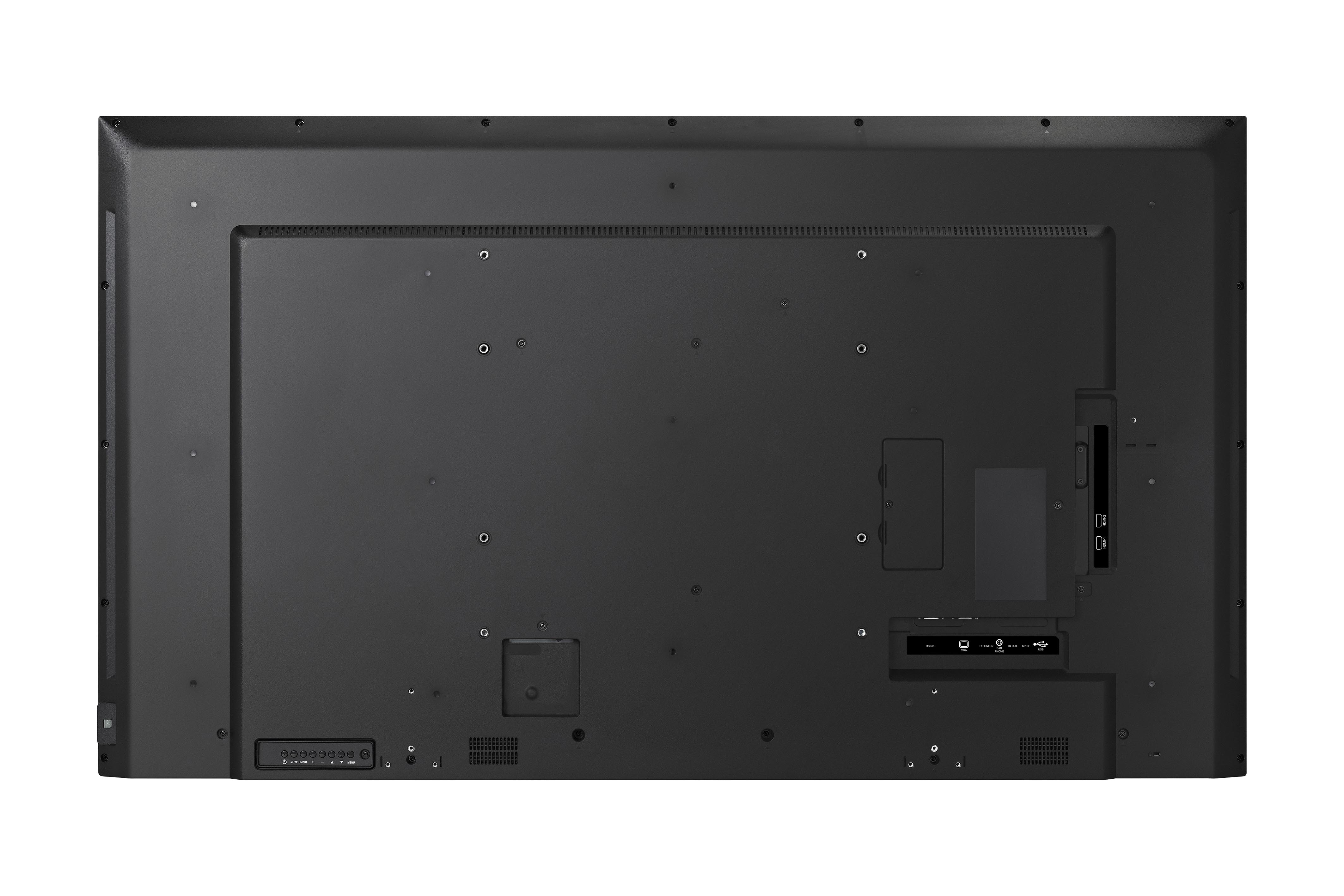

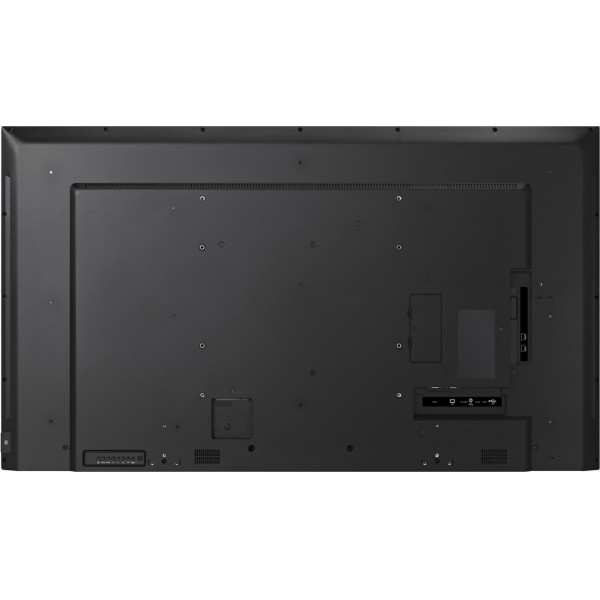

"Off" (Suspend) < 0.5 W - ERGONOMICSWall Mount (VESA® ): 200x400mm / 400x400mm ; Screw: M6*10mm
- OPERATING CONDITIONSTemperature (º C): 0°C to 40°C (Landscape)
Humidity: 20% ~ 80% non-condensing - DIMENSIONS

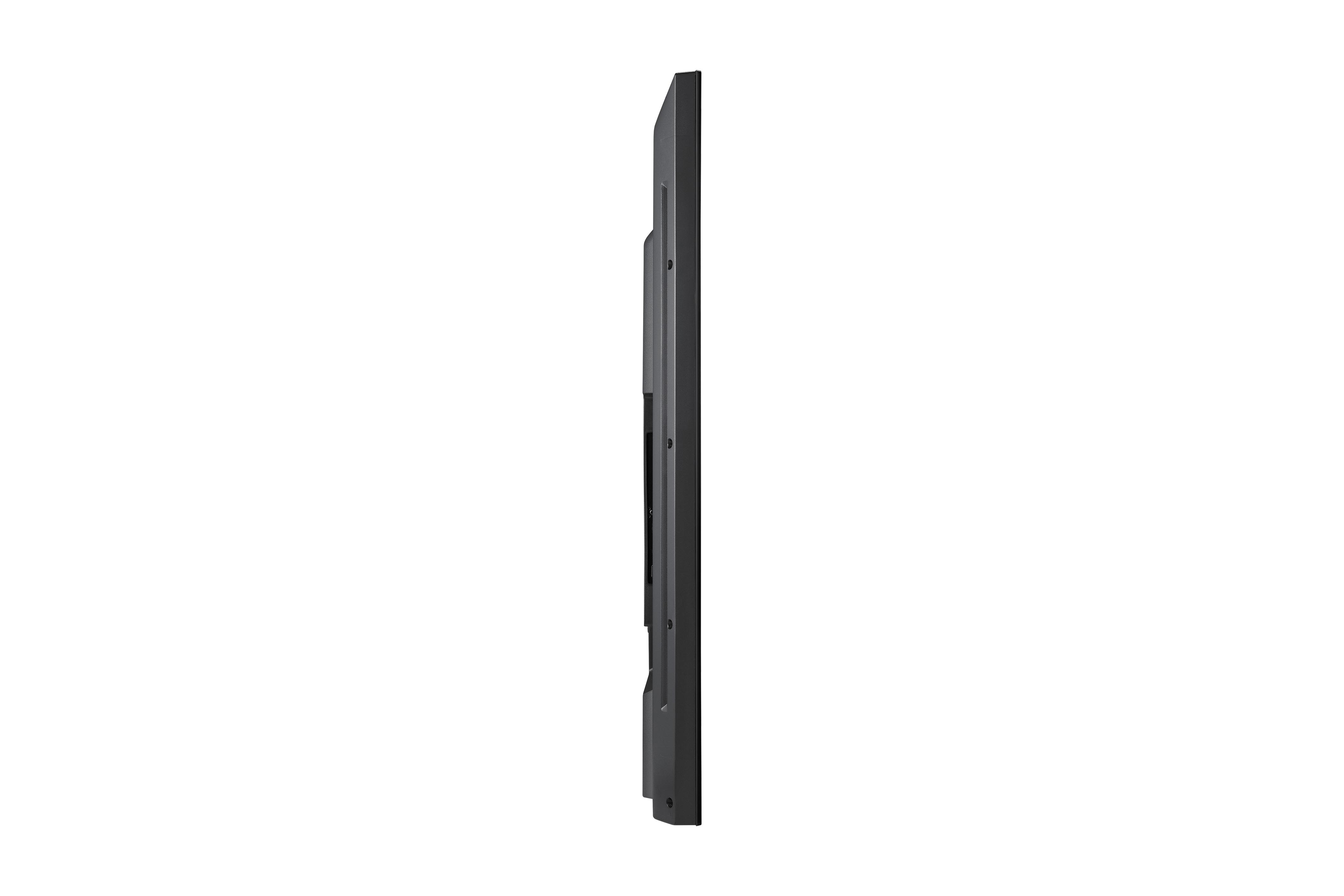

(W x H x D)Physical (inch / mm): 1238.6 x 711.1 x 59.9 mm / 48.76 x 28.0 x 2.36 in.
Packaging (inch / mm): 1365 x864 x185 mm / 53.74 x 34.02 x 7.28 in. - WEIGHTNet (lb / kg): 16.0 kg / 35.27 lbs
Gross (lb / kg): 23.0 kg / 50.71 lbs - WARRANTY**Warranty offered may differ from market to market
- What's in the box?1. CDE5502 commercial display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. VGA cable
7. RS232
*Actual content may differ from market to market
