CDE3204

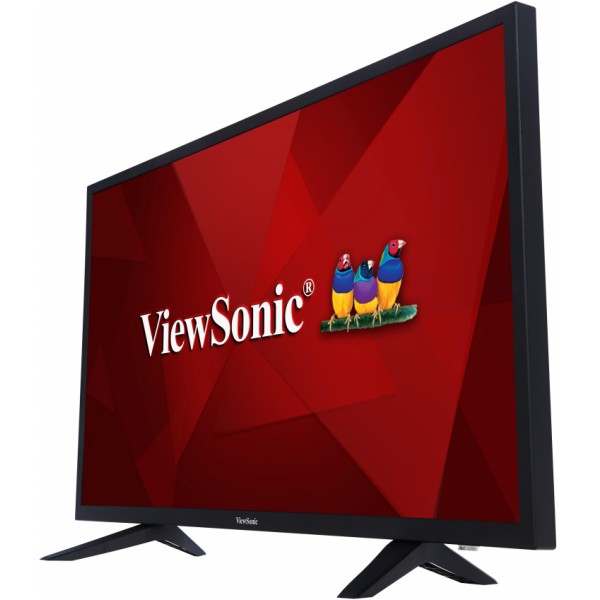

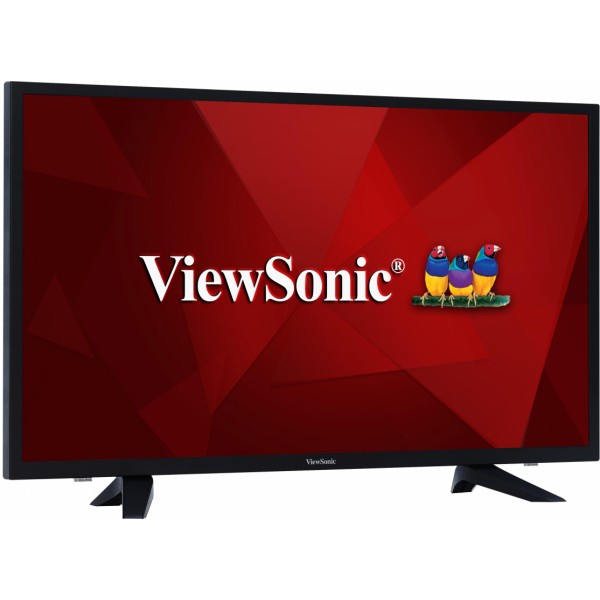

32" (31.5" viewable) Full HD LED Commercial Display
SPECIFICATIONS
- LCD PANELPanel Size: 32'' (31.5” diagonal)
Type/ Tech: ADS type
Display Area (mm): 698.4 (H) x 392.85 (V)
Aspect Ratio: 16:09
Resolution: 1920 x 1080
Colors: 16.7 M colors
Brightness: 350 nits (typ.)
Contrast Ratio: 1200:1 (typ.)
Response Time: 8 ms
Viewing Angles: H = 178, V = 178 (typ.)
Backlight: ELED
Backlight Life: 50,000 Hours (typ.)

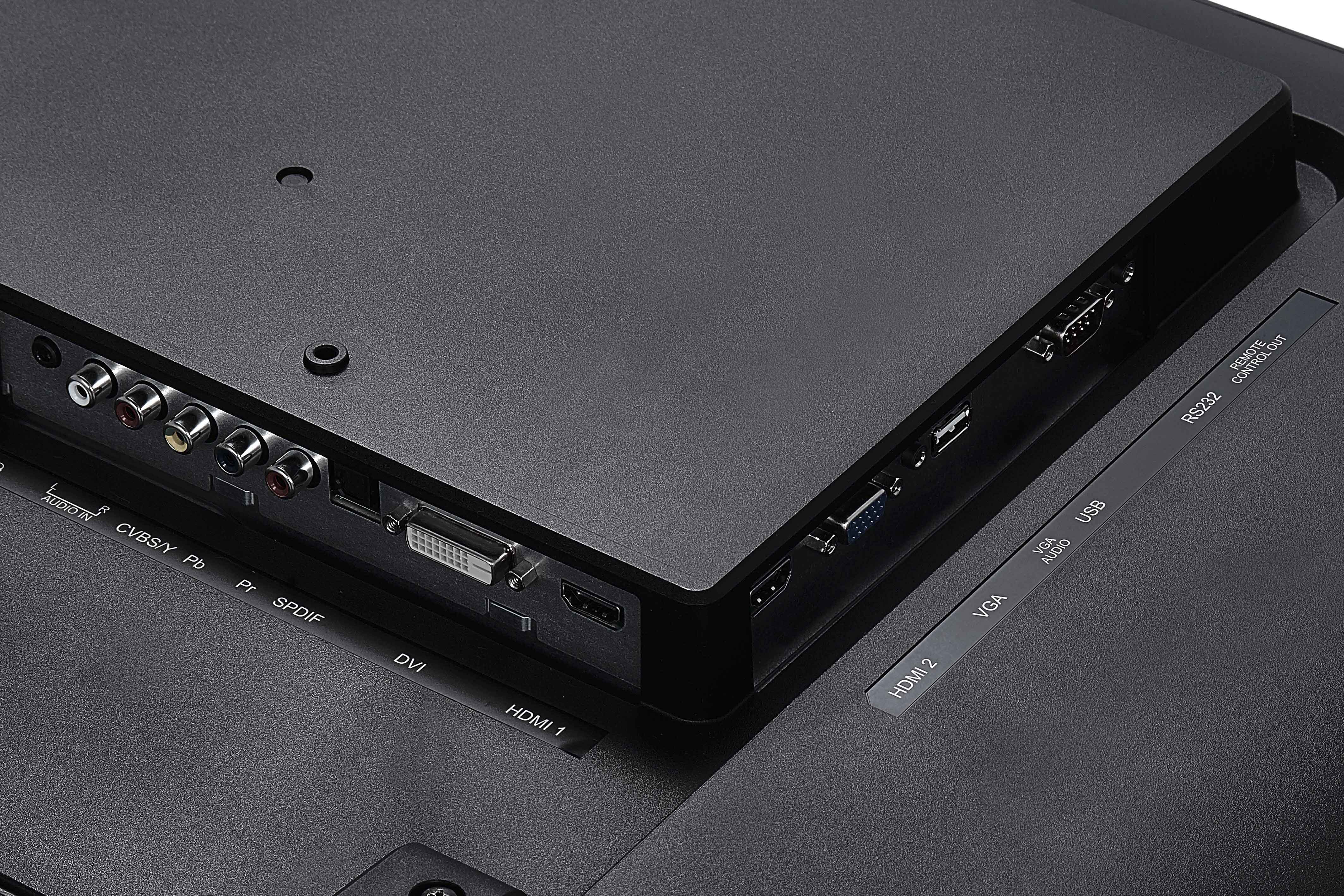

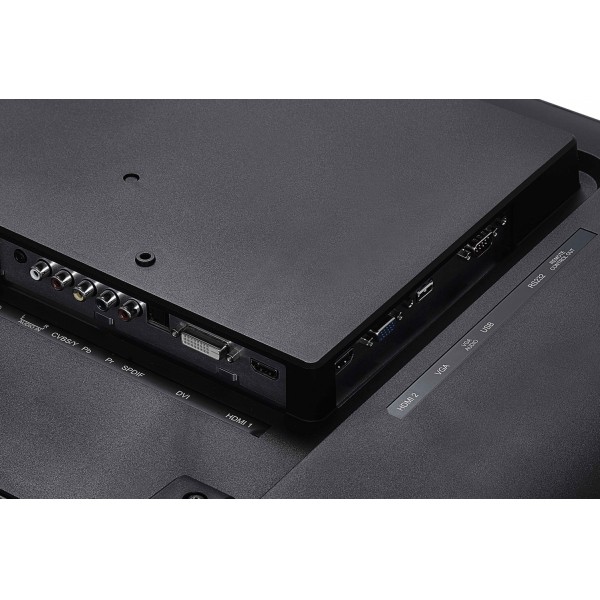

Hardness: Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 1%) - INPUTHDMI: x 2 (HDMI1.4)
RGB / VGA: x 1
DVI: x 1
Audio: x 1
CVBS: x 1
YPbPr: x 1
RS232: x 1 - OUTPUTAudio: x 1
SPDIF: x 1
IR: x 1
- USBType A: x 1
- SPEAKERS10W x 2
- COMPATIBILITYVGA: 480i, 480p,720p,1080i,1080p
DVI: 480i, 480p,720p,1080i,1080p
HDMI: 480i, 480p,720p,1080i,1080p - CONTROLSPhysical- Top OSD: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU
Picture Mode, Contrast, Brightness, Sharpness, Tint, Color, Blue Light Filter, Color Temp,
Zoom Mode, DLC
Sound Mode, Digital Output, Surround Sound, AVC, Balance
Sleep Timer, Time Zone, DST, Time Format, Clock, Time Management
Menu Language, Transparent, OSD Time Out, Restore Default, Software Update(USB),
CEC, Blue Screen, Monitor ID, HDMI Mode
System Lock, Change Password, Input Block - POWERVoltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumption: Normal 41W, Max 68W - ERGONOMICSWall Mount (VESA® ): 200x4200mm ; Screw: M4*L8
- OPERATING CONDITIONSTemperature (º C): 0 to 40°C (Landscape)/0 to 35°C (Portrait)
Humidity: 20% ~ 80% non-condensing - "DIMENSIONS (W x H x D)"Physical (inch / mm): 733 x 468.5 x 191.4 mm / 28.86 x 18.44 x 7.54 in
Physical w/o Stand (inch / mm): 733 x 431.2 x 57.0 mm / 28.86 x 16.98 x 2.24 in
Packaging (inch / mm): 794 x 496 x138 mm / 31.26 x 19.53 x 5.43 in - WEIGHTNet (lb / kg): 6.4 kg / 14.11 lbs
Net w/o Stand (lb / kg): 6.3 kg / 13.89 lbs
Gross (lb / kg): 8.07 kg / 17.79 lbs - What's in the box?1. CDE3204 commercial display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables - CONTACT DetailsGross (lb / kg): 19.8 kg / 43.65 lbs
