LCD Display
TD1656-2K
Key Features
- 16:10 WQXGA (2560x1600) with 99% SRGB coverage
- 2K QHD+ resolution enhances screen mapping for extended displays
- 10-point multitouch* technology provides intuitive screen control
- Ergonomic smart cover doubles as an adjustable stand and protects the monitor while on-the-go
- USB-C ports located on both the right and left sides for versatile connectivity options
- Auto-screen rotation for portrait and landscape layouts
Product Description

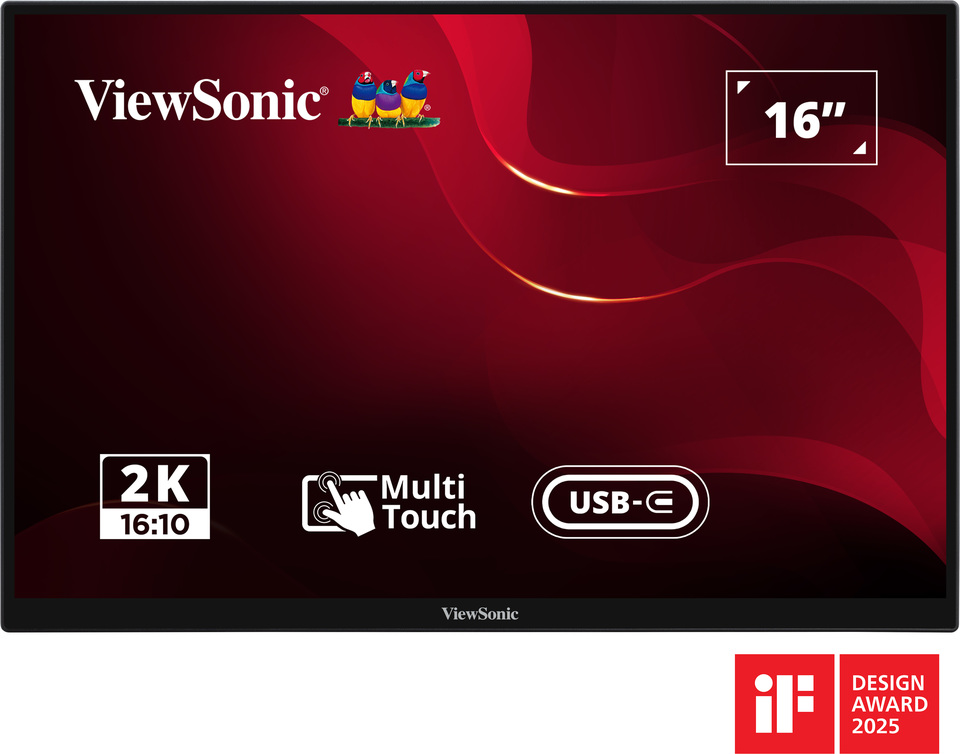

The TD1656-2K is a 16-inch WQXGA/QHD+ (2560x1600) portable business monitor featuring 10-point multitouch. Its 16:10 aspect ratio offers expansive space in both landscape and portrait modes, perfect for multitasking, while the QHD+ resolution elevates clarity and detail for professional tasks. Designed for maximum flexibility and comprehensive protection, this monitor features a smart cover that doubles as an adjustable stand and includes dual USB-C ports for versatile connectivity, making it ideal for professionals and multitaskers on the go.
- Speakers
- Menu Controls Key
- USB Type C *2
Visit Us
- www.viewsonic.com
-
DISPLAY
Display Size (in.): 16 Viewable Area (in.): 16 Panel Type: IPS Technology Resolution: 2560 x 1600 Resolution Type: WQXGA (Wide QXGA) Static Contrast Ratio: 1,500:1 (typ) Dynamic Contrast Ratio: 50M:1 Light Source: LED Brightness: 330 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit true Aspect Ratio: 16:10 Response Time (Typical GTG): 11.6ms Response Time (GTG w/OD): 11.61ms Response Time (Typical Tr+Tf): 20ms Viewing Angles: 178º horizontal, 178º vertical Backlight Life (Hours): 15000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 60 Low Blue Light: Software solution Color Gamut: NTSC: 72% size (Typ)
sRGB: 103% size / 99% coverage (Typ)Pixel Size: 0.135 mm (H) x 0.135 mm (V) Touch Screen: Projected Capacitive, 10-point multi-touch Surface Treatment: Anti-Glare w/ anti-finger print, Hard Coating (≧6H) Cover Glass Thickness: 0.55mm -
COMPATIBILITY
PC Resolution (max): 2560x1600 Mac® Resolution (max): 2560x1600 PC Operating System: Windows 10/11 certified; macOS tested Mac® Resolution (min): 2560x1600 -
CONNECTOR
USB 3.2 Type C DisplayPort Alt mode only : 2 (65W power charger) Power in: USB Type C (with video & data) -
AUDIO
Internal Speakers: 2Watts x2 -
POWER
Consumption (typical): 7.8W Consumption (max): 8.8W Voltage: DC 5V/9V/12V/15V/20V Stand-by: 0.5W Power Supply: External (Optional) -
CONTROLS
Physical Controls: Up; Down, Power On Screen Display: Contrast, Brightness, Volume, Audio Mode, Information, Memory Recall -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
INPUT SIGNAL
Frequency Horizontal: 15 ~ 100KHz Frequency Vertical: 50 ~ 75Hz -
VIDEO INPUT
Digital Sync: Micro-Packet - Type C -
ERGONOMICS
Height Adjust (mm): 50 (by smart cover) Tilt (Forward/Back): 20º / 70 (by smart cover)º Pivot (Right/Left): 90º / 0º -
WEIGHT (IMPERIAL)
Net (lbs): 1.8 Net Without Stand (lbs): 1.8 Gross (lbs): 4 -
WEIGHT (METRIC)
Net (kg): 0.8 Net Without Stand (kg): 0.8 Gross (kg): 1.8 -
DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 17.2 x 11.8 x 2.4 Physical (in.): 14.04 x 9.25 x 0.39 Physical Without Stand (in.): 14.04 x 9.25 x 0.39 -
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 438 x 300 x 61 Physical (mm): 356.68 x 234.92 x 9.9 Physical Without Stand (mm): 356.68 x 234.92 x 9.9 -
GENERAL
Regulations: cTUVus, FCC-B, ICES002, Energy Star, EPEAT, CEC, NOM, Mexico Energy PACKAGE CONTENTS: TD1656-2K x1, USB Type-C Cable (Male-Male) x1, Quick Start Guide x1, Smart cover x1, Passive touch pen x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market Power Management: Energy Star standards, EPEAT
