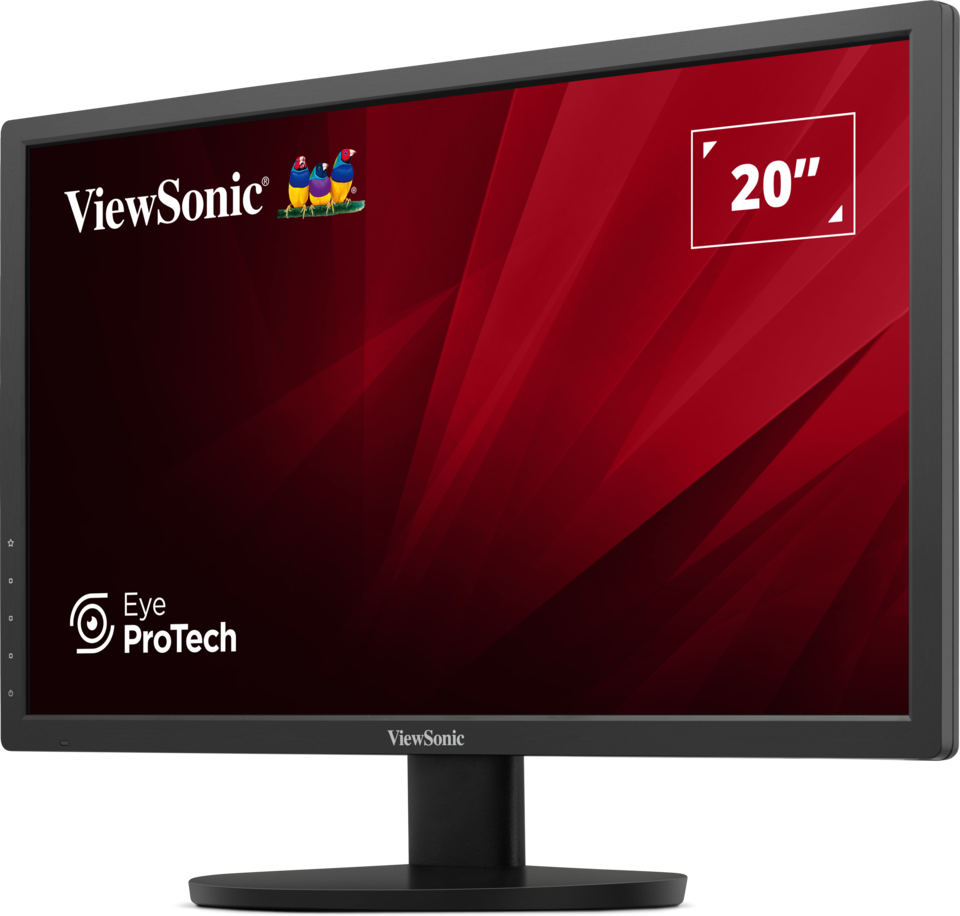

VA2025-H
20” Home and Office Monitor
- WSXGA 1600 X 900 resolution
- HDMI and VGA inputs for flexible connectivity
- Eye ProTech for comfortable viewing
- Eco Mode for low energy consumption
- Various ViewMode color rendering options
OVERVIEW

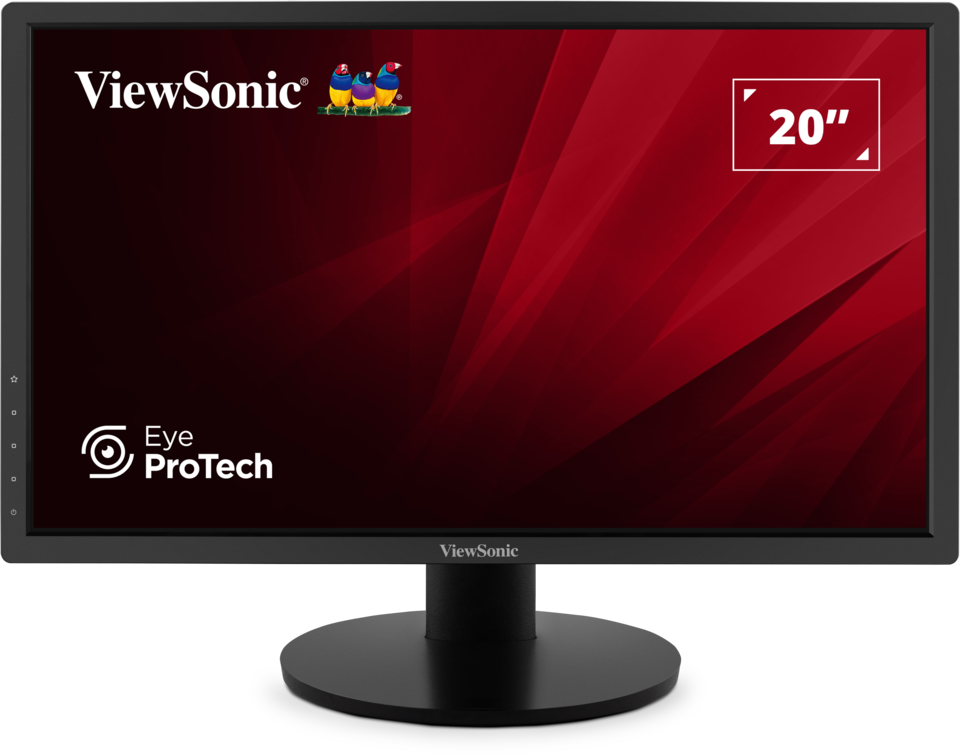

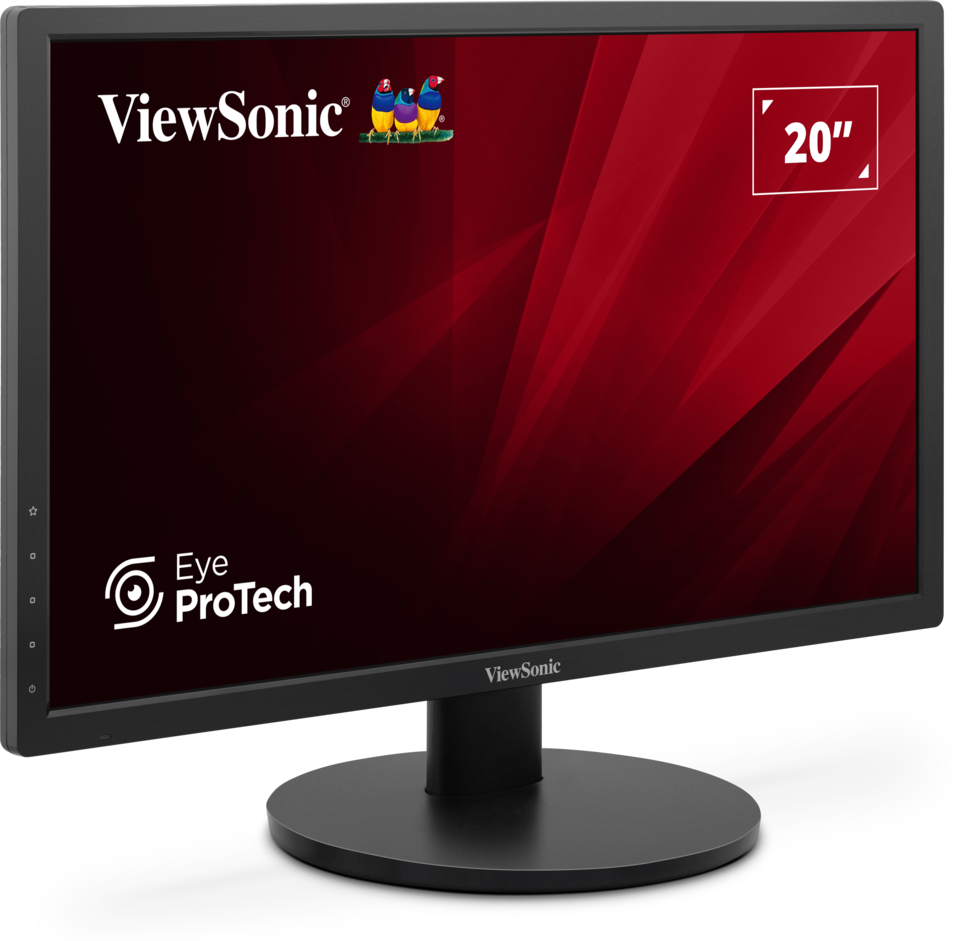

The ViewSonic VA2025-H is a 20” 1600 x 900 resolution monitor featuring HDMI and VGA inputs for business and home use. The optimal screen performance and comfortable viewing is delivered through Eye ProTech technology, and various ViewMode presets. Simply expand your workspace and experience truly seamless visual experience on just one screen with a VESA-compatible mount at a low power consumption.Legacy Application-friendly
The VA2025-H boasts a 1600 x 900 resolution, ensuring sharp text and brilliant HD image quality. With a 16:9 aspect ratio, the display is designed to accommodate all legacy and business-related applications.16:9 Aspect Ratio, 1600 x 900 Resolution
React Instantly
Experience better performance and smooth pixel transitions with a fast 5ms (MPRT) response time. React faster and work with precision.5ms Response Time
Connection Flexibility
HDMI and VGA inputs give you the freedom to connect your monitor to a wide range of devices.HDMI / VGA
Eye ProTech for Comfortable Viewing
Reduce your eye strain and maintain fresh-feeling eyes with ViewSonic Eye ProTech. The Flicker-Free technology eliminates screen flickering, while the Blue Light Filter minimizes harmful blue light from extended viewing periods, ensuring comfortable screen viewing.Flicker-Free & Blue Light Filter
Color Rendering Options
ViewSonic’s ViewMode offers “Movie”, “Web”, “Text”, “Mono” and three types of game presets: FPS, RTS, and MOBA. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized, satisfactory viewing experience for different uses.ViewMode: Movie/Web/Text/Mono/FPS/RTS/MOBA
Low Energy Consumption
Designed with energy efficiency in mind, ViewSonic’s Eco Mode successfully reduces carbon footprint and significantly lowers office overhead costs.Eco Mode

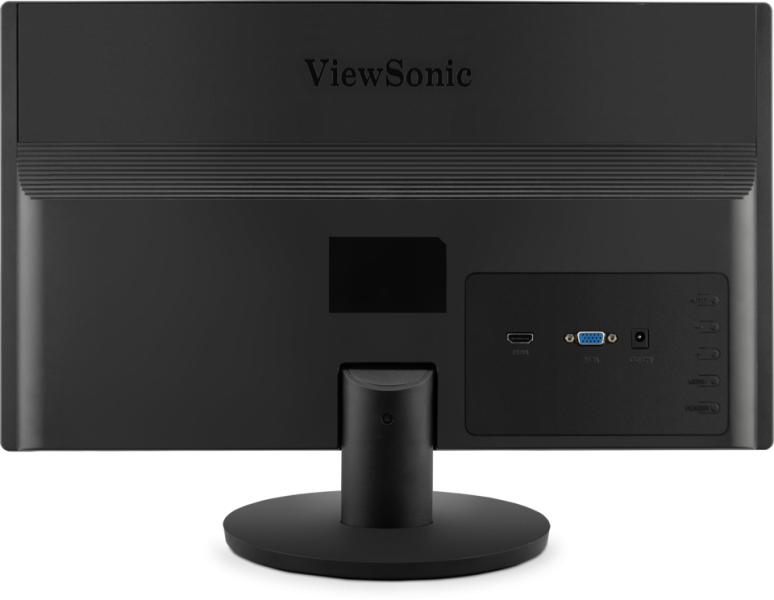

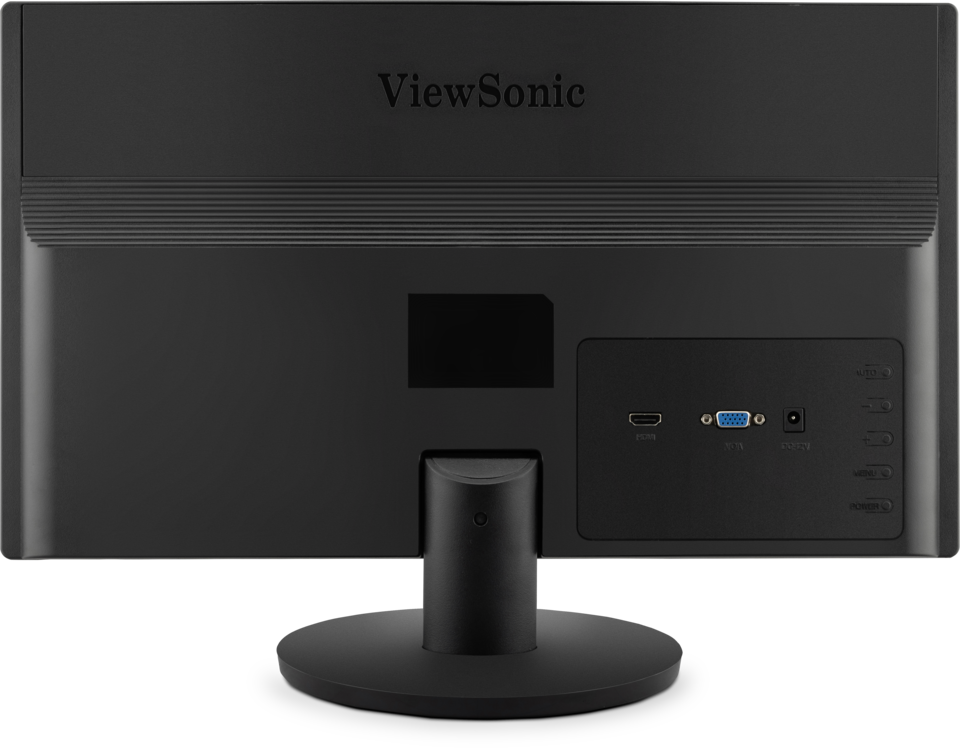

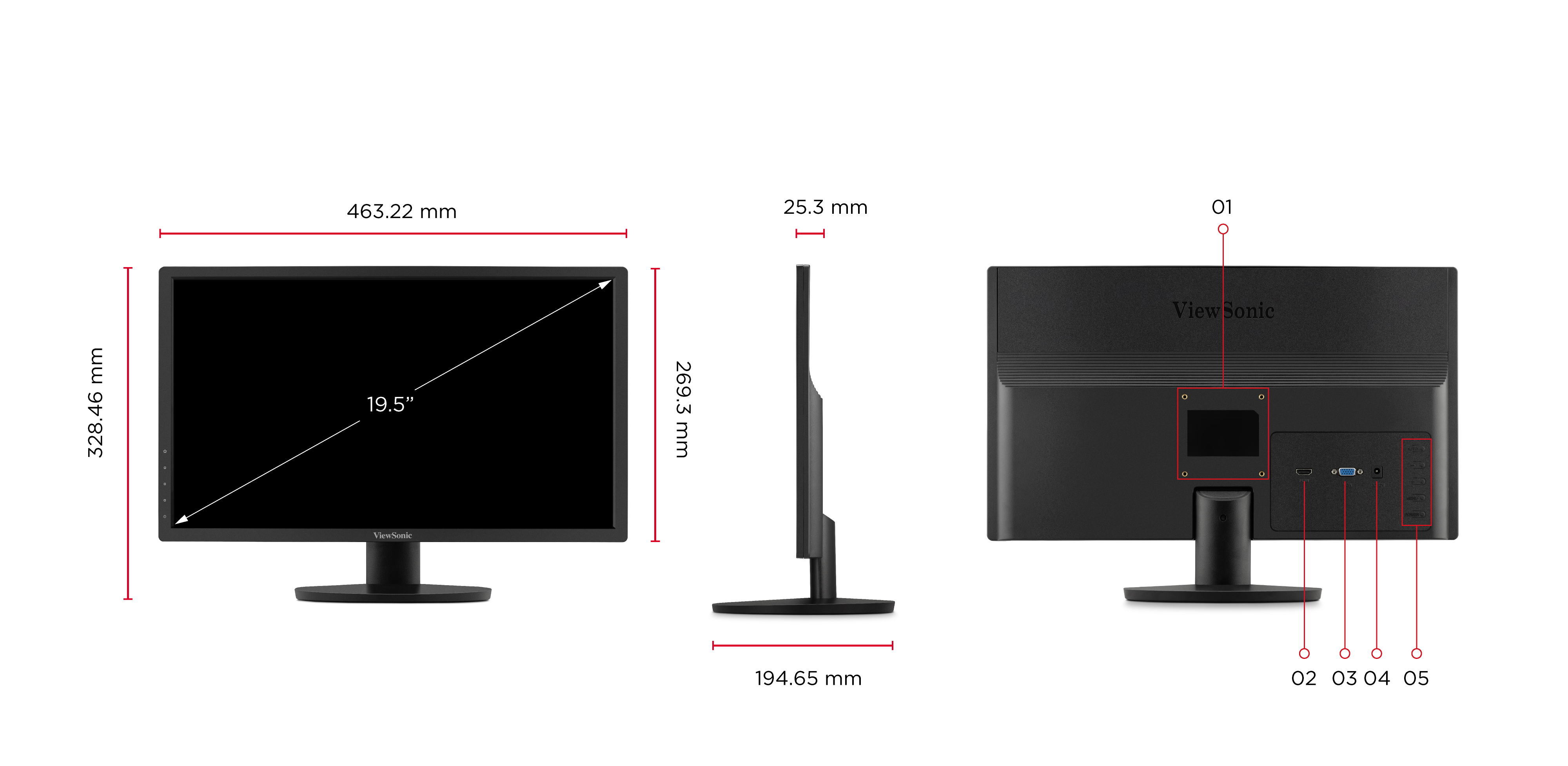

Dimension & I/O Ports

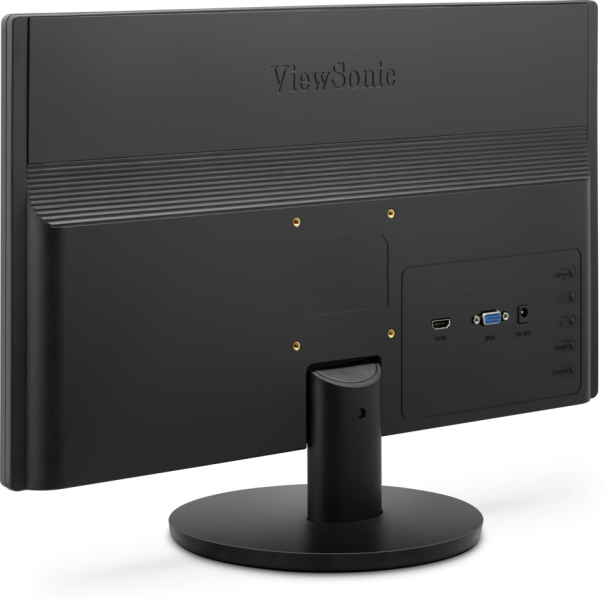

Conveniently mount the monitor to your preference by utilizing the 75mm x 75mm VESA-compatible mount design.75mm x 75mm VESA mount

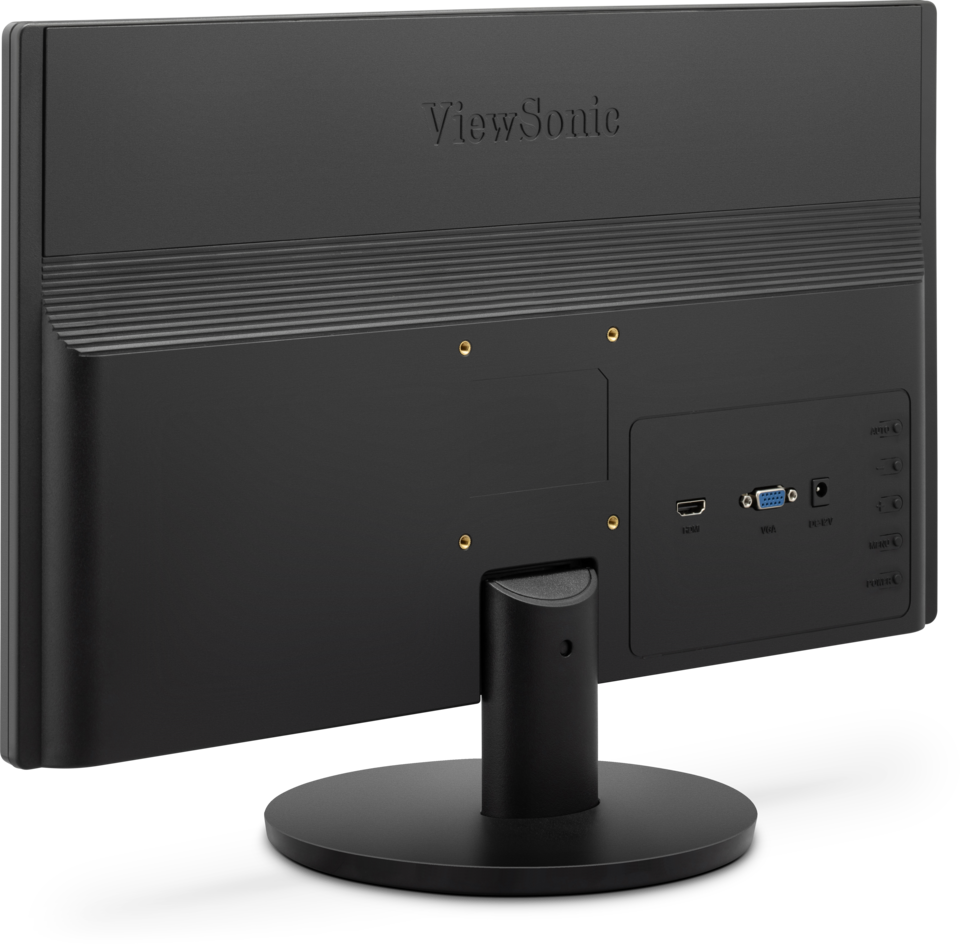

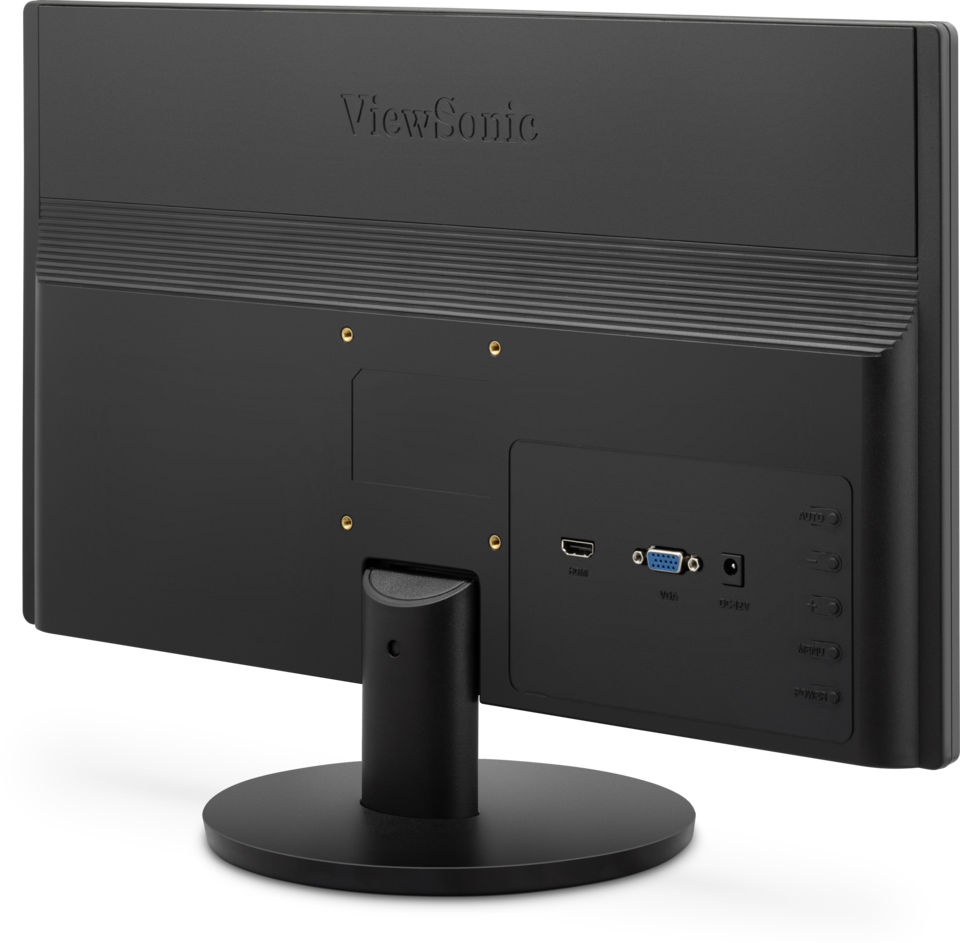

- VESA Compatible
(Wall Mount 75 x 75mm) - HDMI
- VGA
- Power In
- Menu Control Panel
SPECIFICATIONS
- DisplayDisplay Size (in.): 20
Viewable Area (in.): 19.5
Panel Type: TN Technology
Resolution: 1600 x 900
Resolution Type: WSXGA (Wide Super XGA)
Static Contrast Ratio: 600:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Viewing Angles: 90º horizontal, 65º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 103% size (Typ)
Pixel Size: 0.27 mm (H) x 0.266 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 1600x900
Mac® Resolution (max): 1600x900
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1600x900 - ConnectorVGA: 1
HDMI 1.4: 1
Power in: DC Socket (Center Positive)
- PowerEco Mode (Conserve): 11W
Eco Mode (optimized): 14W
Consumption (typical): 17W
Consumption (max): 22W
Voltage: AC 100-240V
Stand-by: 0.3W
Power Supply: External Power Adaptor - ControlsPhysical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
On Screen Display: Input Select, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Wall Mount VESA Compatible: 75 x 75 mm
- Input SignalFrequency Horizontal: 24 ~ 83KHz
Frequency Vertical: 50 ~ 76Hz - Video InputDigital Sync: TMDS - HDMI (v1.4)

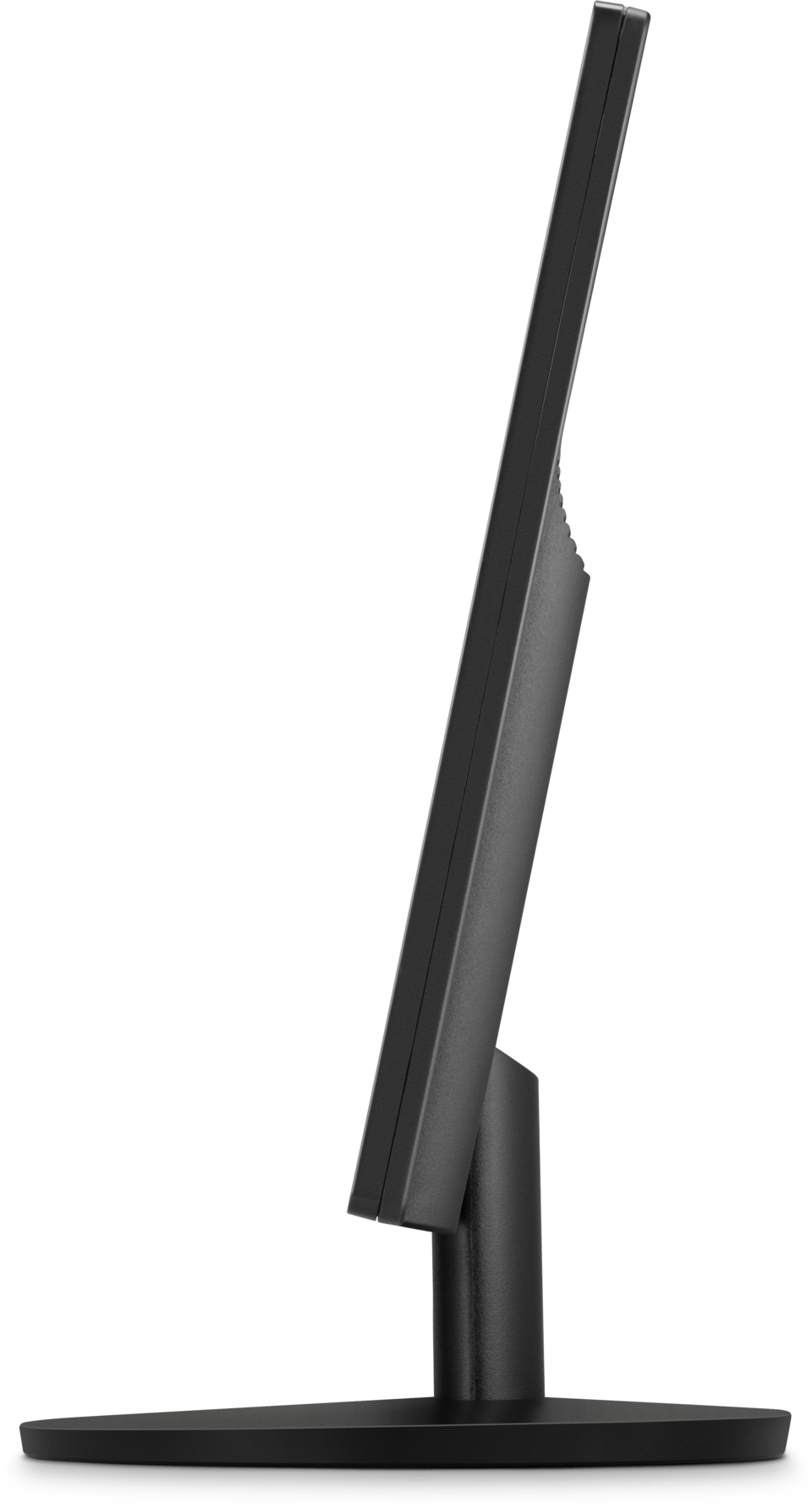

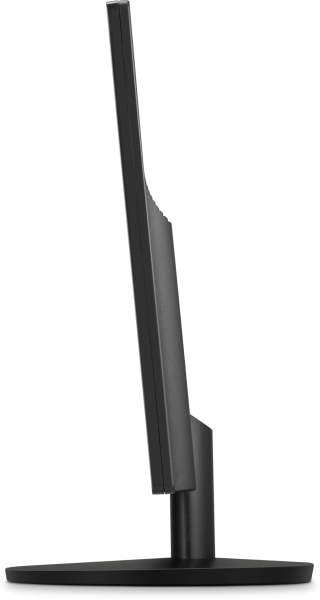

Analog Sync: Separate - RGB Analog - ErgonomicsTilt (Forward/Back): -4º / 14º
- Weight (imperial)Net (lbs): 3.5
Net Without Stand (lbs): 3.1
Gross (lbs): 5.3 - Weight (metric) Net (kg): 1.6
Net Without Stand (kg): 1.4
Gross (kg): 2.4 - Dimensions (imperial) (wxhxd)Packaging (in.): 20.5 x 13.2 x 3.9
Physical (in.): 18.24 x 12.93 x 7.66
Physical Without Stand (in.): 18.24 x 10.6 x 1 - Dimensions (metric) (wxhxd)Packaging (mm): 520 x 335 x 100
Physical (mm): 463.22 x 328.46 x 194.65
Physical Without Stand (mm): 463.22 x 269.3 x 25.3 - GeneralRegulations: RoHS, WEEE, BIS
PACKAGE CONTENTS: VA2025-H x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
