VA1653

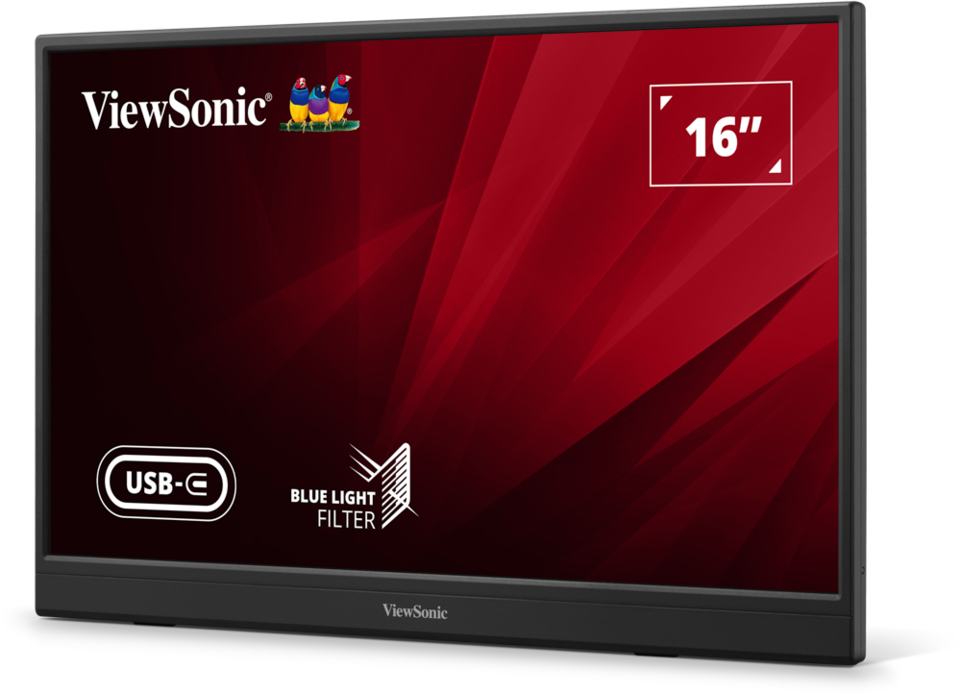

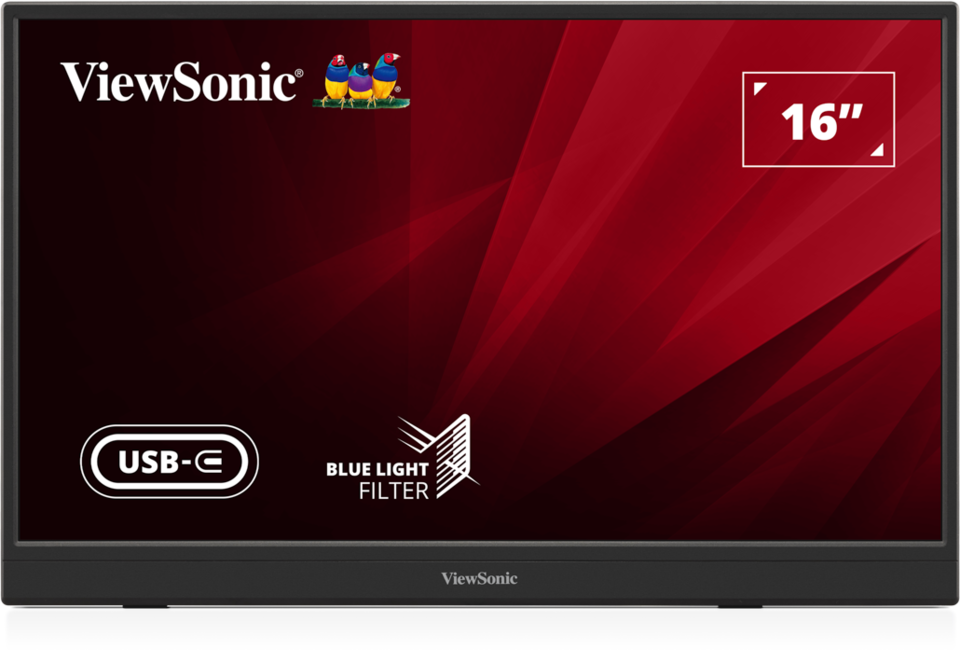

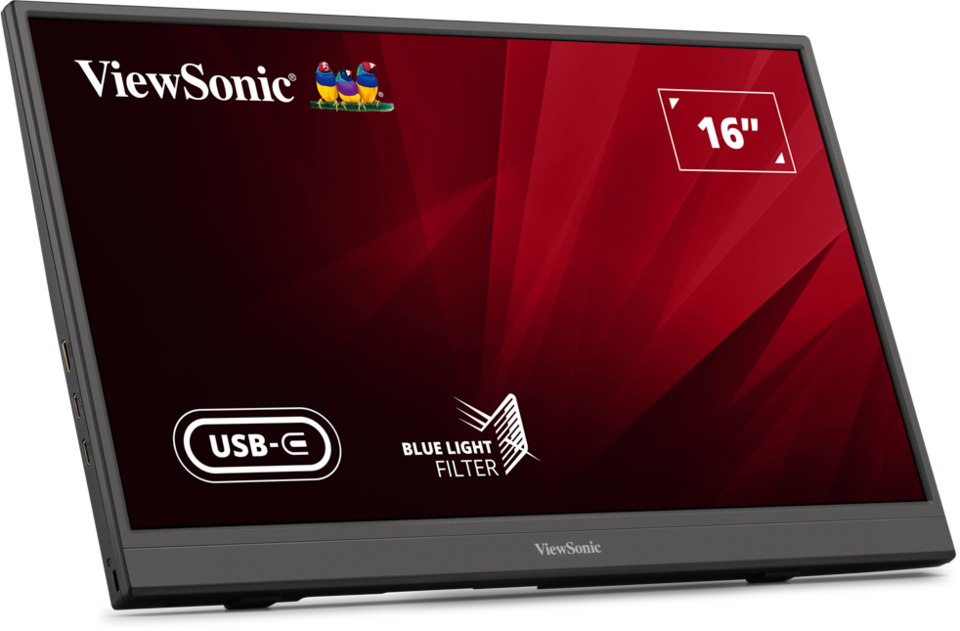

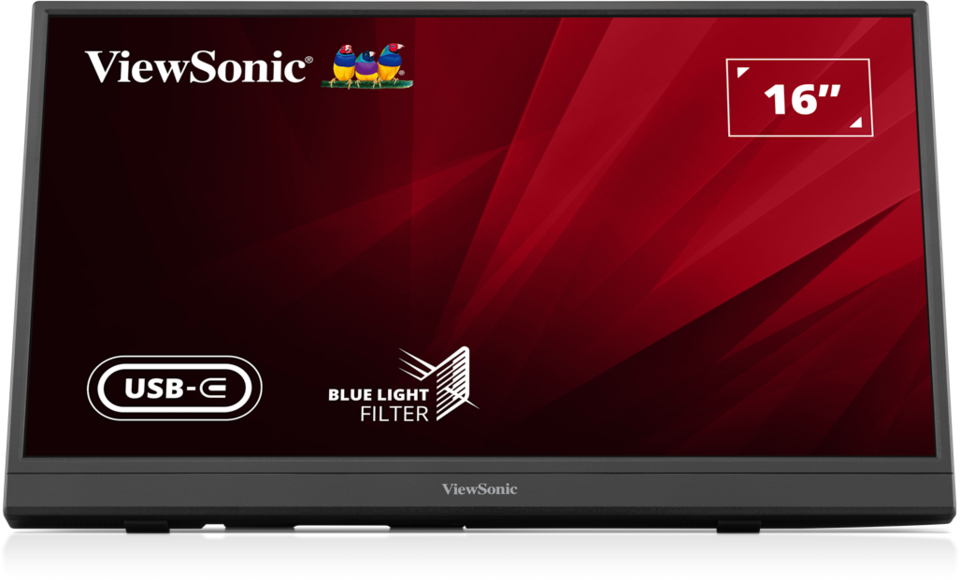

16” Full HD USB-C Lightweight Portable Monitor
- Compact, lightweight and portable
- Easily extend display to a larger screen from mobile devices
- Mini-HDMI and USB-C inputs for flexible connectivity
- Lightweight plastic case design with a foldable stand
- Flexible display setup – offers reliable support for seamless productivity
*External power adaptor required for power charging function
OVERVIEW
The ViewSonic VA1653 is a lightweight, portable 16” Full HD monitor with USB-C and mini HDMI connectivity. Designed to boost productivity on the go, extend your screen from a phone, tablet, or laptop to a larger display anytime, anywhere. With a foldable stand, freely adjust the screen’s viewing angles to match your preferred work setup.Take Productivity with You
Stay productive wherever you are with an expanded screen real estate from your laptop, tablet or phone using the VA1653 portable monitor, perfect for multitasking and meetings on-the-go.Extend Mobile Devices’ Display to a Larger 15.6” Viewable Screen
Carry with Ease
Designed to be thin and lightweight, this compact monitor can be easily carried around wherever you go without adding extra burden.Thin & Lightweight 9.97 mm, 0.7 KG

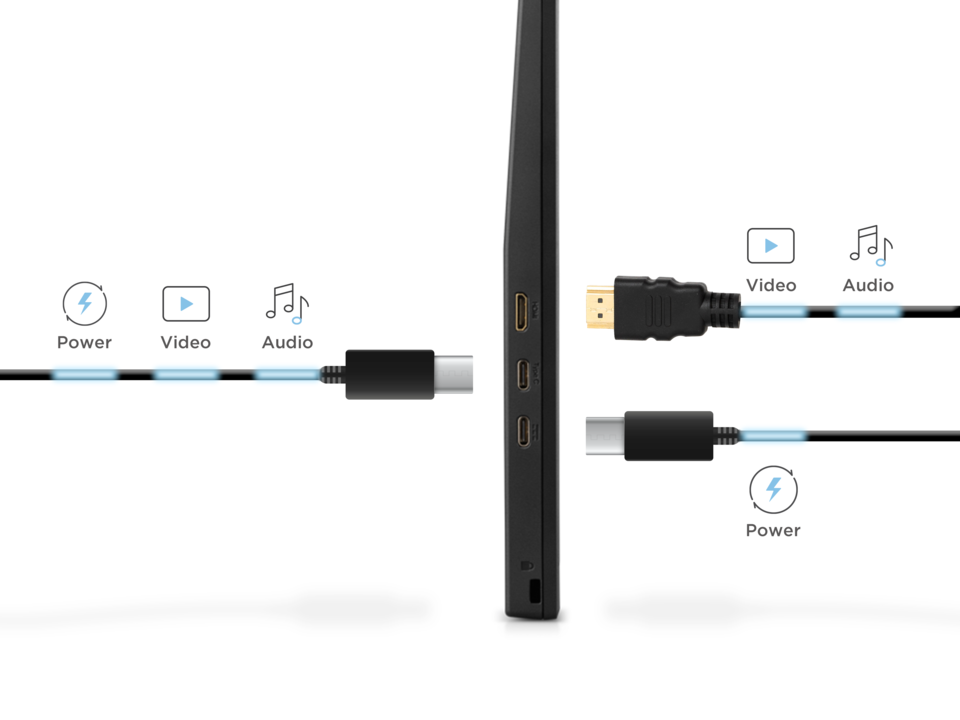

Work Anywhere with Flexible Connectivity
Connect seamlessly to various multimedia devices using USB-C and mini-HDMI.Multiple Connectivity Options

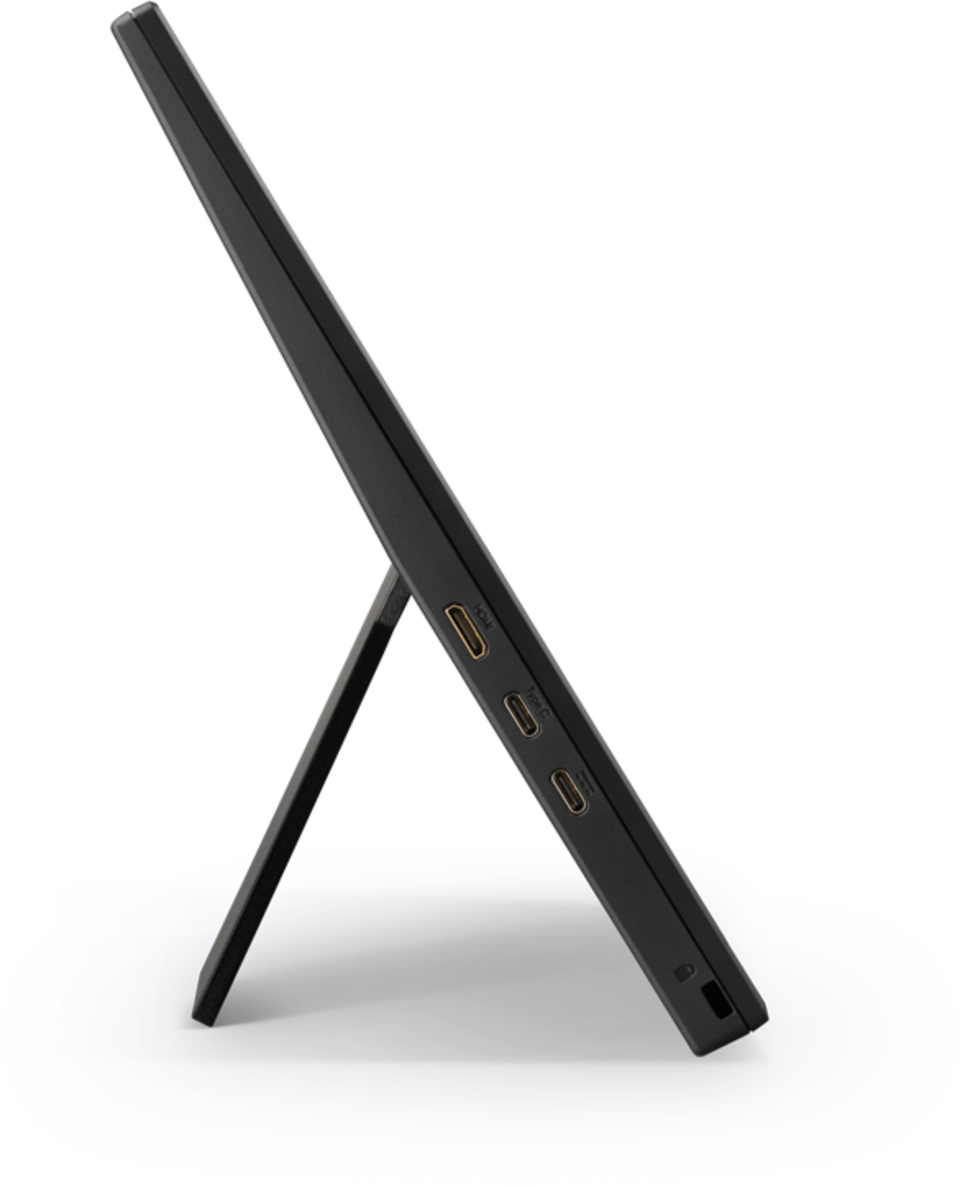

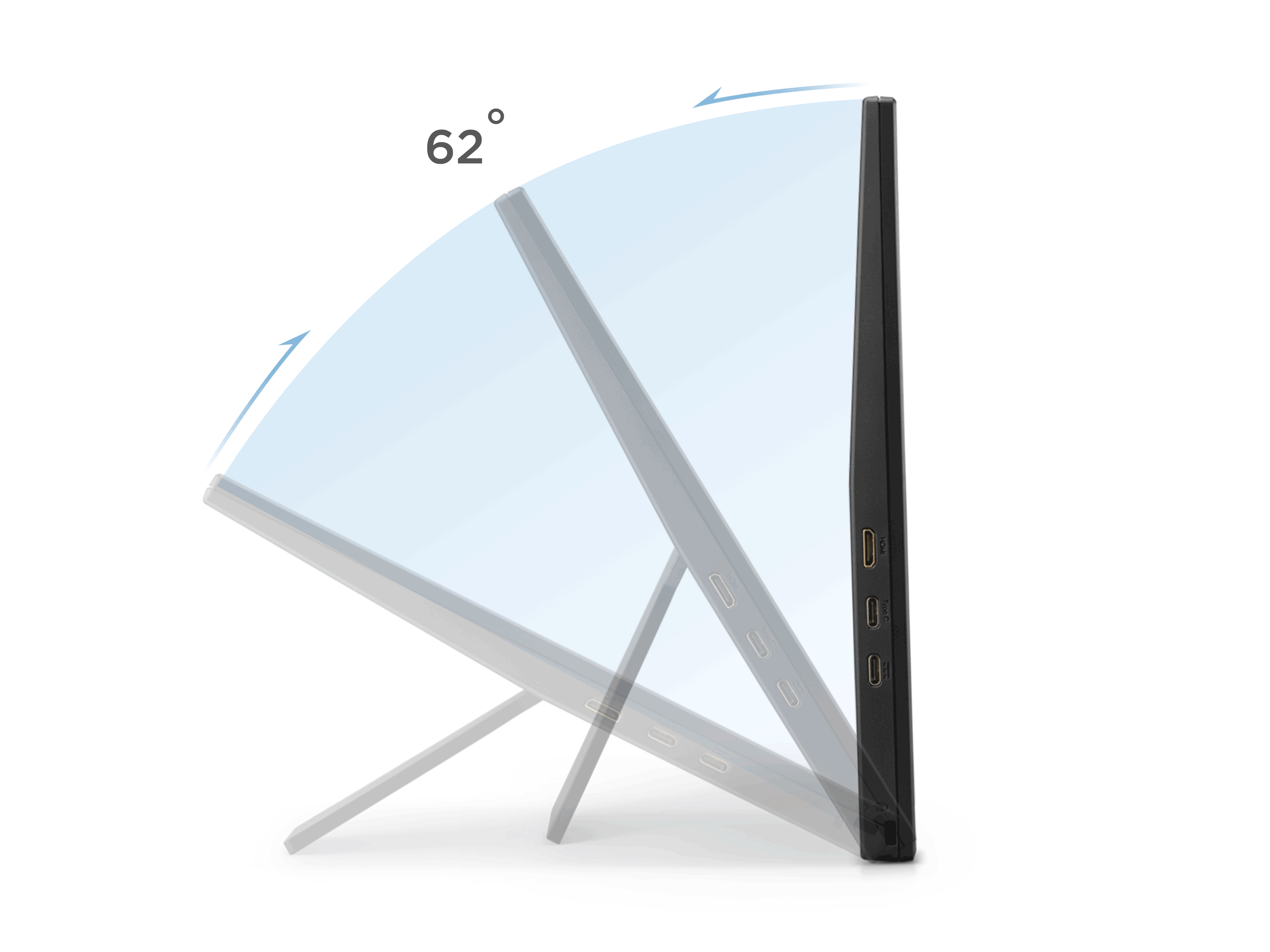

Choose Your Desired Working Angle

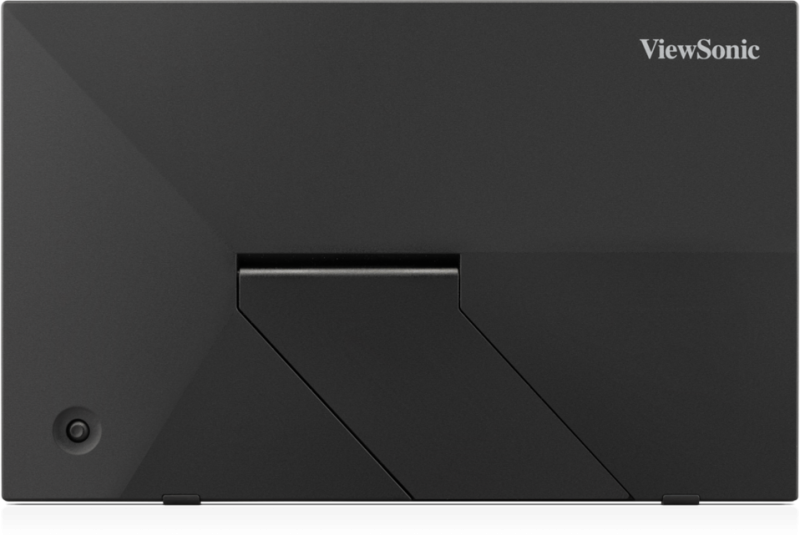

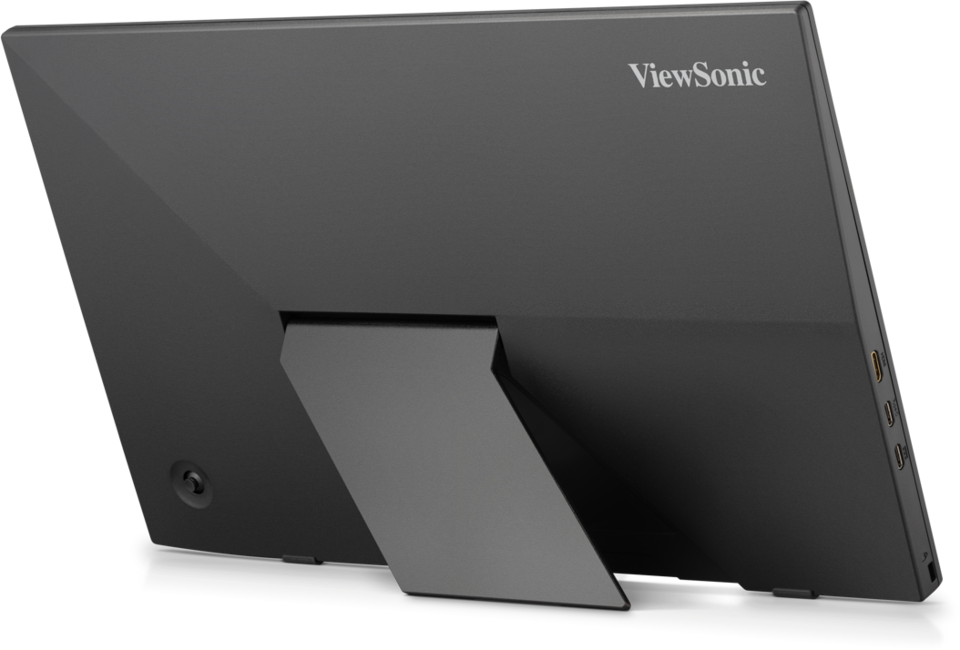

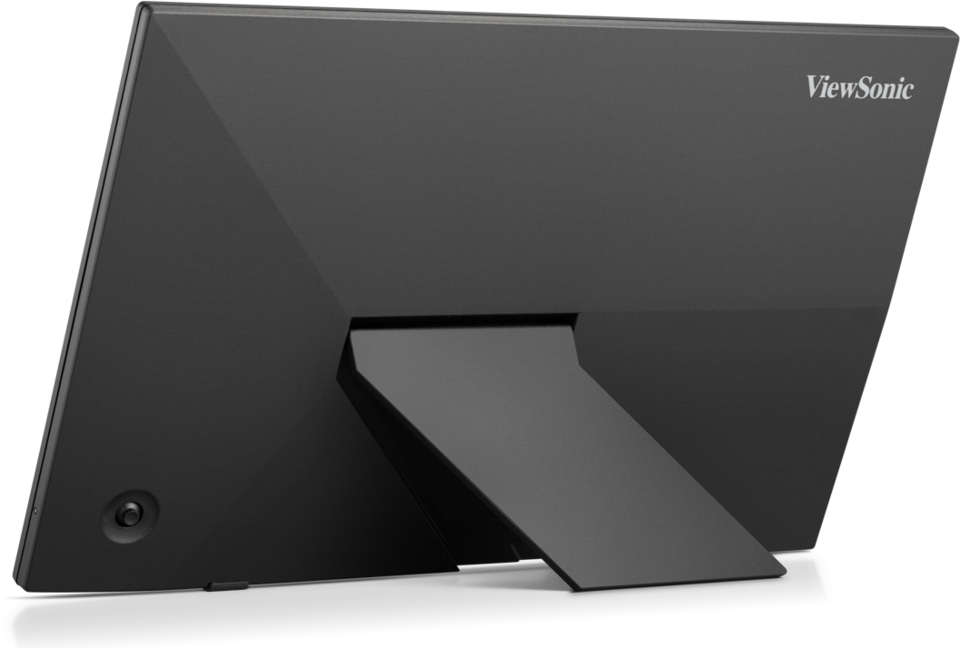

Easily adjust the screen viewing angle with the built-in foldable stand, featuring a durable hinge that can tilt up to 62 degrees.Built-in Foldable Stand with Durable Hinge
Seamless Operation Across Multi-Device
Easily connect your laptop, tablet, or phone to the VA1653 portable monitor, which is compatible with multiple operating systems including Windows, MacOS, Chrome, Android, iOS, and iPadOS.* Smart device needs Display Port 1.2 Alt Mode and USB-C Power Delivery.
** iPhone/iPad use requires Lightning to HDMI Adapter, HDMI to mini-HDMI cable (included), and external power source.
Android and iOS Compatible
Certified Environmentally Sustainable
Environmentally conscious, this monitor adheres to the ENERGY STAR® standards, saving energy cost and reducing environmental impact over its lifecycle.*Energy savings vary based on actual usage and other factors.
Energy Star

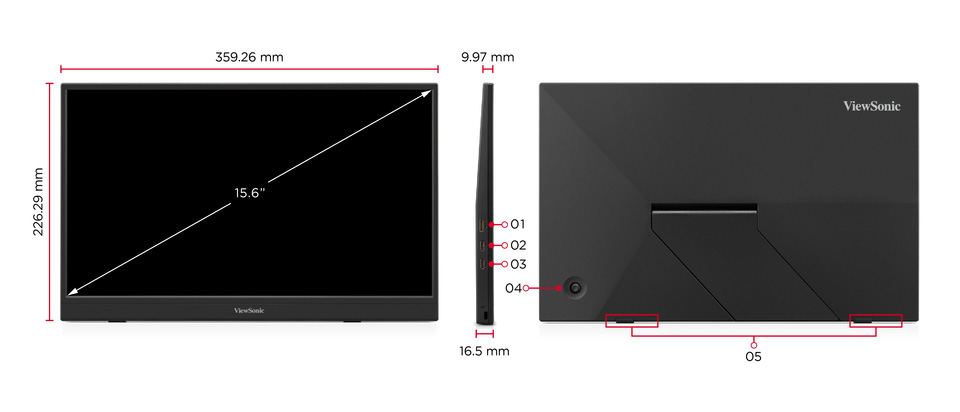

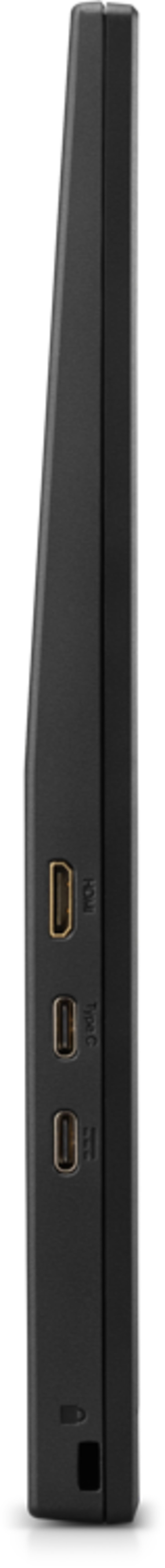

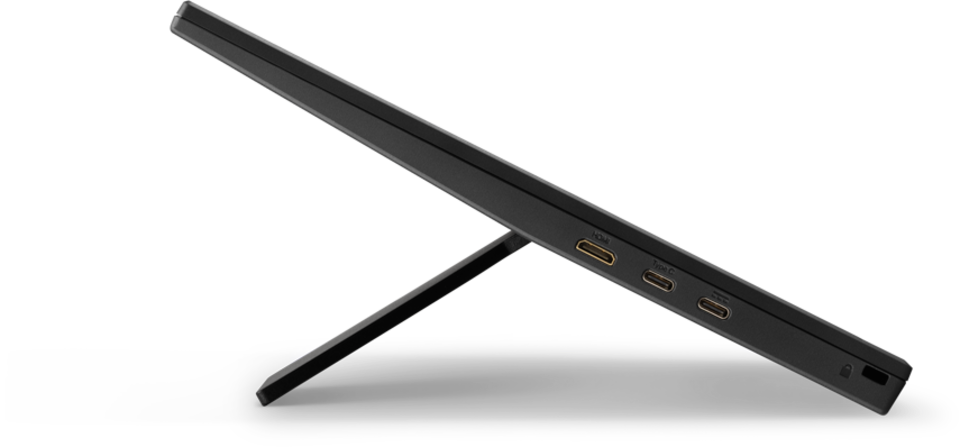

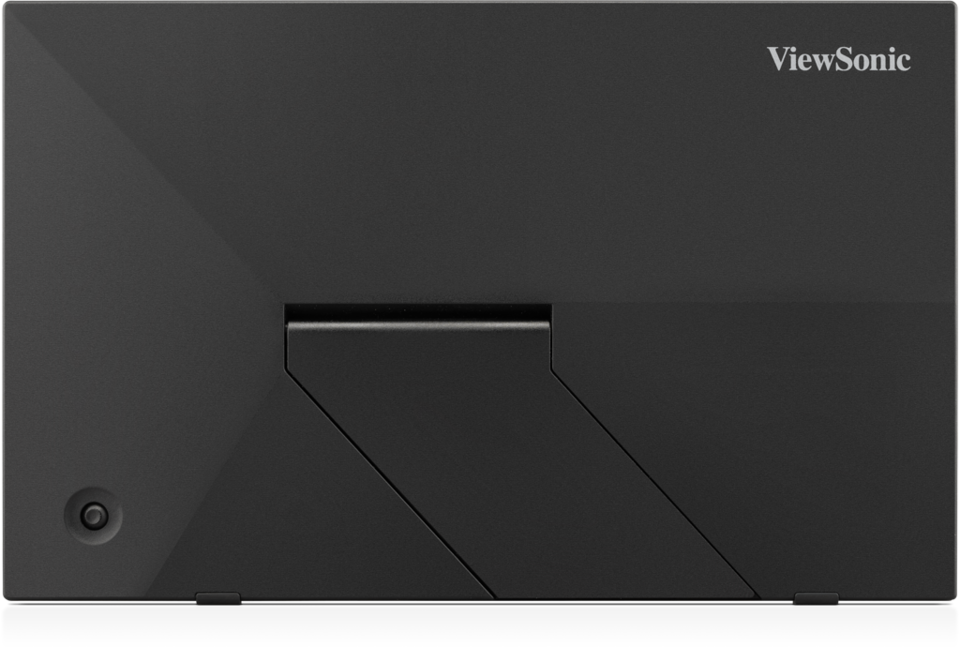

Dimension & I/O Ports
- Mini HDMI
- USB-C(Power Charge 15W)
- USB-C(Power Input)
- Joystick Key
- Speaker
SPECIFICATIONS
- DisplayDisplay Size (in.): 16
Viewable Area (in.): 15.6
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 7ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Color Gamut: NTSC: 45% size (Typ)
sRGB: 64% size (Typ)
Pixel Size: 0.179 mm (H) x 0.179 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080 - Connector
- AudioInternal Speakers: 0.8Watts x2
- PowerEco Mode (Conserve): 5.1W
Eco Mode (optimized): 6W
Consumption (typical): 7W
Consumption (max): 7.3W
Voltage: DC 5V/9V/12V/15V/20V
Stand-by: 0.5W
Power Supply: External (Optional) - Additional HardwareKensington Lock Slot: 1
- ControlsPhysical Controls: Up, Right, Down, Left, Power
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Input SignalFrequency Horizontal: mini HDMI (v1.4): 15 ~ 82KHz, Type C: 24 ~ 82KHz
Frequency Vertical: mini HDMI (v1.4): 58 ~ 62Hz, Type C: 58 ~ 62Hz - Video InputDigital Sync: TMDS - mini HDMI (v1.4), Micro-Packet - Type C
- ErgonomicsTilt (Forward/Back): 30º / 63º
- Weight (imperial)Net (lbs): 1.5
Net Without Stand (lbs): 1.5
Gross (lbs): 2.6 - Weight (metric)Net (kg): 0.7
Net Without Stand (kg): 0.7
Gross (kg): 1.2 - Dimensions (imperial) (wxhxd)Packaging (in.): 17.2 x 11.3 x 2.2
Physical (in.): 14.14 x 8.91 x 0.65
Physical Without Stand (in.): 14.14 x 8.91 x 0.65 - Dimensions (metric) (wxhxd)Packaging (mm): 438 x 286 x 55
Physical (mm): 359.26 x 226.29 x 16.5
Physical Without Stand (mm): 359.26 x 226.29 x 16.5 - GeneralRegulations: cTUVus, FCC-B, ICES003, Energy Star, NOM, Mexico Energy, RoHS, WEEE

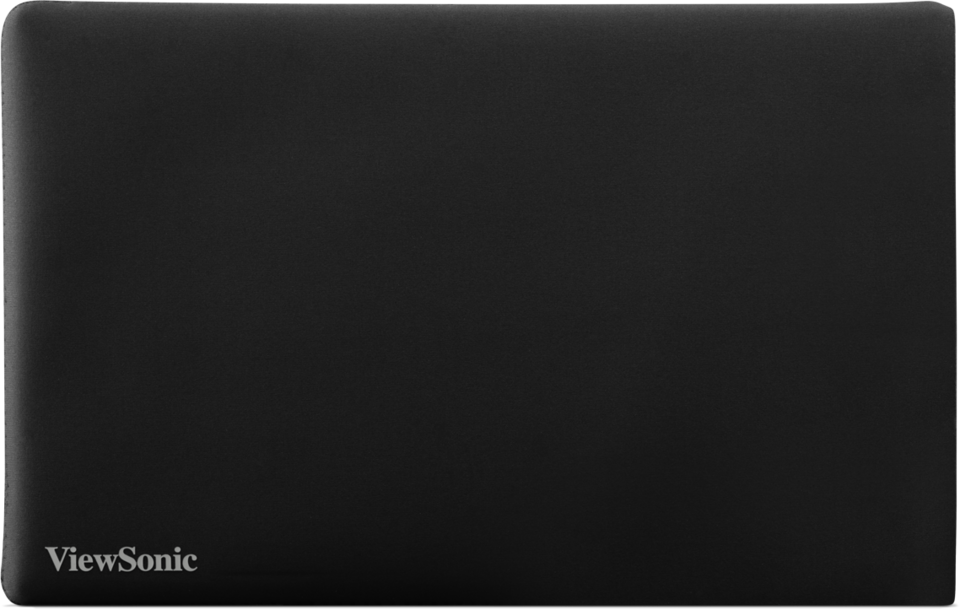

PACKAGE CONTENTS: VA1653 x1, USB Type-C Cable (Male-Male) x1, Quick Start Guide x1, Sleeve case x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards
