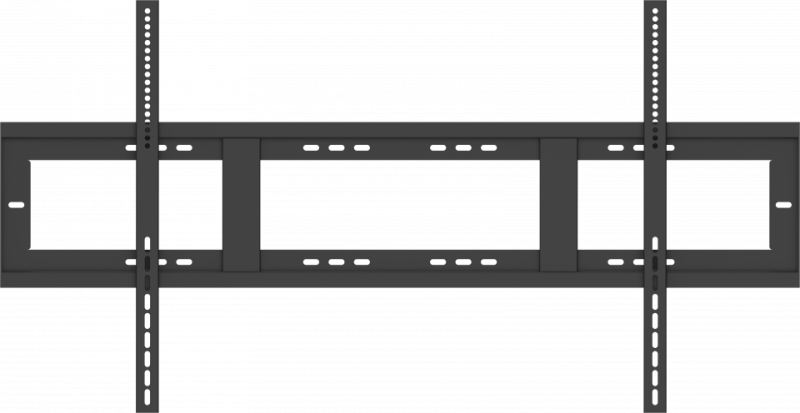

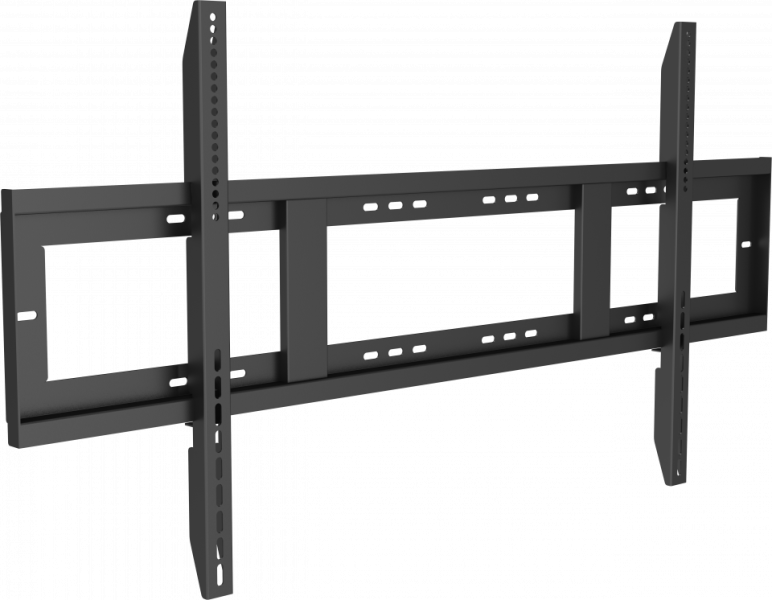

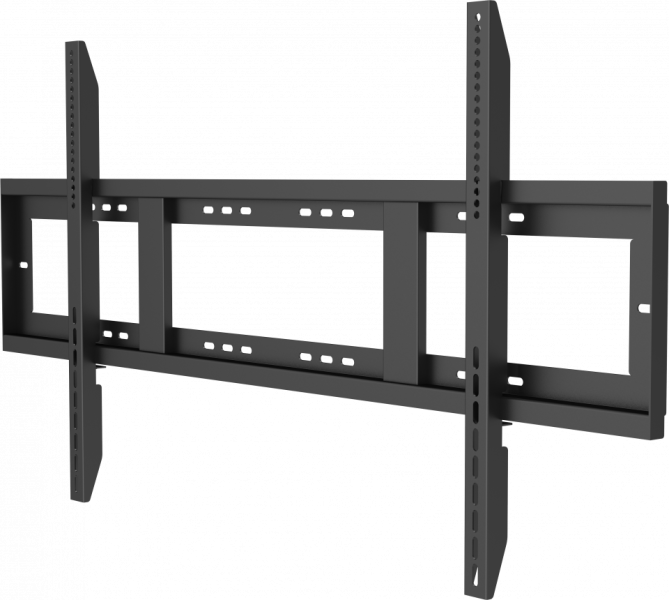

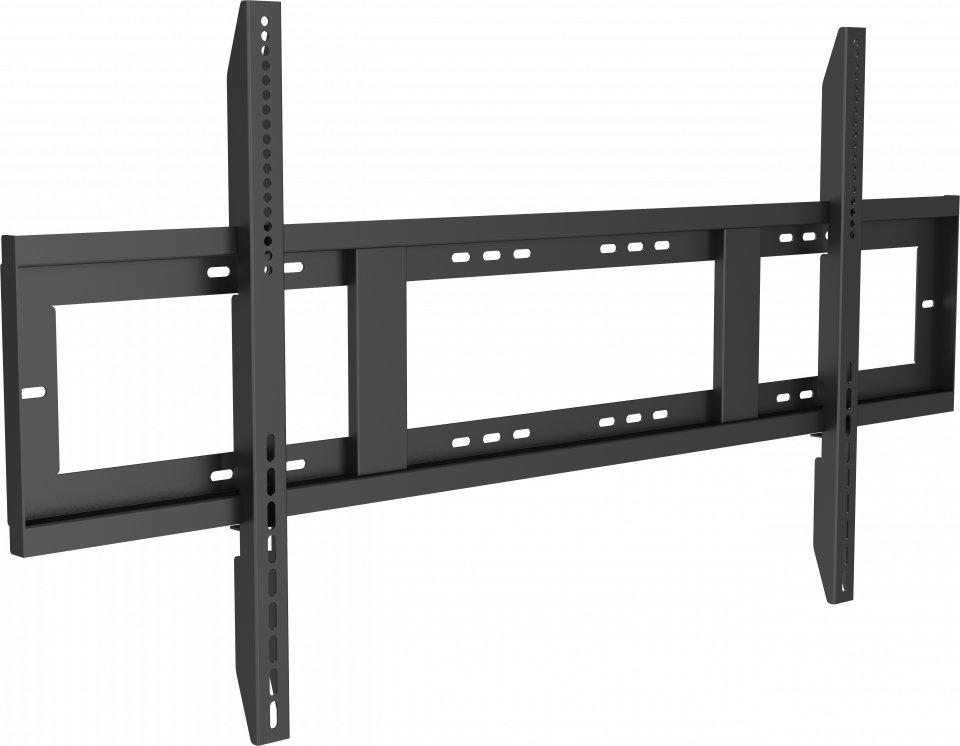

ViewSonic Commercial Display Accessories VB-WMK-003

VB-WMK-003

Fixed Wall Mount for ViewBoard and Presentation Display

Secure locking screw
Up to 150kg load capacity and 105" display
VSEA standard support up to 1000x600mm
Durable coated finish

GALLERY

OVERVIEW

The VB-WMK-003 is designed to mount 55" to 105" ViewBoard and Presentation Display

Captivating Visuals that Shine Bright 1

Captivating Visuals that Shine Bright 1

SPECIFICATIONS

Mounting Pattern Max. Mount
up to 1000x600mm
Screw Type
M5, M8
Material
Iron

Dimension (WxHxD)
Physical (WxHxD): 1260×650×45mm / 49.6x 25.6 x 1.77 in
Packaging (WxHxD): 1340×358×60mm / 52.75 x 14.1 x 2.36 in
Weight (Net)
Net: 6.8kg / 15 lb (Support Max. Weight: 150 kg)
Gross: 7.6 kg / 16.76lb
Support Flat Panel Size
55"~105"
Min. Distance To The Wall
45 mm / 1.77 in
Included Accessories
1.Expansion rubber: Φ12×60mm, PMMA, 10 PCS (8 pcs for installation, 2 pcs for spare)
2.Screw to fix IFP on wall mount：M8×25mm, 6 PCS (4 pcs for installation, 2 pcs for spare)
3.Screw to fix wall mount on wall: M8.0×60mm, 8.8H, 10 PCS (8 pcs for installation, 2 pcs for spare)
4.Screw for spare: M5×15mm, 4 pcs (2 pcs for installation, 2 pcs for spare)
5.Washer：Φ 20× Φ 8.5× 1.5mm, 10 PCS (8 pcs for installation, 2 pcs for spare)
6.Guide X 1

COMPATIBLE WITH VB-WMK-003

105” 5K Presentation Display

55" 4K Presentation Display

65" 4K Presentation Display

75" 4K Presentation Display
