Coming Soon

MRC1010-TN

Teams Rooms Touch Console

  • High-clarity anti-glare 10.1” Full HD touchscreen
  • Direct HDMI Ingest support for BYOD presentations
  • Auto on/off with a human presence sensor for an instant meeting start and battery saving

OVERVIEW

The MRC1010-TN Teams Rooms Touch Console is the cornerstone of the ViewSonic Meeting Space Solution for Microsoft Teams Rooms. Tailored to enhance collaboration in meeting spaces of diverse sizes, it features a 10.1" high-clarity anti-glare FHD touch display with direct HDMI Ingest for smooth, seamless, and efficient BYOD presentations. Integrating a human presence sensor, the console automatically activates from sleep mode once the room has been entered, ensuring that your meeting is ready to commence the moment you are.

Your Meeting Space. Your Way.

SEE FULL SOLUTION

Full Meeting Control at Your Fingertips

The MRC1010-TN Teams Rooms Touch Console, with a 10.1” Full HD touch display and anti-glare surface, effortlessly links to the MPC310-W31-TU Teams Rooms PC via USB-C. Featuring Direct HDMI Ingest connectivity for BYOD presentations and an intuitive Microsoft Teams interface, it simplifies meeting initiation, content sharing, and collaboration, enabling seamless participation.

Start Meetings with a Simple Move

Start Meetings with a Simple Move

The MRC1010-TN Teams Rooms Touch Console automatically activates the Microsoft Teams Rooms solution kit upon human detection, ensuring the meeting is ready to start the second you are.​

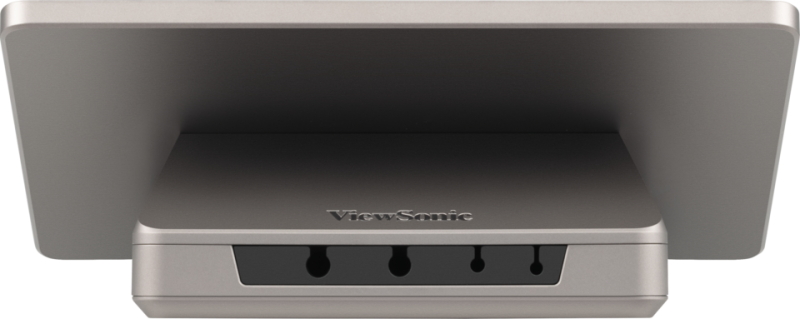

Dimension & I/O Ports

  1. USB-C for Teams Rooms PC
  2. HDMI In
  3. USB 2.0
  4. Audio Out
  5. Cable Management

SPECIFICATIONS


  • Display
    Size: 10.1 inch
    Resolution: 1920*1200
    Refreshing Frequency: 60Hz
    NTSC: 72%
    Back Light Unit: ELED
    Brightness with glass(typ): 300cd/m ²
    Life Time: 20000Hrs
  • Operating System
    System Version: Non-OS
  • Touch System
    Sensing Type: Capacitance touch recognition
    Touch Tool: Finger
    Accuracy: Middle:±1 mm;Edge:≤2.5mm
    Touch Point: 10 points touch
    Touch down latency: <25 ms
