VB-IOB-001
ViewBoard Dock
- Expanded connectivity with additional USB-C, Display Port, HDMI, VGA, PC Audio inputs
- USB-powered solution eliminates the need for adaptors, minimizing cable clutter

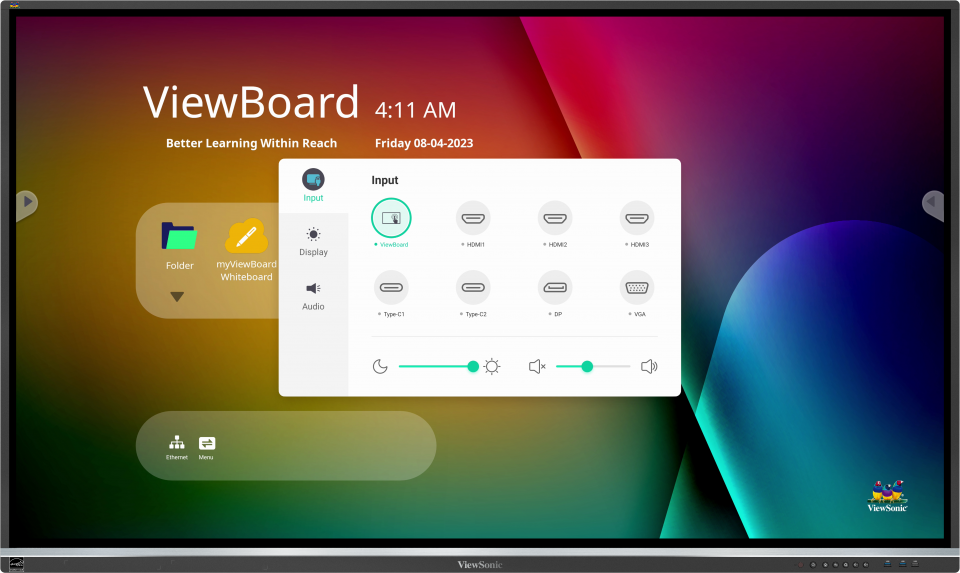

- Seamless integration with the ViewBoard IFP50-5 series user interface
OVERVIEW

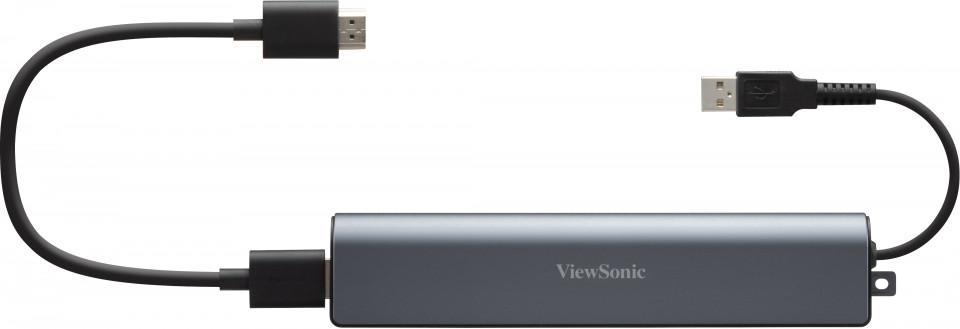

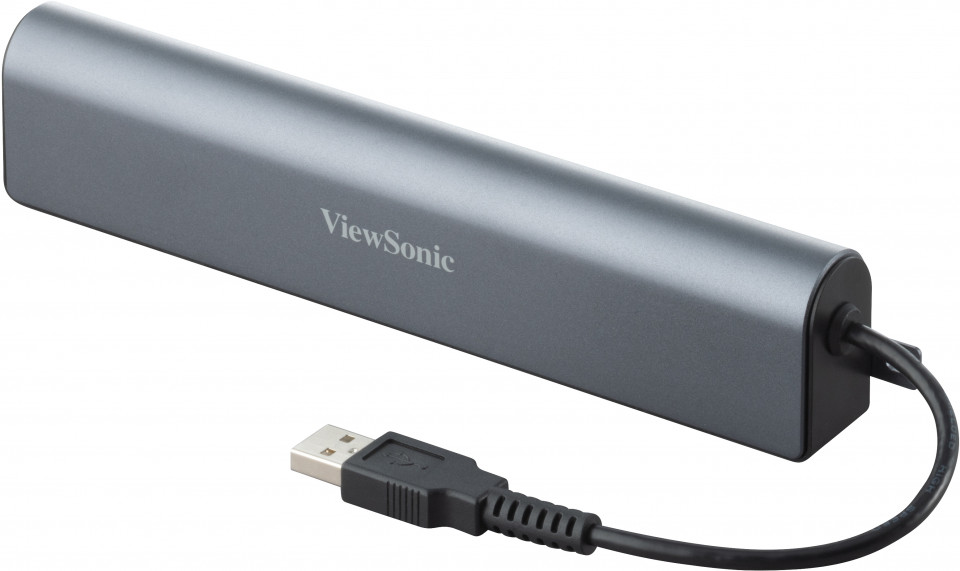

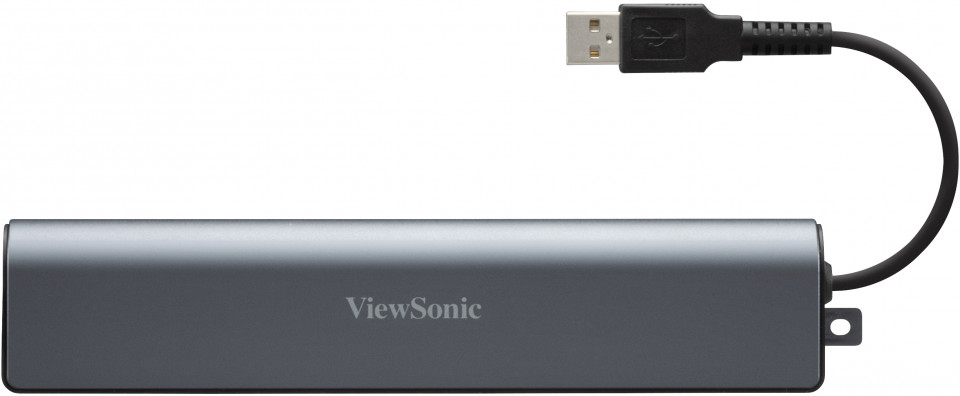

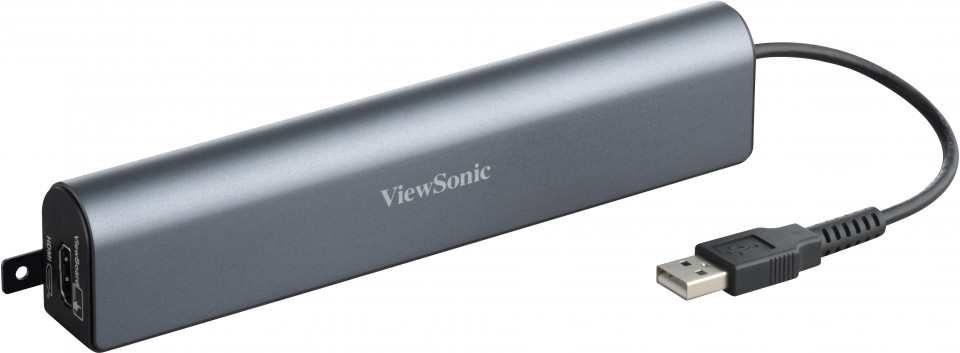

Expand connectivity with the ViewBoard Dock (VB-IOB-001), an accessory for the ViewBoard IFP50-5 Series. It offers a comprehensive range of input options including USB-C, Display Port, HDMI, VGA, and PC Audio ports. The ViewBoard Dock is powered by the ViewBoard via USB, minimizing cable clutter by removing the need for extra adapters. Seamlessly integrating with the ViewBoard IFP50-5 series interface, the ViewBoard Dock ensures a user-friendly and intuitive experience.SPECIFICATIONS
- Supported ViewBoardViewBoard IFP50-5 Series
- Supported Operation SystemAndroid 9 and above

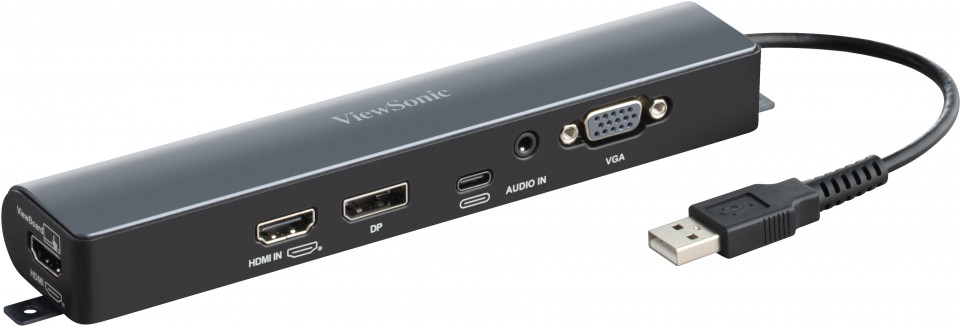

- I/O Port - Connect to external deviceUSB Type-C in: x1, DP1.2 (Alt mode only)
DP in: x1, DP1.2
HDMI in: x1, HDMI 2.0
VGA in: x1
PC Audio in (3.5mm): x1
- I/O Port - Connect to ViewBoardHDMI-OUT: x1
USB 2.0 type-A cable: x1 - PowerConsumption: 5V / 0.5A (by USB port)
- OPERATING CONDITIONSTemperature (º C): 0℃ ~ 40℃
Humidity: 10% ~ 90% R.H. Non-Condensing - DIMENSIONS (W x H x D)Physical (inch / mm): 204.4 x 38.5 x 23.2 mm Including plate
- REGULATIONSEMC/CE Report, LVD report, Green BOM, RoHS DoC, ErP-Eco, REACH DoC, SCIP, WEEE report, TPCH DoC, Packing waste, CA65 DoC, PAIA, FCC/ICES003
- PACKAGE CONTENTS1. HDMI Cable x1
2.Mounting Bracket x1
3.Screws x2
4.Quick Start Guide
