Key Features
  • SuperClear® VA panel
  • 100Hz Variable Refresh rate delivers fluid visuals
  • Eye-care technology for comfortable viewing
  • Various ViewMode color rendering options
  • HDMI and VGA Input for flexible connectivity

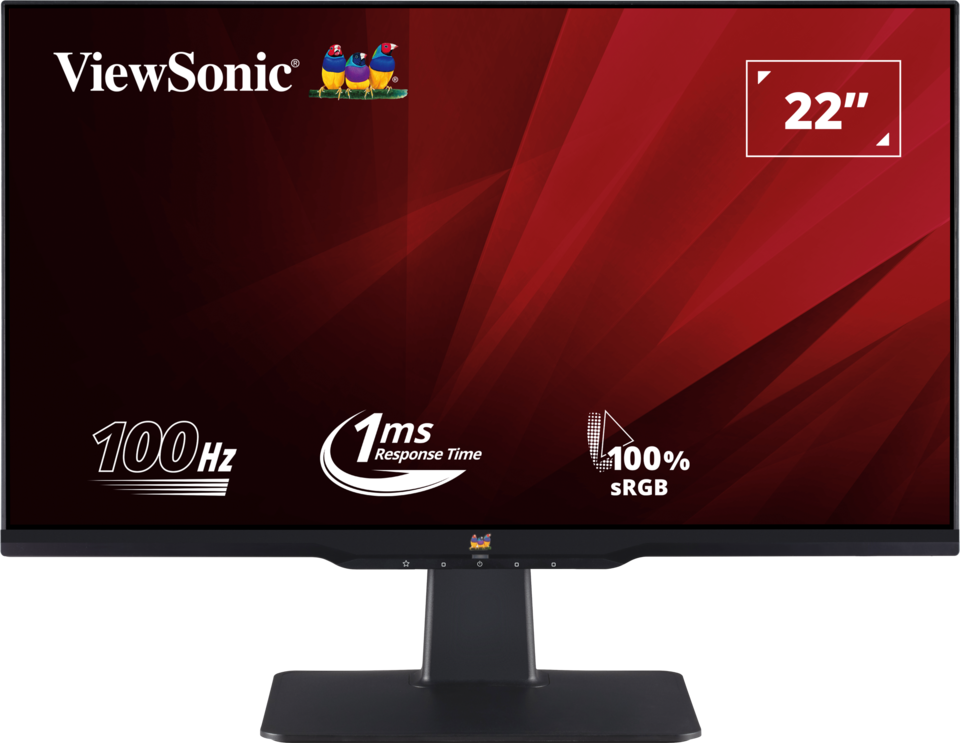

VA2201-H
Product Description
The ViewSonic VA2201-H is a 22” Full HD monitor featuring HDMI and VGA input for business or home usage. The optimal screen performance and comfortable viewing without tearing or stuttering is delivered through variable refresh rate, eye-care technology, and various ViewMode presets. Experience truly seamless multitasking on just one screen with a VESA-compatible mount at a low power consumption.
  1. Menu Control Panel
  2. VESA Compatible(Wall Mount 100 x 100mm)
  3. HDMI
  4. VGA
  5. DC in
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 22
    Viewable Area (in.): 21.5
    Panel Type: VA Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 3,000:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit true
    Aspect Ratio: 16:9
    Response Time (MPRT): 1ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 100
    Variable Refresh Rate Technology: Yes
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ) sRGB: 104% size (Typ)
    Pixel Size: 0.249 mm (H) x 0.241 mm (V)
    Surface Treatment: Anti-Glare, Hard Coating (3H)
  • COMPATIBILITY
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • CONNECTOR
    VGA: 1
    3.5mm Audio Out: 1
    HDMI 1.4: 1
    Power in: DC Socket (Center Positive)
  • POWER
    Eco Mode (Conserve): 15W
    Eco Mode (optimized): 18W
    Consumption (typical): 22W
    Consumption (max): 24W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: External Power Adaptor
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
  • CONTROLS
    Physical Controls: Key 1 (favorite), Key 2, Key 3 (power), Key 4, Key 5
    On Screen Display: Input Select, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 30 ~ 115KHz
    Frequency Vertical: RGB Analog: 48 ~ 75Hz, HDMI (v1.4): 48 ~ 100Hz
  • VIDEO INPUT
    Digital Sync: TMDS - HDMI (v1.4)
    Analog Sync: Separate - RGB Analog
  • ERGONOMICS
    Tilt (Forward/Back): -3º / 20º
  • WEIGHT (IMPERIAL)
    Net (lbs): 5.3
    Net Without Stand (lbs): 4.9
    Gross (lbs): 7.7
  • WEIGHT (METRIC)
    Net (kg): 2.4
    Net Without Stand (kg): 2.2
    Gross (kg): 3.5
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 21.9 x 13.8 x 4.7
    Physical (in.): 19.4 x 14.4 x 6.5
    Physical Without Stand (in.): 19.4 x 11.3 x 1.6
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 555 x 350 x 120
    Physical (mm): 492 x 367 x 165
    Physical Without Stand (mm): 492 x 288 x 40
  • GENERAL
    PACKAGE CONTENTS: VA2201-H x1, VGA Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
