- ERGONOMICS

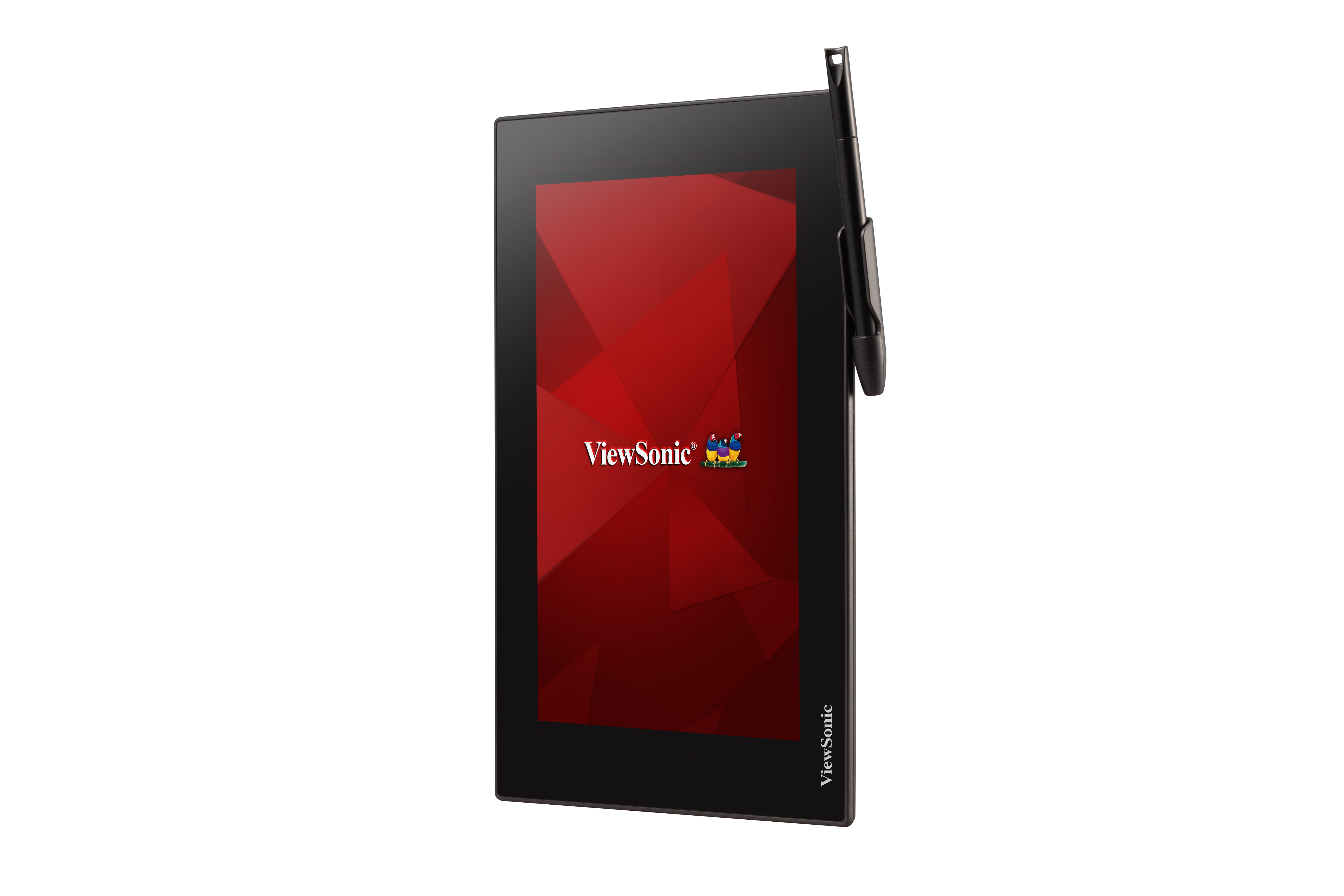

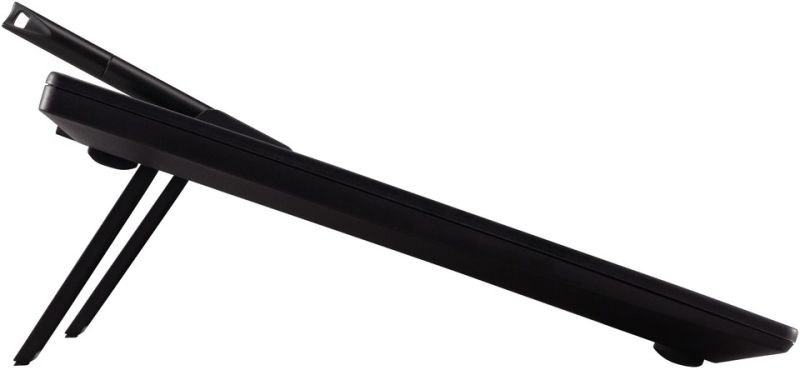

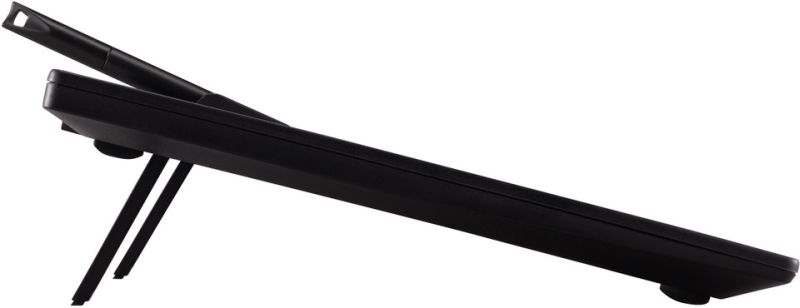

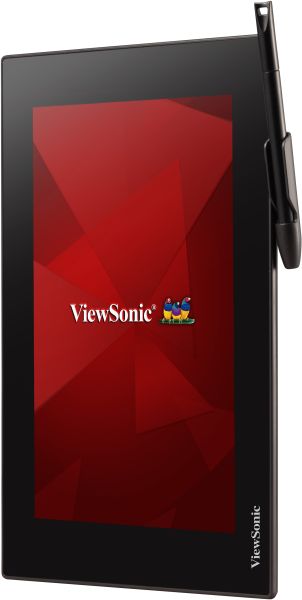

Tilt: Portrait : 0/ 15°/ 20°

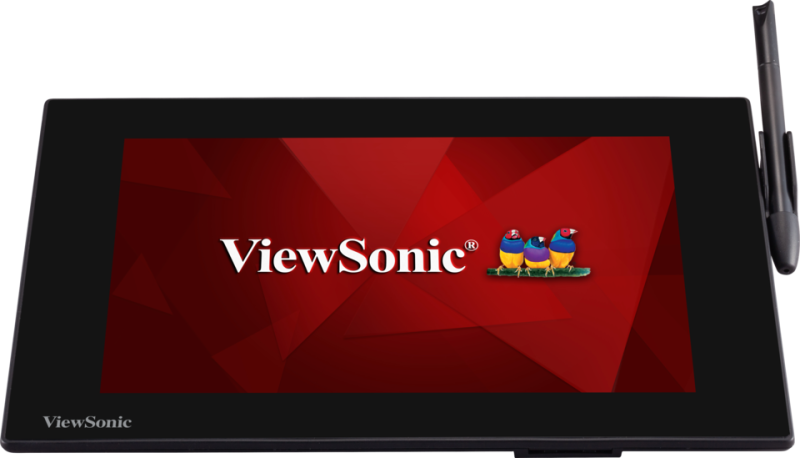

Landscape: 0/ 9°/ 13°
- COMPATIBILITY
PC: Windows 10, 11, and later
(Win 7, Linux Ubuntu, Chrome OS by request)
- POWER
Voltage: USB 5V
Consumption: 4.55W (Typ.) / 5.06W (Max.)
- OPERATING CONDITIONS
Temperature (º F / º C): 0℃ to 50℃
Humidity: 20%-80%(Max), Non-condensation
- DIMENSIONS W x H x D (inch/mm)
Physical (in / mm): 287.0 x 185.6 x 14.3 mm
Box (in / mm): 350.0 x 273.0 x 76.0 mm
- WEIGHT
Net (lb / kg): 0.66 kg
Gross (lb / kg): 1.09 kg
- REGULATIONS
CE/ FCC/ BSMI
- WARRANTY
1 Year
- WHAT'S IN THE BOX

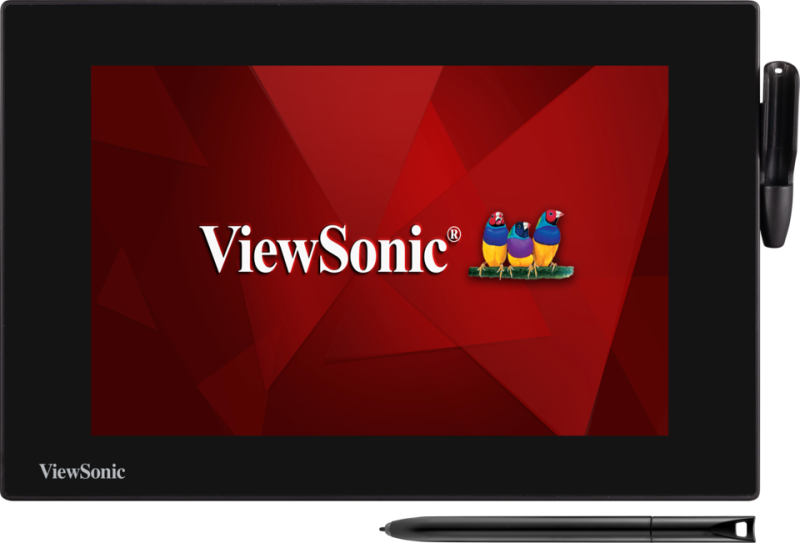

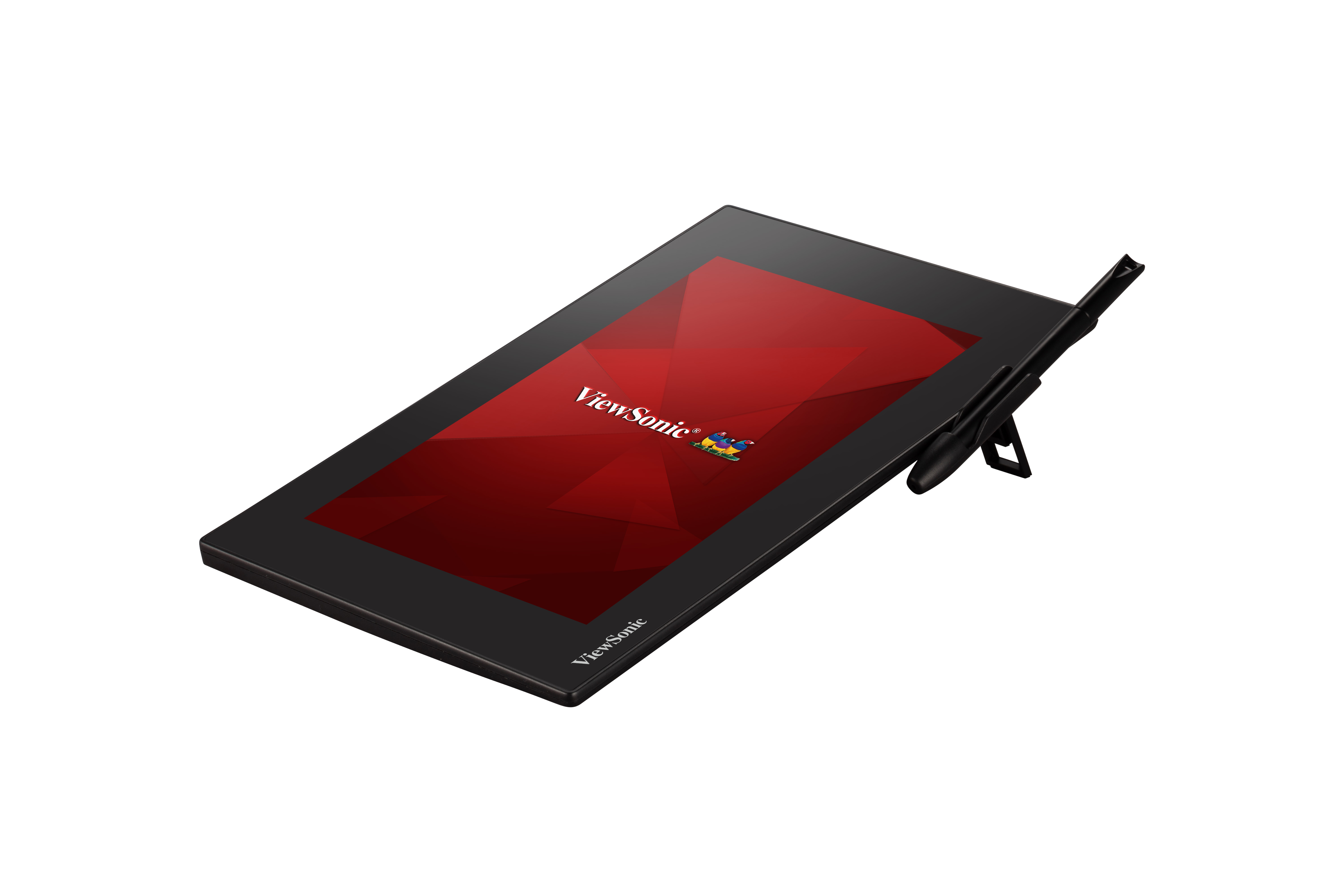

1. PD1013 Pen display x 1
2. USB 2.0 2-in-1 Y-cable (Micro USB to Type A x 2) x 1

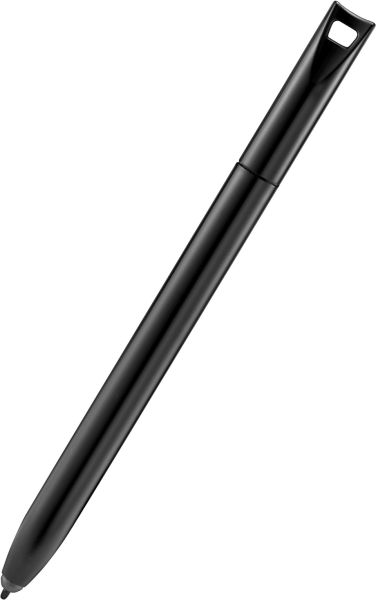

3. EMP-001 Pen x 1
4. Pen nib x 3
5. Pen tether x 1
6. Nib removal tool x 1
7. Screwdriver x 1
8. AC/DC Power adapter 5V/2A x 1
9. Quick start guide x 1
