LD-SCB-023

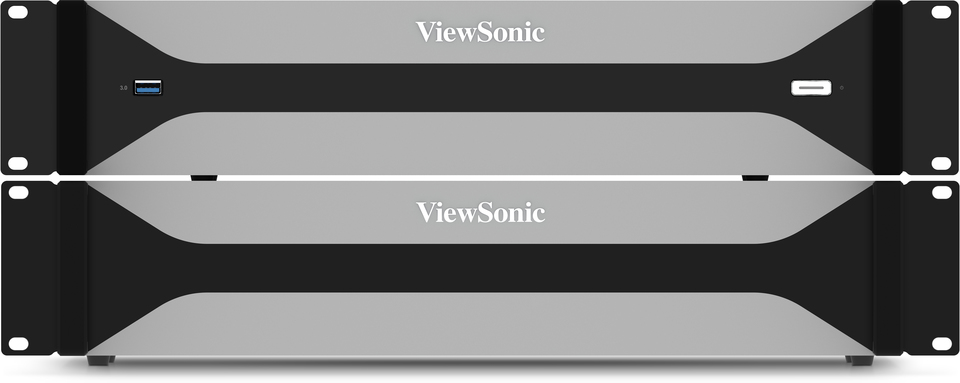

Rack-Mount All-in-One System Control Box
- Stackable 4U rack-mount design for seamless integration into rack cabinets
- All-in-One system control box for hassle-free setup and operation
- Integrated power on/off control for energy-efficient and sustainable operations
- Centralized control via LAN and RS-232 for streamlined system management
OVERVIEW
The LD-SCB-023 is an innovative all-in-one system control box featuring a 4U rack-mount design. Its internationally standardized size ensures effortless integration into any 4U-compatible cabinet. The compact, space-saving design seamlessly fits into existing control room setups. With integrated power and control systems, the LD-SCB-023 allows simultaneous on/off control, simplifying system management, enhancing energy efficiency, and reducing operational costs. Supporting control protocols such as LAN and RS-232, it enables centralized management of ViewSonic Customizable All-in-One LED Displays (LDC Series), making it an ideal solution for professional AV environments.All-in-One Integrated Control Box with Rack-Mountable Design

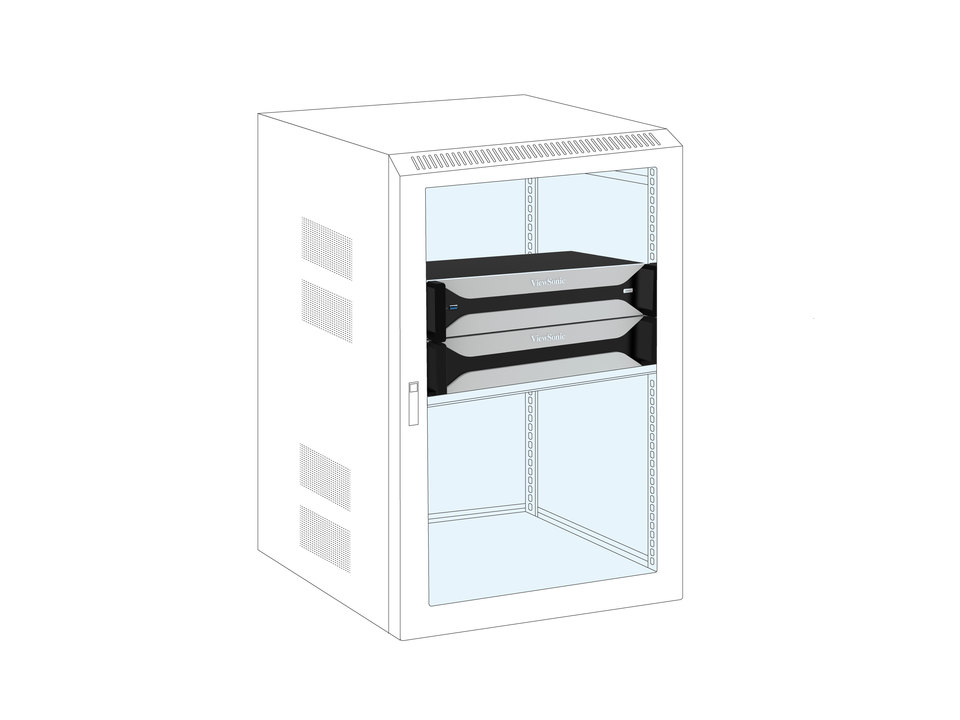

The LD-SCB-023 is an all-in-one system control box with a 4U rack-mount design, ensuring seamless compatibility with any 4U-standard cabinet. Its compact, space-saving design allows for easy placement, simplifies setup, and improves installation efficiency, making it an excellent choice for professional AV environments.World’s First Rack-Mount All-in-One Control Box
Efficient Power Management
By integrating power and control systems, users can effortlessly turn multiple systems on and off simultaneously with a single command. This streamlined functionality simplifies system management, enhances efficiency, and offers a more sustainable and cost-effective solution.Simplified for Efficiency & Sustainability

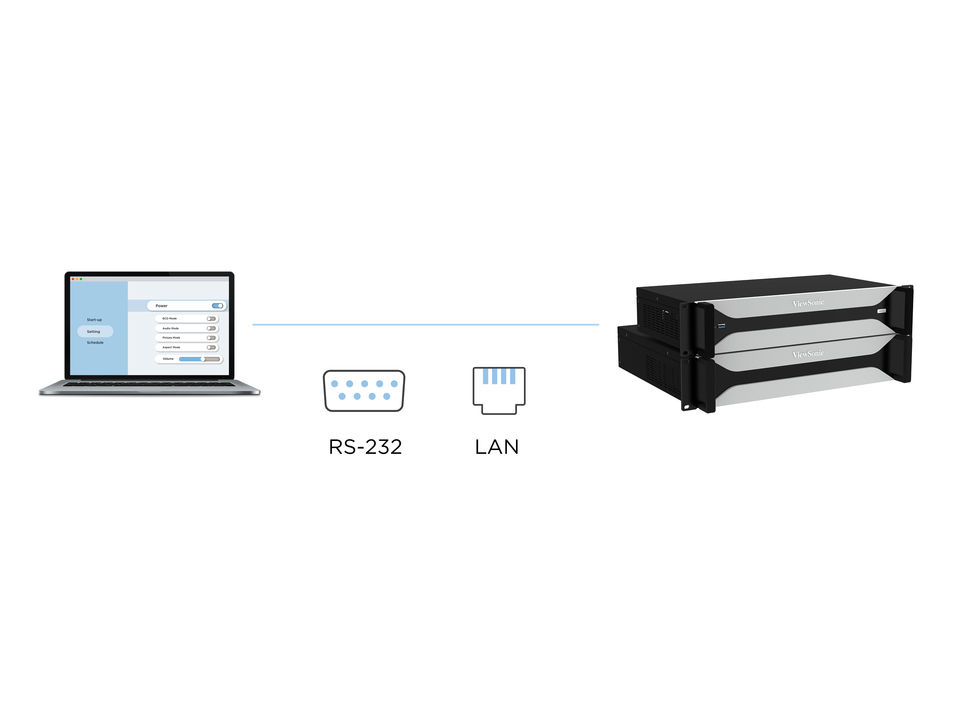

Supports Multiple Control Protocols for Centralized Management
The LD-SCB-023 is compatible with multiple control protocols, including LAN and RS-232, enabling centralized management for seamless integration across diverse devices and environments. This feature enhances operational efficiency, streamlines maintenance, and accelerates troubleshooting processes.Streamlined Operations

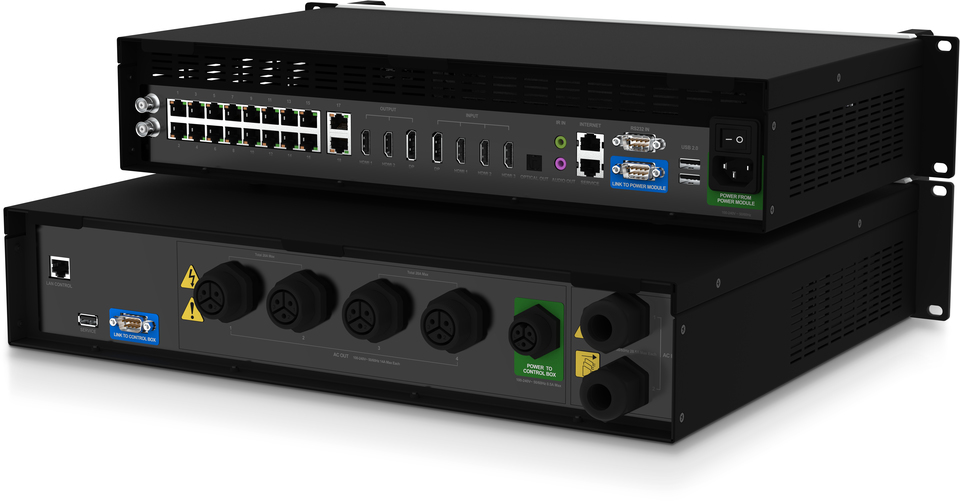

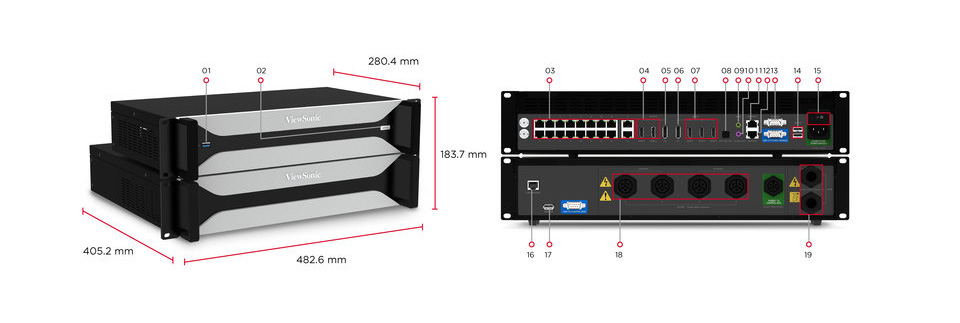

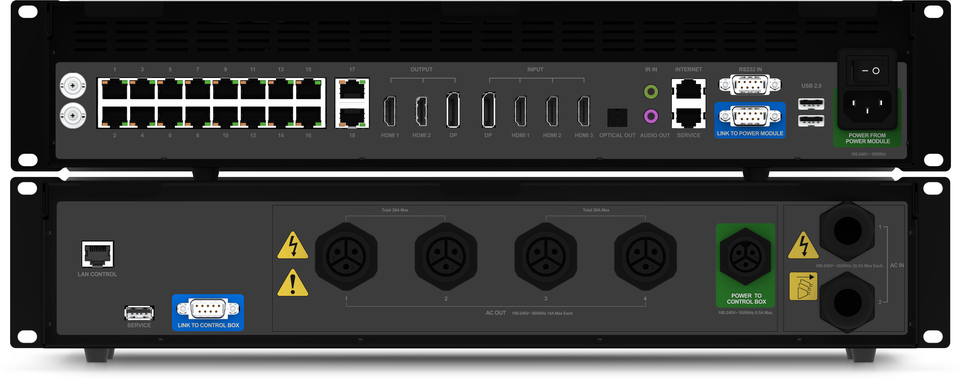

Dimension & I/O Ports
- USB 2.0
- Power Key + LED Indicator
- Cabinet LAN Cable x18
- HDMI 2.0 Output x2
- DP 1.2 Output
- DP 1.2 Input
- HDMI 2.0 Input x3
- Optical
- IR Extended
- Audio Out
- Internet
- Service
- RS-232
- USB 2.0 x2
- Power Switch
- LAN Control
- Service
- AC Out x4
- AC In x2
SPECIFICATIONS
- SpecificationPixel count (max.): 9,300,000
Max widest.: 7,680 pixels
Max highest: 4,320 pixels
Dimensions (WxHxD): Power module : 482.6x93x405.2mm
Control box : 482.6x93x280.4mm
Processor: RK3399
RAM: DDR4 4GB
Local Storage: Total 32GB
(26GB available storage)
Embedded OS: Android 9.0
Power Consumption: 52W
Output Power Consumption: 12.32kW@220V
6.16kW@110V
Net Weight: Power module：8.7kg
Control box：4.1kg - InputHDMI: x3
(HDMI 2.0, HDCP 2.2)
USB Type A: x3
(USB 2.0 x2, USB 3.0x1)
RJ45 (Internet): x1
IR in (3.5mm): x1
Wi-Fi Input: 2.4G/5G Hz
DP: x1 (DP1.2) - OutputHDMI: x2
(HDMI 2.0, HDCP 2.2)
Audio out (3.5mm): x1
Optical: x1
USB Type A (Power): USB 3.0 5V/1A x1
USB 2.0 5V/0.5A x2
DP: x1 (DP1.2)
- ControlEthernet ports to Cabinet: 18
RJ45 (LAN control): x1
RJ45 (Service): x1
USB Type A (Services): x1
RS232 (DB 9-pin female): x1
IR Receiver: x1 - Standard AccessoriesPower Cord: x2
LAN Cable (debug): x1
IR Extender Cable: x1
Remote Control: x1 - Feature MapLAN Control: Y
● vController (TCP/IP): Y
● Crestron e-control: Y
● Crestron (RoomView): ● (CCV1)
(Compatible)
● Crestron Fusion: Y
● Extron: Y
● MyViewBoard Manager: Y
● MyViewBoard Display: Y
24/7 Operation: Y
BLANK hot key (by remote control): Y
FW upgrade by OTA: Y
vCast: Y
PIP/PBP (HDMI 1/2/3/4): Y
CEC: Y
Signal detect: Y
