Coming Soon
UMB202
Teams Rooms 3-in-1 Conference Camera
- Sony 4K Ultra HD camera sensor for advanced image processing
- Intelligent auto framing and DOA voice tracking technology
- 6-mic array beamforming soundbar with an 11W speaker
OVERVIEW
The UMB202 Teams Rooms 3-in-1 Conference Camera is a key component of the ViewSonic Meeting Space Solution for Microsoft Teams Rooms, optimizing collaboration in meeting rooms of diverse sizes. Boasting a 4K Sony camera sensor, 5x digital zoom, auto-framing, and DOA voice tracking, it delivers a premium visual experience. Complemented by six beamforming microphones, which cover an expansive 8-meter range, and an 11W speaker, the camera ensures crystal-clear audiovisual quality for seamless communication.
Your Meeting Space. Your Way.
SEE FULL SOLUTIONElevate Your Presence in Every Interaction
Foster inclusivity and collaboration in meetings with the 3-in-1 Conference Camera, featuring an advanced 4K Sony sensor. Its intelligent framing technology detects individuals and their voices, while the 5x digital zoom with electronic pan and tilt ensures that your presence is felt in every interaction.
Exceptional Sound Quality
The 3-in-1 Conference Camera features a built-in beamforming 6-microphone array and an 11W front-facing speaker, guaranteeing exceptional sound quality for crystal-clear communication. Its LED light bar signals camera and microphone status, avoiding mishaps like a muted microphone or inactive camera during critical moments in a video call.

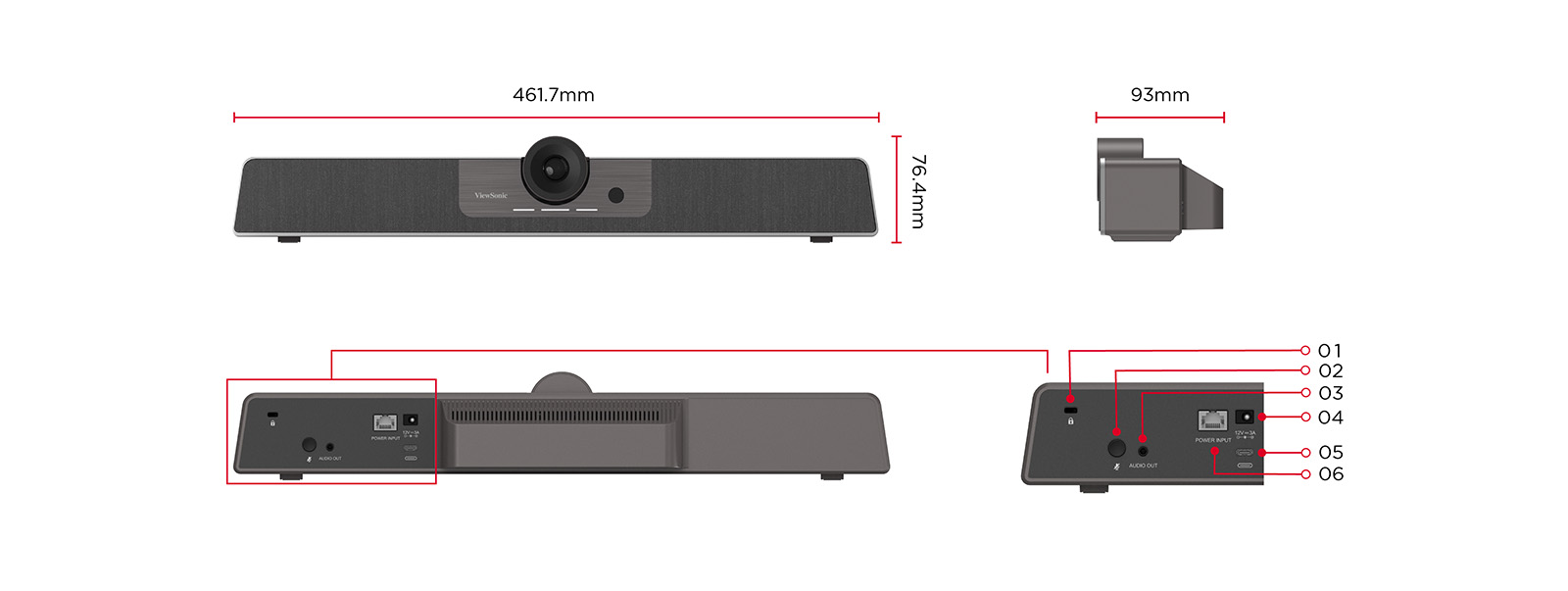

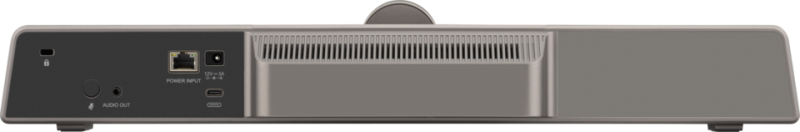

Dimension & I/O Ports
- Microphone Mute
- Audio Out
- PoE
- Power Input
- USB-C
SPECIFICATIONS
- CameraResolution: H.264/MJ: @30FPS
(1)3840×2160 (2)2560×1440
(3)1920×1080 (4)1280×720
(5)1024×576 (6)960×540
(7)800×600 (8)640×480
(9)640×360 (10)480×270
(11)352×288 (12)320×240
NV12 / YUY2: @30FPS
（1）1920×1080（2）1280×720
（3）640×360
Sensor: IMX577 1/2.3 inch, CMOS, 12M pixel
FOV: 117.8° (DFOV) ，109° (HFOV)，74.4° (VFOV)
PTZ: EPTZ (5X digital Zoom)
Digital Noise Reduction: Yes
White Balance: Yes
Exposure: Yes - AudioMicrophone array: 6 element, 8 meters pickup range
Speaker: treble module x1, mid-bass modulex1 in one box
(Maximum output 8W)
Output Power: 80 dBA @ 1000 Hz @ 1 meter at maximum volume - I/OUSB-TypeC: 1
Audio Out: 1
DC 2.0 Power: 1
RJ45: 1 (Only for power supply)
IEEE 802.3 at，25.50W (max)
Power Button: Power Button: In startup mode, press the power button to mute.
In standby mode, press the power button to power on.
MIC Mute Button: Yes
- USB featureConnection type: USB 3.0, downward compatible with USB2.0
Video Compression: MJPEG /YUY2 / H.264 / NV12
USB audio: 16K sampling rate, support UAC2.0
USB video communication protocol: UVC 1.1
UVC PTZ control: Support (Control Via Remote controller) - Intelligent FunctionAuto Framing: Yes
Voice tracking: Yes - System CompatibilityOS: Windows 7 /8.1/10/11 or higher
macOS® 10.10 or higher
Google ChromebookTM Version 29.0.1547.70 or higher
Android - Accessory (inbox)USB Type-C cable: 1.8m typeC x1
(include TypeC to A Plug adaptor)
Remote Control: Yes
Power adapter: 1
Wall mount components: 1
Screws: Yes
Lens Cover: 1
QSG: Yes
Compliance statement: Yes
