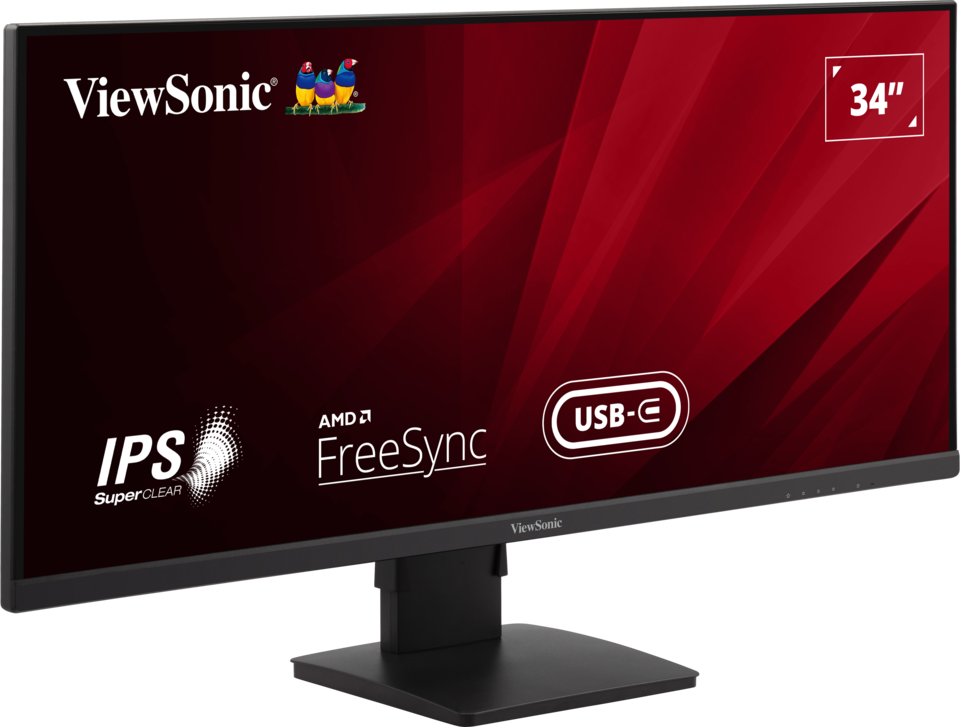

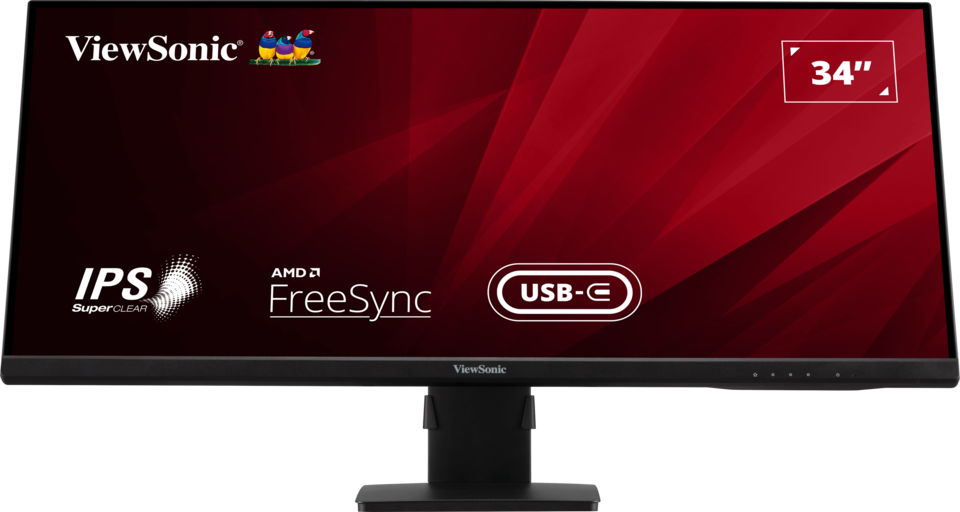

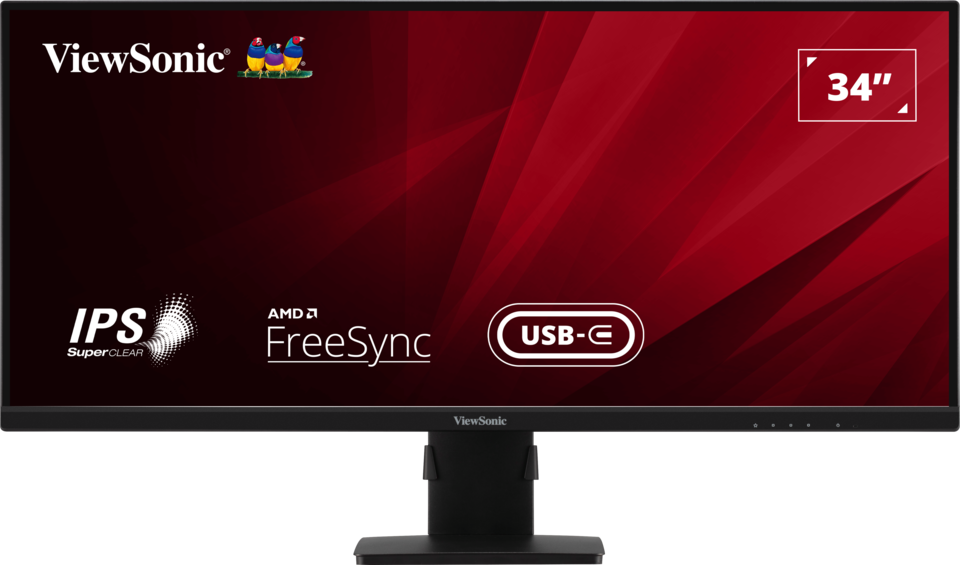

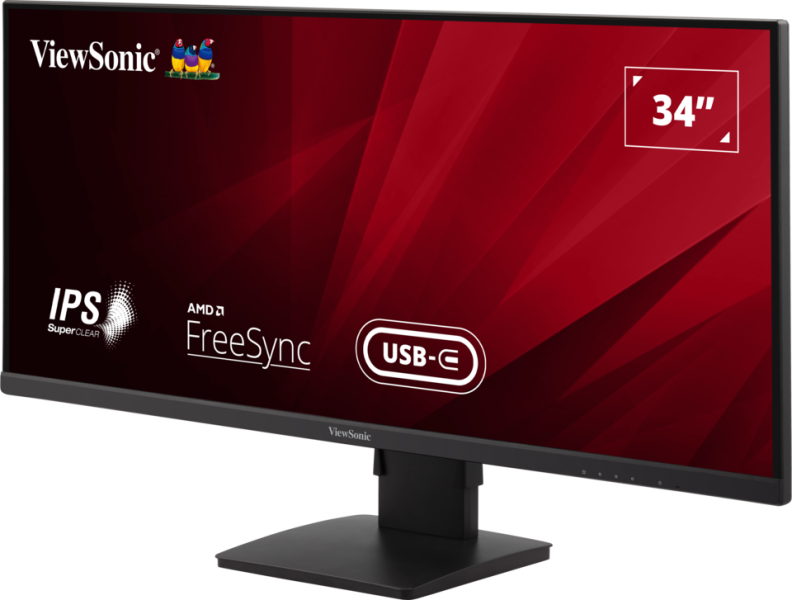

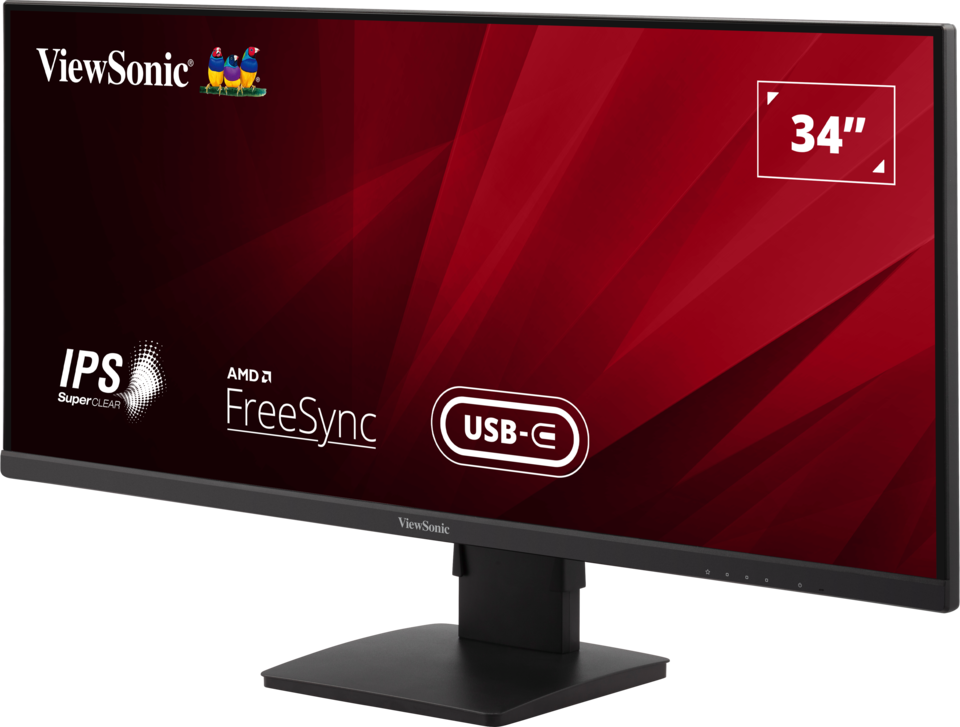

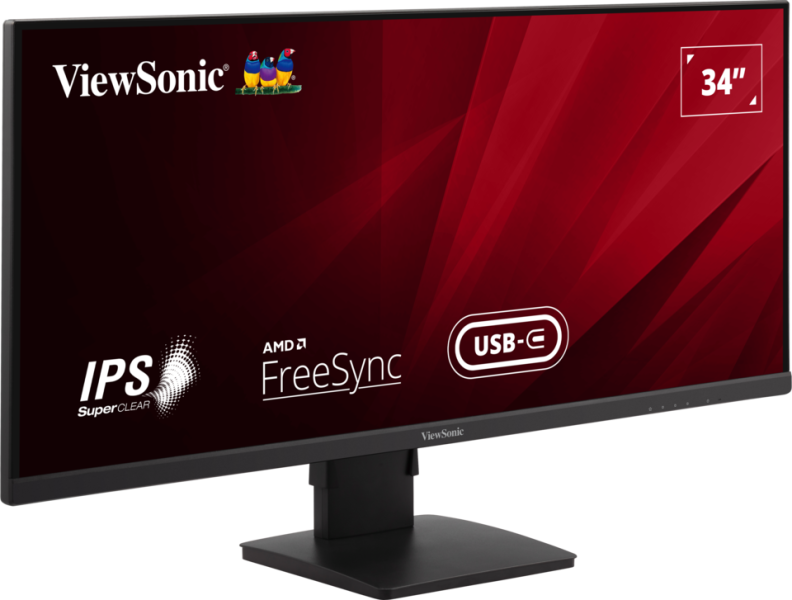

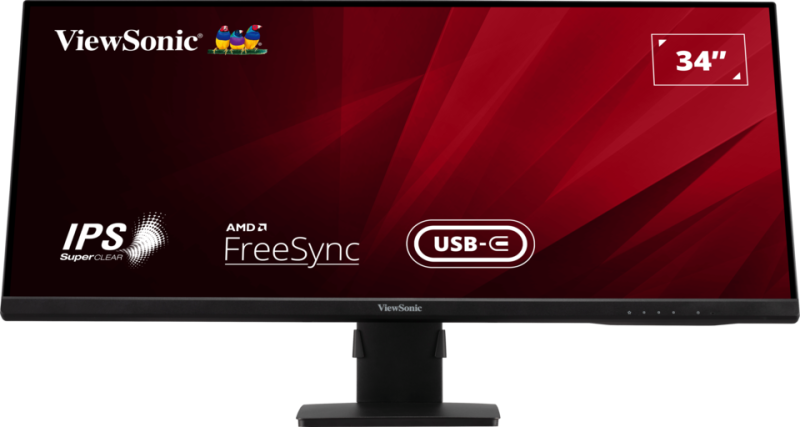

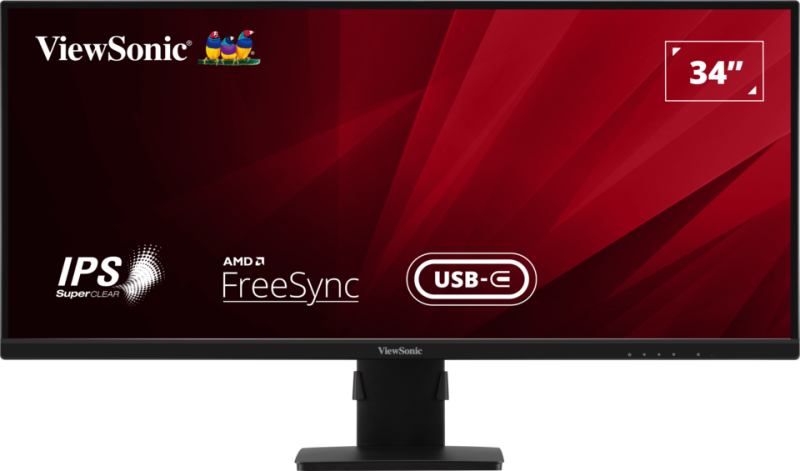

VA3456
34" WQHD IPS Monitor
SPECIFICATIONS
- DisplayDisplay Size (in.): 34
Viewable Area (in.): 34.1
Panel Type: IPS Technology
Resolution: 3440 x 1440
Resolution Type: UWQHD (UltraWide QHD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
High Dynamic Range: HDR10 (HDR400 ready)
Light Source: LED
Brightness: 420 cd/m² (typ)
Colors: 1.07B
Color Space Support: 10 bit (8 bit + FRC)
Aspect Ratio: 21:9
Response Time (Typical GTG): 4ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 75
Variable Refresh Rate Technology: FreeSync
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Pixel Size: 0.233 mm (H) x 0.233 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 3440x1440
Mac® Resolution (max): 3440x1440
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 3440x1440 - Connector
- AudioInternal Speakers: 3Watts x2
- PowerEco Mode (Conserve): 24W
Eco Mode (optimized): 27W
Consumption (typical): 30W
Consumption (max): 52W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply - Additional HardwareKensington Lock Slot: 1
Cable Organization: Yes - ControlsPhysical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Wall Mount VESA Compatible: 100 x 100 mm
- Input SignalFrequency Horizontal: HDMI (v2.0): 15 ~ 120KHz, DisplayPort (v1.4): 24 ~ 120KHz, Type C: 24 ~ 120KHz
Frequency Vertical: HDMI (v2.0): 24 ~ 76Hz, DisplayPort (v1.4): 48 ~ 76Hz, Type C: 48 ~ 76Hz - Video InputDigital Sync: TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.4), Micro-Packet - Type C
- ErgonomicsHeight Adjust (mm): 100
Swivel: 360º
Tilt (Forward/Back): -4º / 20º - Weight (imperial)Net (lbs): 20.3
Net Without Stand (lbs): 15
Gross (lbs): 25.6 - Weight (metric) Net (kg): 9.2
Net Without Stand (kg): 6.8
Gross (kg): 11.6 - Dimensions (imperial) (wxhxd)Packaging (in.): 35.4 x 18.1 x 9.1
Physical (in.): 32.2 x 16.27~20.21 x 7.9
Physical Without Stand (in.): 32.2 x 14.4 x 2.3 - Dimensions (metric) (wxhxd)Packaging (mm): 900 x 460 x 230
Physical (mm): 817 x 413.31~513.31 x 201
Physical Without Stand (mm): 817 x 367 x 59 - GeneralPACKAGE CONTENTS: VA3456 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v2.0; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
