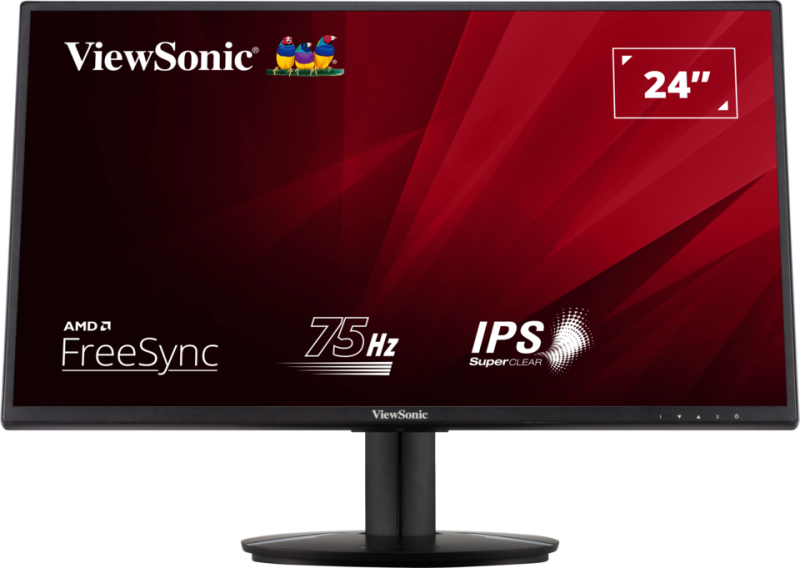

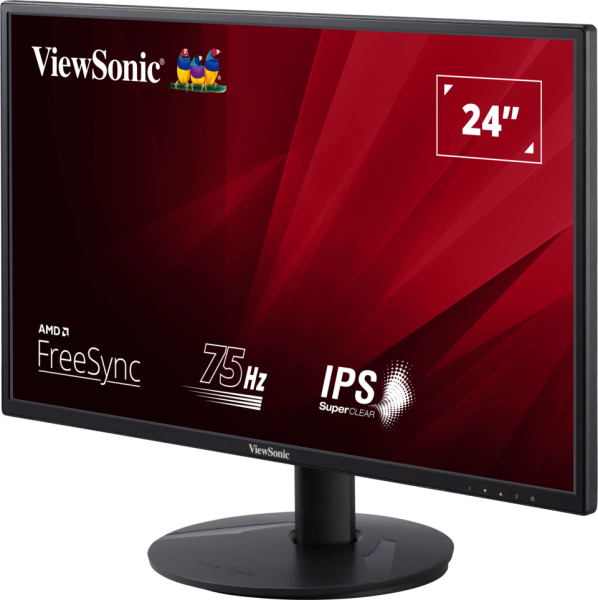

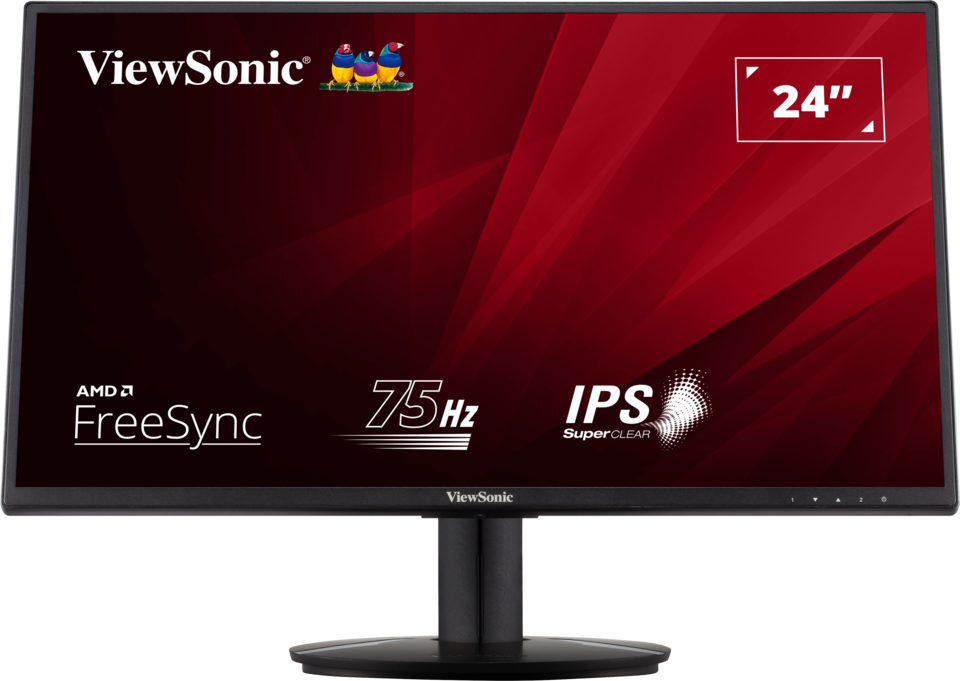

VA2418-sh

24”1080p IPS Monitor

HDMI and VGA Input
SuperClear® IPS Technology for rich colors at wide angles
75Hz and Adaptive sync to eliminate screen tearing & reduce stuttering
Eye-Care technology for comfortable viewing
VESA wall mountable

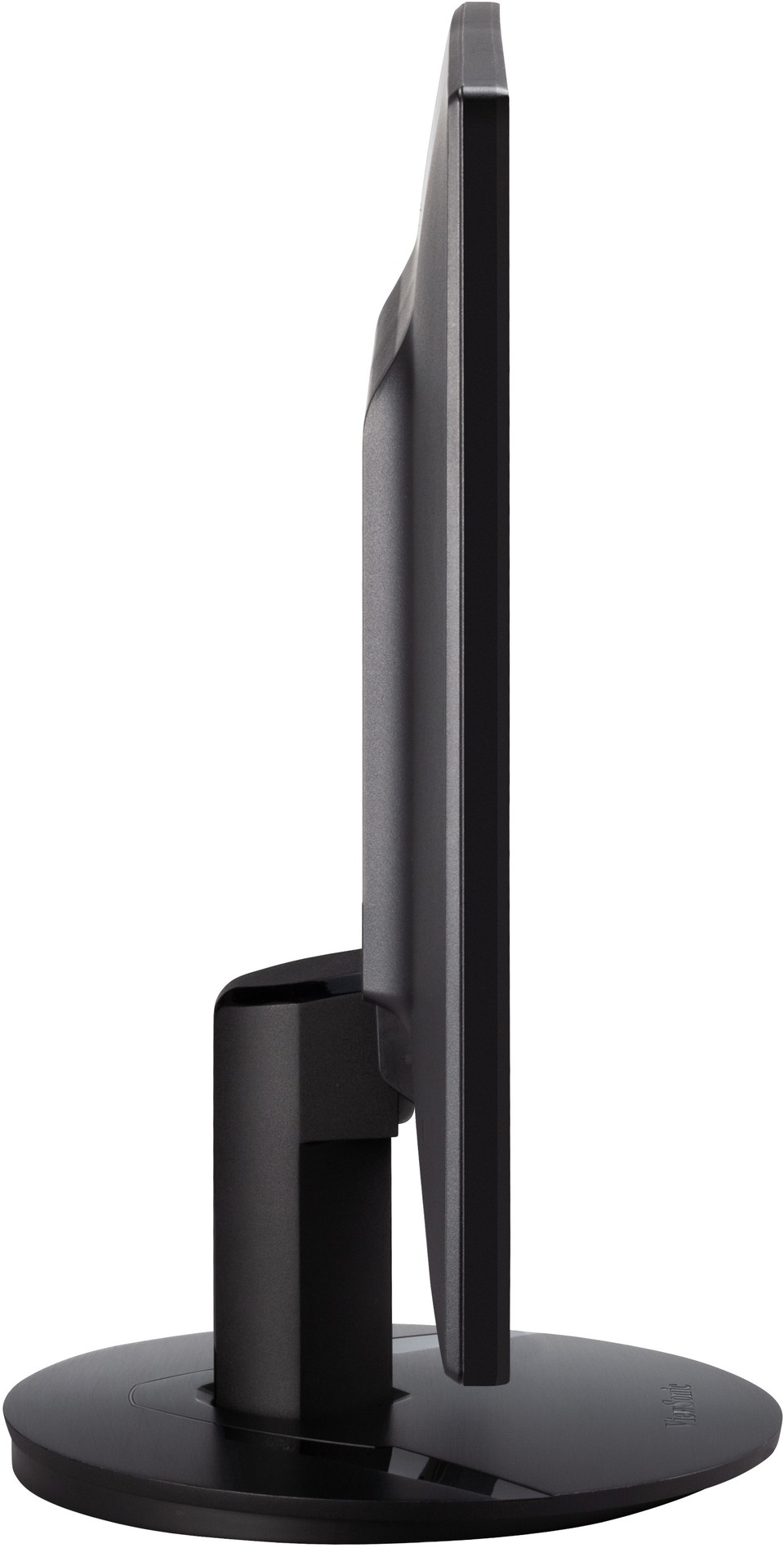

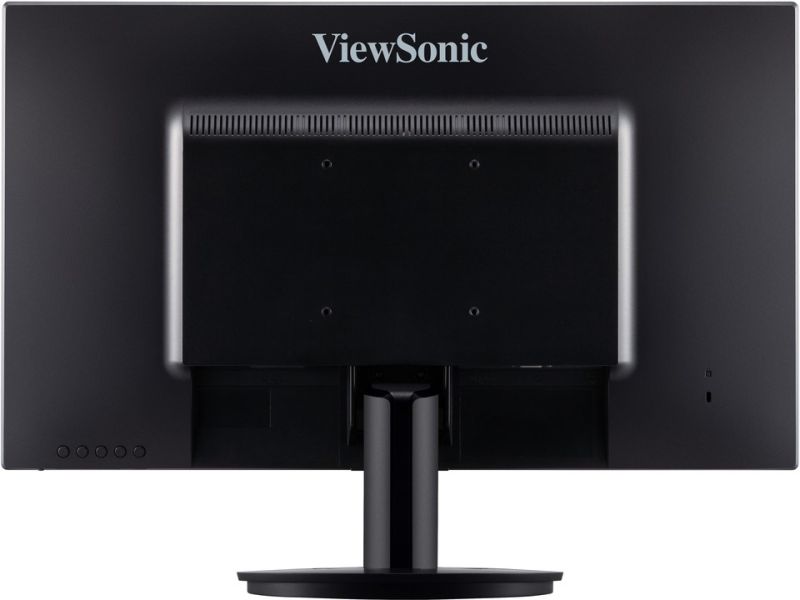

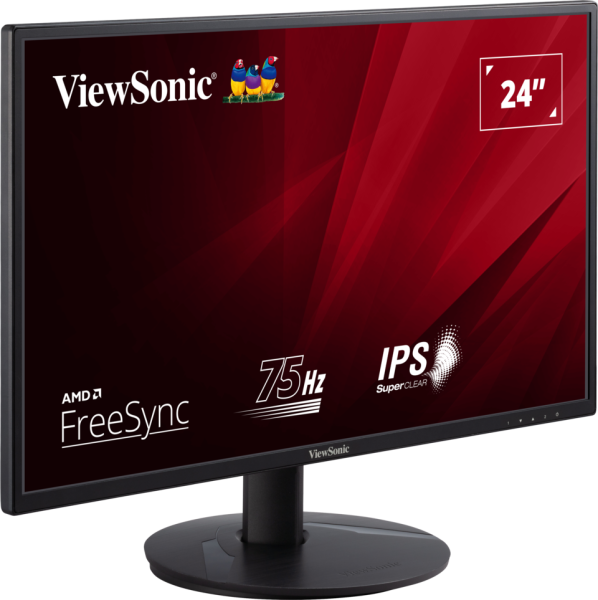

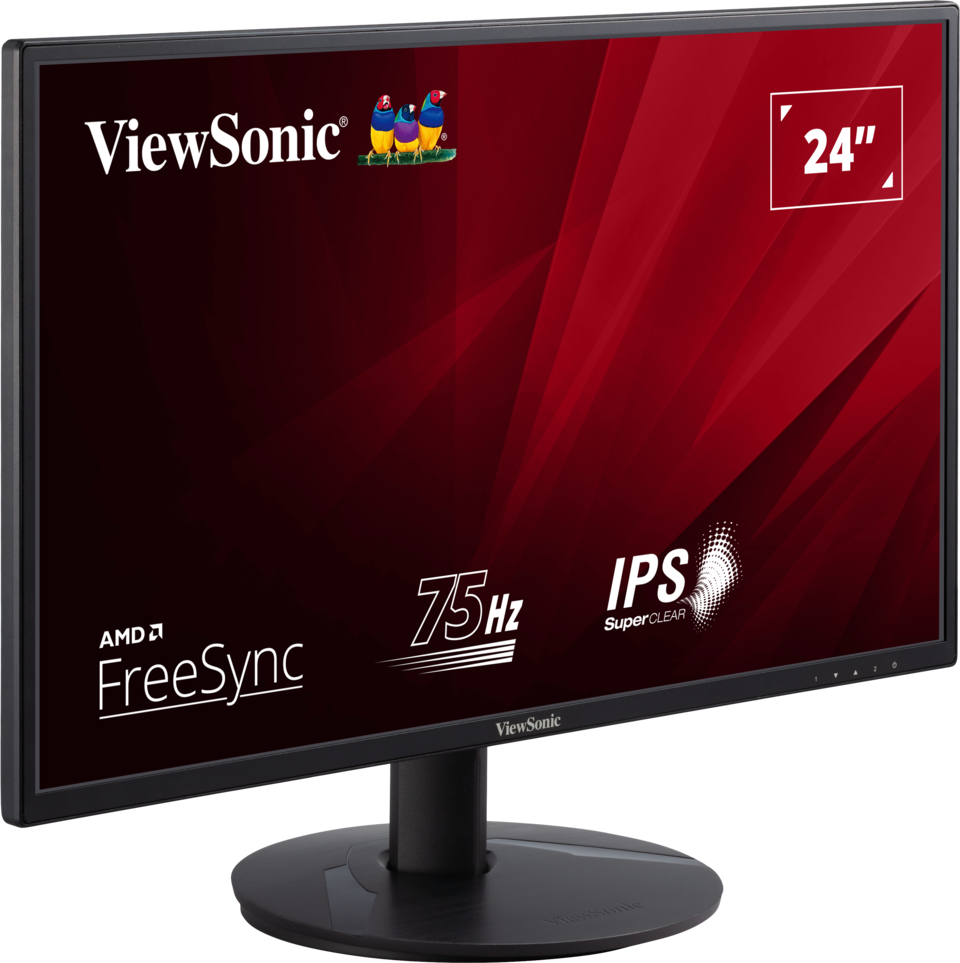

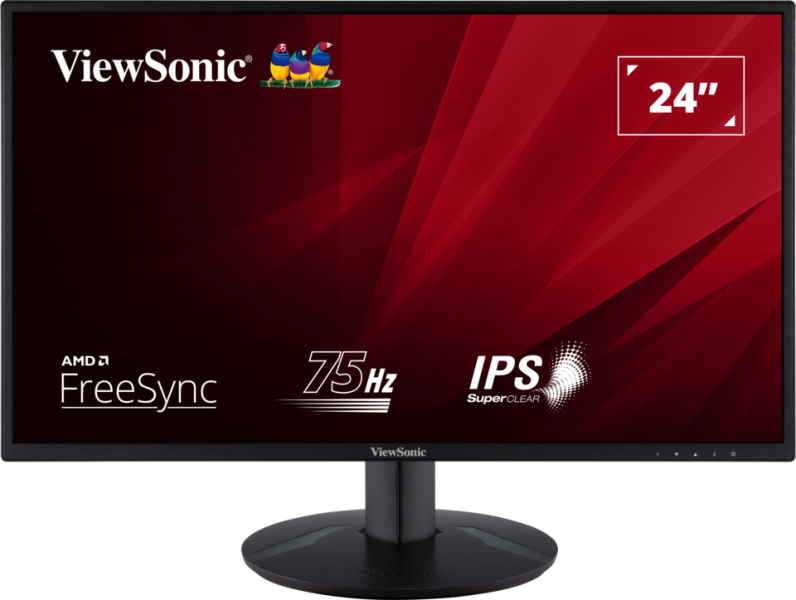

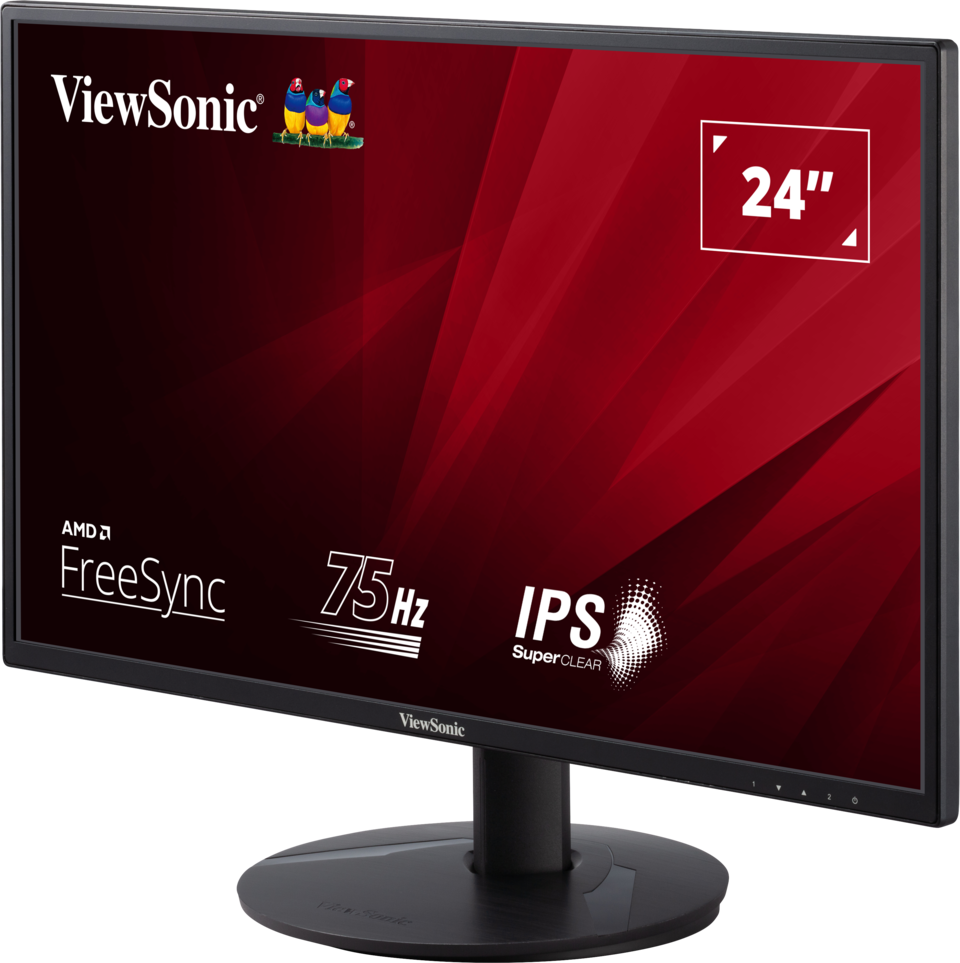

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 24
Viewable Area (in.): 23.8
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 75
Variable Refresh Rate Technology: FreeSync
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Pixel Size: 0.275 mm (H) x 0.275 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
VGA: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
Power in: 3-pin Mickey Mouse Socket (IEC C6)

Power
Eco Mode (Conserve): 19W
Eco Mode (optimized): 22W
Consumption (typical): 26W
Consumption (max): 27W
Voltage: AC 100-240V
Stand-by: 0.3W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount

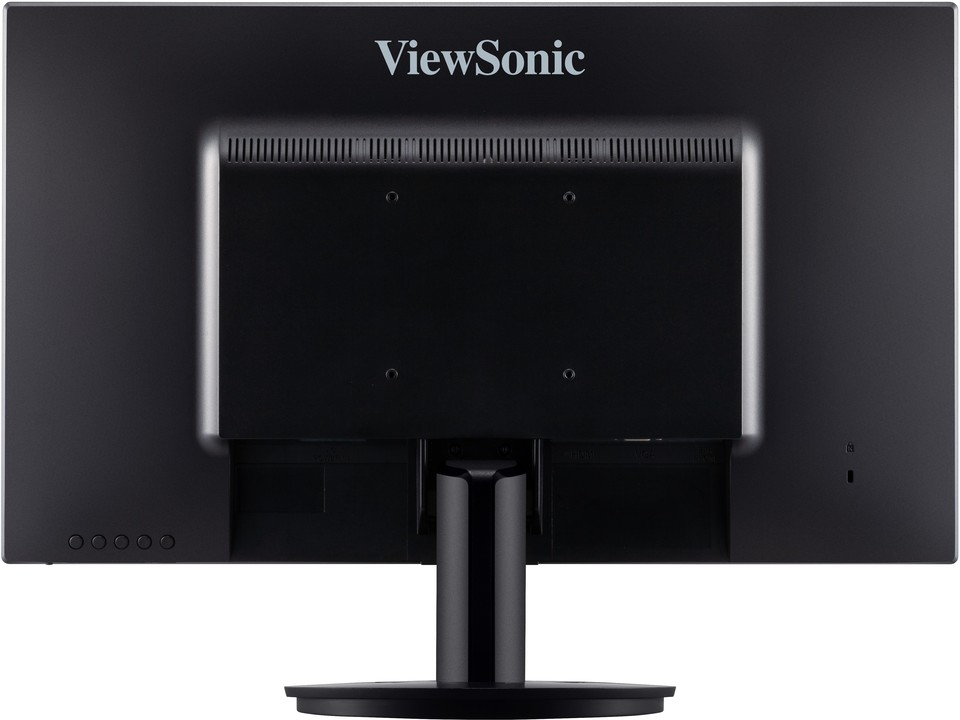

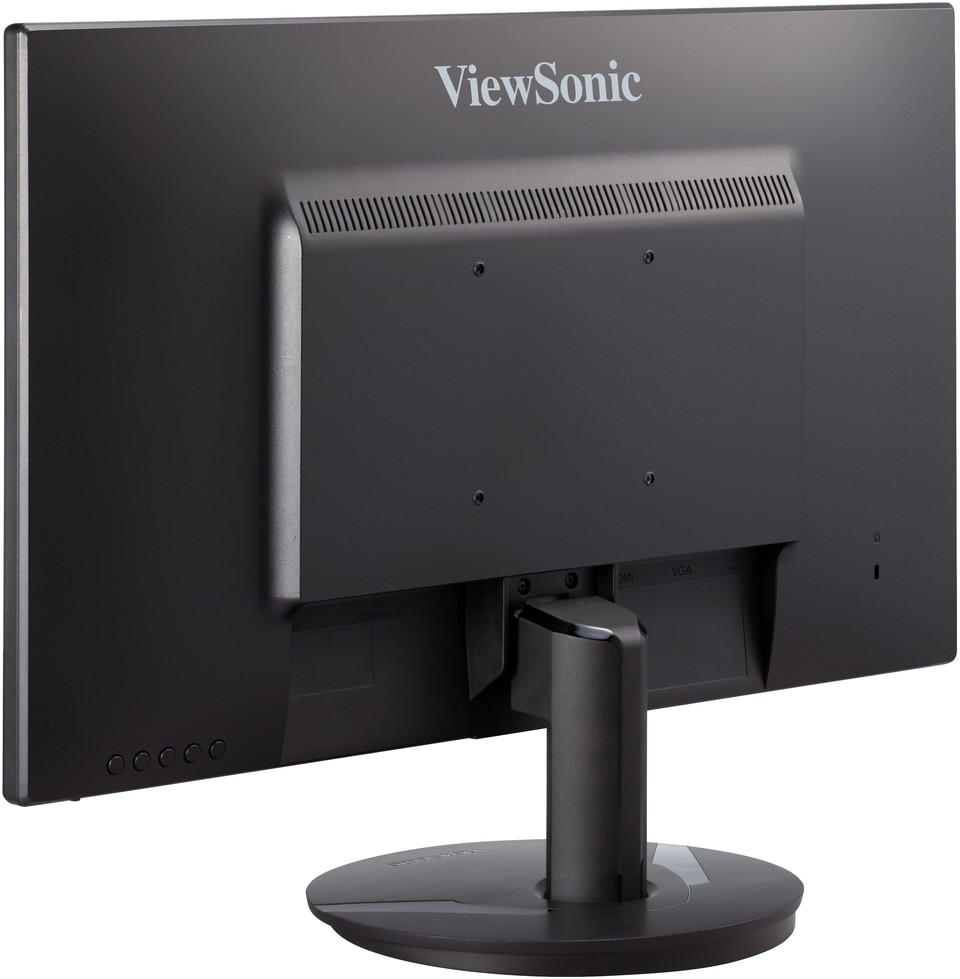

VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 24 ~ 86KHz
Frequency Vertical: 48 ~ 75Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4)
Analog Sync: Separate - RGB Analog
Ergonomics

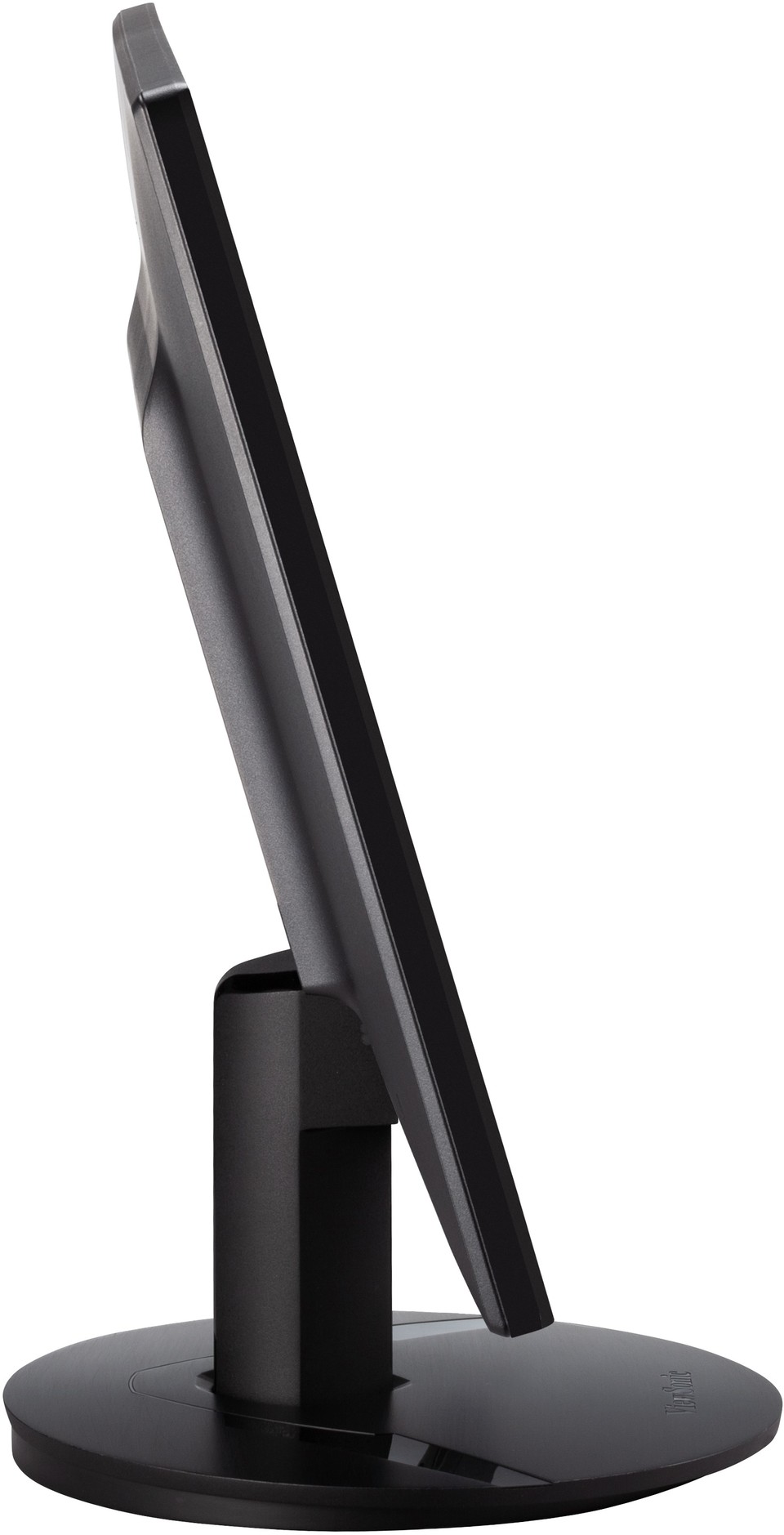

Tilt (Forward/Back): -5º / 22º
Weight (imperial)
Net (lbs): 7.5
Net Without Stand (lbs): 6.6
Gross (lbs): 9.7
Weight (metric)
Net (kg): 3.4
Net Without Stand (kg): 3
Gross (kg): 4.4
Dimensions (imperial) (wxhxd)
Packaging (in.): 24.2 x 15.7 x 4.7
Physical (in.): 21.6 x 15.9 x 8.6
Physical Without Stand (in.): 21.6 x 12.7 x 1.5
Dimensions (metric) (wxhxd)
Packaging (mm): 615 x 398 x 119
Physical (mm): 548 x 404 x 218
Physical Without Stand (mm): 548 x 322 x 38
General
PACKAGE CONTENTS: VA2418-SH x1, 3-pin Mickey Mouse Plug (IEC C5) x1, VGA Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards
