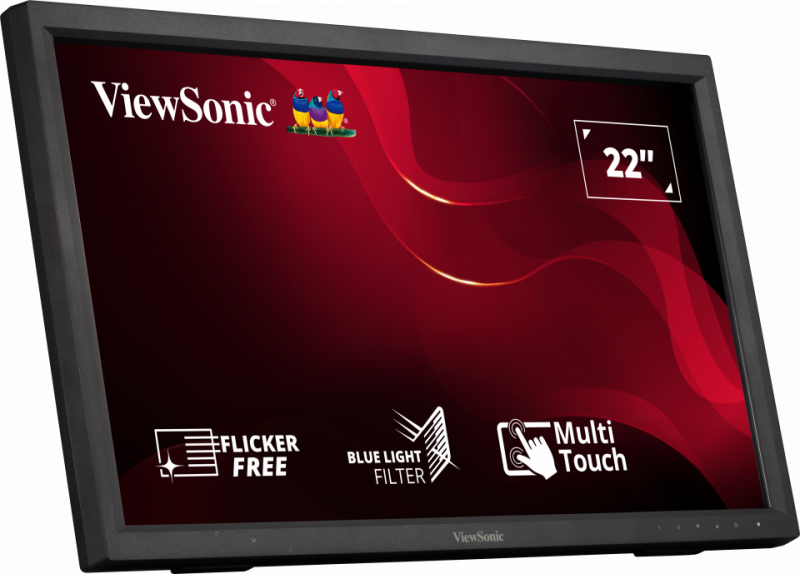

TD2223
22” IR Touch Monitor
- Intuitive 10-point touchscreen
- Finger, stylus, and glove touch compatible
- Magnetic pen placeholder
- Adjustable back tilt up to 40-degrees
- Scratch-resistant 7H hardness screen
OVERVIEW
The ViewSonic® TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223-2 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.IR Touch Technology
Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.*Learn more about multi touch for macOS
Simple and Safer Way to Interact
This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.*The stylus is an optional accessory. The minimum diameter of the stylus pen tip must be at least 6mm or above.
Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.7H Hardness Screen

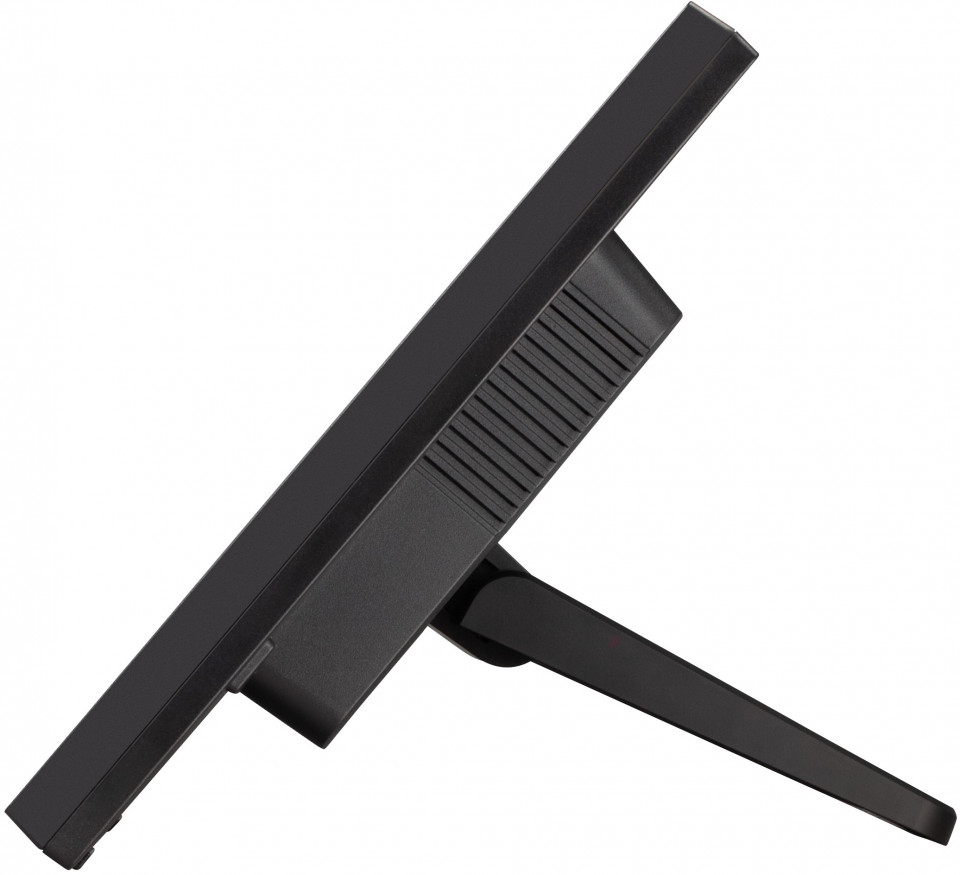

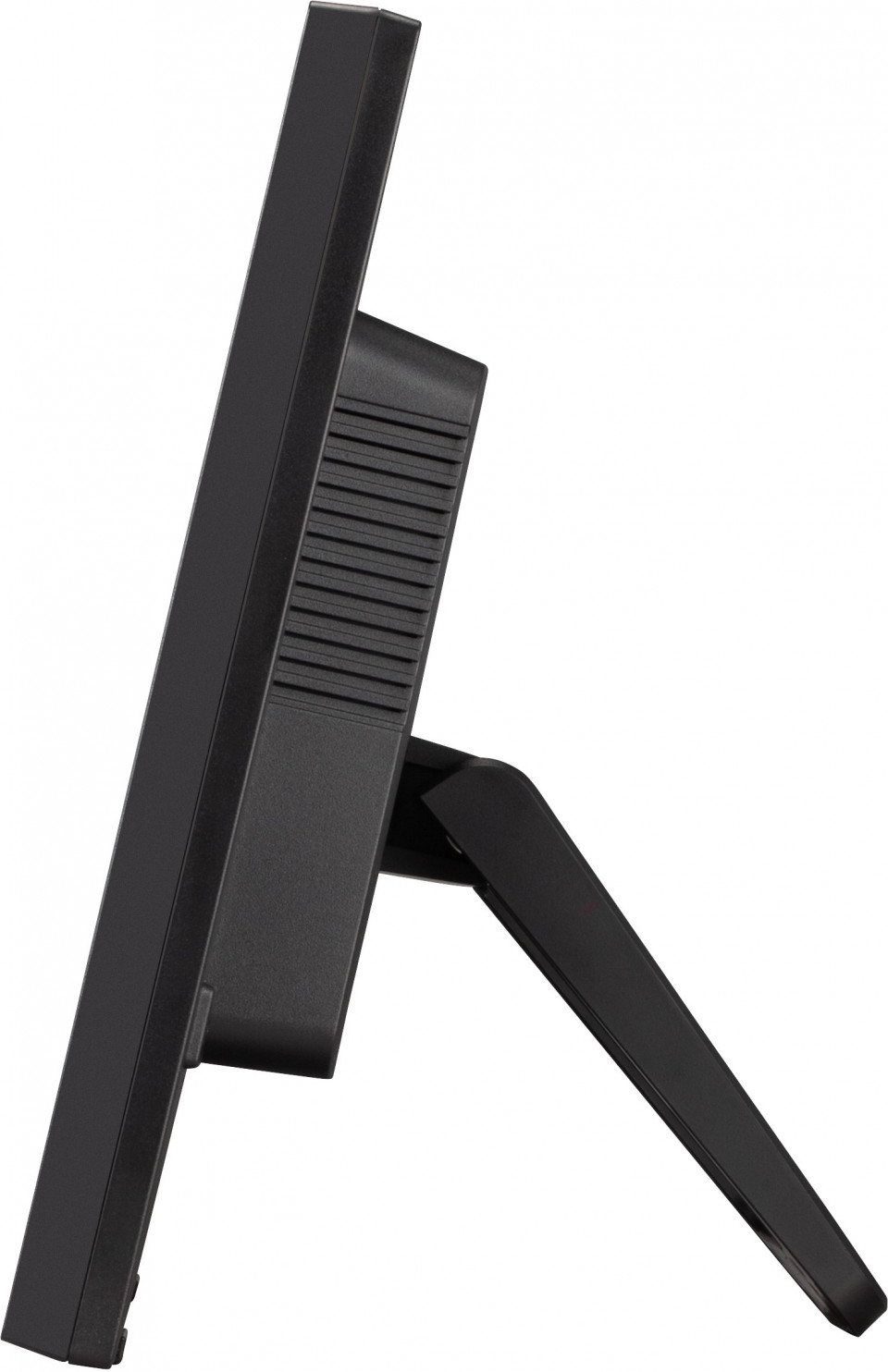

Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.Full HD 1080p
Full HD 1920x1080 resolution creates unbelievably clear pixel-by-pixel image performance. Experience mind-blowing clarity and detail while working, gaming, or enjoying the latest show premieres.Full HD 1080P
Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.Relieve your Eyes from Strain
Reduce your eye strain and keep your eyes feeling fresh. Flicker-Free technology and a Blue Light Filter eliminate screen flickering from extended viewing periods.Flicker-Free & Blue Light Filter

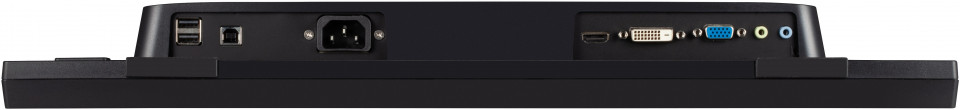

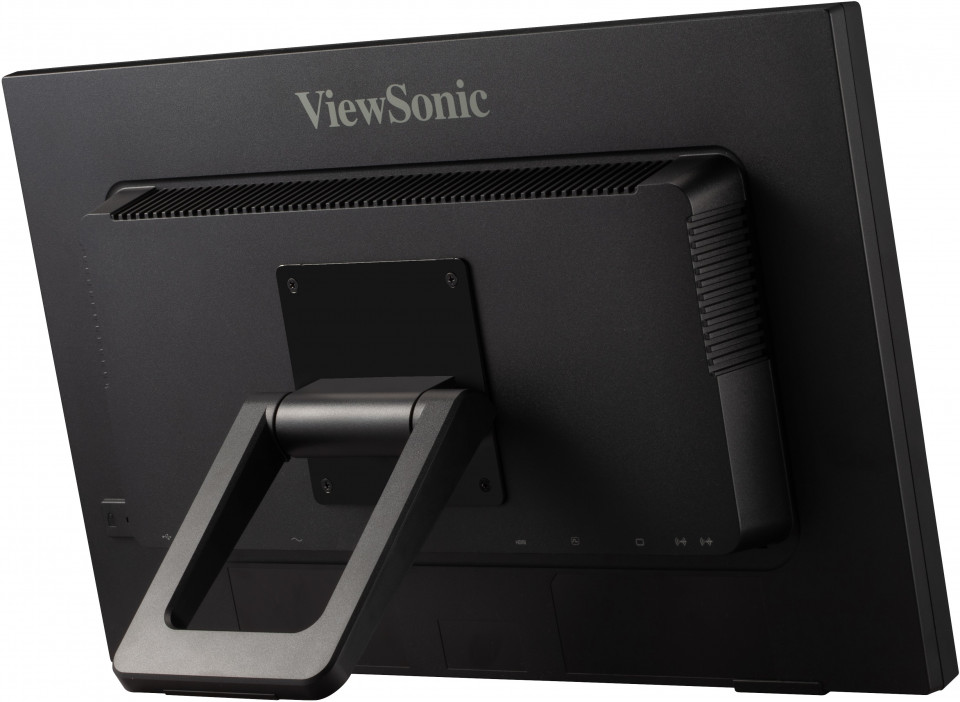

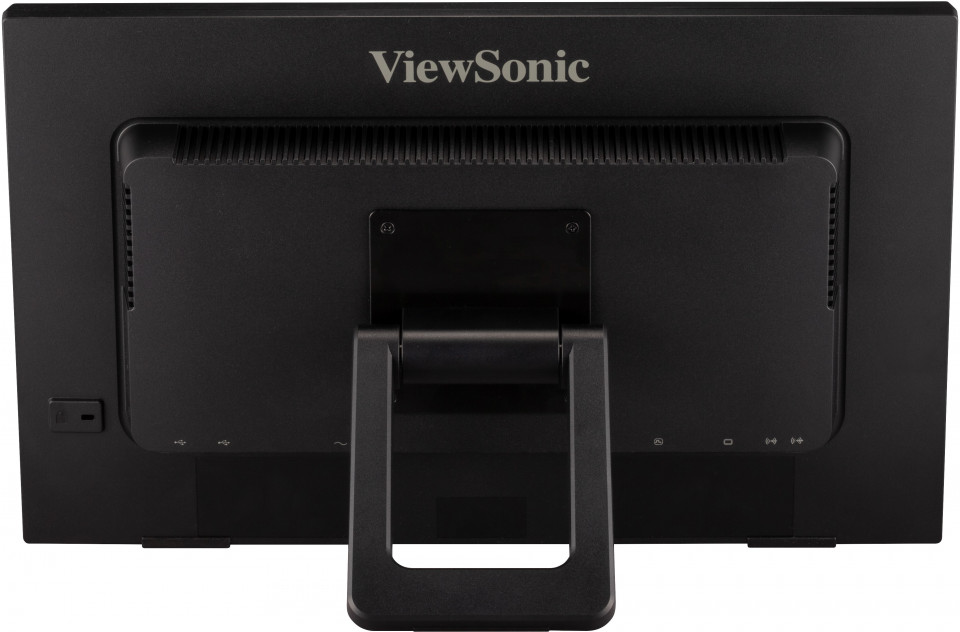

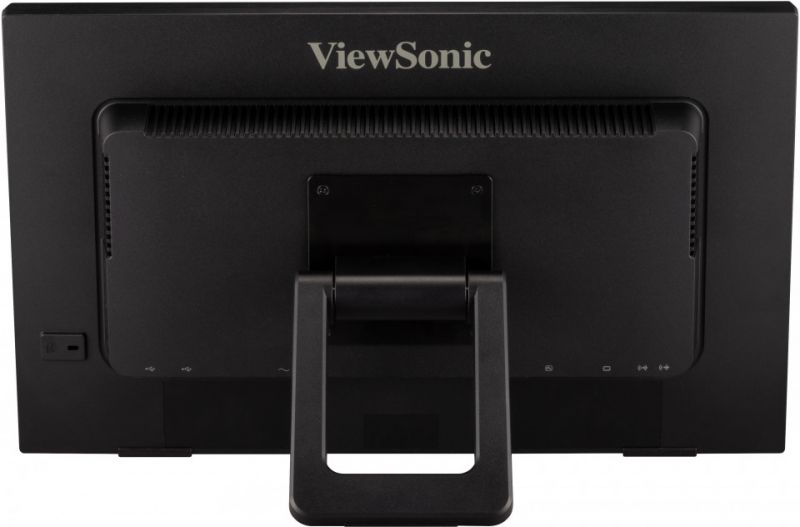

Dimension & I/O Ports

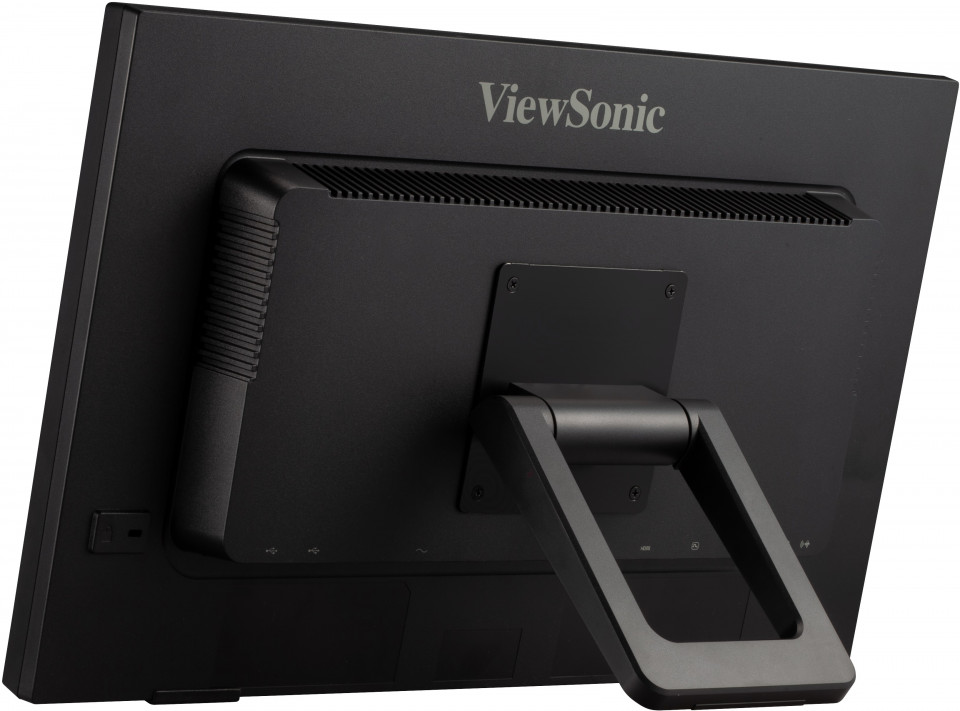

Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design.100mm x 100mm VESA mount
- Menu Control Panel
- Power In
- VESA Compatible
(Wall Mount 100 x 100mm) - HDMI
- DVI
- VGA
- Audio In
- Audio Out
- USB Downstream
- USB Upstream
SPECIFICATIONS
- DisplayTamaño de pantalla (pulg.): 22
Área de visualización (pulg.): 21.5
Tipo de panel: VA Technology
Resolución: 1920 x 1080
Tipo de Resolución: FHD (Full HD)
Relación de contraste estático: 3,000:1 (typ)
Relación de contraste dinámico: 20M:1
Fuente de luz: LED
Brillo: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit true
Relación de aspecto: 16:9
Tiempo de respuesta (GTG típico): 6.5ms
Tiempo de respuesta (GTG w/OD): 6.5ms
Ángulos de visión: 178º horizontal, 178º vertical
Vida de la retroiluminación (Horas): 30000 Hrs (Min)
Curvatura: Flat
Frecuencia de actualización (Hz): 75
Filtro de luz azul: Yes
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Tamaño del píxel: 0.249 mm (H) x 0.241 mm (V)
Pantalla táctil: IR, 10-point multi-touch
Tratamiento de superficies: Glossy, Hard Coating (7H)
Cover Glass Thickness: 2mm - CompatibilidadResolución del PC (máx.): 1920x1080
Resolución Mac® (mín.): 1920x1080
Sistema operativo del PC: Windows 10/11 certified; macOS tested
Resolución Mac® (mín.): 1920x1080 - ConexionesVGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
3.5mm Audio In: 1
Salida de audio de 3.5 mm: 1
HDMI 1.4: 1
DVI-D: 1
Entrada de alimentación: 3-pin Socket (IEC C14 / CEE22)
- AudioAltavoces internos: 2Watts x2
- AlimentaciónModo Eco (Conservador): 13W
Eco Mode (optimized): 16W
Consumo (típico): 18.5W
Consumo (máx.): 21.8W
Voltaje: AC 100-240V
Modo en espera: 0.5W
Fuente de alimentación: Internal Power Supply - Hardware adicionalRanura de bloqueo Kensington: 1
Cable Organization: Yes - Controles de menúControles físicos: 1, 2, Up, Down, Power
Visualización en pantalla: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall - Condiciones de funcionamientoTemperatura: 32°F to 104°F (0°C to 40°C)
Humedad (sin condensación): 20% to 90% - Wall Mount Compatible con VESA: 100 x 100 mm
- Señal de entradaFrecuencia Horizontal: RGB Analog: 24 ~ 82KHz, DVI-D: 24 ~ 82KHz, HDMI (v1.4): 25 ~ 85KHz
Frecuencia Vertical: RGB Analog: 50 ~ 75Hz, DVI-D: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz - Entrada de vídeoSincronización digital: TMDS - DVI-D, TMDS - HDMI (v1.4)
Analog Sync: Separate/Composite/SOG - RGB Analog - ErgonomíaInclinación (adelante / atrás): 20º / 40º
- Peso (imperial)Neto (lbs): 9.3
Neto sin base (lbs): 8
Bruto (lbs): 12.6 - Weight (metric) Neto (kg): 4.2
Neto sin base (kg): 3.7
Bruto (kg): 5.7 - Dimensiones (imperial) (wxhxd)Embalaje (pulg.): 22.8 x 15.9 x 6.4
Físico (pulg.): 20.4 x 12.9 x 4
Físico sin base (pulg.): 20.4 x 12.1 x 2.4 - Dimensiones (métricas) (wxhxd)Embalaje (mm): 580 x 405 x 162
Físico (mm): 519 x 329 x 101
Físico sin base (mm): 519 x 308 x 61 - GeneralCertificaciones: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, BIS
CONTENIDO DEL EMBALAJE: TD2223-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
Reciclar / Desechar: Please dispose of in accordance with local, state or federal laws.
Garantía: *Warranty offered may differ from market to market
Gestión de energía: Energy Star standards, EPEAT
