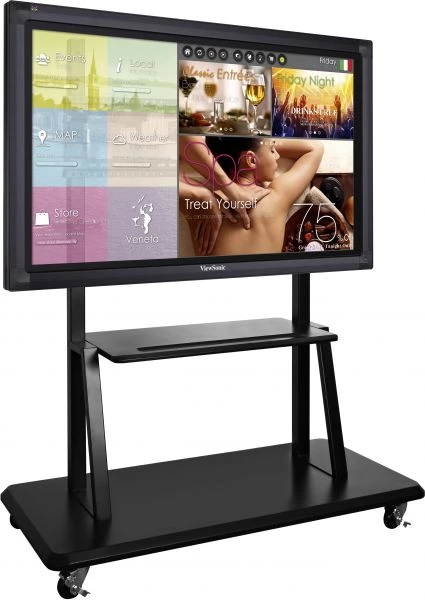

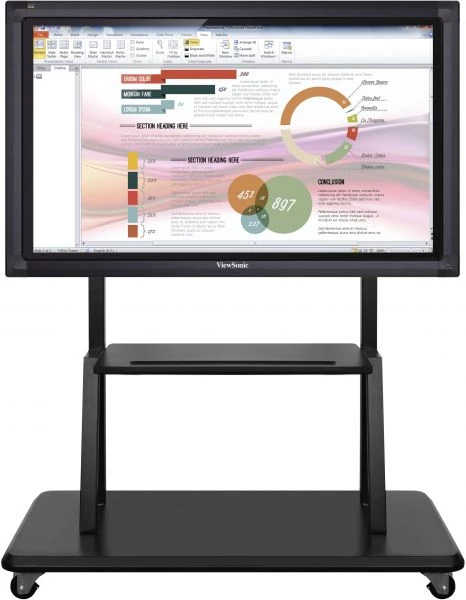

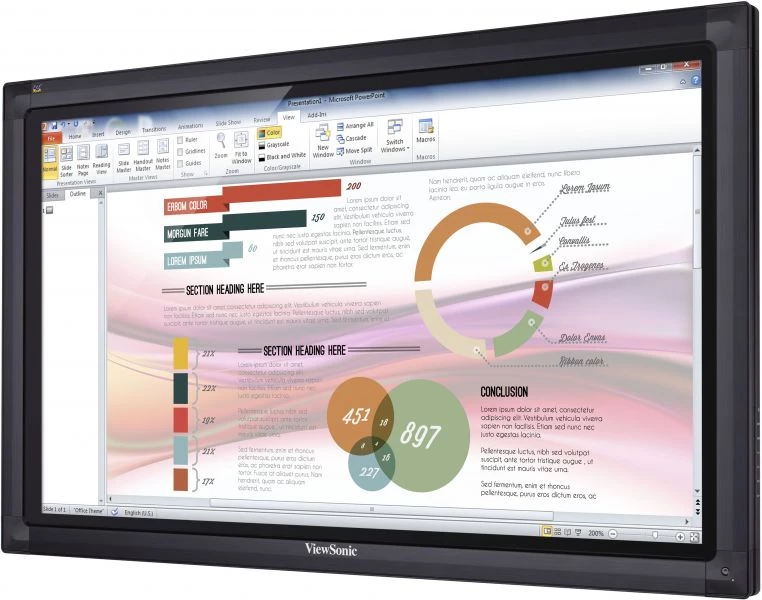

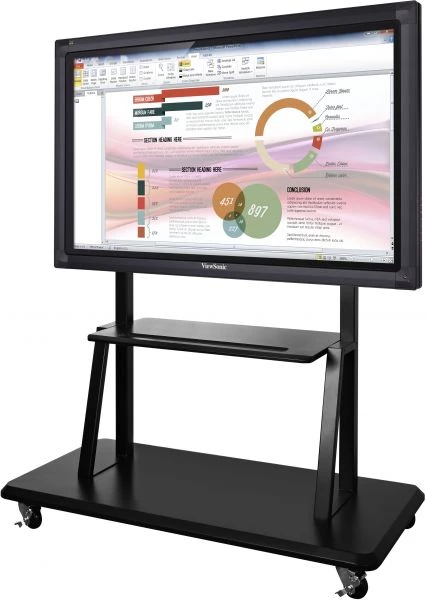

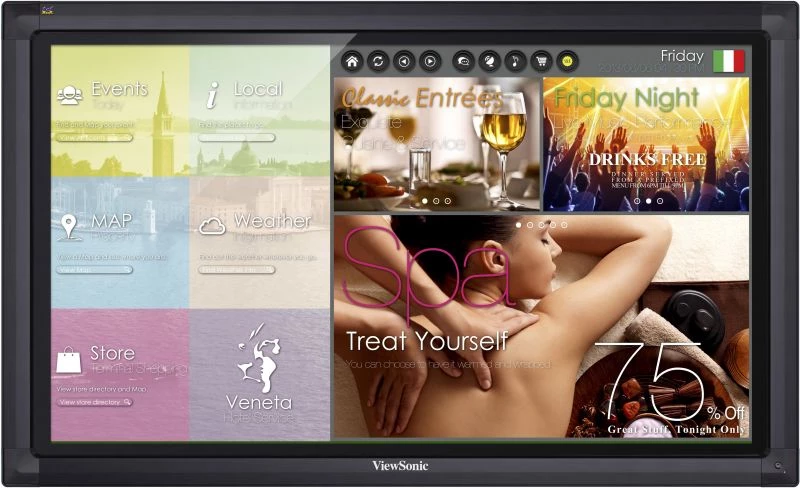

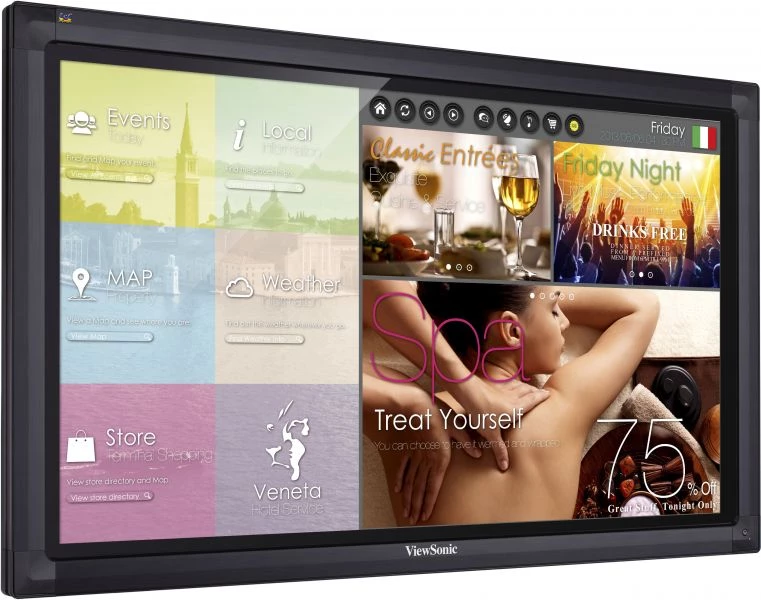

CDE5501-TL

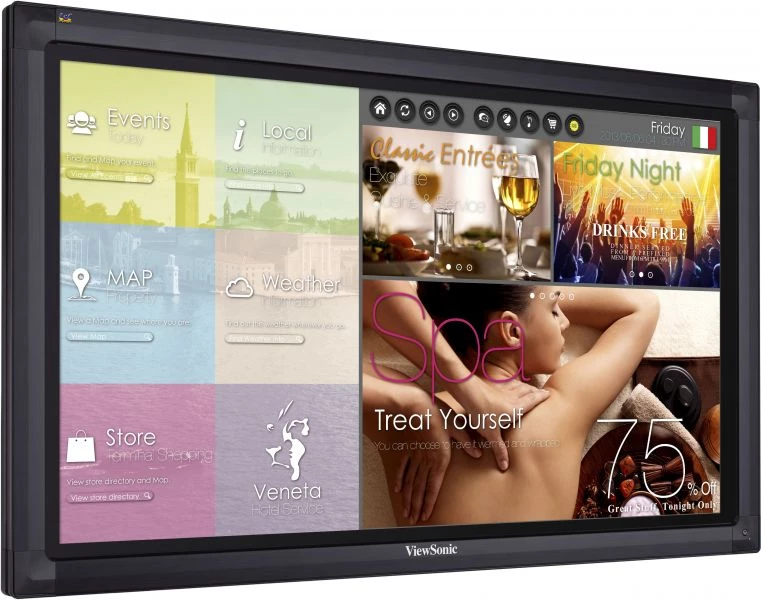

55” Full HD interactive flat panel LED display for education and corporate applications with multi-touch capabi
SPECIFICATIONS
- LCDRatio de contraste: 4,000:1
Ángulos de visión: 178°/178°
Área de visualización: 54.6"
Tiempo de respuesta: <4ms
Resolución nativa: 1920x1080p
Brillo : 400 nits
Retroiluminación: E-LED
Display Orientation: Landscape
Service Life: > 30,000hr
Touch response area: 5mm
Touch Type: Infrared - COMPATIBILIDADPC: TBC
Mac®: TBC - DimensionesEmbalaje: 1480 x 987 x 407mm
Physical: 1369 x 828 x 104mm
- NormativasCB, WEEE, RoHS, Vista Premium, Windows 8 , Windows 7, UL, cUL, FCC-B, TUV-S, NOM, Energy Star 6.0, CE, GOST-R+Hygienic, SASO, Ukraine, CCC, CEL, BSMI, PSB, C-TICK, KC, e-Standby
- CONTENIDO DE LA CAJAPower Cable *1, D-Sub*1, Audio Cable *1 (only for VA2046m-LED), Quick Start Guide *1, ViewSonic CD Wizard *1
- ConectividadSalida de vídeo: CVBS
Control: RS232 In
OPS or PC slot (Optional): PC Slot (proprietary)
Other: USB x 1, B type USB x 1 (for Touch), SPDIF Out x 1
Video/Audio Input: HDMI x 2, VGA x 2, PC audio x 2, S-video x 1, YPbPr x 1, CVBS x 1 - AlimentaciónConsumo: 150 max
Power Off Mode: < 0.5W (typ)
Power On Mode: < 150W (typ)
Power-Saving Mode (stand-by): < 0.5W (typ)
Rated Voltage: 100V-240V AC, 50/60HZ - PesoNeto: 47 kg (103.4 lb.)
- MECHANICALBezel Width (T/B/L/R): 55mm
Gross Dimensions (W x H x D): 1480 x 987 x 307mm
Net Dimensions (W x H x D): 1369 x 828 x 104mm
Net/Gross Weight: 47 / 55 kg
Speaker Output: 15W x 2
VESA Mount: 400 x 400 (M8) - TOUCHTempered Glass: 7H, AG Coding
Touch Connection: USB
Resolución táctil: 4096 x 4096
