Odnímatelné PC moduly
VPC16-WP-3
Klíčové Vlastnosti
- Bundled with myViewBoard™ digital whiteboard software and ViewBoard® Cast content sharing software
- Powerful system with Intel® Core™ i5-8500 processor, 8GB (up to 32GB) DDR4 memory, and 128GB (up to 512GB) SSD storage
Produkt Popis

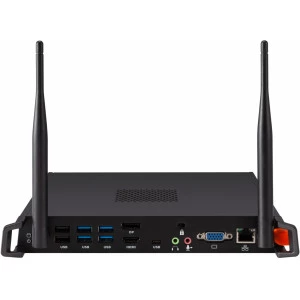

The ViewSonic® VPC16-WP-3 Windows slot-in PC is the ideal integrated solution for ViewBoard® interactive displays. This slot-in PC module supports high-definition audio and video, and is bundled with myViewBoard™ digital whiteboard software and ViewBoard® Cast content sharing software. With wired connectivity, dual-band Wi-Fi and Bluetooth, a powerful Intel® Core™ i5 processor, 8GB (up to 32GB) DDR4 memory, and 128GB (up to 512GB) SSD storage, the VPC16-WP-3 contains the computing power needed to operate CPU intensive applications.
Navštivte nás
- www.viewsonic.com
-
JáDRO
CPU: Intel 8th Gen. coffee Lake series with vPro, TPM
i5-8500 3.0GHzGrafika: Integrated Intel® HD Graphics 530
Total Available Graphics Memory: 64GB
Max Resolution up to 4096x2304@60Hz -
PAMěť
Typ: 260-pin DDR4 SO-DIMM x 2 Kapacita: 8GB (up to 32GB) -
SOFTWARE
Operační systém: Windows 10 Pro 64 bit -
ÚLOžNý PROSTOR
Rozměr: M.2 -2242(22 x 42 mm) / 2280(22 x 80 mm) Kapacita: 128GB SSD (up to 512GB) Rozhraní: M.2 -2242/2280 -
INPUT
MIC (Mikrofon): x1 -
OUTPUT
RGB / VGA: x1 DisplayPort: x1 (max. resolution 4096x2304@60Hz) HDMI: x1 (max. resolution 3840x2160@24Hz) Audio: x1 Earphone Out -
LAN
RJ45: 1 x RTL8111(Gigabit) -
BEZDRáTOVé PřIPOJENí / BLUETOOTH
Bezdrátové připojení / Bluetooth: Intel 9260 or 9560 WiFi+BT5.0 Module dual band -
USB
Typ A: USB 3.0 x 4, USB 2.0 x 2 Typ C: USB 3.1 x 1 -
PODPORA FORMáTU MéDIí
Video formát: Container: ASF, WMA, WMV, WM, ASX, WAX, WVX , WMX, WPL, WMD, AVI, MPG, MPEG, M1V, MP2, MP3, MPA, MPE, M3U Formát obrázku: Container: JPG, JPEG, JPE, JFIF, BMP, , DIB, PNG, GIF, TIF, TIFF Audio kodek: Container: MID, MIDI, RMI, AIF, AIFC, AIFF, WAV, CDA -
BALíčEK SOFTWARU
Balíček softwaru: myViewBoard for Windows
QuickLaunch
Intel Unite
SureMDM
Nix Agent -
VýKON
Napětí: AC 110-240V 50 / 60Hz Spotřeba: 95W -
OPERATING CONDITIONS
Teplota (º C): -5°C to 45°C Vlhkost: 10% ~ 90% @ 40°C Non-condensing. -
ROZMĚRY (Š X V X H)
Fyzicky (palce / mm): 246.2*265.4*32.2mm Balení (palce / mm): 350*310*90mm (1pc)
495*370*340mm (5pcs) -
WEIGHT
Čistá hmotnost (lb / kg): 4.3lb / 1.95kg Hrubá hmotnost (lb / kg): 4.63lb / 2.1kg -
OBSAH BALENÍ
OBSAH BALENÍ: 1. VPC16-WP
2. ViewSonic Wizard CD
3. QSG -
UPC KóD
UPC kód: 76690700320 8
