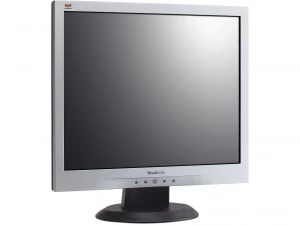

ViewSonic VA903m 19" VALUE SERIES LCD MONITOR WITH MULTIMEDIA

Klíčové Vlastnosti

Produkt Popis

The 19" ViewSonic VA903m is the all-in-one price performance solution for all needs. No matter if your use is for entertainment or for intensive graphics, whether in the home or in the office, the VA903m fits the bill perfectly. Its 5ms response time delivers crisp images and fluid full-motion video for games, movies and scrolling-text. Matched with high 700:1 contrast levels and 300cd/m² brightness, the VA903m displays brilliant, vivid, true-to-life colours. Invisible built-in speakers deliver true multimedia performance. The slim styling and silver-black bezel add to the monitors appeal. Prepare to be impressed by the performance, quality and style of the VA903m.

Navštivte nás

www.viewsonic.com

LCD

Typ:	48cm / 19" TN colour TFT active matrix SXGA LCD
Kontrastní poměr:	700:1 (typ.)
Zobrazovací úhly:	150° horizontal, 135° vertical (at 10:1) 160° horizontal, 150° vertical (at 5:1)
Jas:	300cd/m² (typ.)
Display Area:	37.6cm horizontal x 30.1cm vertical; 48.3cm diagonal
Optimum Resolution:	1280 x 1024@60Hz
Doba odezvy:	5ms (off-on-off) (typ.)
Světelný zdroj:	Long life, 50000 hrs. (typ.)
Panel Surface:	Anti-glare (3H)
Pixel Pitch:	0.294mm
Colour Support:	16.7M colours (6-bit + 2-bit FRC)
Pixel Clock:	135MHz

COMPATIBILITY

PC: VGA up to 1280 x 1024 non-interlaced (@60Hz preferred)

Mac®: Power Mac™ up to 1280 x 1024 non-interlaced (@60Hz preferred)
DIMENSIONS

Physical With Stand: 416 x 428 x 210
OBSAH BALENÍ

LCD Monitor, power cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
AUDIO

Reproduktor: 2 x 1 watt integrated invisible stereo speakers
CONNECTOR

Analogue: 15-pin mini D-Sub (attached cable)

Výkon: 3-pin AC plug (CEE22)

Audio (input/output): 3.5mm stereo audio line-in
POWER

Napětí: AC 100 – 240V, 50/60Hz (auto switch), internal power supply

Spotřeba: <35 watt (max.), <1 watt in power save mode

CONTROLS

Basic:

Power, menu [1], up, down, select [2]

OSD:

Auto image adjust, contrast, brightness, audio adjust (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number, website), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language [English, Finnish, French, German, Italian, Japanese, Spanish, Simplified Chinese, Traditional Chinese], resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

OPERATING CONDITIONS

Teplota: 0°C – 40°C

Vlhkost: 10% – 90% (non-condensing)
WEIGHT

Net With Stand: 4.6kg

Hrubý: 5.8kg
VIDEO INPUT

Frequency: Fh: 30 – 82kHz, Fv: 50 – 85Hz

Sync: H/V separated (TTL)

Analogue: RGB analogue (0.7 Vp-p, 75 ohm)
POWER MANAGEMENT

Meets TCO’03 and ENERGY STAR standards
SECURITY

Kensington® security port
VESA MOUNT COMPLIANT

VESA FDMI 100mm x 100mm
ERGONOMICS

Naklápění: Down 5°, Up 20°

PC:	VGA up to 1280 x 1024 non-interlaced (@60Hz preferred)
Mac®:	Power Mac™ up to 1280 x 1024 non-interlaced (@60Hz preferred)

Analogue:	15-pin mini D-Sub (attached cable)
Výkon:	3-pin AC plug (CEE22)
Audio (input/output):	3.5mm stereo audio line-in

Napětí:	AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Spotřeba:	<35 watt (max.), <1 watt in power save mode

Frequency:	Fh: 30 – 82kHz, Fv: 50 – 85Hz
Sync:	H/V separated (TTL)
Analogue:	RGB analogue (0.7 Vp-p, 75 ohm)

Teplota:	0°C – 40°C
Vlhkost:	10% – 90% (non-condensing)

Net With Stand:	4.6kg
Hrubý:	5.8kg
