Klíčové Vlastnosti
  • 6,000 ANSI Lumens to deliver bright images up to 200" in size
  • 2nd generation Laser Phosphor technology with a 20,000-hour lifespan
  • 0.81-0.89 short throw ratio for minimal space consumption
  • Wide H/V lens shift, 360° projection & portrait mode for flexible installation
  • Dual HDMI 2.0b supporting 4K HDR/HLG content
  • Cost-effective compact size and built-in HDBaseT

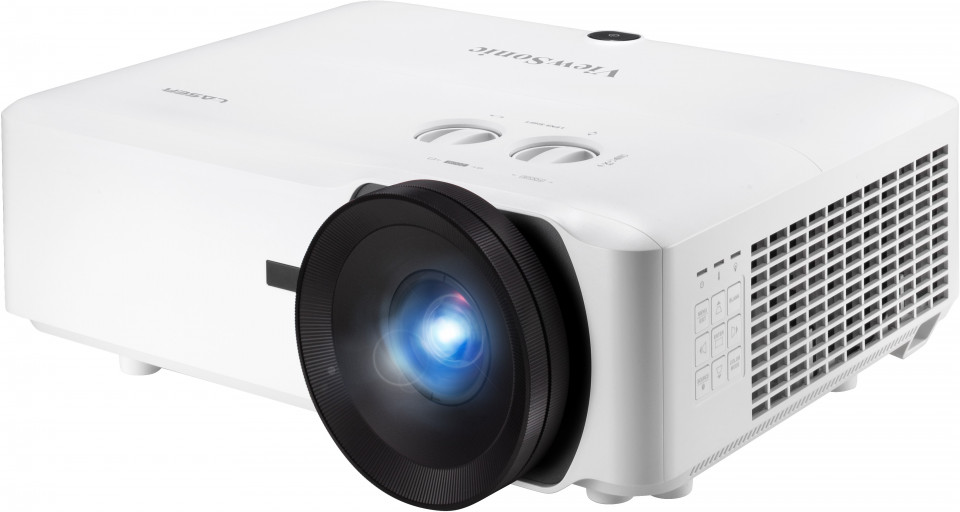

LS921WU
Produkt Popis
The LS921WU is an advanced 6,000 ANSI Lumens WUXGA short throw installation projector. Adopting 2nd generation Laser Phosphor technology, the LS921WU offers high and consistent brightness with a lifespan of 20,000 hours and a screen size of up to 200". Short throw ratio, 1.1x optical zoom, wide lens shift, 360° projection, and portrait mode combine for incredible flexibility to create a truly immersive experience, especially ideal for blending projection applications in restaurants, gyms, and simulation/experience centers. Dual HDMI 2.0b / HDCP 2.2 ports ensure access to original 4K quality content with HDR/HLG formats supported. Add to that the compact size and built-in HDBaseT for the perfect mix of high-quality projection and cost-effectiveness.
  1. Power Key & IR
  2. Front IR
  3. Lens
  4. Lens Shift Control Knob
  5. Zoom/Focus Ring
  6. Adjustment Foot
  7. LED Indicator
  8. Keypad
  9. Composite
  10. S-Video
  11. USB Type A(5V/1.5A)
  12. HDMI X 2
  13. HDBaseT
  14. Computer In
  15. Monitor Out
  16. LAN
  17. Audio In & Out
  18. 3D VESA
  19. 12V OUT
  20. RS-232
Navštivte nás
  • www.viewsonic.com
  • SPECIFIKACE
    Projekční systém: 0.48" WUXGA
    Nativní rozlišení: 1920x1200
    DMD Typ: DC3
    Jas: 6000 (ANSI Lumens)
    Kontrastní poměr: 3000000:1
    Display Color: 1.07 Billion Colors
    Typ světelného zdroje: Laser Phosphor system
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Lampa Watt: Nichia 74W x2
    Objektiv: F=1.83-1.86, f=8.6-9.4mm
    Posun projekce: 0%
    Projekční poměr: 0.81-0.89
    Optický zoom: 1.1X
    Digital Zoom: 0.8x-2.0x
    Velikost obrázku: 60"-200"
    Projekční vzdálenost: 1.04-3.83m
    (100"@1.74m)
    Keystone: H:+/-40° , V:+/-40°
    Posun objektivu V. Rozsah: +50%, -50%
    Posun objektivu H. Rozsah: +23%, -23%
    Hlučnost (Normal): 36dB
    Audible Noise (Eco): 29dB
    Vstupní zpoždění: 16ms
    Podpora rozlišení: VGA(640 x 480) to 4K(3840 x 2160)
    Kompatibilita s HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
    Kompatibilita s video soubory: NTSC, PAL, SECAM
    Horizontální frekvence: 15K-135KHz
    Vertikální rychlost snímání: 23-120Hz
  • VSTUP
    Počítač v (sdílet s komponentem): 1
    Kompozitní: 1
    S-Video: 1
    HDMI: 2
    (HDMI 2.0, HDCP 1.4/2.2)
    Audio vstup (3,5 mm): 1
    Audio vstup (RCA R/L): 1
    3D VESA (Sync): 1
    HDBaseT: 1
  • VýSTUP
    Monitor out: 1
    Audio-out (3.5mm): 1
    Reproduktor: 10W x2
    USB typu A (napájení): 1 (5V/ 1.5A)
    Spouštěč 12 V (3,5 mm): 1
  • KONTROLA
    RS232 (DB 9-pin male): 1
    RJ45 (LAN control): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • DALší
    Napětí zdroje napájení: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Spotřeba energie: Normal: 450W
    Standby: <0.5W
    Provozní teplota: 0~40℃
    Carton: Brown
    Čistá hmotnost: 6.5
    Gross Weight: 9
    Rozměry (ŠxHxV) s nastavovací základnou: 405x305x145mm
    Packing Dimensions: 515x490x276mm
    OSD jazyk: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, total 23 languages
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • STANDARD ACCESSORY
    Napájecí kabel: 1
    VGA kabel: 1
    Dálkové ovládání: 1
    (w/ laser pointer)
    QSG: Yes
    Záruka: *Warranty offered may differ from market to market
  • VOLITELNé PříSLUšENSTVí
    Wall/Ceiling Mount: PJ-WMK-007
