Klíčové Vlastnosti
  • 163" seamless large screen with high brightness and powerful speakers
  • All-in-One integration for effortless installation
  • Anti-collision, dustproof, and moisture-proof with GOB surface treatment
  • Detachable system control box for a minimalist appearance and easy access
  • Premium aesthetics with an ultra-slim and bezel-free design
  • Capable of PIP/PBP display, wireless casting, and LAN control

LDM163-182
Produkt Popis
The ViewSonic LDM163-182 is a cutting-edge 163” All-in-One LED display designed to elevate visual and auditory experiences in high-end corporate and educational environments. Boasting an impressive 600-nit brightness, a high 6,500:1 contrast ratio, and a 3,840Hz refresh rate, complemented by dual 30W speakers, it ensures exceptional clarity and immersive audio for every video, presentation, or lecture. The All-in-One design seamlessly streamlines installation, allowing 2 people to set it up within 2 hours, thereby minimizing labor costs and downtime. This display utilizes the Glue-on-Board (GOB) surface treatment technology, achieving an IP54 rating for enhanced protection from collisions, dust, and moisture. Featuring a 31mm ultra-slim design and 6mm thin bezels, the display offers a premium aesthetic and ensures an engaging viewing experience. Additionally, the detachable control box enables it to achieve a nearly 99% screen-to-body ratio, seamlessly integrating into any space while providing easy accessibility. Moreover, it supports PIP/PBP display and wireless casting capabilities, offering more flexibility for collaboration. Adding to its convenience, compatibility with AV control systems enables IT staff to remotely configure the display.

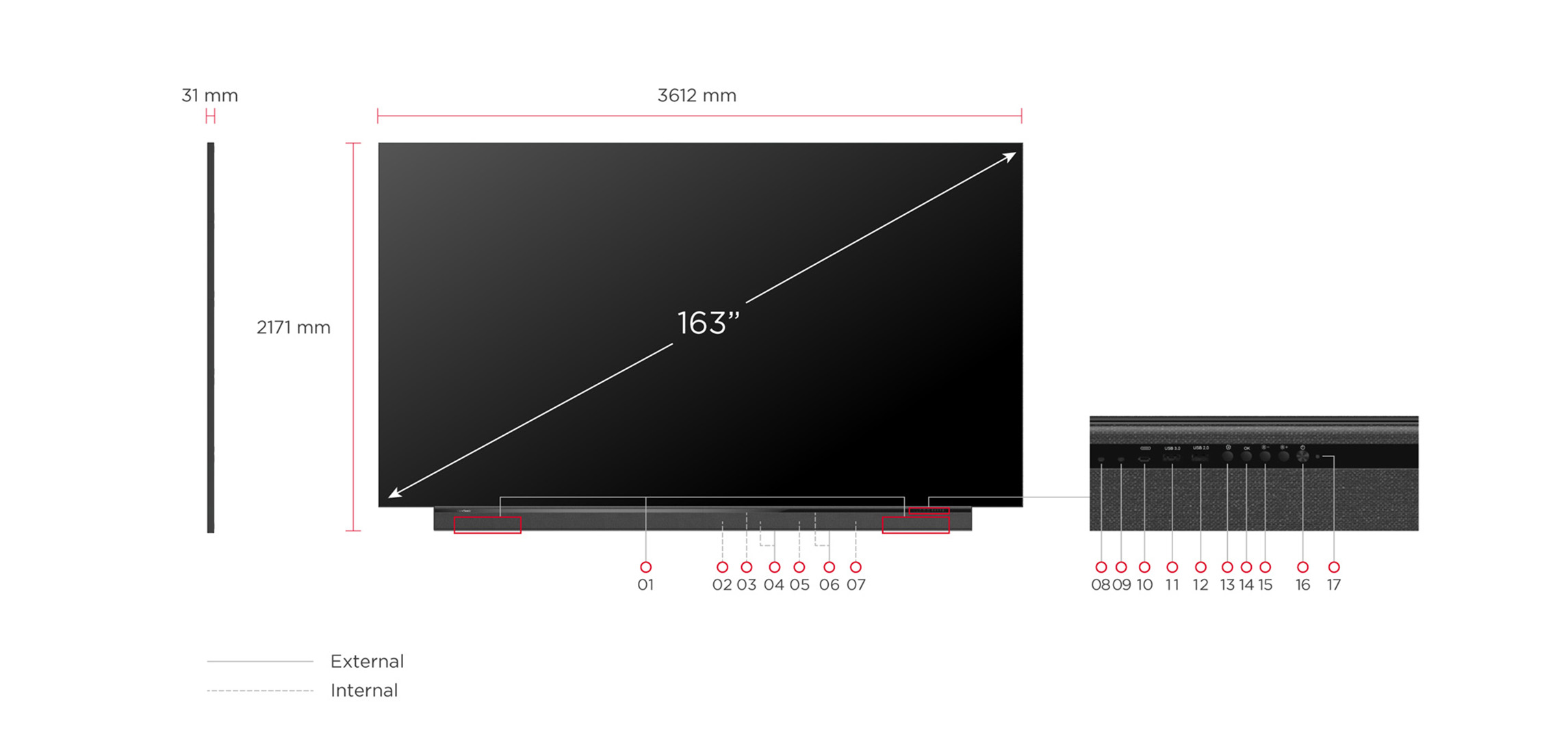

  1. Speakers
  2. HDMI Out
  3. SPDIF Out
  4. HDMI In*4
  5. LAN
  6. Audio Out*2
  7. IR Interface
  8. Light Sensor
  9. IR Receiver
  10. USB-C
  11. USB-A 3.0
  12. USB-A 2.0
  13. Menu Control: Setting
  14. Menu Control: Enter
  15. Menu Control: Brightness Level
  16. Power Button
  17. Indicator Light
Navštivte nás
  • www.viewsonic.com
  • SPECIFIKACE
    Screen Size: 163"
    Plocha displeje (mm): 3600 (H) × 2025 (V)
    Nativní rozlišení: 1920x1080
    Panel Technology: Direct view LED
    LED Package Type: SMD 3 in 1
    Bonding Wire: Copper
    Pixel Pitch (mm): 1.875
    Refresh Rate: 3840Hz
    Brightness (max.): 600 nits (100 levels adjustable)
    Contrast Ratio (typ.): 6500:1
    Orientace: Landscape
    Viewing Angles (typ.): H = 170, V = 170
    LED Lifetime (typ.): 100,000 Hours
    Místní úložiště: Total 32GB
    (26GB available storage)
    Zabudovaný operační systém: Android 9.0
    Podpora rozlišení: VGA(640 x 480) to 4k(3840 * 2160@60hz)
    Kompatibilita s HDTV: 480p, 576p, 720p, 1080p, 2160p
    Horizontální frekvence: 31K-94kHz
    Vertikální rychlost snímání: 56-85Hz
  • VSTUP
    HDMI: x4
    (HDMI 2.0, HDCP 2.2)
    (internal x3 + external x1)
    USB Typu A: x2
    (USB3.0 x1, USB2.0 x1)
    RJ45 Input (Internet): x3
    (internet x2, control x1)
    IR in: x1
    Wi-Fi Input: 2.4G/5G Hz
    USB Typu C: x1
    (data only)
  • VýSTUP
    HDMI out: x1
    (HDMI 1.4, HDCP 1.4)
    (internal x1)
    Reproduktor: 30Wx2
    Audio výstup (3,5 mm): x2
    USB typu A (napájení): Shared with USB input
    (5V/0.9A x1, 5V/0.5A x1, USB-C 5V/1A x1)
  • KONTROLA
    RJ45 (LAN control): x1(shared with internet)
    USB Type A (Services): x1(shared with USB A input)
    RS232 (DB 9-pin female): x1
    IR Receiver: x1
  • DALší
    Napětí zdroje napájení: 100-120V/30A ~ 50/60Hz or 220-240V/15A ~ 50Hz
    (vary by country)
    Spotřeba energie: 919W (typ), 2642W (max)
    < 0.5W (Off)
    Provozní teplota: 0~40℃
    LED Module Quantity: 144
    Ingress Protection Rating: IP54(Front)
    Čistá hmotnost: 456.35 lbs
    (227kg)
    Gross Weight: 795.87 lbs
    (361kg)
    Screen Dimensions (WxHxD): 142.2 x 80.2 x 1.2 inches
    (3612 x 2037 x 31mm)
    Screen Dimensions (WxHxD) with wall mount: 142.2 x 80.2 x 2.1 inches
    (3612 x 2037 x 53mm)
    Packing Dimensions (WxHxD): 88.58 x 48.81 x 39.37 inches
    (2250 x 1240 x 1000mm)
  • STANDARD ACCESSORIES
    Napájecí kabel: x1
    LAN Cable (Cat 5A): x1
    IR Extender Cable: x1
    Dálkové ovládání: x1
    QSG: x1 (Installation guide)
    Nástěnný držák: x1
    Spare Parts: LED PCB Unit x10
    Maintenance Tool: LD-MK-003 x1
    LD-MK-004 x1
  • OPTIONAL ACCESSORIES
    Maintenance Tool: LD-MK-003
    LD-MK-004
    Floor Stand: LD-STND-009
    ViewBoard Cast Button(USB-C): VB-WPS-001
    ViewBoard Cast Button(USB-A+HDMI): VB-WPS-003
